B94HNC78CTablet PC

User Guide © Copyright 2013 Hewlett-Packard Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel is a trademark of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: December 2013 Document Part Number: 738070-001 Product notice This user guide describes features that are common to most models. Some features may not be available on your tablet. To obtain the latest information in this guide, contact support. For worldwide support, go to http://welcome.hp.com/ country/us/en/wwcontact_us.html. Software terms By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a refund subject to the refund policy of your place of purchase. For any further information or to request a full refund of the computer, please contact your local point of sale (the seller). Safety warning notice WARNING!To reduce the possibility of heat-related injuries or of overheating, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The tablet and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950). iii iv Safety warning notice Table of contents 1 Welcome .......................................................................................................................................................... 1 Finding information ............................................................................................................................... 2 2 Getting to know your tablet ........................................................................................................................... 4 Front ..................................................................................................................................................... 4 Rear ...................................................................................................................................................... 6 Top ....................................................................................................................................................... 7 Bottom .................................................................................................................................................. 8 Locating system information ................................................................................................................. 8 Changing your tablet's settings ............................................................................................................ 8 Changing your tablet's view ................................................................................................. 8 Using the tablet's autorotate lock feature ............................................................ 9 Adjusting your tablet's screen brightness ............................................................ 9 Finding your hardware and software information ................................................................................. 9 Locating hardware ............................................................................................................... 9 Locating software ................................................................................................................. 9 Updating the software installed on the tablet ....................................................................... 9 3 Connecting to a network .............................................................................................................................. 11 Connecting to a wireless network ....................................................................................................... 11 Using the wireless controls ................................................................................................ 11 Using an Internet service provider .................................................................... 12 Setting up a WLAN ............................................................................................ 12 Configuring a wireless router ............................................................................ 12 Protecting your WLAN ....................................................................................... 13 Connecting to a WLAN ...................................................................................... 13 Using HP Mobile Broadband (select models only) ............................................................ 14 Inserting and removing a SIM ........................................................................... 14 Using GPS (select models only) ........................................................................................ 15 Using Bluetooth wireless devices ...................................................................................... 16 4 Navigating using touch gestures ................................................................................................................ 17 Using touch screen gestures ....................................................................................................…

Text truncated - open the document above for the full version.

Regulatory, Safety and Environmental Notices User Guide © Copyright 2012 Hewlett-Packard Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. ENERGY STAR is a registered mark owned by the U.S. government. Java is a trademark of Sun Microsystems. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Third Edition: September 2012 Second Edition: July 2012 First Edition: March 2012 Document Part Number: 689409-003 About This Guide This guide provides regulatory, safety and environmental information that is compliant with U.S., Canadian, and international regulations for notebook computers, desktops, thin clients and personal workstations. WARNING!Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION:Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. NOTE:Text set off in this manner provides important supplemental information. iii iv About This Guide Table of contents 1 Regulatory notices for notebook computers ............................................................................................... 1 Federal Communications Commission notice ...................................................................................... 3 Modifications ........................................................................................................................ 3 Cables .................................................................................................................................. 3 Declaration of Conformity for products marked with the FCC logo (United States only) ..... 4 Products with wireless LAN devices or HP Mobile Broadband Modules ............................. 4 Brazil notice .......................................................................................................................................... 5 Canada notices .................................................................................................................................... 5 European Union regulatory notices ...................................................................................................... 5 Declaration of Conformity .................................................................................................... 5 Products with wireless modules (EMF) ............................................................... 6 European telephone network declaration (Modem/Fax) ..................................... 7 Ergonomics notice ............................................................................................... 7 Germany (English text) ....................................................................... 7 Germany (Deutscher text) .................................................................. 7 Japan notices ....................................................................................................................................... 8 Wireless LAN, Wireless WAN, and Bluetooth certification markings ................................... 9 South Korea notices ............................................................................................................................. 9 Mexico notice ....................................................................................................................................... 9 Singapore wireless notice .................................................................................................................... 9 Thailand WWAN wireless notice ........................................................................................................ 10 Taiwan notices ................................................................................................................................... 10 Wireless LAN 802.11a devices .......................................................................................... 10 Wireless LAN 802.11b devices .......................................................................................... 10 Airline travel notice ............................................................................................................................. 11 User-replaceable battery notices ........................................................................................................ 11 ENERGY STAR® compliance ............................................................................................................ 11 Laser compliance ............................................................................................................................... 12 Modem notices ................................................................................................................................... 12 Telecommunications device approvals .............................................................................. 12 U.S. modem statements .................................................................................................... 13 U.S. modem declarations .................................................................................................. 13 Canada modem statements ............................................................................................... 15 Japan modem statements ................................................................................................. 15 New Zealand modem statements ..................................................................…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer 281.514.2756 Tel [email protected] November 15, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: B94HNC78C Dear Sirs: We will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Also, neither we nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), are subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

Authorizationon Behalf of Hewlett-Packard Company For the US Federal Communications Commission Office of Engineering and TechnologyandOther FCC Programs and Offices 1. I, David P. Adams, am Canada/USA Technical Regulations Manager for Hewlett- Packard Company (“Hewlett-Packard”) and Applicant/Grantee Contact of Recordfor Hewlett- Packard together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings withthe United States Federal Communications Commission (“”FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third partyagents for HP withregard to particular matters and applications. All acts carried out and requests made by this named representativerelating to any matter before the FCC, including requests for confidentiality,shallhave the same effect as mine. Name:Walter Overcash Title:RegulatoryEngineer Address:Hewlett-Packard Company Mailstop 050807 11445 Compaq Center Drive W Houston, TX 77070 Telephone:281-514-2756 E-mail:[email protected] 3. Questionsabout the scope and effect ofthis Authorization should be addressed as follows: David P. Adams Canada/USA Region Technical Regulations Manager 1501 Page Mill Road, MS1229 Palo Alto, CA 94304-1126 650.857.4423 Telephone 650.857.4882 Fax [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed atPalo Alto, California, on the date indicated below my signature. ____________________________ Signature David P. Adams Canada/USA Technical Regulations Manager Hewlett-Packard Company _March 5, 2008______________ Date

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer 281.514.2756 Tel [email protected] November 15, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Permanent Confidentiality Request for application for FCC ID: B94HNC78C Dear Sirs: Pursuant to Public Notice DA 04-1705, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request the Commission grant short-term confidentiality on the following attachments until May 15, 2014:  Internal Photographs  External Photographs  User’s manual  Test Set up photos Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we request permanent confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to us and provide unjustified benefits to our competitors. We understand that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer 281.514.2756 Tel [email protected] November 15, 2013 Dear Sirs: Jones Tsai of Sporton International Inc. is authorized to open projects on Hewlett-Packard’s behalf for the purpose of radio assessment/certification under the following conditions: 1. This authorization is extended only to the Hewlett-Packard Regulatory Model HSTNN-C78C with FCC ID: B94HNC78C and IC: 466Q-HNC78C. 2. This authorization is extended only for the following certifications/testing: FCC and IC. 3. All invoices for services rendered should be sent to Sporton International Inc. and not to Hewlett-Packard. Licenses and test reports generated on Hewlett-Packard’s behalf must be emailed or copied to my attention when completed. 4. No access should be granted to any existing Hewlett-Packard file or project information. 5. The certifications and test reports should note only Hewlett-Packard’s name and Regulatory Model. No other company or product identification should be noted on the certificates or test reports except as needed by the regulator. 6. The FCC certification must be applied for using the Short-Term Confidentiality program as described in FCC DA 04-1705. If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

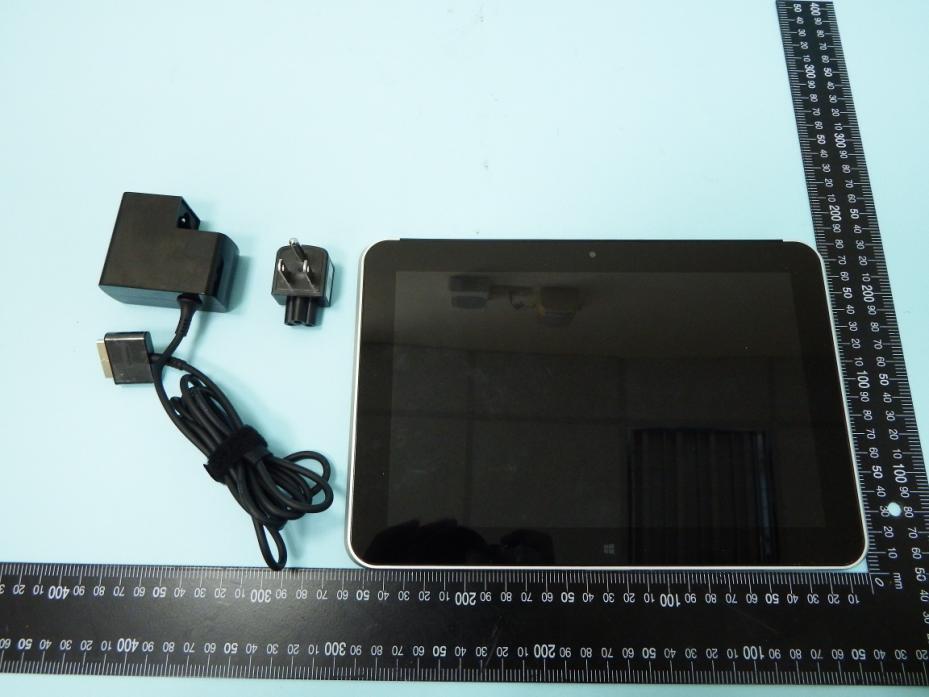

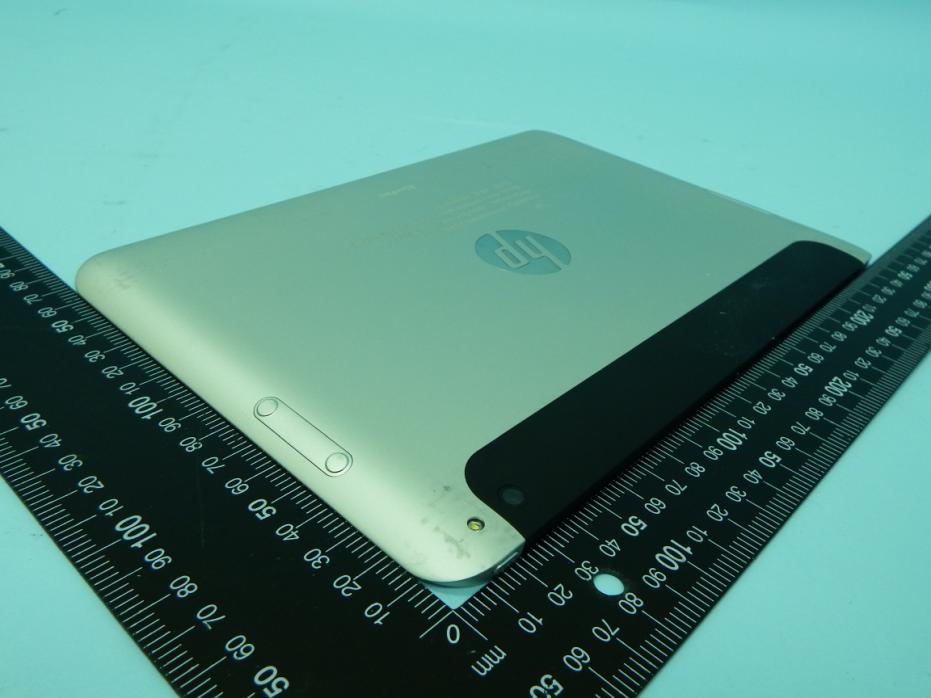

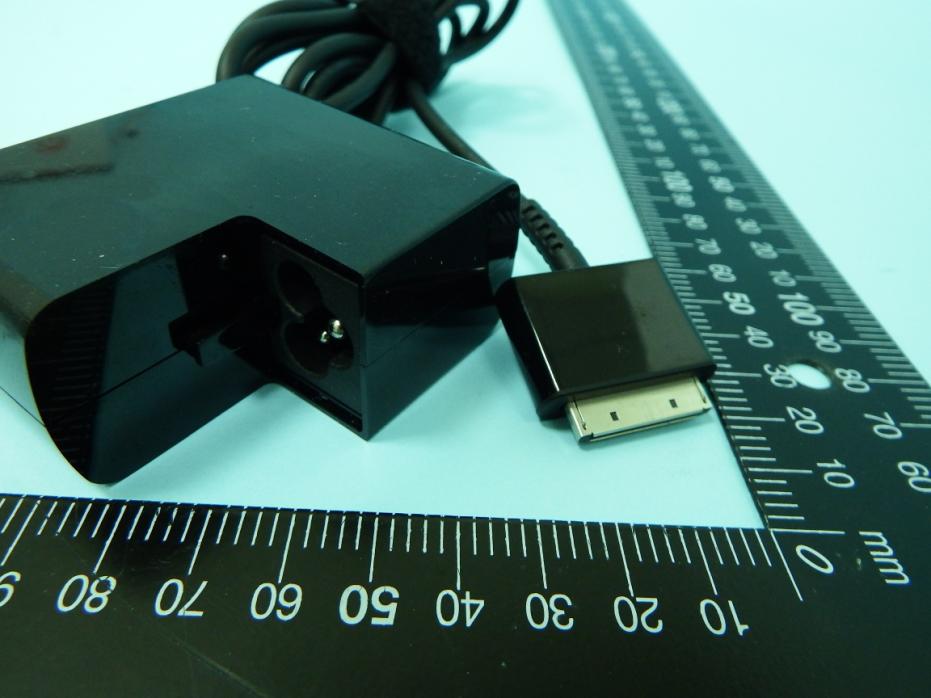

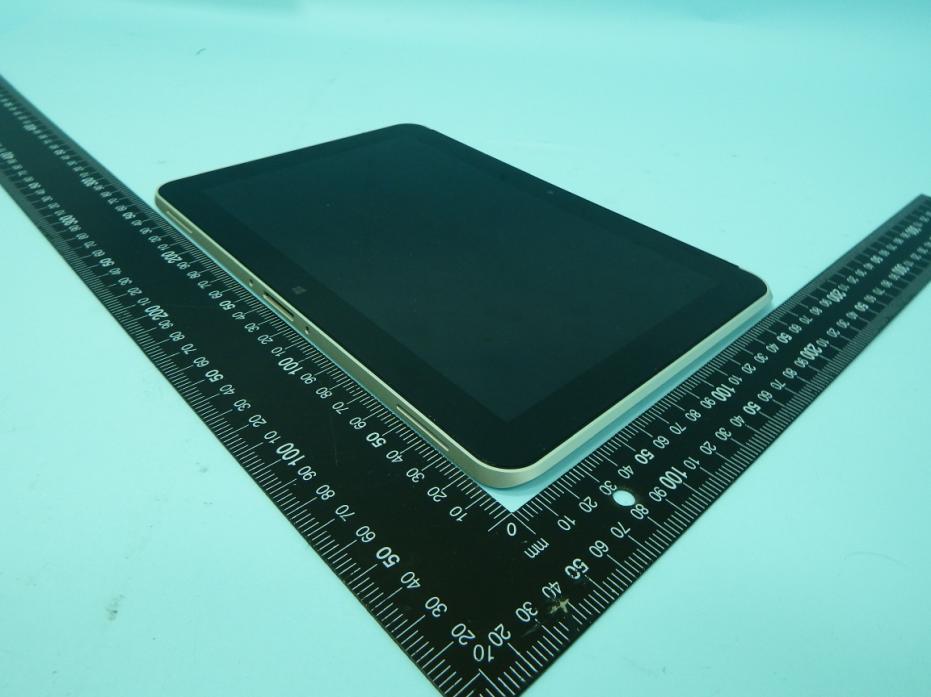

FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B1 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B2 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973

Cherry_Yang 08/08-13” 08/08-13” QPJ80 RATING NP RATING NP 0RN SLATE REGULAR NON US R1 100% A4 01 01CHANGE THE MATERIAL COLOR FROM SILVER TO TRANSPAREANT AND SIZE SIZE 2013 / 09 / 08 ITEMSSPEC. PART NO. SIZE MATERIAL THICKNESS(±0.005MM) COLOR:MATERIAL PRINTING REMARK GROSS WEIGHT 0.075(INCLUDE ADHESIVE) COATING L200.2XW16.1 (±0.1MM) XXX (± 50%G) ADHESIVE E1 HIGH PERFORMANCE RUBBER NA TRANSPAREANT 1. USE WATER DISSOVING INK, INK CONTAINS HEAVY METAL IS PROHIBITED. 2. PIECE BY PIECE EJ0RN000310 MATTE PRINTABLE COATING 50μ WHITE POLYESTER FILM Ele_Zhang 200.2 16.1 R2X4 / / / HP ElitePad 1000 G2 // Model HSTNN-C78C HSTNN-QR03 STC:RCPHPHS13-XXXX HSTNN-C75C STC:RCPHPHS13-XXXXCNC:X-XXXXIC:466Q-HNC78C A/S:1588-3003FCC ID:B94HNC78CCNC:X-XXXXX KCC-CMI-HPK-HSTNN-XXX XUXXXXXX-XXXXX KCC-CRM-HPQ-HSTNN-XXX XXXXXXXXXX CMIIT ID:XXXXXXXXXX HP,HQ-TRE,71004 Boeblingen, Germany 7 5 8 6.3 6.1 5.2 5 7 5 7 INDUSTRIAL DESIGN CENTER Decipher DateSecurity Classification DrawerSheet Drawing No. DateRev. Designer Approved ScaleUnit Title 163 of 6 Candy Liu ZPJA0 - SLATE1 : 1mm Candy Liu 2014/12/03 2013/12/03 For PV ZPJA0 Slate icon on Base Housing Note: 01. ICON 印刷色與位置請參照圖面說明。 02. 請勿實測圖面。 03. ICON 位置公差為+-0.15mm。 04. 樣本請交ID Review。 Laser Etching Vertical plane V16 Update FCC ID & IC number V16 Update FCC ID & IC number V16 Update FCC ID & IC number V16 Update FCC ID & IC number V16 Update FCC ID & IC number 10mm 10mm Laser Etched Font = Gotham Book Size = 5pt 比例 1：1 0.45 37.50 42.05 0.70 1.50 1.30 1.10 14.00 1.70 0.45 37.50 42.05 0.70 1.50 1.30 1.10 14.00 1.70 0.45 37.50 42.05 0.70 1.50 1.30 1.10 14.00 1.70 0.45 37.50 42.05 0.70 1.50 1.30 1.10 14.00 1.70 LTE SKU NFC SKU WLAN SKU WWAN SKU

FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B5 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 NFC Module NFC Chip FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B6 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 NFC Antenna FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP392719-02 SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Nov. 28, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : 1 of 31 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Tablet PC Brand Name : hp Model Name : HSTNN-C78C FCC ID : B94HNC78C Standard : 47 CFR FCC Part 15.225 Operating Band : 13.553 – 13.567 MHz (channel freq. 13.56 MHz) Equipment Class : DXX Applicant : Hewlett-Packard Company 3000 Hanover Street, Palo Alto, California 94304, USA Manufacturer : COMPAL ELECTRONICS, INC. No.581, Ruiguang Rd., Neihu District, Taipei City 11492, Taiwan (R.O.C.) The product sample received on Oct. 15, 2013 and completely tested on Nov. 04, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : 2 of 31 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 6 1.3 Support Equipment ................................................................................................................................. 6 1.4 Testing Applied Standards ..................................................................................................................... 6 1.5 Testing Location Information .................................................................................................................. 6 1.6 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT ........................................................................................................ 8 2.1 The Worst Case Modulation Configuration ............................................................................................ 8 2.2 Test Channel Frequencies Configuration ............................................................................................... 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 8 2.4 Test Setup Diagram ............................................................................................................................... 9 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 Emission Bandwidth ............................................................................................................................. 15 3.3 Field Strength of Fundamental Emissions and Spectrum Mask .......................................................... 17 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 19 3.5 Frequency Stability ............................................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 30 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : 3 of 31 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.5854040MHz 26.79 (Margin 19.21dB) - AV 45.15 (Margin 10.85dB) - QP FCC 15.207 Complied 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth 2.48 [kHz] FL: 13.559219 MHz FH: 13.561693 MHz Fall in band F L ≥ 13.553 MHz F H ≤ 13.567 MHz Complied 3.3 15.225(a)~(d) Field Strength of Fundamental Emissions and Spectrum Mask Fundamental Emissions quasi peak:33.25 dBuV/m at 10m Device complies with spectrum mask – refer to test data 103.08 dBuV/m at 10 Complied 3.4 15.225(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 31.940MHz 35.11 (Margin 4.89dB) - QP FCC 15.209 Complied 3.5 15.225(e) Frequency Stability 39.45 ppm ± 0.01% (100ppm) Complied FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : 4 of 31 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR392719-02 Rev. 01 Initial issue of report Nov. 28, 2013 FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : 5 of 31 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range Modulation Ch. Frequency (MHz) Channel Number Field Strength (dBuV/m) 13.553 – 13.567 MHz ISO 14443-2 (ASK)13.56 1 33.25 Note 1: Field strength performed quasi peak level at 10m. 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated ant…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Transmitter Mode FRONT VIEW REAR VIEW FCC Test Report Report No. : FR392719-02 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Transmitter Mode FRONT VIEW REAR VIEW
