B94HNI32CTKRModel HSN-I32C

User Guide © Copyright 2018 HP Development Company, L.P. AMD is a trademark of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Intel, Celeron, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: August 2018 Document Part Number: L11079-001 Product notice This user guide describes features that are common to most models. Some features may not be available on your computer. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com. To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select User Guides. Software terms By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your seller. For any further information or to request a full refund of the price of the computer, please contact your seller. Safety warning notice WARNING!To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950-1). iii iv Safety warning notice Processor configuration setting (select products only) IMPORTANT:Select computer products are configured with an Intel® Pentium® N35xx/N37xx series or a Celeron® N28xx/N29xx/N30xx/N31xx series processor and a Windows® operating system. If your computer is configured as described, do not change the processor configuration setting in msconfig.exe from 4 or 2 processors to 1 processor. If you do so, your computer will not restart. You will have to perform a factory reset to restore the original settings. v vi Processor configuration setting (select products only) Table of contents 1 Welcome ....................................................................................................................................................... 1 Finding information ............................................................................................................................................... 2 2 Components .................................................................................................................................................. 3 Locating hardware ................................................................................................................................................. 3 Locating software .................................................................................................................................................. 3 Labels ..................................................................................................................................................................... 4 3 Network connections ..................................................................................................................................... 6 Connecting to a wireless network ......................................................................................................................... 6 Using the wireless controls ................................................................................................................. 6 Wireless button ................................................................................................................. 6 Operating system controls ............................................................................................... 6 Connecting to a WLAN ......................................................................................................................... 7 Using HP Mobile Broadband (select products only) ............................................................................ 7 Using GPS (select products only) ........................................................................................................ 8 Using Bluetooth wireless devices (select products only) ................................................................... 8 Connecting Bluetooth devices .......................................................................................... 8 Using NFC to share information (select products only) ...................................................................... 8 Sharing .......................................................................................................................…

Text truncated - open the document above for the full version.

Regulatory, Safety, and Environmental Notices User Guide © Copyright 2018, 2019 HP Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Java is a registered trademark of Oracle and/or its affiliates. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Fourth Edition: April 2019 First Edition: March 2018 Document Part Number: L25269-004 About This Guide This guide provides regulatory, safety, and environmental information that is compliant with U.S., Canadian, and international regulations for notebook computers, tablets, desktops, thin clients, personal workstations, all-in-ones, and point-of-sale terminals. To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select User Guides. WARNING!Indicates a hazardous situation that, if not avoided, could result in serious injury or death. CAUTION:Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. IMPORTANT:Indicates information considered important but not hazard-related (for example, messages related to property damage). Warns the user that failure to follow a procedure exactly as described could result in loss of data or in damage to hardware or software. Also contains essential information to explain a concept or to complete a task. NOTE:Contains additional information to emphasize or supplement important points of the main text. TIP:Provides helpful hints for completing a task. iii iv About This Guide Table of contents 1 Regulatory notices ........................................................................................................................................ 1 Accessing regulatory labels ................................................................................................................................... 1 Federal Communications Commission notice ....................................................................................................... 1 Modifications ....................................................................................................................................... 2 Cables .................................................................................................................................................. 2 Products with wireless LAN devices or HP Mobile Broadband Modules ............................................. 2 Belarus regulatory notice ...................................................................................................................................... 3 Brazil notice ........................................................................................................................................................... 3 Canada notices ....................................................................................................................................................... 3 European Union regulatory notices ....................................................................................................................... 3 Declaration of Conformity ................................................................................................................... 3 Products with radio functionality (EMF) ........................................................................... 4 Restrictions for products with radio functionality (select products only) ....................... 4 Radio frequency bands and maximum power levels (select products and countries only) .................................................................................................................. 4 Ergonomics notice ............................................................................................................. 5 European telephone network declaration (Modem/Fax) ................................................. 5 Australia and New Zealand notice ......................................................................................................................... 5 China WWAN notice ................................................................................................................................................ 5 China radio equipment notice ................................................................................................................................ 5 Japan notice ........................................................................................................................................................... 6 Wireless LAN, Wireless WAN, and Bluetooth® certification markings ................................................ 6 Mexico notice ......................................................................................................................................................... 6 Singapore wireless notice ...................................................................................................................................... 7 South Korea notices ............................................................................................................................................... 7 Thailand wireless notice ........................................................................................................................................ 7 Taiwan NCC notices ................................................................................................................................................ 8 Wireless LAN 802.11a devices ..................................................................................…

Text truncated - open the document above for the full version.

3390 East Harmony Road Fort Collins Colorado 80528 United States Date: June 18, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: B94HNI32CTKR To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Tune-up Procedure ⚫ Operational Description ⚫ Block Diagram ⚫ Schematics ⚫ Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

Authorization on Behalf of HP Inc. For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (HP) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP Inc. to make this Authorization on HP Inc.’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP Inc.’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP Inc. with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Rong-Chiao Liang Title: Regulatory Program Manager Address: HP Inc. 10F, No. 66 Jingmao 2 nd Rd NanGang District Taipei, Taiwan 11568 Telephone: 866 2 37892469 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P Tarsio US Canada Technical Regulations 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 970 898 8713 Telephone [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. ____________________________ Signature Richard P Tarsio US Canada Technical Regulations HP Inc. Date: 24 June 2016

3390 East Harmony Road Fort Collins Colorado 80528 United States Date: June 18, 2020 To whom it may concern, Please be notified that HP Inc. has designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. All acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: B94HNI32CTKR Sincerely yours, Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

3390 East Harmony Road Fort Collins Colorado 80528 United States To whom it may concern: This device with FCC ID: B94HNI32CTKR integrates a WWAN module: Brand FCC ID Date of Grant WWAN module Foxconn 2AQ68T99W175 06/04/2020 No hardware design changes are made on the module, and the software has not been changed to increase the RF output power of the module and provided host level antenna gain is less than the original module grant. Pursuant to KDB 996369 D02, the original modular report (Report Number details see below) are submitted to represent the compliance of Part 22/24/27/90/96 conducted/radiated testing items of this device. Worst radiated cases found in module level testing are performed on the host level to ensure the compliance is kept. Modular Test Report Number RF200109E02 RF200109E02-1 RF200109E02-2 RF200109E02-3 RF200109E02-4 RF200109E02-5 RF200109E02-6 RF200109E02-7 RF200109E02-8 RF200109E02-9 RF200109E02-10 RF200109E02-11 RF200109E02-12 RF200109E02-13 RF200109E02-14 RF200109E02A RF200109E02A-1 RF200109E02A-2 RF200109E02B RF200109E02B-1 RF200109E02B-2 RF200109E02B-3 RF200109E02B-4 RF200109E02B-5 RF200109E02B-6 RF200109E02B-7 RF200109E02B-8 RF200109E02B-9 RF200109E02B-10 RF200109E02B-11 RF200109E02B-12 RF200109E02B-13 RF200109E02B-15 Sincerely, Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

Label information Model：HSN-I32C 1. Images of the e-label screen are provided below: RMN: HSN-I32C Foxconn Model: T99W175 FCC ID: B94HNI32CTKR Contains FCC ID: PD9AX200D2L 2. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID/IC number Yes No Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements1 No Yes 3. Users are able to access the information in no more than three steps in a device’s menu. The actual Steps are: Choose esc or F10 > Advanced > Electronic Labels No special access codes or permissions are required to go through the above steps beyond entering a user-defined password to protect against unauthorized access to the device. 4. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. Yes 5. Users are provided specific instructions on how to access the information. Yes. 6. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the manufacturer. The user cannot modify the e-label formation. 7. When e-labeling is used, a physical temporary label is also required on the product, or a label on the packaging, at the time of importation, marketing, and sales. The physical label will be on the packaging box.

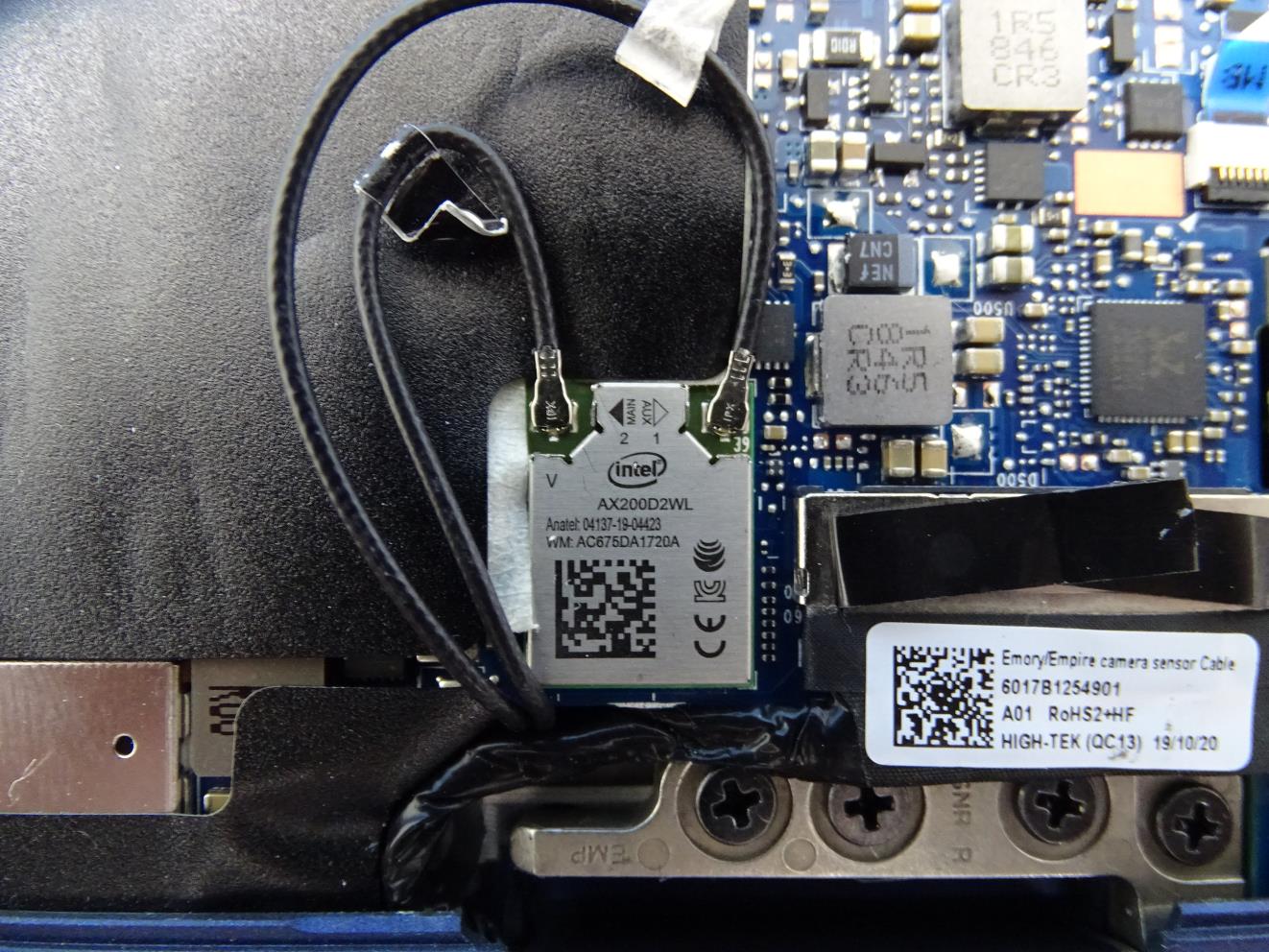

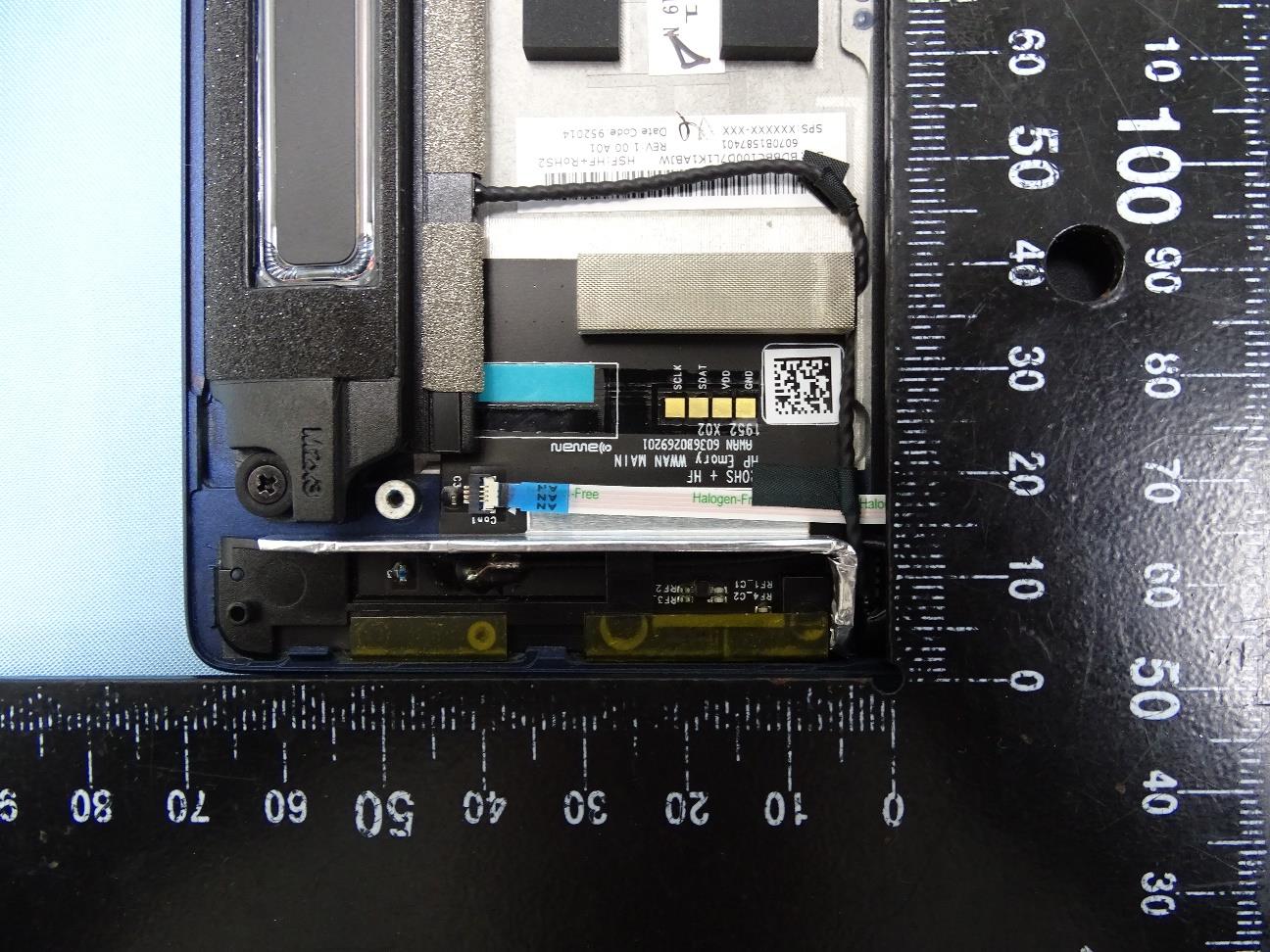

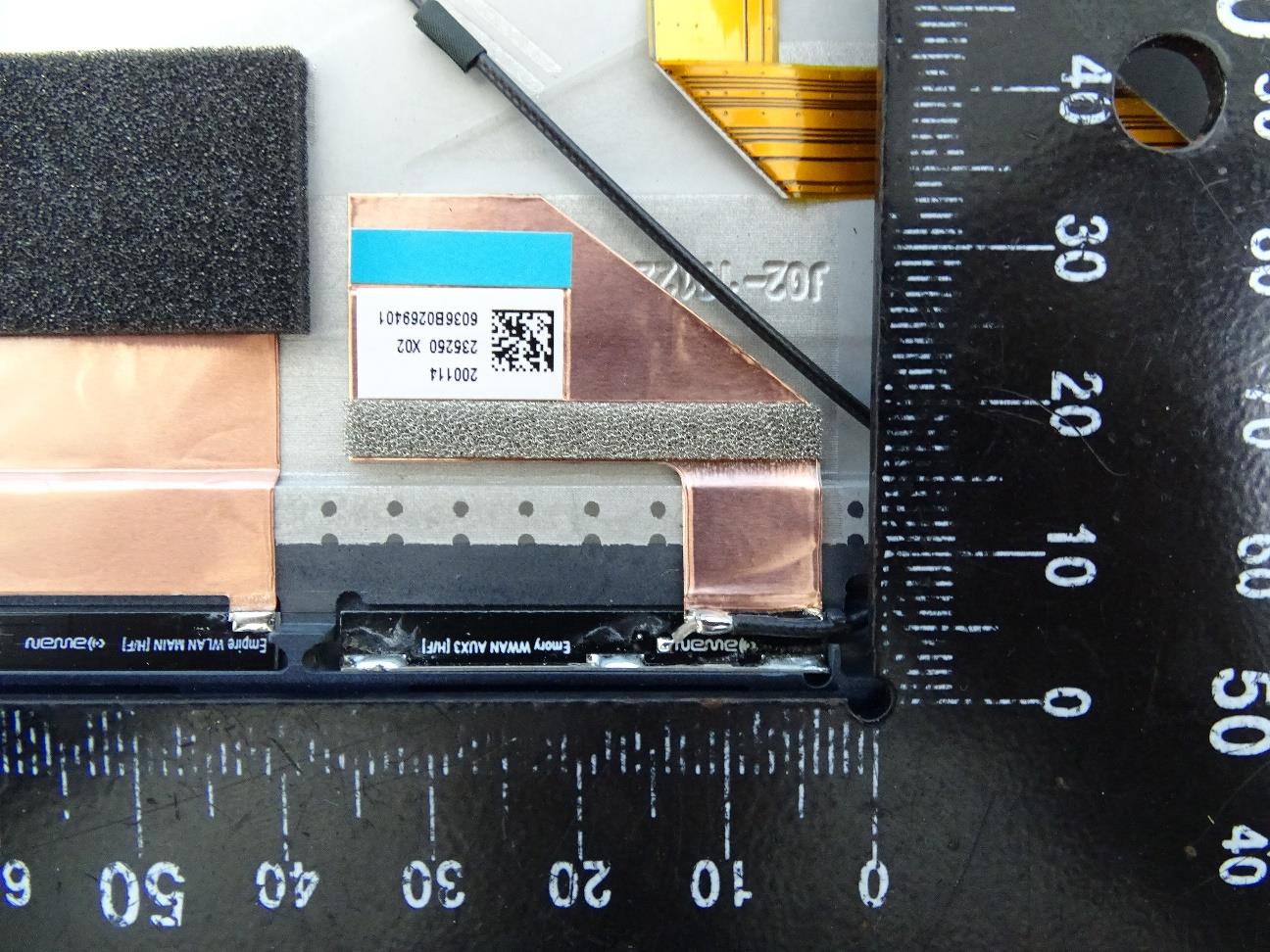

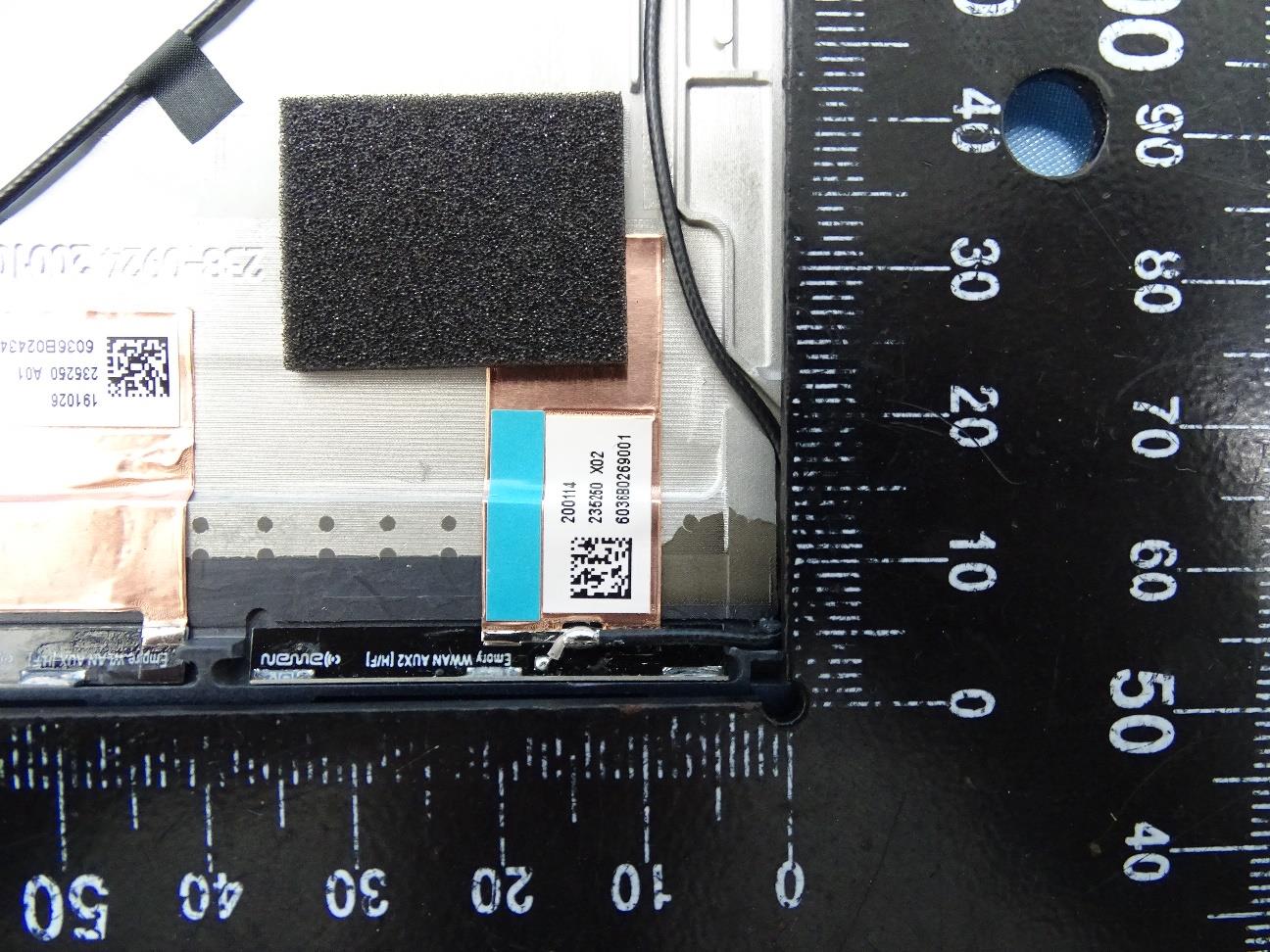

PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 13 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 720510 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 14 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 15 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 16 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 17 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 18 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WWAN Module PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 19 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 20 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WLAN Module PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 21 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WWAN TX1/RX1 Antenna PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 22 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WWAN TX2/RX4 Antenna PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 23 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WWAN RX2 and GPS Antenna PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 24 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WWAN RX3 Antenna PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 25 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 WLAN TX1 Antenna PHOTOGRAPHS OF EUT Report No.: EP041438-01 Brand Name: HP / Model Name: HSN-I32C TEL : 886-3-327-3456 Page Number : 26 of 26 FAX : 886-3-328-4978 Issued Date : Jun. 22, 2020 Report Version : 01 ─────THE END──── WLAN TX2 Antenna

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/7 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200507 Medium parameters used: f = 750 MHz; σ = 0.908 S/m; ε r = 43.474; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(6.55, 6.55, 6.55) @ 750 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.52 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.41 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.20 W/kg SAR(1 g) = 2.16 W/kg; SAR(10 g) = 1.44 W/kg Maximum value of SAR (measured) = 2.52 W/kg 0 dB = 2.52 W/kg = 4.01 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/10 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200510 Medium parameters used: f = 750 MHz; σ = 0.91 S/m; ε r = 43.528; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(6.55, 6.55, 6.55) @ 750 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.53 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.41 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.20 W/kg SAR(1 g) = 2.16 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 2.53 W/kg 0 dB = 2.53 W/kg = 4.03 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/7 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200507 Medium parameters used: f = 835 MHz; σ = 0.889 S/m; ε r = 42.429; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(6.43, 6.43, 6.43) @ 835 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.66 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.31 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.40 W/kg SAR(1 g) = 2.28 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.67 W/kg 0 dB = 2.67 W/kg = 4.27 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/10 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200510 Medium parameters used: f = 835 MHz; σ = 0.877 S/m; ε r = 41.829; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(6.43, 6.43, 6.43) @ 835 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.79 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.82 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.77 W/kg 0 dB = 2.77 W/kg = 4.42 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/31 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200531 Medium parameters used: f = 835 MHz; σ = 0.932 S/m; ε r = 42.842; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration - Probe: EX3DV4 - SN3642;ConvF(8.73, 8.73, 8.73) @ 835 MHz;Calibrated: 2020/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2019/8/27 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.89 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.92 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 3.12 W/kg 0 dB = 3.12 W/kg = 4.94 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/6 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200506 Medium parameters used: f = 1750 MHz; σ = 1.369 S/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(5.41, 5.41, 5.41) @ 1750 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/5/9 #01_WCDMA II_RMC 12.2Kbps_Bottom of Laptop_0mm_Ch9538 Communication System: WCDMA; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200509 Medium parameters used: f = 1908 MHz; σ = 1.401 S/m; ε r = 38.546; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: ES3DV3 - SN3270;ConvF(5.2, 5.2, 5.2) @ 1907.6 MHz;Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI V5.0; Type: QD OVA 002 Ax; Serial: 1191 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.56 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.37 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 2.21 W/kg SAR(1 g) = 1.14 W/kg; SAR(10 g) = 0.607 W/kg Maximum value of SAR (measured) = 1.45 W/kg 0 dB = 1.45 W/kg = 1.61 dBW/kg Test Laboratory: Sporton Inte…

Text truncated - open the document above for the full version.
