B94HNI45C6KLModel HSN-I45C-6

User Guide © Copyright 2018 HP Development Company, L.P. AMD is a trademark of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Intel, Celeron, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: August 2018 Document Part Number: L11079-001 Product notice This user guide describes features that are common to most models. Some features may not be available on your computer. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com. To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select User Guides. Software terms By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your seller. For any further information or to request a full refund of the price of the computer, please contact your seller. Safety warning notice WARNING!To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950-1). iii iv Safety warning notice Processor configuration setting (select products only) IMPORTANT:Select computer products are configured with an Intel® Pentium® N35xx/N37xx series or a Celeron® N28xx/N29xx/N30xx/N31xx series processor and a Windows® operating system. If your computer is configured as described, do not change the processor configuration setting in msconfig.exe from 4 or 2 processors to 1 processor. If you do so, your computer will not restart. You will have to perform a factory reset to restore the original settings. v vi Processor configuration setting (select products only) Table of contents 1 Welcome ....................................................................................................................................................... 1 Finding information ............................................................................................................................................... 2 2 Components .................................................................................................................................................. 3 Locating hardware ................................................................................................................................................. 3 Locating software .................................................................................................................................................. 3 Labels ..................................................................................................................................................................... 4 3 Network connections ..................................................................................................................................... 6 Connecting to a wireless network ......................................................................................................................... 6 Using the wireless controls ................................................................................................................. 6 Wireless button ................................................................................................................. 6 Operating system controls ............................................................................................... 6 Connecting to a WLAN ......................................................................................................................... 7 Using HP Mobile Broadband (select products only) ............................................................................ 7 Using GPS (select products only) ........................................................................................................ 8 Using Bluetooth wireless devices (select products only) ................................................................... 8 Connecting Bluetooth devices .......................................................................................... 8 Using NFC to share information (select products only) ...................................................................... 8 Sharing .......................................................................................................................…

Text truncated - open the document above for the full version.

Regulatory, Safety, and Environmental Notices User Guide © Copyright 2018–2020 HP Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Java is a registered trademark of Oracle and/or its affiliates. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Sixth Edition: March 2020 First Edition: March 2018 Document Part Number: L25269-006 About This Guide This guide provides regulatory, safety, and environmental information that is compliant with U.S., Canadian, and international regulations for notebook computers, tablets, desktops, thin clients, personal workstations, all-in-ones, and point-of-sale terminals. To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select User Guides. WARNING!Indicates a hazardous situation that, if not avoided, could result in serious injury or death. CAUTION:Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. IMPORTANT:Indicates information considered important but not hazard-related (for example, messages related to property damage). Warns the user that failure to follow a procedure exactly as described could result in loss of data or in damage to hardware or software. Also contains essential information to explain a concept or to complete a task. NOTE:Contains additional information to emphasize or supplement important points of the main text. TIP:Provides helpful hints for completing a task. iii iv About This Guide Table of contents 1 Regulatory notices ........................................................................................................................................ 1 Accessing regulatory labels ................................................................................................................................... 1 Federal Communications Commission notice ....................................................................................................... 1 Modifications ....................................................................................................................................... 2 Cables .................................................................................................................................................. 2 Products with wireless LAN devices or HP Mobile Broadband Modules ............................................. 2 Belarus regulatory notice ...................................................................................................................................... 3 Brazil notice ........................................................................................................................................................... 3 Canada notices ....................................................................................................................................................... 3 European Union regulatory notices ....................................................................................................................... 3 Declaration of Conformity ................................................................................................................... 3 Products with radio functionality (EMF) ........................................................................... 4 Restrictions for products with radio functionality (select products only) ....................... 4 Radio frequency bands and maximum power levels (select products and countries only) .................................................................................................................. 4 Ergonomics notice ............................................................................................................. 4 European telephone network declaration (Modem/Fax) ................................................. 5 Australia and New Zealand notice ......................................................................................................................... 5 China WWAN notice ................................................................................................................................................ 5 China radio equipment notice ................................................................................................................................ 5 Japan notice ........................................................................................................................................................... 6 Wireless LAN, Wireless WAN, and Bluetooth® certification markings ................................................ 6 Mexico notice ......................................................................................................................................................... 6 Singapore wireless notice ...................................................................................................................................... 6 South Korea notices ............................................................................................................................................... 7 Thailand wireless notice ........................................................................................................................................ 7 Taiwan NCC notices ................................................................................................................................................ 8 電磁波警語 ...........................................................................................................…

Text truncated - open the document above for the full version.

Date: 2022-01-11 FCC ID: B94HNI45C6KL AUTHORIZATION LETTER To Whom It May Concern: HP Inc. hereby authorizes Intel Mobile Communications France S.A.S – WRF Lab, to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Intel Mobile Communications France S.A.S – WRF Lab on HP Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, _________________________________________ Liang Rong Chiao / Worldwide Technical Regulations HP International Pte. Ltd., Taiwan Branch Tel: +886-2-37892469 E-mail: [email protected]

Date: January 11, 2022 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 Subject: Request for Confidentiality FCC ID: B94HNI45C6KL To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Operational Description ⚫ Parts List ⚫ Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations. ◆ External Photos ◆ Internal Photos ◆ Test Setup Photos ◆ Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ____________________________________________________ Liang Rong Chiao / Worldwide Technical Regulations HP International Pte. Ltd., Taiwan Branch Tel: +886-2-37892469 E-mail: [email protected]

Date: 2022-01-11 Cover Letter for re-use of Test Data To Whom It May Concern: The initial application has been granted according to 47CFR Part 22/24/27/90/96 for FCC ID: ZMOFM350GL; Granted on 04/08/2021. The new equipment to be Granted in this new application, according to FCC ID: B94HNI45C6KL, only differs from the initial version (FCC ID: ZMOFM350GL) with the only 1 following point: 1. add a host Notebook PC (Model: HSN-I45C-6 / Brand: HP) The 1 change described above do not affect the radio characteristics (WWAN) of the equipment. Consequently, radio test data retrieved from the initial application FCC ID: ZMOFM350GL can be re-used for the FCC ID: B94HNI45C6KL equipment. However, based on our knowledge and our engineering judgment of the device design, the changes made, the format and amount of spot–check test data are decided as below, 1. Sample amount: 1 2. Spot–check rule part, frequency band and test items Sample A FCC Rule Part Frequency Band Test Items FCC Part 22 824 MHz to 849 MHz 1. Conducted output power 2. RSE full test FCC Part 24 1850 MHz to 1910 MHz 1. Conducted output power 2. RSE full test FCC Part 27 704 MHz to 2690 MHz 1. Conducted output power 2. RSE full test FCC Part 90 814 MHz to 823 MHz 1. Conducted output power 2. RSE full test FCC Part 96 3550 MHz to 3700 MHz 1. Conducted output power 2. RSE full test We, HP Inc.is taking full responsibility to re-use these test data for its new application FCC ID: B94HNI45C6KL. If you have any questions, feel free to contact us. Thank you. Sincerely yours, _________________________________________ Liang Rong Chiao / Worldwide Technical Regulations HP International Pte. Ltd., Taiwan Branch Tel: +886-2-37892469 E-mail: [email protected]

Sr Regulatory Engineer, Intel Corporation acting as agent on behalf of HP Inc. 3390 East Harmony Road, Fort Collins, CO American Certification Body 6731 Whittier Avenue Suite C110 McLean, VA 22101 US A Date: 01/30/2022 Ref: Application for Original Equipment Authorization for FCC ID: B94HNI45C6KL Dear Examiner, This is to request FCC Authorization for original equipment under FCC ID: B94HNI45C6KL. The equipment in this application is HP model HSN-I45C-6 PC. The equipment is a notebook PC. The equipment will also include two previously authorized transmitter modules as described below. FCC ID: PD9AX211NG , originally granted 02/17/2020. This is a WLAN 802.11a/b/g/n/ac/ax module that is authorized for portable/mobile conditions. FCC ID: ZMOFM350GL, granted 04/09/2021. This is a PCS licensed transmitter LTE module authorized as single modular approval to Fibocomm Wireless. The full PAG review was previously performed under KDB 402481. We believe this application may be granted without further PAG or PAG Re-use required. The exact same WWAN authorized modules are re-used in this PC with the exact same algorithm and validation methods for time averaging SAR as approved in KDB 402481. A ntenna specifications for these modules are included within this filing. S incerely, Steven C. Hackett

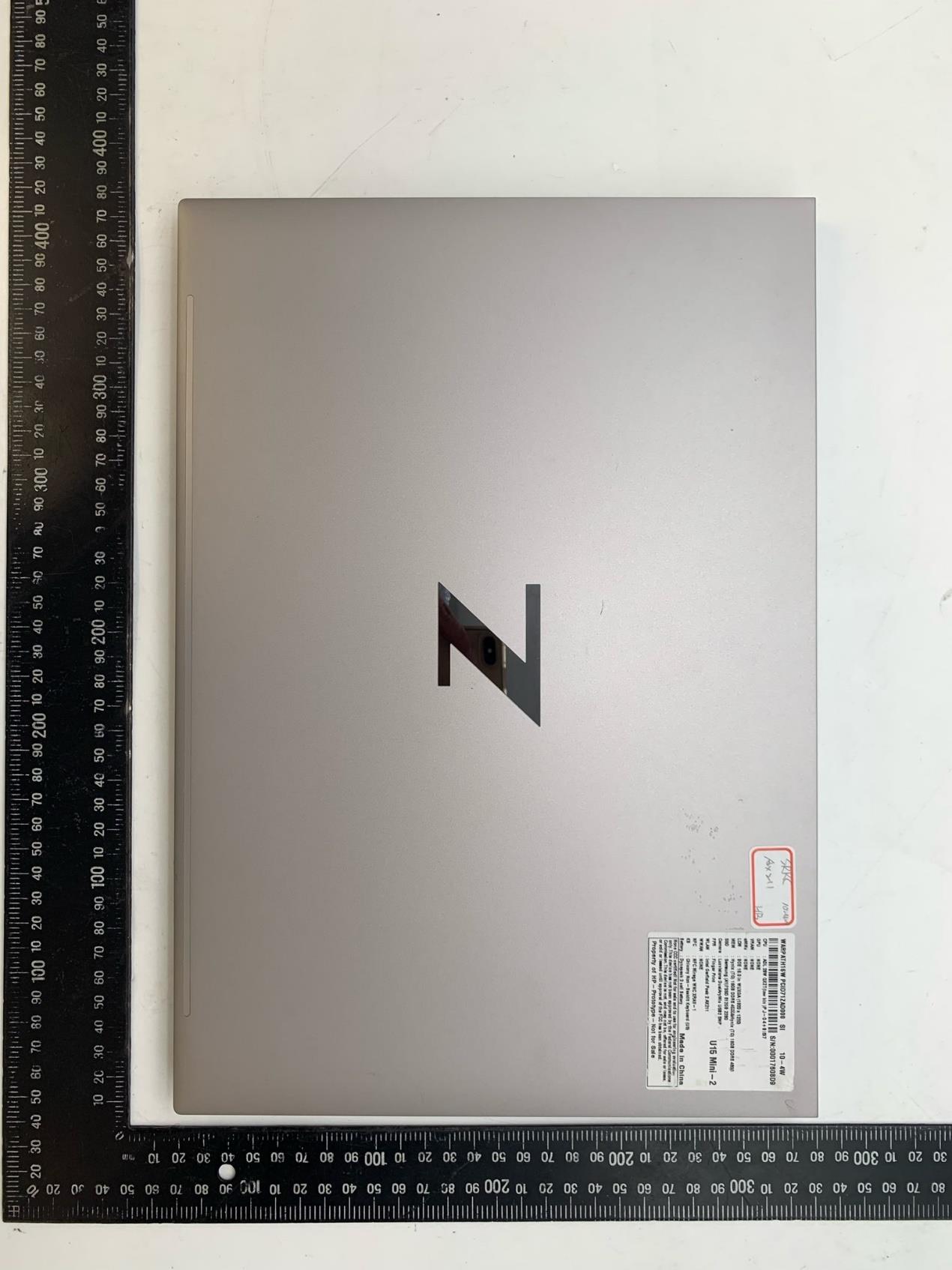

外觀照 Warpath 16 Warpath 16W

Label information Model：HSN-I45C-6 1. Images of the e-label screen are provided below: 2. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID/IC number Yes No Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements1 No Yes 3. Users are able to access the information in no more than three steps in a device’s menu by following below steps. A. Turn on or restart the computer. B. Press esc or f10 to enter Computer Setup. C. Use a pointing device or the arrow keys to select Advanced, select Electronic Labels, and then press enter. D. To view an electronic label, use a pointing device or the arrow keys to select one of the listed items, and then press OK. ---------------------------------------------------------------------------------------------------------------------------------------------  NOTE: The list of available electronic label items varies depending on the computer model and installed devices. --------------------------------------------------------------------------------------------------------------------------------------------- E. To exit Computer Setup menus without making any changes: Select the Exit icon in the lower-right corner of the screen, and then follow the on-screen instructions. - or – Use the arrow keys to select Main, select Ignore Changes and Exit, and then press enter. No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 4. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. No. 5. Users are provided specific instructions on how to access the information. Yes. 6. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the manufacturer. The user cannot modify the e-label formation. RMN：HSN-I45C-6 FCC ID: B94HNI45C6KL Contains IC: 21374-FM350GL Contains FCC ID: PD9AX211NG Contains IC: 1000M-AX211NG

Main Board-D2W Main Board-NGW Doc.No.:3.8.05 Rev – 8.0 draft Regulatory WWAN Antenna Information 5/27 Section 2. Dimensioned Photos or Drawings of Antennas Ant supplier Part number Drawing Photo Ant5 6036B0309201 00-3302700650 V V Ant6 6036B0309101 00-3302700750 V V Ant7 6036B0309401 00-2602750250 V V Ant8 6036B0309601 00-2602750350 V V Ant5 Dimensioned Drawing: Ant5 Photo: Doc.No.:3.8.05 Rev – 8.0 draft Regulatory WWAN Antenna Information 6/27 Ant6 Dimensioned Drawing: Ant6 Photo: Doc.No.:3.8.05 Rev – 8.0 draft Regulatory WWAN Antenna Information 7/27 Ant7 Dimensioned Drawing: Ant7 Photo: Doc.No.:3.8.05 Rev – 8.0 draft Regulatory WWAN Antenna Information 8/27 Ant8 Dimensioned Drawing: Ant8 Photo: t Regulatory WWAN Antenna Information 6/66 Ant5 Dimensioned Drawing: Example Ant5 Photo: Example t Regulatory WWAN Antenna Information 7/66 Ant6 Dimensioned Drawing: Ant6 Photo: t Regulatory WWAN Antenna Information 8/66 Ant7 Dimensioned Drawing: Ant7 Photo: t Regulatory WWAN Antenna Information 9/66 Ant8 Dimensioned Drawing: Ant8 Photo:

Intel Corporation S.A.S – WRF Lab 425 rue de Goa – Le Cargo B6 - 06600 Antibes, France Tel. +33493001400 / Fax +33493001401 Reference:WRF-DCS-TF-022 Version: 005 Application Date: 09/01/2021 1 of 105 CERTIFICATE #3478.01 TEST REPORT EUT Description WWAN module installed on Notebook PC Brand Name HP Model Name HSN-I45C-6 FCC ID B94HNI45C6KL Date of Test Start/End 2021-09-29 / 2022-01-26 Features WWAN (5G NR, LTE, UMTS), WLAN, BT (see section 6) Description HP HSN-I45C-6 + WNC / HongBo antennas Applicant HP Inc. Address 1501 Page Mill Road, Palo Alto CA 94304 USA Contact Person Cindy Su Telephone / Email +886 2 37899591/[email protected] Reference Standards FCC 47 CFR Part §2.1093 (see section 1) RF Exposure Environment Portable devices - General population/uncontrolled exposure Exposure Conditions Body worn SAR Result SAR Limit Maximum SAR Result & Limit 1.18 W/kg (1g) 1.6 W/kg (1g) Min. test separation distance 0mm to phantom, 23.55mm to antenna edge Test Report identification 210825-03.TR01 Revision Control Rev. 00 This test report revision replaces any previous test report revision (See section 9) The test results relate only to the samples tested. Reference to accreditation shall be used only by full reproduction of test report. Issued by Reviewed by Edgar GARCIA (SAR Test Engineer) Ines KHARRAT (Technical Manager) Test Report N° 210825-03.TR01 Rev. 00 2 of 105 Table of Contents 1. Standards, reference documents and applicable test methods ......................................................................... 4 2. General conditions, competences and guarantees ............................................................................................. 4 3. Preface ...................................................................................................................................................................... 5 4. Environmental Conditions ...................................................................................................................................... 6 5. Test samples ............................................................................................................................................................ 6 6. EUT Features ............................................................................................................................................................ 7 7. Remarks and comments ....................................................................................................................................... 14 8. Test Verdicts summary ......................................................................................................................................... 14 9. Document Revision History .................................................................................................................................. 14 Annex A. Test & System Description ..................................................................................................................... 15 SAR D EFINITION ................................................................................................................................................. 15 SAR M EASUREMENT S YSTEM ............................................................................................................................. 16 A.2.1 SAR Measurement Setup .......................................................................................................................................... 16 A.2.2 E-Field Measurement Probe ...................................................................................................................................... 17 A.2.3 Flat Phantom ............................................................................................................................................................. 17 A.2.4 Device Positioner ....................................................................................................................................................... 18 D ATA E VALUATION .............................................................................................................................................. 19 S YSTEM AND L IQUID C HECK ................................................................................................................................ 21 A.4.1 System Check ........................................................................................................................................................... 21 A.4.2 Liquid Check .............................................................................................................................................................. 22 T EST E QUIPMENT L IST ........................................................................................................................................ 23 A.5.1 SAR System #2* ........................................................................................................................................................ 23 A.5.2 SAR System #4** ...................................................................................................................................................... 23 A.5.3 Shared Instrumentation ............................................................................................................................................. 24 A.5.4 Tissue Simulant Liquid .............................................................................................................................................. 24 M EASUREMENT U NCERTAINTY E VALUATION ......................................................................................................... 25 RF E XPOSURE L IMITS ......................................................................................................................................... 26 Annex B. Test Results ..........................................................................…

Text truncated - open the document above for the full version.

Test Report N° 210825-03.TR01 Rev. 00 97 of 105 Annex E. Calibration Certificates ID Device Type/Model Serial Number Manufacturer Calibration Certificate 002-009 Dosimetric E-field Probe EX3DV4 3978 SPEAG “See attached files” 086-000 Dosimetric E-Field probe EX3DV4 7455 SPEAG “See attached files” 004-006 Dosimetric E-Field probe EX3DV4 7604 SPEAG “See attached files” 073-000 1750 MHz System Validation Dipole D1750V2 1133 SPEAG “See attached files” 074-000 1900 MHz System Validation Dipole D1900V2 5d197 SPEAG “See attached files” 075-000 2300 MHz System Validation Dipole D2300V2 1046 SPEAG “See attached files” 076-000 2600 MHz System Validation Dipole D2600V2 1100 SPEAG “See attached files” 404-000 3700 MHz System Validation Dipole D3700V2 1093 SPEAG “See attached files” Dipole calibration According to the KDB 865664 D01, a dipole must be calibrated using a fully validated SAR system according to the tissue dielectric parameters and SAR probe calibration frequency required for device testing. However, instead of the typical annual calibration recommended by measurement standards, longer calibration intervals of up to three years may be considered when it is demonstrated that the SAR target, impedance and return loss of a dipole have remain stable according to the following requirements. 1. When the most recent return-loss result, measured at least annually, deviates by less than 20% from the previous measurement (i.e. value in dB × 0.2) and meeting the required 20 dB minimum return-loss requirement. 2. When the most recent measurement of the real and imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement Test Report N° 210825-03.TR01 Rev. 00 98 of 105 The below results show the latest return loss and impedance measurements for each dipole performed by the lab: ID #073-000 Dipole 1750 MHz Body TSL Return Loss [dB] Impedance [Ω] Date Original Calibration -28.5 46.5 – 0.7 j 2021-01-14 ID #074-000 Dipole 1900 MHz Body TSL Return Loss [dB] Impedance [Ω] Date Original Calibration -24.1 49.2 + 6.1 j 2021-01-14 ID #075-000 Dipole 2300 MHz Body TSL Return Loss [dB] Impedance [Ω] Date Original Calibration -25.1 45.6 – 3.0 j 2021-01-13 ID #076-000 Dipole 2600 MHz Body TSL Return Loss [dB] Impedance [Ω] Date Original Calibration -24.0 46.0 – 4.6 j 2021-01-13 ID #404-000 Dipole 3700 MHz Body TSL Return Loss [dB] Impedance [Ω] Date Original Calibration -20.1 41.3 –2.3 j 2021-05-21
