B94MRLBB1401HP R110/PS110 Wireless 11n VPN Router

HP R100-Series Wireless VPN Routers Quickstart This Quickstart shows you how to install and get started using the HP R110 80 2.11n Wireless VPN Router and HP R120 802.11ac Wir eless VPN Router, hereafter referred to as the HP R110 and HP R120. (See Products list on page 6 for part numbers.) The latest documentat ion, including the HP R100-Series Wireless VPN Routers Configuration/Administration Guide, is available at www.hp.com/support/manuals. The HP R100-Series routers are all-in-one networking devices incorporating an IPv6 -capable router, gigabit LAN switch, 802.11 w ireless access point, SPI firewall and VPN encryption technology. The HP R110 provides a single radio dual band 802.11n access point and aggregate VPN capacity of 30 Mbps. The HP R120 provides a dual-radio 802.11ac access point and aggregate VPN performance of up to 200 Mbps. Hardware overview 8 1 2 4 5 6 7 9 10 3 11 Rear view1: Power jack 5: WAN port 2: Power On/Off button 6: Reset button 3: Wi-Fi On/Off button 7: WPS button 4: LAN ports 1-4 Front view8: Power LED9: System and port status LEDs10: USB port LED11: USB 2.0 port The HP R110 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n product. The HP R120 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a certificatio n mark of the Wi-Fi Alliance. HP R100-Series Wireless VPN Routers Quickstart 2 Package contentsThe HP R110 or HP R120 router, two mount ing screws with wall anchors, four rubber feet, AC/DC power adapter, and documentation.Ports • Four LAN Ethernet ports: Auto-sensing 10/100/1000 BaseT Ethernet ports with RJ-45 connectors. • One WAN Ethernet port: Auto-sensing 10/100/1000 BaseT Ethernet port with RJ-45 connector. • USB port: A standard USB 2.0 port that can be connected to an external USB storage device. For details, see the USB port description in the HP R100-Series Wireless VPN Routers Configuration/Administration Guide . Radio and antennasThe HP R110 provides a single dual-band radio with three antennas supporting 3x3 MIMO three-spatial-stream 802.11n. The HP R110 supports 802.11b/g/n operation modes at 2.4 GHz or 802.11a /n operation modes at 5 GHz. The HP R110 does not support concurrent operation at 2.4 GHz and 5 GHz.The HP R120 provides dual radios (2.4 GH z and 5 GHz) with three antennas per radio supporting 3x3 MIMO three-spatial-stream 802.11n and 802.11ac. The HP R120 supports 802.11b/g/n operation modes at 2.4 GHz and 802.11a/n/ac operation modes at 5 GHz. The HP R120 supports concurrent operation at 2.4 GHz and 5 GHz.Wi-Fi On/Off buttonPress the button for more than three seconds and then release it to turn the wireless function of the router on or off.WPS buttonPress the button for more than three seconds to enable Wi-Fi Protected Setup (WPS) and allow a wireless client device to securely join the network. Within two minutes, initiate the WPS procedure on the wireless client device. See the wireless client documentation for information on how to connect to access points using WPS.Reset buttonThe Reset button is accessible through a hole on the front panel of the HP R110/R120, labeled as 6 on page 1. To reset the HP R110/R120 to factory defaults, insert a paper clip into the Reset button hole and hold the button for more than three seconds, then release. Status LEDs LED State Description Power Off The HP R110/R120 has no power. White The HP R110/R120 is fully operational. Alert Amber The HP R110/R120 has a hardware failure or the software has failed to load. Reset or power cycle the HP R110/R120. If this condition persists, contact HP customer support. Flashing amber Indicates one of the following conditions: • The HP R110/R120 is starting up following a hard or soft reset. • The HP R110/R120 is upgrading firmware.• The HP R110/R120 software is being reset to factory defaults. • A hacker attack is detected. The Alert LED remains flashing until the hacker attack ends. • The Alert LED remains flashing for 30 seconds when a USB overcurrent condition is detected. USB Off Either an unsupported or defective USB device is attached. Blue A USB device is attached. WPS Off WPS is not active. Blue On for 20 seconds when WPS is successful. Flashing blue WPS is active and waiting for a wireless client device to join the network. WAN Off The WAN port is not connected. Blue The WAN port has a valid link. Flashing indicates network activity. LAN 1-4 Off The LAN port is not connected. Blue The LAN port has a valid link. Flashing indicates network activity. 2.4 GHz Off The 2.4 GHz radio is disabled. Blue The 2.4 GHz radio is enabled. Flashing indicates wireless network activity. HP R100-Series Wireless VPN Routers Quickstart 3 Imp ortant informat ion to read before installing Powering the HP R110/R120The HP R110/R120 is powered by an HP AC/DC Power Adapter.Caution: Only use the AC/DC power adapter that is supplied with the HP R110/R120. Do not use any other adapter. Important information to read before installing Warning: This device is intended for indoor installation only. Before installing or using the HP R110/120, ensure that you read and understand all safety information and regulatory requirements, particularly those relevant to your region. Failure to follow this guidance could result in a non-compliant situation.Cabling: You must use supported Cat 5e (or better) cables, and where applicable, surge protection, for your given region. Country of use: During setup, you are prompted to select the country of use. After the country has been set, the HP R110/R120 automatically limits the available wireless channels, ensuring compliant operation in the selected country. Entering the incorrect country can result in illegal operation and can cause harmful interfer ence to other systems. Safety: Consider the following safety information during installation. • If your network covers an area served by more than one power distribution system, make sure all safety grounds are securely interconnected. • Net…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 3000 Hanover Street Palo Alto, CA 94304 U.S.A. Tel: 650-258-7586 Fax: 650-362-6534 Date: August 14, 2 014 Power of Attorney Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: HP / MRLBB-1401/MRLBB-14 0 5 FCC ID: B94MRLBB1401 Product name: HP R110/PS110 Wireless 11n VPN Router Note: The registered grantee contact is not available, Kenneth Klingler is signing for grantee contact. He can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Hewlett-Packard Company Applicant’s company address : 1501 Page Mill Road, Palo Alto, California 94304, United States Signature : Signed for David Adams Name and Job Title : David Adams / US/Canada Technical Regulations Manager E- Mail : [email protected] Tel. : 650-258-7586

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 / Fax: 650-362-6534 Confidential Letter Date: 2014/7/22 Federal Communications Commission Authorization and Evaluation Division FCC ID：B94MRLBB1401 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Note: The registered grantee contact is not available, Kenneth Klingler is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : Hewlett-Packard Company Applicant’s company address : 1501 Page Mill Road, Palo Alto, California 94304, United States Signature : Signed for David Adams Name and Job Title : David Adams / US/Canada Technical Regulations Manager E- Mail : [email protected] Tel. : 650-258-7586 Page No. : 3

Hewlett-Packard Company 1501 Page Mill Road, Palo Alto, California 94304, United States Tel: 650-258-7586 / Fax: 650-362-6534 DoC Attestation Letter Date: 2014/7/22 We Hewlett-Packard Company, as the grantee of this project (FCC ID: B94MRLBB1401 / Brand Name: HP / Model No.: MRLBB-1401/MRLBB-1405), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD410907-01, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the F CC rule applied for DoC Procedure. Regards, Note: The registered grantee contact is not available, Kenneth Klingler is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : Hewlett-Packard Company Applicant’s company address : 1501 Page Mill Road, Palo Alto, California 94304, United States Signature : Signed for David Adams Name and Job Title : David Adams / US/Canada Technical Regulations Manager E- Mail : [email protected] Tel. : 650-258-7586 Page No. : 6

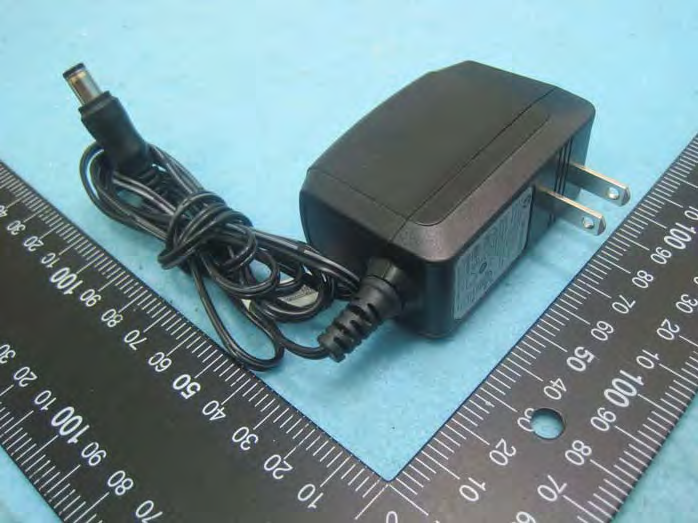

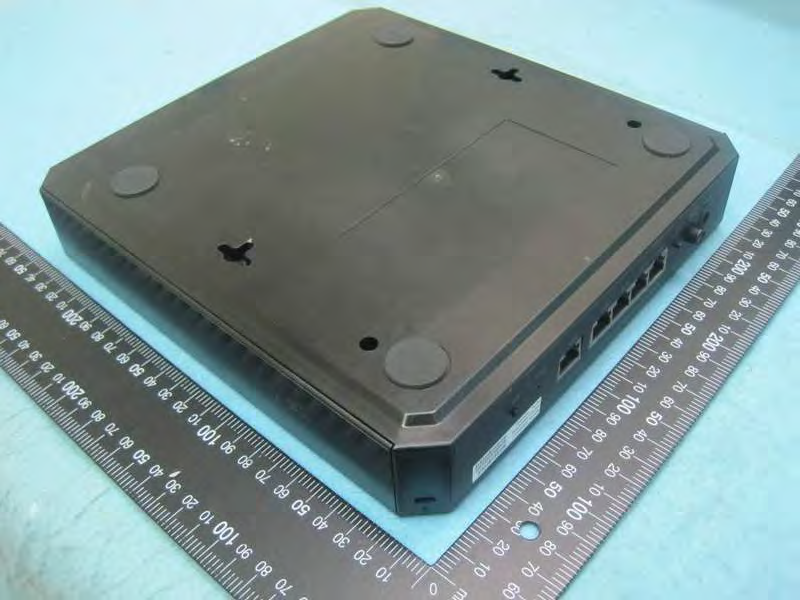

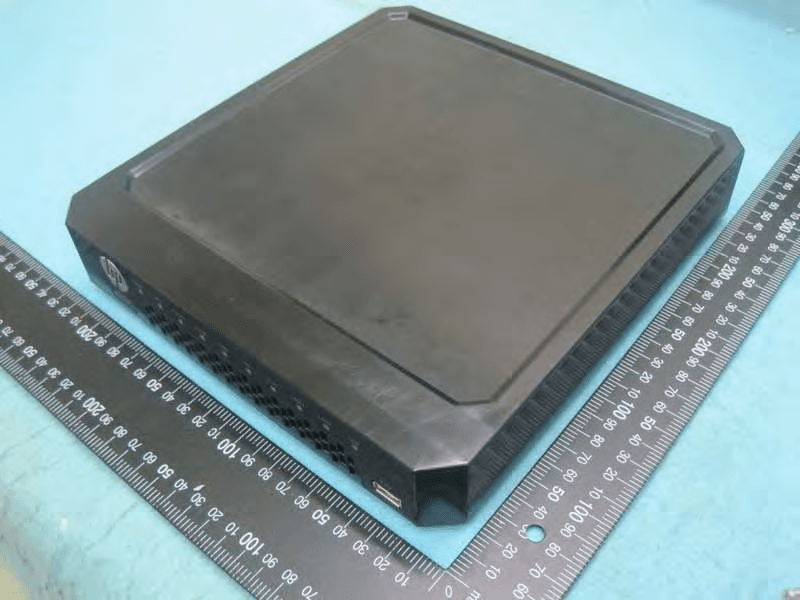

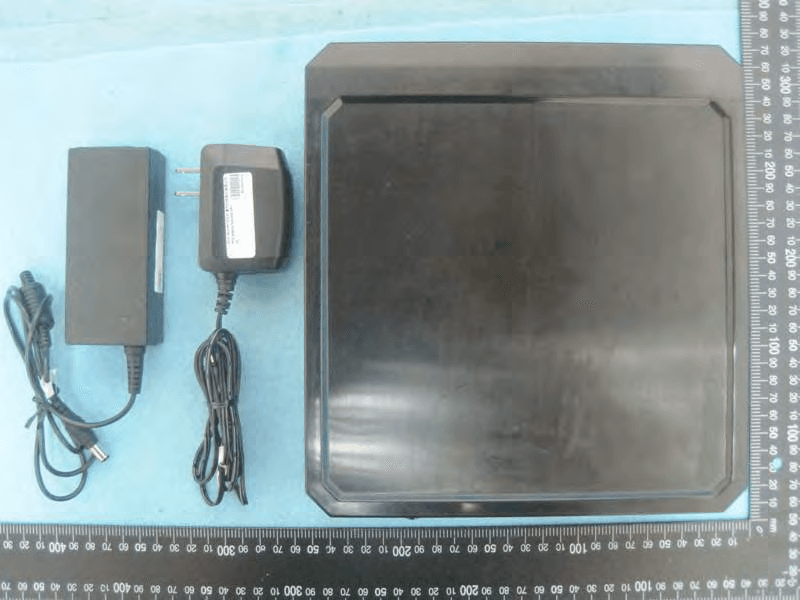

Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Model No.: MRLBB-1401 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 EUT 2 Model No.: MRLBB-1405 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Adapter 1 Brand: APD Model No.: WA-24Q12FU Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Adapter 2 Brand: LITE-ON Model No.: PA-1031-71 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973

Model No.: MRLBB-1401 Model No.: MRLBB-1405

Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 1 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Photographs of EUT EUT 1 Model No.: MRLBB-1401 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 2 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 3 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 4 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 5 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 6 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 7 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 8 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 EUT 2 Model No.: MRLBB-1405 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 9 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 10 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 11 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 12 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 13 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 14 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 15 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 16 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 17 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 18 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 19 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973 Report No.: 410907-01 SPORTON International Inc. PAGE NUMBER : 20 OF 20 TEL : 886-3-327-3456 ISSUED DATE : Aug. 18, 2014 FAX : 886-3-327-0973

Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : Dual-band Omni Patch Antenna Conducted Power for IEEE 802.11n HT20 : 25.53dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 6.80 4.7863 25.5303 357.2964 0.340392 1 Complies For 2.4GHz Band: Antenna Type : Dual-band Omni Patch Antenna Conducted Power for IEEE 802.11g: 25.32 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.70 2.9512 25.3182 340.2692 0.199882 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Hewlett-Packard Company Applicant Address 3000 Hanover Street Palo Alto, California 94304 U.S.A. FCC ID B94MRLBB1401 Manufacturer’s company Joy Technology (ShenZhen) Corporation Manufacturer Address Building A,B,C,D, HengKeng Ind., Shangpai, Shangwu,Aiqun Rd., Shiyan Town,Shenzhen 518135 China Product Name HP R110/PS110 Wireless 11n VPN Router Brand Name HP Model No. MRLBB-1401, MRLBB-1405 Product No. J9974A(AM), J9975A(WW), JL065A(AM), JL066A(WW) Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date May 14, 2014 Final Test Date Aug. 05, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR410907-01AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: B94MRLBB1401 Issued Date : Aug. 15, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Multiple Listing and Class II Change....................................................................................................................................9 3.8. Table for Supporting Units .................................................................................................................................................................10 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.10. EUT Operation during Test .................................................................................................................................................................10 3.11. Duty Cycle ........................................................................................................................................................................................10 3.12. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................19 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................29 4.5. Radiated Emissions Measurement ....................................................................................................................................................34 4.6. Emissions Measurement ....................................................................................................................................................................67 4.7. Antenna Requirements ...................................................................................................................................................................101 5. LIST OF MEASURING EQUIPMENTS ............................…

Text truncated - open the document above for the full version.

Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A1 of A7 Appendix A. Test Photos Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A2 of A7 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A3 of A7 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 3 & Mode 4 FRONT VIEW REAR VIEW Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A4 of A7 Test Configuration: 30MHz~1GHz Test Mode: Mode 3 For EUT 1: FRONT VIEW REAR VIEW Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A5 of A7 Test Mode: Mode 4 For EUT 2: FRONT VIEW REAR VIEW Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A6 of A7 Test Configuration: Above 1GHz Test Mode: Mode 1 For EUT 1: FRONT VIEW REAR VIEW Report No.: FR410907-01 FCC ID: B94MRLBB1401 Page No. : A7 of A7 Test Mode: Mode 2 For EUT 2: FRONT VIEW REAR VIEW
