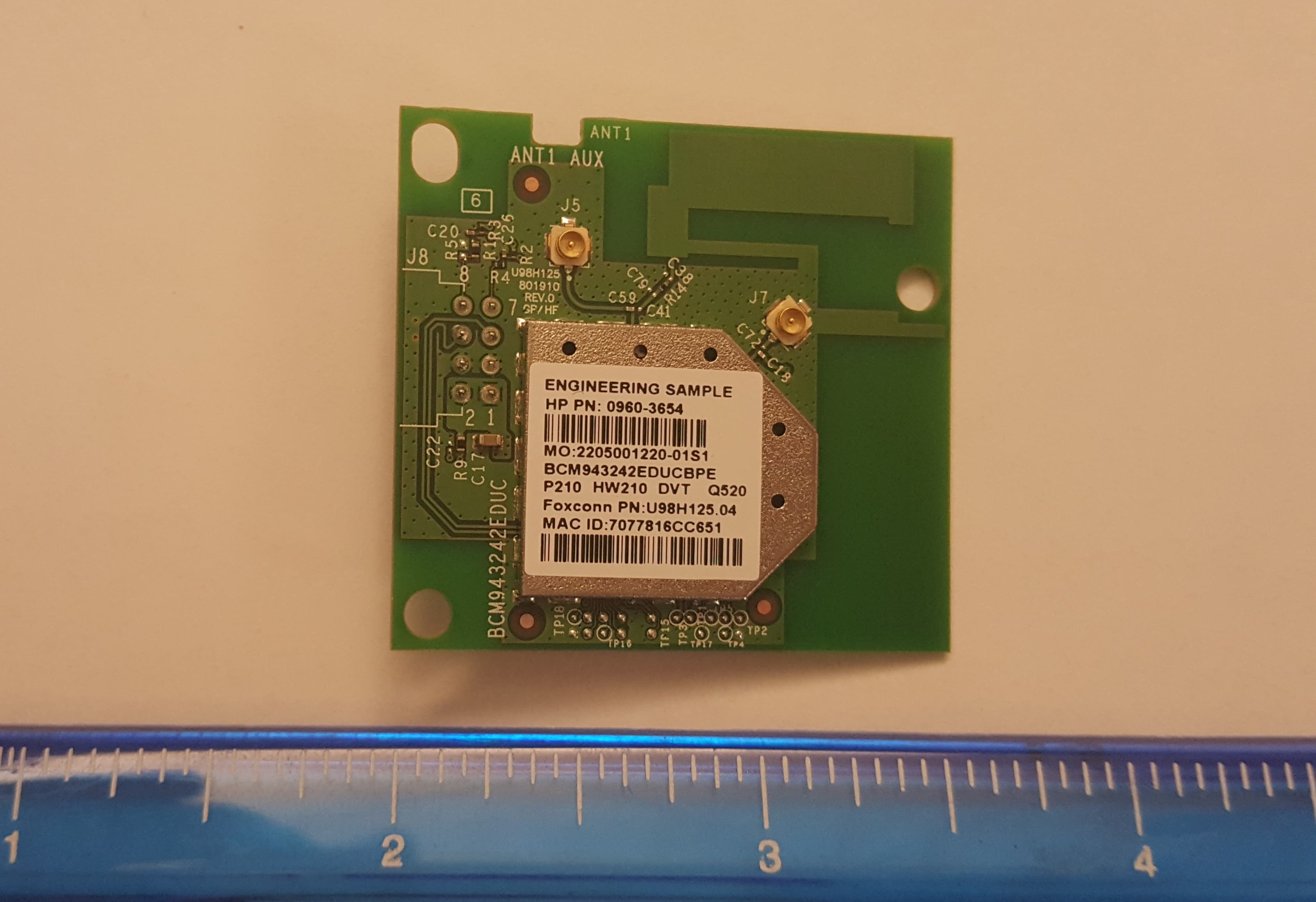

B94SDGOB1506802.11abgn 2x2 + Bluetooth Low Energy USB Module

OEM Installation Guidance Document For HP SDGOB-1506 FCC ID: B94SDGOB1506; IC: 466D-SDGOB1506 Page 1 of 8 Conditions on using HP regulatory approvals: A. Customer must ensure that its product (the “CUSTOMER Product”) is electrically identical to Broadcom’s reference designs. Customer acknowledges that any modifications to Broadcom’s reference designs may invalidate regulatory approvals in relation to the CUSTOMER Product, or may necessitate notifications to the relevant regulatory authorities. B. Customer is responsible for ensuring that antennas used with the product are of the same type, with same or lower gains as approved and providing antenna reports to Broadcom. C. Customer is responsible for regression testing to accommodate changes to Broadcom’s reference designs, new antennas, and portable RF exposure safety testing/approvals. D. Appropriate labels must be affixed to the CUSTOMER Product that comply with applicable regulations in all respects. E. The Broadcom radio is approved as a client/slave device; to ensure compliance with local regulations, the device should be set to the country domain in which the access point is installed. F. A user’s manual or instruction manual must be included with the customer product that contains the text as required by applicable law. Without limitation of the foregoing, an example (for illustration purposes only) of possible text to include is set forth below: 1. USA—Federal Communications Commission (FCC) FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the OEM Installation Guidance Document For HP SDGOB-1506 FCC ID: B94SDGOB1506; IC: 466D-SDGOB1506 Page 2 of 8 user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. System integrators must include the FCC ID on the end product. No. Antenna Manufacturer Antenna Type Model Peak gain @ 2.4GHz (dBi) Peak gain @ 5GHz (dBi) Internal Reference 1 HP 802.11bgn WLAN Antenna WLAN 2.4/5 GHz Antenna Data Sheet for Ulysses Family 2.5 3.5 Spectra trace antenna 2 Yageo/ Phicomp 802.11bgn WLAN Antenna ANTX300P002B24553 0.7 1.9 External antenna FCC Radio-Frequency Exposure & Approval Conditions: 1. For Mobile applications, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co- located or operating in conjunction with any other antenna or transmitter. 2. The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. 3. Only those antennas with same type and lesser gain filed under this FCC ID number can be used with this device. 4. The regulatory label on the final system must include the statement: “Contains FCC ID: B94SDGOB1506 “or using electronic labeling method as documented in KDB 784748. 5. The final system integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module except such device has implemented two-ways authentication between module and the host system. OEM Installation Guidance Document For HP SDGOB-1506 FCC ID: B94SDGOB1506; IC: 466D-SDGOB1506 Page 3 of 8 6. The final host manual shall include the following regulatory statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interfere…

Text truncated - open the document above for the full version.

Page 1 of 1 National Technical Systems – Silicon Valley TCB 41039 Boyce Road Fremont, CA. 94538 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for an IEEE 802.11abgn 2x2 + Bluetooth Low Energy module pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47), Intentional Radiators Subpart E of Part 15 of FCC Rules (CFR 47), UNII Devices RSS-Gen Issue 4, November 2014, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-247, Issue 1, May 2015, “Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices” National Technical Systems – Silicon Valley, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems – Silicon Valley for assistance. Sincerely, Mark Hill Staff Engineer

Hewlett-Packard Company 1115 SE 164th Avenue Suite 210 Vancouver, WA 98683 USA hp.com AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, Hewlett Packard Company, hereby authorize National Technical Systems – Silicon Valley 41039 Boyce Road, Fremont, CA 94538, USA to act on our behalf in all matters relating to all processes required for FCC, IC and CE Approval. Any and all acts carried out by National Technical Systems – Silicon Valley on our behalf shall have the same effects as acts of our own. This authorization is limited to following product: Product name: Model name: 802.11 a/b/g/n WLAN + Bluetooth (Low Energy) Combo Card SDGOB-1506 If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, ___________________________________ Susan Checchi Regulatory Engineer Inkjet Business and Platforms Hardware Quality Engineering T +1 360 212 5120 [email protected]

Hewlett-Packard Company 1115 SE 164th Avenue Suite 210 Vancouver, WA 98683 USA hp.com August 20, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: B94SDGOB1506, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block diagram Theory of Operation Antenna specifications The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for a period of 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________________ Susan Checchi Regulatory Engineer Inkjet Business and Platforms Hardware Quality Engineering T +1 360 212 5120 [email protected]

Authorization on Behalf of Hewlett-Packard Company For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, David P. Adams, am Canada/USA Technical Regulations Manager for Hewlett-Packard Company (“Hewlett-Packard”) and Applicant/Grantee Contact of Record for Hewlett-Packard together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Susan Checchi Title: IMF and ICS Product Regulations Engineer Address: Hewlett-Packard Company Columbia Tech Center 1115 SE 164 Ave, Suite 201 Vancouver, WA 98683 Telephone: +1 360 215 5120 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: David P. Adams Canada/USA Region Technical Regulations Manager 1501 Page Mill Road, MS 1419 Palo Alto, CA 94304-1126 650.258.7586 Telephone [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Palo Alto, California, on the date indicated below my signature. ____________________________ Signature David P. Adams Canada/USA Technical Regulations Manager Hewlett-Packard Company __April 27, 2015__________________________ Date

Applicant/Grantee Hewlett-Packard Company FCC ID: B94SDGOB1506 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Refer to external photos. Shield is over the radio circuit module. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Refer to Schematics. Y 3 The modular transmitter must have its own power supply regulation. Internal 3.3V power regulator. Refer to schematics. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Module contains a hirose connector. The module will go inside final product where the antenna(s) will be integral to the end product, which can be considered permanently attached. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Module was tested outside. Refer to test setup photos in test report. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Refer to label provided. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Refer to MPE calculation in the Test report Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Hewlett-Packard Company 1115 SE 164th Avenue Suite 210 Vancouver, WA 98683 USA hp.com Date: August 20, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Ref: Original application, FCC ID: B94SDGOB1506 Applicant: Hewlett-Packard Company Dear Examiner, We, Hewlett-Packard Company, hereby declare that the model SDGOB-1506, FCC ID: B94SDGOB1506 has the following frequency scanning plan: 2412-2462MHz: active scan; 2467-2472MHz not supported. The model SDGOB-1506 will not allow the user to select any non-US frequency. The product maintains a list of DFS channels/frequencies and does not allow “Ad-Hoc”, WiFi direct or any other transmission on non-US frequencies or DFS frequencies, unless under the control of a master device. This includes transmissions for beacons, ad-hoc and peer-to-peer modes. If you have any questions regarding this application, please feel free to contact me. Sincerely yours, ___________________________________ Susan Checchi Regulatory Engineer Inkjet Business and Platforms Hardware Quality Engineering T +1 360 212 5120 [email protected]

e sae ler t sr i F0 le b al T T P 185FX H125.0X89 U 50 0.xxxxx. 0 05 1:2: E L AC S 1 :2 ) m m5 . 1R * 02 * 6 2 ( 3.ON Tao 15/08/31Tao and HF 2155 5mm 5mm UlyssesBlue Add Japan RF”201-XXXXXX” and Taiwan NCC”CCAF 15LPXXXXYX” Update Japan RF:201-XXXXXX to 201-150420 Remove the FCC DoC logo 01 02 03 15/09/01 05/9/21 05/10/29 Tao hongjun hongjun CMIIT: 2013DJXXXX 1506-BOGDS:re bmu N l e d oM 506 1 BO G D S 49 B:D I C C F 1506 B OGDS - D6 64: CI 201-150420 MSIP-CRM-BCM-SDGOB-1506 CCAF15LPXXXXYX ANATEL ID: XXXX-XX-XXXX

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Hewlett Packard CompanyJob Number: J98746 Model: SDGOB-1505 T-Log Number: T98753 Project Manager: Sheareen Jacobs Tarandeep KaurProject Coordinator: Irene Rademacher FCC 15.247 / FCC 15.E / RSS-247 / LP0002Class: N/A Summary of Results Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 8/26/2015 Device complies with Power Density requirements at 20cm ti Test Engineer: Mark Hill Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Yes Note: Power values used are taken from either the measured power, when they exeed the rated power, or the rated powe r No deviations were made from the requirements of the standard. separa tion: Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard Calculations are based on worse case wifi operation. BLE operation has lower conducted power/eirp. T98753 (FCC_IC_Taiwan Radio)MPE CalcPage 1 of 2 EMC Test Data Client: Contact: Standard: Hewlett Packard CompanyJob Number: J98746 Model: SDGOB-1505 T-Log Number: T98753 Project Manager: Sheareen Jacobs Tarandeep KaurProject Coordinator: Irene Rademacher FCC 15.247 / FCC 15.E / RSS-247 / LP0002Class: N/A FCC MPE Calculation Use: General Antenna: Internal Antenna: 2.5dBi @ 2.4GHz, 3.5dBi @ 5GHz External Antenna: 0.7dBi @ 2.4GHz, 1.9dBi @ 5GHz Calculations usin g highest eirp per band for either antenna option Cable Loss AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 243718.570.802.518.5125.89 243721.5141.302.521.5251.19 524018.977.603.518.9173.78 523020.0100.003.520.0223.87 526019.895.503.519.8213.80 527018.875.903.518.8169.82 570019.589.103.519.5199.53 555019.079.403.519.0177.83 578518.774.103.518.7165.96 579516.443.703.516.497.72 EUTPower Densit y (S)MPE Limit 1.000 0.0331.000 0.0451.000 1.000 1.000 1.000 0.035 Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0251.000 0.043 0.034 0.0401.000 0.0191.000 0.0501.000 0.035 Industry Canada MPE Calculation Use: General Antenna: Internal Antenna: 2.5dBi @ 2.4GHz, 3.5dBi @ 5GHz External Antenna: 0.7dBi @ 2.4GHz, 1.9dBi @ 5GHz Calculations usin g highest eirp per band for either antenna option Cable Loss AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 243718.570.802.518.5125.89 243721.5141.302.521.5251.19 524018.977.603.518.9173.78 523019.589.103.519.5199.53 526019.895.503.519.8213.80 527018.875.903.518.8169.82 570018.570.803.518.5158.49 555019.589.103.519.5199.53 578518.774.103.518.7165.96 579516.443.703.516.497.72 0.0502703.01 EUTPower Densit y (S)EIRP Limit Powe rat 20 cm 0.0194885.87 0.0354561.02 0.0434572.91 0.034 0.0404555.07 0.0334880.11 mW/cm^2 4578.85 0.0324830.99 0.0404743.74 mW 0.0252703.01 T98753 (FCC_IC_Taiwan Radio)MPE CalcPage 2 of 2

File: R99124 Rev 2 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 4 / RSS 247 Issue 1 FCC Part 15 Subpart C Model: SDGOB-1506 and SDGOB-1505 IC CERTIFICATION #: 466D-SDGOB1505 and 466D-SDGOB1506 FCC ID: B94SDGOB1505 and B94SDGOB1506 APPLICANT: Hewlett Packard Company 3000 Hanover Street Palo Alto, CA 94304 TEST SITE(S): National Technical Systems - Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-5 REPORT DATE: August 27, 2015 REISSUE DATE: November 17, 2015 FINAL TEST DATES: July 13, 14, 16, 17, 20, 22, 23 and 31 and August 3 and 4, 2015 TOTAL NUMBER OF PAGES: 191 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E Hill David Guidotti Staff Engineer Senior Technical Writer National Technical Systems - Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full National Technical Systems - Silicon Valley Project number J98746 Report Date: August 27, 2015 Reissue Date: November 17, 2015 Test Report R99124 Rev 2 Page 2 REVISION HISTORY Rev# Date Comments Modified By - August 27, 2015 First release 1 September 23, 2015 Updated IC number MEH 2 November 17, 2015 Updated power vs data rate results Added Appendix for justification of test reductions taken MEH National Technical Systems - Silicon Valley Project number J98746 Report Date: August 27, 2015 Reissue Date: November 17, 2015 Test Report R99124 Rev 2 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) – 802.11 OPERATION .......................................... 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 7 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 8 GENERAL ................................................................................................................................................................ 8 OTHER EUT DETAILS ........................................................................................................................................... 8 ANTENNA SYSTEM .............................................................................................................................................. 8 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 9 EUT INTERFACE PORTS ...................................................................................................................................... 9 EUT OPERATION ................................................................................................................................................... 9 TEST SITE ................................................................................................................................................................. 10 GENERAL INFORMATION ................................................................................................................................. 10 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 10 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 10 MEASUREMENT INSTRUMENTATION ............................…

Text truncated - open the document above for the full version.

File: R99246 Rev 2 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 4 / RSS 247 Issue 1 FCC Part 15 Subpart C Model: SDGOB-1506 IC CERTIFICATION #: 466D-SDGOB1506 FCC ID: B94SDGOB1506 APPLICANT: Hewlett Packard Company 3000 Hanover Street Palo Alto, CA 94304 TEST SITE(S): National Technical Systems - Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-5 REPORT DATE: August 27, 2015 REISSUE DATE: November 17, 2015 FINAL TEST DATES: July 31, August 6, 7, 12, 13, and 17, 2015 TOTAL NUMBER OF PAGES: 61 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark E Hill David Guidotti Staff Engineer Senior Technical Writer National Technical Systems - Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability o…

Text truncated - open the document above for the full version.
