B94SNPRC2150802.11b/g/n (2.4GHz) Wi-Fi + BT / BLE Radio Module

HP Inc. 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 Tel:(970) 898–8713 Date: February 23, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: B94SNPRC2150 Product: 802.11 b/g/n (2.4 Ghz) WiFi + BT/BLE Radio module To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Block Diagram  Circuit Schematic Diagram  Circuit Description  Operational Description  Part List  Tune-up Procedure  Internal Photos  User Manual Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Test Setup Photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ----------------------------------------------- Manish Oswal Wireless Regulatory Engineer Tel: +65 6703 2925 E-mail: [email protected]

Authorization on Behalf of HP Inc. For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P. Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (HP) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP Inc. to make this Authorization on HP Inc.’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP Inc.’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP Inc. with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Manish Oswal Title: Regulatory Engineer Address: HP Singapore (Private) Limited. 1 Depot Close, Singapore, 109841 Telephone: +65 67032925 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P Tarsio US Canada Technical Regulations 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 970 898 8713 Telephone [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. ____________________________ Signature Richard P Tarsio US Canada Technical Regulations HP Inc. Date: 17 August 2017

HP Inc. 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 Tel:(970) 898–8713 Date: December 2, 2020 Request for Modular Approval for FCC ID: B94SNPRC2150 Product: 802.11 b/g/n (2.4 GHz) WiFi + BT/BLE Radio module Item Requirements EUT 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module is equipped with its own shielding case. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal The module has buffer modulation / data inputs. 3. The module must contain power supply regulation on the module The module has its own power supply regulation. The host supplies a DC voltage and is regulated by the chip to the DC voltages used by internal RF blocks. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) The module has a permanently attached antenna, with the maximum gain 4 dBi 5. The module must demonstrate compliance in a stand-alone configuration The module was tested on evaluation board, and it’s not inside of another device during testing 6. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end-user of the final end-product. 8. The module must comply with RF exposure requirements The module complies with the FCC RF exposure requirements for fixed and mobile applications. RF exposure is addressed in the RF exposure exhibit. Sincerely yours, ----------------------------------------------- Manish Oswal Wireless Regulatory Engineer E-mail: [email protected]

HP Inc. 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 Tel:(970) 898–8713 Date: February 23, 2021 To whom it may concern, According to KDB 726920 D01, the user's manual and internal photos of the radio module (RMN: SNPRC-2150 and FCC ID: B94SNPRC2150) exhibit may be given Long-term Confidentiality under the following special conditions: b) User’s manual and internal photos of the radio module may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. c) In the application cover letter requesting Long-Term Confidentiality the following additional description (in item 7) and the NDA exhibit is required: 1. Describe in detail how internal photos and/or user’s manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must include the key terms of the NDA to ensure consistency between the two. Response 1. This module is HP Inc. proprietary and will not be used or sold anywhere else. Confidentiality of the User Manual is maintained by requiring that any party that is supplied a user manual must first sign a non-disclosure agreement. 2. The module will only be installed and/or repaired in the HP Inc.'s factory and it does not open to the public. 3. The module is not subject to third part sales. The final user of the module is always the HP Inc. 4. A sample copy of the HP Inc. NDA requiring that any party that is supplied with a user manual must first sign a non-disclosure agreement attached. Sincerely yours, Manish Oswal [email protected]

HP Inc. 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 Tel:(970) 898–8713 Date: December 1, 2020 To whom it may concern, Please be notified that I, Manish Oswal, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jo n e s Tsa i in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: B94SNPRC2150 Product: 802.11 b/g/n (2.4 GHz) WiFi + BT/BLE Radio module If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Sincerely yours, ----------------------------------------------- Manish Oswal Wireless Regulatory Engineer Tel: +65 6703 2925 E-mail: [email protected]

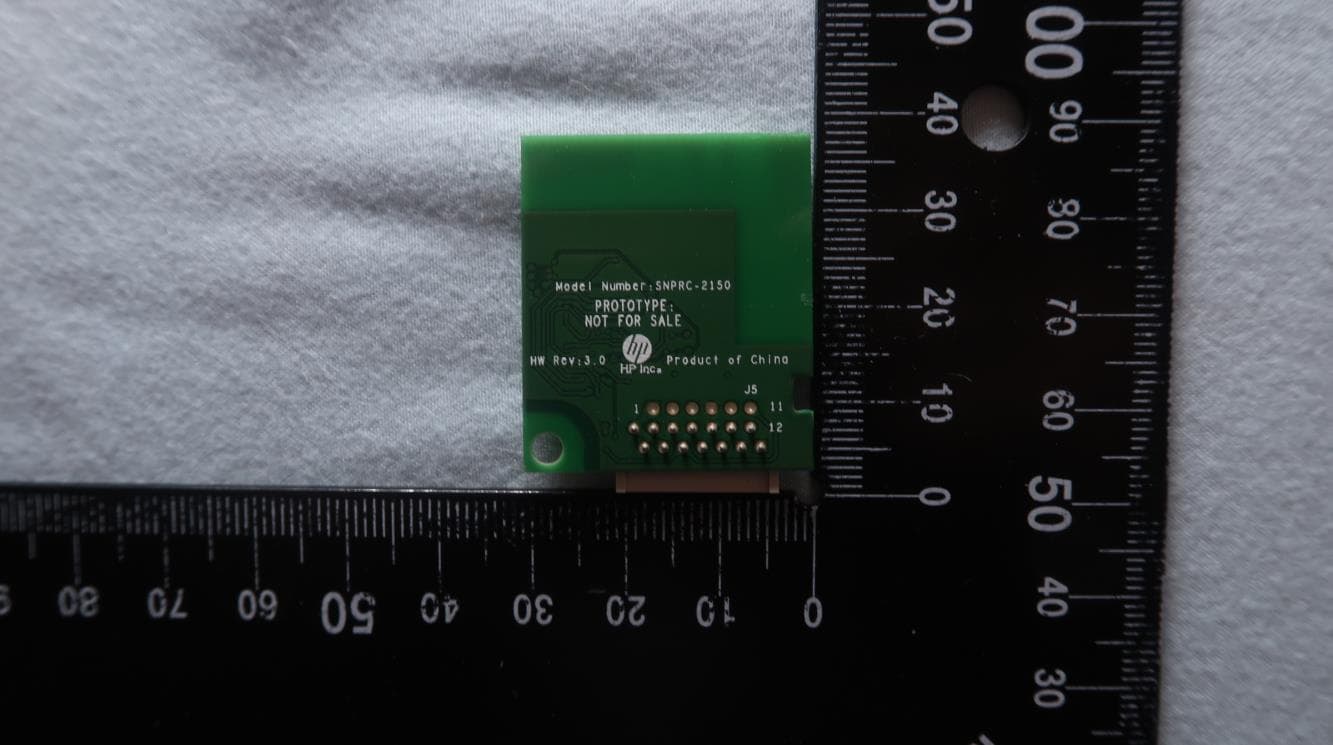

PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 1 of 15 Issued Date : Feb. 17, 2021 Report Version : 01 1. External Photograph of EUT Brand Name: HP Inc. / Model Name: SNPRC-2150 Sample 1 PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 2 of 15 Issued Date : Feb. 17, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 3 of 15 Issued Date : Feb. 17, 2021 Report Version : 01 Sample 2 PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 4 of 15 Issued Date : Feb. 17, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 5 of 15 Issued Date : Feb. 17, 2021 Report Version : 01 Sample 3 PHOTOGRAPHS OF EUT Report No.: EP200819001 TEL : 408 9043300 Page Number : 6 of 15 Issued Date : Feb. 17, 2021 Report Version : 01

Bottom of the PCB Label location

X-X-hpi-SNPRC-2150 XXXX21XXXXXXXX FCC ID: B94SNPRC2150 IC: 466S-SNPRC2150 XXX-XXXXXX 5 GHz band (W52,W53) Indoor use only (Except for transmission with high power system) ANATEL: XXXXX-21-XXXXX Model Number: SNPRC-2150 C-XXXXX HP Inc. Rev 1.0 Antenna (keep out) Antenna(keep out) 7mm 7mm Connector (Keep out) 7mm

TEL : 886-3-327-3456 Page : 1 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 RF EXPOSURE EVALUATION REPORT FCC ID : B94SNPRC2150 Equipment : 802.11b/g/n (2.4GHz) Wi-Fi + BT / BLE Radio Module Brand Name : Model Name : SNPRC-2150 Applicant : HP Singapore (Private) Limited 1 Depot Close, Singapore 109841 Manufacturer : HP Inc. 1501 Page Mill Road, Palo Alto 94304, U.S.A. 650-857-1501 Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part 2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 6 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 7 4.1. Standalone Power Density Calculation ............................................................................................. 7 TEL : 886-3-327-3456 Page : 3 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 History of this test report Report No. Version Description Issued Date FA200819001 Rev. 01 Initial issue of report Feb. 05, 2021 TEL : 886-3-327-3456 Page : 4 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type 802.11b/g/n (2.4GHz) Wi-Fi + BT / BLE Radio Module Brand Name Model Name SNPRC-2150 FCC ID B94SNPRC2150 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2400 MHz ~ 2483.5 MHz Bluetooth: 2400 MHz ~ 2483.5 MHz Mode WLAN: 802.11b/g/n HT20 Bluetooth BR/EDR/LE EUT Stage Identical Prototype Sample Information Sample Sample 1 Sample 2 Sample 3 Labelled 0960-4992 0960-4991 0960-4977 Antenna Main: PCB Antenna Main: PCB Antenna Main: PCB Antenna Aux.: PCB Antenna Aux.: External Antenna with cable 300mm (or 200mm) Aux.: PCB Antenna Config Miligrid / 12 pin header connector Miliigrid / 12 pin header connector FFC connector Reviewed by: Jason Wang Report Producer: Daisy Peng TEL : 886-3-327-3456 Page : 5 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 2. Maximum RF average output power among production units <2.4GHz WLAN> Transmit Antenna Main Ant. Aux Ant. 2.4GHz WLAN Mode Channel Frequency (MHz) Tune-Up Limit Tune-Up Limit 802.11b 1Mbps 1 2412 18.00 18.00 6 2437 20.50 20.50 11 2462 20.00 18.50 802.11g 6Mbps 1 2412 16.00 15.50 2 2417 17.00 18.00 6 2437 19.50 19.50 10 2457 18.00 17.50 11 2462 16.50 16.00 802.11n-HT20 MCS0 1 2412 16.50 16.00 2 2417 17.00 18.00 6 2437 19.50 19.50 10 2457 18.00 17.50 11 2462 17.00 16.00 <Bluetooth Main Ant.> Mode Average power (dBm) BR / EDR LE 1Mbps 2Mbps 3Mbps 1Mbps Tune-up Limit 9 5.5 5.5 6 <Bluetooth Aux Ant.> Mode Average power (dBm) BR / EDR LE 1Mbps 2Mbps 3Mbps 1Mbps Tune-up Limit 9 5.5 5.5 6 TEL : 886-3-327-3456 Page : 6 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 3. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna TEL : 886-3-327-3456 Page : 7 of 7 FAX : 886-3-328-4978 Issued Date : Feb. 05, 2021 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA200819001 4. Radio Frequency Radiation Exposure Evaluation 4.1. Standalone Power Density Calculation Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Power Density / Limit WLAN2.4GHz Band 2400 4.0 20.5 24.5 0.28 281.84 0.056 1.000 0.056 Bluetooth 2400 4.0 9.0 13.0 0.02 19.95 0.004 1.000 0.004 2.4GHz WLAN Power Density / Limit Bluetooth Power Density / Limit Σ(Power Density / Limit) of 2.4GHz WLAN+Bluetooth 0.056 0.004 0.060 Note: 1. Σ(Power Density / Limit): This is a summation of [(power density for each transmitter/antenna included in the simultaneous transmission)/ (corresponding MPE limit)], for 2.4GHz WLAN + Bluetooth. 2. Considering the 2.4GHzWLAN collocation with the Bluetooth transmitter of the EIRP performance listed in the table above, the aggregated (power density /limit) is smaller than 1, and MPE of 2 collocated transmitters is compliant Conclusion: According to 47 CFR §2.1091, the RF exposure analysis concludes t…

Text truncated - open the document above for the full version.

TEL : 408 9043300 Page Number : 1 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A FCC RADIO TEST REPORT FCC ID : B94SNPRC2150 Equipment : 802.11b/g/n (2.4GHz) Wi-Fi + BT / BLE Radio Module Brand Name : Model Name : SNPRC-2150 Applicant : HP Singapore (Private) Limited 1 Depot Close, Singapore 109841 Manufacturer : HP Inc. 1501 Page Mill Road, Palo Alto 94304, U.S.A. 650-857-1501 Standard : FCC Part 15 Subpart C §15.247 The product was received on Oct. 22, 2020 and testing was started from Oct. 22, 2020 and completed on Dec. 16, 2020. We, Sporton International (USA) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (USA) Inc., the test report shall not be reproduced except in full. Reviewed by: Neil Kao Sporton International (USA) Inc. 1175 Montague Expressway, Milpitas, CA 95035 TEL : 408 9043300 Page Number : 2 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A Table of Contents History of this test report ................................................................................................................................. 3 Summary of Bluetooth Test Result ................................................................................................................. 4 1 General Description ................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Product Specification of Equipment Under Test ................................................................................ 6 1.3 Modification of EUT ........................................................................................................................... 6 1.4 Testing Location ................................................................................................................................ 6 1.5 Applicable Standards ......................................................................................................................... 7 2 Test Configuration of Equipment Under Test ......................................................................................... 8 2.1 Carrier Frequency Channel ............................................................................................................... 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 11 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 12 3 Test Result ................................................................................................................................................ 13 3.1 Number of Channel Measurement .................................................................................................. 13 3.2 Hopping Channel Separation Measurement ................................................................................... 16 3.3 Dwell Time Measurement ................................................................................................................ 27 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 30 3.5 Output Power Measurement ............................................................................................................ 51 3.6 Conducted Band Edges Measurement............................................................................................ 54 3.7 Conducted Spurious Emission Measurement ................................................................................. 67 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 86 3.9 AC Conducted Emission Measurement......................................................................................... 123 3.10 Antenna Requirements .................................................................................................................. 127 4 List of Measuring Equipment ............................................................................................................... 128 5 Uncertainty of Evaluation...................................................................................................................... 129 TEL : 408 9043300 Page Number : 3 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A History of this test report Report No. Version Description Issued Date FR200819001A 01 Initial issue of report Feb. 08, 2021 TEL : 408 9043300 Page Number : 4 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A Summary of Bluetooth Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 15.247(a)(1) Number of Channels Pass - 3.2 15.247(a)(1) Hopping Channel Separation Pass - 3.3 15.247(a)(1) Dwell Time of Each Channel Pass - 3.4 15.247(a)(1) 20dB Bandwidth Pass - 3.4 2.1049 99% Occupied Bandwidth Reporting only - 3.5 15.247(b)(1) Peak Output Power Pass - 3.6 15.247(…

Text truncated - open the document above for the full version.

TEL : 408 9043300 Page Number : 60 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <3Mbps> Low Band Edge Plot on Channel 00 High Band Edge Plot on Channel 78 TEL : 408 9043300 Page Number : 61 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A 3.6.6 Test Result of Conducted Hopping Mode Band Edges <Main Antenna> <1Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 62 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <2Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 63 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <3Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 64 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <Aux. Antenna> <1Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 65 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <2Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 66 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <3Mbps> Hopping Mode Low Band Edge Plot Hopping Mode High Band Edge Plot TEL : 408 9043300 Page Number : 67 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A 3.7 Conducted Spurious Emission Measurement 3.7.1 Limit of Spurious Emission Measurement In any 100 kHz bandwidth outside the intentional radiation frequency band, the radio frequency power shall be at least 20 dB below the highest level of the radiated power. In addition, radiated emissions which fall in the restricted bands must also comply with the radiated emission limits. 3.7.2 Measuring Instruments See list of measuring equipment of this test report. 3.7.3 Test Procedure 1. The testing follows ANSI C63.10-2013 clause 7.8.8. 2. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. 3. Set to the maximum power setting and enable the EUT transmit continuously. 4. Set RBW = 100 kHz, VBW = 300kHz, scan up through 10th harmonic. All harmonics / spurs must be at least 20 dB down from the highest emission level within the authorized band as measured with a 100 kHz RBW. 5. Measure and record the results in the test report. 6. The RF fundamental frequency should be excluded against the limit line in the operating frequency band. 3.7.4 Test Setup TEL : 408 9043300 Page Number : 68 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A 3.7.5 Test Result of Conducted Spurious Emission <Main Antenna> <1Mbps> CSE Plot on Ch 00 between 30MHz ~ 3 GHz 1Mbps CSE Plot on Ch 00 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 69 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 39 between 30MHz ~ 3 GHz CSE Plot on Ch 39 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 70 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 78 between 30MHz ~ 3 GHz CSE Plot on Ch 78 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 71 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <2Mbps> CSE Plot on Ch 00 between 30MHz ~ 3 GHz CSE Plot on Ch 00 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 72 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 39 between 30MHz ~ 3 GHz CSE Plot on Ch 39 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 73 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 78 between 30MHz ~ 3 GHz CSE Plot on Ch 78 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 74 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <3Mbps> CSE Plot on Ch 00 between 30MHz ~ 3 GHz CSE Plot on Ch 00 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 75 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 39 between 30MHz ~ 3 GHz CSE Plot on Ch 39 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 76 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 78 between 30MHz ~ 3 GHz CSE Plot on Ch 78 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 77 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <Aux. Antenna> <1Mbps> CSE Plot on Ch 00 between 30MHz ~ 3 GHz 1Mbps CSE Plot on Ch 00 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 78 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 39 between 30MHz ~ 3 GHz CSE Plot on Ch 39 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 79 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 78 between 30MHz ~ 3 GHz CSE Plot on Ch 78 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 80 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <2Mbps> CSE Plot on Ch 00 between 30MHz ~ 3 GHz CSE Plot on Ch 00 between 2 GHz ~ 25 GHz TEL : 408 9043300 Page Number : 81 of 129 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A CSE Plot on Ch 39 betwee…

Text truncated - open the document above for the full version.

TEL : 408 9043300 Page Number : 1 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A Setup Photographs <Conducted Emission> Mode 2 Remote View TEL : 408 9043300 Page Number : 2 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A Rear View TEL : 408 9043300 Page Number : 3 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A <Radiated Emission> X Plane for Aux. Antenna LF HF TEL : 408 9043300 Page Number : 4 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A SHF TEL : 408 9043300 Page Number : 5 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A Y Plane for Aux. Antenna LF HF TEL : 408 9043300 Page Number : 6 of 6 Issued Date : Feb. 08, 2021 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR200819001A SHF ─────THE END─────
