B94TNQ225HP2TKModel TPN-Q225

User Guide © Copyright 2018 HP Development Company, L.P. AMD is a trademark of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Intel, Celeron, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: August 2018 Document Part Number: L11079-001 Product notice This user guide describes features that are common to most models. Some features may not be available on your computer. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com. To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select User Guides. Software terms By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your seller. For any further information or to request a full refund of the price of the computer, please contact your seller. Safety warning notice WARNING!To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950-1). iii iv Safety warning notice Processor configuration setting (select products only) IMPORTANT:Select computer products are configured with an Intel® Pentium® N35xx/N37xx series or a Celeron® N28xx/N29xx/N30xx/N31xx series processor and a Windows® operating system. If your computer is configured as described, do not change the processor configuration setting in msconfig.exe from 4 or 2 processors to 1 processor. If you do so, your computer will not restart. You will have to perform a factory reset to restore the original settings. v vi Processor configuration setting (select products only) Table of contents 1 Welcome ....................................................................................................................................................... 1 Finding information ............................................................................................................................................... 2 2 Components .................................................................................................................................................. 3 Locating hardware ................................................................................................................................................. 3 Locating software .................................................................................................................................................. 3 Labels ..................................................................................................................................................................... 4 3 Network connections ..................................................................................................................................... 6 Connecting to a wireless network ......................................................................................................................... 6 Using the wireless controls ................................................................................................................. 6 Wireless button ................................................................................................................. 6 Operating system controls ............................................................................................... 6 Connecting to a WLAN ......................................................................................................................... 7 Using HP Mobile Broadband (select products only) ............................................................................ 7 Using GPS (select products only) ........................................................................................................ 8 Using Bluetooth wireless devices (select products only) ................................................................... 8 Connecting Bluetooth devices .......................................................................................... 8 Using NFC to share information (select products only) ...................................................................... 8 Sharing .......................................................................................................................…

Text truncated - open the document above for the full version.

Regulatory, Safety, and Environmental Notices User Guide © Copyright 2018 HP Development Company, L.P. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Java is a registered trademark of Oracle and/or its affiliates. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. First Edition: March 2018 Document Part Number: L25269-001 About This Guide This guide provides regulatory, safety and environmental information that is compliant with U.S., Canadian, and international regulations for notebook computers, desktops, thin clients, and personal workstations. To access the latest user guides or manuals for your product, go to http://www.hp.com/support. Select Find your product, and then follow the on-screen instructions. WARNING!Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION:Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. NOTE:Text set off in this manner provides important supplemental information. iii iv About This Guide Table of contents 1 Regulatory notices for notebook and tablet computers .................................................................................... 1 Accessing regulatory labels ................................................................................................................................... 1 Federal Communications Commission notice ....................................................................................................... 1 Modifications ....................................................................................................................................... 2 Cables .................................................................................................................................................. 2 Products with wireless LAN devices or HP Mobile Broadband Modules ............................................. 2 Brazil notice ........................................................................................................................................................... 3 Canada notices ....................................................................................................................................................... 3 European Union regulatory notices ....................................................................................................................... 4 Declaration of Conformity ................................................................................................................... 4 Products with radio functionality (EMF) ........................................................................... 4 Restrictions for products with radio functionality (select products only) ....................... 4 Radio frequency bands and maximum power levels (select products only) ................... 4 European telephone network declaration (Modem/Fax) ................................................. 5 Ergonomics notice ............................................................................................................. 5 Germany .......................................................................................................... 5 Germany (Deutscher text) .............................................................................. 5 Australia and New Zealand notice ......................................................................................................................... 5 China WWAN notice ................................................................................................................................................ 6 Japan notice ........................................................................................................................................................... 6 Wireless LAN, Wireless WAN, and Bluetooth® certification markings ................................................ 6 Mexico notice ......................................................................................................................................................... 6 Singapore wireless notice ...................................................................................................................................... 7 South Korea notices ............................................................................................................................................... 7 Thailand WWAN wireless notice ............................................................................................................................ 7 Taiwan NCC notices ................................................................................................................................................ 7 Wireless LAN 802.11a devices ............................................................................................................ 7 Wireless LAN 802.11 devices/Bluetooth devices/Short range devices .............................................. 8 Airline travel notice ................................................................................................................................................ 8 User-replaceable battery notices .......................................................................................................................... 8 Factory-sealed battery notices ............................................................................................................................. 8 Laser compliance ....…

Text truncated - open the document above for the full version.

3390 East Harmony Road Fort Collins Colorado 80528 United States Date: August 24, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: B94TNQ225HP2TK To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Tune-up Procedure ⚫ Operational Description ⚫ Block Diagram ⚫ Schematics ⚫ Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

Authorization on Behalf of HP Inc. For the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices 1. I, Richard P Tarsio, am on the Worldwide Technical Regulations staff of HP Inc. (HP) and Applicant/Grantee Contact of Record for HP Inc. together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings with the United States Federal Communications Commission (“FCC”). I am duly authorized by HP Inc. to make this Authorization on HP Inc.’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP Inc.’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third party agents for HP Inc. with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Rong-Chiao Liang Title: Regulatory Program Manager Address: HP Inc. 10F, No. 66 Jingmao 2 nd Rd NanGang District Taipei, Taiwan 11568 Telephone: 866 2 37892469 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Richard P Tarsio US Canada Technical Regulations 3390 East Harmony Road, MS 66 Fort Collins, CO 80528 970 898 8713 Telephone [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Fort Collins, Colorado on the date indicated below my signature. ____________________________ Signature Richard P Tarsio US Canada Technical Regulations HP Inc. Date: 24 June 2016

3390 East Harmony Road Fort Collins Colorado 80528 United States Date: August 24, 2020 To whom it may concern, Please be notified that HP Inc. has designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. All acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: B94TNQ225HP2TK Sincerely yours, Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

3390 East Harmony Road Fort Collins Colorado 80528 United States To whom it may concern: This device with FCC ID: B94TNQ225HP2TK integrates a WWAN module: Brand FCC ID Date of Grant WWAN module Foxconn 2AQ68T99W175 06/04/2020 No hardware design changes are made on the module, and the software has not been changed to increase the RF output power of the module and provided host level antenna gain is less than the original module grant. Pursuant to KDB 996369 D02, the original modular report (Report Number details see below) are submitted to represent the compliance of Part 22/24/27/90/96 conducted/radiated testing items of this device. Worst radiated cases found in module level testing are performed on the host level to ensure the compliance is kept. Modular Test Report Number RF200109E02 RF200109E02-1 RF200109E02-2 RF200109E02-3 RF200109E02-4 RF200109E02-5 RF200109E02-6 RF200109E02-7 RF200109E02-8 RF200109E02-9 RF200109E02-10 RF200109E02-11 RF200109E02-12 RF200109E02-13 RF200109E02-14 RF200109E02A-2 RF200109E02B RF200109E02B-1 RF200109E02B-2 RF200109E02B-3 RF200109E02B-4 RF200109E02B-5 RF200109E02B-6 RF200109E02B-7 RF200109E02B-8 RF200109E02B-9 RF200109E02B-10 RF200109E02B-11 RF200109E02B-12 RF200109E02B-13 RF200109E02B-15 Sincerely, Liang Rong Chiao Worldwide Technical Regulations HP Inc. 10F-1, 66, Jingmao 2nd Road, Nangang District, Taipei 115. Taiwan [email protected] T +886-2-37892469

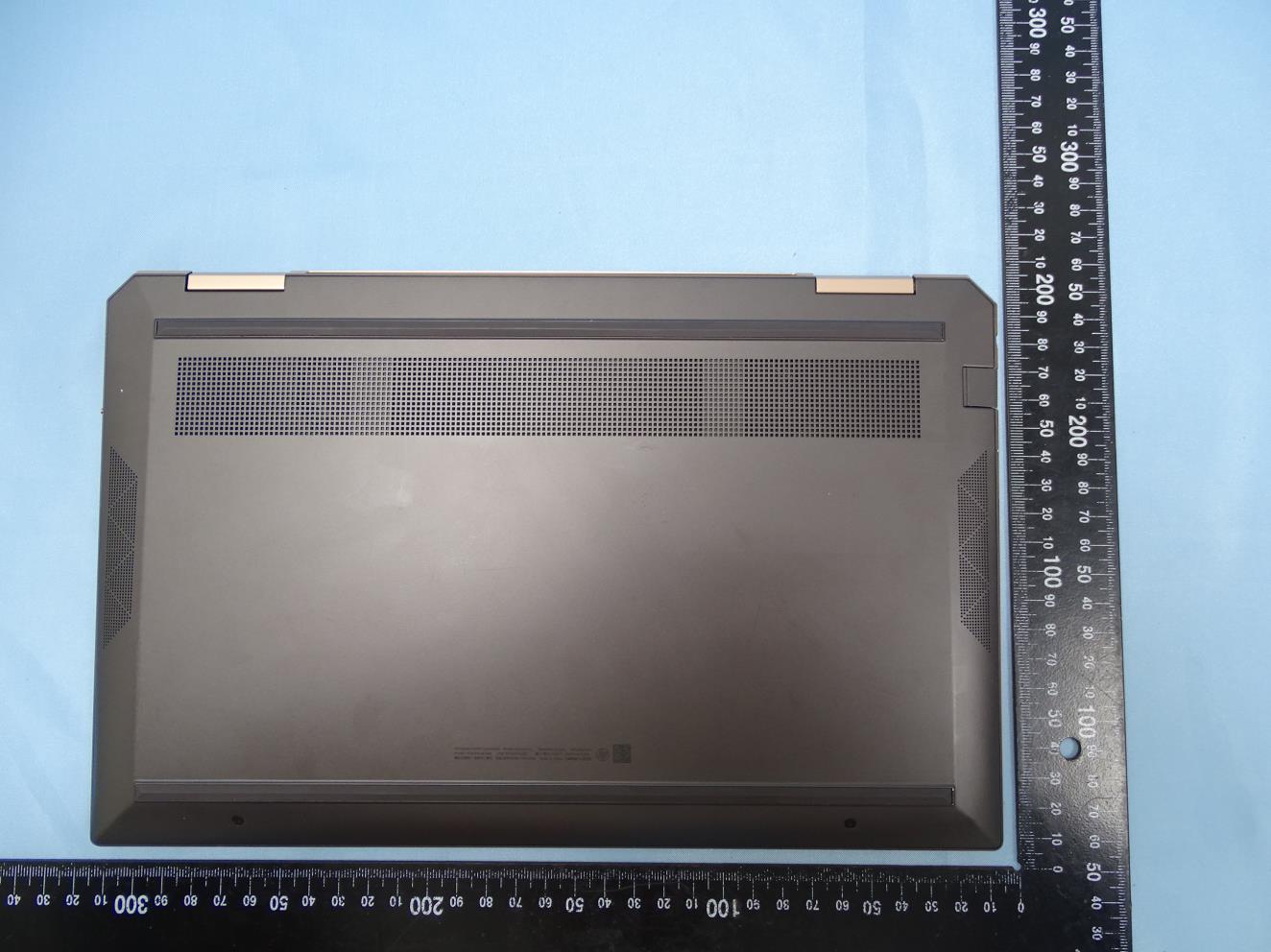

PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 1 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 2 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 3 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 4 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 5 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 6 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 7 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 8 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 9 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 Specification of Accessory AC Adapter Brand Name HP Model Name TPN-AA03 Battery Brand Name HP Model Name HSTNN-OB1M Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 10 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 11 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 AC Adapter PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 12 of 23 FAX : 886-3-328-4978 Issued Date : Oct. 07, 2020 Report Version : 01 720510 Battery

PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 13 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 3. Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 14 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 15 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 16 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 17 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 18 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 WWAN Module PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 19 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 20 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 21 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 22 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 23 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 WWAN Main Antenna PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 24 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 WWAN Aux. 1 Antenna PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 25 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 WWAN Aux. 2 Antenna PHOTOGRAPHS OF EUT Report No.: EP071106 Brand Name: HP / Model Name: TPN-Q225 TEL : 886-3-327-3456 Page Number : 26 of 26 FAX : 886-3-328-4978 Issued Date : Oct. 16, 2020 Report Version : 01 ─────THE END──── 720510 WWAN Aux. 3 Antenna

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/21 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200921 Medium parameters used: f = 750 MHz; σ = 0.903 S/m; ε r = 43.806; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(9.67, 9.67, 9.67) @ 750 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.88 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.78 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 3.03 W/kg 0 dB = 3.03 W/kg = 4.81 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/26 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200926 Medium parameters used: f = 750 MHz; σ = 0.898 S/m; ε r = 43.207; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(9.67, 9.67, 9.67) @ 750 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.87 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.78 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.11 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 3.01 W/kg 0 dB = 2.87 W/kg = 4.58 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/21 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200921 Medium parameters used: f = 835 MHz; σ = 0.939 S/m; ε r = 43.51; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(9.51, 9.51, 9.51) @ 835 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.34 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.60 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 4.29 W/kg SAR(1 g) = 2.47 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 3.59 W/kg 0 dB = 3.59 W/kg = 5.55 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/26 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200926 Medium parameters used: f = 835 MHz; σ = 0.933 S/m; ε r = 42.911; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(9.51, 9.51, 9.51) @ 835 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.32 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.60 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 4.26 W/kg SAR(1 g) = 2.45 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 3.56 W/kg 0 dB = 3.32 W/kg = 5.21 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/20 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200920 Medium parameters used: f = 1750 MHz; σ = 1.362 S/m; ε r = 40.669; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(8.06, 8.06, 8.06) @ 1750 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.8 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 16.1 W/kg SAR(1 g) = 8.57 W/kg; SAR(10 g) = 4.54 W/kg Maximum value of SAR (measured) = 13.3 W/kg 0 dB = 13.3 W/kg = 11.24 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/24 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200924 Medium parameters used: f = 1750 MHz; σ = 1.352 S/m; ε r = 40.569; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration - Probe: EX3DV4 - SN3728; ConvF(8.06, 8.06, 8.06) @ 1750 MHz; Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1311; Calibrated: 2020/8/25…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/9/20 #01_WCDMA II_RMC 12.2Kbps_Bottom of Laptop_0mm_Ch9262 Communication System: WCDMA ; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200920 Medium parameters used : f = 1852.4 MHz; σ = 1.384 S/m; ε r = 39.574; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.…
