B95-NL6000-VHF1

Raveon Technologies

VHF/FM MODEM

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Oct 29, 2003
Application Purpose: Original Equipment
Date of Application: Oct 29, 2003
Equipment Note: VHF/FM MODEM
Frequency Range: 136.00000000 - 162.00000000
Company: Raveon Technologies
Country: United States

Documents & Files

Select a file to view

Users Manual

Block Diagram

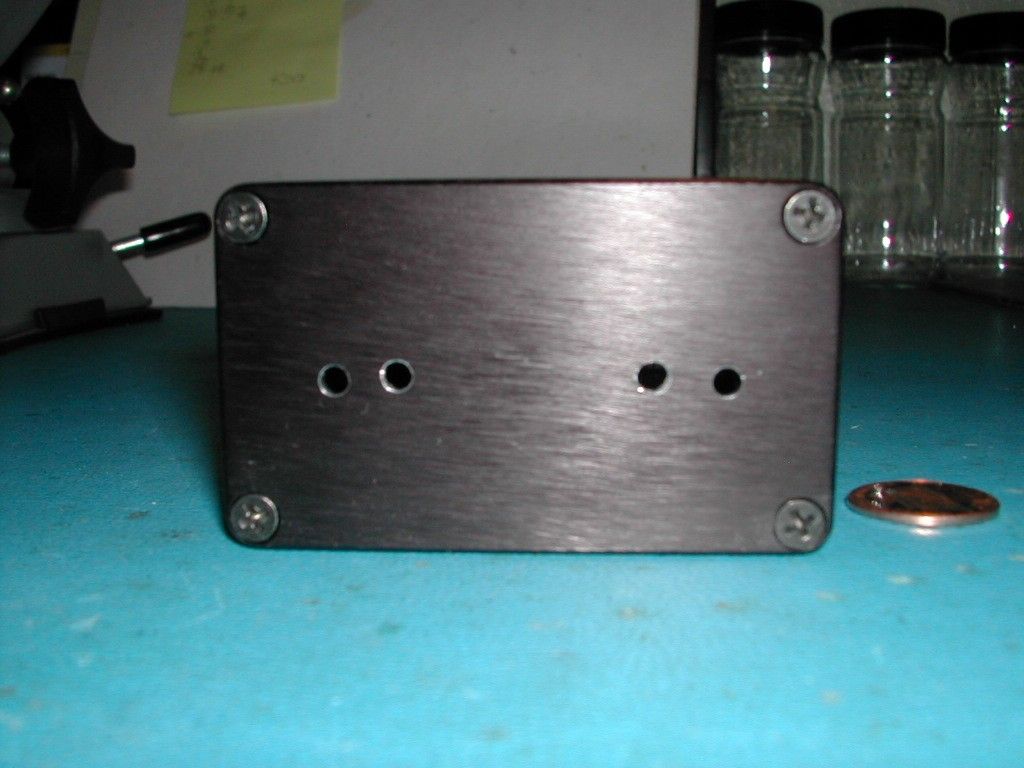

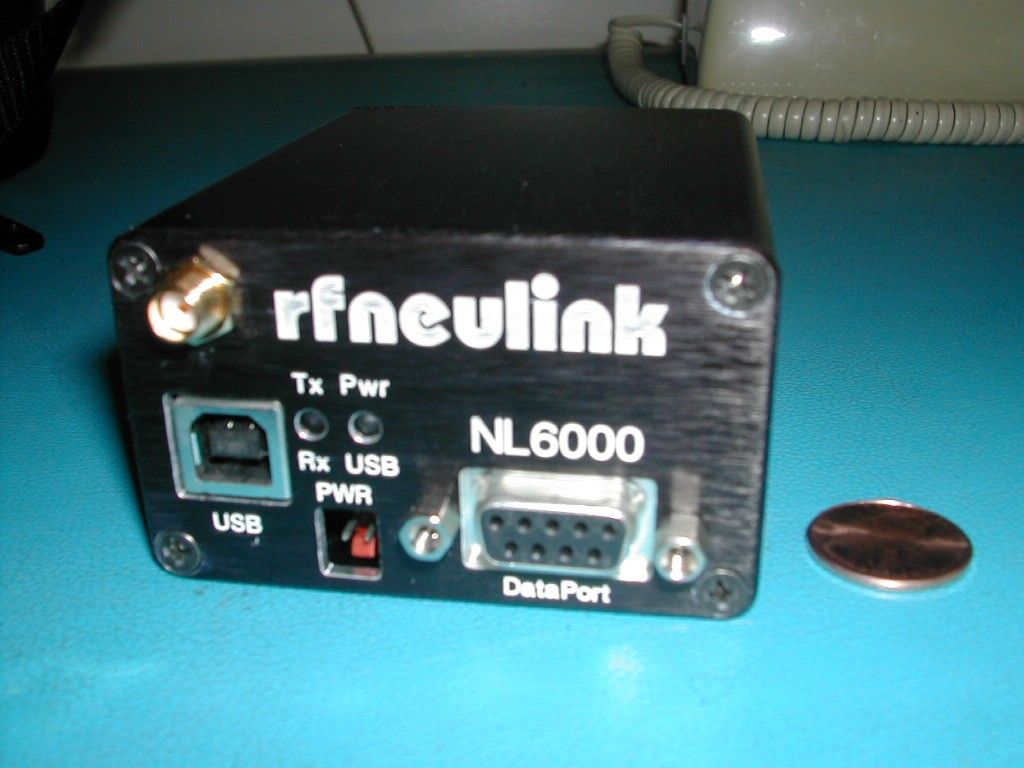

External Photos

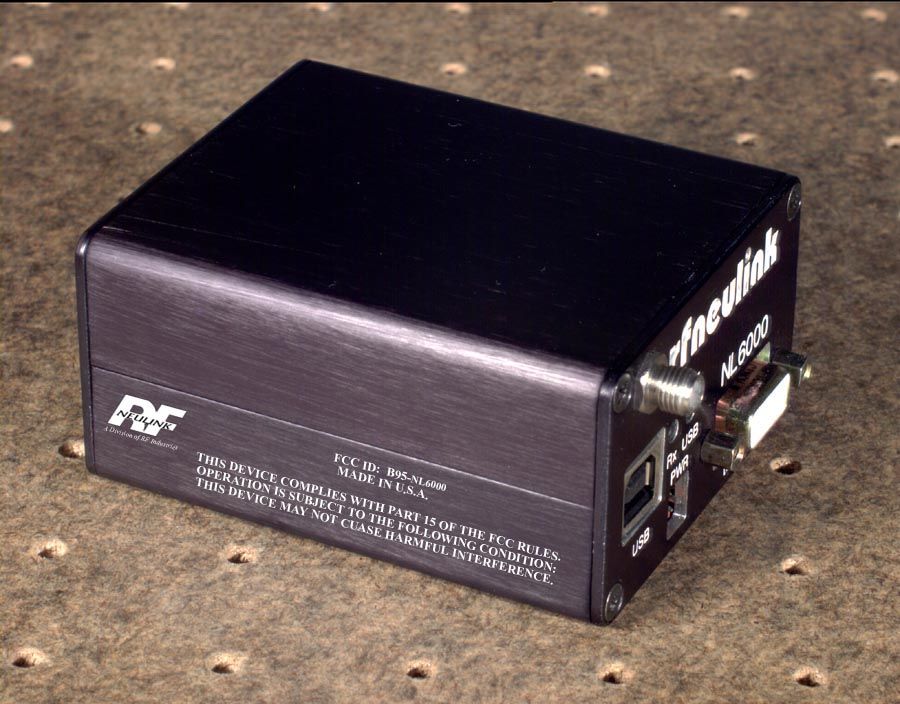

ID Label/Location Info

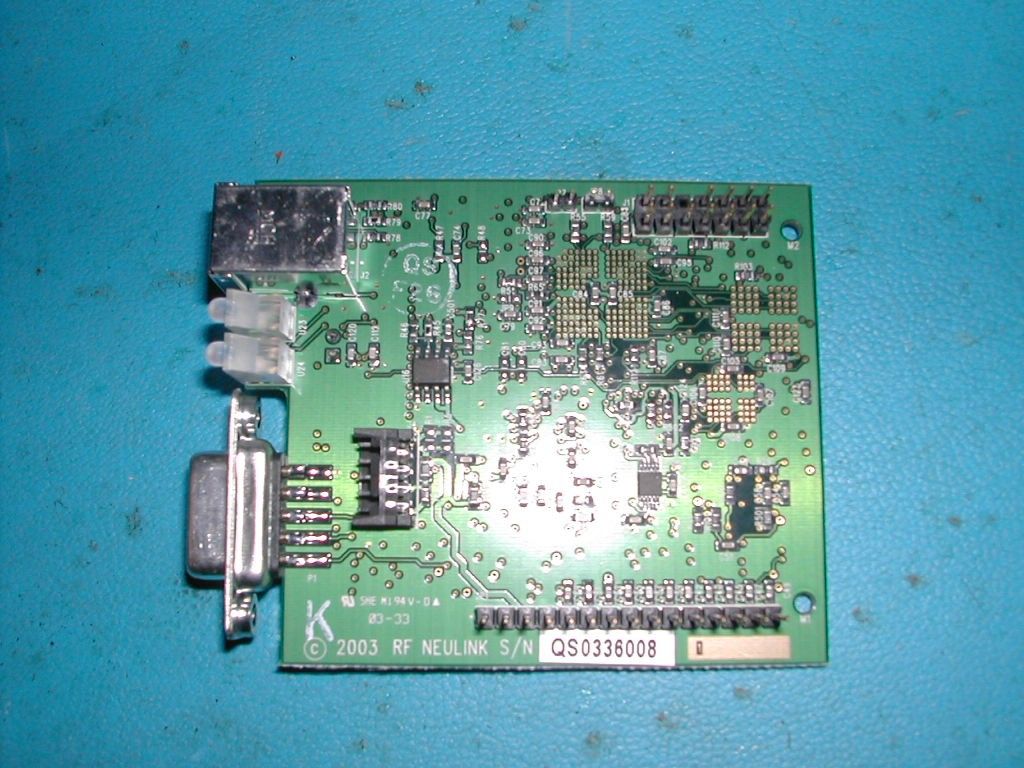

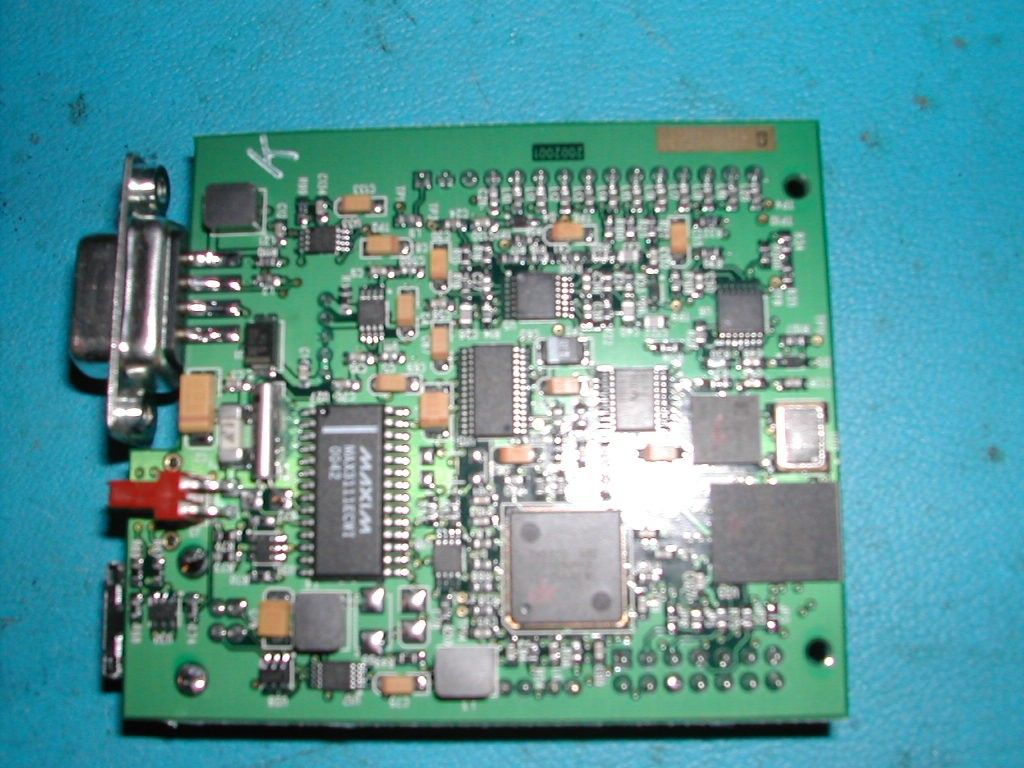

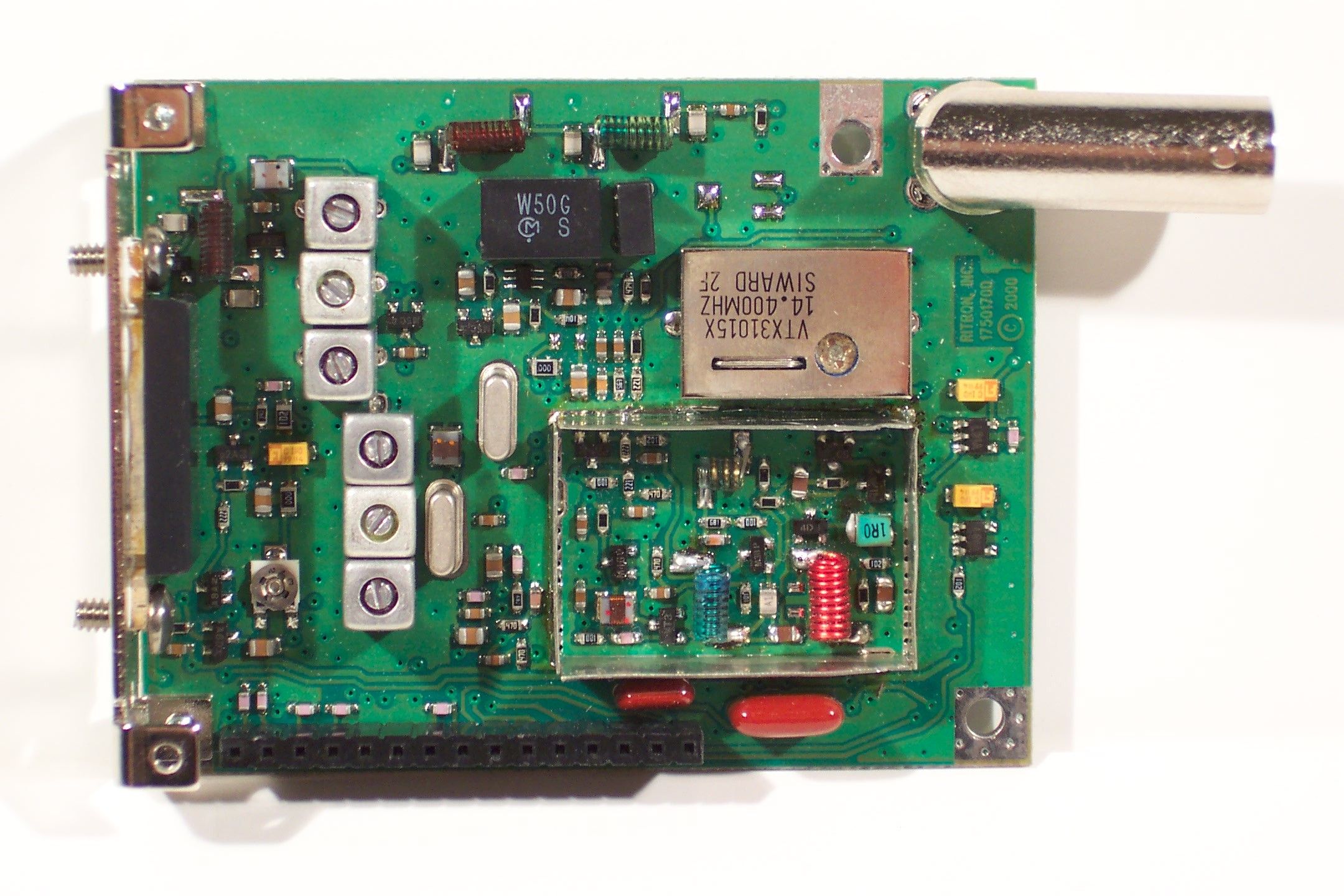

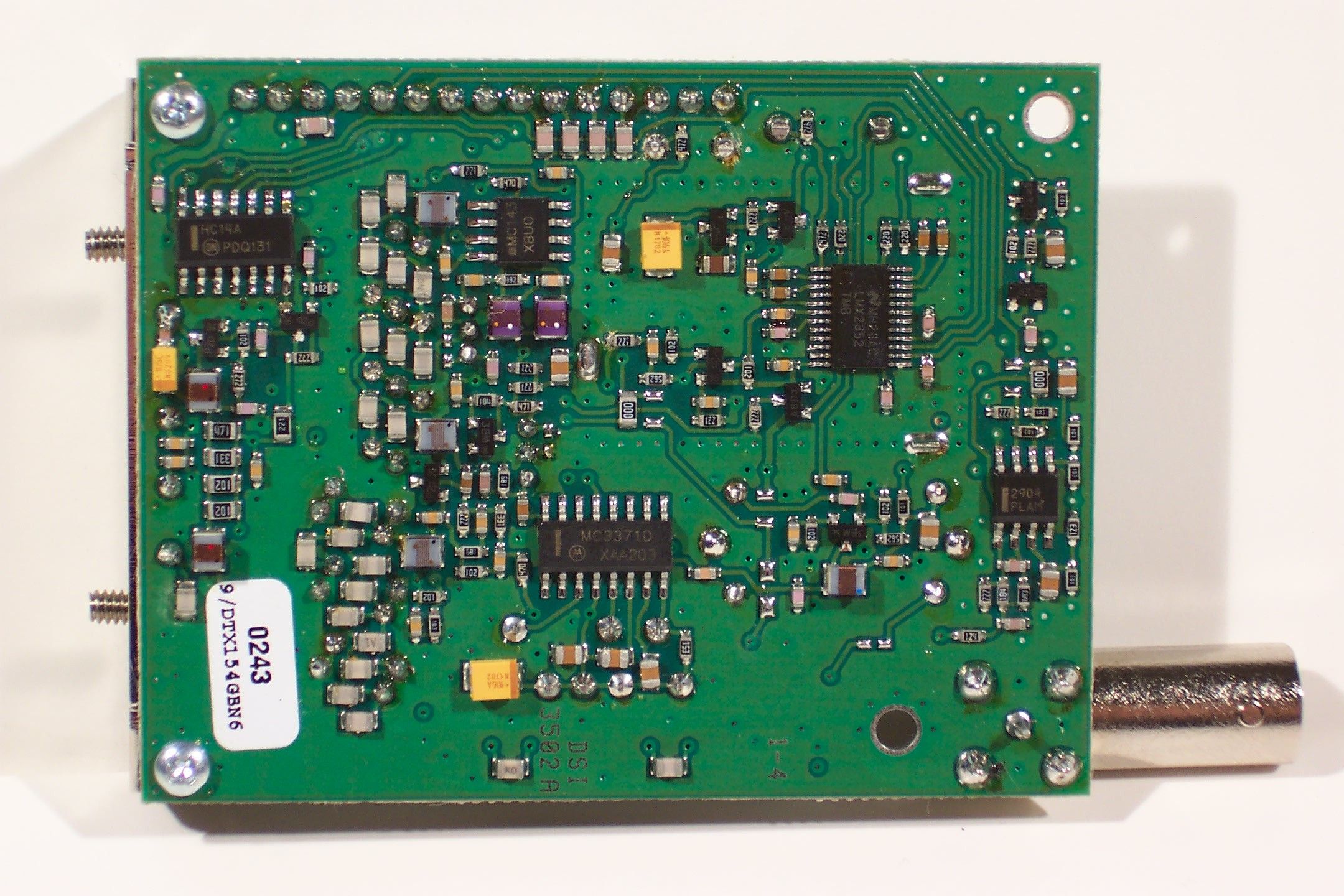

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Schematics

Test Report

Contact Information

Applicant

John Richard Sonnenberg(President)

[email protected]7604445995Fax: 7604445997

Test Firm

M. Flom Associates, Inc.Morton Flom

[email protected]480-926-3100Fax: 480-926-3598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	22,9	136 MHz - 162 MHz	6 W	16K0F1D	1.5 ppm

Grant Notes

Power listed is conducted. Maximum antenna gain is 0 dBd. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 34 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
