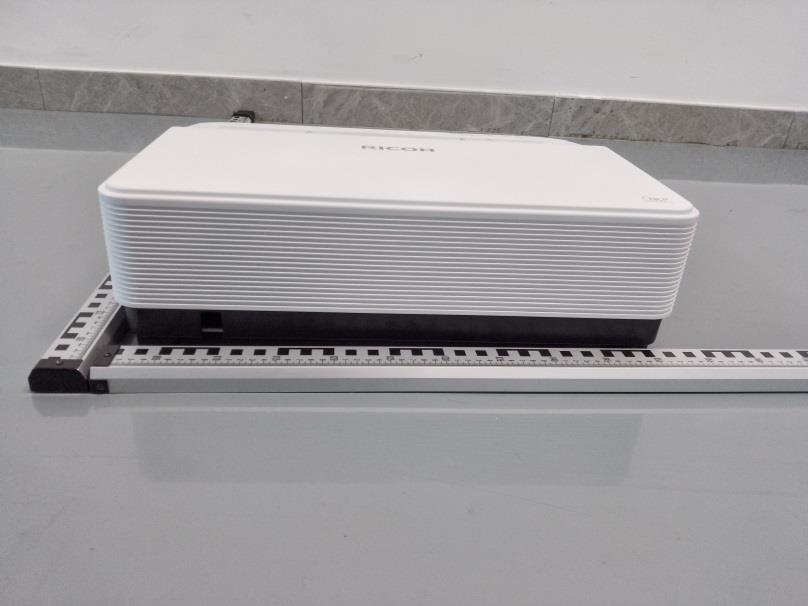

BBP-OTY0GV1PROJECTOR

LAN Control Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Precautions in this manual before using the machine. Wireless Projection User Settings Memroy Viewer Basic Operations Introduction Usage Notice 7. 6. 5. 4. 3. 2. 1. Troubleshooting Appendices9. 8. User’s Manual RICOH PJ UHL3660 RU7706L, RU7707L, RU7708L, RU7709L RU8801L, RU8802L, RU8803L, RU8804L, RU8805L, RU8806L, RU8807L, RU8808L, RU8809L RU7700L RU8800L RU7701L, RU7702L, RU7703L, RU7704L, RU7705L, ModelTyp. Model All models in this manual are represented by the Typ. models, and the corresponding relationship between the model names and the Typ. models is shown in the following table. English English Contents 01 Contents ......................................................................................................................................01 Usage Notice ...............................................................................................................................04 Precautions ...............................................................................................................................................04 Remote Control Battery ............................................................................................................................10 Safety indications of this machine ............................................................................................................11 Eye protection ...........................................................................................................................................14 About Ceiling Mount ...............................................................................................................................16 Installing this machine .............................................................................................................................18 Handling a Wireless LAN ........................................................................................................................20 Regulation & Safety Notices.....................................................................................................................21 Power Switch Symbols .............................................................................................................................29 Other Information .....................................................................................................................................30 Copyrights of third party software ...........................................................................................................31 Cautions when using LAN .......................................................................................................................31 Introduction ................................................................................................................................32 Package Overview .....................................................................................................................................32 Product Overview .....................................................................................................................................33 Connection Ports ......................................................................................................................................34 Control Panel and Indicators ....................................................................................................................35 Remote Control .........................................................................................................................................36 Installation of Remote Control Batteries ..................................................................................................38 Remote Control Operating Range ............................................................................................................39 Installing the Projector .............................................................................................................................40 Precautions for installing the projector ....................................................................................................41 Basic Operations........................................................................................................................43 Connecting a Computer (Connect to Computer/Notebook) .....................................................................43 Connecting a Audio Device (Audio) and the Remote Controller .............................................................44 Connecting a USB Device ........................................................................................................................45 Using the power cord stopper ...................................................................................................................46 Installing the power cord stopper .........................................................................................................46 Disconnecting the power cord stopper .................................................................................................47 Powering On/Off the Projector ................................................................................................................48 Powering on the Projector ....................................................................................................................48 Power off the projector ..........................................................................................................................49 Input Source Signal Selection ..................................................................................................................50 Adjust the Projector Focus .........................................................................…

Text truncated - open the document above for the full version.

English English 09 Usage Notice ■ Caution- This product incorporates glass components, including a lens. If this should break, please handle with care to avoid injury and contact your sales representative for repair service. Avoid any broken pieces of glass since they may cause injury. ■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition. English 10 Usage Notice Remote Control Battery Warning • Do not touch the battery directly with bare hands if it leaks. If the liquid gets into your eyes, do not rub them. It may cause blindness. Immediately wash with clean water and consult a doctor. • Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as flammable garbage after moistening the tissue with water. • Do not mix new batteries with used batteries, old batteries, or batteries of different types. Otherwise, fluid leakage may occur. • Risk of an explosion if battery is replaced by an incorrect type. • Remove the batteries from the remote control when they are used up. Otherwise, fluid leakage may occur. Notes • Be sure to use two AA (R6) size batteries. • Do not drop the remote control. • Do not expose the remote control to moisture or heat. • If the remote control does not operate correctly, or if the operating range becomes reduced, replace the batteries. • Remove batteries from remote control when not using for extended periods. • Avoid contact with water or liquid. • If the batteries have leaked in the remote control, carefully wipe the case clean and install new batteries. • Dispose of batteries according to local rules. • Attention should be drawn to the environmental aspects of battery disposal • When storing or disposing of batteries, insulate the terminals with tape or similar material. Do not mix with other batteries or metal objects. English English 11 Usage Notice Safety indications of this machine ! WARNING Class 1 laser product [IEC 60825-1:2014, EN60825-1:2014+A11:2021, EN50689:2021] • The laser module is equipped in this product. Use of controls or adjustments of procedures other than those specified herein may result in hazardous radiation exposure. This product is classified as Class 1 CONSUMER LASER PRODUCT of IEC/EN 60825-1 Third edition (2014) and RG2 of IEC/EN62471-5 First edition. Regarding the installation and management of the equipment, please comply with the relevant laws and regulations of your country. 1. Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire. If you want to temporarily stop the projected image, use the AVMute button on the remote control. 2. Projection light warning • CLASS 1 CONSUMER LASER PRODUCT - RISK GROUP 2 IEC62471-5:2015 • Do not stare into the beam, maybe harmful to the eyes. • Do not look into the light source light using optical instruments (such as magnifying glasses and mirrors). Visual impairment could result. • When turning on the projector, make sure no one within projection range is looking at the lens.Be especially careful in an environment with children. English 12 Usage Notice • Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes. 3. Do not remove any screws. Do not block or cover the vents. 4. WARNING: This product contains a button cell or coin battery. (This label is affixed to products for USA and Canada only and is a warning statement for USA users.) 1 2 English English 13 Usage Notice RICOH CO.,LTD 3-6, Nakamagome 1-chome, Ohta-ku, Tokyo 143-8555 Japan IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019. for USA / pour les USA Made in China / Fabriqué en Chine Y0GV-17 Y0GV-27 RICOH PJ UHL3660 100-240V50/60Hz 4.3-2.1A 460W CAN ICES-3 (B)/NMB-3(B) RICOH CO.,LTD 3-6, Nakamagome 1-chome, Ohta-ku, Tokyo 143-8555 Japan IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019. for USA / pour les USA Made in China / Fabriqué en Chine Y0GV-17 Y0GV-27 RICOH PJ UHL3660 100-240V 50/60Hz 4.3-2.1A 460W CAN ICES-3 (B)/NMB-3(B) RICOH CO.,LTD 3-6, Nakamagome 1-chome, Ohta-ku, Tokyo 143-8555 Japan IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019. for USA / pour les USA Made in China / Fabriqué en Chine Y0GV-17 Y0GV-27 RICOH PJ UHL3660 100-240V50/60Hz 4.3-2.1A 460W CAN ICES-3 (B)/NMB-3(B) RICOH CO.,LTD 3-6, Nakamagome 1-chome, Ohta-ku, Tokyo 143-8555 Japan IEC 62471-5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019. for USA / pour les USA Made in China / Fabriqué en Chine Y0GV-17 Y0GV-27 RICOH PJ UHL3660 100-240V 50/60Hz 4.3-2.1A 460W CAN ICES-3 (B)/NMB-3(B) 3 4

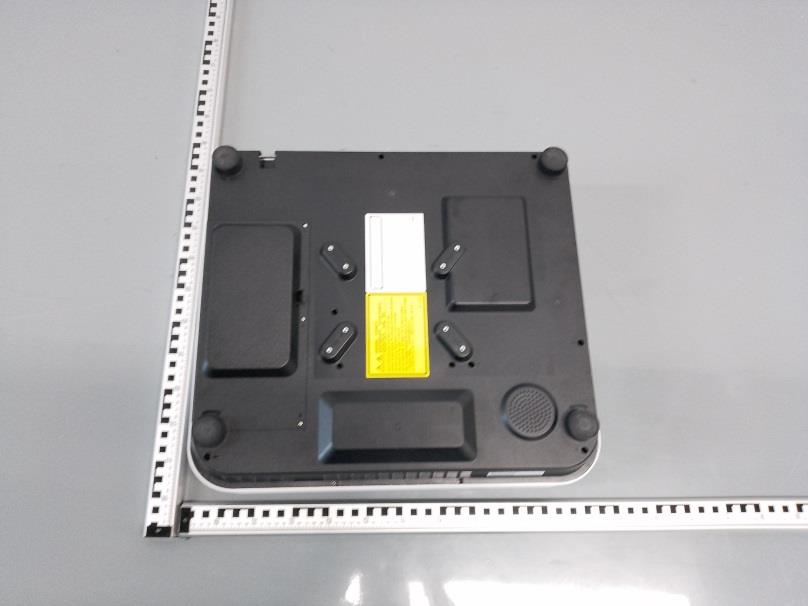

English 14 Usage Notice Eye protection The projected light from a projector is strong and can cause eye dam- age if stared at. To prevent this, the projector has the Eye Protection function. The range of the projected light is shown in the figure below. When [Eye Protection] is set to [On], the screen will automatically darken and the icon will appear when a person or object approaches this range. (Please refer to “Eye Protection” on page 83 ) Horizontal Angle (Unit: degree) Center (Reference value) HC 64.2 HC HC Vertical Angle (Unit: degree) Center (Reference value) VU 62.2  If the approaching person or object does not move for more than 5 seconds, the protection display is canceled. N o t e English English 15 Usage Notice VU VU 58°@100'' English 16 Usage Notice About Ceiling Mount ■ Warning- Installing the Projector on a Wall or Ceiling: a) Do not attempt to clean or replace parts for a machine that is installed in a high location on a wall or ceiling. Doing so may cause it to fall down, resulting in an injury. b) Contact your sales or service representative to clean or replace parts for a machine that is installed on a wall or ceiling. c) If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a machine on a wall or ceiling. d) Do not obstruct the projector’s vents. Doing so risks fire caused by overheated internal components. e) For users, do not install the projector by yourself. Contact your sales or service representative if you want to install the projector on a wall or ceiling. les or service representatives: - Use brackets that are strong enough to support the projector. Projector‘s weight is approx. 12kg. - The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets. - This machine has two groups of fixing screw holes (4 on the inside and 4 on the outside). - Secure the bracket using all screws in at least one group. - Make sure the screws are tightened. Inside group M4x4 Outside group M4x4 English English 17 Usage Notice g) Do not use the projector in oil-mist or smoke environment. Doing so may cause the projector case to crack and fall from its ceiling mount. This may cause serious injury. ■ Caution- Use the drop proof chain to prevent projector dropping: a) Connect the safety bolt of the projector to the solid part of the building with a drop proof chain by using common tools. b) Make sure to use a drop chain that can support the weight of the projector and the drop tool. English 18 Usage Notice Installing this machine Openings in the casing are designed for ventilation and overheating prevention. Heat exhaust at the air outlet. Keep the following in mind when using or installing your projector. ■ Warning- Improper installation may shorten the life of the light source or cause serious accidents or fire. ■ Warning- a) Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to hot air coming from the exhaust vents. b) Do not use the projector on soft material such as paper or cloth that might get sucked into the intake vents. Doing so may cause heat buildup inside the projector, resulting in malfunction, burns, or fire. c) Do not place the projector in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated. d) Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the projector or an accident. e) Do not obstruct the projector’s vents. Doing so risks fire caused by overheated internal components. f) If the projector’s interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the projector’s interior. g) Do not use the product in a closed installation location. Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of fire. h) Do not block the ventilation holes to prevent overheating.

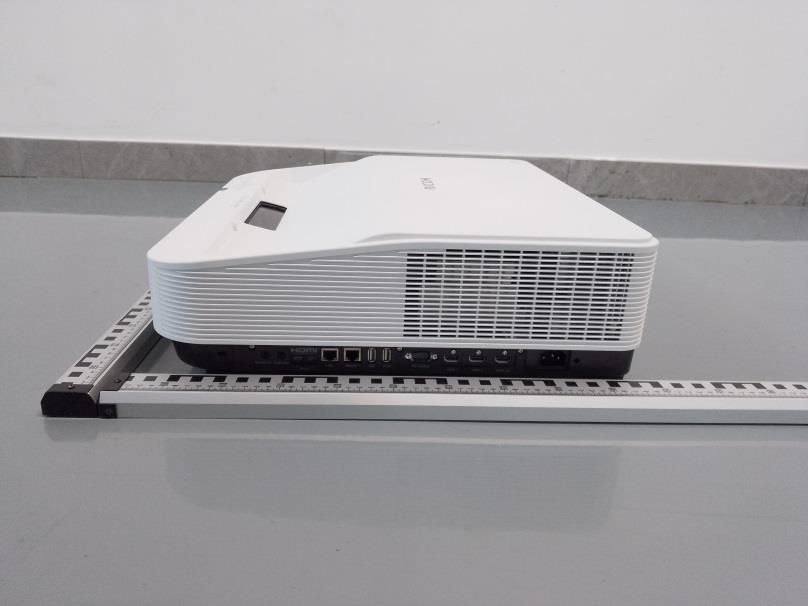

English English 19 Usage Notice Exhaust vent (Air outlet) Intake vent (Air intake) Intake vent (Air intake) Exhaust vent (Air outlet) ■ Caution- Be sure to reserve proper space at the each side of projector. English 20 Usage Notice Handling a Wireless LAN Warning • Before using a wireless LAN, make sure there is nobody with a pacemaker nearby. This machine may cause pacemakers to malfunction due to electromagnetic interference. • Before using a wireless LAN, make sure there is no medical equipment nearby. This machine may cause medical equipment to malfunction due to electromagnetic interference. • Before using a wireless LAN, make sure there are no limitations or restrictions in the place you will be using it. There may be restricted use in places such as medical facilities due to electromagnetic interference. • Do not use a wireless LAN if there is electromagnetic interference from other equipment. Doing so may cause an accident due to the other equipment malfunctioning from the lectromagnetic interference. Wireless uses radio waves to exchange information instead of an Ethernet cable. The wireless LAN radio waves pass through barriers such as walls within a fixed area, so the following problems may occur: Leak of Personal Information • Information such as IDs, passwords, credit card numbers, and the contents of e-mails, etc., may be stolen by a third party. Illegal Access to the Network • Data and systems may be corrupted or manipulated by a virus. • An imposter may access information illegally. • Confidential information may be accessed illegally. To minimize the possibility of these problems occurring, it is recommended to check the functions built into the wireless LAN devices, such as the projector and wireless LAN access points, and to specify security settings. English English 21 Usage Notice Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ UHL3660 TRADE NAME: PROJECTOR MODEL NAME: RICOHPJ UHL3660 Tested To Comply with FCC Standards FOR HOME OR OFFICE USE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■ Reorient or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■ Consult the dealer or an experienced radio/TV technician for help. ■ Caution- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. English 22 Usage Notice 3. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. User manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil nedoit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Radio apparatus containing digital circuitry which can function separately from the operation of a transmitter or an associated transmitter, shall comply with ICES-003. In such cases, the labelling requirements of the applicable RSS apply, rather than the labelling requirements in ICES-003. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. IC SAR Warning: This equipment should be installed and operated with mini- mum distance 20 cm between the radiator and your body. Lors de l’ installation et de l’ exploitation de ce dispositif, la dis- tance entre le radiateur et le corps est d ’au moins 20 cm. English English 23 Usage Notice Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this projector. Notes to Users in the State of California Perchlorate Material - special handling may apply, See www. dtsc.ca.gov/hazardouswaste/perchlorate. Notice to Users in EEA Countries and the UK Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer (CE marking, ProdSG): PFU (EMEA) LIMITED Viale Monza …

Text truncated - open the document above for the full version.

English English 39 Introduction Remote Control Operating Range Point the remote control at the remote control sensing windows in front of projector. When the remote control is pointed at the signal receiver on the pro- jector, the effective range of the remote control is an area of radius 7 meters or about 20 meters in straight line from the receiver. The remote control is effective within vertical and horizontal ±30° to the receiving direction of the remote control signal receiver. When the angle exceeds this range, the effective control distance will be reduced. 20m 20m 20m 7m 7m 7m 7m 30° 30°30° 30° 30° 30°  This remote control uses infrared light and may not work when it is exposed to bright light or fluorescent light.  The guaranteed operation range of the remote control is shown in the figure on the right, but there is also a receiver on the top side, so the remote control can be operated from the top side. N o t e English 40 Introduction Installing the Projector When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:  Position the projector on a flat surface at a right angle to the screen. The projector (with the standard lens) must be at least 4.3 feet (1.3 m) from the projection screen.  Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.  When using a LAN, use the network separated by a firewall to prevent unauthorized access from the Internet.  Pay careful attention to the installation location, management of the devices, and the network device to which the device is connected, in order to prevent malicious third parties from viewing the communication data.  Pay careful attention to the in- stallation location and management of the devices, in order to prevent unauthorized tampering by a malicious third party who can op- erate the devices. N o t e Horizontal 360° Vertical 360° Vertical & Horizontal 360° ࠦէq ॺէq ͧॺէЊࠦէङুՠͨ ࠦէq ॺէq ͧॺէЊࠦէङুՠͨ ࠦէq ॺէq ͧॺէЊࠦէङুՠͨ

English English 41 Introduction When installing the projector, keep sufficient space around it, as described below. If not, the hot exhaust emitted from the projector may be taken back in. Also, make sure no wind from an air-conditioner hits the projector. The projector’s heat control system may detect an abnormality (tem- perature error) and automatically shut off the power. • The distance between the air intake grill and the wall is not less than 100 cm • The distance between the exhaust grill and the wall is not less than 100 cm. • The internal temperature rises will cause the projector breaking down. ≥100cm ≥100cm ≥100cm When the air intake and exhaust port are set in the upper and lower direction: • The distance between the air intake and the wall should be more than 100cm. • The distance between the exhaust grill and the wall should be more tha n 100cm. • The internal temperature rises will cause the projector breaking down. In addition, when the two are installed side by side, in order to prevent the hot air from directly entering the air intake, please set a wall in the middle. Precautions for installing the projector English 42 Introduction Wall ≥100cm ≥100cm ≥100cm ≥100cm ≥100cm ≥100cm ≥100cm ≥100cm ≥200m ≥100cm ≥100cm English English 43 Basic Operations Connecting a Computer (Connect to Computer/ Notebook) Serial cable (crossover)  To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. (See page 117).  Use the cable that comes with the projector, if any.  To display 4K/60Hz signal such as UHD Blu-ray player output, make sure to use Preminum certificated HDMI cable.  The HDBaseT terminal supports serial communication functions, but not LAN functions. N o t e HDMI cable HDMI cable HDBaseT Transmitter LAN Cable Cat.5e or above LAN Cable LAN Cable Hub or router HDMI cable/ Serial Cable Basic Operations

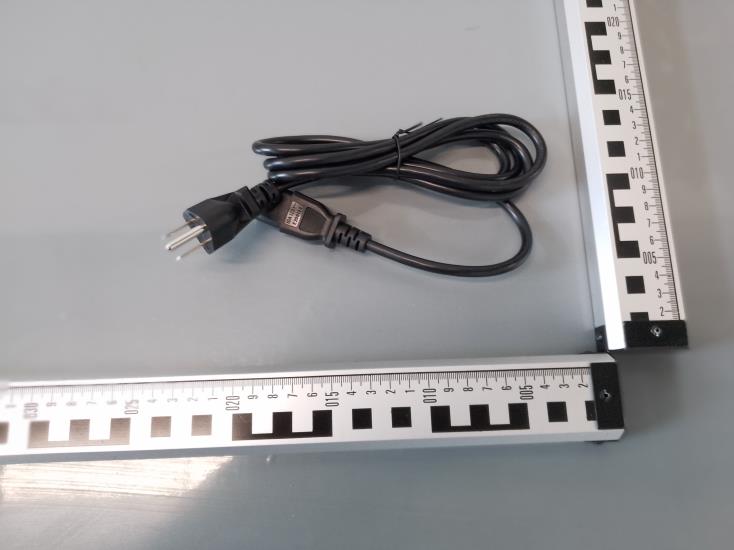

English 44 Basic Operations  If speakers without built-in amplifiers are used, prepare a separate amplifier.  When external speakers are connected, no sound is output from the main unit’s speakers.  The volume of the external speaker can be adjusted with the [Volume +/-] button. N o t e Audio cable (φ3.5) Audio cable (φ3.5) Connecting a Audio Device (Audio) and the Remote Controller EGT004 English English 45 Basic Operations Connecting a USB Device USB memory device English 46 Basic Operations Using the power cord stopper To prevent the power cord from accidently removing from the AC IN of the projector, use the power cord stopper. CAUTION: To prevent the power cord from coming loose, make sure that all the prongs of the power cord are fully inserted into the AC IN terminal of the projector before using the power cord stopper to fix the power cord. A loose contact of the power cord may cause a fire or electric shock Installing the power cord stopper 1. With the clamper facing the power supply cord, align the tip of the power supply cord stopper with the hole below the AC IN terminal and push it in. 2. Pass the power supply cord through the clamper and press the clamper to fix it. 3. Pass the power supply cord through the clamper and press the clamper to fix it. Clamper  If you pull on the power supply cord while the connector is fixed, the main unit may fall down and be damaged. N o t e English English 47 Basic Operations Disconnecting the power cord stopper 1. Pull to an appropriate position while pushing down the knob of the power cord stopper. 2. Press down the knob on the clamper to open the clamper and take out the power cord. 3. Push and pull the fitted part of the power cord stopper from the left and right to remove it from the main unit. Knob Knob Clamper English 48 Basic Operations Powering On/Off the Projector Powering on the Projector 1. Please make sure the power cord and power cord stopper are securely connected. The Power indicator will turn red. Connect the power cord and stopper to the projector. 2. Turn on the projector by pressing the “” button on the top control panel or on the remote control. or The Power indicator will flash blue. The startup screen will display and the Power indicator will turn blue. 3. The first time you use the projector, you will be asked to select the preferred language. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically. Make sure that the [Auto Source] has been set to [On]. * [Auto Source] is set to [On] as a factory default value.  Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment and must be easily accessible. N o t e  Turn on the projector first and then the signal sources. N o t e  If you connect multiple sources at the same time, press “Input” to switch inputs. N o t e

English English 49 Basic Operations  When the Power indicator Flashes red, the light source is cooling down, and the projector cannot be turned on at this moment. When the Power indicator turns red steadily, the projector can be turned on again. N o t e Power off the projector 1. Press the “” button on the control panel or on the remote control. The following dialog box will pop up. Confirm Press [POWER] again to turn off. 2. Press the “” button again. The projector will shut down. ● The Power indicator will Flash red, while the cooling fan continues running. You may set up noise level and speed of the fan when it is cooling down. Until when the projector goes to standby mode, the Power indicator will be steady red. 3. Unplug the power cord out of the socket and projector connector. English 50 Basic Operations Input Source Signal Selection If the input source is a device that connects to the HDMI 2 In terminal with an HDMI cable, choose “HDMI 2”.…
