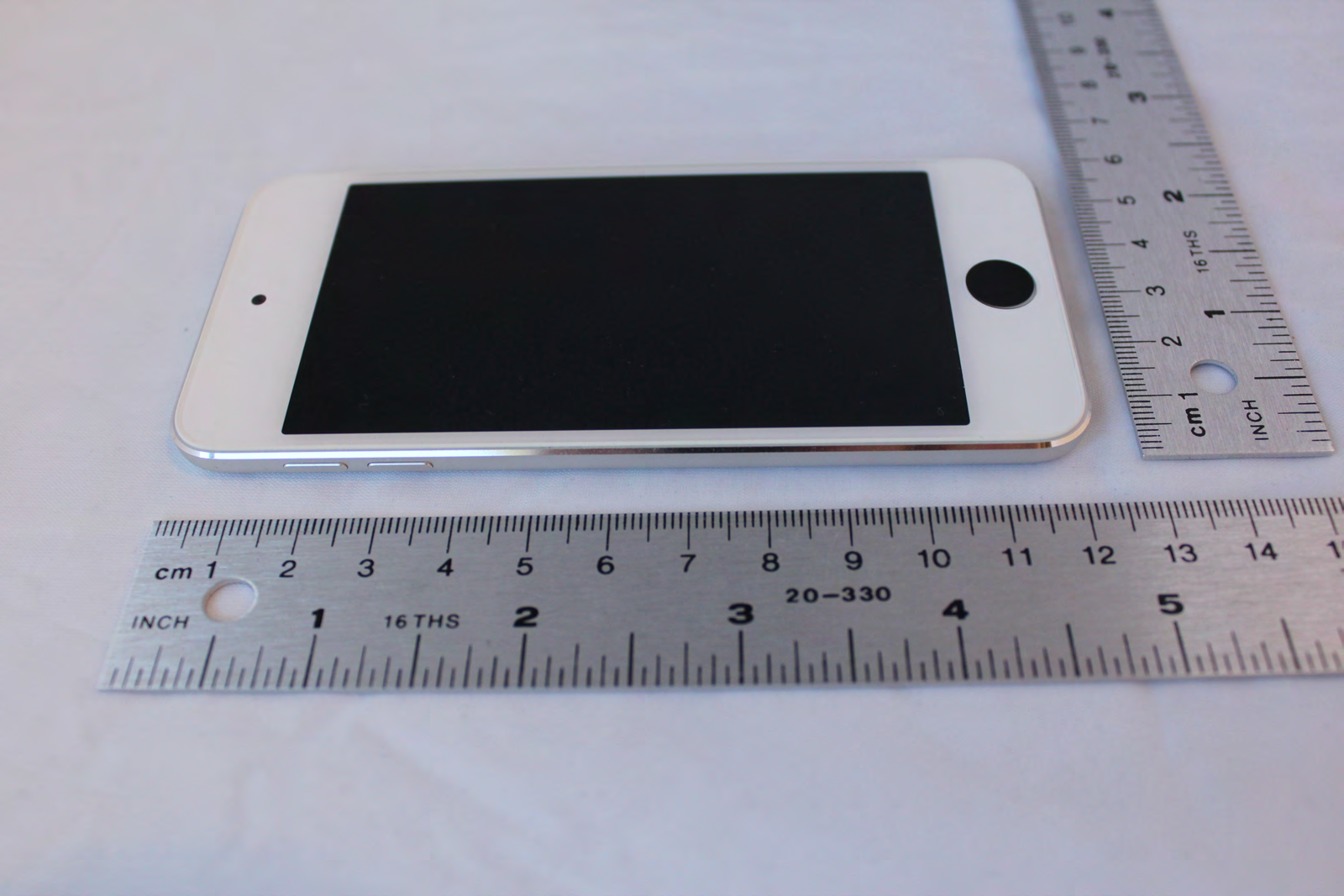

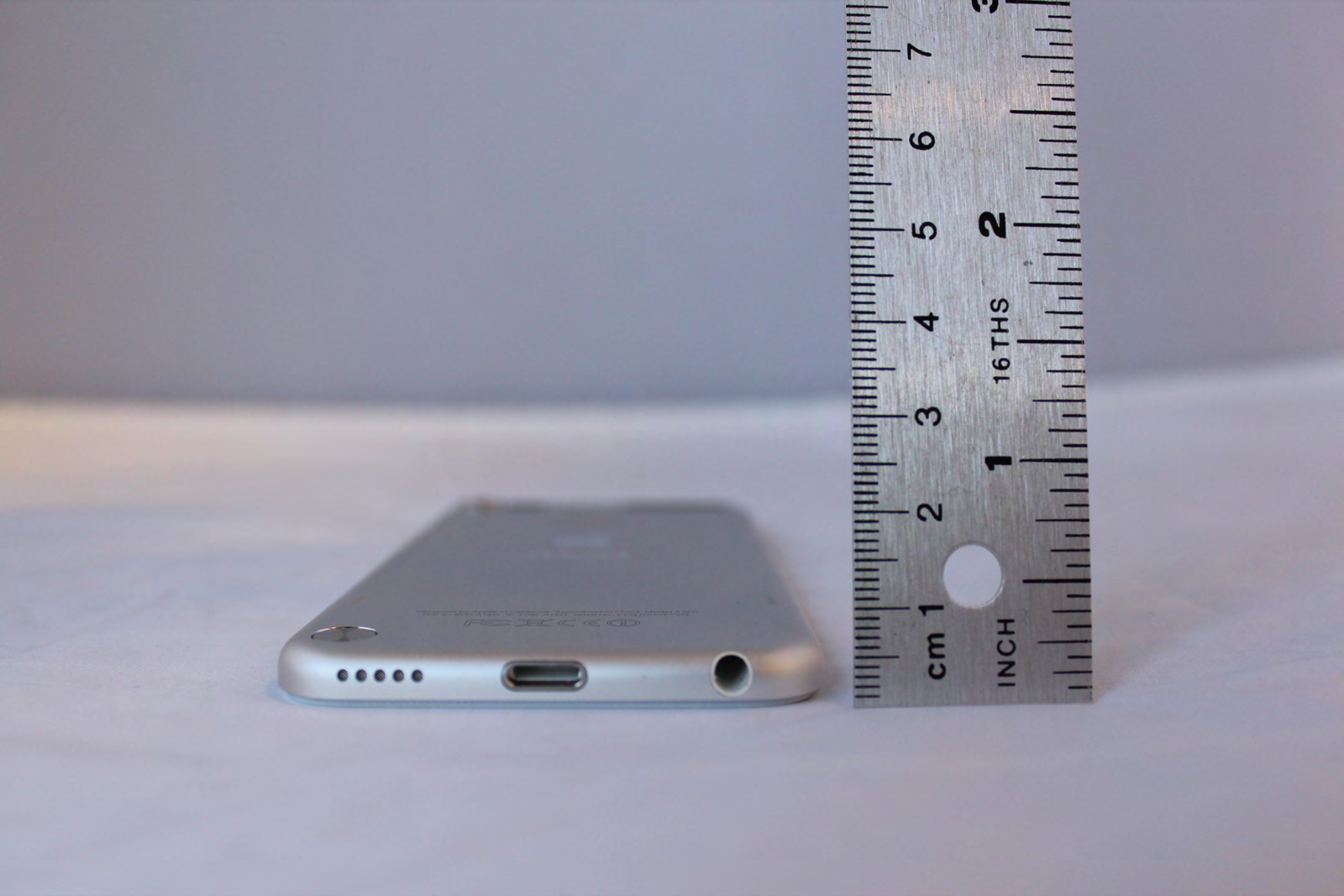

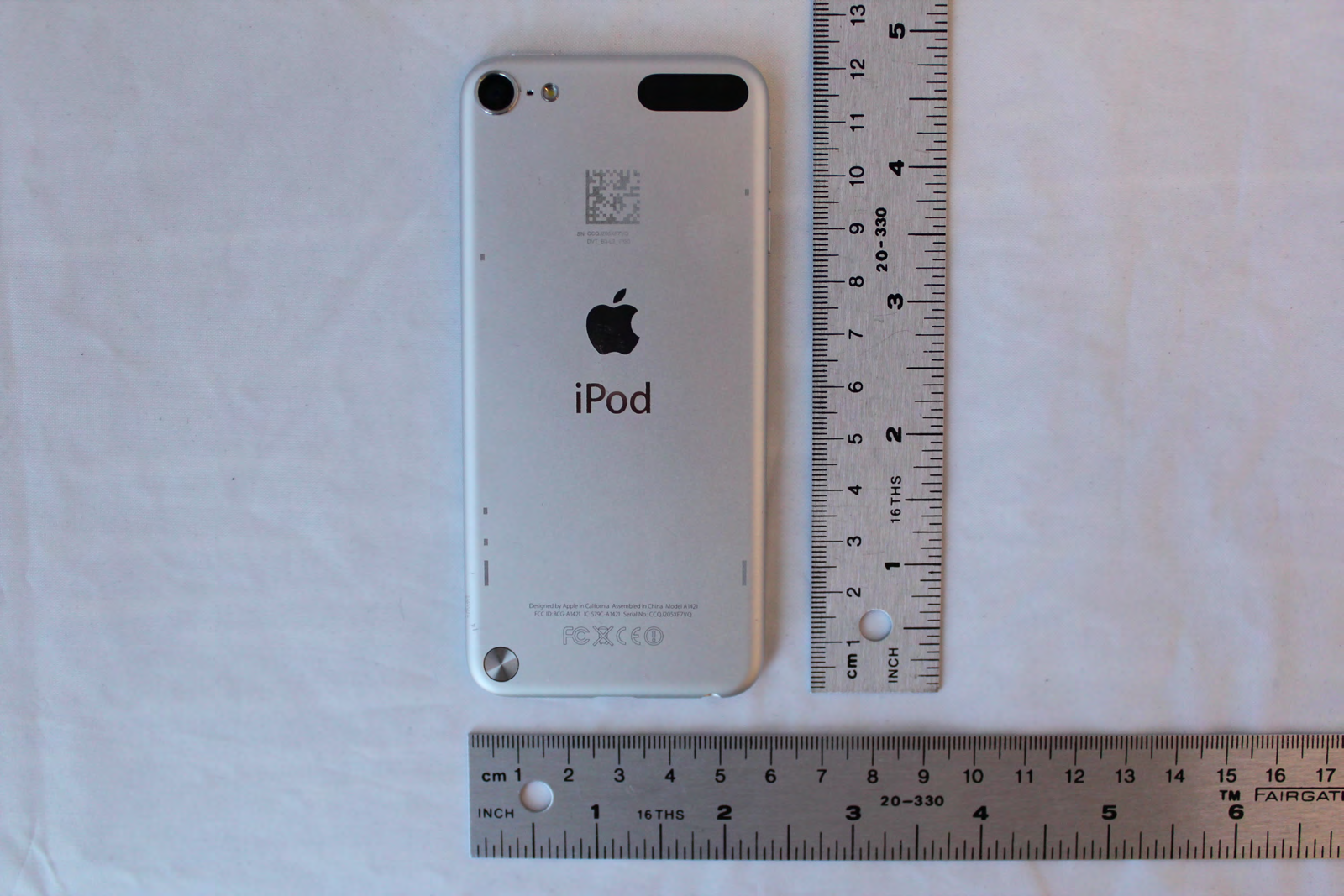

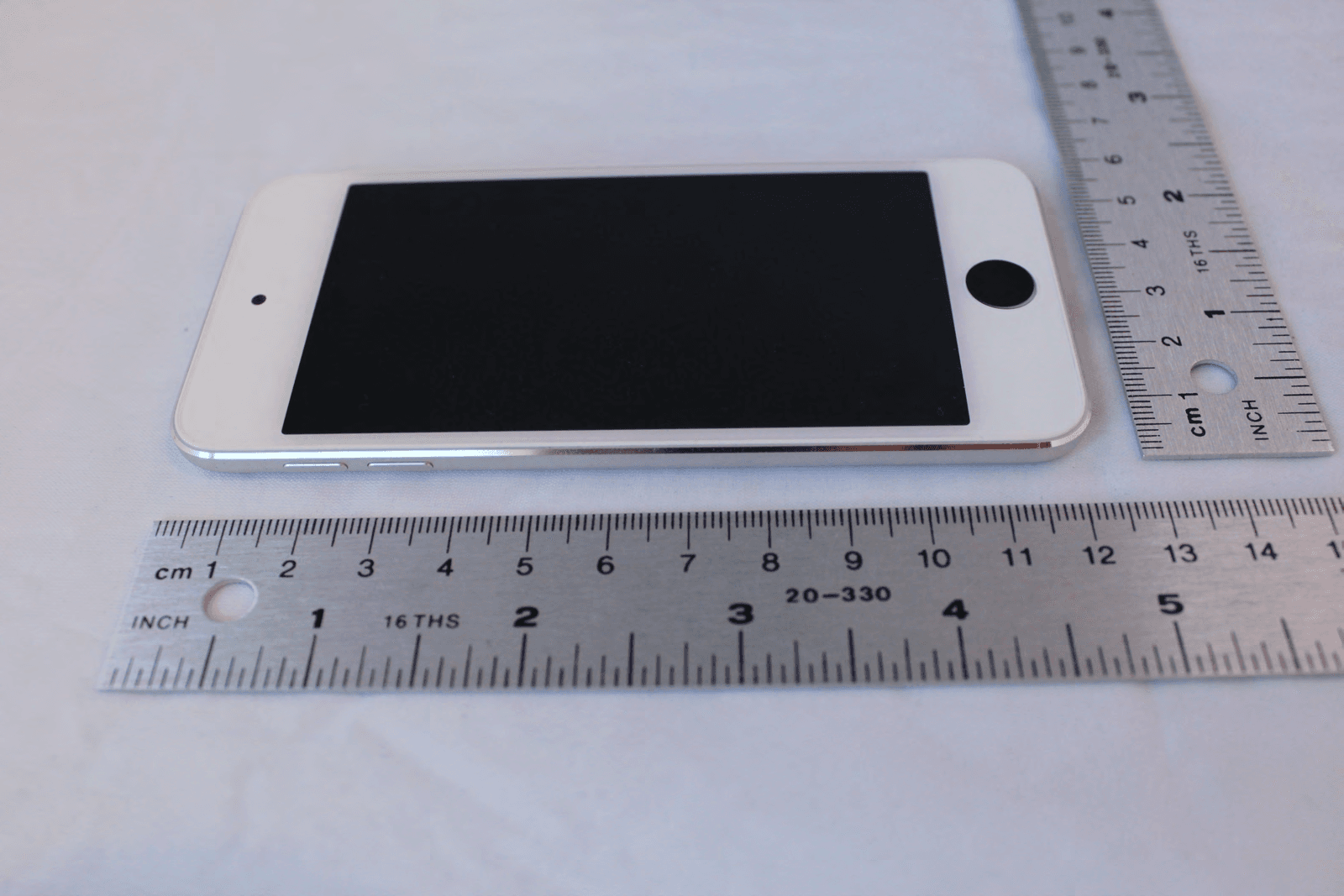

BCG-A1421802.11a/b/g/n and Bluetooth Radio

Draft iPod touch Info iPod touch User Guide Go to www.apple.com/support. On iPod touch, open Safari, then tap . Also available for free in the iBookstore. Safety and Handling See “Safety, Handling, & Support” in the iPod touch User Guide. Exposure to Radio Frequency Energy On iPod touch, go to Settings > General > About > Legal > RF Exposure. Battery The lithium-ion battery in iPod touch should be replaced only by Apple or an Apple Authorized Service Provider, and must be recycled or disposed of separately from household waste. For information about battery recycling and replacement, go to www.apple.com/batteries. Avoiding Hearing Damage To prevent possible hearing damage, do not listen at high volume levels for long periods. More information about sound and hearing is available online at www.apple.com/sound and in the iPod touch User Guide. Apple One-Year Limited Warranty Summary Apple warrants the included hardware product and accessories against defects in materials and workmanship for one year from the date of original retail purchase. Apple does not warrant against normal wear and tear, nor damage caused by accident or abuse. To obtain service, call Apple, or visit an Apple-owned retail store or an Apple Authorized Service Provider—available service options depend on the country in which service is requested. iPod touch service may be restricted to the original country of sale. Call charges and international shipping charges may apply. Full terms and detailed information about obtaining service are available at www.apple.com/legal/warranty and www.apple.com/support. You may read and email a copy of the warranty to yourself during activation. Warranty benefits are in addition to rights provided under local consumer laws. Regulatory Regulatory information, certification, and compliance marks specific to iPod touch are available on iPod touch. Go to Settings > General > About > Legal > Regulatory. Additional regulatory information is included in “Safety, Handling, & Support” in the iPod touch User Guide. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that Apple Confidential 1 Draft interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ÂReorient or relocate the receiving antenna. ÂIncrease the separation between the equipment and receiver. ÂConnect the equipment to an outlet on a circuit different from that to which the receiver is connected. ÂConsult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by Apple could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. Canadian Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. EU Compliance Statement This device complies with the EU EMF Directive 1999/519/ EC and can be used in the European Community. A copy of the EU Declaration of Conformity is available online at www.apple.com/euro/compliance. This device may contain radios capable of transmitting in the 5150 to 5350 MHz frequency range, for example on 5 GHz Wi-Fi networks. This frequency range is restricted to indoor use only. Japan Compliance Statement—VCCI Class B Statement © 2012 Apple Inc. All rights reserved. Apple, the Apple logo, iPod touch, and Safari are trademarks of Apple Inc., registered in the U.S. and other countries. iBookstore is a service mark of Apple Inc. 034-6455-A Printed in XXXX Apple Confidential 2

Draft iPod touch User Guide For iOS 6 Software Apple Confidential Draft Contents 7 Chapter 1: iPod touch at a Glance 7 iPod touch overview 8 Accessories 8 Buttons 10 Status icons 12 Chapter 2: Getting Started 12 What you need 12 Setting up iPod touch 12 Connecting iPod touch to your computer 13 Connecting to the Internet 13 Setting up mail and other accounts 13 Apple ID 14 Managing content on your iOS devices 14 iCloud 15 Syncing with iTunes 16 Viewing this user guide on iPod touch 17 Chapter 3: Basics 17 Using apps 20 Customizing the Home screen 21 Typing 25 Dictation 26 Voice Control 27 Searching 28 0QVK°ECVKQPU 28 Sharing 30 Connecting iPod touch to a TV or other device 30 Printing 31 Bluetooth devices 32 File Sharing 32 Security features 33 Battery 35 Chapter 4: Siri 35 What is Siri? 35 Using Siri 38 Restaurants 38 Movies 39 Sports 39 Dictation 40 Correcting Siri 2 Apple Confidential Draft 41 Chapter 5: Music 41 Getting music 41 Playing music 43 Cover Flow 43 Podcasts and audiobooks 43 Playlists 44 Genius 44 Siri and Voice Control 45 iTunes Match 45 Home Sharing 46 Music settings 48 Chapter 6: Videos 50 Chapter 7: Messages 50 Sending and receiving messages 51 Managing conversations 51 Sending photos, videos, and more 51 Messages settings 53 Chapter 8: FaceTime 55 Chapter 9: Camera 55 At a glance 56 HDR photos 56 Viewing, sharing, and printing 57 Editing photos and trimming videos 58 Chapter 10: Photos 58 Viewing photos and videos 59 Organizing photos and videos 59 Photo Stream 60 Sharing photos and videos 60 Printing photos 61 Chapter 11: Game Center 61 At a glance 62 Playing with friends 62 Game Center settings 63 Chapter 12: Mail 63 Sending mail 64 Reading mail 65 Organizing mail 65 Printing messages and attachments 65 Mail accounts and settings Contents 3 Apple Confidential Draft 67 Chapter 13: Passbook 69 Chapter 14: Reminders 70 Chapter 15: Safari 72 Chapter 16: Newsstand 73 Chapter 17: Calendar 73 At a glance 74 Working with multiple calendars 74 Sharing iCloud calendars 75 Calendar settings 76 Chapter 18: Stocks 78 Chapter 19: Maps 78 Finding locations 79 Getting directions 80 Flyover 80 Maps settings 81 Chapter 20: Weather 82 Chapter 21: Notes 83 Chapter 22: Clock 84 Chapter 23: Calculator 85 Chapter 24: Voice Memos 85 At a Glance 86 Sharing voice memos with your computer 87 Chapter 25: iTunes Store 87 At a glance 88 Changing the browse buttons 89 Chapter 26: App Store 89 At a glance 90 Deleting apps 91 Chapter 27: Settings 91 Airplane mode 91 Wi-‐Fi 92 VPN 92 Bluetooth 92 &Q0QV&KUVWTDCPF0QVK°ECVKQPU 93 General 97 Sounds 97 Brightness & Wallpaper 98 Privacy Contents 4 Apple Confidential Draft 99 Chapter 28: Contacts 99 At a Glance 100 Adding contacts 101 Contacts settings 102 Chapter 29: Nike + iPod 104 Chapter 30: iBooks 104 At a glance 105 Reading books 106 Organizing the bookshelf 106 Syncing books and PDFs 106 Printing or emailing a PDF 107 iBooks settings 108 Chapter 31: Podcasts 110 Chapter 32: Accessibility 110 Accessibility features 110 VoiceOver 119 Siri 119 Triple-‐click Home 119 Zoo m 120 Large Text 120 Invert Colors 120 Speak Selection 120 Speak Auto-‐text 120 Mono Audio 120 Assignable tones 121 Guided Access 121 AssistiveTouch 122 Accessibility in OS X 122 Minimum font size for mail messages 122 Widescreen keyboards 122 Voice Control 122 Closed captioning 123 Appendix A: International Keyboards 123 Using international keyboards 124 Special input methods 126 Appendix B: Safety, Handling, & Support 126 Important safety information 127 Important handling information 128 iPod touch Support 128 Restarting and resetting iPod touch 129 “Wrong Passcode” or “iPod touch is disabled” appears 129 “This accessory is not supported by iPod touch” appears 129 Can’t view email attachments 129 Backing up iPod touch 131 Updating and restoring iPod touch software Contents 5 Apple Confidential Draft 131 Software and service information 132 Disposal and recycling information 134 Apple and the environment Contents 6 Apple Confidential Draft 1 7 iPod touch overview iPod touch 5th generation 0LFURSKRQH 0LFURSKRQH 6OHHS:DNH EXWWRQ 6OHHS:DNH EXWWRQ 9ROXPH EXWWRQV 9ROXPH EXWWRQV +HDGSKRQHV SRUW +HDGSKRQHV SRUW 6SHDNHU 6SHDNHU /LJKWQLQJ FRQQHFWRU /LJKWQLQJ FRQQHFWRU )DFH7LPH FDPHUD )DFH7LPH FDPHUD +RPH EXWWRQ +RPH EXWWRQ L6LJKW FDPHUD L6LJKW FDPHUD /('IODVK /('IODVK 7RXFKVFUHHQ 7RXFKVFUHHQ $SSLFRQV $SSLFRQV 6WDWXVEDU 6WDWXVEDU /RRS FRQQHFWRU /RRS FRQQHFWRU iPod touch 4th generation 0LFURSKRQH 0LFURSKRQH 6OHHS:DNH EXWWRQ 6OHHS:DNH EXWWRQ 9ROXPH EXWWRQV RQVLGH 9ROXPH EXWWRQV RQVLGH +HDGSKRQHV SRUW +HDGSKRQHV SRUW 6SHDNHU 6SHDNHU 'RFN FRQQHFWRU 'RFN FRQQHFWRU )URQW FDPHUD )URQW FDPHUD +RPH EXWWRQ +RPH EXWWRQ 0DLQFDPHUD 0DLQFDPHUD 7RXFKVFUHHQ 7RXFKVFUHHQ $SSLFRQV $SSLFRQV 6WDWXVEDU 6WDWXVEDU ;QWT*QOGUETGGPOC[NQQMFKÒGTGPVFGRGPFKPIQPVJGOQFGNQHK2QFVQWEJ[QWJCXGCPF whether you’ve rearranged its icons. iPod touch at a Glance Apple Confidential Draft Chapter 1 iPod touch at a Glance 8 Accessories The following accessories are included with iPod touch: Apple EarPods (iPod touch 5th generation, shown above) or Apple Earphones (iPod touch 4th generation): Listen to music, videos, FaceTime calls, Siri, audiobooks, podcasts, and games. Lightning to USB Cable (iPod touch 5th generation, shown above) or Dock Connector to USB Cable (iPod touch 4th generation): Connect iPod touch to your computer to sync and charge, or to the USB power adapter (sold separately) to charge. The cable can also be used with the optional dock (sold separately). Loop (iPod touch 5th generation): Attach to the Loop button for an easy and secure way to carry iPod touch. /RRS /RRS Attach the Loop to iPod touch: Press the Loop button on the back of iPod touch to pop it up, slip the loop tab over the button, then pull the loop to snap it into place. Buttons Sleep/Wake button 9JGP[QW ̈TGPQVWUKPIK2QFVQWEJ[QWECPNQEMKVVQVWTPQÒVJGFKURNC[CPFUCXGVJGDCVVGT[ When iPod touch is locked, not…

Text truncated - open the document above for the full version.

 Apple Confidential RF Exposure Web Site Draft Last updated: August 17, 2012 1 Apple Confidential ■ On-device information: - On Device page will include pointer to web page for device-specific & language-specific SAR information - Currently being implemented in iOS 6 ■ Online page: - Contains device-specific SAR numbers (see next slide for details) Overview iPhone has been tested and meets applicable limits for Radio Frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. Mobile phone SAR limits are 1.6 watts per kilogram (over a volume containing a mass of 1 gram of tissue) and 2.0 watts per kilogram (averaged over 10 grams of tissue), depending on country. During testing, iPhone radios are set to their highest transmission levels and placed in positions that simulate use against the head, with no separation, and near the body, with 10 mm separation. To reduce exposure to RF energy, decrease talk time or use a hands-free option, such as the built- in speakerphone, the supplied headphones, or other similar accessories. Carry iPhone at least 10 mm away from your body to ensure exposure levels remain at or below maximum levels. Avoid cases with metal parts. More information on RF Exposure, including SAR values for this device, is available at: www.apple.com/legal/rfexposure 2 Apple Confidential Sample RF Exposure Web page DRAFT 3 Contains: ■ Title identifies product ■ Repeats RF warning text from the device ■ Contains Table of SAR information Apple Confidential Sample SAR Page Content – iPhone 3GS 4 Air Interface & Band Frequency Band (MHz) FCC 1g SAR Limit (W/kg) BodyHead GSM 850 UMTS 850 824–849 GSM 1900 UMTS 1900 1850–1910 2.4 GHz Wi-Fi2400–2483.5 1.60.670.63 1.60.331.19 1.60.060.52 Air Interface & Band Frequency Band (MHz) EU 10g SAR Limit (W/Kg) BodyHead EGSM 900 UMTS 900 880–915 GSM 18001710–1784 UMTS 21001920–1980 2.4 GHz Wi-Fi2400–2483.5 2.00.450.40 2.00.190.72 2.00.421.10 2.00.040.24 ■ Final SAR web page will consolidate bands as much as possible, per the table to the right ■ The purpose is to make the information more accessible to consumers by consolidating the rows where possible Apple Confidential Footnotes on Each Web Page ■ fn1 – FCC OET Bulletin 65, Supplement C (Edition 01-01) & IEEE 1528-2003, & Canada RSS 102, Issue 4, March 2010. ■ fn2 – European Council Recommendation of 12 July 1999 on the Limitation of Exposure of the General Public to Electromagnetic Fields [1999/519/EC]. 1 2 5 Apple Confidential Approach Only for iOS 6 Devices ■ All devices capable of running iOS 6 (see below) ■ Plus Fall-release iOS devices (A18, A19, A21, C1x) 6 Apple Confidential Localized by iOS Languages ■ English / Universal Default – English Language plus universal icons ■ iOS languages: French (France), German, Traditional Chinese, Simplified Chinese, Dutch, Italian, Spanish, Portuguese (Brazil), Portuguese (Portugal), Danish, Swedish, Finnish, Norwegian, Korean, Japanese, Russian, Polish, Turkish, Ukrainian, Hungarian, Arabic, Thai, Czech, Greek, Hebrew, Indonesian, Malay, Romanian, Slovak, Croatian, Catalan, and Vietnamese 7 Apple Confidential ■ General landing page accessible from web site - Contains pointers to device- specific SAR information General access via web 8 Apple Confidential RF Exposure Statements for device & web 9 Apple Confidential iPhone RF Exposure Statement iPhone has been tested and meets applicable limits for Radio Frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits are 1.6 Watts per Kilogram (over a volume containing a mass of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/Kg (averaged over 10 grams of tissue) in countries that follow the Council of the European Union limit. During testing, iPhone radios are set to their highest transmission levels and placed in positions that simulate use against the head, with no separation, and near the body, with 10 mm separation. To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, the supplied headphones, or other similar accessories. Carry iPhone at least 10 mm away from your body to ensure exposure levels remain at or below the as-tested levels. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified. SAR values for this device are available at: www.apple.com/legal/rfexposure/[MODEL] Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks. 10 Apple Confidential iPad RF Exposure Statement iPad has been tested and meets applicable limits for Radio Frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits are 1.6 Watts per Kilogram (over a volume containing a mass of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/Kg (averaged over 10 grams of tissue) in countries that follow the Council of the European Union limit. During testing, iPad radios are set to their highest transmission levels and placed in positions that simulate use against the body. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified. [FOLLOWING TEXT FOR CELLULAR VERSION ONLY] SAR values for this device are available at: www.apple.com/legal/rfexposure/[MODEL] Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks. 11 Apple Confidential iPod touch RF Exposure Statement iPod touch has been tested and meets applicable limits for Radio Frequency (RF) exposure…

Text truncated - open the document above for the full version.

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 www.apple.com Date: August 14, 2012 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology Ref: FCC ID: BCG-A1421, Model: A1421 To whom it may concern, I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;  Apple Inc. 1 Infinite Loop Cupertino, CA 95014 www.apple.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Tiberiu Muresan Apple Inc. Wireless Certification Manager 408-974-4968 [email protected]

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 www.apple.com Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCG-A1421 Model: A1421 To whom it may concern, Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Technical Description • System Schematic • Wi-Fi/BT Radio Schematic • Bill of Materials • Antenna Specifications, Gain and Patterns • PCB Layer drawings These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device.  Apple Inc. 1 Infinite Loop Cupertino, CA 95014 www.apple.com Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for sixty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual • Draft Description of RF Exposure Information These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Date: August 17, 2012 ____________________ Tiberiu Muresan Apple Inc. Wireless Certification Manager 408-974-4968 [email protected]

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Authorized Individual To Whom It May Concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Tiberiu Muresan to act on behalf of Apple Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorized individual may also assign another party to act as an authorized agent. This authorization is valid until further written notice from the grantee contact. Marc Douat Apple Inc. 1 Infinite Loop Cupertino, CA 95014

All dimensions in millimeters Crop Marks, Center Marks, Dielines do not print - For position only. NOTICE OF PROPRIETARY PROPERTY. THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY PROPERTY OF APPLE INC. THE POSSESSOR AGREES TO THE FOLLOWING: (i) TO MAINTAIN THIS DOCUMENT IN CONFIDENCE, (ii) NOT TO REPRODUCE OR COPY IT (iii) NOT TO REVEAL OR PUBLISH IT IN WHOLE OR PART. Designed by Apple in California Assembled in China Model A1421 FCC ID: BCG-A1421 IC: 579C-A1421 Serial No.: PPYWWSSSEEER

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR IEEE 802.11a/b/g/n AND BLUETOOTH RADIO MODEL NUMBER: A1421 FCC ID: BCG-A1421 IC: 579C-A1421 REPORT NUMBER: 12U14485-3 ISSUE DATE: JULY 31, 2012 Prepared for APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A Prepared by UL CCS 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14485-3 DATE: JULY 31, 2012 FCC ID: BCG-A1421 IC: 579C-A1421 Page 2 of 111 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 07/31/2012 Initial Issue T. LEE REPORT NO: 12U14485-3 DATE: JULY 31, 2012 FCC ID: BCG-A1421 IC: 579C-A1421 Page 3 of 111 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................ 7 5.1. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. ANTENNA PORT TEST RESULTS .................................................................................... 11 7.1. BASIC DATA RATE GFSK MODULATION .................................................................. 11 7.1.1. 20 dB AND 99% BANDWIDTH ............................................................................. 11 7.1.2. HOPPING FREQUENCY SEPARATION .............................................................. 16 7.1.3. NUMBER OF HOPPING CHANNELS ................................................................... 18 7.1.4. AVERAGE TIME OF OCCUPANCY ..................................................................... 23 7.1.5. OUTPUT POWER ................................................................................................. 30 7.1.6. AVERAGE POWER .............................................................................................. 34 7.1.7. CONDUCTED SPURIOUS EMISSIONS ............................................................... 35 7.1. ENHANCED DATA RATE QPSK MODULATION ........................................................ 44 7.1.1. OUTPUT POWER ................................................................................................. 44 7.1.2. AVERAGE POWER .............................................................................................. 48 7.2. ENHANCED DATA RATE 8PSK MODULATION ......................................................... 49 7.2.1. 20 dB AND 99% BANDWIDTH ............................................................................. 49 7.2.1. HOPPING FREQUENCY SEPARATION .............................................................. 54 7.2.2. NUMBER OF HOPPING CHANNELS ................................................................... 56 7.2.3. AVERAGE TIME OF OCCUPANCY ..................................................................... 61 7.2.4. OUTPUT POWER ................................................................................................. 68 7.2.5. AVERAGE POWER .............................................................................................. 72 7.2.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 73 8. RADIATED TEST RESULTS .............................................................................................. 82 8.1. LIMITS AND PROCEDURE ......................................................................................... 82 REPORT NO: 12U14485-3 DATE: JULY 31, 2012 FCC ID: BCG-A1421 IC: 579C-A1421 Page 4 of 111 UL CCS FORM NO: CCSUP4701G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 8.2. TRANSMITTER ABOVE 1 GHz ................................................................................…

Text truncated - open the document above for the full version.
