BCG-E2380ASmart cellular telephone

iPhone 4 Important Product Information Guide This Important Product Information Guide contains safety and handling, regulatory, software license, and warranty information for iPhone. Look for recycling, disposal, and other environmental information in the iPhone User Guide at: support.apple.com/manuals/iphone ±  To avoid injury, read all safety information below and operating instructions before using iPhone. For detailed operating instructions, read the iPhone User Guide on your iPhone by visiting help.apple.com/iphone or using the iPhone User Guide bookmark in Safari. For downloadable versions of the latest iPhone User Guide and this Important Product Information Guide, visit: support.apple.com/manuals/iphone Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPhone or other property. Carrying and Handling iPhone iPhone contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into iPhone. Do not use iPhone if it has been damaged—for example, if iPhone is cracked, punctured, or damaged by water. The front and back covers of iPhone are made of glass. This glass could break if iPhone is dropped on a hard surface or receives a substantial impact or is crushed, bent, or deformed. If the glass chips or cracks, do not touch or attempt to remove the broken glass. Stop using iPhone until the glass is replaced by Apple or an Apple Authorized Service Provider. Glass cracked due to misuse or abuse is not covered under the warranty. If you are concerned about scratching or abrasion, you can use one of the many cases sold separately. Keeping the Outside of iPhone Clean Clean iPhone immediately if it comes into contact with any contaminants that may cause stains, such as ink, dyes, makeup, dirt, food, oils, and lotions. To clean iPhone, unplug all cables and turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider). Then use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean iPhone. The front and back glass surfaces have an oleophobic coating. To remove fingerprints, simply wipe these surfaces with a soft, lint-free cloth. Note that the ability of this coating to repel oil will diminish over time with normal usage, and that rubbing the screen with an abrasive material will further diminish its effect and may scratch the glass. Avoiding Water and Wet Locations Do not use iPhone in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on iPhone. In case iPhone gets wet, unplug all cables, turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider) before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPhone with an external heat source, such as a microwave oven or hair dryer. Damage to iPhone caused by contact with liquid is not covered under the warranty. Repairing or Modifying iPhone Never attempt to repair or modify iPhone yourself. iPhone does not contain any user-serviceable parts, except for the SIM card and SIM tray. Disassembling iPhone, including the removal of external screws and back cover, may cause damage that is not covered under the warranty. Service should only be provided by Apple or an Apple Authorized Service Provider. If you have questions, contact Apple or an Apple Authorized Service Provider. For service information, choose iPhone Help from the Help menu in iTunes or go to: www.apple.com/support/iphone/service/faq Battery Replacement Do not attempt to replace the rechargeable battery in iPhone yourself. The battery may only be replaced by Apple or an Apple Authorized Service Provider. For more information about battery replacement service, go to: www.apple.com/support/iphone/service/battery Charging iPhone To charge iPhone, only use the Apple Dock Connector to USB Cable with an Apple USB Power Adapter or a high-power USB port on another device that is compliant with the USB 2.0 or 1.1 standard, another Apple-branded product or accessory designed to work with iPhone, or a third-party accessory certified to use the Apple “Works with iPhone” or “Made for iPhone” logo. Read all safety instructions for any products and accessories before using with iPhone. Apple is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. When you use the Apple USB Power Adapter to charge iPhone, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple USB Power Adapter with wet hands. The Apple USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple USB Power Adapter and use care when handling. Unplug the Apple USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive moisture. ÂThe adapter case has become damaged. ÂYou suspect the adapter needs service or repair. ÂYou want to clean the adapter. Avoiding Hearing Damage Permanent hearing loss may occur if the receiver, earbuds, headphones, speakerphone, or earpieces are used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing: ÂLimit the am…

Text truncated - open the document above for the full version.

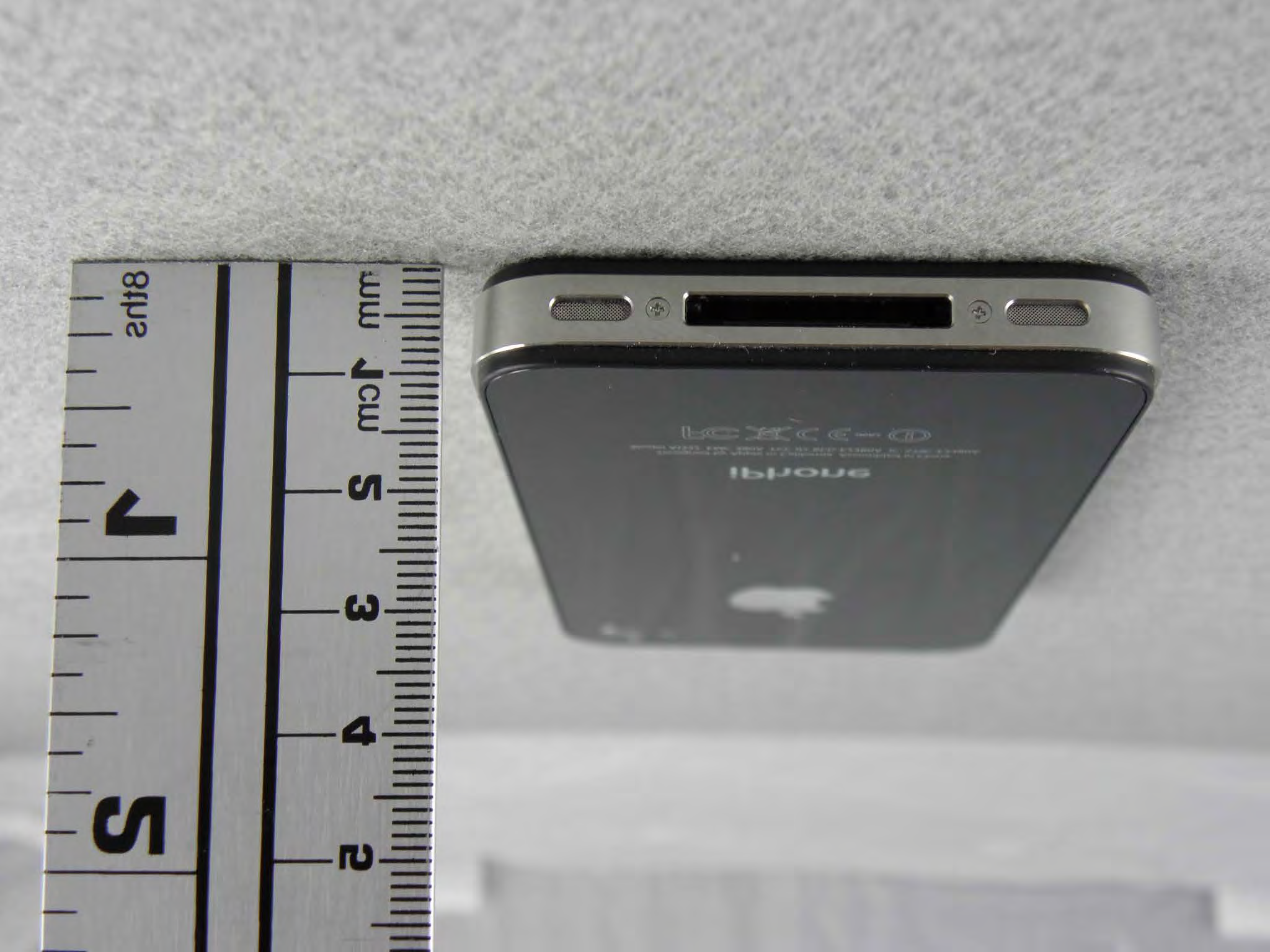

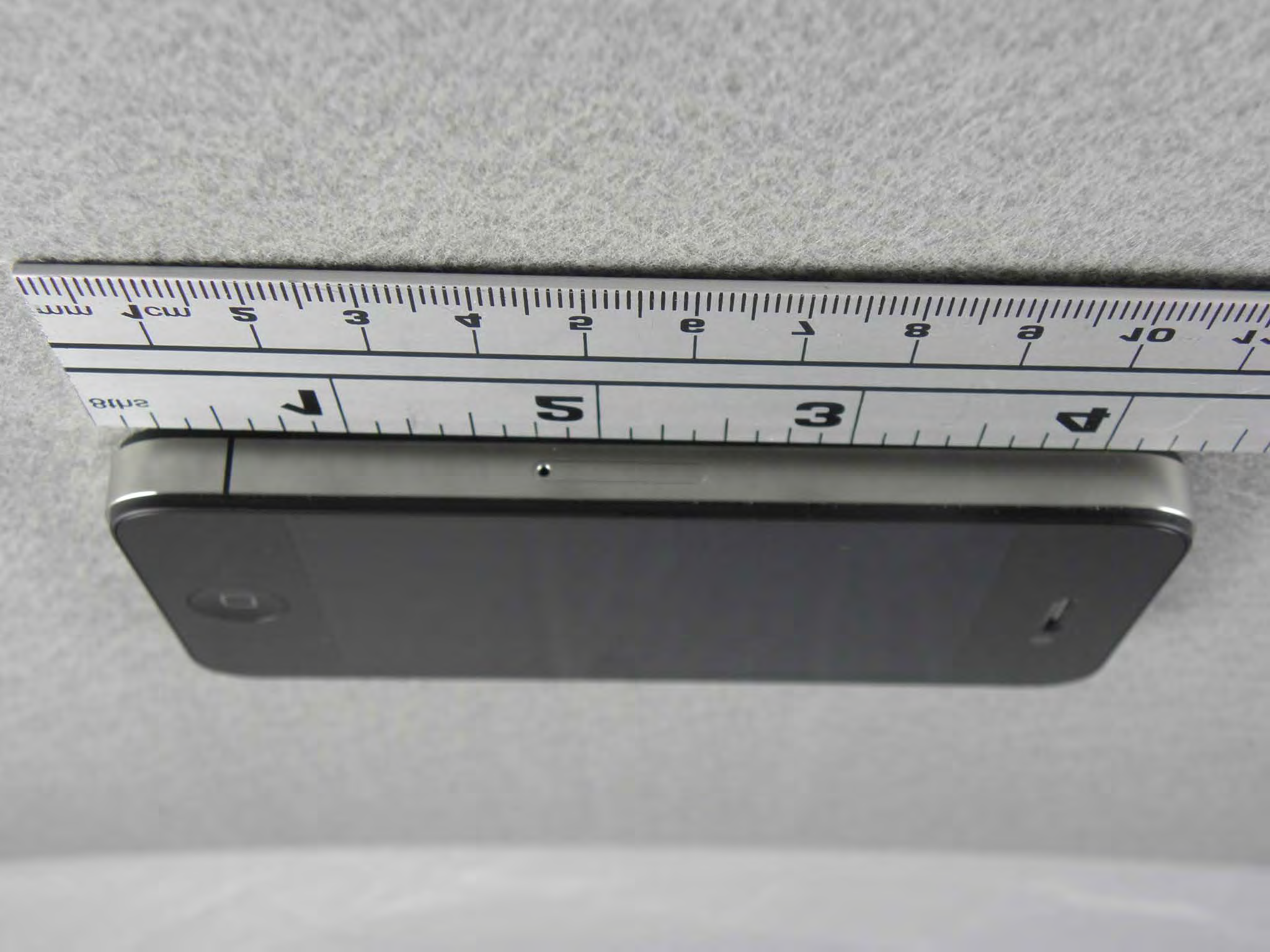

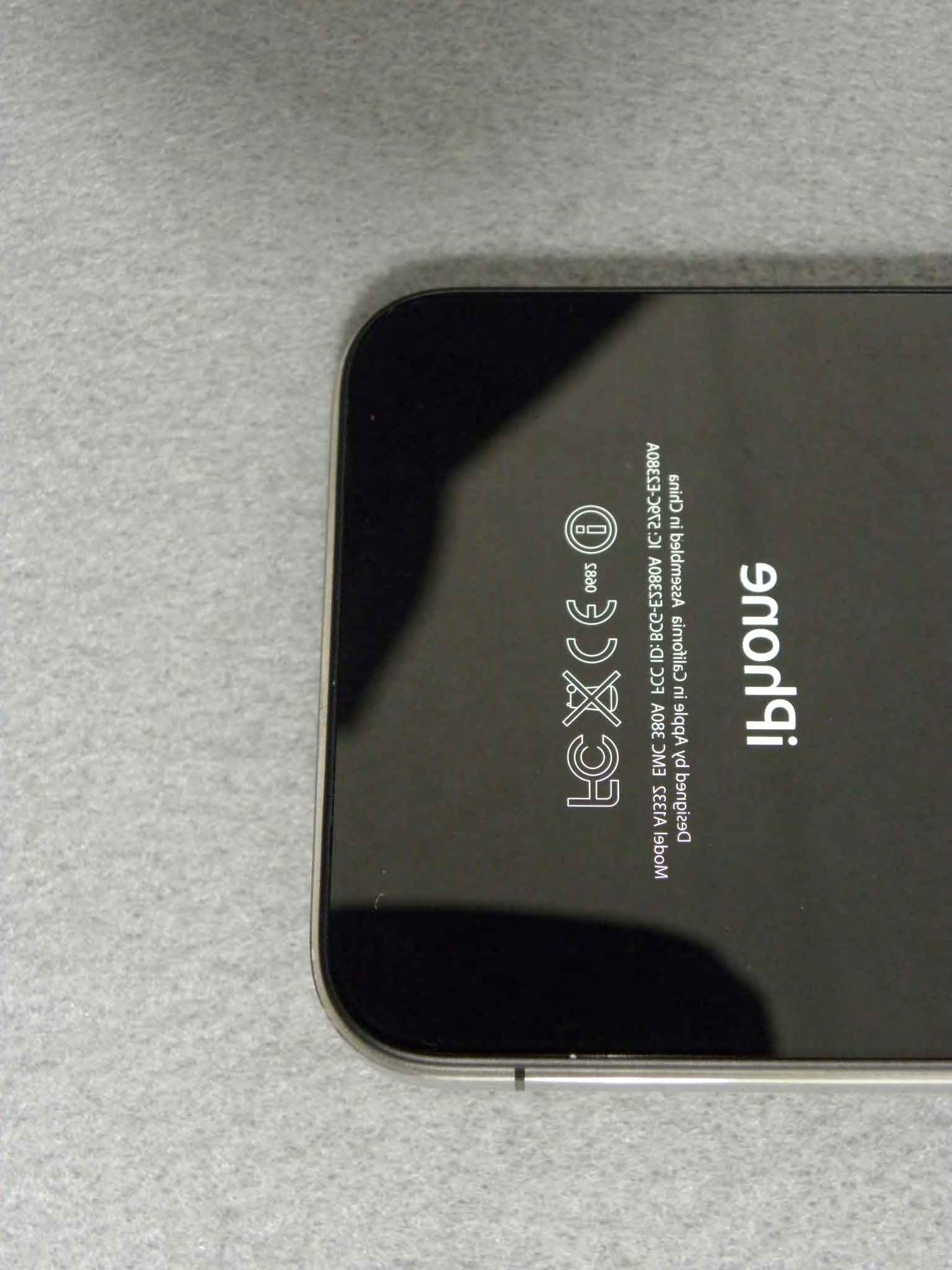

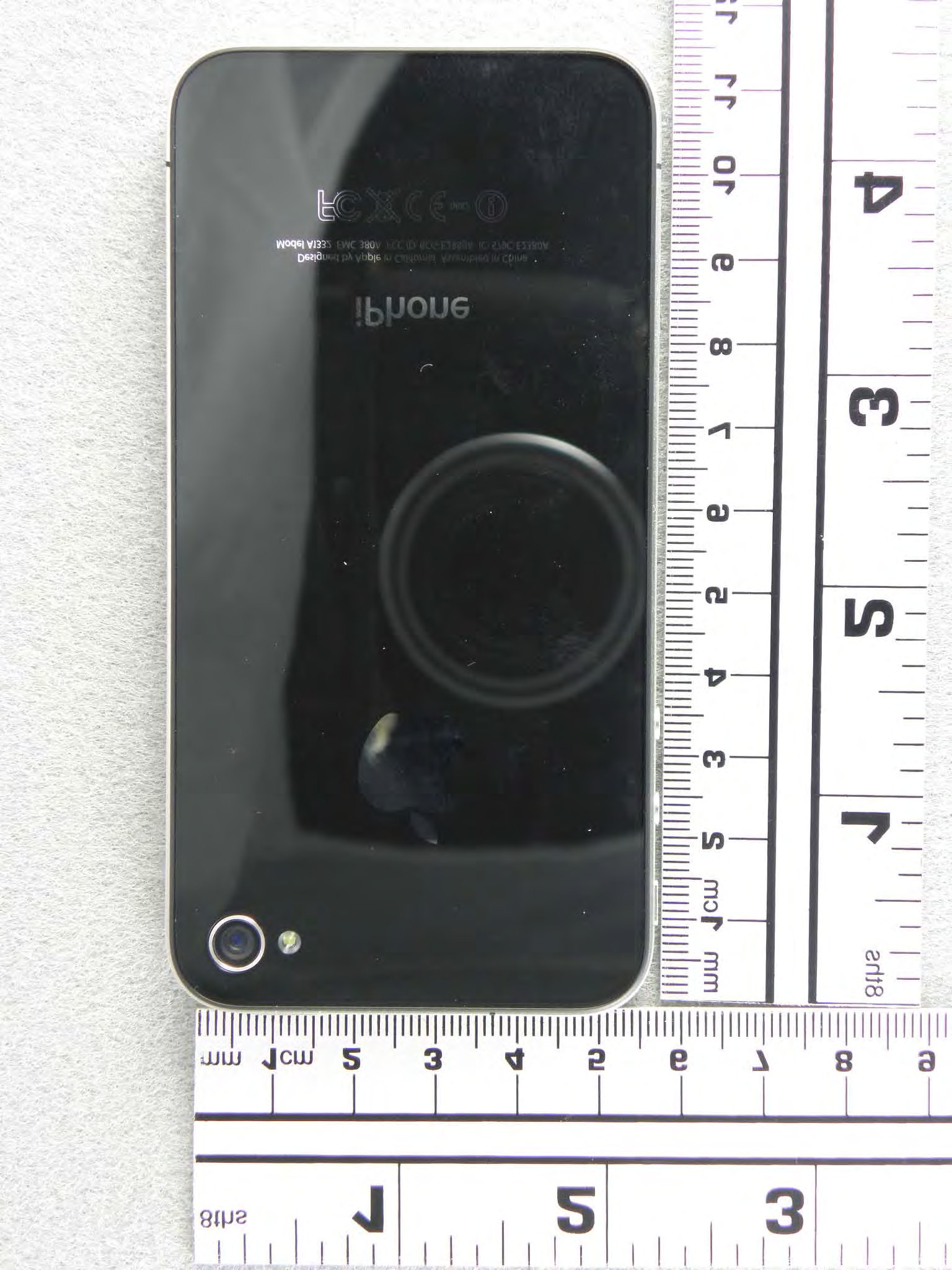

EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 2 BACK SIDE CAMERA & LABEL EXTERIOR PHOTO 3 RIGHT SIDE SIM CARD TRAY EXTERIOR PHOTO 4 LEFT SIDE RINGER SWITCH & VOLUME BUTTONS EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 5 TOP END POWER BUTTON & EARBUD JACK EXTERIOR PHOTO 2 BACK SIDE CAMERA & LABEL EXTERIOR PHOTO 6 BOTTOM END SPEAKER, MIC, & 30 PIN DOCKING CONNECTOR EXTERIOR PHOTO 7 HEIGHT EXTERIOR PHOTO 7 BACK REGULATORY LABEL

iPhone, Model: A1332 Regulatory Label FCC ID: BCG-E2380A IC #: 579C-2380A

EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 2 BACK SIDE CAMERA & LABEL EXTERIOR PHOTO 3 RIGHT SIDE SIM CARD TRAY EXTERIOR PHOTO 4 LEFT SIDE RINGER SWITCH & VOLUME BUTTONS EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 5 TOP END POWER BUTTON & EARBUD JACK EXTERIOR PHOTO 2 BACK SIDE CAMERA & LABEL EXTERIOR PHOTO 6 BOTTOM END SPEAKER, MIC, & 30 PIN DOCKING CONNECTOR EXTERIOR PHOTO 7 HEIGHT EXTERIOR PHOTO 7 BACK REGULATORY LABEL

PHOTO 1 A1332 WITH BACK COVER REMOVED PHOTO 2 A1332 WITH BACK COVER REMOVED PHOTO 3 A1332 COVER PLATES REMOVED PHOTO 4 A1332 BATTERY REMOVED PHOTO 5 A1332 BATTERY BACK SIDE PHOTO 6 A1332 BATTERY FRONT SIDE PHOTO 7 A1332 BATTERY REMOVED PHOTO 8 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 9 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 10 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 11 A1332 REAR FACING CAMERA REMOVED PHOTO 12 A1332 SIM CARD REMOVED PHOTO 13 A1332 MAIN CIRCUIT BOARD REMOVED PHOTO 14 A1332 MAIN CIRCUIT BOARD BACK SIDE PHOTO 15 A1332 MAIN CIRCUIT BOARD FRONT SIDE NOTE: INTERGRATED CIRCUIT MARKING INTENTIONALLY COVERED FOR CONFIDENTIALITY PHOTO 16 A1332 MAIN CIRCUIT BOARD BACK SIDE PHOTO 17 A1332 MAIN CIRCUIT BOARD BACK SIDE NOTE: INTERGRATED CIRCUIT MARKING INTENTIONALLY COVERED FOR CONFIDENTIALITY PHOTO 18 A1332 CLODE UP VIEW MURATA WIFI/BLUETOOTH MODULE SHIELD REMOVED WIFI/BLUETOOTH MODULE

Bluetooth Qualification Test Facility (BQTF) FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FOR: Model Name:A1332 Smart Cellular Telephone with Quad band GSM, UMTS I/II/V/VI/VIII, Bluetooth and WiFi 802.11 b,g,n FCC ID:BCG-E2380A 47 CFR Part 15.247 for FHSS Systems TEST REPORT #: EMC_057_09001_FCC15.247FHSS_BCG-E2380A_Rev3 DATE: 2010-06-07 Test Report #: EMC_ 057_09001_FCC15.247FHSS_BCG-E2380A_Rev3 Date of Report : 2010-06-07 Page 2 of 54 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 5 2.2 Identification of the Client __________________________________________________________ 5 2.3 Identification of the Manufacturer ___________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 3.1 Specification of the Equipment under Test_____________________________________________ 6 3.2 Identification of the Equipment Under Test (EUT) ______________________________________ 6 3.3 Identification of Accessory equipment ________________________________________________ 6 4 Subject Of Investigation __________________________________________________________ 7 5 Measurements __________________________________________________________________ 8 5.1 Radiated Measurement Procedure ___________________________________________________ 8 5.2 Conducted Measurement Procedure __________________________________________________ 9 5.3 Maximum Peak Output Power _____________________________________________________ 10 5.3.1 Limits: ________________________________________________________________________________ 10 5.3.2 Test Conditions: ________________________________________________________________________ 10 5.3.3 Test Result: ____________________________________________________________________________ 10 5.3.4 Test Data/plots: _________________________________________________________________________ 11 5.4 Restricted Band Edge Compliance __________________________________________________ 17 5.4.1 Limits: §15.247/15.205 ___________________________________________________________________ 17 5.4.2 Measurement Procedure: _________________________________________________________________ 17 5.4.3 Test Data/plots: _________________________________________________________________________ 18 5.5 Spectrum Bandwidth/ 20dB Bandwidth ______________________________________________ 24 5.5.1 Limits: ________________________________________________________________________________ 24 5.5.2 Test Result: ____________________________________________________________________________ 24 5.5.3 Test Data/plots: _________________________________________________________________________ 25 5.6 Carrier Frequency Separation ______________________________________________________ 31 5.6.1 Limits: ________________________________________________________________________________ 31 5.6.2 Test Result: ____________________________________________________________________________ 31 5.6.3 Test Data/plot:__________________________________________________________________________ 31 5.7 Number of hopping channels _______________________________________________________ 32 5.7.1 Limits: ________________________________________________________________________________ 32 5.7.2 Test Result: ____________________________________________________________________________ 32 5.7.3 Test Data/plot:__________________________________________________________________________ 32 5.8 Time of occupancy (Dwell time) _____________________________________________________ 33 5.8.1 Limits: ________________________________________________________________________________ 33 5.8.2 Test Result: ____________________________________________________________________________ 33 5.9 Power Spectral Density (Hybrid system in Inquiry mode/ Page scan) ______________________ 33 5.9.1 Limits: § 15.247 (e) _____________________________________________________________________ 33 5.9.2 Test Result: ____________________________________________________________________________ 33 Test Report #: EMC_ 057_09001_FCC15.247FHSS_BCG-E2380A_Rev3 Date of Report : 2010-06-07 Page 3 of 54 5.10 Transmitter Spurious Emissions- Conducted__________________________________________ 34 5.10.1 Limits: _____________________________________________________________________________ 34 5.10.2 Test Conditions: ______________________________________________________________________ 34 5.10.3 Test data/ plots: ______________________________________________________________________ 34 Test data/ plots: ________________________________________________________________________________ 35 5.11 Transmitter Spurious Emissions- Radiated ___________________________________________ 37 5.11.1 Limits: §15.247/15.205 ________________________________________________________________ 37 5.11.2 Limits: §15.209 ______________________________________________________________________ 37 5.11.3 Limits: §15.209 ______________________________________________________________________ 38 5.11.4 Test Result: _________________________________________________________________________ 38 5.11.5 Test data/ plots: ______________________________________________________________________ 39 5.12 Receiver Spurious Emissions- Radiated ______________________________________________ 46 5.12.1 Limits: §15.109…

Text truncated - open the document above for the full version.

V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Test Setup Pictures TEST REPORT #: EMC_APPLE_057_09001_TestSetup Test Report #: EMC_APPLE_057_09001_TestSetup Date: 2010-05-30 Page 2 of 5 Radiated Emissions Test Setup Pictures 30MHz- 1GHz Testing 1 GHz-18 GHz Testing Test Report #: EMC_APPLE_057_09001_TestSetup Date: 2010-05-30 Page 3 of 5 >18 GHz Testing \ EIRP Measurement Test Setup: (<1GHz) Test Report #: EMC_APPLE_057_09001_TestSetup Date: 2010-05-30 Page 4 of 5 AC Line conducted measurement Test Setup Test Report #: EMC_APPLE_057_09001_TestSetup Date: 2010-05-30 Page 5 of 5 Conducted Measurement Test Setup
