iPhone 4 Important Product Information Guide This Important Product Information Guide contains safety and handling, regulatory, software license, and warranty information for iPhone. Look for recycling, disposal, and other environmental information in the iPhone User Guide at: support.apple.com/manuals/iphone ±  To avoid injury, read all safety information below and operating instructions before using iPhone. For detailed operating instructions, read the iPhone User Guide on your iPhone by visiting help.apple.com/iphone or using the iPhone User Guide bookmark in Safari. For downloadable versions of the latest iPhone User Guide and this Important Product Information Guide, visit: support.apple.com/manuals/iphone Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPhone or other property. Carrying and Handling iPhone iPhone contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into iPhone. Do not use iPhone if it has been damaged—for example, if iPhone is cracked, punctured, or damaged by water. The front and back covers of iPhone are made of glass. This glass could break if iPhone is dropped on a hard surface or receives a substantial impact or is crushed, bent, or deformed. If the glass chips or cracks, do not touch or attempt to remove the broken glass. Stop using iPhone until the glass is replaced by Apple or an Apple Authorized Service Provider. Glass cracked due to misuse or abuse is not covered under the warranty. If you are concerned about scratching or abrasion, you can use one of the many cases sold separately. Keeping the Outside of iPhone Clean Clean iPhone immediately if it comes into contact with any contaminants that may cause stains, such as ink, dyes, makeup, dirt, food, oils, and lotions. To clean iPhone, unplug all cables and turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider). Then use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean iPhone. The front and back glass surfaces have an oleophobic coating. To remove fingerprints, simply wipe these surfaces with a soft, lint-free cloth. Note that the ability of this coating to repel oil will diminish over time with normal usage, and that rubbing the screen with an abrasive material will further diminish its effect and may scratch the glass. Avoiding Water and Wet Locations Do not use iPhone in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on iPhone. In case iPhone gets wet, unplug all cables, turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider) before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPhone with an external heat source, such as a microwave oven or hair dryer. Damage to iPhone caused by contact with liquid is not covered under the warranty. Repairing or Modifying iPhone Never attempt to repair or modify iPhone yourself. iPhone does not contain any user-serviceable parts, except for the SIM card and SIM tray. Disassembling iPhone, including the removal of external screws and back cover, may cause damage that is not covered under the warranty. Service should only be provided by Apple or an Apple Authorized Service Provider. If you have questions, contact Apple or an Apple Authorized Service Provider. For service information, choose iPhone Help from the Help menu in iTunes or go to: www.apple.com/support/iphone/service/faq Battery Replacement Do not attempt to replace the rechargeable battery in iPhone yourself. The battery may only be replaced by Apple or an Apple Authorized Service Provider. For more information about battery replacement service, go to: www.apple.com/support/iphone/service/battery Charging iPhone To charge iPhone, only use the Apple Dock Connector to USB Cable with an Apple USB Power Adapter or a high-power USB port on another device that is compliant with the USB 2.0 or 1.1 standard, another Apple-branded product or accessory designed to work with iPhone, or a third-party accessory certified to use the Apple “Works with iPhone” or “Made for iPhone” logo. Read all safety instructions for any products and accessories before using with iPhone. Apple is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. When you use the Apple USB Power Adapter to charge iPhone, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple USB Power Adapter with wet hands. The Apple USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple USB Power Adapter and use care when handling. Unplug the Apple USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive moisture. ÂThe adapter case has become damaged. ÂYou suspect the adapter needs service or repair. ÂYou want to clean the adapter. Avoiding Hearing Damage Permanent hearing loss may occur if the receiver, earbuds, headphones, speakerphone, or earpieces are used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing: ÂLimit the am…

Text truncated - open the document above for the full version.

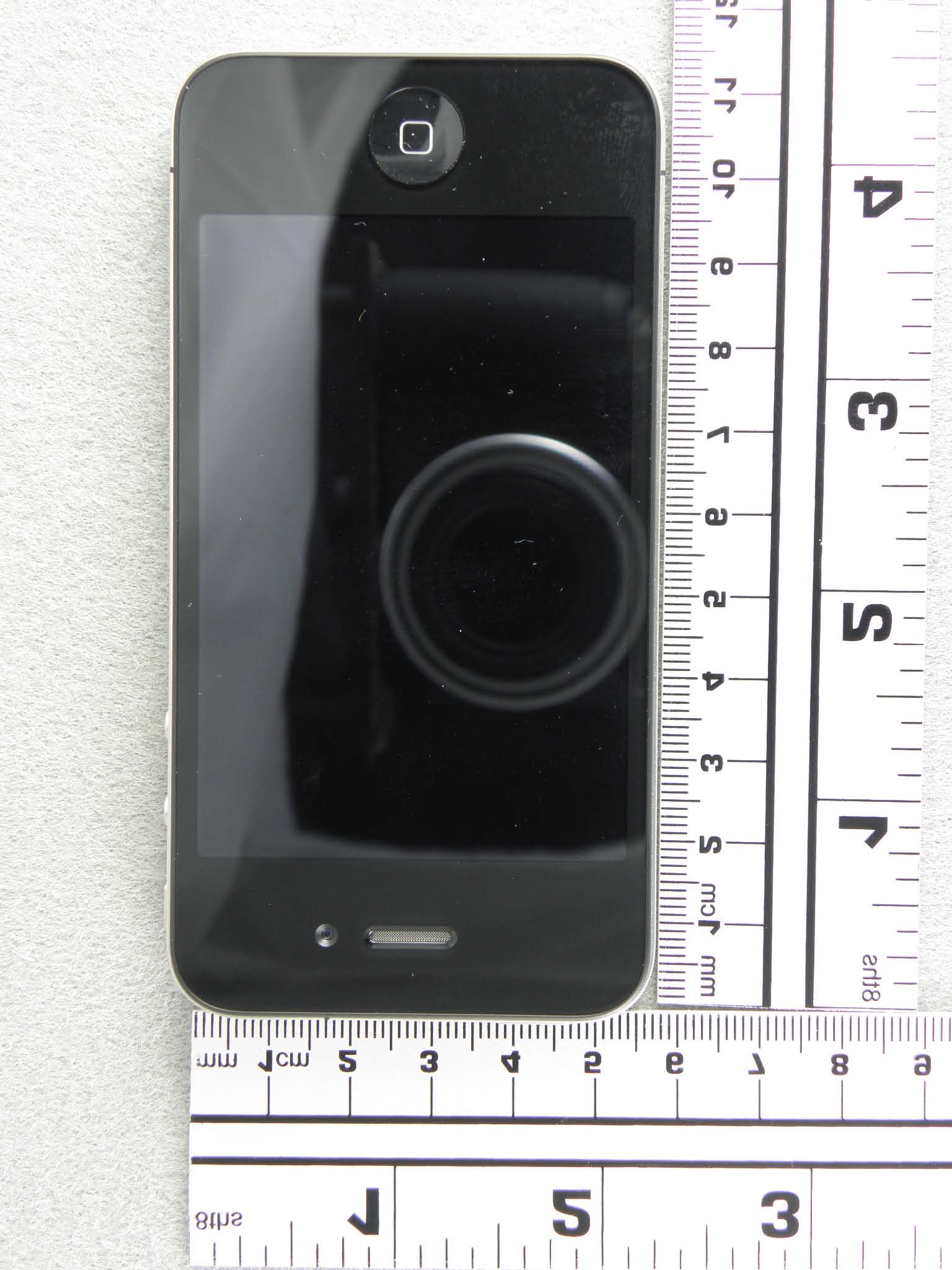

EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 2 BACK SIDE CAMERA & LABEL EXTERIOR PHOTO 3 RIGHT SIDE SIM CARD TRAY EXTERIOR PHOTO 4 LEFT SIDE RINGER SWITCH & VOLUME BUTTONS EXTERIOR PHOTO 1 FRONT SIDE MENU BUTTON & SPEAKER EXTERIOR PHOTO 5 TOP END POWER BUTTON & EARBUD JACK EXTERIOR PHOTO 6 BOTTOM END SPEAKER, MIC, & 30 PIN DOCKING CONNECTOR EXTERIOR PHOTO 7 HEIGHT EXTERIOR PHOTO 7 BACK REGULATORY LABEL

iPhone Model: A1332 Regulatory Label FCC ID: BCG-E2380B IC #: 579C-2380B

PHOTO 1 A1332 WITH BACK COVER REMOVED PHOTO 2 A1332 WITH BACK COVER REMOVED PHOTO 3 A1332 COVER PLATES REMOVED PHOTO 4 A1332 BATTERY REMOVED PHOTO 5 A1332 BATTERY BACK SIDE PHOTO 6 A1332 BATTERY FRONT SIDE PHOTO 7 A1332 BATTERY REMOVED PHOTO 8 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 9 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 10 A1332 ACOUSTIC AND CELLULAR ANTENNA FEED PHOTO 11 A1332 REAR FACING CAMERA REMOVED PHOTO 12 A1332 SIM CARD REMOVED PHOTO 13 A1332 MAIN CIRCUIT BOARD REMOVED PHOTO 14 A1332 MAIN CIRCUIT BOARD BACK SIDE PHOTO 15 A1332 MAIN CIRCUIT BOARD FRONT SIDE NOTE: INTERGRATED CIRCUIT MARKING INTENTIONALLY COVERED FOR CONFIDENTIALITY PHOTO 16 A1332 MAIN CIRCUIT BOARD BACK SIDE PHOTO 17 A1332 MAIN CIRCUIT BOARD BACK SIDE NOTE: INTERGRATED CIRCUIT MARKING INTENTIONALLY COVERED FOR CONFIDENTIALITY PHOTO 18 A1332 CLODE UP VIEW USI WIFI/BLUETOOTH MODULE SHIELD REMOVED WIFI/BLUETOOTH MODULE

FCC OET BULLETIN 65 SUPPLEMENT C IC RSS-102 ISSUE 4 SAR EVALUATION REPORT For iPhone MODEL: A1332B FCC ID: BCG-E2380B IC: 579C-E2380B REPORT NUMBER: 10U13135-1C3 ISSUE DATE: June 17, 2010 Prepared for APPLE INC 1 INFINITE LOOP, MS-26A CUPERTINO, CA 95014 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13135-1C3 DATE: June 17, 2010 FCC ID: BCG-E2380B IC: 579C-E2380B Page 2 of 50 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- April 15, 2010 Initial Issue -- A June 1, 2010 Updated model designation from A1332 to A1332B Sunny Shih A1 June 2, 2010 Updated average power table in section 9.5 WiFi RF output power. Sunny Shih B June 3, 2010 Modify section 5 by including model variation statement between Model No: A1332 and A1332A. Sunny Shih C June 14, 2010 - Additional 3G SAR test with USI unit and replaced all 3G SAR data from Murata unit - Deleted model variation statement in section 5 Sunny Shih C1 C2 C3 June 15, 2010 June 16, 2010 June 17, 2010 Added serial number in the section 1 Update section 12 SAR-to-Peak Location Distance Revised based upon TCB comments Sunny Shih Sunny Shih Sunny Shih REPORT NO: 10U13135-1C3 DATE: June 17, 2010 FCC ID: BCG-E2380B IC: 579C-E2380B Page 3 of 50 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................................. 5 2. TEST METHODOLOGY ...................................................................................................................... 6 3. FACILITIES AND ACCREDITATION .................................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................................... 9 6. SYSTEM SPECIFICATIONS ............................................................................................................. 10 7. LIQUID PARAMETERS CHECK ....................................................................................................... 11 7.1. LIQUID CHECK RESULTS FOR 835 MHZ ................................................................................ 12 LIQUID CHECK RESULTS FOR 1900 MHZ ......................................................................................... 15 7.2. LIQUID CHECK RESULTS FOR 2450 MHZ .............................................................................. 20 8. SYSTEM VERIFICATION .................................................................................................................. 22 8.1. SYSTEM CHECK RESULTS FOR D835V2 ............................................................................... 23 8.2. SYSTEM CHECK RESULTS FOR D1900V2 ............................................................................. 23 8.3. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................. 23 9. OUTPUT POWER VERIFICATION ................................................................................................... 24 9.1. GSM ........................................................................................................................................... 24 9.2. UMTS RELEASE 99 ................................................................................................................... 25 9.3. UMTS HSDPA ............................................................................................................................ 26 9.4. UMTS Rel 6 HSPA (HSDPA & HSUPA) ..................................................................................... 27 9.5. WIFI RF OUTPUT POWER ........................................................................................................ 29 10. SUMMARY OF TEST RESULTS ................................................................................................... 30 10.1. GSM850 .................................................................................................................................. 30 10.2. GSM1900 ................................................................................................................................ 31 10.3. UMTS BAND V ....................................................................................................................... 32 10.4. UMTS BAND II ........................................................................................................................ 33 10.5. WIFI ........................................................................................................................................ 34 11. WORST-CASE SAR TEST PLOTS ............................................................................................... 35 12. KDB 648474 SIMULTANEOUS TRANSMISSION CONSIDERATION ......................................... 41 13. ATTACHMENTS ............................................................................................................................ 44 REPORT NO: 10U13135-1C3 DATE: June 17, 2010 FCC ID: BCG-E2380B IC: 579C-E2380B Page 4 of 50 COMPLI…

Text truncated - open the document above for the full version.

Date/Time: 6/10/2010 9:05:11 AM Test Laboratory: Compliance Certification Services GSM850_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 825 MHz; σ = 0.903 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_L-ch/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.842 mW/g Touch_L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 30.8 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.792 mW/g; SAR(10 g) = 0.572 mW/g Maximum value of SAR (measured) = 0.875 mW/g 0 dB = 0.875mW/g Date/Time: 6/10/2010 8:40:12 AM Test Laboratory: Compliance Certification Services GSM850_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.04 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 33.6 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.954 mW/g; SAR(10 g) = 0.689 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g Date/Time: 6/14/2010 8:59:32 PM Test Laboratory: Compliance Certification Services GSM850_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.896 mho/m; ε r = 42.3; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_H-ch/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.06 mW/g Touch_H-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 34.6 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.965 mW/g; SAR(10 g) = 0.714 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.07 mW/g Date/Time: 6/10/2010 9:55:52 AM Test Laboratory: Compliance Certification Services GSM850_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.414 mW/g Tilt_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 21.4 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 0.474 W/kg SAR(1 g) = 0.380 mW/g; SAR(10 g) = 0.290 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.419 mW/g 0 dB = 0.419mW/g Date/Time: 6/10/2010 4:47:45 PM Test Laboratory: Compliance Certification Services GSM850_Right Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.914 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (T…

Text truncated - open the document above for the full version.

Date/Time: 6/10/2010 8:04:41 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.913 mho/m; ε r = 43.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=100 mW/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.12 mW/g d=15mm, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.3 V/m; Power Drift = -0.174 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.968 mW/g; SAR(10 g) = 0.634 mW/g Maximum value of SAR (measured) = 1.13 mW/g 0 dB = 1.13mW/g Date/Time: 6/10/2010 8:21:55 AM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=100 mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 1.13 mW/g Date/Time: 6/14/2010 5:12:50 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.882 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=100 mW/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 mW/g d=15mm, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.0 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.921 mW/g; SAR(10 g) = 0.605 mW/g Maximum value of SAR (measured) = 1.08 mW/g Date/Time: 6/14/2010 5:29:51 PM Test Laboratory: Compliance Certification Services System Performance Check - D835V2 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:xxx Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=100 mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 1.08 mW/g Date/Time: 6/9/2010 4:58:01 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.39 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.64, 8.64, 8.64); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.44 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.1 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 7.52 W/kg SAR(1 g) = 4.06 mW/g; SAR(10 g) = 2.12 mW/g Maximum value of SAR (measured) = 5.16 mW/g Date/Time: 6/9/2010 5:14:22 PM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm, Pin=100mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 5.15 mW/g Date/Time: 6/11/2010 6:53:50 AM Test Laboratory: Compliance Certification Services System Performance Check - D1900V2 DUT: Dipole; Type: D1900V2; Serial: 5d043 Communication System: System Check Signal - CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.47 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.04, 8.04, 8.04); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.99 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.7 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated…
