BCG-E2381ATablet Computer

Important Product Information Guide iPad 2 3 This Important Product Information Guide contains safety, handling, disposal and recycling, regulatory, and software license information, as well as the one-year limited warranty for iPad. Look for recycling, disposal, and other environmental information in the iPad User Guide at: support.apple.com/manuals/iPad ±  Read all safety information below and operating instructions before using iPad to avoid injury. For detailed operating instructions, read the iPad User Guide on your iPad by visiting help.apple.com/iPad or using the iPad User Guide bookmark in Safari. For a downloadable version of the iPad User Guide and the latest version of this Important Product Information Guide, visit: support.apple.com/manuals/iPad Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPad or other property. Carrying and Handling iPad iPad contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into iPad. Avoiding Water and Wet Locations Do not use iPad in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on iPad. In case iPad gets wet, unplug all cables, turn off iPad (press and hold the Sleep/Wake button, and then slide the onscreen slider) before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPad with an external heat source, such as a microwave oven or hair dryer. An iPad that has been damaged as a result of exposure to liquids is not serviceable. Repairing or Modifying iPad Never attempt to repair or modify iPad yourself. Disassembling iPad may cause damage that is not covered under the warranty. iPad does not contain any user-serviceable parts, except for the SIM card and SIM tray. Service should only be provided by an Apple Authorized Service Provider. If iPad has been in contact with liquids, punctured, or subjected to a severe fall, do not use it until you take it to an Apple Authorized Service Provider. For service information, choose iPad Help from the Help menu in iTunes or go to: www.apple.com/support/iPad/service/faq Battery Replacement The rechargeable battery in iPad should be replaced only by Apple. For more information about battery replacement service, go to: www.apple.com/support/iPad/service/battery Charging iPad To charge iPad, use only the Apple Dock Connector to USB Cable with an Apple 10W USB Power Adapter or a high-power USB port on another device that is compliant with the USB 2.0 standard, another Apple-branded product or accessory designed to work with iPad, or a third-party accessory certified to use Apple’s “Works with iPad” logo. Read all safety instructions for any products and accessories before using with iPad. Apple is not responsible for the operation of third-party accessories or their compliance with safety and regulatory standards. When you use the Apple 10W USB Power Adapter to charge iPad make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple 10W USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple 10W USB Power Adapter with wet hands. The Apple 10W USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple 10W USB Power Adapter and use care when handling. Unplug the Apple 10W USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive moisture. ÂThe adapter case has become damaged. ÂYou suspect the adapter needs service or repair. ÂYou want to clean the adapter. Avoiding Hearing Damage Permanent hearing loss may occur if headphones are used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing: ÂLimit the amount of time you use earbuds, headphones, speakers, or earpieces at high volume. ÂAvoid turning up the volume to block out noisy surroundings. ÂTurn the volume down if you can’t hear people speaking near you. For information about how to set a maximum volume limit on iPad, see the iPad User Guide. Driving and Riding Safely Use of iPad alone or with headphones (even if used only in one ear) while driving a vehicle or riding a bicycle is not recommended and is illegal in some areas. Check and obey the laws and regulations on the use of mobile devices like iPad in the areas where you drive or ride. Be careful and attentive while driving or riding a bicycle. If you decide to use iPad while driving, keep in mind the following guidelines: ÂGive full attention to driving or riding and to the road. Using a mobile device while driving or riding may be distracting. If you find it disruptive or distracting while operating any type of vehicle, riding a bicycle, or performing any activity that requires your full attention, pull off the road and park if driving conditions require. ÂDo not email, take notes, look up phone numbers, or perform any other activities that require your attention while driving. Composing or reading emails, jotting down a to-do list, or flipping through your address book takes attention away from your primary responsibility, driving safely. Navigating Safely If your iPad has applications that provide maps, digital compass headings, directions or location-based navigation assistance, these applications should only be used for basic navigation assistance and should not be relied on to determine precise locations, proximity, distance…

Text truncated - open the document above for the full version.

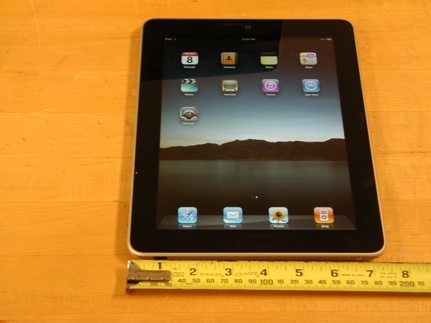

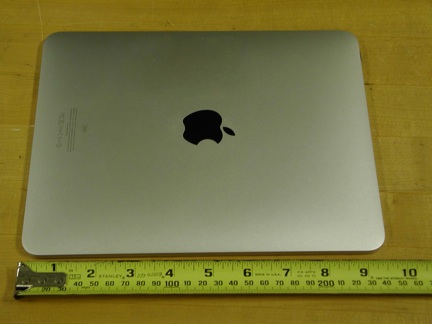

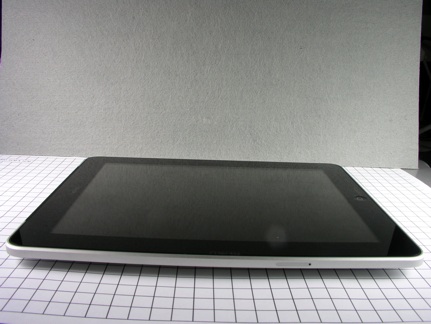

Top View A1219 External Photos BCG-E2381A, IC: 579C-E2381A Page 1 of 4 Bottom View A1219 External Photos BCG-E2381A, IC: 579C-E2381A Page 2 of 4 Side View A1219 External Photos BCG-E2381A, IC: 579C-E2381A Page 3 of 4 End View A1219 External Photos BCG-E2381A, IC: 579C-E2381A Page 4 of 4

Model A1219 Label Label Location Model A1219 Label and Label Location!FCC ID: BCG-E2381A, IC: 579C-E2381A

PHOTO 1 BACK OF DISPLAY PHOTO 2 BOTTOM HOUSNG PHOTO 3 BOTTOM HOUSNG MLB REMOVED PHOTO 4 BOTTOM HOUSNG UNDERSIDE OF RIGID FLEX PHOTO 5 CABLE 30 PIN I/O AND WIFI / BLUETOOTH RADIO TOP SIDE PHOTO 6 CABLE 30 PIN I/O AND WIFI / BLUETOOTH RADIO BOTTOM SIDE NOTE: CONFIDENTIAL INFORMATION COVERED PHOTO 7 WIFI / BLUETOOTH RADIO NOTE: CONFIDENTIAL INFORMATION COVERED NOTE: INTEGRATED CIRCUIT NUMBERS AND OTHER CONFIDENTIAL INFORMATION COVERED PHOTO 8 WIFI / BLUETOOTH RADIO SHIELD REMOVED PHOTO 9 MAIN LOGIC BOARD TOP SIDE PHOTO 10 MAIN LOGIC BOARD TOP SIDE SHIELD REMOVED NOTE: INTEGRATED CIRCUIT NUMBERS AND OTHER CONFIDENTIAL INFORMATION COVERED PHOTO 11 MAIN LOGIC BOARD BOTTOM SIDE PHOTO 12 MAIN LOGIC BOARD BOTTOM SIDE SHIELD REMOVED NOTE: INTEGRATED CIRCUIT NUMBERS AND OTHER CONFIDENTIAL INFORMATION COVERED PHOTO 13 SPEAKERS ASSEMBLY REMOVED PHOTO 14 SPEAKERS BOTTOM SIDE PHOTO 15 SPEAKERS TOP SIDE PHOTO 16 WF1 WIFI ANTENNA PHOTO 17 WF2 WIFI ANTENNA

Date/Time: 1/31/2010 2:24:10 PM Test Laboratory: Compliance Certification Services System Performance Check - D2450V2 DUT: Dipole ; Type: D2450V2; Serial: 748 Communication System: System Check Signal - CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.9 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(6.48, 6.48, 6.48); Calibrated: 3/23/2009 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 6.51 mW/g d=10mm, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.8 V/m; Power Drift = -0.206 dB Peak SAR (extrapolated) = 10.1 W/kg SAR(1 g) = 4.85 mW/g; SAR(10 g) = 2.24 mW/g Maximum value of SAR (measured) = 6.44 mW/g Date/Time: 1/31/2010 2:41:31 PM Test Laboratory: Compliance Certification Services System Performance Check - D2450V2 DUT: Dipole ; Type: D2450V2; Serial: 748 Communication System: System Check Signal - CW; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=100mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 6.37 mW/g Date/Time: 1/29/2010 12:34:24 PM Test Laboratory: Compliance Certification Services System Performance Check - D5GHzV2_5.2 GHz DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1075 Communication System: System Check Signal - CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.4 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(4.08, 4.08, 4.08); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.3 mW/g d=10mm, Pin=100mW/Zoom Scan (8x8x10)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 52.9 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 27.4 W/kg SAR(1 g) = 7.36 mW/g; SAR(10 g) = 2.08 mW/g Maximum value of SAR (measured) = 13.4 mW/g Date/Time: 1/30/2010 3:07:10 PM Test Laboratory: Compliance Certification Services System Performance Check - D5GHzV2_5.5 GHz DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1075 Communication System: System Check Signal - CW; Frequency: 5500 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5500 MHz; σ = 5.83 mho/m; ε r = 47.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.76, 3.76, 3.76); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 14.3 mW/g d=10mm, Pin=100mW/Zoom Scan (8x8x10)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 52.6 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 30.8 W/kg SAR(1 g) = 7.87 mW/g; SAR(10 g) = 2.22 mW/g Maximum value of SAR (measured) = 14.1 mW/g 0 dB = 14.1mW/g Date/Time: 1/30/2010 3:45:20 PM Test Laboratory: Compliance Certification Services System Performance Check - D5GHzV2_5.8 GHz DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1075 Communication System: System Check Signal - CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 6.27 mho/m; ε r = 47.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.84, 3.84, 3.84); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:XXXX - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.8 mW/g d=10mm, Pin=100mW/Zoom Scan (8x8x10)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 48.4 V/m; Power Drift = -0.128 dB Peak SAR (extrapolated) = 27.8 W/kg SAR(1 g) = 7.1 mW/g; SAR(10 g) = 2.03 mW/g Maximum value of SAR (measured) = 12.6 mW/g Date/Time: 1/30/2010 4:13:11 PM Test Laboratory: Compliance Certification Services System Performance Check - D5GHzV2_5.8 GHz DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1075 Communication System: System Check Signal - CW; Frequency: 5800 MHz;Duty Cycle: 1:1 d=10mm, Pin=100mW/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Maximum value of SAR (measured) = 12.8 mW/g

Date/Time: 1/30/2010 12:27:44 PM Test Laboratory: Compliance Certification Services 5.2GHz band_Bottom face WiFi 1 DUT: Apple; Type: NA; Serial: NA Communication System: 802.11abgn; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.39 mho/m; ε r = 48.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(4.08, 4.08, 4.08); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11a_WiFi 1_Ch 40/Area Scan (7x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.049 mW/g 802.11a_WiFi 1_Ch 40/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.034 mW/g; SAR(10 g) = 0.015 mW/g Maximum value of SAR (measured) = 0.054 mW/g Date/Time: 1/29/2010 8:55:28 PM Test Laboratory: Compliance Certification Services 5.2GHz band_WiFi 2_Bottom face DUT: Apple; Type: NA; Serial: NA Communication System: 802.11abgn; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5180 MHz; σ = 5.28 mho/m; ε r = 45.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(4.08, 4.08, 4.08); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11a_WiFi 2_Ch 36/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.32 mW/g 802.11a_WiFi 2_Ch 36/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Peak SAR (extrapolated) = 4.70 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.238 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.03 mW/g 0 dB = 2.03mW/g Date/Time: 1/29/2010 1:43:07 PM Test Laboratory: Compliance Certification Services 5.2GHz band_WiFi 2_Bottom face DUT: Apple; Type: NA; Serial: NA Communication System: 802.11abgn; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.4 mho/m; ε r = 45.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(4.08, 4.08, 4.08); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11a_WiFi 2_M-Ch 40/Area Scan (21x27x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.07 mW/g 802.11a_WiFi 2_M-Ch 40/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Peak SAR (extrapolated) = 4.06 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.230 mW/g Maximum value of SAR (measured) = 2.20 mW/g 0 dB = 2.20mW/g Date/Time: 1/29/2010 4:35:19 PM Test Laboratory: Compliance Certification Services 5.2GHz band_WiFi 2_Bottom face DUT: Apple; Type: NA; Serial: NA Communication System: 802.11abgn; Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5240 MHz; σ = 5.35 mho/m; ε r = 46.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(4.08, 4.08, 4.08); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11a_WiFi 2_Ch 48/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.73 mW/g 802.11a_WiFi 2_Ch 48/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Peak SAR (extrapolated) = 4.02 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.264 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 2.21 mW/g 0 dB = 2.21mW/g Date/Time: 1/30/2010 2:32:59 PM Test Laboratory: Compliance Certification Services 5.3GHz band_Bottom face WiFi 1 DUT: Apple; Type: NA; Serial: NA Communication System: 802.11abgn; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5300 MHz; σ = 5.54 mho/m; ε r = 48.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3686; ConvF(3.81, 3.81, 3.81); Calibrated: 3/23/2009 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 802.11a_WiFi 1_Ch 60/Area Scan (7x8x1): Measurem…

Text truncated - open the document above for the full version.

FCC OET BULLETIN 65 SUPPLEMENT C IC RSS-102 ISSUE 3 SAR EVALUATION REPORT For iPad (With 802.11abgn and Bluetooth Radios) MODEL: A1219 Serial Number: YM003010ELM FCC ID: BCG-E2381A IC: 579C-E2381A REPORT NUMBER: 10U13035-1C2 ISSUE DATE: April 7, 2010 Prepared for APPLE INC 1 INFINITE LOOP, MS-26A CUPERTINO, CA 95014 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 2 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- February 12, 2010 Initial Issue -- A February 16, 2010 Updated antenna separation distances Sunny Shih B February 19, 2010 Corrected FCC ID and IC number Sunny Shih C1 March 2, 2010 - Added 5.5 GHz band - Corrected some typos Sunny Shih C2 April 7, 2010 - Added note Per KDB 450824 D02 requirements for dipole calibration in section 4.1 - Updated uncertainty table in section 4.2 - Updated KDB # from 616217 to 447498 in section 5 - Added Recipe for Simulating liquid for 5 GHz in section 7 Sunny Shih REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 3 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 4 2. TEST METHODOLOGY ...................................................................................................................... 5 3. FACILITIES AND ACCREDITATION.................................................................................................. 5 4. CALIBRATION AND UNCERTAINTY................................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 7 5. EQUIPMENT UNDER TEST ............................................................................................................... 8 6. SYSTEM SPECIFICATIONS ............................................................................................................... 9 7. COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .................................... 10 8. LIQUID PARAMETERS CHECK....................................................................................................... 11 8.1. LIQUID CHECK RESULTS FOR 2450 MHZ ............................................................................. 12 8.2. LIQUID CHECK RESULTS FOR 5GHZ .................................................................................... 13 9. SYSTEM PERFORMANCE ............................................................................................................... 15 9.1. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................ 16 9.2. SYSTEM CHECK RESULTS FOR D5GHzV2........................................................................... 16 10. OUTPUT POWER VERIFICATION............................................................................................... 17 11. SUMMARY OF TEST RESULTS FOR 2.4 GHZ BAND ............................................................... 19 12. SUMMARY OF TEST RESULTS FOR 5 GHZ BANDS ................................................................ 20 13. SAR TEST PLOTS........................................................................................................................ 22 14. ATTACHMENTS ........................................................................................................................... 27 15. TEST SETUP PHOTO .................................................................................................................. 28 16. HOST DEVICE PHOTO ................................................................................................................ 31 REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 4 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: APPLE INC 1 INFINITE LOOP, MS-26A CUPERTINO, CA 95014 EUT DESCRIPTION: iPad with 802.11abgn and Bluetooth Radios MODEL NUMBER: A1219 DEVICE CATEGORY: Portable EXPOSURE CATEGORY: General Population/Uncontrolled Exposure DATE TESTED: January 29 - 31, 2010 THE HIGHEST SAR VALUES: FCC / IC Rule Parts Frequency Range [MHz] 1-g SAR (mW/g) Limit (mW/g) 2400 – 2483.5 0.791 (Bottom face/WiFi2) 15.247 / RSS-102 5725 – 5850 0.63 (Primary Portrait/WiFi1) 5150 – 5250 1.08 (Bottom face/WiFi2) 5250 – 5350 1.10 (Bottom face/WiFi2) 15.407 / RSS-102 5500 – 5700 1.14 (Primary Portrait/WiFi1) 1.6 APPLICABLE STANDARDS AND TEST PROCEDURES: STANDARD TEST RESULTS FCC OET BULLETIN 65 SUPPLEMENT C and the following Test Procedures: o KDB 248227 SAR measurement procedures for 802.11a/b/g transmitters o KDB 447498 D01 Mobile Portable RF Exposure v04, suppl. to KDB 616217 D03 Pass RSS-102 ISSUE 3 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of …

Text truncated - open the document above for the full version.

REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 28 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 15. TEST SETUP PHOTO Tablet - Bottom face (Body SAR with WiFi 1/BT & WiFi 2 Antenna) Bottom of the Tablet (Looking down from top of the phantom) WiFi 2 WiFi 1 / BT REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 29 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Tablet - Edge: Primary Landscape (Body SAR with WiFi 1/BT Antenna) Tablet - Edge: Secondary Landscape (No SAR due to large distance) WiFi 2 WiFi 1 / BT WiFi 1 / BT > 8.0 cm 3.0 cm WiFi 2 > 8.0 cm 12.7 cm REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 30 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Tablet - Edge - Primary Portrait (Body SAR with WiFi 1/BT Antenna) Tablet - Edge - Secondary Portrait (Skip SAR due to large distance) 6.0 cm WiFi 2 WiFi 2 WiFi 1 / BT WiFi 1 / BT 11 cm 0.6 cm 10 cm 23 cm REPORT NO: 10U13035-1C2 DATE: April 7, 2010 FCC ID: BCG-E2381A IC: 579C-E2381A Page 31 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 16. HOST DEVICE PHOTO Front View Bottom View END OF REPORT

Bluetooth Qualification Test Facility (BQTF) FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Model Name: A1219 iPad FCC ID: BCG-E2381A IC ID: 579C-E2381A 47 CFR Part 15.407 IC RSS-210 Issue 7 TEST REPORT #: EMC_APPLE_055_15.407_81A_Rev3 DATE: 2010-03-11 Test Report #: EMC_ APPLE_055_15.407_81A_Rev3 Date of Report : 2010-03-11 Page 2 of 131 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 5 2.2 Identification of the Client __________________________________________________________ 5 2.3 Identification of the Manufacturer ___________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 3.1 Specification of the Equipment under Test ____________________________________________ 6 3.2 Identification of the Equipment Under Test (EUT) _____________________________________ 7 3.3 Identification of Accessory equipment ________________________________________________ 7 4 Subject Of Investigation __________________________________________________________ 8 5 Measurements __________________________________________________________________ 9 5.1 Radiated Measurement Procedure ___________________________________________________ 9 5.2 Conducted Measurement Procedure ________________________________________________ 12 5.3 Maximum Peak Output Power _____________________________________________________ 13 5.3.1 Limits: §15.407 _________________________________________________________________________ 13 5.3.2 Test Conditions: ________________________________________________________________________ 13 5.3.3 Test Result: ____________________________________________________________________________ 13 5.4 Restricted Band Edge Compliance __________________________________________________ 15 5.4.1 Limits: §15.205 _________________________________________________________________________ 15 5.4.2 Test Data/plots: _________________________________________________________________________ 16 5.5 Occupied Bandwidth _____________________________________________________________ 24 5.5.1 Limits: ________________________________________________________________________________ 24 5.5.2 T…

Text truncated - open the document above for the full version.
