iPod touch Important Product Information Guide This Important Product Information Guide contains safety, handling, regulatory, and software license information, as well as the warranty information for iPod touch. Look for recycling, disposal, and other environmental information in the iPod touch User Guide at: support.apple.com/manuals/ipodtouch ±  To avoid injury, read all operating instructions and the following safety information before using iPod touch. For detailed operating instructions read the iPod touch User Guide on your iPod touch by visiting help.apple.com/ipodtouch or using the iPod touch User Guide bookmark in Safari. For downloadable versions of the iPod touch User Guide and the latest version of this Important Product Information Guide, visit support.apple.com/manuals/ipodtouch. Software License Agreement Use of iPod touch constitutes acceptance of the Apple and third-party terms found at: www.apple.com/legal/sla Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPod touch or other property. Carrying and Handling iPod touch iPod touch contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into iPod touch. Do not use iPod touch if it has been damaged—for example, if iPod touch is cracked, punctured, or damaged by water. The front cover of iPod touch is made of glass. This glass could break if iPod touch is dropped on a hard surface or receives a substantial impact or is crushed, bent, or deformed. If the glass chips or cracks, do not touch or attempt to remove the broken glass. Stop using iPod touch until the glass is replaced by Apple or an Apple Authorized Service Provider. Glass cracked due to misuse or abuse is not covered under the warranty. If you are concerned about scratching or abrasion, you can use one of the many cases sold separately. Avoiding Water and Wet Locations Do not use iPod touch in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on iPod touch. In case iPod touch gets wet, unplug all cables, turn off iPod touch (press and hold the Sleep/ Wake button, and then slide the onscreen slider) before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPod touch with an external heat source, such as a microwave oven or hair dryer. Damage to iPod touch caused by contact with liquid is not covered under the warranty. Replacing the Battery and Repairing or Modifying iPod touch Never attempt to repair or modify iPod touch by yourself. iPod touch does not contain any user- serviceable parts. If iPod touch has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to an Apple Authorized Service Provider. For service information, go to www.apple.com/support/ipodtouch. The rechargeable battery in iPod touch should be replaced only by an Apple Authorized Service Provider. For more information about batteries, go to: www.apple.com/batteries Charging iPod touch To charge iPod touch, only use the included Apple Dock Connector to USB Cable with an Apple USB Power Adapter, or a high-power USB port on another device that is compliant with the USB 2.0 standard; another Apple-branded product or accessory designed to work with iPod touch; or a third-party accessory certified to use Apple’s “Made for iPod” logo. Read all safety instructions for any products and accessories before using with iPod touch. Apple is not responsible for the operation of third-party accessories or their compliance with safety and regulatory standards. When you use the Apple USB Power Adapter to charge iPod touch, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple USB Power Adapter with wet hands. The Apple USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple USB Power Adapter and use care when handling. Unplug the Apple USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive moisture. ÂThe adapter case has become damaged. ÂYou suspect the adapter needs service or repair. ÂYou want to clean the adapter. Avoiding Hearing Damage Permanent hearing loss may occur if the internal speaker, earbuds, or headphones are used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing: ÂLimit the amount of time you use the internal speaker, earbuds, or headphones at high volume. ÂAvoid turning up the volume to block out noisy surroundings. ÂTurn the volume down if you can’t hear people speaking near you. For information about how to set a maximum volume limit on iPod touch, see the iPod touch User Guide. Driving and Riding Safely Use of iPod touch alone or with headphones (even if used only in one ear) while operating a vehicle or riding a bicycle is not recommended and is illegal in some areas. Check and obey the laws and regulations on the use of mobile devices like iPod touch in areas where you drive or ride. Be careful and attentive while driving or riding a bicycle. Stop using iPod touch if you find it disruptive or distracting while operating any type of vehicle, or performing any activity that requires your full attention. Navigating Safely Do not rely on iPod touch applications that provide maps, orientation information, direct…

Text truncated - open the document above for the full version.

iPod touch User Guide For iOS 4.1 Software Contents 9Chapter 1: iPod touch at a Glance 9iPod touch Overview 11Buttons 13iPod touch Apps 16Status Icons 17 Chapter 2: Getting Started 17Viewing the User Guide on iPod touch 17What You Need 18Setting Up iPod touch 18Disconnecting iPod touch from Your Computer 19Connecting to the Internet 19Adding Mail, Contacts, and Calendar Accounts 23Chapter 3: Basics 23Using Apps 27Customizing the Home Screen 30Typing 38Searching 39Voice Control 40Bluetooth Devices 41Battery 42Security Features 44Cleaning iPod touch 44Restarting and Resetting iPod touch 45 Chapter 4: Syncing and File Sharing 45About Syncing 45Syncing Accounts 46Syncing with iTunes 47iPod touch Settings Panes in iTunes 50Automatic iTunes Syncing 51Manually Managing Content 51Transferring Purchased Content to Another Computer 2 52File Sharing 53Chapter 5: Music and Videos 53Getting Music, Videos, and More 53Music and Other Audio 62Videos 65Setting a Sleep Timer 66Changing the Browse Buttons 67Chapter 6: FaceTime 67About FaceTime 68Signing In 69Making a Call 69While You’re Talking 71 Chapter 7: Camera 71About Camera 72Taking Photos and Recording Videos 73Viewing and Sharing Photos and Videos 73Trimming Videos 74Uploading Photos and Videos to Your Computer 75Chapter 8: Photos 75About Photos 75Syncing Photos and Videos with Your Computer 76Viewing Photos and Videos 77Deleting Photos and Videos 78Slideshows 78Sharing Photos and Videos 80Assigning a Photo to a Contact 81Wallpaper 82Chapter 9: Game Center 82About Game Center 82Setting Up Game Center 84Games 88Friends 90Your Status and Account Information 91 Chapter 10: Mail 91Setting Up Email Accounts 92Checking and Reading Email 94Using Links and Detected Data 95Viewing Attachments 3 Contents 96Sending Email 98Organizing Email 99Searching Email 10 0Chapter 11: Safari 10 0Viewing Webpages 10 3Searching 10 3Bookmarks 10 4Web Clips 10 5Chapter 12: Calendar 10 5About Calendar 10 5Syncing Calendars 10 6Viewing Your Calendars 10 7Searching Calendars 10 7Adding and Updating Events on iPod touch 10 8Responding to Meeting Invitations 11 0Subscribing to Calendars 11 0Alerts 111 Chapter 13: YouTube 111Finding and Viewing Videos 112Controlling Video Playback 113Managing Videos 113Getting More Information 11 4Using YouTube Account Features 115Changing the Browse Buttons 11 6Chapter 14: Stocks 11 6Viewing Stock Quotes 117Getting More Information 11 8Chapter 15: Maps 119Finding and Viewing Locations 12 2Getting Directions 12 45JQYKPI6TCÓE%QPFKVKQPs 12 4Finding and Contacting Businesses 12 5Sharing Location Information 12 5Bookmarking Locations 12 6 Chapter 16: Weather 12 6Viewing Weather Summaries 12 7Getting More Weather Information 4 Contents 12 8Chapter 17: Notes 12 8About Notes 12 8Syncing Notes 12 9Writing and Reading Notes 13 0Searching Notes 13 0Emailing Notes 131 Chapter 18: Clock 131World Clocks 131Alarms 13 2Stopwatch 13 2Timer 13 3 Chapter 19: Calculator 13 3Using the Calculator 13 3Standard Memory Functions 13 45EKGPVK°E%CNEWNCVQT-G[s 13 6Chapter 20: Voice Memos 13 6Recording Voice Memos 13 7Listening to Voice Memos 13 7Managing Voice Memos 13 8Trimming Voice Memos 13 9Sharing Voice Memos 13 9Syncing Voice Memos 14 0Chapter 21: iTunes Store 14 0About the iTunes Store 141Finding Music, Videos, and More 14 2Following Artists and Friends 14 3Purchasing Music or Audiobooks 14 4Purchasing or Renting Videos 14 5Streaming or Downloading Podcasts 14 5Checking Download Status 14 6Syncing Purchased Content 14 6Changing the Browse Buttons 14 7Viewing Account Information 14 7Verifying Downloads 14 8 Chapter 22: App Store 14 8About the App Store 14 9Browsing and Searching 15 0Info Screen 151Downloading Apps 5 Contents 152Deleting Apps 152Writing Reviews 153Updating Apps 153Syncing Purchased Apps 15 4Chapter 23: Settings 15 4Airplane Mode 155Wi-Fi 15 6VPN 15 60QVK°ECVKQPs 157Sounds 157Brightness 157Wallpaper 15 8General 16 6Music 16 6Video 167Photos 167FaceTime 16 8Store 16 8Mail, Contacts, Calendars 17 2Safari 17 3Nike + iPod 174 Chapter 24: Contacts 174About Contacts 174Adding Contacts 175Searching Contacts 17 6Managing Contacts on iPod touch 17 6Using Contact Information 17 77PK°GF%QPVCEVs 17 9Chapter 25: Nike + iPod 17 9Activating Nike + iPod 18 0Linking a Sensor 18 0Working Out with Nike + iPod 181Sending Workouts to Nikeplus.com 181Calibrating Nike + iPod 18 2Nike + iPod Settings 18 3 Chapter 26: iBooks 18 3About iBooks 18 4Syncing Books and PDFs 18 4Using the iBookstore 6 Contents 18 5Reading Books 18 6Viewing a PDF 18 6Changing a Book’s Appearance 187Searching Books 187.QQMKPIWRVJG&G°PKVKQPQHC9QTd 187Having a Book Read to You 187Organizing Your Bookshelf 18 8Bookmark and Note Syncing 18 9Chapter 27: Accessibility 18 9Universal Access Features 19 0VoiceOver 202Zoom 203Large Text 203White on Black 203Mono Audio 203Speak Auto-text 203Triple-click Home 204Closed Captioning and Other Helpful Features 205 Appendix A: Support and Other Information 205Apple iPod touch Support Site 205Restarting and Resetting iPod touch 205Backing Up iPod touch 207Updating and Restoring iPod touch Software 209Safety, Software, and Service Information 209Using iPod touch in an Enterprise Environment 210Disposal and Recycling Information 211Apple and the Environment 212Index 7 Contents iPodtouch at a Glance 1 iPodtouch Overview iPodtouch 4th generation 4PJYVWOVUL VUIHJR 6U6MM :SLLW>HRL =VS\TL I\[[VUZ VUZPKL /LHKWOVULZ WVY[ :WLHRLY +VJR JVUULJ[VY -YVU[ JHTLYH /VTL I\[[VU ;V\JOZJYLLU (WWSPJH[PVU PJVUZ :[H[\ZIHY 4HPUJHTLYH VUIHJR iPodtouch 3rd generation 6U6MM :SLLW>HRL =VS\TL I\[[VUZ /LHKWOVULZ WVY[ +VJR JVUULJ [VY >P-PHU[LUUH /VTL I\[[VU 0U[LYUHS ZWLHRLY ;V\JOZJYLLU (WWSPJH[PVU PJVUZ :[H[\ZIHY ;QWT*QOGUETGGPOC[NQQMFKÒGTGPVFGRGPFKPIQPVJGOQFGNQHK2QFVQWEJ[QWJCXG and whether you have rearranged its icons. Accessories The following accessories are included with iPodtouch: +VJR*VUULJ[VY[V<:)*HISL (WWSL,HYWOVULZ ItemWhat you can do with it App…

Text truncated - open the document above for the full version.

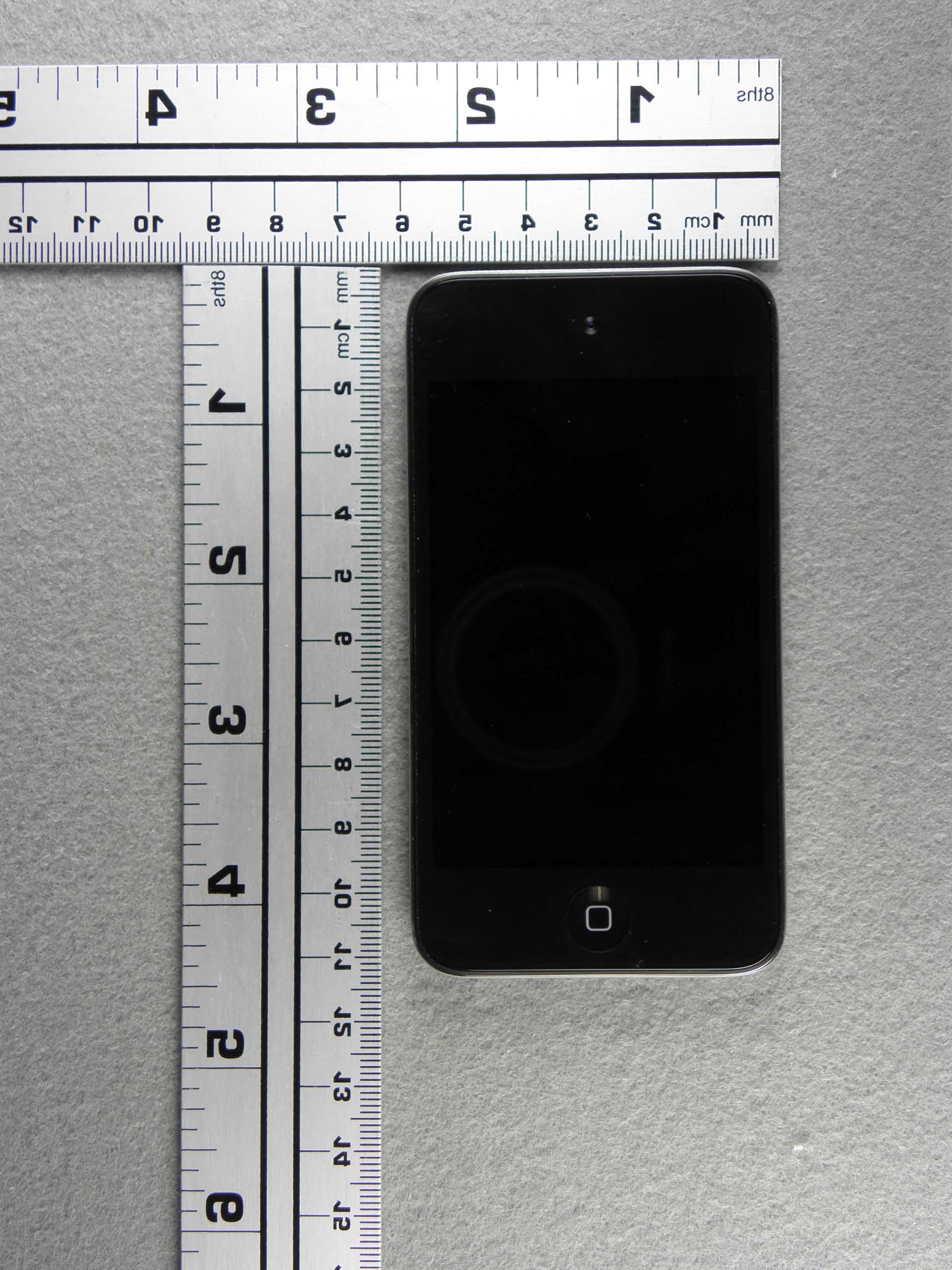

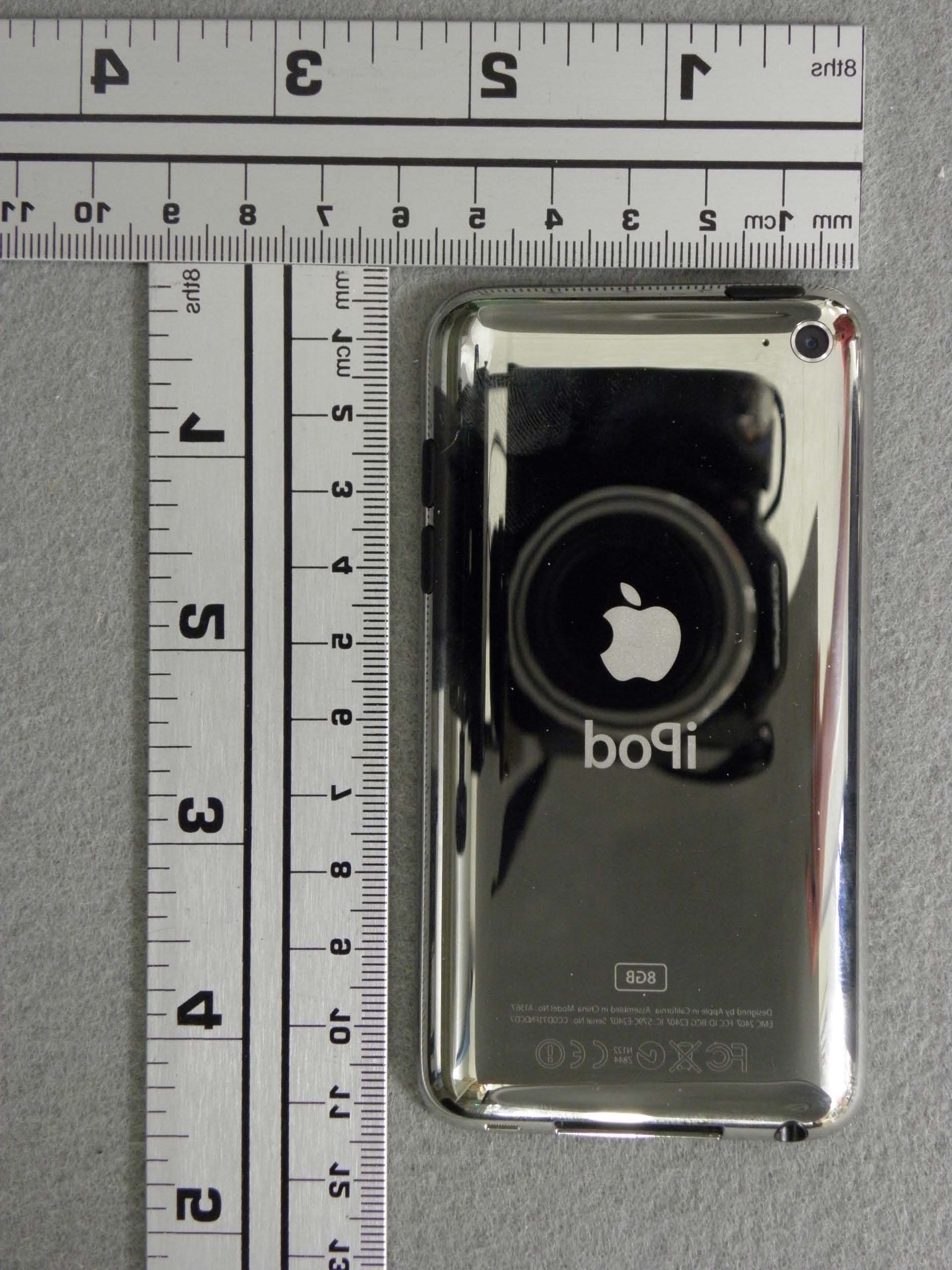

PHOTO 1 MODEL A1367 TOP VIEW PHOTO 2 MODEL A1367 BOTTOM VIEW PHOTO 3 MODEL A1367 BOTTOM AND RIGHT SIDE VIEW PHOTO 4 MODEL A1367 TOP AND LEFT SIDE VIEW

A1367 LABEL LOCATION DRAWING ADDITIONAL MEMORY SIZES

Photo 1 - Apple 1367
Main Electronics on Left
Touch Panel & Dispaly on
Right Photo 2 - Apple 1367
Touch Panel & Display
Back Side Photo 3 - Apple 1367
Main Electronics Back Side Photo 4 - Apple 1367
Main Electronics Side
Shield and Speaker Photo 5 - Apple 1367
Main Electronics Side
Shield Removed Photo 6 - Apple 1367
Battery, Main Circuit Board
Removed
Photo 7 - Apple 1367
Main Printed Circuit
Board Top Side
Photo 8 - Apple 1367
Main Printed Circuit
Board Bottom Side Photo 9 - Apple 1367
Code Up View Top
Side
Photo 10 - Apple 1367
Code Up View Bottom
Side with Shield
Photo 11 - Apple 1367
Close Up View Bottom
Side Shield Removed Photo 12 - Apple 1367
Close Up View Bottom
Side With Shield Photo 13 - Apple 1367
Close Up View Bottom
Side With Shield Removed Photo 14 - Apple 1367
Close Up View Top
Side With 30 Pin Connector
Shield Photo 15 - Apple 1367
Close Up View Antenna
Flex Top side Photo 16 - Apple 1367
Close Up View Antenna
Flex Bottom Side With
Insulator Photo 17 - Apple 1367
Close Up View Antenna
Flex Bottom Side With
Insulator Removed

FCC OET BULLETIN 65 SUPPLEMENT C IC RSS-102 ISSUE 4 SAR EVALUATION REPORT For 802.11 b/g/n + BT (2.1) EDR MODEL: A1367 FCC ID: BCG-E2407 IC: 579C-E2407 REPORT NUMBER: 10U13294-16C ISSUE DATE: August 27, 2010 Prepared for APPLE INC 1 INFINITE LOOP, MS-26A CUPERTINO, CA 95014 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13294-16C DATE: August 27, 2010 FCC ID: BCG-E2407 IC: 579C-E2407 Page 2 of 28 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- July 14, 2010 Initial Issue -- A August 19, 2010 Fixed some typos in the section 11.1 and 11.2 Devin Chang B August 25, 2010 Updated EUT description. Devin Chang C August 27, 2010 Updated report. Includes 1. Changed frequency range from 2412 - 2472 MHz to 2412 - 2462 MHz in the section 1 2. Added all SAR plots into report includes z-axis plot of the highest SAR measurement. See section 13 Devin Chang REPORT NO: 10U13294-16C DATE: August 27, 2010 FCC ID: BCG-E2407 IC: 579C-E2407 Page 3 of 28 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 4 2. TEST METHODOLOGY ...................................................................................................................... 5 3. FACILITIES AND ACCREDITATION.................................................................................................. 5 4. CALIBRATION AND UNCERTAINTY................................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 7 5. EQUIPMENT UNDER TEST ............................................................................................................... 8 6. KDB 648474 SIMULTANEOUS TRANSMISSION CONSIDERATION............................................... 8 7. SYSTEM SPECIFICATIONS ............................................................................................................... 9 8. COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .................................... 10 9. LIQUID PARAMETERS CHECK....................................................................................................... 11 9.1. LIQUID CHECK RESULTS FOR 2450 MHZ ............................................................................. 12 10. SYSTEM VERIFICATION .............................................................................................................13 10.1. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................ 13 11. OUTPUT POWER VERIFICATION............................................................................................... 16 11.1. WIFI RF OUTPUT POWER....................................................................................................... 16 11.2. BLUETOOTH RF OUTPUT POWER ........................................................................................ 16 12. SUMMARY OF TEST RESULTS.................................................................................................. 17 13. SAR TEST PLOTS........................................................................................................................ 18 14. ATTACHMENTS ........................................................................................................................... 24 15. ANTENNA LOCATIONS...............................................................................................................25 16. TEST SETUP PHOTOS ................................................................................................................ 26 17. EXTERNAL PHOTOS................................................................................................................... 28 REPORT NO: 10U13294-16C DATE: August 27, 2010 FCC ID: BCG-E2407 IC: 579C-E2407 Page 4 of 28 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS Company name: APPLE INC 1 INFINITE LOOP, MS-26A CUPERTINO, CA 95014 EUT description: 802.11 b/g/n + BT (2.1) EDR Model number: A1367 Serial number: CCQCV00JDCPC Device category:: Portable Exposure category: General Population/Uncontrolled Exposure Date tested: July 8, 2010 FCC / IC rule parts Frequency Range [MHz] Highest 1-g SAR (mW/g) Limit (mW/g) 15.247 / RSS-102 2412 – 2462 Body: 1.11 (Face up) 1.6 Applicable Standards Test Results FCC OET Bulletin 65 Supplement C 01-01 IC RSS 102 Issue 4 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation…

Text truncated - open the document above for the full version.

Date/Time: 7/8/2010 1:27:16 PM Test Laboratory: Compliance Certification Services WiFi_Body DUT: Apple; Type: NA; Serial: NA Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Face up_L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.08 mW/g Face up_L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 23.8 V/m; Power Drift = -0.098 dB Peak SAR (extrapolated) = 4.12 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.351 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.69 mW/g Date/Time: 7/8/2010 11:17:22 AM Test Laboratory: Compliance Certification Services WiFi_Body DUT: Apple; Type: NA; Serial: NA Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Face up_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.983 mW/g Face up_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 22.5 V/m; Power Drift = 0.167 dB Peak SAR (extrapolated) = 4.11 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.349 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.66 mW/g Date/Time: 7/8/2010 1:58:53 PM Test Laboratory: Compliance Certification Services WiFi_Body DUT: Apple; Type: NA; Serial: NA Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.01 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Face up_H-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.03 mW/g Face up_H-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 22.7 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 3.72 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.314 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.58 mW/g Date/Time: 7/8/2010 5:06:26 PM Test Laboratory: Compliance Certification Services WiFi_Body DUT: Apple; Type: NA; Serial: NA Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 9/15/2009 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Face up_M-ch w/headset/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.02 mW/g Face up_M-ch w/headset/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 22.8 V/m; Power Drift = -0.202 dB Peak SAR (extrapolated) = 3.98 W/kg SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.339 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.65 mW/g Date/Time: 7/8/2010 11:41:13 AM Test Laboratory: Compliance Certification Services WiFi_Body DUT: Apple; Type: NA; Serial: NA Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Su…
