BCG-E2422BSmart Cellular Phone

iPhone 4 Important Product Information Guide DRAFT This Important Product Information Guide contains safety and handling, regulatory, software license, and warranty information for iPhone. Look for recycling, disposal, and other environmental information in the iPhone User Guide at: support.apple.com/manuals/iphone ±  T o avoid injury, read all operating instructions and the following safety information before using iPhone. For detailed operating instructions, read the iPhone User Guide on your iPhone by visiting help.apple.com/iphone or using the iPhone User Guide bookmark in Safari. For downloadable versions of the latest iPhone User Guide and this Important Product Information Guide, visit: support.apple.com/manuals/iphone Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPhone or other property. Carrying and Handling iPhone iPhone contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into iPhone. Do not use iPhone if it has been damaged—for example, if iPhone is cracked, punctured, or damaged by water. The front and back covers of iPhone are made of glass. This glass could break if iPhone is dropped on a hard surface or receives a substantial impact or is crushed, bent, or deformed. If the glass chips or cracks, do not touch or attempt to remove the broken glass. Stop using iPhone until the glass is replaced by Apple or an Apple Authorized Service Provider. Glass cracked due to misuse or abuse is not covered under the warranty. If you are concerned about scratching or abrasion, you can use one of the many cases sold separately. Keeping the Outside of iPhone Clean Clean iPhone immediately if it comes into contact with any contaminants that may cause stains, such as ink, dyes, makeup, dirt, food, oils, and lotions. To clean iPhone, unplug all cables and turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider). Then use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean iPhone. The front and back glass surfaces have an oleophobic coating. To remove fingerprints, simply wipe these surfaces with a soft, lint-free cloth. The ability of this coating to repel oil will diminish over time with normal usage, and rubbing the screen with an abrasive material will further diminish its effect and may scratch the glass. Avoiding Water and Wet Locations Do not use iPhone in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on iPhone. In case iPhone gets wet, unplug all cables, turn off iPhone (press and hold the Sleep/Wake button, and then slide the onscreen slider) before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPhone with an external heat source, such as a microwave oven or hair dryer. Damage to iPhone caused by contact with liquid is not covered under the warranty. DRAFT Repairing or Modifying iPhone Never attempt to repair or modify iPhone yourself. iPhone does not contain any user-serviceable parts. Disassembling iPhone, including the removal of external screws and back cover, may cause damage that is not covered under the warranty. Service should only be provided by Apple or an Apple Authorized Service Provider. If you have questions, contact Apple or an Apple Authorized Service Provider. For service information, go to: www.apple.com/support/iphone/service/faq Battery Replacement Do not attempt to replace the rechargeable battery in iPhone yourself. The battery may only be replaced by Apple or an Apple Authorized Service Provider. For more information about battery replacement service, go to: www.apple.com/support/iphone/service/battery Charging iPhone T o charge iPhone, only use the Apple Dock Connector to USB Cable with an Apple USB Power Adapter or a high-power USB port on another device that is compliant with the USB 2.0 or 1.1 standard, another Apple-branded product or accessory designed to work with iPhone, or a third-party accessory certified to use the Apple “Works with iPhone” or “Made for iPhone” logo. Read all safety instructions for any products and accessories before using with iPhone. Apple is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. When you use the Apple USB Power Adapter to charge iPhone, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple USB Power Adapter with wet hands. The Apple USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple USB Power Adapter and use care when handling. Unplug the Apple USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive moisture. ÂThe adapter case has become damaged. ÂYou suspect the adapter needs service or repair. ÂYou want to clean the adapter. Avoiding Hearing Damage Permanent hearing loss may occur if the receiver, earbuds, headphones, speakerphone, or earpieces are used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing: ÂLimit the amount of time you use the receiver, earbuds, headphones, speakerphone, or earpieces…

Text truncated - open the document above for the full version.

APPLE CONFIDENTIAL — PRELIMINARY DRAFT iPhone User Guide For iOS 4.2.5 Software Contents APPLE CONFIDENTIAL — PRELIMINARY DRAFT 9 Chapter 1: iPhone at a Glance 9 iPhone Overview 11 Buttons 13 iPhone Apps 16 Status Icons 19 Chapter 2: Getting Started 19 Viewing the User Guide on iPhone 19 What You Need 20 Installing the SIM Card 20 Activating iPhone 21 Setting Up iPhone 21 Disconnecting iPhone from Your Computer 22 Connecting to the Internet 25 Adding Mail, Contacts, and Calendar Accounts 29 Chapter 3: Basics 29 Using Apps 33 Customizing the Home Screen 36 Typing 45 Printing 47 Searching 48 Voice Control 50 Apple Earphones with Remote and Mic 51 Bluetooth Devices 52 Battery 53 Security Features 55 Cleaning iPhone 55 Restarting or Resetting iPhone 56 Chapter 4: Syncing and File Sharing 56 About Syncing 56 Syncing Accounts 56 Syncing with iTunes 2 APPLE CONFIDENTIAL — PRELIMINARY DRAFT 58 iPhone Settings Panes in iTunes 61 Automatic iTunes Syncing 61 Manually Managing Content 62 Transferring Purchased Content to Another Computer 62 File Sharing 64 Chapter 5: Phone 64 Phone Calls 72 Visual Voicemail 74 Contacts 74 Favorites 74 Call Forwarding, Call Waiting, and Caller ID 76 Ringtones and the Ring/Silent Switch 77 International Calls 79 Chapter 6: Mail 79 Setting Up Email Accounts 79 Checking and Reading Email 82 Using Links and Detected Data 83 Viewing Attachments 84 Printing Messages and Attachments 84 Sending Email 86 Organizing Email 87 Searching Email 89 Chapter 7: Safari 89 Viewing Webpages 92 Searching 92 Printing Webpages, PDFs, and Other Documents 93 Bookmarks 94 Web Clips 95 Chapter 8: iPod 95 Getting Music, Videos, and More 95 Music and Other Audio 104 Videos 108 Setting a Sleep Timer 108 Changing the Browse Buttons 11 0 Chapter 9: Messages 11 0 Sending and Receiving Messages 112 Searching Messages 112 Sharing Photos and Videos 113 Sending Voice Memos 3 Contents APPLE CONFIDENTIAL — PRELIMINARY DRAFT 113 Editing Conversations 113 Using Contact Information and Links 11 4 Managing Previews and Alerts 115 Chapter 10: Calendar 115 About Calendar 115 Syncing Calendars 11 6 Viewing Your Calendars 117 Searching Calendars 117 Adding and Updating Events on iPhone 11 8 Responding to Meeting Invitations 120 Subscribing to Calendars 120 Importing Calendar Files from Mail 120 Alerts 121 Chapter 11: Photos 121 About Photos 121 Syncing Photos and Videos with Your Computer 12 2 Viewing Photos and Videos 124 Deleting Photos and Videos 124 Slideshows 124 Viewing Photos, Videos, and Slideshows on a TV 125 Sharing Photos and Videos 12 7 Printing Photos 12 7 Assigning a Photo to a Contact 128 Wallpaper 129 Chapter 12: Camera 129 About Camera 130 Taking Photos and Recording Videos 131 Viewing and Sharing Photos and Videos 13 2 Trimming Videos 13 2 Uploading Photos and Videos to Your Computer 13 3 Chapter 13: YouTube 13 3 Finding and Viewing Videos 134 Controlling Video Playback 13 5 Managing Videos 13 6 Getting More Information 13 6 Using YouTube Account Features 13 7 Changing the Browse Buttons 13 8 Sending Videos to YouTube 4 Contents APPLE CONFIDENTIAL — PRELIMINARY DRAFT 13 9 Chapter 14: Stocks 13 9 Viewing Stock Quotes 140 Getting More Information 141 Chapter 15: Maps 141 Finding and Viewing Locations 146 Getting Directions 147
 s 148 Finding and Contacting Businesses 149 Sharing Location Information 149 Bookmarking Locations 150 Chapter 16: Weather 150 Viewing Weather Summaries 151 Getting More Weather Information 152 Chapter 17: Notes 152 About Notes 152 Syncing Notes 152 Writing and Reading Notes 154 Searching Notes 154 Emailing Notes 155 Chapter 18: Clock 155 World Clocks 155 Alarms 15 6 Stopwatch 15 6 Timer 15 8 Chapter 19: Calculator 15 8 Using the Calculator 15 8 Standard Memory Functions 15 9
     s 161 Chapter 20: Compass 161 Getting Compass Readings 162 Compass and Maps 164 Chapter 21: Voice Memos 164 Recording Voice Memos 165 Listening to Voice Memos 166 Managing Voice Memos 166 Trimming Voice Memos 167 Sharing Voice Memos 5 Contents APPLE CONFIDENTIAL — PRELIMINARY DRAFT 167 Syncing Voice Memos 169 Chapter 22: iTunes Store 169 About the iTunes Store 170 Finding Music, Videos, and More 171 Following Artists and Friends 17 2 Purchasing Ringtones 17 3 Purchasing Music or Audiobooks 174 Purchasing or Renting Videos 175 Streaming or Downloading Podcasts 175 Checking Download Status 17 6 Syncing Purchased Content 17 6 Changing the Browse Buttons 17 7 Viewing Account Information 17 7 Verifying Downloads 17 8 Chapter 23: App Store 17 8 About the App Store 17 8 Browsing and Searching 180 Info Screen 181 Downloading Apps 181 Deleting Apps 182 Writing Reviews 18 3 Updating Apps 18 3 Syncing Purchased Apps 184 Chapter 24: Game Center 184 About Game Center 184 Setting Up Game Center 18 5 Games 189 Friends 191 Your Status and Account Information 19 3 Chapter 25: Settings 19 3 Airplane Mode 194 Wi-Fi 19 5 VPN 19 5 Personal Hotspot 19 5  s 196 Carrier 196 Sounds and the Ring/Silent Switch 19 7 Brightness 19 7 Wallpaper 6 Contents APPLE CONFIDENTIAL — PRELIMINARY DRAFT 19 7 General 208 Mail, Contacts, Calendars 212 Phone 214 Safari 215 Messages 216 iPod 217 Photos 218 Notes 218 Store 218 Nike + iPod 219 Chapter 26: Contacts 219 About Contacts 219 Adding Contacts 220 Searching Contacts 221 Managing Contacts on iPhone 222 Using Contact Information 223  s 225 Chapter 27: Nike + iPod 225 Activating Nike + iPod 226 Linking a Sensor 226 Working Out with Nike + iPod 226 Sending Workouts to Nikeplus.com 227 Calibrating Nike + iPod 227 Nike + iPod Settings 229 Chapter 28: iBooks 229 About iBooks 230 Syncing Books and PDFs 230 Using the iBookstore 231 Reading Books 232 Reading PDFs 232 Changing a Book’s Appearance 233 Searching Books and PDFs 233   d 233 Having a Book Read to You 233 Printing or Emailing a PDF 234 Organizing the Bookshelf 234 Bookmark and Note Syncing 235 Chapter 29: Accessibility 235 Universal Access Feature…

Text truncated - open the document above for the full version.

Date: Jan.10, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Hearing Aid Disclosure statement per section 20.19(f)(1) FCC ID: BCG‐E2422A and BCG‐E2422B To whom it may concerns: The following statement or similar wordings will be included in either final revision of user's manual or as an insert in the packaging material for the handset when the product is shipped. FCC Hearing‐Aid Compatibility (HAC) Regulations for Wireless Devices On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01‐ 309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 198 (HAC Act) to require digital wireless phones be compatible with hearing‐aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities. While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M‐Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not rated. M4 is the better/higher of the two ratings. Model A1349 is rated M4. T‐Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing aid’s telecoil than phones that are not rated. T4 is the better/higher of the two ratings. Model A1349 is rated T4. Safety and regulatory guide The handset has not been rated for hearing aid compatibility with respect to the Wi‐Fi capability. Please power off the Bluetooth function while using hearing aid devices with A1349. NEWER WIRELESS TECHNOLOGIES iPhone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in iPhone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility. Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for better use. A sum of 8 is considered for best use. Normal Usage: 4+1=5 Better Usage: 4+2 =6 Best Usage: 4+4=8 In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M4 level rating, the sum of the two values equal M6. This should provide the hearing aid user with “better usage” while using their hearing aid with the particular wireless phone. “Better usage” in this context is defined as a signal quality that is acceptable for better than normal operation. This methodology applies equally for T ratings. The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks M4 + M1 M4 + M2 M4 + M4 are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

APPLE CONFIDENTIAL — First Draft (1.10.11) iPhone User Guide For iOS 4.2.5 Software Contents APPLE CONFIDENTIAL — First Draft (1.10.11) 9 Chapter 1: iPhone at a Glance 9 iPhone Overview 11 Buttons 13 iPhone Apps 16 Status Icons 19 Chapter 2: Getting Started 19 Viewing the User Guide on iPhone 19 What You Need 20 Installing the SIM Card 20 Activating iPhone 21 Setting Up iPhone 21 Disconnecting iPhone from Your Computer 22 Connecting to the Internet 25 Adding Mail, Contacts, and Calendar Accounts 29 Chapter 3: Basics 29 Using Apps 33 Customizing the Home Screen 36 Typing 45 Printing 47 Searching 48 Voice Control 50 Apple Earphones with Remote and Mic 51 Bluetooth Devices 52 Battery 53 Security Features 55 Cleaning iPhone 55 Restarting or Resetting iPhone 56 Chapter 4: Syncing and File Sharing 56 About Syncing 56 Syncing Accounts 56 Syncing with iTunes 2 APPLE CONFIDENTIAL — First Draft (1.10.11) 58 iPhone Settings Panes in iTunes 61 Automatic iTunes Syncing 61 Manually Managing Content 62 Transferring Purchased Content to Another Computer 62 File Sharing 64 Chapter 5: Phone 64 Phone Calls 72 Visual Voicemail 74 Contacts 74 Favorites 74 Call Forwarding, Call Waiting, and Caller ID 76 Ringtones and the Ring/Silent Switch 77 International Calls 79 Chapter 6: Mail 79 Setting Up Email Accounts 79 Checking and Reading Email 82 Using Links and Detected Data 83 Viewing Attachments 84 Printing Messages and Attachments 84 Sending Email 86 Organizing Email 87 Searching Email 89 Chapter 7: Safari 89 Viewing Webpages 92 Searching 92 Printing Webpages, PDFs, and Other Documents 93 Bookmarks 94 Web Clips 95 Chapter 8: iPod 95 Getting Music, Videos, and More 95 Music and Other Audio 104 Videos 108 Setting a Sleep Timer 108 Changing the Browse Buttons 11 0 Chapter 9: Messages 11 0 Sending and Receiving Messages 112 Searching Messages 112 Sharing Photos and Videos 113 Sending Voice Memos 3 Contents APPLE CONFIDENTIAL — First Draft (1.10.11) 113 Editing Conversations 113 Using Contact Information and Links 11 4 Managing Previews and Alerts 115 Chapter 10: Calendar 115 About Calendar 115 Syncing Calendars 11 6 Viewing Your Calendars 117 Searching Calendars 117 Adding and Updating Events on iPhone 11 8 Responding to Meeting Invitations 120 Subscribing to Calendars 120 Importing Calendar Files from Mail 120 Alerts 121 Chapter 11: Photos 121 About Photos 121 Syncing Photos and Videos with Your Computer 12 2 Viewing Photos and Videos 124 Deleting Photos and Videos 124 Slideshows 124 Viewing Photos, Videos, and Slideshows on a TV 125 Sharing Photos and Videos 12 7 Printing Photos 12 7 Assigning a Photo to a Contact 128 Wallpaper 129 Chapter 12: Camera 129 About Camera 130 Taking Photos and Recording Videos 131 Viewing and Sharing Photos and Videos 13 2 Trimming Videos 13 2 Uploading Photos and Videos to Your Computer 13 3 Chapter 13: YouTube 13 3 Finding and Viewing Videos 134 Controlling Video Playback 13 5 Managing Videos 13 6 Getting More Information 13 6 Using YouTube Account Features 13 7 Changing the Browse Buttons 13 8 Sending Videos to YouTube 4 Contents APPLE CONFIDENTIAL — First Draft (1.10.11) 13 9 Chapter 14: Stocks 13 9 Viewing Stock Quotes 140 Getting More Information 141 Chapter 15: Maps 141 Finding and Viewing Locations 146 Getting Directions 147 5JQYKPI6TCÓE%QPFKVKQPs 148 Finding and Contacting Businesses 149 Sharing Location Information 149 Bookmarking Locations 150 Chapter 16: Weather 150 Viewing Weather Summaries 151 Getting More Weather Information 152 Chapter 17: Notes 152 About Notes 152 Syncing Notes 152 Writing and Reading Notes 154 Searching Notes 154 Emailing Notes 155 Chapter 18: Clock 155 World Clocks 155 Alarms 15 6 Stopwatch 15 6 Timer 15 8 Chapter 19: Calculator 15 8 Using the Calculator 15 8 Standard Memory Functions 15 9 5EKGPVK°E%CNEWNCVQT-G[s 161 Chapter 20: Compass 161 Getting Compass Readings 162 Compass and Maps 164 Chapter 21: Voice Memos 164 Recording Voice Memos 165 Listening to Voice Memos 166 Managing Voice Memos 166 Trimming Voice Memos 167 Sharing Voice Memos 5 Contents APPLE CONFIDENTIAL — First Draft (1.10.11) 167 Syncing Voice Memos 169 Chapter 22: iTunes Store 169 About the iTunes Store 170 Finding Music, Videos, and More 171 Following Artists and Friends 17 2 Purchasing Ringtones 17 3 Purchasing Music or Audiobooks 174 Purchasing or Renting Videos 175 Streaming or Downloading Podcasts 175 Checking Download Status 17 6 Syncing Purchased Content 17 6 Changing the Browse Buttons 17 7 Viewing Account Information 17 7 Verifying Downloads 17 8 Chapter 23: App Store 17 8 About the App Store 17 8 Browsing and Searching 180 Info Screen 181 Downloading Apps 181 Deleting Apps 182 Writing Reviews 18 3 Updating Apps 18 3 Syncing Purchased Apps 184 Chapter 24: Game Center 184 About Game Center 184 Setting Up Game Center 18 5 Games 189 Friends 191 Your Status and Account Information 19 3 Chapter 25: Settings 19 3 Airplane Mode 194 Wi-Fi 19 5 VPN 19 5 Personal Hotspot 19 5 0QVK°ECVKQPs 196 Carrier 196 Sounds and the Ring/Silent Switch 19 7 Brightness 19 7 Wallpaper 6 Contents APPLE CONFIDENTIAL — First Draft (1.10.11) 19 7 General 208 Mail, Contacts, Calendars 212 Phone 214 Safari 215 Messages 216 iPod 217 Photos 218 Notes 218 Store 218 Nike + iPod 219 Chapter 26: Contacts 219 About Contacts 219 Adding Contacts 220 Searching Contacts 221 Managing Contacts on iPhone 222 Using Contact Information 223 7PK°GF%QPVCEVs 225 Chapter 27: Nike + iPod 225 Activating Nike + iPod 226 Linking a Sensor 226 Working Out with Nike + iPod 226 Sending Workouts to Nikeplus.com 227 Calibrating Nike + iPod 227 Nike + iPod Settings 229 Chapter 28: iBooks 229 About iBooks 230 Syncing Books and PDFs 230 Using the iBookstore 231 Reading Books 232 Reading PDFs 232 Changing a Book’s Appearance 233 Searching Books and PDFs 233 .QQMKPIWRVJG&G°PKVKQPQHC9QTd 233 Having a Book Read to You 233 Printing or Emailing a PDF 234 Organizing the Bookshelf 234 Bookmark and Note Syncing 235 Chapter 29: Accessib…

Text truncated - open the document above for the full version.

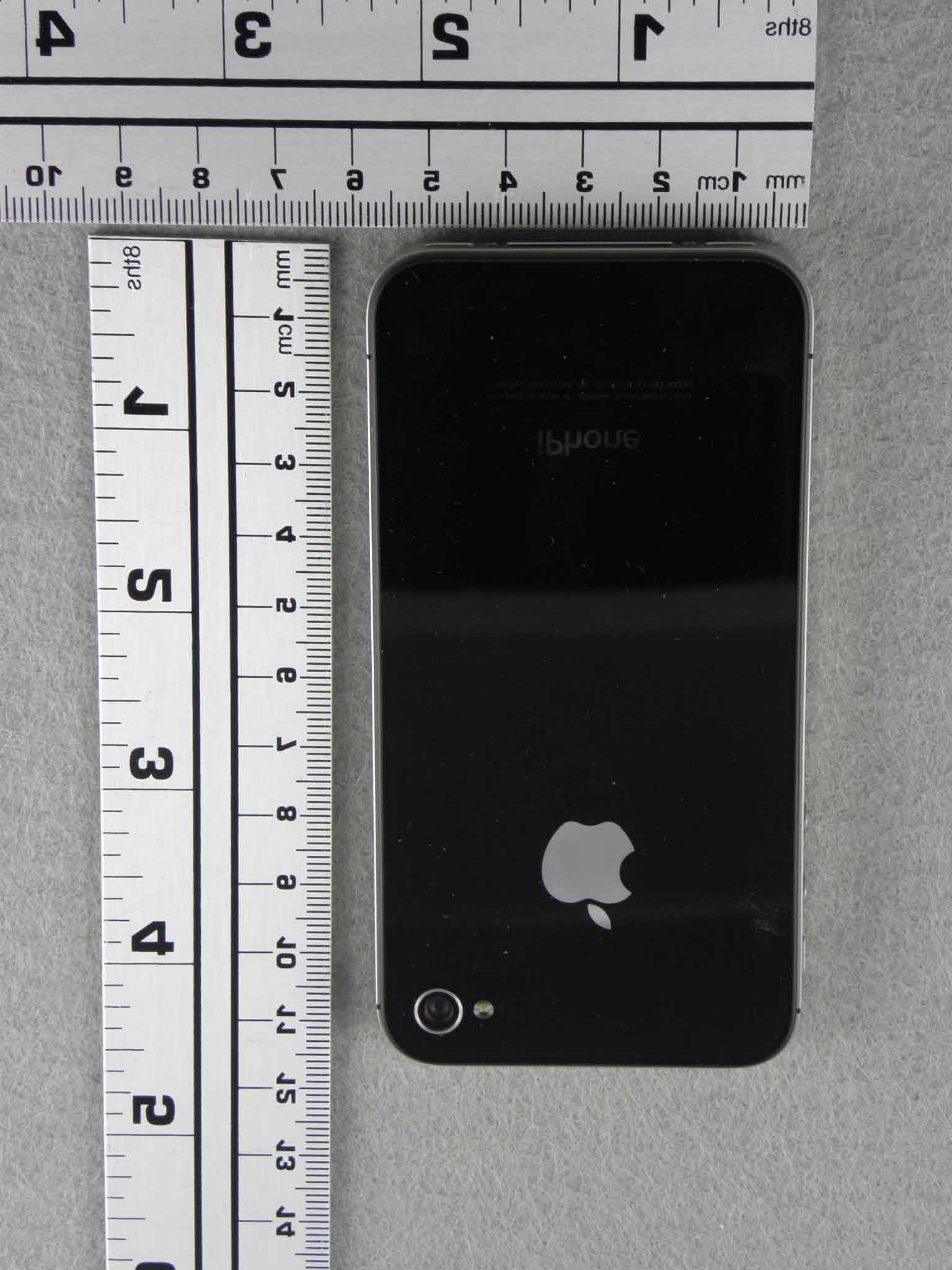

EXTERIOR PHOTO 1 FRONT VIEW EXTERIOR PHOTO 2 LEFT AND BOTTON VIEW EXTERIOR PHOTO 3 RIGHT AND BOTTOM VIEW EXTERIOR PHOTO 4 BACK VIEW

LABEL LOCATION BACK OF THE DEVICE

826-9728-A_F&B-Lbl-BTR_N92.ai PRINT SPECIFICATION Text and Graphics print PMS 429 C Barcode prints Black Overall matte Film lamination with 70-80% haze rate Dimensions Overall: 65 mm x 88 mm, Radius: None Trimmed label size: 65 mm x 80 mm, Radius: None Keyline is for trim only, do not print. Material: 80GSM Art paper, IALH, matches to Sappi, or Apple approved equivalent. *1P826-9728* 826-9728-A Includes: iPhone 4, Apple Earphones with Remote and Mic, Dock Connector to USB Cable, and USB Power Adapter. Supports CDMA EV-DO Rev. A (800/1900MHz), Wi-Fi (802.11b/g/n), GPS, and Bluetooth 2.1 + EDR. Hearing aid compatibility rating: M4/T4. Requirements: Wireless service plan with Verizon Wireless required to activate all iPhone features 1 • Mac or PC with USB 2.0 • Mac OS X v10.5.8 or later, Windows 7, Windows Vista, or Windows XP Home or Professional (SP3) • iTunes 10.1.2 or later required for some features (free download from www.itunes.com/download) • iTunes Store account 2 • Internet access 3 1. Service plan with Verizon Wireless required for cellular network capabilities. Credit check required; must be 18 or older. Wireless service is solely provided by and is the responsibility of Verizon Wireless. This iPhone model is configured to work only with the wireless services of Verizon Wireless. When available, transferring your mobile number to a different service provider will terminate your service with your existing provider; termination fees and other charges may apply. Wireless service and some wireless features are not available in all areas. Some features may require added fees. Contact Verizon Wireless for more details. 2. Free account sign-up through iTunes; valid credit card may be required. 3. Broadband recom- mended; fees may apply. Use constitutes acceptance of Apple’s software license agreement, warranty, and third-party terms located in this box. Battery has limited recharge cycles and may eventually need to be replaced by Apple service provider. Battery life and charge cycles vary by use and settings. See www.apple.com/batteries. 802.11n operates at 2.4GHz. 1GB = 1 billion bytes; actual formatted capacity less. Verizon Wireless and the Verizon logo are trademarks of Verizon Trademark Services LLC. 65 mm TRIM 80 mm TRIM 88 mm Overall This portion stays on liner and is thrown away after scanning

826-9729-A_F&B-Lbl-BST_N92.ai PRINT SPECIFICATION Text and Graphics print PMS 429 C Barcode prints Black Overall matte Film lamination with 70-80% haze rate Dimensions Overall: 65 mm x 88 mm, Radius: None Trimmed label size: 65 mm x 80 mm, Radius: None Keyline is for trim only, do not print. Material: 80GSM Art paper, IALH, matches to Sappi, or Apple approved equivalent. *1P826-9729* 826-9729-A Includes: iPhone 4, Apple Earphones with Remote and Mic, Dock Connector to USB Cable, and USB Power Adapter. Supports CDMA EV-DO Rev. A (800/1900MHz), Wi-Fi (802.11b/g/n), GPS, and Bluetooth 2.1 + EDR. Hearing aid compatibility rating: M4/T4. Requirements: Wireless service plan with Verizon Wireless required to activate all iPhone features 1 • Mac or PC with USB 2.0 • Mac OS X v10.5.8 or later, Windows 7, Windows Vista, or Windows XP Home or Professional (SP3) • iTunes 10.1.2 or later required for some features (free download from www.itunes.com/download) • iTunes Store account 2 • Internet access 3 1. Service plan with Verizon Wireless required for cellular network capabilities. Credit check required; must be 18 or older. Wireless service is solely provided by and is the responsibility of Verizon Wireless. This iPhone model is configured to work only with the wireless services of Verizon Wireless. When available, transferring your mobile number to a different service provider will terminate your service with your existing provider; termination fees and other charges may apply. Wireless service and some wireless features are not available in all areas. Some features may require added fees. Contact Verizon Wireless for more details. 2. Free account sign-up through iTunes; valid credit card may be required. 3. Broadband recom- mended; fees may apply. Use constitutes acceptance of Apple’s software license agreement, warranty, and third-party terms located in this box. Battery has limited recharge cycles and may eventually need to be replaced by Apple service provider. Battery life and charge cycles vary by use and settings. See www.apple.com/batteries. 802.11n operates at 2.4GHz. 1GB = 1 billion bytes; actual formatted capacity less. Verizon Wireless and the Verizon logo are trademarks of Verizon Trademark Services LLC. 65 mm TRIM 80 mm TRIM 88 mm Overall This portion stays on liner and is thrown away after scanning

PHOTO 1 FCC ID: BCG-E2422B BACK COVER REMOVED PHOTO 2 FCC ID: BCG-E2422B BATTERY REMOVED PHOTO 3 FCC ID: BCG-E2422B ACOUSTIC MODULE REMOVED TOP VIEW PHOTO 4 FCC ID: BCG-E2422B ACOUSTIC MODULE BOTTOM VIEW PHOTO 5 FCC ID: BCG-E2422B ACOUSTIC MODULE CELLULAR RADIO FEEDLINE PHOTO 6 FCC ID: BCG-E2422B I/O CONNECTORS REMOVED FROM MAIN BOARD PHOTO 7 FCC ID: BCG-E2422B MAIN BOARD REMOVED PHOTO 8 FCC ID: BCG-E2422B MAIN BOARD TOP SIDE PHOTO 9 FCC ID: BCG-E2422B MAIN BOARD BOTTOM SIDE PHOTO 10 FCC ID: BCG-E2422B MAIN BOARD BOTTOM SIDE SHIELDS REMOVED PHOTO 11 FCC ID: BCG-E2422B MAIN BOARD TOP SIDE SHIELDS REMOVED PHOTO 12 FCC ID: BCG-E2422B WIFI / BLUETOOTH FEEDLINE TOP SIDE PHOTO 13 FCC ID: BCG-E2422B WIFI / BLUETOOTH FEEDINE BOTTOM SIDE PHOTO 14 FCC ID: BCG-E2422B WIFI / BLUETOOTH MODULE

Date/Time: 11/1/2010 11:39:41 AM Test Laboratory: Compliance Certification Services Cell band_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: CDMA Cell Band; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 825 MHz; σ = 0.886 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_L-ch/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.879 mW/g Touch_L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 31.3 V/m; Power Drift = 0.101 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.831 mW/g; SAR(10 g) = 0.605 mW/g Maximum value of SAR (measured) = 0.940 mW/g Date/Time: 11/1/2010 11:07:40 AM Test Laboratory: Compliance Certification Services Cell band_Left Hand Side DUT: Apple; Type: N/A; Serial: N/A Communication System: CDMA Cell Band; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.897 mho/m; ε r = 42.6; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; S…

Text truncated - open the document above for the full version.
