BCG-E2430AiPhone

PRELIMINARY DRAFT — APPLE CONFIDENTIAL iPhone User Guide For iOS 5.0 Software Contents PRELIMINARY DRAFT — APPLE CONFIDENTIAL 11 Chapter 1: iPhone at a Glance 11 iPhone Overview 12 Buttons 15 Status Icons 18 Chapter 2: Getting Started 18 Viewing the User Guide on iPhone 18 What You Need 19 Installing the SIM Card 19 Setup and Activation 19 Connecting iPhone to Your Computer 20 Connecting to the Internet 23 Adding Mail, Contacts, and Calendar Accounts 26 Chapter 3: Basics 26 Using Apps 30 Customizing the Home Screen 33 Typing 37 Printing 39 Searching 40 Siri 41 Voice Control 43 Notification Center 43 Twitter 44 Apple Earphones with Remote and Mic 45 AirPlay 46 Bluetooth Devices 47 Battery 49 Security Features 50 Cleaning iPhone 50 Restarting or Resetting iPhone 51 Chapter 4: iCloud, Syncing, and File Sharing 51 About iCloud 2 PRELIMINARY DRAFT — APPLE CONFIDENTIAL 51 Setting up iCloud 52 Backing up with iCloud 53 Checking iCloud storage 53 Syncing with iTunes 55 iPhone Settings Panes in iTunes 58 Manually Managing Content 58 Transferring Purchased Content to Another Computer 59 File Sharing 60 Chapter 5: Phone 60 Phone Calls 67 Visual Voicemail 69 Contacts 69 Favorites 69 Call Forwarding, Call Waiting, and Caller ID 70 Ringtones, Ring/Silent, and Vibrate 71 International Calls 72 Settings options 74 Chapter 6: Mail 74 Setting Up Email Accounts 74 Checking and Reading Email 76 Working with Multiple Accounts 76 Sending Email 77 Using Links and Detected Data 78 Viewing Attachments 78 Printing Messages and Attachments 79 Organizing Email 80 Searching Email 80 Changing Mail Settings 84 Chapter 7: Safari 84 Viewing Webpages 86 Searching 87 Printing Webpages, PDFs, and Other Documents 87 Viewing Web Videos on a TV 87 Bookmarks 88 Web Clips 88 Setting options 89 Chapter 8: Music 89 Getting Music, Videos, and More 89 Music and Other Audio 3 Contents PRELIMINARY DRAFT — APPLE CONFIDENTIAL 98 Chapter 9: Messages 98 Sending and Receiving Messages 99 Sending Messages to a Group 100 Including Photos, Videos, and More 100 Editing Conversations 101 Searching Messages 101 Setting Options 102 Chapter 10: Calendar 102 About Calendar 103 Viewing your calendars 104 Adding events 104 Responding to invitations 105 Searching calendars 105 Subscribing to calendars 106 Importing calendar events from Mail 106 Syncing calendars 106 Calendar accounts and settings 108 Chapter 11: Photos 108 Viewing photos and videos 109 Slideshows 109 Sharing photos and videos 11 0 Copying and pasting 11 0 YouTube 11 0 Printing photos 11 0 Setting options 111 Chapter 12: Camera 111 About Camera 112 Taking photos and videos 112 HDR photos 113 Viewing and sharing photos and videos 113 Editing photos 113 Trimming videos 11 4 Uploading photos and videos to your computer 115 Chapter 13: YouTube 115 About YouTube 115 Playing Videos 11 6 Browsing and Searching for Videos 117 Watching YouTube on a TV 117 Keeping Track of Videos You Like 4 Contents PRELIMINARY DRAFT — APPLE CONFIDENTIAL 11 8 Sharing Videos, Comments, and Ratings 11 8 Getting More Information About a Video 119 Sending Videos to YouTube 120 Chapter 14: Stocks 120 Viewing Stock Quotes 121 Getting More Information 12 2 Chapter 15: Maps 12 2 Finding and Viewing Locations 12 6 Getting Directions 128 Showing Tra∑c Conditions 128 Finding and Contacting Businesses 129 Sharing Location Information 129 Bookmarking Locations 130 Chapter 16: Weather 130 Viewing Weather Summaries 131 Getting More Weather Information 13 2 Chapter 17: Notes 13 2 About Notes 13 2 Writing Notes 13 2 Reading and Editing Notes 13 3 Searching Notes 13 3 Printing or Emailing Notes 134 Chapter 18: Reminders 134 Sample Print Section 134 Sample AppleTopic Section 13 5 Chapter 19: Clock 13 5 World Clocks 13 5 Alarms 13 6 Stopwatch 13 6 Timer 13 8 Chapter 20: Game Center 13 8 About Game Center 13 9 Signing In to Game Center 13 9 Playing Games 140 Purchasing and Downloading Games 140 Playing with Friends 141 Game Center Settings 5 Contents PRELIMINARY DRAFT — APPLE CONFIDENTIAL 142 Your Status and Account Information 143 Chapter 21: Newsstand 143 Sample Print Section 143 Sample AppleTopic Section 14 4 Chapter 22: iTunes Store 14 4 About the iTunes Store 14 4 Finding music, videos, and more 145 Following artists and friends 146 Purchasing music, audiobooks, and tones 147 Purchasing or renting videos 148 Streaming or downloading podcasts 148 Checking download status 149 Syncing purchased content 149 Automatic Downloads 149 Changing the browse buttons 149 Viewing account information 149 Verifying downloads 151 Chapter 23: App Store 151 About the App Store 151 Finding and downloading Apps 153 Automatic downloads 153 Deleting Apps 154 Store settings 155 Chapter 24: Settings 155 Airplane Mode 15 6 Wi-Fi 157 Location Services 15 8 VPN 15 8 Personal Hotspot 15 8 Notifications 15 9 Carrier 15 9 Sounds and the Ring/Silent Switch 160 Brightness 160 Wallpaper 160 General 171 Chapter 25: Videos 171 About Videos 171 Playing Videos 17 2 Searching for Videos 6 Contents PRELIMINARY DRAFT — APPLE CONFIDENTIAL 17 2 Watching Rented Movies and TV Shows 17 3 Watching Videos on a TV 174 Deleting Videos from iPhone 174 Home Sharing 175 Setting a Sleep Timer 175 Converting Videos for iPhone 17 6 Chapter 26: Contacts 17 6 About Contacts 17 6 Syncing Contacts 17 6 Searching Contacts 17 7 Adding and editing contacts 17 8 Unified contacts 17 8 Accounts and settings 180 Chapter 27: Calculator 180 Using the Calculator 180 Scientific Calculator 181 Chapter 28: Compass 181 About the Compass 182 Calibrating the Compass 182 Finding Direction 182 Using Compass with Maps 18 3 Chapter 29: Voice Memos 18 3 About Voice Memos 184 Recording 184 Listening to a Recording 18 5 Managing and Sharing Recordings 18 5 Syncing Voice Memos 186 Chapter 30: Nike + iPod 186 Activating Nike + iPod 187 Linking a Sensor 187 Working Out with Nike + iPod 187 Sending Workouts to Nikeplus.com 188 Calibrating Nike + iPod 188 Nike + iPod Settings 190 Chapter 31: iBooks 190 About iBoo…

Text truncated - open the document above for the full version.

iPhone 4 Important Product Information Guide This Important Product Information Guide contains safety and handling, regulatory, software license, and warranty information for iPhone. Look for recycling, disposal, and other environmental information in the iPhone User Guide at: support.apple.com/manuals/iphone ±  To avoid injury, read all operating instructions and the following safety information before using iPhone. For detailed operating instructions, read the iPhone User Guide on your iPhone by visiting help.apple.com/iphone or using the iPhone User Guide bookmark in Safari. For downloadable versions of the latest iPhone User Guide and this Important Product Information Guide, visit: support.apple.com/manuals/iphone Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to iPhone or other property. Carrying and Handling iPhone iPhone contains sensitive components. Do not drop, disassemble, microwave, burn, paint, or insert foreign objects into iPhone. Do not use iPhone if it has been damaged—for example, if iPhone is cracked, punctured, or damaged by water. The front and back covers of iPhone are made of glass. This glass could break if iPhone is dropped on a hard surface, is subjected to a substantial impact, or is crushed, bent, or deformed. If the glass chips or cracks, do not touch or attempt to remove the broken glass. Stop using iPhone until the glass is replaced by Apple or an Apple Authorized Service Provider. Glass cracked due to misuse or abuse is not covered under the warranty. If you are concerned about scratching or abrasion, use a case, sold separately. Keeping the Outside of iPhone Clean Clean iPhone immediately if it comes into contact with any contaminants that may cause stains—for example, ink, dyes, makeup, dirt, food, oils, and lotions. To clean iPhone, unplug all cables and turn off iPhone (press and hold the On/Off button, and then slide the onscreen slider). Then use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean iPhone. The front glass surface has an oleophobic coating. To remove fingerprints, simply wipe these surfaces with a soft, lint-free cloth. The ability of this coating to repel oil will diminish over time with normal usage, and rubbing the screen with an abrasive material will further diminish its effect and may scratch the glass. Avoiding Water and Wet Locations Do not expose iPhone to water or rain, or handle iPhone near wet locations—for example, near washbasins or toilets. Take care not to spill any food or liquid on iPhone. In case iPhone gets wet, unplug all cables, turn off iPhone before cleaning, and allow it to dry thoroughly before turning it on again. Do not attempt to dry iPhone with an external heat source, such as a microwave oven or hair dryer. Damage to iPhone caused by contact with liquid is not covered under the warranty. Repairing or Modifying iPhone Never attempt to repair or modify iPhone yourself. iPhone does not contain any user-serviceable parts, except (where applicable) for the SIM card and SIM tray. Disassembling iPhone, including the removal of external screws and back cover, may cause damage that is not covered under the warranty. If iPhone has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to an Apple Authorized Service Provider. Service should only be provided by Apple or an Apple Authorized Service Provider. If you have questions, contact Apple or an Apple Authorized Service Provider. For service information, go to: www.apple.com/support/iphone/service/faq Battery Replacement Do not attempt to replace the rechargeable battery in iPhone yourself. The battery should be replaced only by Apple or an Apple Authorized Service Provider. For more information about battery replacement service, go to: www.apple.com/batteries/replacements.html Charging iPhone To charge iPhone, use only the Apple Dock Connector to USB Cable with the following: (i) an Apple USB Power Adapter, (ii) another Apple-branded product or accessory designed to work with iPhone, (iii) a third-party accessory certified to use the Apple “Works with iPhone” or “Made for iPhone” logo, (iv) a high-power USB port on another device that is compliant with the USB 2.0 or 1.1 standard, or (v) a power adapter compliant with one or more of the following standards EN 301489-34, IEC 62684, YD/T 1591-2009, CNS 15285, ITU L.1000, or another applicable mobile phone power adapter interoperability standard. An iPhone Micro USB Adapter (available separately in some areas) or other adapter may be needed to connect iPhone to some compatible power adapters. Note: Only micro USB power adapters in certain regions that comply with applicable mobile phone power adapter interoperability standards are compatible. Please contact the power adapter manufacturer to find out if your micro USB power adapter complies with these standards. Read all safety instructions for any products and accessories before using with iPhone. Apple is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. When you use the Apple USB Power Adapter to charge iPhone, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the Apple USB Power Adapter firmly into the power outlet. Do not connect or disconnect the Apple USB Power Adapter with wet hands. The Apple USB Power Adapter may become warm during normal use. Always allow adequate ventilation around the Apple USB Power Adapter and use care when handling. Unplug the Apple USB Power Adapter if any of the following conditions exist: ÂThe power cord or plug has become frayed or damaged. ÂThe adapter is exposed to rain, liquid, or excessive …

Text truncated - open the document above for the full version.

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 T: 408-­‐974-­‐4968 www.apple.com Date: August 25, 2011 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology Ref: FCC ID: BCG-E2430A To whom it may concern: This letter declares that the draft copy of the User Manual provided in the initial FCC documentation submittal will be replaced by a final copy before the FCC Short Term Confidentiality is lifted for this device. Sincerely, ____________________ Tiberiu Muresan Apple Inc. Wireless Certification Manager 1 Infinite Loop MS 35-3MP Cupertino CA 95014 408-974-4968 [email protected]

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 T: 408-­‐974-­‐4968 www.apple.com Date: August 25, 2011 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology Ref: FCC ID: BCG-E2430A To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;  Apple Inc. 1 Infinite Loop Cupertino, CA 95014 T: 408-­‐974-­‐4968 www.apple.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Tiberiu Muresan Apple Inc. Wireless Certification Manager 1 Infinite Loop MS 35-3MP Cupertino CA 95014 408-974-4968 [email protected]

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 T: 408-­‐974-­‐4968 www.apple.com Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCG-E2430A To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Technical Description • Main Board Schematic • Cellular Radio Schematic • Wi-Fi/BT Radio Schematic • Main Board Bill of Materials • Cellular Radio Bill of Materials • Wi-Fi/BT Radio Bill of Materials • Antenna Specifications, Gain and Patterns • Tune-up Procedure • PCB Layer drawings These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device.  Apple Inc. 1 Infinite Loop Cupertino, CA 95014 T: 408-­‐974-­‐4968 www.apple.com Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for sixty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Date: August 25, 2011 ____________________ Tiberiu Muresan Apple Inc. Wireless Certification Manager 1 Infinite Loop MS 35-3MP Cupertino CA 95014 408-974-4968 [email protected]

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Authorized Individual To Whom It May Concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Tiberiu Muresan to act on behalf of Apple Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorized individual may also assign another party to act as an authorized agent. This authorization is valid until further written notice from the grantee contact. Marc Douat Apple Inc. 1 Infinite Loop Cupertino, CA 95014

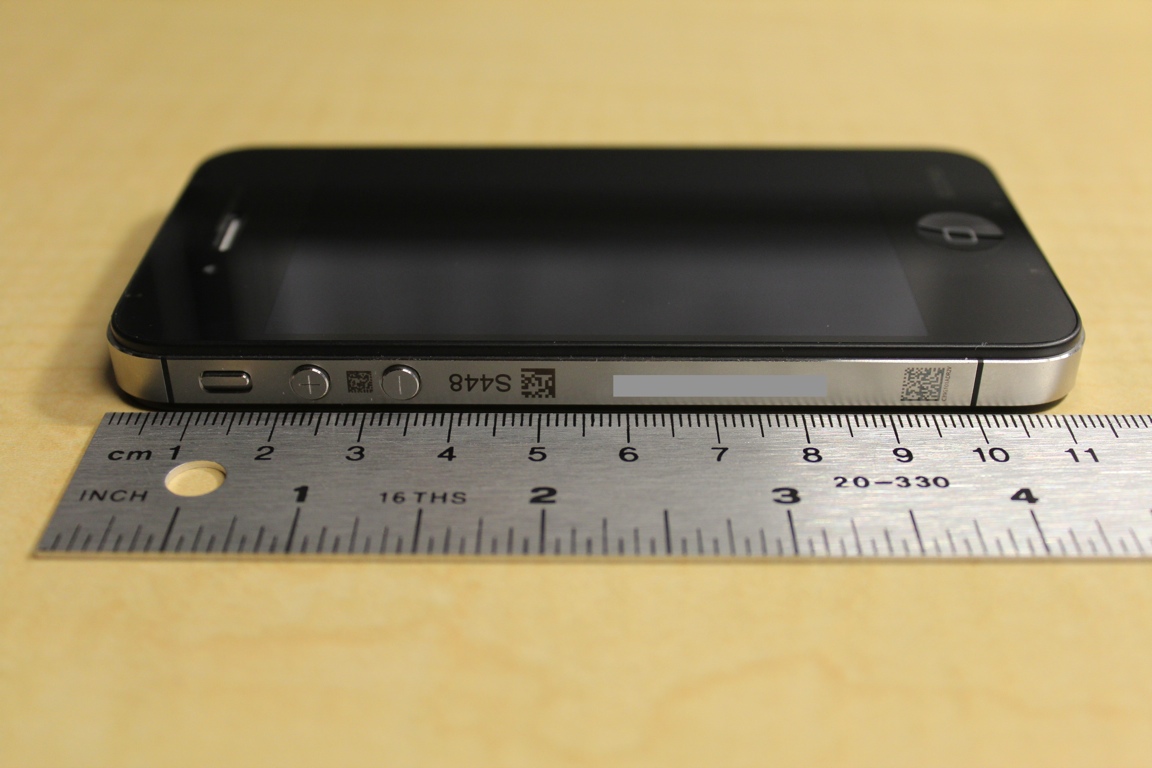

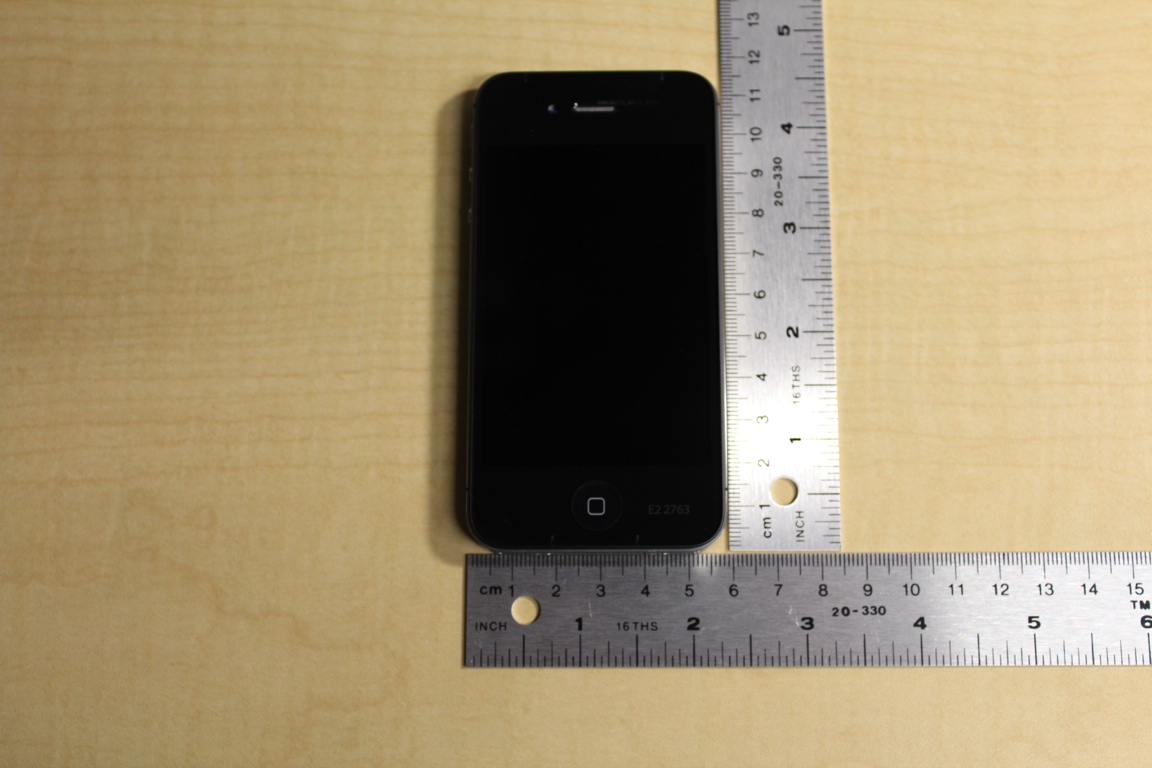

Exterior Photo 1 Front Side Menu Button, Front Camera & Earpiece Speaker Exterior Photo 2 Back Side Back camera and Label Exterior Photo 3 Right Side SIM Card Tray Exterior Photo 4 Left Side Ringer Switch & Volume Buttons Exterior Photo 5 Top Side Power Button & Earbud Jack Exterior Photo 6 Bottom Side Speaker, Mic & 30 Pin Dock Connector Exterior Photo 7 Height Back Regulatory Label

 Apple Inc. 1 Infinite Loop Cupertino, CA 95014 www.apple.com FCC ID Label and Location iPhone Model: A1387 FCC ID: BCG-­‐E2430A IC: 579C-­‐E2430A FCC ID Label: Location: !"#$%&"'()*(+,,-"($&(./-$012&$/((+##"3)-"'($&(.4$&/ 51'"-(+6789((:5.(;<7=((>..(?!@(A.BC:;<7=+((?.@(D9E.C:;<7=+ !"#$%&"'()*(+,,-"($&(./-$012&$/((+##"3)-"'($&(.4$&/ 51'"-(+6789((:5.(;<7=((>..(?!@(A.BC:;<7=+((?.@(D9E.C:;<7=+ 6EF76(33 6DFD7(33 6G(33 H"&I"2(/2I ;9FED(33 H"&I"2(/2I ;9FED(33 6;FGD(33 ;6F96(33 J6GF;;(33K J7;F=7(33K FCC ID Label Top Bottom Back plate of iPhone

12-2 Calibration and Uncertainty Measuring Instrument Calibration The measuring equipment utilized to perform the tests documented in this report has been calibrated in accordance with the manufacturer's recommendations, and is traceable to recognized national standards. MM DDYear Dielectronic Probe kitHP85070CN/A ESA Series Network AnalyzerAgilentE5071BMY42100131822012 Synthesized Signal GeneratorHP83732BUS344905997142012 E-Field ProbeSPEAGEX3DV4374912132011 E-Field ProbeSPEAGEX3DV43772532012 ThermometerERTCO639-1S17187192012 Data Acquisition Electronics SPEAGDAE41259532012 Data Acquisition Electronics SPEAGDAE41257532012 System Validation DipoleSPEAGD835V24d1174152012 System Validation DipoleSPEAGD1900V25d1404182012 System Validation DipoleSPEAG*D2450V27064192012 Power MeterGiga-tronics8651A86514045132012 Power SensorGiga-tronics80701A18345885132012 Power MeterHP437B3125U163455132012 Power SensorHP8481A2702A607805132012 AmplifierMITEQ4D00400600-50-30P1620606 Directional couplerWerlatoneC8060-1022141 Cal. Due date Name of EquipmentManufacturerType/ModelSerial No. N/A N/A N/A Notes: Per KDB 450824 D02 requirements for dipole calibration, UL CCS has adopted two years calibration intervals. On annual basis, each measurement dipole has been evaluated and is in compliance with the following criteria: 1. There is no physical damage on the dipole 2. System validation with specific dipole is within 10% of calibrated value. 3. Return-loss is within 20% of calibrated measurement. (See Appendix “8_Calibration Certificate - Validation Dipole D2450V2 - SN 706” with extended cal. data) 4. Impedance is within 5Ω of calibrated measurement (See Appendix “8_Calibration Certificate - Validation Dipole D2450V2 - SN 706” with extended cal. data) Measurement Uncertainty Componenterror, % Probe Distribution Divisor Sensitivity U (Xi), % Measurement System Probe Calibration (k=1) @ 835, 1900 and 2450 MHz5.50Normal115.50 Axial Isotropy1.15 Rectangular1.7320.70710.47 Hemispherical Isotropy9.20 Rectangular1.7320.70713.76 Boundary Effect0.90 Rectangular1.73210.52 Probe Linearity3.45 Rectangular1.73211.99 System Detection Limits1.00 Rectangular1.73210.58 Readout Electronics0.30Normal110.30 Response Time0.80 Rectangular1.73210.46 Integration Time2.60 Rectangular1.73211.50 RF Ambient Conditions - Noise3.00 Rectangular1.73211.73 RF Ambient Conditions - Reflections3.00 Rectangular1.73211.73 Probe Positioner Mechanical Tolerance0.40 Rectangular1.73210.23 Probe Positioning with respect to Phantom2.90 Rectangular1.73211.67 Extrapolation, Interpolation and Integration1.00 Rectangular1.73210.58 Test Sample Related Test Sample Positioning2.90Normal112.90 Device Holder Uncertainty3.60Normal113.60 Output Power Variation - SAR Drift5.00 Rectangular1.73212.89 Phantom and Tissue Parameters Phantom Uncertainty (shape and thickness)4.00 Rectangular1.73212.31 Liquid Conductivity - deviation from target5.00 Rectangular1.7320.641.85 Liquid Conductivity - measurement @ Head 2450 MHz3.96Normal10.642.53 Liquid Permittivity - deviation from target5.00 Rectangular1.7320.61.73 Liquid Permittivity - measurement @ Head 835 MHz4.01Normal10.62.41 10.70 Expanded Uncertainty U, Coverage Factor = 2, > 95 % Confidence = 21.41% Expanded Uncertainty U, Coverage Factor = 2, > 95 % Confidence = 1.68dB Measurement uncertainty for 300 MHz to 3 GHz averaged over 1 gram Combined Standard Uncertainty Uc(y) = Measurement uncertainty for 300 MHz to 3 GHz averaged over 10 gram Componenterror, % Probe Distribution Divisor Sensitivity U (Xi), % Measurement System Probe Calibration (k=1) @ 835, 1900 and 2450 MHz5.50Normal115.50 Axial Isotropy1.15 Rectangular1.7320.70710.47 Hemispherical Isotropy9.20 Rectangular1.7320.70713.76 Boundary Effect0.90 Rectangular1.73210.52 Probe Linearity3.45 Rectangular1.73211.99 System Detection Limits1.00 Rectangular1.73210.58 Readout Electronics0.30Normal110.30 Response Time0.80 Rectangular1.73210.46 Integration Time2.60 Rectangular1.73211.50 RF Ambient Conditions - Noise3.00 Rectangular1.73211.73 RF Ambient Conditions - Reflections3.00 Rectangular1.73211.73 Probe Positioner Mechanical Tolerance0.40 Rectangular1.73210.23 Probe Positioning with respect to Phantom2.90 Rectangular1.73211.67 Extrapolation, Interpolation and Integration1.00 Rectangular1.73210.58 Test Sample Related Test Sample Positioning2.90Normal112.90 Device Holder Uncertainty3.60Normal113.60 Output Power Variation - SAR Drift5.00 Rectangular1.73212.89 Phantom and Tissue Parameter s Phantom Uncertainty (shape and thickness)4.00 Rectangular1.73212.31 Liquid Conductivity - deviation from target5.00 Rectangular1.7320.431.24 Liquid Conductivity - measurement @ Head 2450 MHz3.96Normal10.431.70 Liquid Permittivity - deviation from target5.00 Rectangular1.7320.491.41 Liquid Permittivity - measurement @ Head 835 MHz4.01Normal10.491.96 10.31 Expanded Uncertainty U, Coverage Factor = 2, > 95 % Confidence = 20.61% Expanded Uncertainty U, Coverage Factor = 2, > 95 % Confidence = 1.63dB Combined Standard Uncertainty Uc(y), % =

Page 1 of 2 Impedance Plot for D2450V2 SN: 706 MHz with Head TSL at 245051.40.448.757-1.402.61.7997 DeltaMeasured (Ω)Cal. (Ω) Return Loss Plot for D2450V2 SN: 706 MHzCal. (dB)Measured (dB)Delta with Head TSL at 2450-36.7-34.48-6.05 Page 2 of 2 Impedance Plot for D2450V2 SN: 706 MHz with Body TSL at 245047.21.749.9790.68-2.81.017 DeltaMeasured (Ω)Cal. (Ω) Return Loss Plot for D2450V2 SN: 706 MHzCal. (dB)Measured (dB)Delta with Body TSL at 2450-29.5-35.16119.19

Date: 7/21/2011 Test Laboratory: UL CCS SAR Lab C UMTS band V_Left Hand Side_Ant Primary Communication System: UMTS-FDD (WCDMA); Frequency: 826.4 MHz;Duty Cycle: 1:2.18776 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.857 mho/m; ε r = 43.096; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3772; ConvF(8.52, 8.52, 8.52); Calibrated: 5/3/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1257; Calibrated: 5/3/2011 - Phantom: SAM with CRP v5.0; Type: QD000P40CD; Serial: TP1632 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Touch/L-ch/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.173 mW/g Touch/L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 35.312 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.345 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.740 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.184 mW/g 0 dB = 1.180mW/g Date: 7/21/2011 Test Laboratory: UL CCS SAR Lab C UMTS band V_Left Hand Side_Ant Primary Communication System: UMTS-FDD (WCDMA); Frequency: 836.6 MHz;Duty Cycle: 1:2.18776 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.868 mho/m; ε r = 42.989; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3772; ConvF(8.52, 8.52, 8.52); Calibrated: 5/3/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1257; Calibrated: 5/3/2011 - Phantom: SAM with CRP v5.0; Type: QD000P40CD; Serial: TP1632 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Touch/M-ch/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.141 mW/g Touch/M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 34.112 V/m; Power Drift = 0.0029 dB Peak SAR (extrapolated) = 1.313 W/kg SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.719 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.158 mW/g 0 dB = 1.160mW/g Date: 7/21/2011 Test Laboratory: UL CCS SAR Lab C UMTS band V_Left Hand Side_Ant Primary Communication System: UMTS-FDD (WCDMA); Frequency: 846.6 MHz;Duty Cycle: 1:2.18776 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.877 mho/m; ε r = 42.881; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3772; ConvF(8.52, 8.52, 8.52); Calibrated: 5/3/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1257; Calibrated: 5/3/2011 - Phantom: SAM with CRP v5.0; Type: QD000P40CD; Serial: TP1632 - Measurement SW: DASY52, Version 52.6 (2);SEMCAD X Version 14.4.5 (3634) Touch/H-ch/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value…

Text truncated - open the document above for the full version.
