BCG-E2694A

Apple Inc.

Cellular Phone with Bluetooth and WLAN Radios

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 09, 2013
Application Purpose: Original Equipment
Date of Application: Aug 19, 2013
Equipment Note: Cellular Phone with Bluetooth and WLAN Radios
Frequency Range: 2402.00000000 - 2480.00000000
Company: Apple Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

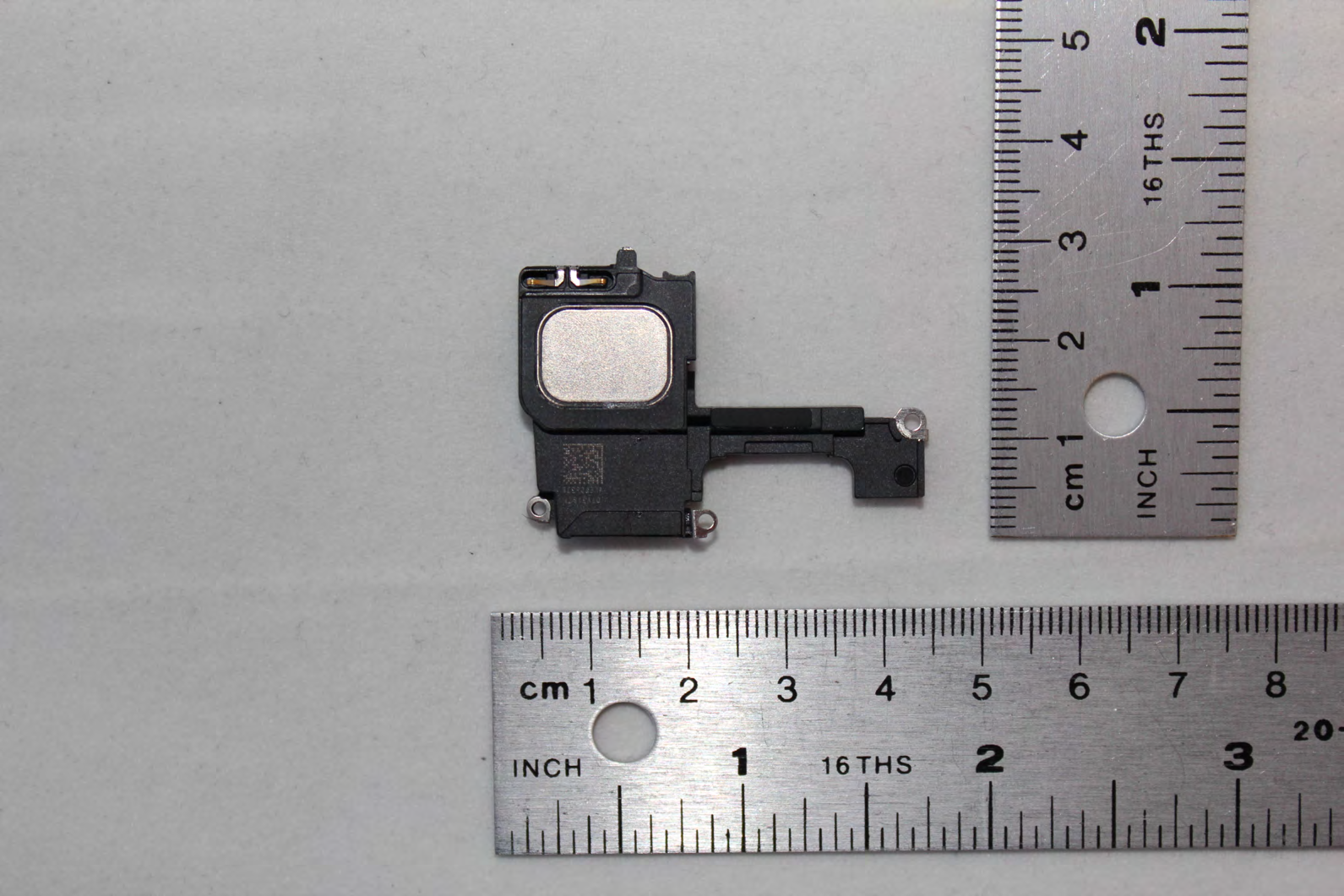

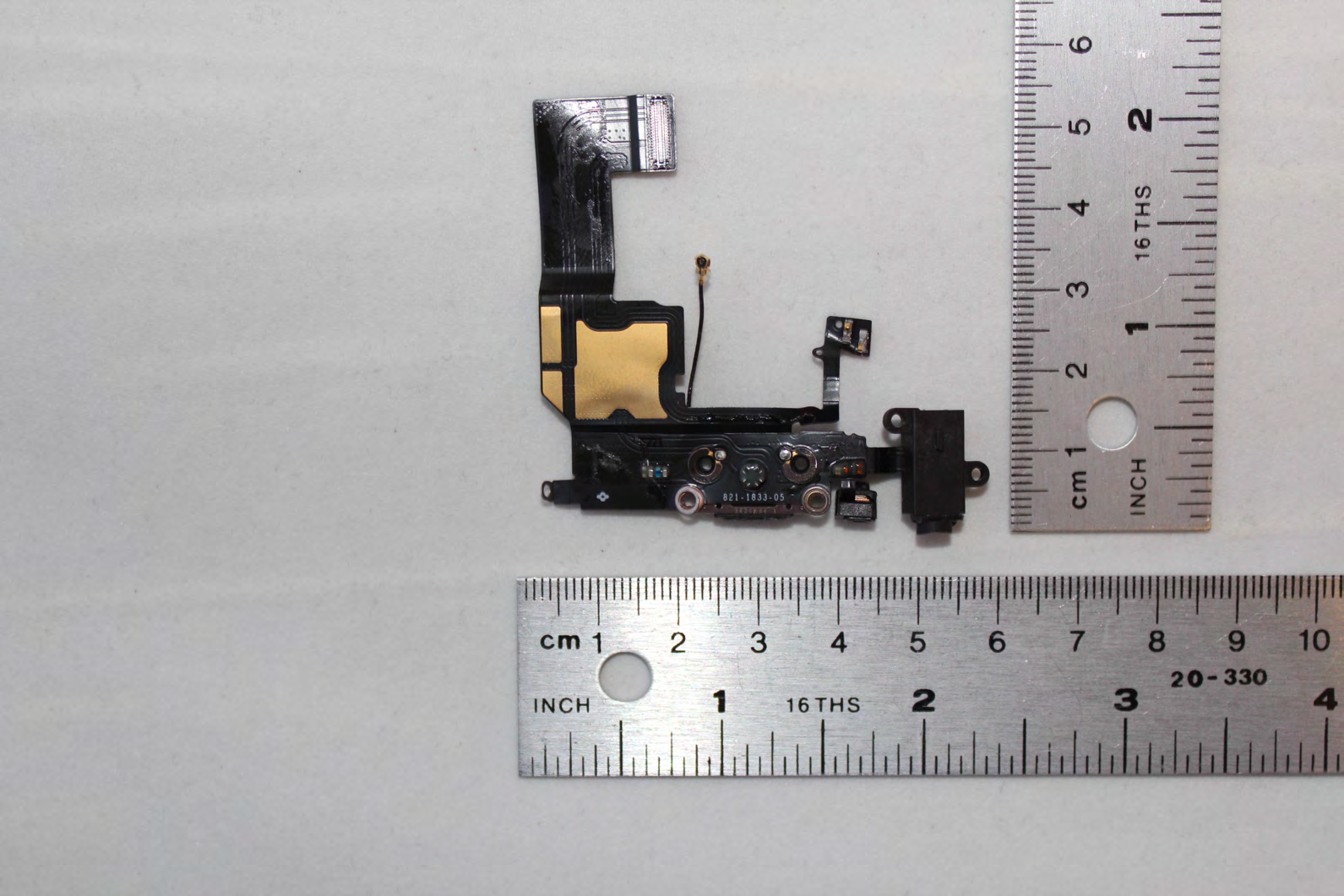

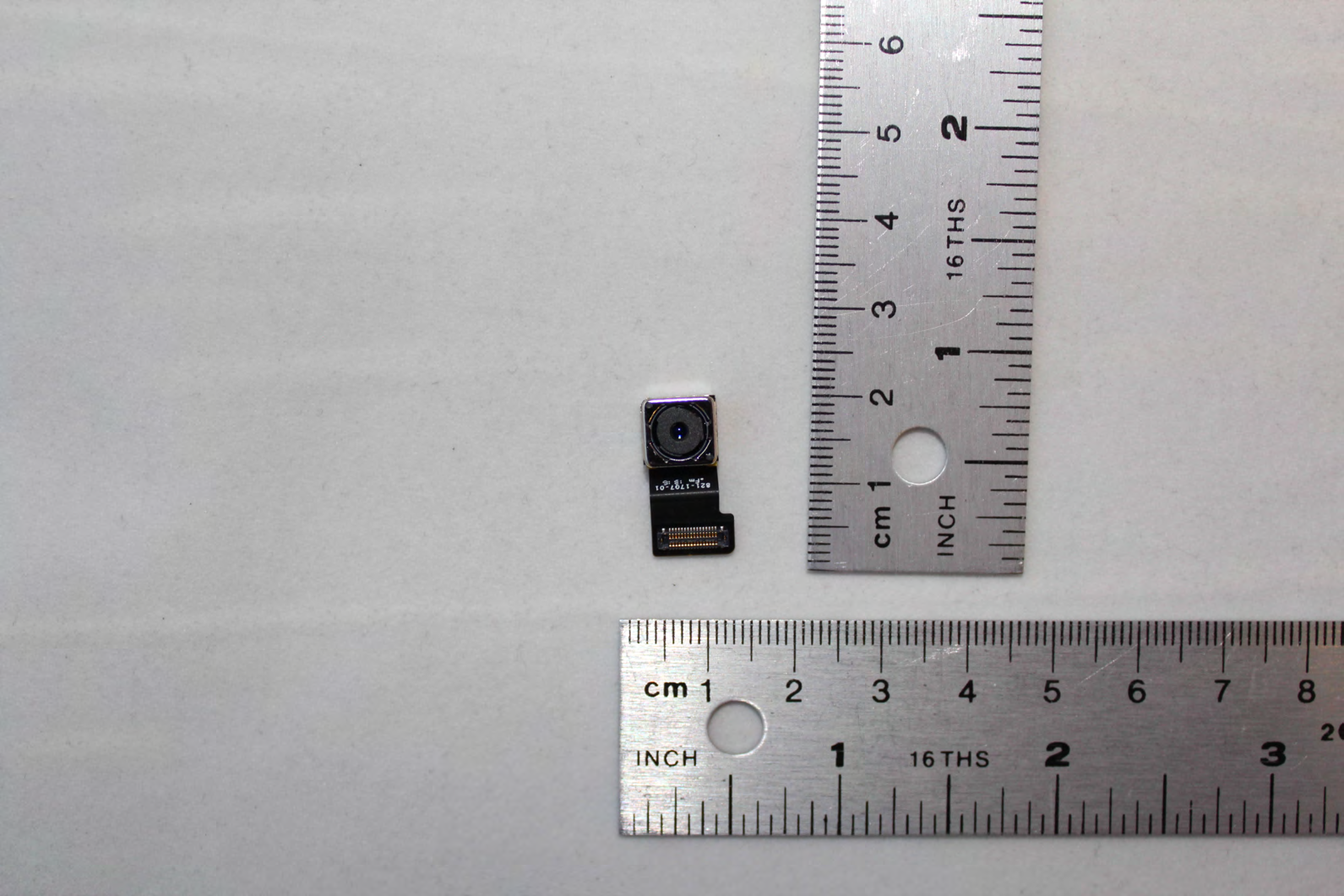

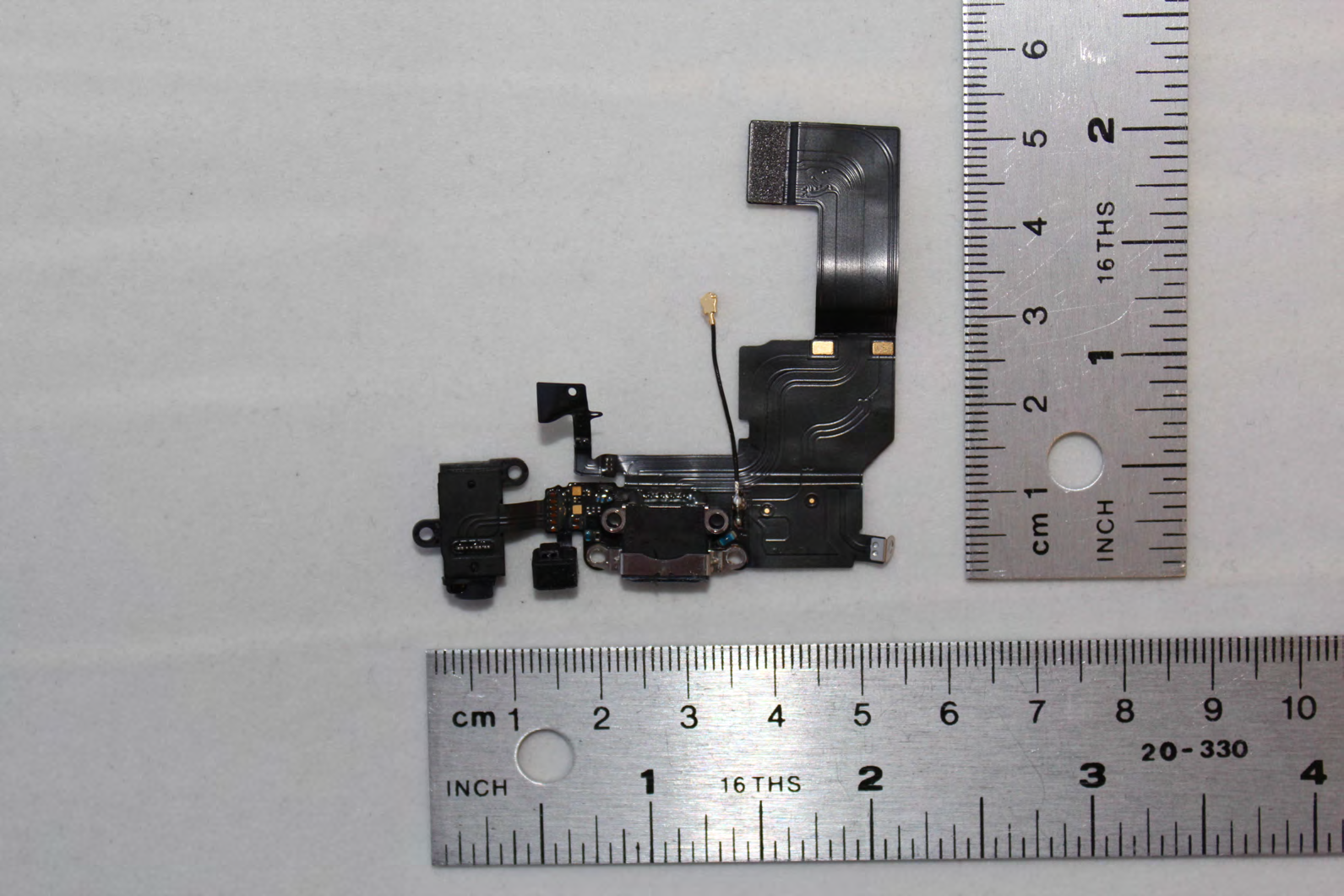

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Abhishek Rala(Regulatory Compliance Manager)

[email protected]408-996-1010Fax: 408-996-0275

Test Firm

UL Verification Services Inc. (formerly UL CCS)Jay Kogoma

[email protected]510-319-4135Fax: 000-000-0000

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15C	2.40 GHz - 2.48 GHz	22.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidth operations in the 5 GHz band, and 20 MHz bandwidth in the 2.4 GHz band. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR in this frequency band for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are: 0.58 W/kg, 0.54 W/kg, 0.54 W/kg, and 1.55 W/kg, respectively.
