BCG-E3543A

Apple Inc.

SMARTPHONE

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 12, 2020
Application Purpose: Original Equipment
Date of Application: Sep 17, 2020
Equipment Note: SMARTPHONE
Frequency Range: 3725.00000000 - 3955.00000000
Company: Apple Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

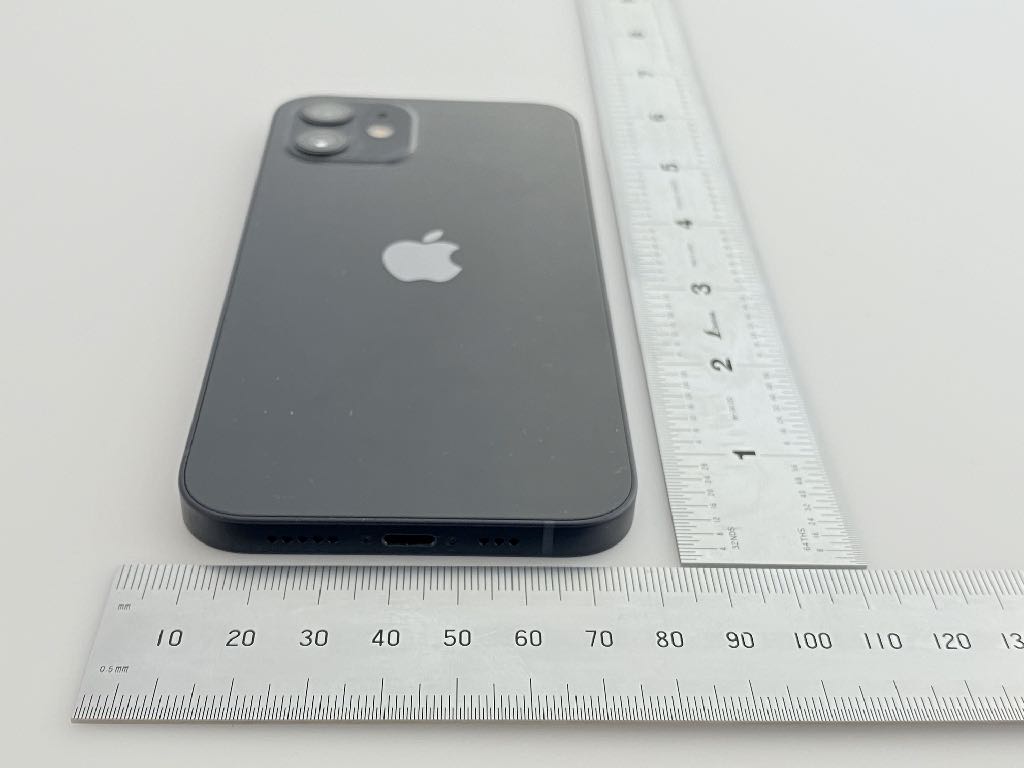

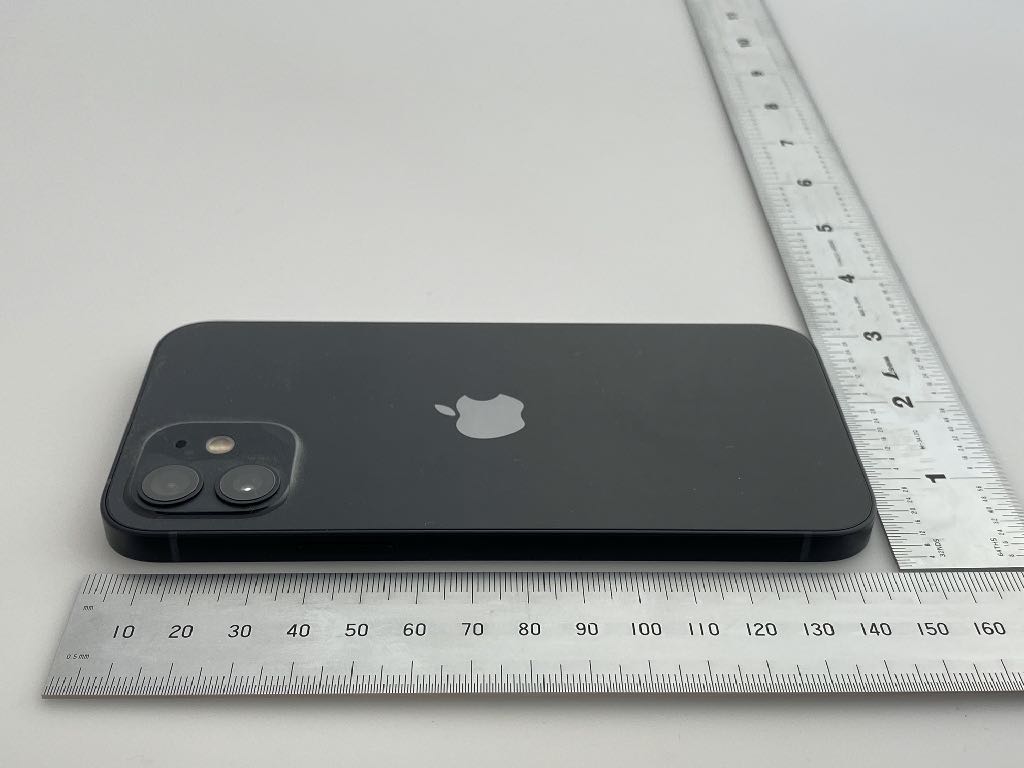

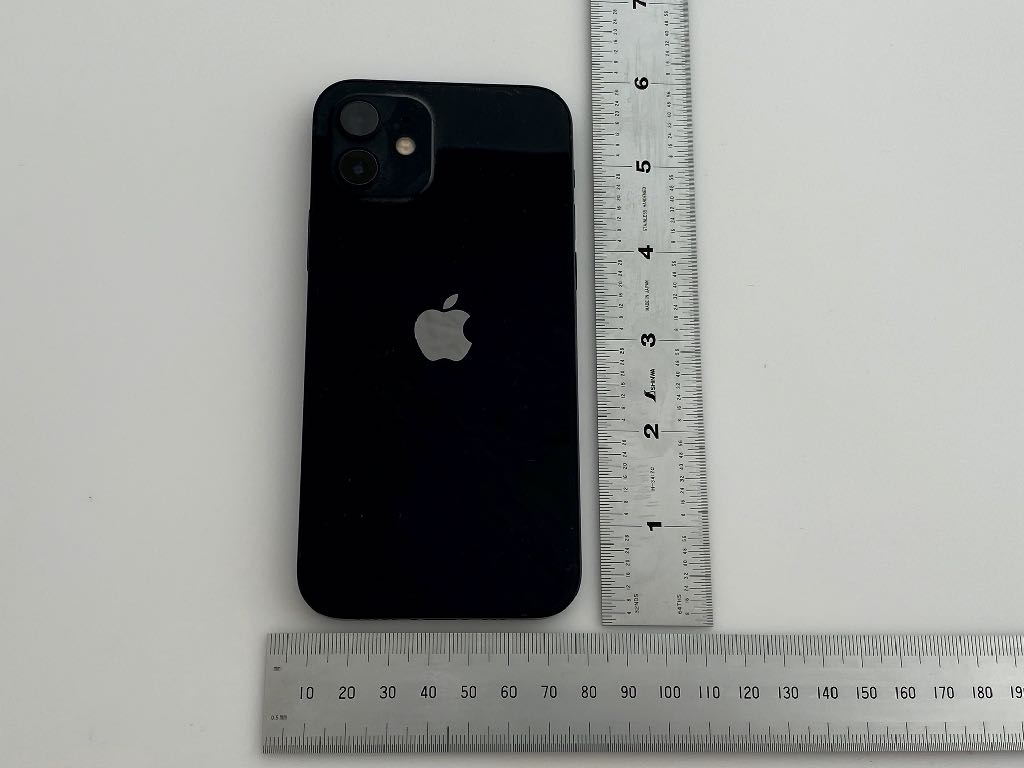

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Abhishek Rala(Regulatory Compliance Manager)

[email protected]408-996-1010Fax: 408-996-0275

Technical Contact

UL Verification Services Inc.Mona Hua

[email protected]510-319-4000

47173 Benicia St · Fremont, California · United States

Test Firm

UL Verification Services Inc. (formerly UL CCS)Jay Kogoma

[email protected]510-319-4135Fax: 000-000-0000

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
56	27	3.73 GHz - 3.96 GHz	446.00 mW	45M7D7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz, EIRP for operations above 1 GHz and conducted power for Part 90S. LTE supports 5/10 MHz bandwidths in Band 13, Band 14, Band 17 and Band 30; 5/10/15/20 MHz bandwidths in Band 7, Band 41 and B71; 1.4/ 3/5/10 MHz bandwidths in Band 5, Band 12 and, Band 26 (814-849 MHz); 1.4/3/5/10/15/20 MHz bandwidths in Band 2, Band 4, Band 25 and Band 66. This device supports the following 5GNR bands and channel bandwidths: Bands n77 (20/40/50/60/80/90/100 MHz); Bands n41 (20/40/50/60/90/100 MHz); Bands n2, n5, n25, n66, n71 (5/10/15/20 MHz); and Band n12 (5/10/15 MHz). In addition, this device supports Carrier Aggregation in the Uplink in Band 5 with maximum aggregate bandwidths of 20 MHz (10+10) and Bands 7 and 41 with maximum aggregate bandwidths of 40 MHz (20+20). For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device, including its antenna, and the user's body. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 1.00 W/kg,1.00 W/kg, 1.00 W/kg and 1.54 W/kg respectively. HAC Rating: M3/T4-2011 This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for U.S. operations.
