BCG-E3547ASMARTPHONE

On-Device RF Exposure Statement iPhone RF Exposure Information: iPhone has been tested and meets applicable limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue and 2.0 watts per kilogram in countries that set the limit averaged over 10 grams of tissue. During testing, iPhone radios are set to their highest transmission levels and SAR is evaluated in real-time over time intervals specified by applicable regulations. iPhones are evaluated in positions that simulate uses against the head, with no separation, and when worn or carried against the torso of the body, with 5mm separation. To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, headphones, or other similar accessories. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified. SAR values for this device are available at: https://www.apple.com/legal/ rfexposure Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks. On-Device RF Exposure Statement On-Device RF Exposure Statement in French-Canada iPhone RF Exposure Information: "L’iPhone a été testé et respecte les limites applicables d’exposition aux radiofréquences (RF). L’expression « Débit d’absorption spécifique », ou DAS, fait référence au taux d’absorption d’énergie des RF par le corps humain. La valeur limite du DAS est de 1,6 watt par kilogramme dans les pays ayant fixé la limite pour une moyenne d’un gramme de tissu, et de 2 watts dans les pays ayant fixé la limite pour une moyenne de dix grammes de tissu. Durant les tests de DAS, les radios de l’iPhone sont réglées sur le niveau de transmission maximal, et le DAS est évalué en temps réel au cours d’intervalles de temps spécifiés par la réglementation en vigueur. Les iPhone sont évalués dans des positions simulant des utilisations contre la tête, sans séparation, et contre le torse, avec une séparation de 5 mm. Pour réduire l’exposition à l’énergie des RF, utilisez une option mains libres, telle que le haut-parleur intégré, des écouteurs ou d’autres accessoires similaires. Il se peut que les étuis comportant des pièces métalliques modifient les performances des RF de l’appareil, y compris son respect des normes d’exposition aux RF, d’une manière n’ayant été ni testée, ni certifiée. Les valeurs DAS de cet appareil sont disponibles sur : [lien vers la page d’information sur les expositions aux RF] Bien que cet appareil ait été testé pour déterminer le DAS pour chaque bande de fréquence de fonctionnement, toutes les bandes de fréquence ne sont pas disponibles partout. Elles dépendent des réseaux d’itinérance et sans fil de votre fournisseur de services."


 $
 ,   '           '  5   E   '  '   4 +           &           '   +           &
#  " $
)

 ?  5      &       +           @     5  3 ?  5      &     '          '       " +  +        ""

    ! "B3   5        &  &          '   ,                  6
#
   "
$
 ,      '                       3 ?      &    /       0   &    " =    &

  $
 ,                     '   E    &   '   '           3 ?      &       @    6 '    ! "B" " +     @     ,           5    V '       @  +     '   '    @     5 &  %  < 5  < D ' 5 (" "     +    '                             ,                      +         '      &          &  #  D     &
 ( ? 5 &           '' .   #  ,        &    &      &     - &     3 %  '              5 & %' & %&  %    ! "B( " %                  '  6& &      &   6   /    '         60 ,               '     2%  %  - %     $    .   #
.   #          &     '       5  /  0   %5%I55%   /  0   0$
 0
 "
 ?  5   &       &  &        5     %5%I55%  ,     & &         ,        '    H                     '        %5%I55%       E   %? 5&  5            $
    ! "B) 3 ? 5 &    '  '       4       . +  & '       ' &          . +  &   F  &    '  - .  +     &   '          &    -    " +
 ,         '        5          ! "B1 3 +     &        " +          &     '  '   4 +  5 &   5          &   %  +
&             &   E  ( +  E &    &         &          '       %    ##    $
  =           5      &       ''     '& & &    3 ?  5      &   &       F      ! "B; " +  &     '  '   4 +  &     5 > /      0 +  &     '         +      6 &        +      5 > &
 >  ( +      ''    ) +              1 +  E               &        &
 " 3 ?      &               " +         '      ( +
+   &                '    &     *  +        &  %  < 5  <
6 /  -  5 0&   D .

 " 3 8                  " 8         +    '   ''&  %  < 5 &    '' 8     0 $0
0 0    "    ?      &    '  '      4  4 4       +     &    '      +         &   #      ?   &  %  &   5  1   .    +             &  5 &      ' &       ! "B: 0      +             &  5 &       ' &
-       5  /        0      -                     +   '   &                 -         5  ? '      @  &      …

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: February 25, 2015 Subject: Authorized Individual To Whom It May Concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Abhishek Rala to act on behalf of Apple Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorized individual may also assign another party to act as an authorized agent. This authorization is valid until further written notice from the grantee contact. Marc Douat Apple Inc. 1 Infinite Loop Cupertino, CA 95014

 Apple Inc. One Apple Park Way Cupertino, CA www.apple.com Date: June 9, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Equipment Authorization Branch Ref: FCC ID numbers Model(s) FCC ID A2176 BCG-E3539A A2398 BCG-E3540A A2399, A2400, A2401 BCG-E3541A A2172 BCG-E3542A A2402 BCG-E3543A A2403, A2404, A2405 BCG-E3544A A2341 BCG-E3545A A2406 BCG-E3546A A2407, A2408, A2409 BCG-E3547A A2342 BCG-E3548A A2410 BCG-E3549A A2411, A2412, A2413 BCG-E3550A To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program;  Apple Inc. One Apple Park Way Cupertino, CA www.apple.com b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Abhishek Rala Apple Inc.  Apple Inc. One Apple Park Way Cupertino, CA www.apple.com Global Certification Manager [email protected]

 Apple Inc. One Apple Park Way Cupertino, CA www.apple.com Date: July 9, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality Ref: FCC ID numbers Model(s) FCC ID A2176 BCG-E3539A A2398 BCG-E3540A A2399, A2400, A2401 BCG-E3541A A2172 BCG-E3542A A2402 BCG-E3543A A2403, A2404, A2405 BCG-E3544A A2341 BCG-E3545A A2406 BCG-E3546A A2407, A2408, A2409 BCG-E3547A A2342 BCG-E3548A A2410 BCG-E3549A A2411, A2412, A2413 BCG-E3550A To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Electrical Schematic Diagrams • Technical Descriptions, Product Specifications • Antenna Gain, Antenna Locations, Tune-up Procedure • Software Security Description  Apple Inc. One Apple Park Way Cupertino, CA www.apple.com • KDB and Appendix These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device. Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, ____________________  Apple Inc. One Apple Park Way Cupertino, CA www.apple.com Abhishek Rala Apple Inc. Global Certification Manager [email protected]

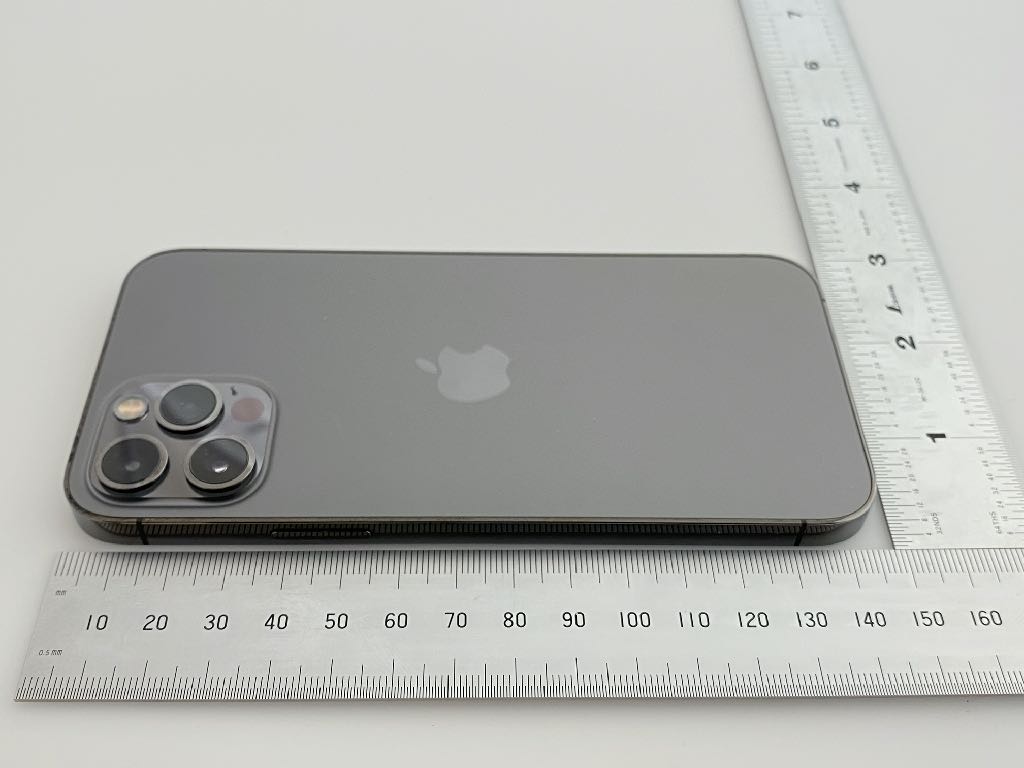

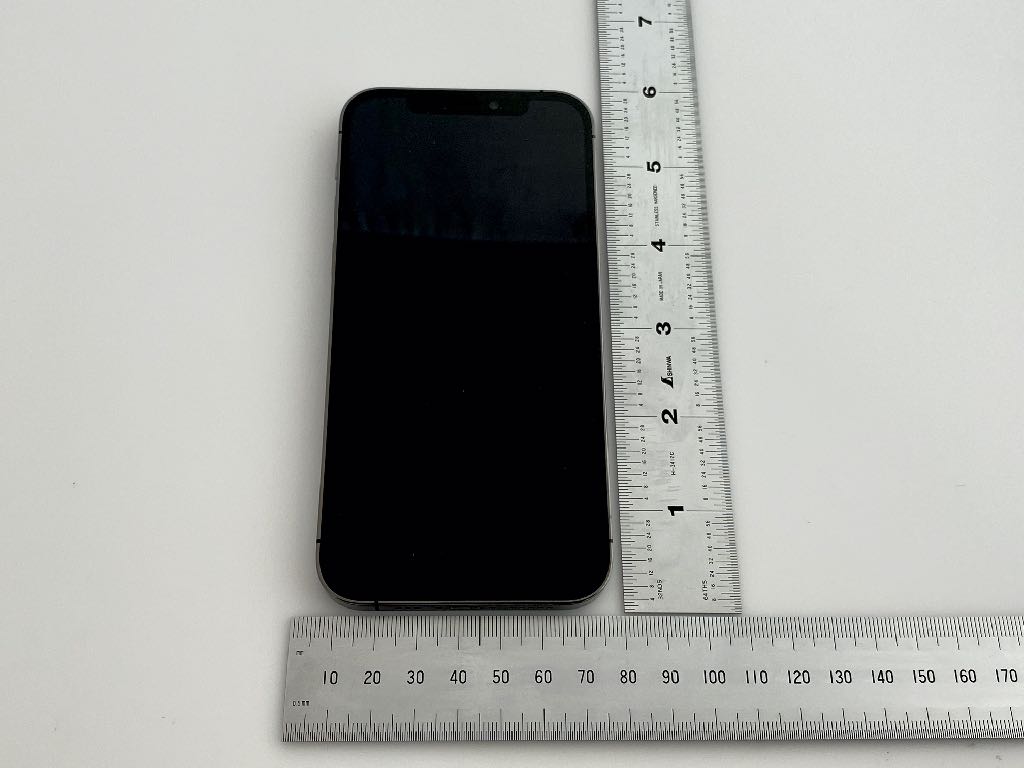

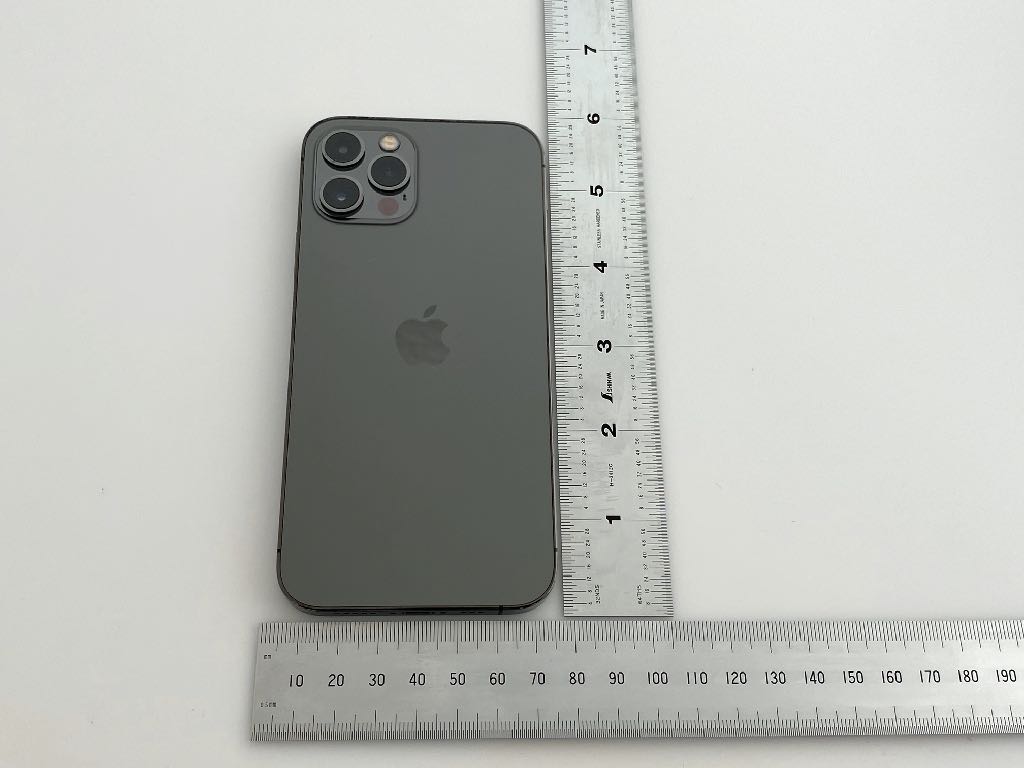

A2341, A2406, A2407, A2408, A2409- Front Multi-Touch panel, LCD display, Earpiece receiver, FaceTime camera Apple Proprietary and Confidential A2341, A2406, A2407, A2408, A2409- Right side Sleep/Wake button Apple Proprietary and Confidential A2341, A2406, A2407, A2408, A2409- Left side Ring/Silent switch, Volume buttons, UICC card tray Apple Proprietary and Confidential A2341, A2406, A2407, A2408, A2409- Top side Apple Proprietary and Confidential A2341, A2406, A2407, A2408, A2409- Bottom side Speakers, I/O dock connector, Microphone Apple Proprietary and Confidential A2341, A2406, A2407, A2408, A2409- Back side Rear camera, Microphone, Flash Light Apple Proprietary and Confidential

v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 1 of 5 www.apple.com FCC E-Label Information Models A2172, A2402, A2403, A2404, A2405, A2341, A2406, A2407, A2408, A2409 A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes No DoC logo Yes No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements 1 No Yes DoC declaration 1 No Yes Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 No Yes Describe any other FCC regulatory information included in e-label 1 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Images of the e-label screen are provided below: Model A2172: v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 2 of 5 www.apple.com Model A2402: Model A2403: Model A2404: Model A2405: v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 3 of 5 www.apple.com Model A2341: Model A2406: v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 4 of 5 www.apple.com Model A2407: Model A2408: Model A2409: B. Access to the required information on the e-label v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 5 of 5 www.apple.com 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: To access the e-label information, in the device, Choose: Settings > General >Legal & Regulatory No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. Yes 3. Users are provided specific instructions on how to access the information. The information to the user is provided in the iPhone Info document. C. Labeling for Importation and Purchasing 1. Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removable label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. The FCC ID and DoC logo are present on the product packaging. Model number is present on the SIM access bore. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e-label information is pre-programmed by the grantee. The user cannot modify the e-label information. 2. All the applicable regulatory information required on the packaging or user instructions must be provided according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. Yes, it is provided

A2406, A2407, A2408, A2409 LCD and Touch Screen removed Apple Proprietary and Confidential A2406, A2407, A2408, A2409 LCD/Touch Screen Assembly - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 LCD/Touch Screen Assembly, Earpiece, Microphone - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Internal View WiFi 5GHz/ UWB (ANT6/Shared UWB) WiFi/BT 2.4GHz, 4th Cell ant. (ANT 4) MLB UICC card slot Speaker Assembly WiFi-BT 2.4GHz,GPS-L5, 3rd Cell ant. (ANT 3) Lightning connector Battery WiFi 5GHz (ANT 5) Facetime camera GPS-L1/NFC, 2nd Cell ant. (ANT 2) 1st Cell ant. (ANT 1) Rear camera UWB Antenna (UWB1, UWB2, UWB3) UHB/NR 8th Cell ant. (ANT 8) UHB/NR 9th cell ant. (ANT 9) UHB/NR 7th Cell ant. (ANT 7) Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Rear camera - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Rear camera - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Flex assembly with Proximity sensor and Microphone- Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Flex assembly with Proximity sensor and Microphone- Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Speaker assembly - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Speaker assembly - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Flex assembly with Lightning connector, microphone, ANT 9, ANT 5, ANT 3, ANT 1, ANT 7 antenna feed - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Flex assembly with Lightning connector, microphone, ANT 9, ANT 5, ANT 3, ANT 1, ANT 7 antenna feed - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 ANT4 NR - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 ANT 4 NR- Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 ANT 4 antenna feed- Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 ANT 4 antenna feed- Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 UWB1, UWB2, UWB3, ANT8, ANT2/Shared UWB antenna feed- Front ANT 2,8, 6/UWBUWB3 UWB1UWB2 Apple Proprietary and Confidential A2406, A2407, A2408, A2409 UWB1, UWB2, UWB3, ANT8, ANT2/Shared UWB antenna feed- Back ANT 2,8, 6/UWBUWB3 UWB1UWB2 Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Battery - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Battery - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 MLB with shields - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 MLB with shields - Back Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Top MLB without shield - Front Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Top MLB without shield - Back UWB module NFC module Apple Proprietary and Confidential A2406, A2407, A2408, A2409 Bottom MLB without shield - Front Cellular Radio module WiFi/BT Radio module Apple Proprietary and Confidential

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 7/17/2020 3:48:30 AM 07172020_SystemPerformanceCheck-D3500V2 SN 1060 Frequency: 3500 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 3500 MHz; σ = 2.823 S/m; ε r = 37.963; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 5/13/2020 - Probe: EX3DV4 - SN3929; ConvF(6.55, 6.55, 6.55) @ 3500 MHz; Calibrated: 4/23/2020 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Twin-SAM V8.0 (20deg probe tilt); Type: QD 000 P41 AA; Serial: 1948 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 7.35 W/kg Head/Pin=100 mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 63.87 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 7.06 W/kg; SAR(10 g) = 2.7 W/kg Smallest distance from peaks to all points 3 dB below = 8.6 mm Ratio of SAR at M2 to SAR at M1 = 56.1% Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 10.25 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 7/17/2020 4:07:14 AM 07172020_SystemPerformanceCheck-D3500V2 SN 1060 Frequency: 3500 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 10.9 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 7/25/2020 12:03:01 AM 20200724_SystemPerformanceCheck-D3700V2 SN 1039 Frequency: 3700 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 3700 MHz; σ = 2.969 S/m; ε r = 39.345; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 5/13/2020 - Probe: EX3DV4 - SN3929; ConvF(6.48, 6.48, 6.48) @ 3700 MHz; Calibrated: 4/23/2020 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Twin-SAM V8.0 (20deg probe tilt); Type: QD 000 P41 AA; Serial: 1948 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.97 W/kg Head/Pin=100 mW/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 57.15 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 6.25 W/kg; SAR(10 g) = 2.32 W/kg Smallest distance from peaks to all points 3 dB below = 8.6 mm Ratio of SAR at M2 to SAR at M1 = 54.7% Maximum value of SAR (measured) = 9.52 W/kg 0 dB = 9.52 W/kg = 9.79 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 7/25/2020 12:21:38 AM 20200724_SystemPerformanceCheck-D3700V2 SN 1039 Frequency: 3700 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 9.66 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 8/9/2020 8:02:19 PM 20200809_SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2600 MHz; σ = 1.929 S/m; ε r = 38.871; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 5/13/2020 - Probe: EX3DV4 - SN3929; ConvF(6.99, 6.99, 6.99) @ 2600 MHz; Calibrated: 4/23/2020 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Twin-SAM V8.0 (20deg probe tilt); Type: QD 000 P41 AA; Serial: 1948 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.65 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 66.97 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 12.9 W/kg SAR(1 g) = 6.01 W/kg; SAR(10 g) = 2.68 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 47.1% Maximum value of SAR (measured) = 8.74 W/kg 0 dB = 8.74 W/kg = 9.42 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 8/9/2020 8:17:09 PM 20200809_SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 8.43 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 8/11/2020 3:36:12 PM 2020-08-11_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.435 S/m; ε r = 38.585; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1258; Calibrated: 5/13/2020 - Probe: EX3DV4 - SN3929; ConvF(7.95, 7.95, 7.95) @ 1900 MHz; Calibrated: 4/23/2020 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Twin-SAM V8.0 (20deg probe tilt); Type: QD 000 P41 AA; Serial: 1948 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.71 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 63.87 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 8.01 W/kg SAR(1 g) = 4.18 W/kg; SAR(10 g) = 2.13 W/kg Smallest distance from peaks to all points 3 dB below = 10.8 mm Ratio of …
