BCG-E8949A

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.2 MHz - 848.8 MHz	432.00 mW	242KGXW	2.5ppm
2	22H	824.2 MHz - 848.8 MHz	122.00 mW	247KG7W	2.5ppm
3	25,22H	826.4 MHz - 846.6 MHz	72.00 mW	4M14F9W	2.5ppm
4	24E	1.85 GHz - 1.91 GHz	832.00 mW	242KGXW	2.5ppm
5	24E	1.85 GHz - 1.91 GHz	263.00 mW	245KG7W	2.5ppm
6	25,24E	1.85 GHz - 1.91 GHz	229.00 mW	4M16F9W	2.5ppm
7	27	1.71 GHz - 1.75 GHz	269.00 mW	4M16F9W	2.5ppm
8	25,22H	829 MHz - 844 MHz	77.00 mW	18M8G7W	2.5ppm
9	25,22H	829 MHz - 844 MHz	55.00 mW	18M8D7W	2.5ppm
1	25,22H	825.6 MHz - 847.5 MHz	72.00 mW	7M50D7W	2.5ppm
11	9	819 MHz - 819 MHz	372.00 mW	8M96G7W	2.5ppm
12	9	819 MHz - 819 MHz	290.00 mW	8M98D7W	2.5ppm
13	9	816.5 MHz - 821.5 MHz	295.00 mW	4M50D7W	2.5ppm
14	25,22H	834 MHz - 839 MHz	72.00 mW	17M9G7W	2.5ppm
15	25,22H	834 MHz - 839 MHz	57.00 mW	18M0D7W	2.5ppm
16	25,22H	831.5 MHz - 841.5 MHz	60.00 mW	13M5D7W	2.5ppm
17	25,24E	1.87 GHz - 1.90 GHz	257.00 mW	38M7G7W	2.5ppm
18	25,24E	1.87 GHz - 1.90 GHz	199.00 mW	38M8D7W	2.5ppm
19	25,24E	1.87 GHz - 1.90 GHz	246.00 mW	32M2D7W	2.5ppm
2	25,27	706.5 MHz - 708.5 MHz	77.00 mW	13M5G7W	2.5ppm
21	25,27	706.5 MHz - 708.5 MHz	59.00 mW	13M5D7W	2.5ppm
22	25,27	704 MHz - 711 MHz	65.00 mW	8M98D7W	2.5ppm
23	25,27	782 MHz - 782 MHz	82.00 mW	8M97G7W	2.5ppm
24	25,27	782 MHz - 782 MHz	69.00 mW	8M97D7W	2.5ppm
25	25,27	779.5 MHz - 784.5 MHz	70.00 mW	4M50D7W	2.5ppm
26	25,27	709 MHz - 711 MHz	77.00 mW	8M98G7W	2.5ppm
27	25,27	709 MHz - 711 MHz	64.00 mW	9M00D7W	2.5ppm
28	25,27	706.5 MHz - 713.5 MHz	65.00 mW	4M50D7W	2.5ppm
29	25,27	678 MHz - 683 MHz	84.00 mW	28M8G7W	2.5ppm
3	25,27	678 MHz - 683 MHz	62.00 mW	28M7D7W	2.5ppm
31	25,27	673 MHz - 688 MHz	72.00 mW	17M9D7W	2.5ppm
32	27	1.73 GHz - 1.76 GHz	263.00 mW	43M1G7W	2.5ppm
33	27	1.73 GHz - 1.76 GHz	197.00 mW	43M0D7W	2.5ppm
34	27	1.72 GHz - 1.77 GHz	262.00 mW	17M9D7W	2.5ppm
35	27	2.31 GHz - 2.31 GHz	219.00 mW	8M98G7W	2.5ppm
36	27	2.31 GHz - 2.31 GHz	217.00 mW	9M00D7W	2.5ppm
37	27	2.52 GHz - 2.54 GHz	295.00 mW	48M3G7W	2.5ppm
38	27	2.52 GHz - 2.54 GHz	230.00 mW	47M9D7W	2.5ppm
39	27	2.51 GHz - 2.56 GHz	313.00 mW	37M9G7W	2.5ppm
4	27	2.51 GHz - 2.56 GHz	245.00 mW	37M8D7W	2.5ppm
41	27	2.55 GHz - 2.64 GHz	714.00 mW	96M5G7W	2.5ppm
42	27	2.55 GHz - 2.64 GHz	452.00 mW	96M6D7W	2.5ppm
43	27	2.53 GHz - 2.66 GHz	726.00 mW	58M0G7W	2.5ppm
44	27	2.53 GHz - 2.66 GHz	619.00 mW	57M9D7W	2.5ppm
45	27	1.70 GHz - 1.70 GHz	227.00 mW	13M5G7W	2.5ppm
46	27	1.70 GHz - 1.70 GHz	175.00 mW	13M5D7W	2.5ppm
47	27	1.70 GHz - 1.71 GHz	229.00 mW	9M00G7W	2.5ppm
48	27	1.70 GHz - 1.71 GHz	177.00 mW	8M99D7W	2.5ppm
49	27	3.50 GHz - 3.50 GHz	628.00 mW	97M0G7W	2.5ppm
5	27	3.50 GHz - 3.50 GHz	448.00 mW	96M8D7W	2.5ppm
51	27	3.48 GHz - 3.52 GHz	632.00 mW	64M7G7W	2.5ppm
52	27	3.48 GHz - 3.52 GHz	513.00 mW	64M6D7W	2.5ppm
53	27	3.75 GHz - 3.93 GHz	632.00 mW	96M7G7W	2.5ppm
54	27	3.75 GHz - 3.93 GHz	491.00 mW	96M6D7W	2.5ppm
55	27	3.74 GHz - 3.94 GHz	548.00 mW	77M2G7W	2.5ppm
56	25,9	793 MHz - 793 MHz	82.00 mW	8M96G7W	2.5ppm
57	25,9	793 MHz - 793 MHz	81.00 mW	8M97D7W	2.5ppm
58	25,9	790.5 MHz - 795.5 MHz	82.00 mW	4M50G7W	2.5ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz, EIRP for operations above 1 GHz and conducted power for Part 90S (814-824 MHz). This device supports the following LTE bands and channel bandwidths: 5/10 MHz in bands 13, 14, 17, and 30; 5/10/15/20 MHz in bands 7, 71, and 41; 1.4/3/5/10 MHz in bands 5, 12, and 26; 1.4/3/5/10/15/20 MHz in bands 2, 4, 25, and 66. This device supports inter-band and intra-band uplink carrier aggregation. This device supports the following 5GNR bands and channel bandwidths: 10/15/20/25/30/35/40/45/50/60/70/80/90/100 MHz in band n41; 10/15/20/25/30/40/50/60/70/80/90/100 MHz in band n77 (Part 27.5(o) and 27.5(m)); 5/10/15/20/25/30/35/40/50 MHz in band n7; 5/10/15/20/25/30/35/40 MHz in bands n2, n25; 5/10/15/20/25/30/35/40/45 MHz in band n66; 5/10/15/20 MHz in bands n5, n26; 5/10/15/20/25/30 MHz in band n71; 5/10/15 MHz in band n12, n70; 5/10 in band n30 and band n14. Uplink MIMO is supported for bands n41 and n77. For LTE / 5GNR the line entries are the highest measured total power and widest bandwidth within each band for each emissions designator for single carrier LTE / 5GNR operations within each band. In addition, the listing includes the highest measured total power and widest bandwidth for each band across intra-band carrier aggregation and 5GNR/LTE intra-band multi-carrier carrier operations. The highest reported SAR values for head, body-worn accessory, product specific (hot spot), and simultaneous transmission exposure conditions are 1.19 W/kg, 1.19 W/kg, 1.19 W/kg and 1.59 W/Kg respectively. To satisfy FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 5 mm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. This device contains functions that are not operational in U.S. Territories; filings under this FCC ID are approved only for U.S. operations. HAC 2019. Conversational gain values of 14 dB (with hearing aid) and 17 dB (without hearing aid). HAC compliance assessed under waiver DA 23-914.

Application Details

Documents & Files

Users Manual

Attestation Statements

Cover Letter(s)

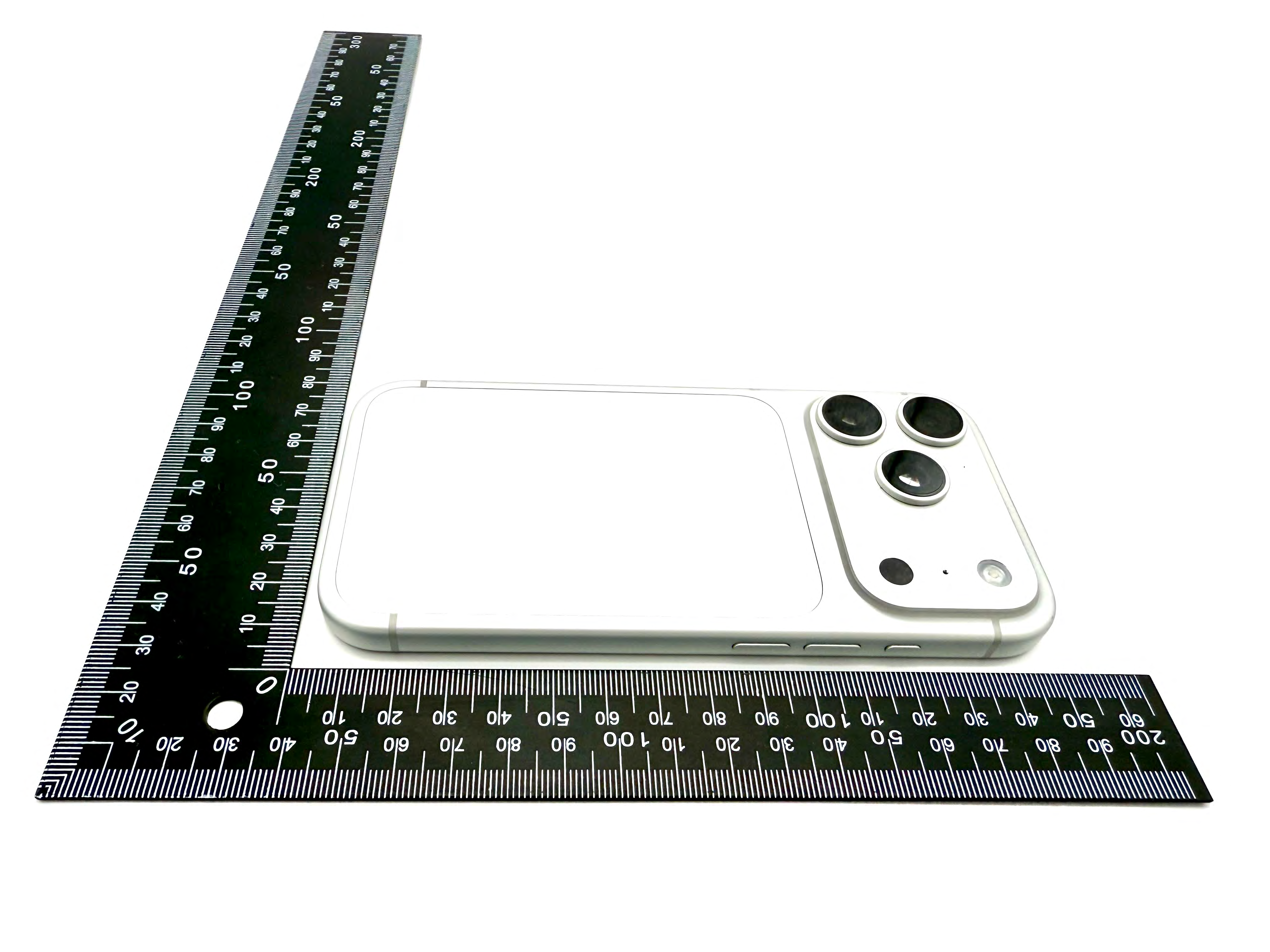

External Photos
