BCGA1203Quad Band GSM Cellular Phone

Apple Confidential iPhone User’s Guide iPhone UG for FCC.book Page 1 Monday, February 12, 2007 10:26 AM 2 Apple Confidential 2 Contents Chapter 16Basics 6 iPhone 7 What You Can Do with iPhone 8 Using the Touch Screen 10 Adjusting the Volume 10 Entering Text 11 Locking the Screen 12 Turning iPhone Off or On 12 Charging the Battery 12 Syncing iPhone with Your Computer 13 Connecting to the Internet over Wi-Fi or EDGE 13 Cleaning iPhone Chapter 214Phone 14 Calling and Answering 14 Making a Call 15 Answering a Call 15 Using the Speakerphone 15 Switching to Silent Mode 15 Using the Stereo Headset 16 Making or Answering a Second Call During a Call 16 Making a Conference Call 16 Emergency Dialing 16 Voicemail 16 Recording a Voicemail Greeting 17 Checking and Managing Voicemail 17 Syncing Contact Information 17 Syncing iPhone with Contacts on Your Computer 17 Adding Numbers to Your Favorites List for Quick Access 18 Removing the SIM Card Chapter 320Email 20 Setting Up an Email Account on iPhone iPhone UG for FCC.book Page 2 Monday, February 12, 2007 10:26 AM ContentsApple Confidential 3 20 Getting an Email Address 20 Sending Email 21 Checking and Reading Email 21 Reading HTML Messages 22 Setting Message Display Options 22 Adding Email Recipients to Your Contacts List Chapter 424Web 24 Surfing the Web 24 Opening and Navigating Webpages 25 Zooming In to See a Page More Easily 25 Searching the Web 25 Opening Multiple Pages at Once 25 Using and Managing Bookmarks Chapter 527Music and Video 27 Loading Music and Video onto iPhone 27 Getting Music, Video, and Podcasts onto Your Computer 28 Syncing iPhone with Music, Video, and Podcasts on Your Computer 28 Playing Music and Video 28 Browsing and Playing 29 Skipping, Rewinding, and Fast-forwarding 29 Shuffling and Repeating 29 Browsing Album Covers in Cover Flow View 30 Track List View and Rating Songs Chapter 632Text Messaging 32 Sending and Receiving Text Messages Chapter 734Calendar Chapter 835Photos 35 Getting Photos onto iPhone 35 Taking Pictures 36 Loading Photos onto Your Computer 36 Viewing Photos 36 Changing the Size or Orientation 36 Emailing Photos 37 Using a Photo as Wallpaper Chapter 938Calculator Chapter 1039Stocks 39 Viewing Stock Quotes iPhone UG for FCC.book Page 3 Monday, February 12, 2007 10:26 AM 4 ContentsApple Confidential Chapter 1142Maps 42 Finding and Viewing Locations 43 Finding and Calling Businesses Chapter 1244Weather 44 Viewing Weather Reports Chapter 1346Notes Chapter 1448Clock Chapter 1550General Settings 50 Wallpaper 50 Seeing Information About Your iPhone 51 Date and Time 51 Network Settings 52 Bluetooth Chapter 1653Safety and Handling 53 Important Safety Information 59 Important Handling Information Chapter 1760Learning More, Service, and Support 61 Regulatory Compliance Information iPhone UG for FCC.book Page 4 Monday, February 12, 2007 10:26 AM ContentsApple Confidential 5 iPhone UG for FCC.book Page 5 Monday, February 12, 2007 10:26 AM 1 6 Apple Confidential 1 Basics iPhone Headset jack Receiver Ring/Silent switch Cell signal Battery level Camera (on back) SIM card Volume buttons Speaker Dock connector Home button Wi-Fi signal Touchscreen Sleep/Wake button Microphone iPhone UG for FCC.book Page 6 Monday, February 12, 2007 10:26 AM Chapter 1 BasicsApple Confidential 7 What You Can Do with iPhone m Press the Home button at any time to see all the iPhone applications. Tap any application to get started: Phone Make calls, with quick access to recent callers, favorites, and all your contacts. Manage voicemail directly on iPhone, without having to wait through pre-recorded instructions. Mail Send and receive email using your existing email accounts. Web Browse any website over the EDGE data network or Wi Fi for a faster connection. Turn iPhone sideways for widescreen view. Autosize text columns to fit the screen for easy reading. Zoom in and out of any page. iPod Listen to all your songs, audiobooks, and podcasts. Watch TV shows, movies, and video podcasts in widescreen. Text Send and receive SMS text messages to anyone with an SMS-capable phone. Your conversations are saved in an iChat-like presentation. Calendar Sync with your calendar on your computer or enter details directly on iPhone. Set alarms to remind you of events, appointments, and deadlines. Keep a To Do list. Photos Store photos from your computer and ones taken with iPhone. View them in portrait or widescreen. Zoom in to any photo for a closer look. Watch a slideshow with music. Email photos, assign them to contacts, and use them as wallpaper. Camera Take clear, crisp photos at two megapixels. Instantly add a photo to a contact, so iPhone displays it when that person calls you. Calculator Add, subtract, multiply, and divide. Stocks Watch your favorite stocks, updated automatically from the web. Maps Find locations around the world. Find businesses of a certain type in the area, and call any of them with a single tap. See a street map or a photographic satellite view. Zoom in for a closer look. iPhone UG for FCC.book Page 7 Monday, February 12, 2007 10:26 AM 8Chapter 1 Basics Apple Confidential Using the Touch Screen The controls on the iPhone touch screen change dynamically to suit the task at hand. m Tap any application to open it. m Press the Home button at any time to return to the Home screen. m Drag to scroll up, down, and side to side, so you can browse the contents of a window. Weather Get weather stats and a six-day forecast. Store your favorite cities for a quick weather report anytime. Notes Jot notes on the go—reminders, grocery lists, crazy ideas. Clock Store your favorite cities to quickly view the time in areas around the globe. Settings Adjust iPhone settings, all in one convenient place. iPhone UG for FCC.book Page 8 Monday, February 12, 2007 10:26 AM Chapter 1 BasicsApple Confidential 9 m Flick to scroll quickly. Tap anywhere to stop the scrolling. m Some menus have an index down the side. Touch a letter to jump to menu items starting with th…

Text truncated - open the document above for the full version.

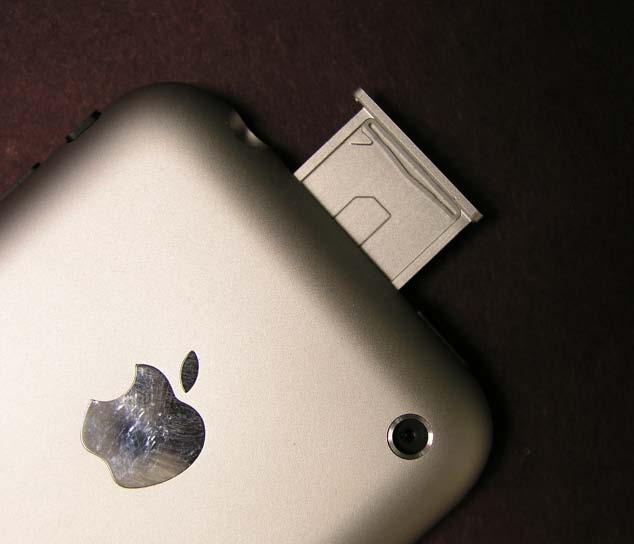

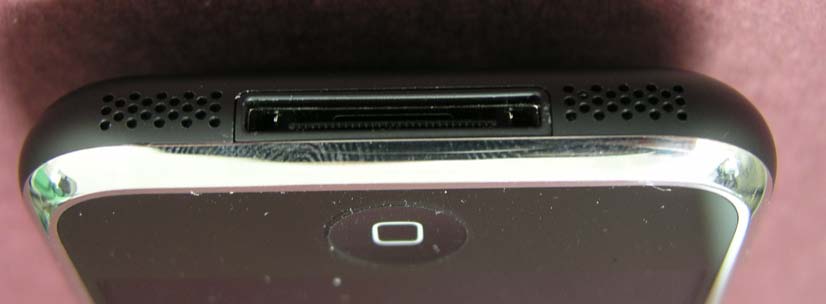

Exterior Photo #1, FCC ID: BCGA1203 iPhone Top View Menu Button Speaker LCD Display & Touch Panel Short Term Confidentiality Exterior Photo #2, FCC ID: BCGA1203 iPhone Bottom View Antenna CapCamera Short Term Confidentiality Metal Back Housing Antenna Cap Exterior Photo #3, FCC ID: BCGA1203 iPhone Right Side View Short Term Confidentiality Exterior Photo #4, FCCID:BCGA1203 iPhone Left Side View Volume Up ButtonVolume Down ButtonRinger Switch Short Term Confidentiality Exterior Photo #5, FCC ID: BCGA1203 iPhone Top End View Sleep/Wake ButtonSIM Tray SIM Tray EjectStereo Headphone/Mic Short Term Confidentiality Exterior Photo #6, FCC ID: BCGA1203 iPhone Bottom End View Microphone30-Pin ConnectorSpeaker Short Term Confidentiality Exterior Photo #7, FCC ID: BCGA1203 iPhone Top View with SIM Tray partially pulled out SIM Tray Short Term Confidentiality Exterior Photo #8, FCC ID: BCGA1203 iPhone Bottom View with SIM Tray partially pulled out SIM Tray Short Term Confidentiality

Notes: • The information will be laser etched on the aluminum back housing. • The exact position, font, and size are not yet finalized. • The final location and text will be sent to the FCC. Compliance Label Information & Location Aluminum Back Housing

Interior Photo #1, FCC ID: BCGA1203 iPhone Back covers removed Battery Radio Board Shield Camera GSM 850 EGSM 900 Antenna DCS 1800 PCS 1900 Antenna WiFI & Bluetooth Antenna Short Term Confidentiality Interior Photo #2, FCC ID: BCGA1203 Top View iPhone Back Applications Processor Board SIM Connector Applications Processor Board Short Term Confidentiality Interior Photo #3, FCC ID: BCGA1203 Bottom View iPhone Back Applications Processor Board Audio IC PMU Processor Short Term Confidentiality Interior Photo #4, FCC ID: BCGA1203 Radio Board Shield Radio Board Shield WiFi/ BT Radio I/OGSM Radio I/O Short Term Confidentiality Interior Photo #5, FCC ID: BCGA1203 Radiuo Board with Shield Removed Radio Board Shield Radio Board, Shield RemovedBattery WiFi/ BT I/O GSM I/O Short Term Confidentiality Interior Photo #6, FCC ID: BCGA1203 iRadio Board Bottom Side Radio Board, Shield RemovedWiFI/Bluetooth Radio I/O GSM Radio I/O Short Term Confidentiality Interior Photo #7, FCC ID: BCGA1203 Radio Board Top Side Short Term Confidentiality

Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\aci\aciho_010_06002_quadband_project\2_test_reports\sar \sar_aciho_010_06002_850_1900_2450.doc © Copyright by CETECOM SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 for the Apple Inc. GSM Cellular Telephone with Bluetooth and Wifi Model Number: A1203 FCC ID: BCGA1203 Date of Report: 02/06/2007 Date of issue: 02/06/2007 Report Copy No.: 01 SAR Test Report No. SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 02/06/2007 Page 2 of 32 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 4 SUBJECT OF INVESTIGATION ........................................................................................7 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................7 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................8 4.4 SAR Limit ...................................................................................................................8 5 THE FCC MEASUREMENT PROCEDURE .......................................................................9 5.1 General Requirements...............................................................................................9 5.2 Device Operating Next to a Person’s Ear ................................................................10 5.3 Test positions of device relative to head..................................................................11 5.4 Test to be Performed ...............................................................................................14 5.5 Body-worn and Other Configurations.......................................................................14 5.6 Procedure for assessing the peak spatial-average SAR .........................................15 5.7 Determination of the largest peak spatial-average SAR ..........................................17 6 THE MEASUREMENT SYSTEM ......................................................................................18 6.1 Robot system specification ......................................................................................18 6.2 Probe and amplifier specification .............................................................................19 6.3 Phantoms.................................................................................................................20 6.4 SAR measurement procedure .................................................................................21 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................21 SAR Test Report No. SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 02/06/2007 Page 3 of 32 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.6 Interpolation of 2D area scan...................................................................................22 6.7 Extrapolation of 3D scan..........................................................................................22 6.8 Interpolation of 3D scan and volume averaging.......................................................22 7 UNCERTAINTY ASSESSMENT.......................................................................................24 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................25 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................26 8 TEST RESULTS SUMMARY............................................................................................27 8.1 Output Power ...........................................................................................................27 8.2 Test Positions and Configurations ...........................................................................27 8.3 Body SAR with headset ...........................................................................................27 8.4 GPRS Operating mode ............................................................................................27 8.5 WLAN Operating mode............................................................................................28 8.6 Co-located SAR .......................................................................................................28 8.7 Head SAR results for GSM 850MHz band for A1203 ..............................................29 8.8 Body SAR results for GPRS 850MHz band for A1203 ............................................29 8.9 Head SAR results for GSM 1900MHz band for A1203 ...........…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 1 of 34 Head SAR plots for GSM 850MHz band Side Position Channel # / Frequency (MHz) Max. 1g SAR (W/kg) Area scan (See Appendix A) left cheek 190 / 836.6 0.382 1 left 15º tilt 190 / 836.6 0.346 2 right cheek 190 / 836.6 0.461 3 right 15º tilt 190 / 836.6 0.444 4 right cheek 128 / 824.2 0.463 5 right cheek 251 / 848.8 0.476 6 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 2 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/1/2007 2:07:23 PM DUT Battery Model/No: Filename: back128_ch6_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.84 Relative Humidity: 30% Conductivity: 0.898 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -54.00 mm DUT Position: left touch Max SAR Z-axis Location: -154.00 mm Antenna Configuration: integral Max E Field: 21.13 V/m Test Frequency: 836.6MHz SAR 1g: 0.382 W/kg Air Factors: 488 / 373 / 340 SAR 10g: 0.307 W/kg Conversion Factors: .474 / .474 / .474 SAR Start: 0.282 W/kg Type of Modulation: SAR End: 0.278 W/kg Modn. Duty Cycle: SAR Drift during Scan: -1.55 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 2/01/07 Input Power Level: max power Extrapolation: poly4 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 3 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/1/2007 2:31:09 PM DUT Battery Model/No: Filename: Lefttch190_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.84 Relative Humidity: 30% Conductivity: 0.898 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -30.00 mm DUT Position: left tilt Max SAR Z-axis Location: -130.00 mm Antenna Configuration: integral Max E Field: 19.89 V/m Test Frequency: 836.6MHz SAR 1g: 0.346 W/kg Air Factors: 488 / 373 / 340 SAR 10g: 0.260 W/kg Conversion Factors: .474 / .474 / .474 SAR Start: 0.213 W/kg Type of Modulation: SAR End: 0.213 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.55 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 2/01/07 Input Power Level: max power Extrapolation: poly4 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 4 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/2/2007 1:12:38 PM DUT Battery Model/No: Filename: righttch661_ch6_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.84 Relative Humidity: 30% Conductivity: 0.898 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 180° Max SAR Y-axis Location: 55.00 mm DUT Position: right tch Max SAR Z-axis Location: -165.00 mm Antenna Configuration: integral Max E Field: 24.62 V/m Test Frequency: 836.6 & 2437MHz SAR 1g: 0.461 W/kg Air Factors: 488 / 373 / 340 SAR 10g: 0.355 W/kg Conversion Factors: .474 / .474 / .474 SAR Start: 0.336 W/kg Type of Modulation: SAR End: 0.327 W/kg Modn. Duty Cycle: SAR Drift during Scan: -2.72 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 2/01/07 Input Power Level: max power Extrapolation: poly4 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 5 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/1/2007 3:49:26 PM DUT Battery Model/No: Filename: Righttch190_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.84 Relative Humidity: 30% Conductivity: 0.898 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 180° Max SAR Y-axis Location: 27.00 mm DUT Position: right tilt Max SAR Z-axis Location: -133.00 mm Antenna Configuration: integral Max E Field: 21.77 V/m Test Frequency: 836.6MHz SAR 1g: 0.444 W/kg Air Factors: 488 / 373 / 340 SAR 10g: 0.323 W/kg Conversion Factors: .474 / .474 / .474 SAR Start: 0.242 W/kg Type of Modulation: SAR End: 0.251 W/kg Modn. Duty Cycle: SAR Drift during Scan: 3.59 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 2/01/07 Input Power Level: max power Extrapolation: poly4 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 6 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/1/2007 4:13:56 PM DUT Battery Model/No: Filename: Righttlt190_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.01 Relative Humidity: 30% Conductivity: 0.888 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 180° Max SAR Y-axis Location: 53.00 mm DUT Position: right touch Max SAR Z-axis Location: -164.00 mm Antenna Configuration: integral Max E Field: 23.27 V/m Test Frequency: 824.2MHz SAR 1g: 0.463 W/kg Air Factors: 488 / 373 / 340 SAR 10g: 0.367 W/kg Conversion Factors: .474 / .474 / .474 SAR Start: 0.330 W/kg Type of Modulation: SAR End: 0.322 W/kg Modn. Duty Cycle: SAR Drift during Scan: -2.23 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 2/01/07 Input Power Level: max power Extrapolation: poly4 SAR Test Report No.: SAR_ACIHO_010_06002_850_1900_2450 Date of Report: 2/6/2007 Appendix A Plots Page 7 of 34 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 2/1/2007 4:38:54 PM DUT Battery Model/No: Filename: Righttlt128_3d.txt Probe Serial Number: L0016 Ambient Temperature: 22.8°C Liquid Simulant: 850 Device Under Test: ACI Relative Permittivity: 41.01 Relative Humidity: 30% Conductivity: 0.908 Phantom S/No: Head04…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FCC Part 22,24 / RSS 132,133 FOR: GSM Cellular Telephone with Bluetooth and WiFi Model #: A1203 Apple Inc. 1 Infinite Loop Mail Stop26A Cupertino, California 95014 U.S.A FCC ID: BCGA1203 TEST REPORT #: EMC_ACIHO-010-06001 _FCC22_24 DATE: 2007-02-06 Test Report #: EMC_ ACIHO-010-06001 _FCC22_24 Date of Report: 2007-02-06 Page 2 of 81 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .....................................................................................................................................4 EMC & Radio.........................................................................................................................................4 2 ADMINISTRATIVE DATA................................................................................................................5 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................5 2.2 IDENTIFICATION OF THE CLIENT....................................................................................................5 2.3 IDENTIFICATION OF THE MANUFACTURER.....................................................................................5 3 EQUIPMENT UNDER TEST (EUT) .................................................................................................6 3.1 SPECIFICATION OF THE EQUIPMENT UNDER TEST..........................................................................6 3.2 IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) ............................................................6 SUBJECT OF INVESTIGATION..............................................................................................................7 4 MEASUREMENTS..............................................................................................................................8 4.1 RF POWER OUTPUT........................................................................................................................8 4.1.1 FCC 2.1046 Measurements required: RF power output........................................................8 4.1.2 Limits: ....................................................................................................................................8 4.1.2.1 FCC 22.913 (a) Effective radiated power limits. ...............................................................8 4.1.2.2 FCC 24.232 (b)(c) Power limits. ........................................................................................8 4.1.3 Conducted Output Power Measurement procedure:..............................................................8 4.1.4 Results 850 MHz band (conducted): ......................................................................................9 4.1.5 Results 1900 MHz band (conducted): ....................................................................................9 4.1.6 Radiated Output Power measurement procedure: ...............................................................16 4.1.7 ERP Results 850 MHz band: ................................................................................................17 4.1.8 EIRP Results 1900 MHz band:.............................................................................................17 4.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH.........................................................................24 4.2.1 FCC 2.1049 Measurements required: Occupied bandwidth................................................24 4.2.2 Occupied / emission bandwidth measurement procedure:...................................................24 4.2.3 Occupied / Emission bandwidth results 850 MHz band: .....................................................25 4.2.4 Occupied / Emission bandwidth results 1900 MHz band: ...................................................25 4.3 FREQUENCY STABILITY................................................................................................................38 4.3.1 Limit .....................................................................................................................................38 4.3.2 FREQUENCY STABILITY (GSM-850) ................................................................................39 4.3.3 FREQUENCY STABILITY (PCS-1900) ...............................................................................40 4.4 SPURIOUS EMISSIONS CONDUCTED..............................................................................................41 4.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. ...............41 4.4.2 Limits: ..................................................................................................................................41 4.4.2.1 FCC 22.917 Emission limitations for cellular equipment. ..............................................41 4.4.2.2 FCC 24.238 Emission limitations for Broadband PCS equipment. ................................41 4.4.3 Conducted out of band emissions measurement procedure: ................................................42 4.4.4 Band Edge Results GSM-850 ...............................................................................................43 4.4.5 Conducted Spurious Results GSM-850 ................................................................................45 4.4.6 Band Edge Results PCS-1900 ......................................................................................…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FCC Part 22, 24 / RSS 132, 133 FOR: GSM Cellular Telephone with Bluetooth and WiFi Model #: A1203 Apple Inc. 1 Infinite Loop Mail Stop26A Cupertino, California 95014 U.S.A FCC ID: BCGA1203 TEST REPORT #: EMC_ACIHO-010-06001 _FCC22_24rev1 DATE: 2007-04-19 Test Report #: EMC_ ACIHO-010-06001 _FCC22_24rev1 Date of Report: 2007-04-19 Page 2 of 110 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .....................................................................................................................................4 EMC & Radio.........................................................................................Error! Bookmark not defined. 2 ADMINISTRATIVE DATA................................................................................................................5 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................5 2.2 IDENTIFICATION OF THE CLIENT....................................................................................................5 2.3 IDENTIFICATION OF THE MANUFACTURER.....................................................................................5 3 EQUIPMENT UNDER TEST (EUT) .................................................................................................6 3.1 SPECIFICATION OF THE EQUIPMENT UNDER TEST..........................................................................6 3.2 IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) ............................................................6 SUBJECT OF INVESTIGATION..............................................................................................................7 4 MEASUREMENTS..............................................................................................................................8 4.1 RF POWER OUTPUT........................................................................................................................8 4.1.1 FCC 2.1046 Measurements required: RF power output........................................................8 4.1.2 Limits: ....................................................................................................................................8 4.1.2.1 FCC 22.913 (a) Effective radiated power limits. ...............................................................8 4.1.2.2 FCC 24.232 (b)(c) Power limits. ........................................................................................8 4.1.3 Conducted Output Power Measurement procedure:..............................................................8 4.1.4 Results 850 MHz band (conducted): ......................................................................................9 4.1.5 Results 1900 MHz band (conducted): ....................................................................................9 4.1.6 Radiated Output Power measurement procedure: ...............................................................22 4.1.7 EIRP/ERP Results 850 MHz band: ......................................................................................23 4.1.8 EIRP Results 1900 MHz band:....…

Text truncated - open the document above for the full version.
