BCGA1213Wi-Fi 802.11 b/g

Operators Manual N45 Radio Note: This is a DRAFT manual for the module. The final manual that ships with the end product will contain this information. The radio module is an IEEE 802.11 b/g radio device operating on the standard Wi-Fi channels in the region where it is used. The radio module a custom designed module for use in a handheld device, Model Number A1213. The Radio Module measures 19.8 mm (0.779 inches) long by 6.5 mm (0.255 inches) wide by 1.3 mm (0.051 inches) high. The radio module, antenna, battery and other circuits are not user accessible. The product is designed such that key parts of the device may be permanently damaged if a user tries to access the interior of the device without special tools. The radio module obtains its power from the non-user accessible rechargeable battery within the A1213. The battery is charged from a USB port on a computer or from an external custom designed power adapter. The radio module and antenna allow the A1213 device to connect to Wi-Fi networks at home, at work and at Wi-Fi hot spots. The Model number A1213 has a menu for general settings to configure the Wi-Fi radio. There is also a status indicator showing the strength of the Wi-Fi signal being received. Exposure to Radio Frequency Energy N45 contains a radio transmitter and receiver. When on, N45 can receive and send out radio frequency (RF) energy through its antenna. The N45 antenna is located near the back left corner of the N45 as you hold the end containing the dock connector facing down. N45 is designed and manufactured to comply with the limits for exposure to RF energy set by the Federal Communications Commission (FCC) of the United States and other countries. The exposure standard employs a unit of measurement known as the specific absorption rate or SAR. N45 has been tested and meets the SAR exposure requirements for Wi-Fi operation. If you are concerned about exposure to RF energy, you can limit your exposure by limiting the amount of time using N45, since time is a factor in how much exposure a person receives, and by placing more distance between your body and the N45, since exposure level drops off dramatically with distance. Additional Information For more information from the US FCC about exposure to RF energy, see: www.fcc.gov/oet/rfsafety For more information about the scientific research related to RF energy exposure, see the EMF Research Database maintained by the World Health Organization at: www.who.int/emf FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important: Changes or modifications to this product not authorized by Apple could void the EMC compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. Responsible party (contact for FCC matters only) Apple Inc. Product Compliance, 1 Infinite Loop, M/S 26A, Cupertino, CA 95014. This device must not be co–located with other transmitters. Canadian Compliance Statement Complies with the Canadian ICES-003 Class B specifications. Cet appareil numerique de la Classe B est conforme a la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numerique de la Classe B respecte toutes les exigencies du Reglement sur le materiael brouilleur du Canada. European Community Compliance Statement The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0- 300GHz.). This equipment meets the following conformance standards: EN 300 328, EN 301 894, EN 301 489-17, EN 50385 Europe – EU Declaration of Conformity Česky [Czech] Apple Inc. tímto prohlašuje, že tento 802.11 b/g WiFi je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede Apple Inc erklærer herved, at følgende udstyr 802.11 b/g WiFi overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt Apple Inc., dass sich das Gerät 802.11 b/g WiFi in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab Apple Inc seadme 802.11 b/g WiFi vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, Apple Inc., declares that this 802.11 b/g WiFi is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente Apple Inc. declara que el 802.11 b/g WiFi cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Apple Inc. ∆ΗΛΩΝΕΙ ΟΤΙ 802.11 b/g WiFi ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente Apple Inc. déclare que l'appareil 802.11 b/g WiFi est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente Apple Inc. dichiara che questo 802.11 b/g WiFi è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvia…

Text truncated - open the document above for the full version.

August 29, 2007 Apple Inc. FCC ID: BCGA1213 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided) Device was tested inside the final end product for limited modular approval. 3 Have it own power supply regulation The power supply voltages are all regulated. Refer to Block diagram & Schematic 4 Meet the antenna requirements of Section 15.203 The connector is for Mfg. test purposes only and is not accessible to the user. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside the final end product for limited modular approval. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The outside of the product containing the radio module is labeled with “Contains FCC ID: BCGA1213 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. The modular transmitter is inside a product that has no user access areas. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). SAR testing was performed on the module in the only system it will be used in and it passed for body contact device.

Exterior Photo 1
FCC ID: BCGA1213

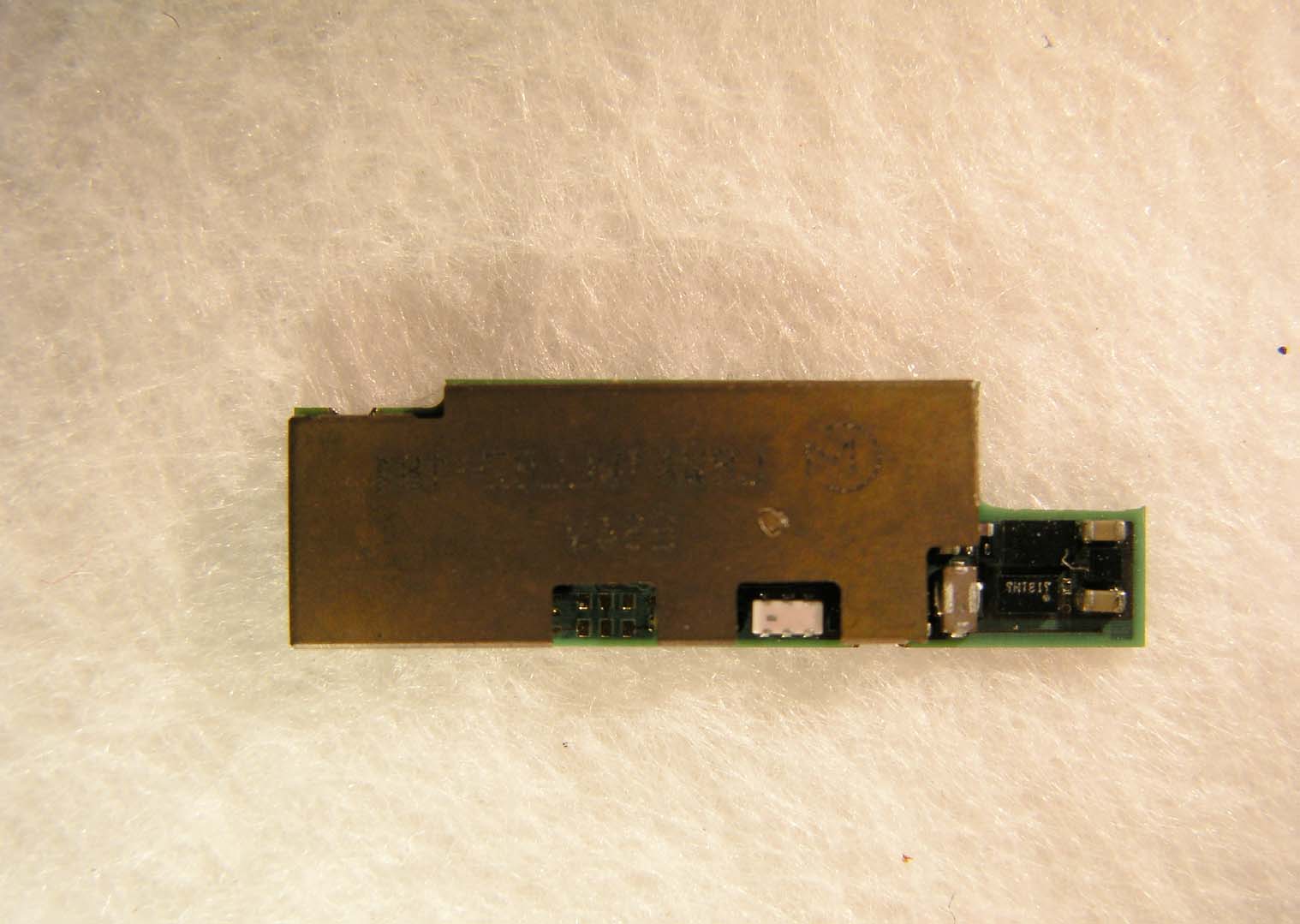

Top View of Radio Module Exterior Photo 2
FCC ID: BCGA1213

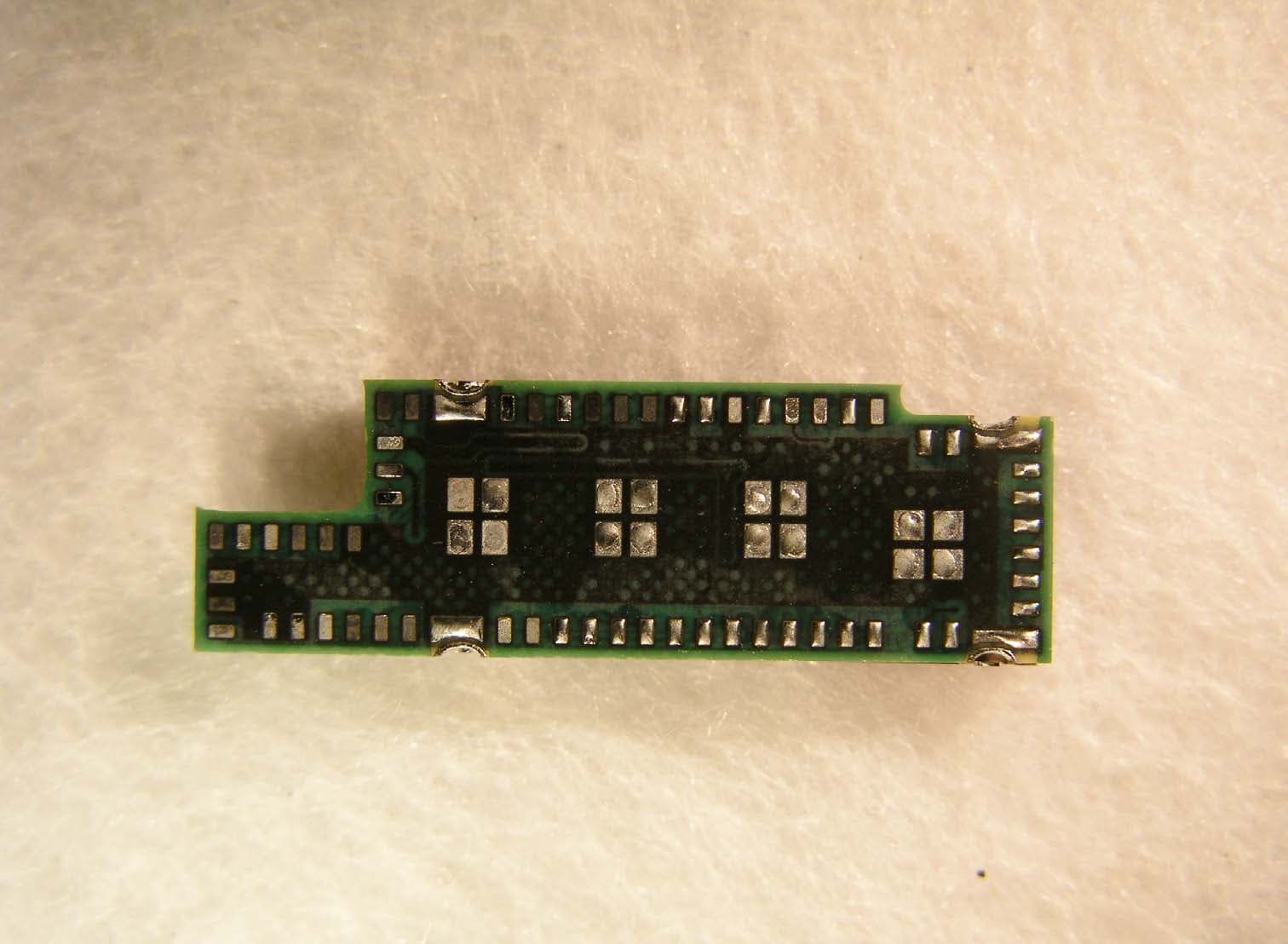

Bottom View of Radio Module Exterior Photo 5
FCC ID: BCGA1213

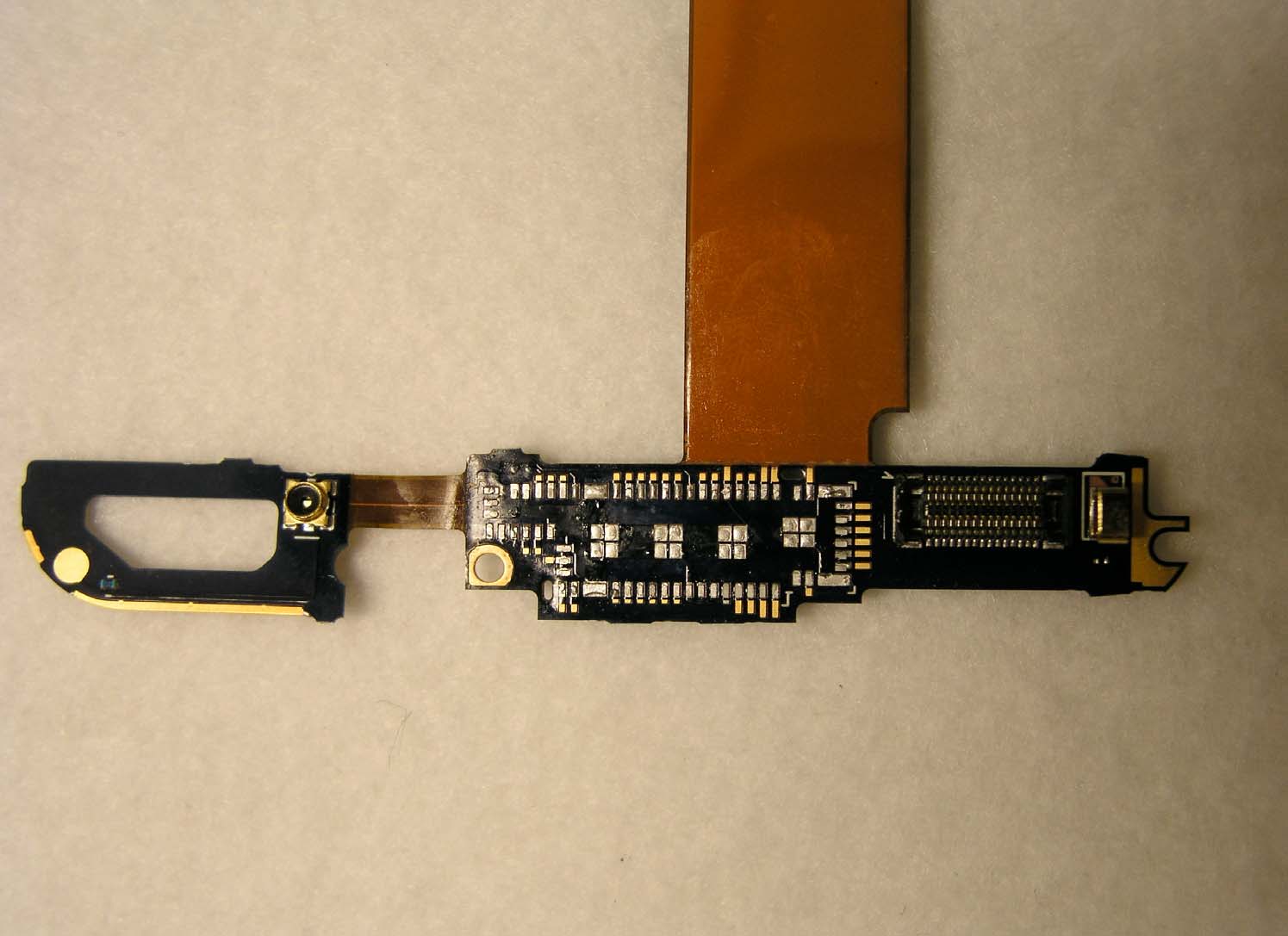

Radio Motherboard and
Antena Feedline - Bottom View Exterior Photo 4
FCC ID: BCGA1213

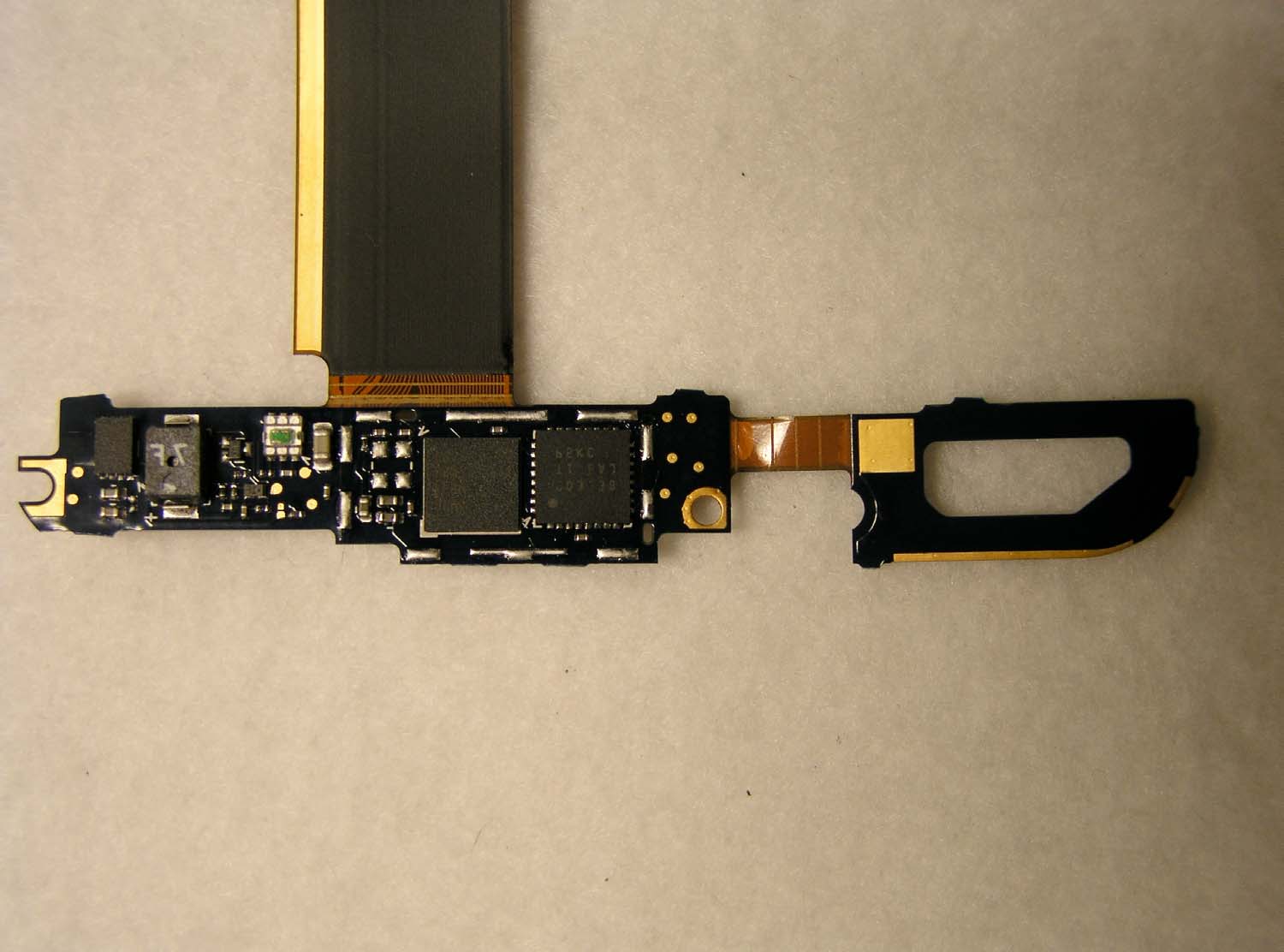

Radio Motherboard and
Antena Feedline - Top View Exterior Photo 3
FCC ID: BCGA1213
Radio Motherboard with
Radio Module & Antena Feedline
Top View

PROPOSED FCC ID /IC LABEL AND LOCATION Apple Inc. Model A1213 FCC ID : BCGA1213 IC : 579C-A1213 EUT PROPOSED FCC ID LABEL FOR HOST DEVICE This device contains FCC ID: BCGA1213 IC : 579C-A1213

Internal Photo 1 FCC ID: BCGA1213 Radio Module, with shield removed Top View Internal Photo 2 FCC ID: BCGA1213 Radio Module, Bottom View (Note: No components on botton)

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 1 : 1999 FOR WI-FI 802.11 B/G MODEL: A1213 FCC ID: BCGA1213 IC: 579C-A1213 REPORT NUMBER: 07U11180-10 ISSUE DATE: JULY 31, 2007 Prepared for APPLE COMPUTERS INC. 1 INFINITE LOOP CUPERTINO, CA 95014, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET, FREMONT, CA 94538 USA REPORT NO: 07U11180-10 DATE: July 27, 2007 FCC ID: BCGA1213 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 2 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- July 31, 2007 Initial issue Sunny Shih REPORT NO: 07U11180-10 DATE: July 27, 2007 FCC ID: BCGA1213 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 3 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: July 30 and 31, 2007 APPLICANT: ADDRESS: APPLE COMPUTERS INC. 1 INFINITE LOOP, CUPERTINO, CA 95014, USA FCC ID: MODEL: BCGA1213 A1213 DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure Wi-Fi 802.11 b/g is tested for body position. Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 15.247 2412 - 2462 1.170 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified and tested in accordance with procedures referenced below in Section 2. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Engineering Supervisor EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 07U11180-10 DATE: July 27, 2007 FCC ID: BCGA1213 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 4 This report shall not be reproduced except in full, without the written approval of CCS. Table Of Contents 1 DEVICE UNDER TEST (DUT) DESCRIPTION ................................................................................... 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .............................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................ 10 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 12 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 13 6 SAR MEASURMENT PROCEDURE ................................................................................................. 14 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 15 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 16 8 SAR MEASURMENT RESULTS........................................................................................................ 17 8.1 BODY – LCD UP........................................................................................................................ 17 8.2 BODY – LCD DOWN .................................................................................................................18 9 MEASURMENT UNCERTAINTY ....................................................................................................... 19 9.1 MEASURMENT UNCERTAINTY FOR 300 MHZ – 3000 MHZ ................................................. 19 10 EQUIPMENT LIST AND CALIBRATION............................................................................................ 20 11 PHO L TOS ........................................................................................................................................ 21 12 ATTACHMENTS................................................................................................................................. 23 REPORT NO: 07U11180-10 DATE: July 27, 2007 FCC ID: BCGA1213 COMPLIANCE CERTIFICATION SERVICES Page: 5 of 5 This report shall not be reproduced except in full, without the written approval of CCS. 1 DEVICE UNDER TEST (DUT) DESCRIPTION Wi-Fi 802.11b/g is tested for body position. Normal operation: Body position Earphone/Headset Jack: Apple A18 Duty cycle: 100% REPORT NO: 07U11180-10 DATE: July 27, 2007 FCC ID: BCGA1213 COMPLIANCE CERTIFICATION SERVICES Page: 6 of 6 This report shall not be reproduced except in full, without the written approval of CCS. 2 FACILITIES AND ACCREDITATION The…

Text truncated - open the document above for the full version.

Date/Time: 7/30/2007 6:43:37 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2;Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 15.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.9 V/m; Power Drift = 0.042 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6.26 mW/g Maximum value of SAR (measured) = 15.0 mW/g 0 dB = 15.0mW/g Date/Time: 7/30/2007 6:54:30 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 16.0 mW/g Date/Time: 7/31/2007 6:09:23 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2;Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 15.1 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.8 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 27.2 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.33 mW/g Maximum value of SAR (measured) = 15.5 mW/g 0 dB = 15.5mW/g Date/Time: 7/31/2007 6:20:13 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 16.7 mW/g

Date/Time: 7/30/2007 10:37:12 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/A;Serial: 9C7260RADV1 Communication System: 802.11bg;Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 LCD Up - b mode L ch/Area Scan (6x5x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.749 mW/g LCD Up - b mode L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 23.8 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.412 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.16 mW/g Date/Time: 7/30/2007 10:00:37 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/A;Serial: 9C7260RADV1 Communication System: 802.11bg;Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 2.01 mho/m; ε r = 54; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 LCD Up - b mode M ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.18 mW/g LCD Up - b mode M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.80 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 3.22 W/kg SAR(1 g) = 1.17 mW/g; SAR(10 g) = 0.422 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.53 mW/g Date/Time: 7/30/2007 10:13:31 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/A;Serial: 9C7260RADV1 Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1 LCD Up - b mode M ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.75 mW/g Date/Time: 7/31/2007 6:37:38 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/A;Serial: 9C7260RADV1 Communication System: 802.11bg;Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.99 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 LCD Up - b mode H ch/Area Scan (6x5x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.809 mW/g LCD Up - b mode H ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 3.14 V/m; Power Drift = 0.114 dB Peak SAR (extrapolated) = 2.61 W/kg SAR(1 g) = 0.983 mW/g; SAR(10 g) = 0.367 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.16 mW/g Date/Time: 7/31/2007 7:37:47 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/A;Serial: 9C7260RADV1 Communication System: 802.11bg;Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.9 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 22.0deg. C; Liquid Temperature: 21.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 11/16/2006 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 LCD Up - g mode L ch/Area Scan (6x5x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.762 mW/g LCD Up - g mode L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 19.9 V/m; Power Drift = 0.135 dB Peak SAR (extrapolated) = 2.47 W/kg SAR(1 g) = 0.973 mW/g; SAR(10 g) = 0.370 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.16 mW/g Date/Time: 7/31/2007 7:06:48 PM Test Laboratory: Compliance Certification Services Body DUT: Wi Fi 802.11 b/g; Type: N/…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR Wi-Fi 802.11 b/g MODEL NUMBER: A1213 FCC ID: BCGA1213 IC: 579C-A1213 REPORT NUMBER: 07U11180-1 ISSUE DATE: AUGUST 24, 2007 Prepared for APPLE INC. 1 INFINITE LOOP CUPERTINO, CA. 95014, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11180-1 DATE: AUGUST 24, 2007 FCC ID: BCGA1213 IC: 579C-A1213 Page 2 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 08/24/07 Initial Issue Frank Ibrahim REPORT NO: 07U11180-1 DATE: AUGUST 24, 2007 FCC ID: BCGA1213 IC: 579C-A1213 Page 3 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 17 7.1.3. PEAK OUTPUT POWER .................................................................................................. 24 7.1.4. AVERAGE POWER........................................................................................................... 31 7.1.5. PEAK POWER SPECTRAL DENSITY (FCC) ................................................................. 32 7.1.6. PEAK POWER SPECTRAL DENSITY (IC)..................................................................... 39 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 47 7.2. RADIATED EMISSIONS.............................................................................................................60 7.2.1. RADIATED EMISSION ABOVE 1 GHz .......................................................................... 61 7.2.2. RADIATED EMISSIONS BELOW 1 GHz ....................................................................... 80 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 88 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 92 8. SETUP PHOTOS .............................................................................................................................. 96 REPORT NO: 07U11180-1 DATE: AUGUST 24, 2007 FCC ID: BCGA1213 IC: 579C-A1213 Page 4 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: APPLE INC. 1 INFINITE LOOP CUPERTINO, CA 95014, USA EUT DESCRIPTION: Wi-Fi 802.11 b/g MODEL: A1213 SERIAL NUMBER: 9C72609DDV1 DATE TESTED: July 18 - 22, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED IC RSS-210 ISSUE 7 ANNEX 8 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Ser…

Text truncated - open the document above for the full version.
