FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR BLUETOOTH KEYBOARD MODEL NUMBER: A1255 FCC ID: BCGA1255 REPORT NUMBER: 07U11151-1, REVISION B ISSUE DATE: JULY 25, 2007 Prepared for APPLE INC. 1 INFINITE LOOP CUPERTINO, CA 95014, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 2 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 07/24/07 Initial Issue T. Chan B 07/25/07 Changed some formatting. F. Ibrahim REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 3 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. ANTENNA PORT CHANNEL TESTS ......................................................................................... 10 7.1.1. 20 dB BANDWIDTH ......................................................................................................... 10 7.1.2. HOPPING FREQUENCY SEPARATION......................................................................... 14 7.1.3. NUMBER OF HOPPING CHANNELS ............................................................................. 16 7.1.4. AVERAGE TIME OF OCCUPANCY ............................................................................... 21 7.1.5. PEAK OUTPUT POWER .................................................................................................. 24 7.1.6. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 28 7.1.7. AVERAGE POWER........................................................................................................... 31 7.1.8. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 32 7.2. RADIATED EMISSIONS.............................................................................................................41 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 41 7.2.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 43 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 52 8. SETUP PHOTOS .............................................................................................................................. 54 REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 4 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: APPLE INC. 1 INFINITE LOOP CUPERTINO, CA 95014, USA EUT DESCRIPTION: BLUETOOTH KEYBOARD MODEL: A1255 SERIAL NUMBER: 0002 DATE TESTED: JUNE 25 TO JUNE 27, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried ou…

Text truncated - open the document above for the full version.

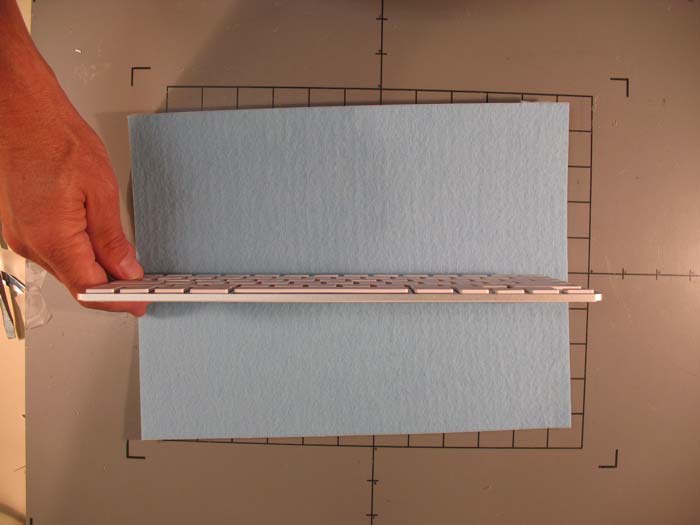

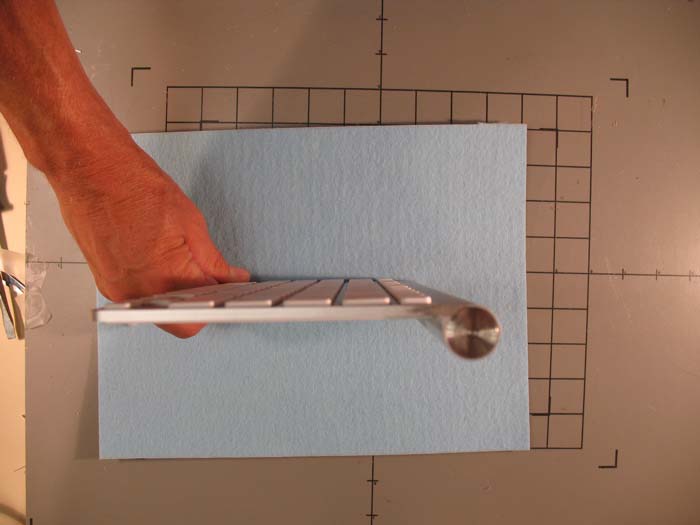

REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 54 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 55 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION EMI FRONT PHOTO REPORT NO: 07U11151-1B DATE: JULY 25, 2007 EUT: BLUETOOTH KEYBOARD FCC ID: BCGA1255 Page 56 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT EMI BACK PHOTO
