BCGA1378802.11abgn + FHSS

Apple TV Important Product Information Guide This Important Product Information Guide contains safety, handling, disposal and recycling, regulatory, and software license information, as well as the one-year limited warranty for Apple TV. ±  Read all safety information below and operating instructions before using Apple TV to avoid injury. For detailed operating instructions, including any updates to the safety and regulatory information, see the Apple TV Setup Guide at: www.apple.com/support/manuals/appletv Software License Agreement Use of Apple TV is subject to the Apple and third-party software license terms found in this document and at: www.apple.com/legal/sla Important Safety Instructions WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage. Read and follow these instructions to use your Apple TV safely. ÂRead these instructions. ÂKeep these instructions. ÂHeed all warnings. ÂFollow all instructions. ÂDo not use this apparatus near water. ÂClean only with a dry cloth. ÂDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. ÂProtect the power cord from being walked on or pinched, particularly at plugs and at the point where they exit from the apparatus. ÂOnly use attachments/accessories specified by the manufacturer. ÂUnplug this apparatus during lightning storms or when unused for long periods of time. ÂRefer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. ÂDo not place naked flame sources, such as lighted candles, on or near the apparatus. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, liquid, moisture, excessive heat, or naked flame. ÂThis apparatus has no on/off switch. To disconnect this apparatus from power, you must disconnect the power cord. Make sure the power cord is always easily accessible. ÂThe power cord included with this apparatus is for indoor use only. ÂDo not move the apparatus if another device such as a TV, computer, or other electronic device is connected to it. ÂDo not expose the apparatus to dripping or splashing, and do not place any object filled with liquid, such as a vase, on the apparatus. ÂInformation such as model number, electrical rating, and other classifications is located on the bottom of the apparatus. Regulatory Compliance Information FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See instructions if interference to radio or television reception is suspected. L‘utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Radio and Television Interference This computer equipment generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Apple’s instructions—it may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. You can determine whether your computer system is causing interference by turning it off. If the interference stops, it was probably caused by the computer or one of the peripheral devices. If your computer system does cause interference to radio or television reception, try to correct the interference by using one or more of the following measures: ÂTurn the television or radio antenna until the interference stops. ÂMove the computer to one side or the other of the television or radio. ÂMove the computer farther away from the television or radio. ÂPlug the computer into an outlet that is on a different circuit from the television or radio. (That is, make certain the computer and the television or radio are on circuits controlled by different circuit breakers or fuses.) If necessary, consult an Apple Authorized Service Provider or Apple. See the service and support information that came with your Apple product. Or, consult an experienced radio/ television technician for additional suggestions. Important: Changes or modifications to this product not authorized by Apple Inc. could void the EMC compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables (including Ethernet network cables) between system components to reduce the possibility of causing interference to radios, television sets, and other electronic devices. Responsible party (contact for FCC matters only): Apple Inc. Corporate Compliance 1 Infinite Loop, MS 26-A Cupertino, CA 95014 Wireless Radio Use This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz frequency band. Cet appareil doit être utilisé à l’intérieur. Exposure to Radio Frequency Energy The radiated output power of the wireless device…

Text truncated - open the document above for the full version.

This guide contains all the information you need to get from setup to your sofa. Welcome. You’re watching Apple TV. 3Contents Contents Chapter 1: Connect. 7 What’s in the Box 8 Apple TV at a Glance 10 What You Need 11 Setting Up Apple TV Chapter 2: Configure. 16 Network Configuration 17 Connecting to iTunes Chapter 3: Watch. 20 Using Your Apple Remote 21 Basic Remote Functions 21 Pairing Apple TV with a Remote 22 Unpairing Apple TV from a Remote 23 Changing the Remote Battery 24 Renting Movies and TV Shows 4Contents Chapter 4: Problem? No Problem. 26 Troubleshooting 31 Status Light 32 Service and Support 32 Serial Number 33 Care and Cleaning www.apple.com/support/appletv Connect. 1 6 Chapter 1 Connect. Chapter 1 Connect. With Apple TV, you can rent high-definition movies and TV shows, watch streaming content from Netflix, and enjoy podcasts, YouTube videos, and Internet radio. And, you can stream all of your personal iTunes content from a Mac or PC, and view photos from your computer, MobileMe, or Flickr all wirelessly to your widescreen HDTV, from the comfort of your couch. Note: Content availability varies by region. For information aboutSee What you need to get started“What You Need” on page 10 Setting up Apple TV“Setting Up Apple TV” on page 11 Setting up your network connection“Configure.” on page 15 Using the Apple Remote“Watch.” on page 19 Troubleshooting Apple TV“Problem? No Problem.” on page 25 Apple TV safety and warrantyThe Apple TV Important Product Information Guide Chapter 1 Connect. 7Chapter 1 Connect. What’s in the Box AC power cordApple Remote Note: Your power cord may look different from the one pictured here. 8 Chapter 1 Connect. Chapter 1 Connect. Apple TV at a Glance Status lightIR receiver £ HDMI port d Micro USB portOptical digital audio port G Ethernet portPower port Chapter 1 Connect. 9Chapter 1 Connect. IR receiver Use with the included Apple Remote to control Apple TV. Status light The status light flashes slowly when Apple TV starts up. When Apple TV is on, the status light glows. See “Status Light” on page 31. d Micro USB port For service and diagnostics. ≤ Power port Connect the included AC power cord to the power port on Apple TV. G Ethernet port If your network is Ethernet based, connect an Ethernet cable. £ HDMI port Connect Apple TV to the HDMI port of a high-definition TV using an HDMI cable. Optical digital audio port Connect Apple TV to a home theater receiver that has an optical digital audio port, using an optical digital audio (also called S/PDIF or TOSLINK) cable. Z Built-in Wi-Fi/AirPort wireless Connect Apple TV to your wireless network. 10Chapter 1 Connect. Chapter 1 Connect. What You Need To start using Apple TV, you need the following: High-Definition TV A high-definition TV capable of displaying 720p video Cables ÂAn HDMI cable to connect Apple TV to your TV ÂAn optical digital audio cable (if you plan to use one) Network ÂAirPort Extreme, 802.11b, g, or n Wi-Fi wireless network (wireless video streaming requires 802.11g or 802.11n), or 10/100Base-T Ethernet network ÂA broadband Internet connection (DSL, cable, or LAN) ÂYour wireless network name and password (if you use one) Software and Accounts To play content from a Mac or PC on Apple TV, you need the following: ÂAn iTunes Store account for renting movies and TV shows ÂiTunes 10 or later ÂAn iTunes Store account to use Home Sharing to stream content from a Mac or PC ÂA Netflix account for streaming Netflix content Chapter 1 Connect. 11Chapter 1 Connect. Setting Up Apple TV Apple TV connects to your TV through an HDMI port that delivers both audio and video. Before you set up Apple TV, look at the ports on the back of your TV to make sure you have the right cables. You can connect Apple TV to a high-definition TV or home theater receiver that has an HDMI port, using an HDMI cable for both video and audio. You can also use an optical digital audio cable to connect Apple TV to a receiver for audio. Important: Before you connect Apple TV to a power outlet, carefully read these installation instructions and the safety information in the included Important Product Information Guide. 12Chapter 1 Connect. Chapter 1 Connect. Step 1: Connecting the cables 1 Connect one end of an HDMI cable to the back of your TV. 2 Connect the other end of the cable to the HDMI port on the back of Apple TV. 3 If you’re using an optical digital audio cable for audio, connect one end of the cable to the audio input port on your receiver or TV, and the other end to the optical digital audio port on the back of Apple TV. Apple TV Television HDMI portHDMI port HDMI cable Note: The built-in 802.11 Wi-Fi connects Apple TV to your wireless network. If your network is Ethernet-based, connect Apple TV to your network using an Ethernet cable. Chapter 1 Connect. 13Chapter 1 Connect. Step 2: Connect the power cord Connect one end of the power cord to the power port on the back of Apple TV and the other end to a power outlet. Power port Important: Don’t place anything on top of Apple TV. Objects placed on top may interfere with the wireless signal. Don’t place Apple TV on other electronic equipment in a media cabinet. Step 3: Turn on your TV and select the input The first time you use Apple TV, it helps you choose a language, select a network, and configure Apple TV to work with your network (if necessary). See Chapter 2, “Configure.” on page 15. If you see just a black screen the first time you use Apple TV, make sure the input setting you’ve selected on your TV matches the input you connected the cables to on your TV or home theater receiver. See Chapter 4, “Problem? No Problem.” on page 25, and refer to the documentation that came with your TV for information about its inputs. www.apple.com/support/appletv Configure. 2 16Chapter 2 Configure. Chapter 2 Configure. Apple TV helps you select and configure your wireless network connection, and, if you want to watch or listen to the contents of your iTunes library, connect to iTun…

Text truncated - open the document above for the full version.

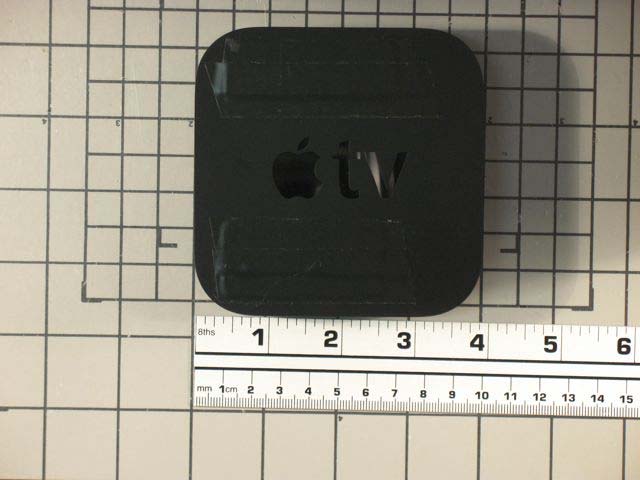

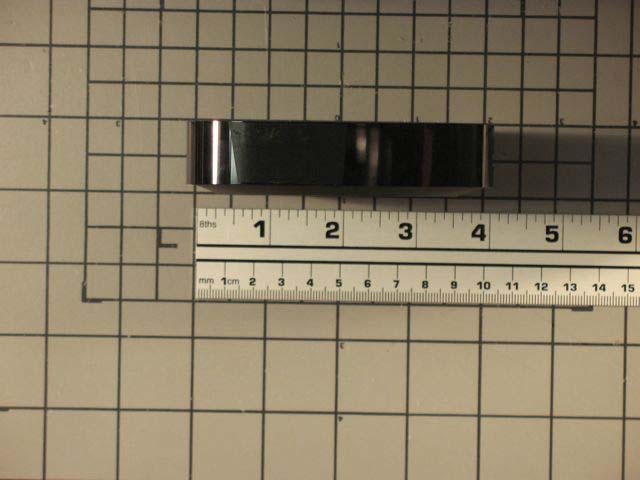

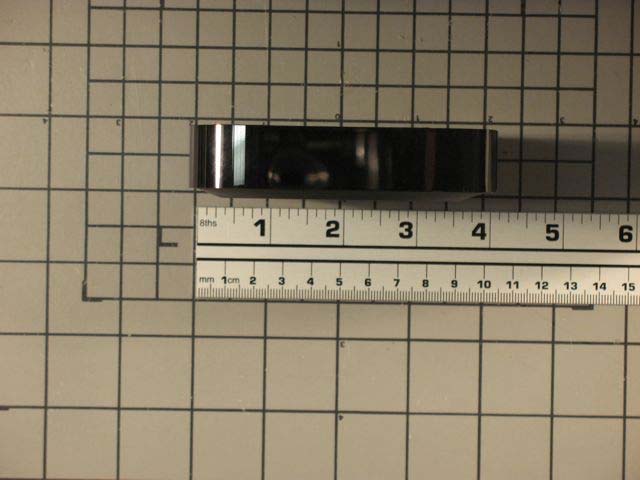

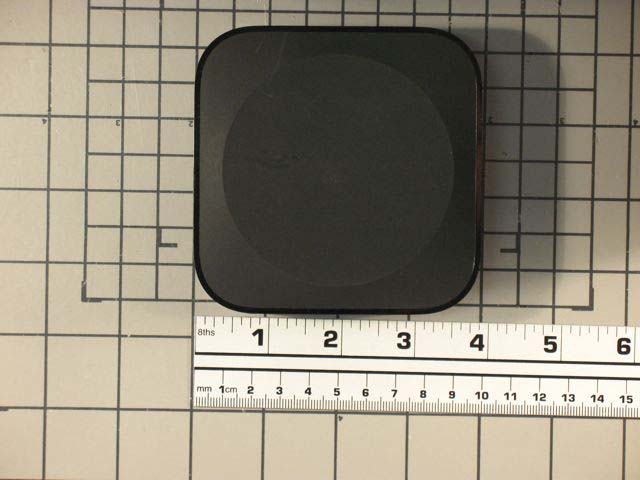

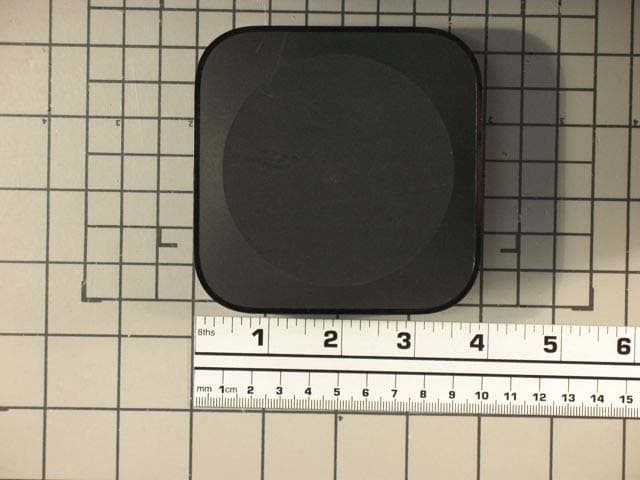

Photograph 1. A1378 Bottom Photograph 2. A1378 Front Side Photograph 3. A1378 Left Side Photograph 4. A1378 Rear Side Photograph 5. A1378 Right Side Photograph 6. A1378 Top

Label goes here

Photograph 1. A1378 PCB Bottom Side Photograph 2. A1378 PCB Top Side

§ 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462 MHz ; highest conducted power = 10.32 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 0.49dBi Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (650.13mW) G = Antenna Gain (3.16 numeric) S = (10.76*1.11 / 4*3.14*20.0 2 )= (12.05/ 5024) = 0.0023mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory August 27, 2010 Apple Inc. 1 Infinite Loop, M/S 26A Cupertino, CA 95014 Dear Mike Kriege, Enclosed is the EMC Wireless test report for compliance testing of the Apple Inc., Model A1378 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Apple Inc.\EMCS82333B-FCC247 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Apple Inc . Cover Page Model A1378 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82333B-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page ii of viii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Apple Inc. Model A1378 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS82333B-FCC247 Rev. 2 August 27, 2010 Prepared For: Apple Inc. 1 Infinite Loop, M/S 26A Cupertino, CA 95014 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave Baltimore, MD 21230 Electromagnetic Compatibility Apple Inc . Cover Page Model A1378 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82333B-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page iii of viii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Apple Inc. Model A1378 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Apple Inc . Report Status Model A1378 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82333B-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page iv of viii DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  August 25, 2010 Initial Issue. 1 August 25, 2010 Revised to reflect correct customer address. 2 August 27, 2010 Revised to reflect engineer corrections. Electromagnetic Compatibility Apple Inc . Table of Contents Model A1378 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82333B-FCC247 Rev. 2 © 2010, MET Laboratories, Inc. Page v of viii DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................6 F. Support Equipment .............................................................................................................................................6 G. Ports and Cabling Information ............................................................................................................................6 H. Mode of Operation.............................................…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Emission (30MHz - 1GHz), 15.109 Photograph 2. Radiated Emission (18GHz - 40GHz) Photograph 3. Radiated Emission (Above 1GHz) @1m Photograph 4. Radiated Emission (Above 1GHz) @3m Conducted Emissions Setup
