Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCGA1408 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commis- sion’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importa- tion rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those informa- tion will be available for public review once the grant of equipment authorization is issued. Marc Douat EMC Engineer April 28, 2011 Apple 1 Infinite Loop, MS 301-3VG Cupertino, CA 95014 T 408 996-1010 F 408 996-0275 www.apple.com

Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f ) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; Apple 1 Infinite Loop, MS 301-3VG Cupertino, CA 95014 T 408 996-1010 F 408 996-0275 www.apple.com i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Marc Douat EMC Engineer April 28, 2011

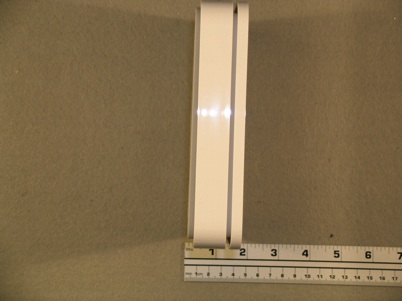

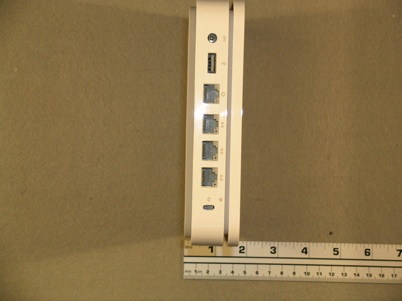

A1408 Photos A1408 Photos A1408 Photos

825-7666-A_Lbl-Serial_K10B.ai Format label as shown below., Serial no. and barcode positioned on Left Name is centered, Model # and FCC/IC centered under product name. Ethernet and Airport ID#’s positioned on right Font: Myriad MM or Apple approved equivalent, 5pt. type (1.25mm max character height) insert number with text graphic Letter height = 1.0 mm cap height AirPort Extreme Base Station Model No.: A1408 FCC ID: XXXXXXXX IC: XXXX-XXXXX Ethernet ID: XXXXXXXXXXX AirPort ID 2.4GHz: XXXXXXXXXXXX AirPort ID 5GHz: XXXXXXXXXXXX !""#$%&'#()*+(,( #-'+.-$#/01#(( Serial No: XXXXXXXXXXX Label Location BCGA1408 579C-A1408

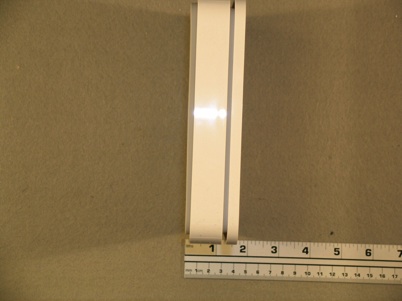

A1408 Photos A1408 Photos A1408 Photos

REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 291 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 292 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 293 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 For multiple chain devices, and colocated transmitters operating simultaneously in frequency bands where the limit is identical, the total power density is calculated using the total EIRP obtained by summing the Power * Gain product (in linear units) of each transmitter. Total EIRP = (P1 * G1) + (P2 * G2) + ... + (Pn * Pn) where Px = Power of transmitter x Gx = Numeric gain of antenna x For multiple colocated transmitters operating simultaneously in frequency bands where different limits apply, a fraction of the exposure limit is established for each band, such that the sum of the fractions is less than or equal to one. In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS For mobile radio equipment operating in the cellular phone band, the lowest power density limit is calculated using the lowest frequency, as 824 MHz / 1500 = 0.55 mW/cm^2 (FCC) and 824 MHz / 150 = 5.5 W/m^2 (IC). From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 294 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS Worst-case of 11a, HT20, HT40 (2 chains) Worst-case of 11a, HT20, HT40 (3 chains) Multiple chain or colocated transmitters BandModeChainSeparationOutputAntennaEIRPEIRP IC Power FCC Power forDistanceAV Pow erGainDensityDensity MIMO(m)(dBm)(dBi)(dBm)(W)(W/m^2) (mW/cm^2) 5 GHzWLAN115.003.1418.140.07 5 GHzWLAN216.802.3819.180.08 0.200.150.290.029 Combined Multiple chain or colocated transmitters BandModeChain SeparationOutputAntenna EIRPEIRP IC Power FCC Power forDista nceAV Pow e rGa inDe nsityDe nsity MIMO(m)(dBm)(dBi)(dBm)(W)(W/m^2) (mW/cm^2) 5 GHzWLAN113.003.1416.140.04 5 GHzWLAN214.902.2317.130.05 5 GHzWLAN316.502.3818.880.08 0.200.170.340.034 Combined

FCC CFR47 PART 15 SUBPART E INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 802.11 a/b/g/n 3X3 ACCESS POINT MODEL NUMBER: A1408 FCC ID: BCGA1408 IC: 579C-A1408 REPORT NUMBER: 11U13614-2, Revision B ISSUE DATE: JUNE 13, 2011 Prepared for APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 2 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 05/03/11 Initial Issue F. Ibrahim A 05/20/11 Revised all conducted spurious sections. F. Ibrahim B 06/13/11 Revised section 5.5 F. Ibrahim REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 3 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 8 5.4. SOFTWARE AND FIRMWARE..................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11a TWO CHAINS LEGACY MODE IN THE 5.2 GHz BAND .............................. 12 7.1.1. 26 dB and 99% BANDWIDTH ............................................................................. 12 7.1.2. OUTPUT POWER ............................................................................................... 19 7.1.3. PEAK POWER SPECTRAL DENSITY................................................................ 27 7.1.4. PEAK EXCURSION ............................................................................................ 35 7.1.5. CONDUCTED SPURIOUS EMISSIONS............................................................. 43 7.2. 802.11a THREE CHAINS LEGACY MODE IN THE LOWER 5.2 GHz BAND ............ 51 7.2.1. 26 dB and 99% BANDWIDTH ............................................................................. 51 7.2.2. OUTPUT POWER ............................................................................................... 61 7.2.3. PEAK POWER SPECTRAL DENSITY................................................................ 72 7.2.4. PEAK EXCURSION ............................................................................................ 83 7.2.5. CONDUCTED SPURIOUS EMISSIONS............................................................. 94 7.3. 802.11n TWO CHAINS HT20 MODE IN THE LOWER 5.2 GHz BAND.................... 105 7.3.1. 26 dB and 99% BANDWIDTH ........................................................................... 105 7.3.2. OUTPUT POWER ............................................................................................. 112 7.3.3. PEAK POWER SPECTRAL DENSITY.............................................................. 120 7.3.4. PEAK EXCURSION .......................................................................................... 128 7.3.5. CONDUCTED SPURIOUS EMISSIONS........................................................... 136 7.4. 802.11n THREE CHAINS HT20 MODE IN THE LOWER 5.2 GHz BAND ................ 144 7.4.1. 26 dB and 99% BANDWIDTH ........................................................................... 144 7.4.2. OUTPUT POWER ............................................................................................. 154 7.4.3. PEAK POWER SPECTRAL DENSITY.............................................................. 165 REPORT NO: 11U13614-2B DATE: JUNE 13, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 4 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.4.4. PEAK EXCURSION .......................................................................................... 176 7.4.5. CONDUCTED SPURIOUS EMISSIONS........................................................... 187 7.5. 802.11n TWO CHAINS…

Text truncated - open the document above for the full version.

REPORT NO: 11U13614-2A DATE: MAY 20, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 295 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 11U13614-2A DATE: MAY 20, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 296 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 11U13614-2A DATE: MAY 20, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 297 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 11U13614-2A DATE: MAY 20, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 298 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 11U13614-2A DATE: MAY 20, 2011 FCC ID: BCGA1408 IC: 579C-A1408 Page 299 of 299 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
