BCGA1714Magnetic Charging Dock

Magnetic Charging Dock Connect the Lightning cable and lay the watch on the charger. Branchez le câble Lightning et placez la montre sur le chargeur. Conecte el cable Lightning y coloque el reloj sobre el cargador. * Connect the Lightning cable, raise the charger, and place the watch on its side. Branchez le câble Lightning, relevez le chargeur et placez la montre sur le côté. Conecte el cable Lightning, levante el cargador y coloque el reloj de lado. * *Sólo para México: Favor de leer este instructivo antes de utilizar el equipo. Modelo: A1714 © 2015 Apple Inc. All rights reserved. Apple, the Apple logo, Apple Watch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. Printed in XXXX. AM034-01025-A Safety Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage. To charge Apple Watch, use the Apple Watch Magnetic Charging Dock only with the Lightning cable that came with the device, an Apple Lightning to USB Cable, or a third-party Lightning cable that features the Made for iPhone logo. Avoid prolonged skin contact with the Lightning connector or the Apple Watch Magnetic Charging Dock when the Lightning to USB Cable is plugged in to a power source, because it may cause discomfort or injury. Avoid situations where your skin is in contact with the Apple Watch Magnetic Charging Dock for a long period of time when it’s plugged in. For example, while Apple Watch is charging or while the Apple Watch Magnetic Charging Dock is plugged in to a power source, don’t sleep on it or place it under a blanket, a pillow, or your body. Take special care if you have a physical condition that affects your ability to detect heat against your body. Read all safety instructions for products and accessories before using them with Apple Watch. Apple is not responsible for the operation of third-party accessories or their compliance with safety and regulatory standards. Specifications • Input voltage: 5V • Input current: max 1A (when charging) Informations concernant la sécurité AVERTISSEMENT : le non-respect de ces consignes de sécurité peut provoquer un incendie, une électrocution ou d’autres dégâts ou blessures. Pour recharger l’Apple Watch, n’utilisez la station Magnetic Charging Dock pour l’Apple Watch qu’avec le câble Lightning livré avec l’appareil, un câble Lightning vers USB Apple ou un câble Lightning de tierce partie qui présente le logo « Made for iPhone ». Évitez le contact prolongé du connecteur Lightning ou de la station Magnetic Charging Dock pour l’Apple Watch avec la peau lorsque le câble Lightning vers USB est branché sur une source d’alimentation, car il peut entraîner une gêne ou vous blesser. Évitez que la peau entre en contact avec la station Magnetic Charging Dock pour l’Apple Watch sur une période étendue lorsqu’elle est branchée. Par exemple, pendant que l’Apple Watch se recharge ou que la station Magnetic Charging Dock pour l’Apple Watch est branchée sur une source d’alimentation, ne vous étendez pas dessus ou ne la placez pas sous une couverture, un coussin ou sous le corps même. Prêtez une attention particulière si vous souffrez d’une condition physique qui influe sur votre capacité à sentir la chaleur produite sur le corps. Lisez l’intégralité des consignes de sécurité des produits et des accessoires avant de les utiliser avec l’Apple Watch. Apple n’est pas responsable du fonctionnement des accessoires de tierce partie ni de leur conformité aux normes réglementaires et de sécurité. Caractéristiques • Tension en entrée : 5 V • Courant en entrée : 1 A max. (pendant la recharge) Información de seguridad Sólo para México: Favor de leer este instructivo antes de utilizar el equipo. Modelo: A1714 ADVERTENCIA: Si no respeta estas instrucciones de seguridad, pueden producirse incendios, descargas eléctricas u otros daños o lesiones. Para cargar el Apple Watch, utilice la Base de carga magnética del Apple Watch solo con el cable Lightning que se suministra con el dispositivo, con un cable de Lightning a USB de Apple o con un cable Lightning de otro fabricante que incluya el logotipo Made for iPhone. Evite el contacto prolongado de la piel con el conector Lightning o la Base de carga magnética del Apple Watch cuando el cable de Lightning a USB esté conectado a una fuente de alimentación porque podría crearle malestar o causarle una lesión. Evite situaciones en las que su piel entre en contacto con la Base de carga magnética del Apple Watch durante un periodo prolongado de tiempo mientras está conectada. Por ejemplo, mientras se carga el Apple Watch o mientras la Base de carga magnética del Apple Watch está conectada a una fuente de alimentación, no duerma sobre ella ni la coloque bajo una manta, almohada o su cuerpo. Extreme las precauciones si padece alguna afección física que le impida detectar el calor en su cuerpo. Lea todas las instrucciones de seguridad de productos y accesorios antes de utilizarlos con el Apple Watch. Apple no se responsabiliza del funcionamiento de accesorios de otros fabricantes ni de que cumplan los estándares de seguridad y reglamentarios. Especificaciones Eléctricas Modelo: A1714 • Tensión de entrada: 5V • Corriente de entrada: 1A máx (durante la carga) Regulatory Compliance Information Australia New Zealand U.S. EU Japan Russia Kazakhstan Belarus Korea MSIP-RMI-APL-A1714 Korea ႞Ⴎஶဵ"ถ౅ዑૺ ඗ᆼකస඗: Apple Watch Magnetic Charging Dock (A1714 ) ၨჭ฀ጭ: MSIP-RMI-APL-A1714 ၨჭၴືጭ"ྴዯᇬ൘ྤ၉ዽፂຫ ႞Ⴎၴ႞Ⴎ૑"Apple Inc.თ૑ FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See the following instructions if interference to radio or television reception is suspected. Radio and Television Interference This computer equipment generates,…

Text truncated - open the document above for the full version.

 Apple Inc. 1 Infinite Loop Cupertino, CA www.apple.com Date: Oct 01, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Equipment Authorization Branch Ref: FCC ID: BCGA1714, Model: A1714 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;  Apple Inc. 1 Infinite Loop Cupertino, CA www.apple.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Abhishek Rala Apple Inc. Global Certification Manager

 Apple Inc. 1 Infinite Loop Cupertino, CA v1.0 www.apple.com Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCGA1714, Model A1714 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Electrical Schematic Diagrams • Technical Description These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device. Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents  Apple Inc. 1 Infinite Loop Cupertino, CA v1.0 www.apple.com from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Date: Oct 01, 2015 ____________________ Abhishek Rala Apple Inc. Global Certification Manager

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: February 25, 2015 Subject: Authorized Individual To Whom It May Concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Abhishek Rala to act on behalf of Apple Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorized individual may also assign another party to act as an authorized agent. This authorization is valid until further written notice from the grantee contact. Marc Douat Apple Inc. 1 Infinite Loop Cupertino, CA 95014

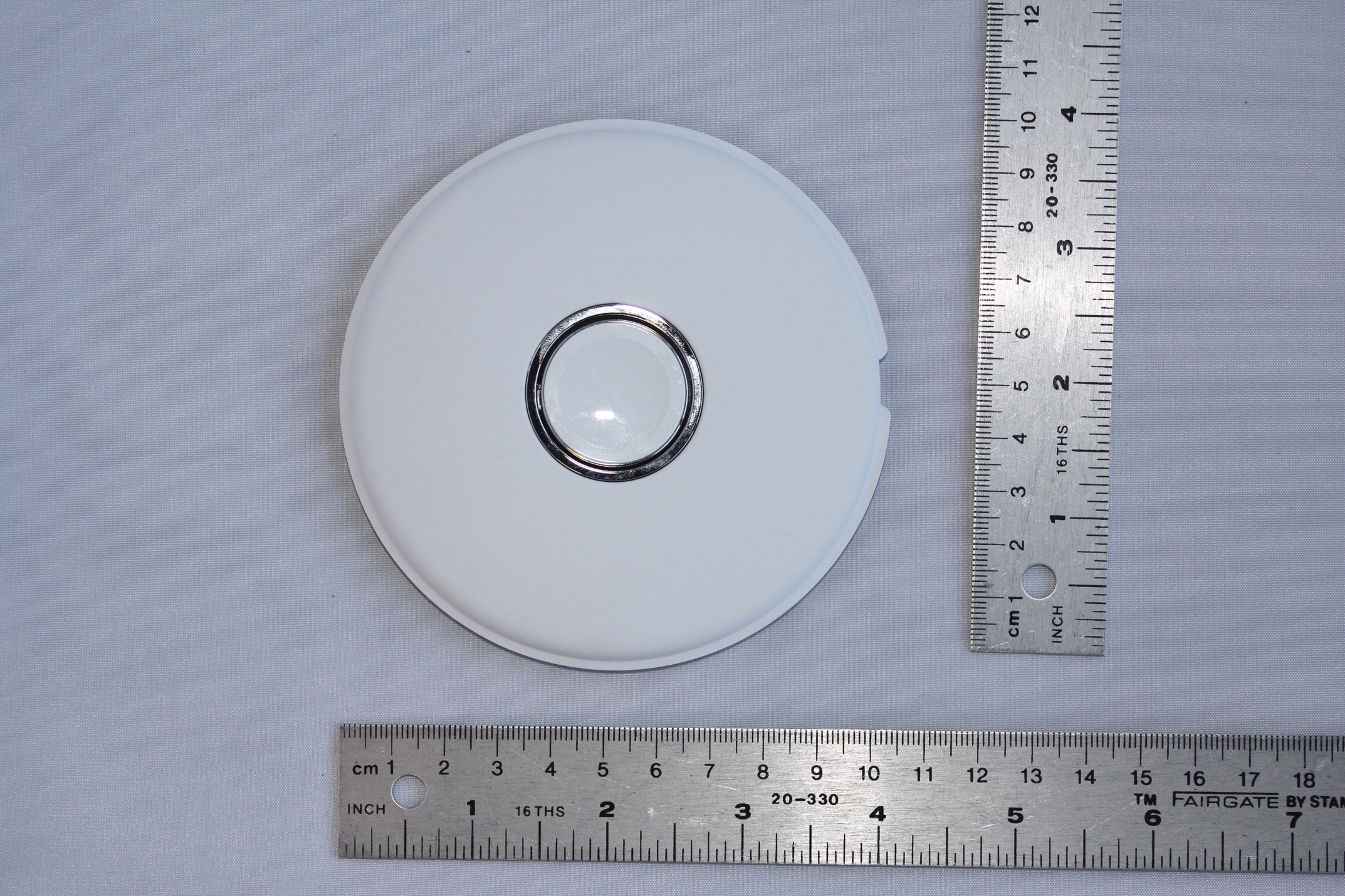

Apple Proprietary and Confidential A1714 To p V i e w Lightning Connector Apple Proprietary and Confidential A1714 With magnetic charger vertical position Apple Proprietary and Confidential A1714 Bottom

A1714 - Regulatory Label Artwork and Location Apple Proprietary and Confidential The label is printed on the rear side exterior of the device and it is always visible without using any tool

Apple Proprietary and Confidential A1714 Charger MLB Apple Proprietary and Confidential A1714 Charging coil Charging coil Apple Proprietary and Confidential A1714 Charging dock

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 5 RF EXPOSURE REPORT FOR MAGNETIC CHARGING DOCK MODEL NUMBER: A1714 FCC ID: BCGA1714 IC: 579C-A1714 REPORT NUMBER: 15U21562-E3V2 ISSUE DATE: OCTOBER 19, 2015 Prepared for APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21562-E3V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 2 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 09/29/2015 Initial Issue M. Mekuria V2 10/19/2015 Updated IC RSS-102 version and limits, EUT description T. Chu REPORT NO: 15U21562-E3V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 3 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. REFERENCES ...................................................................................................................... 5 4. FACILITIES AND ACCREDITATION .................................................................................... 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. DESCRIPTION OF TEST SETUP .................................................................................. 6 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 8 7. MAXIMUM PERMISSIBLE RF EXPOSURE ......................................................................... 8 7.1. FCC RULES ................................................................................................................... 8 7.2. IC RULES ....................................................................................................................... 9 7.3. MEASUREMENTS RESULTS ...................................................................................... 10 REPORT NO: 15U21562-E3V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 4 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A. EUT DESCRIPTION: MAGNETIC CHARGING DOCK MODEL NUMBER: A1714 SERIAL NUMBER: DLC304300NMGQ601H DATE TESTED: SEPTEMBER 23 TO 25, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 5 Pass UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: TESTED By: CHIN PANG MENGISTU MEKURIA SENIOR ENGINEER SENIOR ENGINEER UL VERIFICATION SERVICES INC. UL VERIFICATION SERVICES INC. REPORT NO: 15U21562-E3V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 5 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Verification Services Inc. Document 15U19950-E1V2 for operation in the 326 KHz band. Output power data is excerpted from the applicable test reports. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, California, USA. UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm. REPORT NO: 15U21562-E3V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 6 of 10 UL VERIFICATION SERVICES INC. FORM NO: CCSUP470…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-216 ISSUE 1 CERTIFICATION TEST REPORT FOR MAGNETIC CHARGING DOCK MODEL NUMBER: A1714 REPORT NUMBER: 15U21562-E1V2 FCC ID: BCGA1714 IC: 579C-A1714 ISSUE DATE: OCTOBER 19, 2015 Prepared for APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 2 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 09/29/2015 Initial Issue M. Mekuria V2 10/19/2015 Revised report to address TCB’s questions T. Chu REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 3 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 7 5.5. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. OCCUPIED BANDWIDTH ................................................................................................... 12 8. RADIATED EMISSION TEST RESULTS ............................................................................ 14 8.1. LIMITS AND PROCEDURE ......................................................................................... 14 8.2. TX FUNDAMENTAL AND SPURIOUS EMISSIONS FROM 0.15 TO 30 MHz ............. 15 8.2.1. STANDBY CONFIGURATION .............................................................................. 15 8.2.2. OPERATING CONFIGURATION .......................................................................... 16 8.3. TX SPURIOUS EMISSION 30 TO 1000 MHz .............................................................. 18 8.3.1. STANDBY CONFIGURATION .............................................................................. 18 8.3.2. OPERATING CONFIGURATION .......................................................................... 20 9. AC MAINS LINE CONDUCTED EMISSIONS W/ POWER SUPPLY .................................. 24 9.1. STANDBY CONFIGURATION POWERED FROM AC ADAPTER .............................. 25 9.2. OPERATING CONFIGURATION POWERED FORM AC ADAPTER .......................... 27 9.3. STANDBY CONFIGURATION POWERED FROM LAPTOP ....................................... 31 9.4. OPERATING CONFIGURATION POWERED FROM LAPTOP ................................... 33 10. SETUP PHOTOS ............................................................................................................. 37 REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 4 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: APPLE, INC. 1 INFINITE LOOP CUPERTINO, CA 95014, U.S.A. EUT DESCRIPTION: MAGNETIC CHARGING DOCK MODELNUMBER: A1714 SERIAL NUMBER: DLC304300NMGQ601H DATE TESTED: SEPTEMBER 23 TO OCTOBER 19, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C INDUSTRY CANADA RSS-216 Issue 1 Pass Pass INDUSTRY CANADA RSS-GEN Issue 4 Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in t…

Text truncated - open the document above for the full version.

REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 37 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10. SETUP PHOTOS RADIATED EMISSION BELOW 30 MHz RADIATED EMISSIONS BELOW 30MHz (FRONT - STANDBY) RADIATED EMISSIONS BELOW 30MHz (BACK - STANDBY) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 38 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/BIG RADIATED EMISSIONS BELOW 30MHz (FRONT - OPERATING) RADIATED EMISSIONS BELOW 30MHz (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 39 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/SMALL RADIATED EMISSIONS BELOW 30MHz (FRONT - OPERATING) RADIATED EMISSIONS BELOW 30MHz (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 40 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED EMISSION ABOVE 30 MHz RADIATED EMISSIONS ABOVE 30 MHz (FRONT - STANDBY) RADIATED EMISSIONS ABOVE 30 MHz (BACK - STANDBY) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 41 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/BIG RADIATED EMISSIONS ABOVE 30 MHz (FRONT - OPERATING) RADIATED EMISSIONS ABOVE 30 MHz (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 42 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/SMALL RADIATED EMISSIONS ABOVE 30 MHz (FRONT - OPERATING) RADIATED EMISSIONS ABOVE 30 MHz (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 43 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. AC MAINS LINE CONDUCTED EMISSION POWERED FROM AC ADAPTER LINE CONDUCTED EMISSION (FRONT - STANDBY) LINE CONDUCTED EMISSION (BACK - STANDBY) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 44 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/BIG LINE CONDUCTED EMISSION (FRONT - OPERATING) LINE CONDUCTED EMISSION (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 45 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. OPERATING W/SMALL LINE CONDUCTED EMISSION (FRONT - OPERATING) LINE CONDUCTED EMISSION (BACK - OPERATING) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 46 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. AC MAINS LINE CONDUCTED EMISSION POWERED FROM LAPTOP LINE CONDUCTED EMISSION (FRONT - STANDBY) LINE CONDUCTED EMISSION (BACK - STANDBY) REPORT NO: 15U21652-E1V2 DATE: OCTOBER 19, 2015 FCC ID: BCGA1714 IC: 579C-A1714 Page 47 of 48 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA…

Text truncated - open the document above for the full version.
