BCGA2540Siri Remote

Siri Remote 2 English A remote that puts you in control With Siri, you can discover new things to watch simply by asking. Or use the clickpad to control Apple TV. Press left or right. Swipe up or down. You now have more ways to navigate Apple TV quickly and easily. Back Press to return to previous menu. Press and hold for Home screen. Siri Press and hold to talk. Mute Play/Pause Clickpad Press up/down/left/right or swipe to navigate. Press center to select. Lightning connector for charging TV Press for Apple TV app. Press and hold for Control Center. Volume Power Press to wake. Press and hold to sleep. Not all features are available in all areas. English 3 To use the clickpad: • Press up, down, left, right, or swipe to navigate Apple TV menus. • Press center to select a menu item. • During playback, do any of the following: • Press left to skip backward 10 seconds, or press right to skip forward 10 seconds. • Press left and hold to rewind, or press right and hold to fast-forward. Press again to adjust speed. Press center to resume playback. To use the remote buttons: • Press to wake Apple TV. Press and hold to sleep. • Press to return to the previous menu. Press and hold to return to the Home screen. • Press for the Apple TV app. Press twice quickly to view open apps, or press and hold to access Control Center. • Press and hold to activate Siri. Hold down the Siri button until you finish speaking. • Press to play or pause a TV show, song, slideshow, or movie. • Press or to adjust the volume of your TV or home theater receiver. • Press to mute your TV or home theater receiver. Not all features are available in all areas. 4 English For more information, see the Apple TV User Guide at support.apple.com/guide/tv. Pair your Siri Remote You can pair your Siri Remote with only one Apple TV at a time. When you pair a remote, any previously paired remote is automatically unpaired. The Siri Remote works only with Apple TV HD and Apple TV 4K. To pair your remote: 1. Move the remote within 3 to 4 inches (8 to 10 cm) of your Apple TV. 2. Hold down Back and Volume Up for 2 seconds. When you’ve paired your remote, a message appears on Apple TV. Charge your Siri Remote A message appears on Apple TV when your Siri Remote needs to be charged or finishes charging. While it’s charging, you can continue to use your Siri Remote with Apple TV. Use the included Lightning to USB Cable to connect your Siri Remote to either of the following: • A Mac with a USB 2.0 or 3.0 port , or a PC with a USB 2.0 port • A USB power adapter (not included) English 5 Learn more The Apple TV User Guide contains comprehensive and up-to-date information about using your Siri Remote with Apple TV. Go to support.apple.com/guide/tv. Or download the user guide from Apple Books (where available). For support, go to support.apple.com/apple-tv. Safety information Handle your Siri Remote with care. It has sensitive electronic components inside. Your Siri Remote can be damaged if dropped, burned, punctured, or crushed, or if it comes in contact with liquid. Don’t use a damaged Siri Remote, as it may cause injury. Don’t open your Siri Remote and don’t attempt to repair it yourself. Disassembling the Siri Remote may damage it or may cause injury to you. If your Siri Remote is damaged, malfunctions, or comes 6 English in contact with liquid, contact Apple or an Apple Authorized Service Provider. You can find more information about getting service at support.apple.com/apple-tv. WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the Siri Remote or other property. Read all safety information before using your Siri Remote. Battery Don’t attempt to replace the Siri Remote battery yourself—you may damage the battery, which could cause overheating and injury. The lithium-ion battery should be serviced or removed by Apple or an authorized service provider, and must be recycled or disposed of separately from household waste. Dispose of batteries according to your local environmental laws and guidelines. For information about Apple lithium- ion batteries and battery service and recycling, go to apple.com/batteries/service-and-recycling. Français 7 Une télécommande pour vous assister Siri peut vous faire découvrir des nouveautés à regarder. Il suffit de demander. Ou à l’aide du clickpad, contrôlez l’Apple TV. Appuyez à gauche ou à droite. Balayez verticalement. Vous disposez désormais d’autres moyens pour explorer l’Apple TV rapidement et en toute simplicité. Précédent Appuyez pour revenir au menu précédent. Maintenez appuyé pour accéder à l’écran d’accueil. Siri Maintenez appuyé pour parler. Activer/Désactiver le son Lecture/Pause Clickpad Appuyez sur haut/bas/gauche/droite, ou balayez du doigt pour naviguer. Appuyez au centre pour sélectionner. Connecteur Lightning pour recharger Téléviseur Appuyez pour ouvrir l’app Apple TV. Maintenez appuyé pour accéder au Centre de contrôle. Volume Marche/Arrêt Appuyez pour réactiver l’appareil. Maintenez appuyé pour mettre l’appareil en veille. 8 Français La disponibilité des fonctionnalités dépend de la zone géographique. Pour utiliser le clickpad : • Appuyez sur haut/bas/gauche/droite, ou balayez du doigt pour parcourir les menus de l’Apple TV. • Appuyez au centre pour sélectionner un élément de menu. • Pendant la lecture, effectuez l’une des opérations suivantes : • Appuyez sur la gauche pour revenir de 10 secondes ou sur la droite pour avancer la lecture de 10 secondes. • Maintenez la pression sur la gauche pour revenir rapidement en arrière ou sur la droite pour avancer rapidement. Appuyez de nouveau pour régler la vitesse. Appuyez au centre pour reprendre la lecture. Pour utiliser les boutons de la télécommande : • Appuyez sur pour réactiver l’Apple TV. Maintenez appuyé pour mettre l’appareil en veille. • Appuyez sur pour revenir au menu précédent. Maintenez appuyé pour revenir à l’écran d’accueil. • Appuyez sur pour ouvrir l’app Apple TV. Ap…

Text truncated - open the document above for the full version.

Regulatory Compliance Information FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this product not authorized by Apple could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. Responsible party (contact for FCC matters only): Apple Inc. One Apple Park Way, MS 911-AHW Cupertino, CA 95014 USA apple.com/contact • • • • Apple Inc. One Apple Park Way, MS 911-AHW Cupertino, CA 95014 USA apple.com/hk/contact ISED Canada Compliance This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. EU Compliance Apple Inc. hereby declares that this wireless device is in compliance with Directive 2014/53/EU. A copy of the EU Declaration of Conformity is available at apple.com/euro/compliance. Apple’s EU representative is Apple Distribution International Ltd., Hollyhill Industrial Estate, Cork, Ireland. Japan VCCI Class B Statement Disposal and Recycling Information The symbol above indicates that this product and/or battery should not be disposed of with household waste. When you decide to dispose of this product and/or its battery, do so in accordance with local environmental laws and guidelines. For information about Apple’s recycling program, recycling collection points, restricted substances and other environmental initiatives, visit apple.com/environment. Información sobre eliminación de residuos y reciclaje El símbolo de arriba indica que este producto y/o su batería no deben desecharse con los residuos domésticos. Cuando quieras desechar este producto y/o su batería, hazlo de conformidad con las leyes y directrices medioambientales locales. Para obtener más información sobre el programa de reciclaje de Apple, los puntos de recolección para reciclaje, las sustancias restringidas y otras iniciativas medioambientales, visita apple.com/mx/environment o apple.com/la/environment. Brasil – Informações sobre descarte e reciclagem O símbolo acima indica que este produto e/ou sua bateria não devem ser descartados no lixo doméstico. Quando decidir descartar este produto e/ou sua bateria, faça-o de acordo com as leis e diretrizes ambientais locais. Para informações sobre substâncias de uso restrito, o programa de reciclagem da Apple, pontos de coleta e telefone de informações, visite apple.com/br/ environment. European Union—Disposal Information The symbol above means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. Union européenne : instructions concernant la mise au rebut Le symbole ci-dessus signifie que, conformément aux lois et réglementations locales, vous devez mettre au rebut votre produit et/ou sa batterie séparément des ordures ménagères. Lorsque ce produit n’est plus utilisable, déposez-le dans un centre de collecte des déchets agréé par les autorités locales. La collecte et le recyclage séparés de votre produit et/ou de sa batterie lors de l’élimination contribuent à préserver les ressources naturelles et à protéger l’environnement et la santé des êtres humains. Europäische Union – Informationen zur Entsorgung Das Symbol oben bedeutet, dass dieses Produkt und/oder die Batterie entsprechend den geltenden gesetzlichen Vorschriften und getrennt vom Hausmüll entsorgt werden muss. Muss dieses Produkt entsorgt werden, gib es bei einer offiziellen Sammelstelle ab…

Text truncated - open the document above for the full version.

 One Apple Park Way Cupertino, California 95014 USA www.apple.com Date: 30 March 2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Equipment Authorization Branch Ref: FCC ID: BCGA2540, Model: A2540 To whom it may concern: I, the undersigned, hereby authorize UL International (UK) Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL International (UK) Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL International (UK) Ltd. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized;  One Apple Park Way Cupertino, California 95014 USA www.apple.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

 One Apple Park Way Cupertino, California 95014 USA v1.1 www.apple.com Date: 30 March 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCGA2540, Model A2540 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Schematics • Operational Description • Tune Up Procedure • Parts list These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device.  One Apple Park Way Cupertino, California 95014 USA v1.1 www.apple.com Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

 One Apple Park Way Cupertino, California 95014 USA www.apple.com Date: 30 March 2021 Telecommunication Certification Body UL International (UK) Ltd Units 1-3, Horizon Wade Road Kingsland Business Park Basingstoke Hampshire RG24 8AH United Kingdom Subject: Certification Application, Cover Letter FCC ID: BCGA2540 To whom it may concern We, Apple Inc., are applying for an FCC grant for a Single Certification of the device: Siri Remote Model A2540 is a wireless remote control with built-in Bluetooth Low Energy radio. The product has been tested against CFR 47 parts: • 15B • 15C The measurement facility is on file with FCC under the US-UK MRA, with designation number 621311. Yours faithfully, Stuart Thomas EMEIA Engineering Manager [email protected]

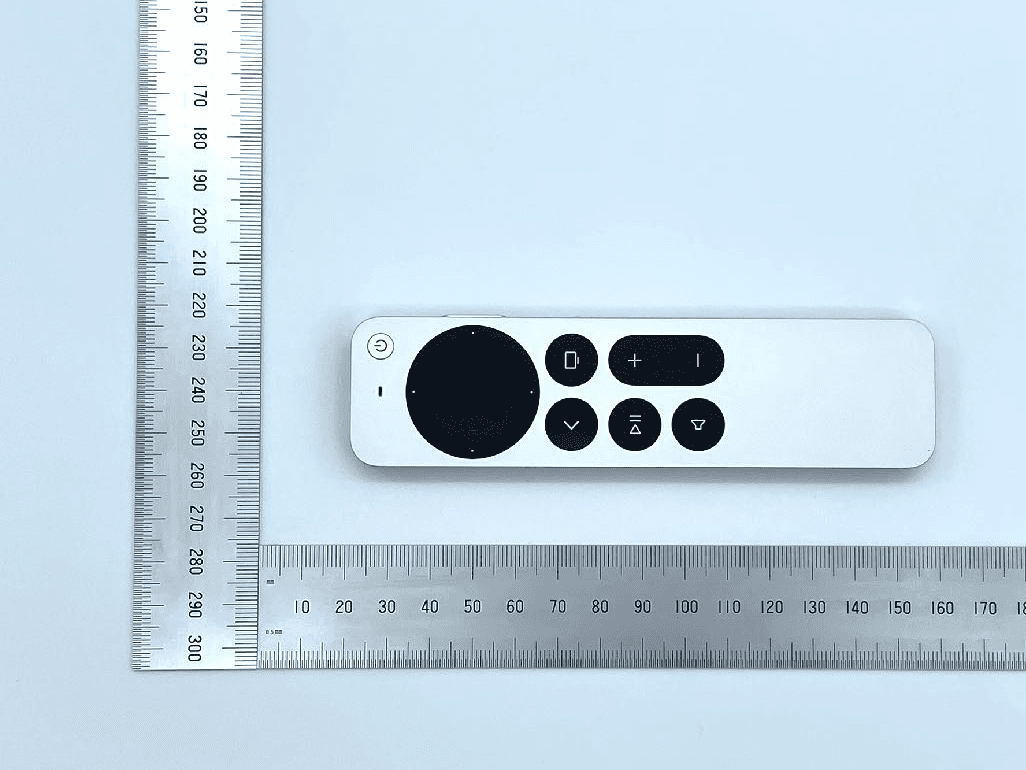

A2540 Front View Apple Proprietary and Confidential A2540 Back Plate Apple Proprietary and Confidential A2540 Face Down- Right Side Apple Proprietary and Confidential A2540 Face Down, Bottom View- Lightning connector Apple Proprietary and Confidential A2540 Side Left - Microphone Apple Proprietary and Confidential A2540 Face Down- Top view Apple Proprietary and Confidential

A2540 Label Artwork NOTICE OF PROPRIETARY P ROPERTY. THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY PROPERTY OF APPLE INC. THE POSSESSOR AGREES TO THE FOLLOWING: (i) TO MAINTAIN THIS DOCUMENT IN CONFIDENCE, (ii) NOT TO REPRODUCE OR COPY IT (iii) NOT TO REVEAL OR PUBLISH IT IN WHOLE OR PART. Enlarged 250 % 0.06 £ � 5. 4 5 ·I �Designed by App e In California Assembled in China Model A2540 5V==0.5A EMC 3732 FCC ID: BCGA2540 IC: 579C-A2540 Serial Number OesignedbyAPPleinCalifornia AssembledlnChlnaModelA25405V=0.5A EMC3732FCCID:BCGA2540 IC:579C-A2540 i I "T' I I 35.00 23.78 DesignedbyAooleinCallfoffii� AssembledlnChinaModelA25405V=0.5A EMC3732FCCID:BCGA2540 IC:579C-A2540 Serial.Numbeqree'J'.WSSSCCC .!.. ------.- 5.35 l- 6.61 l- 6. 4 5 136.0 The product PMN can be found in the User Guide

A2540 Exploded Assembly View Apple Proprietary and Confidential A2540 PCB covering plate and battery pack front Apple Proprietary and Confidential A2540 PCB covering plate and battery pack Back view Apple Proprietary and Confidential A2540 PCB Back View Apple Proprietary and Confidential A2540 PCB Front View BTLE Antenna Apple Proprietary and Confidential

UL International (UK) Ltd Units 1-3 Horizon, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 This laboratory is accredited by the United Kingdom Accreditation Service (UKAS). UKAS is one of the signatories to the International Laboratory Accreditation Co-operation (ILAC) Arrangement for the mutual recognition of test reports. The tests reported herein have been performed in accordance with its terms of accreditation. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL International (UK) Ltd is under license. Other trademarks and trade names are those of their respective owners. TEST REPORT Test Report No. : UL-EMC-RP13727985JD18B Manufacturer : Apple Inc. Type of Equipment : Information Technology Equipment (ITE) Model No. / HVIN : A2540 PMN : Siri Remote FCC ID : BCGA2540 ISED Canada Certification No. : 579C-A2540 Test Standard : 47CFR15.107, 47CFR15.109 and ICES-003 Issue 6 January 2016 Test Result : Complied 1. This report may not be reproduced except in full, without the written approval of UL International (UK) Ltd. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above standards. 4. The test results in this report are traceable to the national or international standards. Date of issue: 07 April 2021 Checked by: Adam Brown Test Engineer Company Signatory: Matthew Owen Operations Leader Report Serial No: UL-EMC-RP13727985J D18B Page 2 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 This page has been intentionally left blank. Report Serial No: UL-EMC-RP13727985J D18B Page 3 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 TABLE OF CONTENTS 1. Customer Details ................................................................................................................ 5 2. Summary of Testing ........................................................................................................... 6 3. Equipment under Test (EUT) ............................................................................................. 7 4. Support Equipment............................................................................................................. 8 5. Measurement Uncertainty and Decision Rule ................................................................. 9 6. Measurements, Examinations and Derived Results ..................................................... 10 7. Graphical Test Results ..................................................................................................... 15 8. Test Configuration Drawing ............................................................................................ 20 9. Report Revision History ................................................................................................... 22 Report Serial No: UL-EMC-RP13727985J D18B Page 4 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 This page has been intentionally left blank. Report Serial No: UL-EMC-RP13727985J D18B Page 5 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 1. CUSTOMER DETAILS Company Name: Apple Inc. Address: 1 Apple Park Way Cupertino CA 95014 USA Contact Name: Stuart Thomas Report Serial No: UL-EMC-RP13727985J D18B Page 6 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 2. SUMMARY OF TESTING 2.1. Test Specification 1. Reference: 47CFR15.107 and 47CFR15.109 Title: Code of Federal Regulations - Title 47 (Telecommunication): Part 15 (Radio Frequency Devices) - Subpart B (Unintentional Rad iato rs) – Sections 15.107 and 15.109 October 1, 2020 Edition (including all applicable amendments up to March 26 2021 2. Reference: ICES-003 Issue 6 January 2016 Title: Information Technology Equipment (Including Digital Apparatus) – Limits and Methods of Measurement Site Registration: FCC: 621311 / UK2011 ISED Canada: 20903 / UK0001 2.2. Summary of Test Results FCC Reference IC Reference Measurement Type Result 15.107 6.1 Co nducted Emissions (AC Mains Input / Output Ports) Complied 15.109 6.2 Radiated Emissions (Enclosure) Complied 2.3. Location of Testing All the measurements described in this report were perf ormed at the premises of UL International (UK) Ltd, Unit 1 Ho rizo n, Wade Road, Kingsland Business Park, Basingstoke, Hampshire RG24 8AH. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations f ro m, additions to, or exclusions f rom the test specif ication identif ied above, nor f rom the requirements def ined in the basic standard s called up within it. Report Serial No: UL-EMC-RP13727985J D18B Page 7 of 22 Issue date: 07 APRIL 2021 UL International (UK) Ltd, Unit 1-3 Ho rizo n, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK. Telephone: +44 (0)1256 312000 , Facsimile: +44 (0)1256 312001 3. EQUIPMENT UNDER TEST (EUT) 3.1. Description of EUT The EUT is a Bluetooth Low Energy remote control for an Apple TV 3.2. Identification of Equipment under Test (EUT) ID# Description Brand Name Model No Serial No E1 Bluetooth Remo te Apple A2540 C08FF28U15J6 3.3. Port Identification Port Descripti…

Text truncated - open the document above for the full version.

Report Serial No: UL-EMC-RP13727985J D18B Page 1 of 5 Issue date: 07 APRIL 2021 1. PHOTOGRAPHS OF EUT 1.1.This section contains the following photographs: Photo Reference Number Title PHT\13727985JD18\001 Test Conf iguration Photograph - Radiated Emissions 001 PHT\13727985JD18\002 Test Conf iguration Photograph - Radiated Emissions 002 PHT\13727985JD18\003 Test Conf iguration Photograph - Conducted Emissions 001 PHT\13727985JD18\004 Test Conf iguration Photograph - Conducted Emissions 002 Report Serial No: UL-EMC-RP13727985J D18B Page 2 of 5 Issue date: 07 APRIL 2021 PHT\13727985JD18\001 - Test Configuration Photograph - Radiated Emissions 001 Report Serial No: UL-EMC-RP13727985J D18B Page 3 of 5 Issue date: 07 APRIL 2021 PHT\13727985JD18\002 - Test Configuration Photograph - Radiated Emissions 002 Report Serial No: UL-EMC-RP13727985J D18B Page 4 of 5 Issue date: 07 APRIL 2021 PHT\13727985JD18\003 - Test Configuration Photograph - Conducted Emissions 001 Report Serial No: UL-EMC-RP13727985J D18B Page 5 of 5 Issue date: 07 APRIL 2021 PHT\13727985JD18\004 - Test Configuration Photograph - Conducted Emissions 002
