Safety and Handling Important Safety Information Handle Beats Studio Buds + and case with care. They contain sensitive electronic components, including batteries, and can be damaged, impair functionality, or cause injury if dropped, burned, punctured, crushed, disassembled, or if exposed to excessive heat or liquid or to environments having high concentrations of industrial chemicals, including near evaporating liquefied gasses such as helium. Don’t use damaged Beats Studio Buds + or case. Batteries Don’t attempt to replace Beats Studio Buds + or case batteries yourself—you may damage the batteries, which could cause overheating and injury. Charging Charge the case with the USB-C charging cable and a power adapter or computer. Only charge with an adapter that is compliant with USB and applicable country regulations and international and regional safety standards. Other adapters may not meet applicable safety standards, and charging with such adapters could pose a risk of death or injury. Using damaged cables or chargers, or charging when moisture is present, can cause fire, electric shock, injury, or damage to the case or other property. Prolonged Heat Exposure Avoid prolonged skin contact with a device, its power adapter, and the charging cable and connector when plugged into a power source, because it may cause discomfort or injury. For example, while the case is charging using the charging cable and a power adapter, don’t sit or sleep on the case, charging cable, connector, or power adapter, or place them under a blanket, pillow, or your body. Take special care if you have a physical condition that affects your ability to detect heat against your body. Hearing Loss Listening to sound at high volumes may permanently damage your hearing. Background noise, as well as continued exposure to high volume levels, can make sounds seem quieter than they actually are. Check the volume before inserting Beats Studio Buds + in your ear. For more information about hearing loss and how to set a maximum volume limit, see apple.com/sound. WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods. Driving Hazard Use of Beats Studio Buds + while operating a vehicle is not recommended and is illegal in some areas. Check and obey the applicable laws and regulations on the use of earphones while operating a vehicle. Be careful and attentive while driving. Stop listening to your audio device if you find it disruptive or distracting while operating any type of vehicle or performing any activity that requires your full attention. câbles blindés conformes entre les composants du système. Il est important d’utiliser des appareils périphériques et des câbles blindés conformes entre les composants du système pour réduire la possibilité de causer de l’interférence aux radios, aux téléviseurs et à d’autres appareils électroniques. Partie responsable (contacter pour les questions reliées à la Commission fédérale des communications seulement) : Apple Inc. One Apple Park Way, MS 911-AHW Cupertino, CA 95014, États-Unis apple.com/ca/fr/contact Reconnaissances opensource.apple.com/beats Sommaire de la Garantie Limitée d’un an d’Apple Apple garantit le matériel et les accessoires inclus contre les défauts de matériaux et de fabrication pendant un an à compter de la date d’achat au détail d’origine. Apple ne garantit pas l’usure normale ni les dommages causés par un accident ou un usage abusif. Pour obtenir ce service, appelez Apple ou visitez une boutique Apple Store ou un fournisseur de services autorisé Apple. Les options de service disponibles dépendent du pays dans lequel le service est requis et elles peuvent être limitées au pays de vente d’origine. Des frais d’appel et d’expédition internationale peuvent s’appliquer, selon votre emplacement. Cette garantie est assujettie à l’ensemble des conditions et aux renseignements détaillés sur l’obtention du service disponible à l’adresse apple.com/ca/ fr/legal/warranty et support.apple.com. Si vous soumettez une réclamation valide en vertu de la présente garantie, Apple réparera, remplacera ou remboursera votre appareil à sa discrétion. Les avantages offerts par la présente garantie s’ajoutent aux droits prévus en vertu des lois locales pour le consommateur. Vous devrez peut-être fournir une preuve d’achat lorsque vous faites une réclamation en vertu de la présente garantie. The b logo, beats and beats studio buds are t rademarks of Beats Electronics, LLC. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Apple Inc. is under license. © 2023 Apple Inc. All rights reserved. M odel: A2870, A2871, A2872 79,4 158,8 79,4 79,25 Page 1Page 8 A2871 A2872 User Manual Apple Proprietary and Confidential your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For information about Apple’s recycling program, recycling collection points, restricted substances, and other environmental initiatives, visit apple.com/environment. Battery Disposal Information Dispose of batteries according to your local environmental laws and guidelines. The lithium-ion batteries in your Beats Studio Buds + and battery in the case should be serviced or recycled by Apple or an authorized service provider, and disposed of separately from household waste. For information about Apple lithium-ion batteries, go to apple.com/batteries. FCC and ISED Canada Compliance This device complies with part 15 of the FCC Rules and ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, p…

Text truncated - open the document above for the full version.

Quick Pairing: Open Lid & Keep Earbuds Seated in Case Pareamento rápido: Abra a tampa e deixe os fones no estojo / Enlace rápido: Abre el estuche y mantén ahí los audífonos Button Controls for Either Earbud Botão de controle em cada fone / Botones de control en los audífonos Guia completo do produto / Guía completa del producto 12 BE034-05244-A A2871, A2872, A2870 Product Guide

 Date: December 5 th , 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Equipment Authorization Branch Ref: FCC ID numbers Model(s) FCC ID A2872 BCGA2872 A2871 BCGA2871 To whom it may concern: I, the undersigned, hereby authorize Element Materials Technology Morgan Hill to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Element Materials Technology Morgan Hill on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Element Materials Technology Morgan Hill as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted;  d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Abhishek Rala Apple Inc. Global Certification Manager [email protected]

Apple Park, Cupertino, CA 95014 March 17, 2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: BCGA2871, BCGA2872 Apple Inc. (“Apple”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Apple certifies that, as of the date of the filing of the application, the Apple is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely, Abhishek Rala Global Certification Manager Apple Inc.

Apple Park, Cupertino, CA 95014 March 17, 2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation Grantee Code: BCG To whom it may concern: Apple Inc. (“Apple”) as required by section §2.911(d)(7), will also serve as the agent for service of process for the above referenced grantee code. Apple acknowledges that it will maintain an agent for no less than one year after the Apple has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Apple further acknowledges its responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. Contact person: Abhishek Rala Company name: Apple Inc. FCC FRN: 0005899216 Company Address: One Apple Park Way, Cupertino, CA 95014 Email: [email protected] Sincerely, Abhishek Rala Global Certification Manager Apple Inc.

 Apple Inc. One Apple Park Way Cupertino, CA v1.0 www.apple.com Date: December 5 th , 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality Ref: FCC ID numbers Model(s) FCC ID A2872 BCGA2872 A2871 BCGA2871 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Electrical Schematic Diagrams • Technical Descriptions, Product Specifications • Antenna Gain, Antenna Locations. These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device.  Apple Inc. One Apple Park Way Cupertino, CA v1.0 www.apple.com Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, ____________________ Abhishek Rala Apple Inc. Global Certification Manager [email protected]

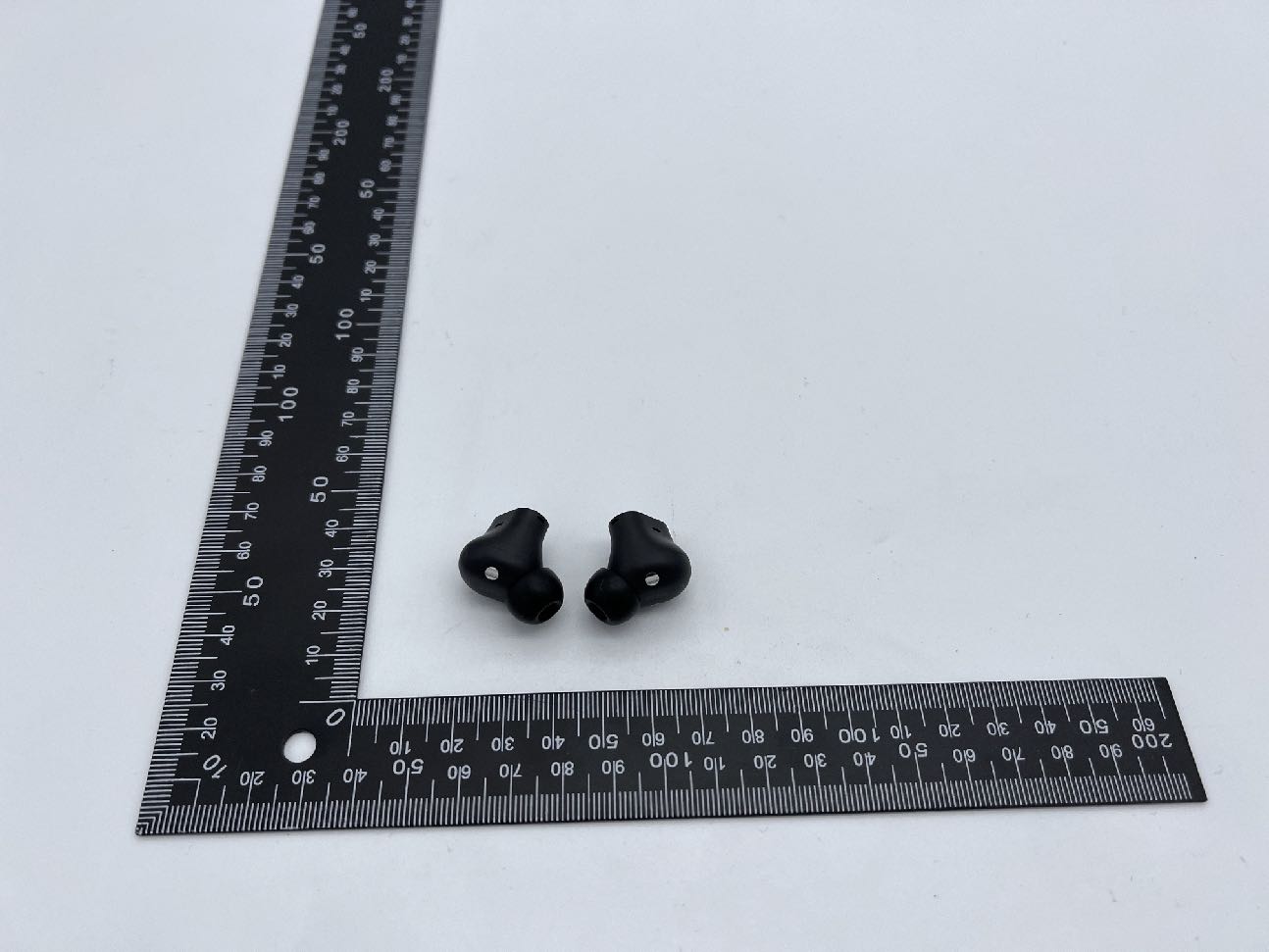

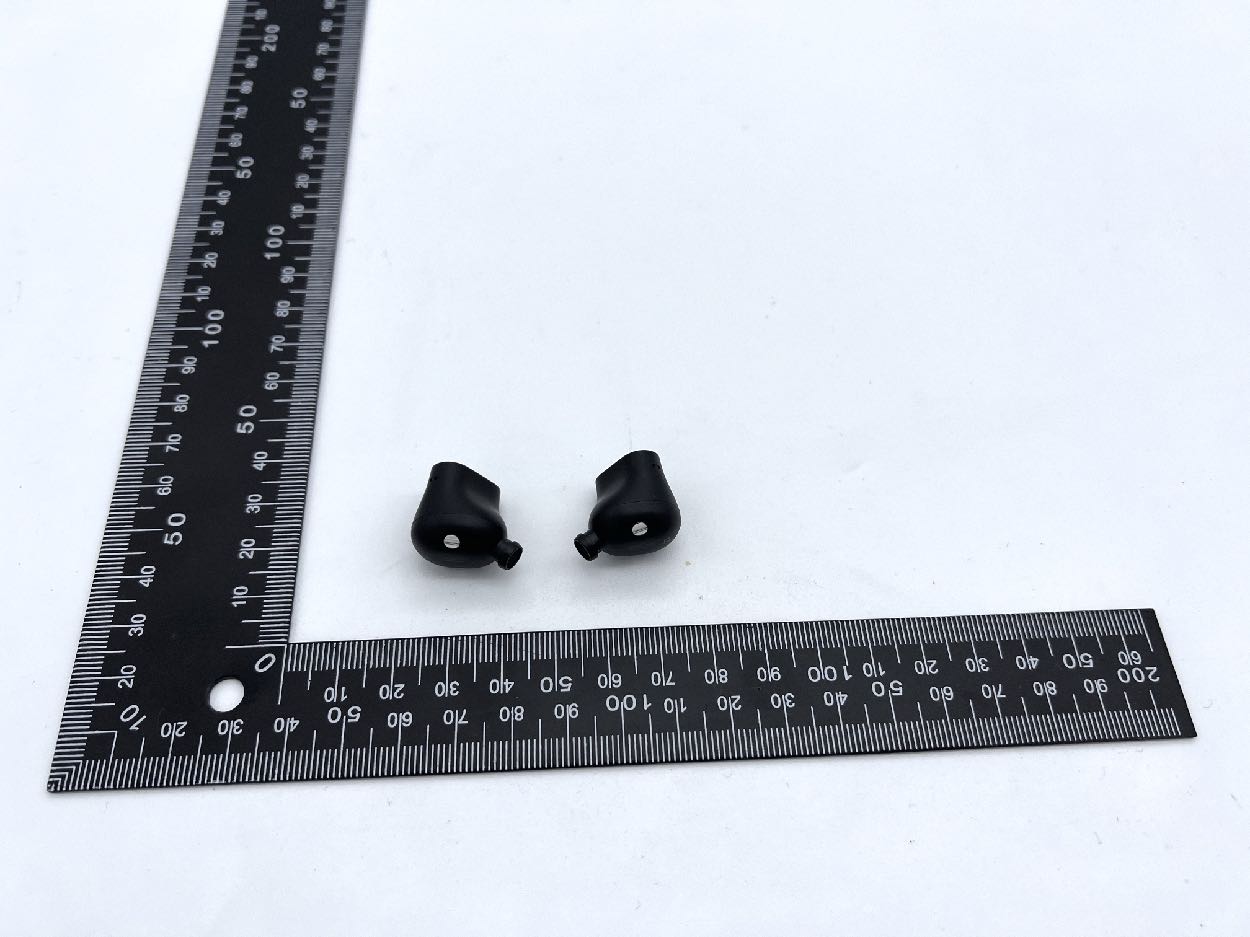

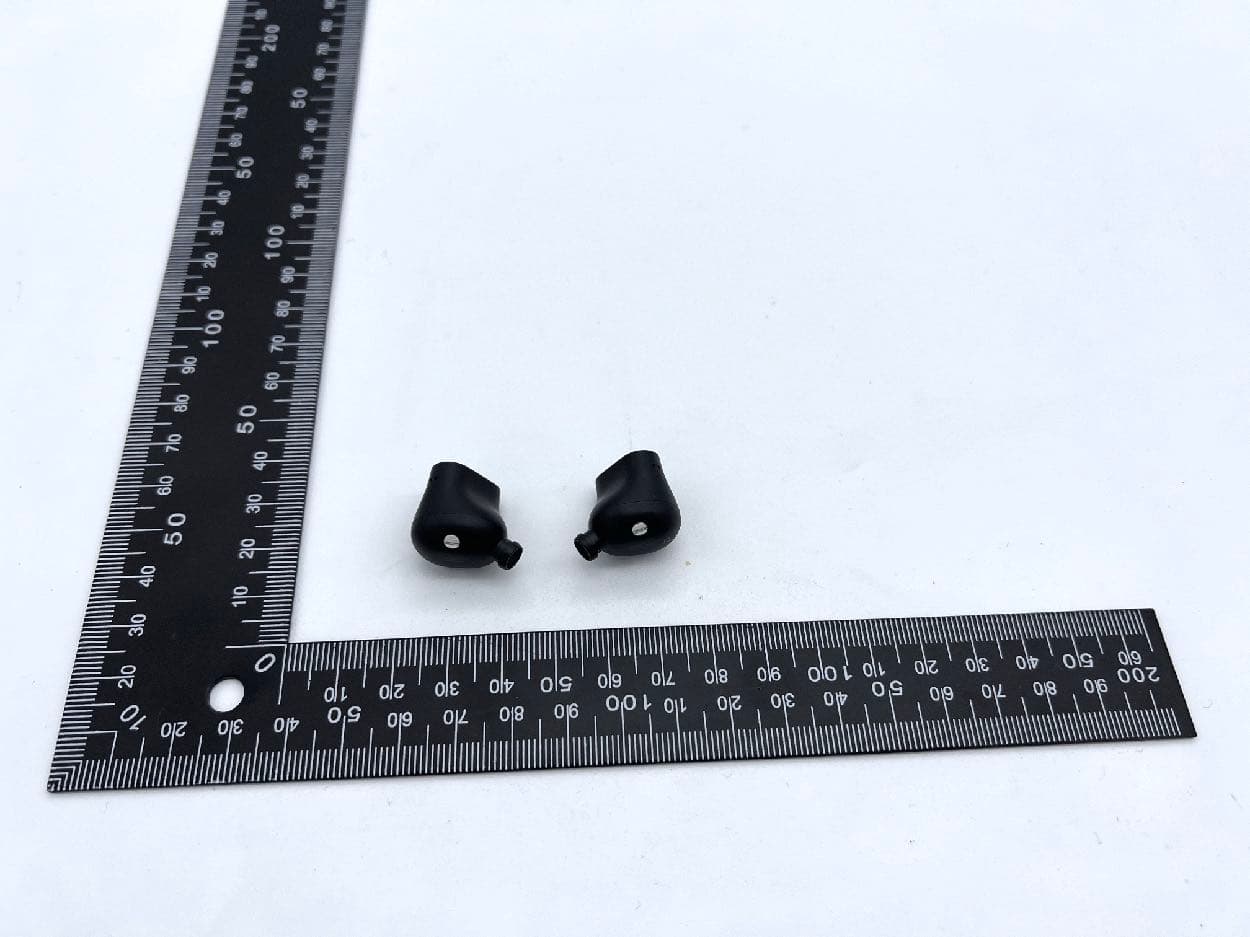

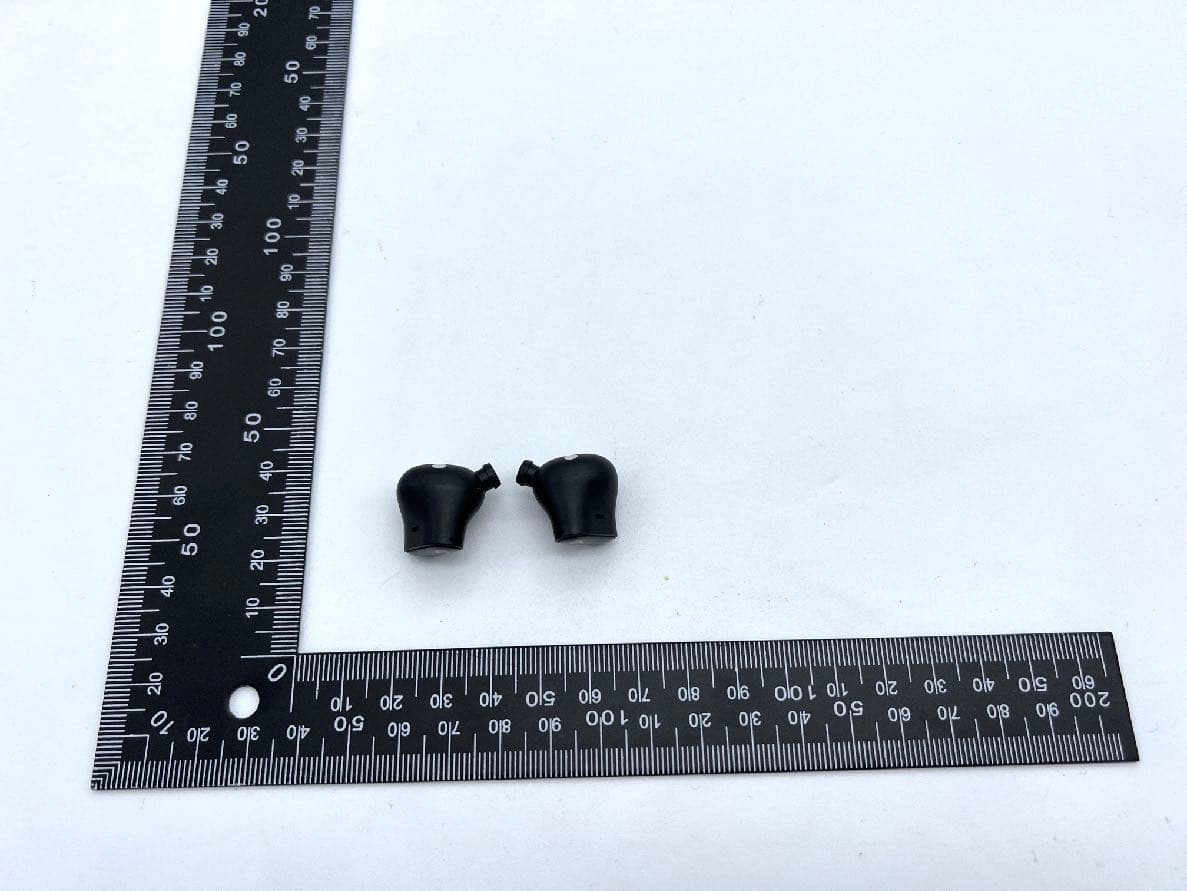

Top View A2871, A2872 Back View A2872, A2871 A2871, A2872 Bottom Upside- No ear tips Bottom side, No ear tips A2871, A2872

Label 4pt font is not achievable due to product dimensions. Pursuant to FCC KDB 784748 D01 section 3, certification numbers are included in user guide and model numbers are located on the product label of each earbud. Below is an excerpt of the user guide. One Apple Park Way, Cupertino, CA 95014 USA

Top view of Antenna/MLB open A2871, A2872 Apple Proprietary and Confidential Back view of Antenna/MLB open A2871, A2872 Apple Proprietary and Confidential Faceplate and Voice Mic Port- Top View A2871, A2872 Apple Proprietary and Confidential Faceplate and Voice Mic Port- Back View A2871, A2872 Antenna Flex Apple Proprietary and Confidential MLB - Front View A2871, A2872 Apple Proprietary and Confidential A2871, A2872 MLB - Back View Apple Proprietary and Confidential A2871, A2872 Battery- Front View Apple Proprietary and Confidential A2871, A2872 Battery- Back View Apple Proprietary and Confidential

FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 1 of 21 1C2211040069-03.BCG Wireless Earbud REV 22.0 03/30/2022 Unless otherw ise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, w ithout permission in w riting from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Apple Inc. 12/14/2022 One Apple Park Way Test Site/Location: Cupertino, CA 95014 USA Element, Morgan Hill, CA, USA Document Serial No.: 1C2211040069-03.BCG F CC I D: BCG A2871 APPL I CANT : APPL E, I NC. DUT Type: Wireless Earbud Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: A2871 This wireless portable device has been shown to be capable of compliance f or localized specif ic absorption rate (SAR) f or uncontrolled environment/general population exposure limits specif ied in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specif ied in Section 1.6 of this report; f or North American f requency bands only. I attest to the accuracy of data. All measurements reported herein were perf ormed by me or were made under my supervision and are correct to the best of my knowledge and belief . I assume f ull responsibility f or the completeness of these measurements and vouch f or the qualif ications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body- Worn (W/kg) DSS/DTS Bluetooth 2402 - 2480 MHz 0.92 0.46 Equipment Class Band & Mode Tx Frequency SAR ELEMENT MATERIALS TECHNOLOGY Morgan Hill 18855 Adams Court, Morgan Hill, CA 95037, USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com SAR EVALUATION REPORT FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 2 of 21 1C2211040069-03.BCG Wireless Earbud REV 22.0 03/30/2022 Unless otherw ise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, w ithout permission in w riting from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST .......................................................................................................................3 2 INTRODUCTION ................................................................................................................................5 3 DOSIMETRIC ASSESSMENT .............................................................................................................6 4 TEST CONFIGURATION POSITIONS .................................................................................................7 5 RF EXPOSURE LIMITS ......................................................................................................................8 6 FCC MEASUREMENT PROCEDURES ...............................................................................................9 7 RF CONDUCTED POWERS ............................................................................................................. 10 8 SYSTEM VERIFICATION.................................................................................................................. 12 9 SAR DATA SUMMARY ..................................................................................................................... 14 10 SAR MEASUREMENT VARIABILITY ................................................................................................. 16 11 EQUIPMENT LIST ............................................................................................................................ 17 12 MEASUREMENT UNCERTAINTIES .................................................................................................. 18 13 CONCLUSION ................................................................................................................................. 19 14 REFERENCES ................................................................................................................................. 20 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: SAR TISSUE SPECIFICATIONS APPENDIX D: SAR SYSTEM VALIDATION APPENDIX E: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS APPENDIX F: PROBE AND DIPOLE CALIBRATION CERTIFICATES FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 3 of 21 1C2211040069-03.BCG Wireless Earbud REV 22.0 03/30/2022 Unless otherw ise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, w ithout permission in w riting from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 D E V I C E U N D E R T E S T 1.1 Device Overview 1.2 Power Reduction for SAR There is no power reduction used for any band/mode implemented in this device for SAR purposes. 1.3 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v06. 1.3.1 Maximum Output Power 1.4 DUT Antenna Locations Based on t…

Text truncated - open the document above for the full version.

A P P E N D I X A : S A R T E S T D A T A A1 ELEMENT DUT: BCGA2871; Type: Wireless Earbud; Serial: FL6JN0P424FH Communication System: UID:10032 - CAA, Bluetooth; MAIA: Y; Frequency: 2480.0 MHz Medium: 2450 Head; Medium parameters used: f = 2480.0 MHz; cond = 1.78 S/m; perm = 38.5; density = 1000 kg/m 3 Phantom Section: Flat; Space: 0.00 mm Test Date: 12/14/2022; Ambient Temp: 21.5°C; Tissue Temp: 20.6°C Probe: EX3DV4 - SN7420; ConvF:(7.33,7.33,7.33); Calibrated: 2022-10-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1333; Calibrated: 2022-10-13 Phantom: Twin-SAM V8.0; Serial: 1736 Measurement SW: DASY Module SAR V16.2.0.1425 Mode: Bluetooth, Head SAR, Ch. 78, 1 Mbps, Ear-tip Side, Right Earbud Area Scan (80.0 x 80.0): Measurement grid: dx=10.0 mm, dy=10.0 mm Zoom Scan (36.0 x 36.0 x 30.0): Measurement grid: dx=4.5 mm, dy=4.5 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.53 W/kg; Power Drift = 0.00 dB Peak SAR (extrapolated) = 1.80 W/kg SAR (1 g) = 0.662 W/kg Smallest distance from peaks to all points 3 dB below is 5.3 mm Ratio of SAR at M2 to SAR at M1 = 76.9 % A2 ELEMENT DUT: BCGA2871; Type: Wireless Earbud; Serial: FL6JN0P424FH Communication System: UID:10032 - CAA, Bluetooth; MAIA: Y; Frequency: 2480.0 MHz Medium: 2450 Head; Medium parameters used: f = 2480.0 MHz; cond = 1.78 S/m; perm = 38.5; density = 1000 kg/m 3 Phantom Section: Flat; Space: 0.00 mm Test Date: 12/14/2022; Ambient Temp: 21.5°C; Tissue Temp: 20.6°C Probe: EX3DV4 - SN7420; ConvF:(7.33,7.33,7.33); Calibrated: 2022-10-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1333; Calibrated: 2022-10-13 Phantom: Twin-SAM V8.0; Serial: 1736 Measurement SW: DASY Module SAR V16.2.0.1425 Mode: Bluetooth, Body SAR, Ch. 78, 1 Mbps, Back side, Right Earbud Area Scan (80.0 x 80.0): Measurement grid: dx=10.0 mm, dy=10.0 mm Zoom Scan (34.8 x 34.8 x 30.0): Measurement grid: dx=2.9 mm, dy=2.9 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.18 W/kg; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.72 W/kg SAR (1 g) = 0.323 W/kg Smallest distance from peaks to all points 3 dB below is 3.7 mm Ratio of SAR at M2 to SAR at M1 = 49.1 %

A P P E N D I X B : SY S T E M V E R I F I C A T I O N B1 ELEMENT DUT: Dipole 2450.0 MHz; Type: D2450V2 - SN750 Communication System: UID: 0, CW; Frequency: 2450.0 MHz Medium: 2450 Head; Medium parameters used: f = 2450.0 MHz; cond = 1.76 S/m; perm = 38.6; density = 1000 kg/m 3 Phantom Section: Flat; Space: 10 mm Test Date: 12/14/2022; Ambient Temp: 21.5°C; Tissue Temp: 20.6°C Probe: EX3DV4 - SN7420; ConvF:(7.33,7.33,7.33); Calibrated: 2022-10-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1333; Calibrated: 2022-10-13 Phantom: Twin-SAM V8.0; Serial: 1736 Measurement SW: DASY Module SAR V16.2.0.1425 2450 MHz System Verification at 20 dBm (100 mW) Area Scan (40.0 x 80.0): Measurement grid: dx=10.0 mm, dy=10.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=5.0 mm, dy=5.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 11.2 W/kg SAR (1 g) = 5.30 W/kg Deviation (1 g) = 0.76%

FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 1 of 3 Wireless Earbud A P P E N D I X C : S A R T I S S U E S P E C I F I C A T I O N S FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 2 of 3 Wireless Earbud Measurement Procedure for Tissue verification: 1) The network analyzer and probe system were configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, ,  is the angular frequency, and . Figure C-1 Note: Liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data sheets are provided below. ( )          −  = b a b a r r d d d r r j a b j Y            0 2 / 1 0 ' 0 2 0 ) ( exp cos ln 2        −  + = cos 2 2 2 2 r 1 − = j FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX C: Page 3 of 3 Wireless Earbud Figure C-2 600 – 10000 MHz Head Tissue Equivalent Matter

FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 1 of 2 Wireless Earbud A P P E N D I X D : S A R S Y S T E M V A L I D A T I O N FCC ID: BCGA2871 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 2 of 2 Wireless Earbud Per FCC KDB Publication 865664 D02v01r02, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB Publication 865664 D01v01r04 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. Table D-1 SAR System Validation Summary – 1g NOTE: While the probes have been calibrated for both CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01r04 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as GMSK, or with a high peak to average ratio (>5 dB), such as OFDM according to FCC KDB Publication 865664 D01v01r04. SENSITIVITY PROBE LINEARITY PROBE ISOTROPY MOD. TYPE DUTY FACTOR PAR AM1 2450 11/09/2022 7420 2450 Head 1.800 39.200 PASS PASS PASS OFDM/TDD PASS PASS Perm. (εr) CW VALIDATION MOD. VALIDATION SAR System Freq. (MHz) Date Probe SN Probe Cal Point Cond. (σ)

A P P E N D I X F : P R O B E A N D D I P O L E C A L I B R A T I O N C E R T I F I C A T E S

FCC Part 15 Antenna Gain Test Report Apple Inc. Rev SHEET Version 1.0 Page 1 of 6 FCC Part 15 Antenna Gain Test Report Test Dates: 10/17/22 – 11/7/22 FCC Part 15 Antenna Gain Test Report Apple Inc. Rev SHEET Version 1.0 Page 2 of 6 Table of Contents 1. Scope .............................................................................................................................. 3 2. Reference Documents ...................................................................................................... 3 3. Test Personnel ................................................................................................................. 3 4. Test Equipment ............................................................................................................... 3 5. Commercial Test Software ............................................................................................... 3 6. Test Method .................................................................................................................... 4 7. Typical Test Setup ........................................................................................................... 5 8. Test results ...................................................................................................................... 6 9. Antenna Photos or Drawings ........................................................................................... 6 10. Antenna Description .................................................................................................... 6 11. Revision History ........................................................................................................... 6 FCC Part 15 Antenna Gain Test Report Apple Inc. Rev SHEET Version 1.0 Page 3 of 6 1. Scope This test report demonstrates compliance with the antenna gain reporting requirements of FCC 2.1033(b)(4), 15.203, 15.212. 2. Reference Documents FCC 2.1033(b)(4), 15.203, 15.212 3. Test Personnel Test personnel are valu…
