BEJ-LAMWBD1RF Module

RF Module user manual for Air conditioner Model name : LAMWBD1 Index 1.I n t r o d u c e.......................................................................................................................... . . . .3 1.1O u t l i n e...........................................................................................................................3 1.2K e yf e a t u r e s..................................................................................................................3 2.HardwareConfiguration................................................................................................................4 2.1 Block diagram................................................................................................................................... 4 2.2 Command information ........................................................................................................................... 4 2.3 Operating Conditions ........................................................................................................................... 4 2.4 Power Consumption .............................................................................................................................. 4 3.MT6631(WIFI/BT)ElectricalCharacteristic......................................................................................................5 3.1 Absolute Maximum Ratings ....................................................................................................................5 3.2 Recommended Operating Ratings ............................................................................................................5 3.3PowerConsumptionandSupplySpecifications.......................................................................................6 4.Antennainformationandperformance.......................................................................................................7 4.1Antennainformation....................................................................................................................7 4.2Antennaperformance(Dualband)........................................................................................................7 5.P I NC o n f i g u r a t i o n......................................................................................................................8 6.M o d u l es i z e......................................................................................................................9 7.R e g u l a t o r yS t a t e m e n t( F C C / I S E D )... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..........10. 1. Introduction 1.1 Outline The RF Module supports WIFI and Bluetooth communication based on the MT8385 (i500) of Mediatek. And WIFI / Bluetooth RF module is MT6631 It is designed to support video and voice recognition, camera and artificial intelligence processing, and display driving functions of large display products such as air conditioners and refrigerators, and it has the advantage of connecting various external devices by supporting multiple interfaces. It provides upgradeable content through Android OS, can be applied to home appliances that utilize large-screen displays, and provides scalability to connect with a variety of devices. For Wi-Fi, Dual-band (2.4GHz and 5GHz) 802.11a/b/g/n/ac support provides data transfer rates up to 433 Mbps. Bluetooth provides music streaming via Paring with other devices. 1.2 Key features 1. Core : Cortex-A73 [email protected], Cortex-A53 [email protected] 2. DIMPS : 56,800 (4.8/2.3DMIPS/MHz) 3. AI Performance : 0.75 TOPS (NPU+CPU+GPU), NPU Only : 0.53 TOPS 4. Security : ARM ® TrustZone® security 5. WLAN : IEEE 802.11b/g/n/ac 1X1 Dual band (2.4GHz and 5GHz) 6. Bluetooth : BDR/EDR/LE v4.1 7. Interface : USB3.0, UART, SPI, I2C, GPIO 8. Android OS basedupgradeable content delivery 9. Voice recognition: Refrigerator control through sever-based natural language voice recognition 10. Image recognition: There is a GPU block that can drive the display, so after processing the image signal, convert the MIPI signal into an LVDS signal, and drive the display 11. Input voltage: DC 12V, 19V 12. MIC, Speaker : Interface connection support for MIC and Speaker 2. Hardware Configuration 2.1 Block Diagram Figure 2-1 Public Block Diagram Product functions communicate through interfaces such as UART and USB. Check the block diagram in Fig2-1for interface of product function. 2.2 Command information RatingMin.Typ.Max.Unit Supply voltage 10.81213.2V 17.11920.9V WIFI /BT RFModuleOperating temperature-40+85 ° C 2.3 Operating Conditions 2.4 Power Consumption This is a measure of power consumption in a scenario used in the WIFI operating mode of the RF Module. Condtion: T amb =25 o C, V CC =19 V / 12V Max Output Power ＊Typ.Power consumptionComments 17.5dBm 19V205mA 802.11b 11Mbps 12V305mA 3. MT6631 (WIFI/BT) Electrical characteristic 3.1 Absolute Maximum Ratings ItemSpecificationRatingUnit AVDD33_WBTWIFI 3.3V supply for PA and Tx modulator-0.3 ~ 3.96V AVDD18_WBT1.8V supply of WIFI and Bluetooth radio-0.3 ~ 2.16V TSTGStoragetemperature-60 ~ 120 ̊C TAOperatingtemperature-40 ~ 85 ̊C 3.2 Recommended Operating Ratings ItemSpecificationMin.Typ.Max.Unit AVDD33_WBTWIFI 3.3V supply for PA and Tx modulator3.03.33.6V AVDD18_WBT1.8V supply of WIFI and Bluetooth radio1.621.81.98V TJ Commercialjunction operating temperature025115 ̊C Industry junction operatingtemperature-2025125 ̊C TAOperatingtemperature-402585 ̊C TSTGStoragetemperature-6025150 ̊C 3.3 Power Consumption and Supply Specifications ItemMin.Typ.Max.UnitNotes Output Voltage,VDD1.621.81.98V OutputCurrent150mA OutputNoise550nV/sqrt(Hz) PSRR40Db< 1 MHz Loadtransient-200200mV Transient slew rate 100mA/us Turn-onrising time10270usec10% →90% output voltage Power-offsetting time24ms90% → 10% outputvoltage 3.3.1 AVDD18 Specifications ItemMin.Typ.Max.UnitNotes Output Voltage3.33.6V OutputCurrent (Normal operation) 500mA OutputCurrent (Calibrat…

Text truncated - open the document above for the full version.

Date : Jul. 16, 2018 Rev : 3.2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 Modular Approval Declaration Letter Date : Jul. 16, 2018 Rev : 3.2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address (Obsolete) 01/10/2014 QM 3.0 Updated Template(Obsolete) 03/30/2015 QM 3.1 Updated Address 06/21/2018 QM 3.2 Changed File Name and Split Files FCC/IC 7/16/2018 QM HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 Date : December 8, 2022 FCC Modular Approval Attestation FCC ID: is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Product Information Product Description: RF Module FRN: 0023476120 Model Name(s): LAMWBD1 FCC Product ID: - FCC Module ID: BEJ-LAMWBD1 Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement.  The modular transmitter must have its own shielding.  The modular transmitter must have buffered modulation/data inputs.  The modular transmitter must have its own power supply regulation.  The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).  The modular transmitter must tested in a stand-alone configuration.  The modular transmitter must be labeled with its own FCC ID number.  The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements.  The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: Name / Title) Sung Soo Kim / Director, NA Regulatory and Environmental Affairs (Email Address) sungsoo.kim @lge.com (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey,United States HACS-F007-1 FCC Modular Approval Declaration Letter Rev : 3.2

LG Electronics USA DATE : January 03, 2023 To: Federal Communications Commission Authorization an d Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : Declaration for no non-US channel operation for FCC ID : BEJ-LAMWBD1 We, LG Electronics USA, declare that the device, FCC ID: BEJ- LAMWBD1 does not support operation on WLAN channels 12&13 in any operation mode in USA. US 2.4 GHz channel 12&13 and country code selection are disabled through proprietary software and not user changeable. If you have any question or comment regarding this declaration, please contact us. Thank you. Sincerely, Signed by: ((Name / Title) Sung Soo Kim / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-266-2215 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : January 3, 2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID: BEJ-LAMWBD1 We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name / Title) Sung Soo Kim / Director, NA Regulatory and Environmental Affairs (Email Address) sungsoo.kim @lge.com (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey,United States

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : 01/03/2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : BEJ-LAMWBD1 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Name / Title) Sung Soo Kim / Director, NA Regulatory and Environmental Affairs (Email Address) sungsoo.kim @lge.com (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey,United States

FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 4 EXTERNAL PHOTOGRAPHS FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 4 ■ EXTERNAL PHOTO FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 4 ■ EXTERNAL PHOTO FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 4 ■ EXTERNAL PHOTO

1.Brand : LG 2.Product Name : 3.Model Name : LAMWBD1 4.LG P/N : EBR386989xx (xx: Product code) 5.KC : R–C–LGE-LAMWBD1 6.FCC : BEJ-LAMWBD1 7.IC (ISED Certification Number) : 2703N-LAMWBD1 MADE IN KOREA, Indoor use only LAMWBD1_Label Drawing

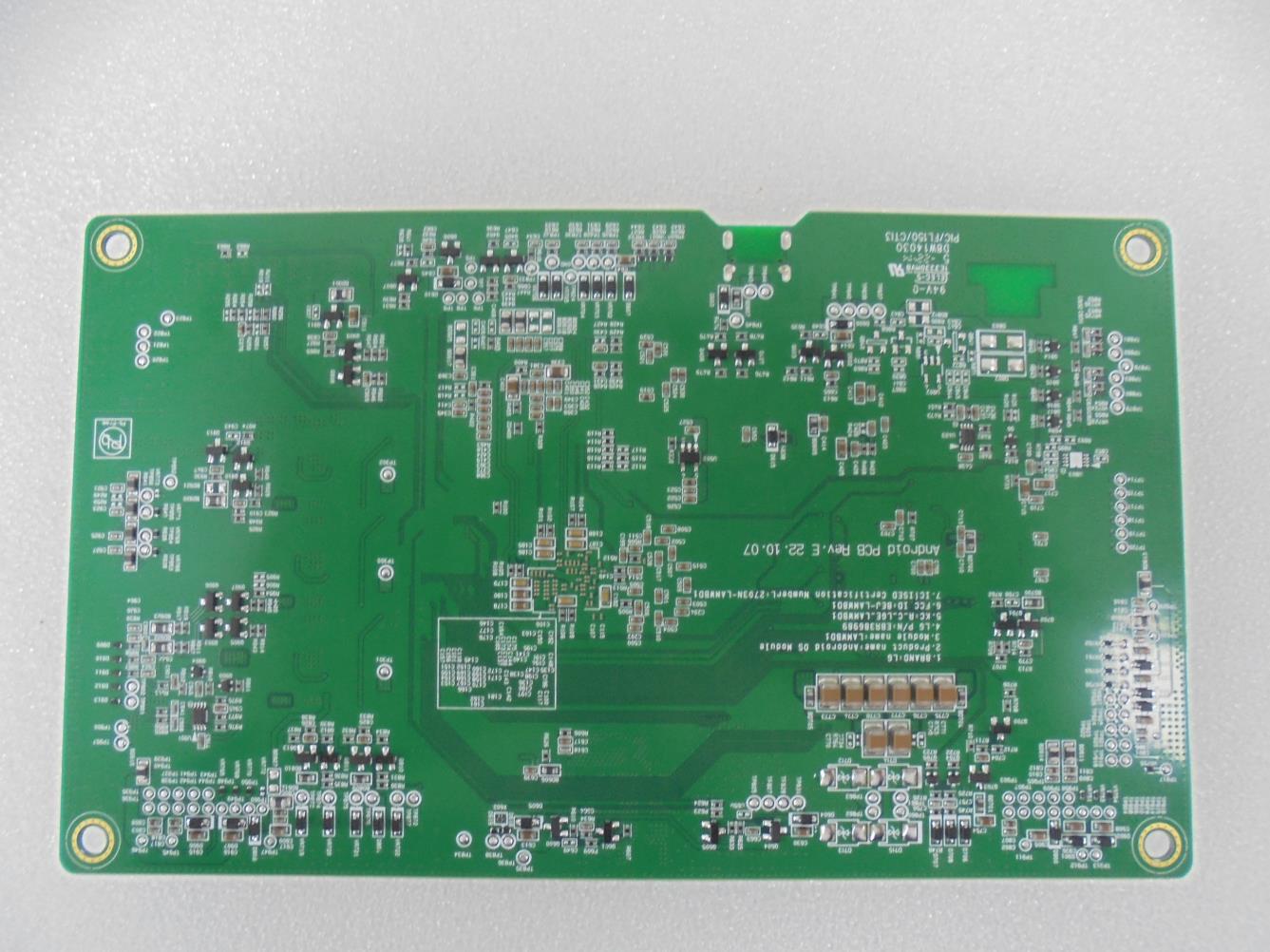

FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 4 INTERNAL PHOTOGRAPHS FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 4 ■ INTERNAL PHOTO FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 4 ■ INTERNAL PHOTO(Antenna) FCC ID: BEJ-LAMWBD1, IC: 2703N-LAMWBD1 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 4 ■ INTERNAL PHOTO(Antenna)

TEST REPORT FCC/ISED MPE Test for LAMWBD1 Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2212-FI005 DATE OF ISSUE December 9, 2022 Tested by Jin Gwan Lee Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 8 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 8 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC MPE Test for LAMWBD1 REPORT NO. HCT-RF-2212-FI005 DATE OF ISSUE December 09, 2022 Additional Model - ApplicantLG Electronics Inc. 170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 51533, Republic of Korea Eut Type Model Name RF Module LAMWBD1 FCC IDBEJ-LAMWBD1 Frequency range2 402 MHz ˊ 2 480 MHz (Bluetooth) 2 412 MHz ~ 2 462 MHz (WLAN) 5 180 MHz ~ 5 825 MHz (UNII) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 3 of 8 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 09, 2022 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 4 of 8 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.34 - 30 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 30 - 300 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 300 - 1500 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1500 - 100.000 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 614 824/f 27.5 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... 1.63 2.19/f 0.073 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance S=PG/4πR ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 5 of 8 3. RESULTS 3-1. Bluetooth Max Average output Power at antenna input terminal 8.00 dBm Max Average output Power at antenna input terminal 6.31 mW Prediction distance 20.00 cm Prediction frequency 2402 ˊ 2480 MHz Antenna Gain(typical) -0.10 dBi Antenna Gain(numeric) 0.977 - Power density at prediction frequency( S) 0.0012 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 7.90 (dBm) ERP 5.75 (dBm) ERP 0.004 (W) ERP Limit 3.00 (W) MARGIN 29.02 (dB) Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 6 of 8 3-1. BT LE Max Average output Power at antenna input terminal 4.50 dBm Max Average output Power at antenna input terminal 2.82 mW Prediction distance 20.00 cm Prediction frequency 2402 ˊ 2480 MHz Antenna Gain(typical) -0.10 dBi Antenna Gain(numeric) 0.977 - Power density at prediction frequency( S) 0.0005 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 4.40 (dBm) ERP 2.25 (dBm) ERP 0.002 (W) ERP Limit 3.00 (W) MARGIN 32.52 (dB) Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 7 of 8 3-1. DTS Max Average output Power at antenna input terminal 18.50 dBm Max Average output Power at antenna input terminal 70.79 mW Prediction distance 20.00 cm Prediction frequency 2412 ˊ 2462 MHz Directional Gain (typical) 1.18 dBi Directional Gain (numeric) 1.312 - Power density at prediction frequency( S) 0.0185 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 19.68 (dBm) ERP 17.53 (dBm) ERP 0.057 (W) ERP Limit 3.00 (W) MARGIN 17.24 (dB) Report No. HCT-RF-2212-FI005 F-TP22-03 (Rev. 04) Page 8 of 8 3-1. UNII Max Average output Power at antenna input terminal 15.00 dBm Max Average output Power at antenna input terminal 31.62 mW Prediction distance 20.00 cm Prediction frequency 5180 ˊ 5825 MHz Directional Gain (typical) 1.40 dBi Directional Gain (numeric) 1.380 - Power density at prediction frequency( S) 0.0087 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 16.40 (dBm) ERP 14.25 (dBm) ERP 0.027 (W) ERP Limit 3.00 (W) MARGIN 20.52 (dB) Worst Case: Simultaneous MPE 20cm is 2.4G WLAN (0.0185) + BT (0.0012) = 0.0197 < 1 5G WLAN (0.0087) + BT (0.0012) = 0.0099 < 1

TEST REPORT FCC/ISED BT Test for LAMWBD1 Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2211-FI008 DATE OF ISSUE December 8, 2022 Tested by Jin Gwan Lee Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 98 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 98 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC/ISED BT Test for LAMWBD1 REPORT NO. HCT-RF-2211-FI008 DATE OF ISSUE December 08, 2022 Additional Model - ApplicantLG Electronics Inc. 170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 51533, Republic of Korea Eut Type Model Name RF Module LAMWBD1 FCC ID IC BEJ-LAMWBD1 2703N-LAMWBD1 Max. RF Output Power7.110 dBm (5.14 mW) FCC ClassificationFCC Part 15 Spread Spectrum Transmitter FCC Rule Part(s) Part 15 subpart C 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 2 (February 2021) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2211-FI008 F-TP22-03 (Rev. 04) Page 3 of 98 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 08, 2022 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2211-FI008 F-TP22-03 (Rev. 04) Page 4 of 98 CONTENTS 1. EUT DESCRIPTION 5 2. Requirements for Bluetooth transmitter(15.247/ RSS-247) 6 3. TEST METHODOLOGY 7 EUT CONFIGURATION 7 EUT EXERCISE 7 GENERAL TEST PROCEDURES 7 DESCRIPTION OF TEST MODES 8 4. INSTRUMENT CALIBRATION 8 5. FACILITIES AND ACCREDITATIONS 8 FACILITIES 8 EQUIPMENT 8 6. ANTENNA REQUIREMENTS 9 7. MEASUREMENT UNCERTAINTY 10 8. DESCRIPTION OF TESTS 11 9. SUMMARY OF TEST RESULTS 34 10. TEST RESULT 35 10.1 PEAK POWER 35 10.2 BAND EDGES 41 10.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99 % BW) 48 10.4 NUMBER OF HOPPING FREQUENCY 56 10.5 TIME OF OCCUPANCY (DWELL TIME) 60 10.6 SPURIOUS EMISSIONS 66 10.6.1 CONDUCTED SPURIOUS EMISSIONS 66 10.6.2 RADIATED SPURIOUS EMISSIONS 74 10.6.3 RADIATED RESTRICTED BAND EDGES 84 10.7 RECEIVER SPURIOUS EMISSIONS 87 10.8 POWERLINE CONDUCTED EMISSIONS 88 11. LIST OF TEST EQUIPMENT 96 12. ANNEX A_ TEST SETUP PHOTO 98 Report No. HCT-RF-2211-FI008 F-TP22-03 (Rev. 04) Page 5 of 98 1. EUT DESCRIPTION Model LAMWBD1 Additional Model - EUT Type RF Module Power Supply DC 12.0 V / DC 19.0 V Frequency Range 2 402 MHz ˊ 2 480 MHz Max. RF Output Power 7.110 dBm (5.14 mW) BT Operating Mode Normal, EDR, AFH Modulation Type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) Modulation Technique FHSS Number of Channels 79 Channels, Minimum 20 Channels(AFH) Antenna Specification Pattern Antenna Peak Gain : -0.10 dBi Date(s) of Tests November 21, 2022 ~ December 6, 2022 PMN (Product Marketing Number) RF Module HVIN (Hardware Version Identification Number) LAMWBD1 FVIN (Firmware Version Identification Number) V1.0 HMN (Host Marketing Name) N/A EUT serial numbers Radiated : 060000000000 Conducted : 010000000000 Factory BEACON I&C Co., Ltd. 82-1 Anyangcheondong-ro, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea Report No. HCT-RF-2211-FI008 F-TP22-03 (Rev. 04) Page 6 of 98 2. Requirements for Bluetooth transmitter(15.247/ RSS-247) This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. ▪ RSS-247 5.1 (a): The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. Report No. HCT-RF-2211-FI008 F-TP22-03 (Rev. 04) Page 7 of 98 3. TEST METHODOLOGY The measureme…

Text truncated - open the document above for the full version.

Confidential Unit : mm NoITEMSpecification 1PCB40 * 8 (mm), FR4 1.0T, 1/2oz, single-side 2Adhesive tape100um, Blue PET 3CableØ 1.32mm, 350mm, Black color 4ConnectorCompatible RF connector, IPEX MHF I LK -Materials 2-1) Antenna VSWR : OTA condition 2-2) Antenna gain Table : OTA condition Frequency [MHz]Efficiency [%]Avg. Gain [dBi]Peak Gain [dBi] 240034.89-4.57-0.72 244238.76-4.12-0.10 248553.20-2.741.18 515021.21-6.74-2.45 550034.69-4.600.74 585038.86-4.101.40 2-3) Chamber & Measurement Instrument [E5071C] Passive measurement chamber -Size : 6 * 3 * 3 m (MTG) -Measuring instrument : E5071C (KESIGHT) [Passive Chamber] 2-4) 2D & 3D Radiatio…
