BEJ-LCWB002EARF Module

Usermanual PRODUCT NAME : Wi-Fi / BLE + MCU Module MODEL NAME : LCWB-002EA The information contained herein is the exclusive property of LG and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG. H/W version : V1.0 S/W version : V1.0 USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 2/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] Table of Contents NoDescriptionPage 1Features3 2Block Diagram3 3Absolute Maximum Ratings 4 4Operating Test Conditions 4 5Electrical Characteristics5 6Pin Description9 7Outline Drawing10 USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 3/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 1. Features LCWB-002EA is the module for IEEE 802.11b/g/n wireless LAN + BLE5.0 + MCU. LCWB-002EA is based on Realtek RTL8720CM solution. ▪IEEE 802.11 b/g/n HT20 single band WLAN infra-structure ▪Bluetooth Low Energy 5.0 (BLE5.0) ▪Size : 20 mm x 45 mm x 9.35 mm ▪Auto-calibration (RF, Crystal) ▪Data rates up to 72.2Mbps PHY rate ▪SPI interface ▪Integrated IPv4/IPv6 TCP/IP stack ▪Integrated Network services such as HTTP, DNS, FTP ▪Security : WFA, WPA, WPA2, WEP, WAPI, TKIP ▪Application : Home Appliance 2. Block Diagram RTL8720CM Interface Block MCU (Real M300) Clock (40MHz) ANT ROM 384KB DC-DC converter 5V / 12V 3.3V 802.11 b/g/n BLE5.0 MAC/BB Flash Memory (8MB) RAM 256KB PMU SPI JTAG LDO 3.3V1.8V pSRAM 4MB USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 4/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] ParameterMinMaxUnit Storage Temperature-40+100°C Storage Humidity (@ 40°C)-90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. •Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained Also, avoid exposure to moisture 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60% 3) Assemble the modules within 6 months Check the soldering ability in case of 6 months over 3. Absolute Maximum Ratings ParameterMinTypMaxUnit Operating Temperature 0-+85 °C Operating Humidity (40°C) --85 % Supply Voltage 4.55.05.5 Vdc 10.81213.2 4. Operating Test Conditions 1) Test condition : AP connection Ping test mode(not continuous Tx and T-Put mode) USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 5/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] ItemsContents SpecificationIEEE802.11b ModeDSSS / CCK Channel frequency 2400 ~ 2483MHz Data rate1, 2, 5.5, 11Mbps TX CharacteristicsMin.Typ.Max.Unit Power Level111417dBm Spectrum Mask 1 st side lobes ( to fc ±11MHz) ---30dBr 2 nd side lobes ( to fc ±22MHz) ---50dBr Modulation Accuracy (EVM)--35% Power On/Off ramp--2.0usec Freq. Tolerance-25-25ppm Chip Clock Freq. Tolerance-25-25ppm RX CharacteristicsMin.Typ.Max.Unit Minimum Input Level Sens. (FER ≤ 8%)---76dBm Maximum Input Level (FER ≤ 8%)-10--dBm 5. Electrical Characteristics 5-1. RF Characteristics for IEEE802.11b (11Mbps mode unless otherwise specified) * Normal Condition : 25°C, VDD=5V. * RF characteristics is board limit. It can differ according to standards USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 6/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] ItemsContents SpecificationIEEE802.11g ModeOFDM Channel frequency 2400 ~ 2483MHz Data rate6, 9, 12, 18, 24, 36, 48, 54Mbps TXCharacteristicsMin.Typ.Max.Unit Power Level111417dBm Spectrum Mask at fc ±11MHz ---20dBr at fc ±20MHz ---28dBr at fc ≥ ±30MHz ---40dBr Constellation Error (EVM)---25dB Freq. Tolerance-20-20ppm Chip Clock Freq. Tolerance-20-20ppm RX CharacteristicsMin.Typ.Max.Unit Minimum Input Level Sens. (PER ≤ 10%)---65dBm Maximum Input Level (PER ≤ 10%)-20--dBm 5-2. RF Characteristics for IEEE802.11g (54Mbps mode unless otherwise specified) * Normal Condition : 25°C, VDD=5V. * RF characteristics is board limit. It can differ according to standards USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 7/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 5-3. RF Characteristics for IEEE802.11gn (MCS7 mode unless otherwise specified) * Normal Condition : 25°C, VDD=5V. * RF characteristics is board limit. It can differ according to standards ItemsContents SpecificationIEEE802.11n –2.4GHz ModeOFDM Channel frequency 2400 ~ 2483MHz Data rate6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps TX CharacteristicsMin.Typ.Max.Unit Power Level (HT20: MCS7)111417dBm Spectrum Mask (HT20) at fc ±11MHz ---20dBr at fc ±20MHz ---28dBr at fc ±30MHz ---40dBr Constellation Error (EVM)---28dB Freq. Tolerance-20-20ppm Chip Clock Freq. Tolerance-20-20ppm RX CharacteristicsMin.Typ.Max.Unit Minimum Input Level Sens. (HT20,PER ≤ 10%) ---64dBm Maximum Input Level (PER ≤ 10%)-20--dBm USER MANUAL PAGE : REG. DATE : 2023. 03. 29 MODEL NAME :LCWB-002EA REV. NO : v1.0 8/ 10 REV. DATE : 2023. 03. 29 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 5-4. RF Characteristics for BLE * Normal Condition : 25°C, VDD=5V. * RF characteristics is board limit. It can differ according to standards TX characteristicsMin.Typ.Max.Unit Power level1.54.57.5dBm Adjacent…

Text truncated - open the document above for the full version.

LG Electronics USA Attestation Letter (Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7)) Date: 04-03-2023 FCC ID: BEJ-LCWB002EA To: Federal Communications Commission 7435 Oakl and Mills Road Columbia, MD 21046, USA We, LG El ectronics USA, as requested by FCC, are declaring that both requirements of Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7) are being satisfied likes below to the FCC requirements to protect the nation`s networks and supply chains from equipment (“covered” equipment) according to FCC 22-84 and KDB 986446 D01. 1.Section 2.911 (d)(5)(i)(ii)) 2.911 (d)(5)(i) We certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.911 (d)(5)(ii) And, we certifies that one of following, ☒ 1.We are not identified on the Covered List and are not an affiliate or subsidiary of an entity identified on the Covered List. ☐ 2.We are identified on the Covered List as an entity producing “covered” equipment. But, we can be authorized since the reason as explained below. ☐ 3.We are an affiliate or subsidiary of an entity identified on the Covered List. But, we can be authorized since the reason as explained below. *Only one of paragraphs 1, 2 or 3 should be checked, if checked on paragraphs 2 or 3, the reason why it does not include the “covered” equipment. 2.Section 2.911(d)(7) We, as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. We will maintain the agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. And we have t he responsibility to inform the FCC whenever the agent information changes. -. US Contact Name: Heejae Cho -. US Address: LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States -. Email: [email protected] Sincerely yours, Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs Company Name: LG Electronics USA * FRN: 0023476120

LG Electronics USA DATE :April 03, 2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : Declaration for no non-US channel operation for FCC ID : BEJ-LCWB002EA We, LG Electronics USA, declare that the device, FCC ID: BEJ-LCWB002EA does not support operation on WLAN channels 12&13 in any operation mode in USA. US 2.4 GHz channel 12&13 and country code selection are disabled through proprietary software and not user changeable. If yo u have any question or comment regarding this declaration, please contact us. Thank you. Sincerely, Signed by: Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : April 3, 2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID: BEJ-LCWB002EA We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. Thi s authorization is valid until further written notice from the applicant. Sincerely, Signed by: Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DAT E : 4/3/2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : BEJ-LCWB002EA We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sin cerely, Signed by: Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Jul. 16, 2018 Rev : 3.2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 Modular Approval Declaration Letter Date : Jul. 16, 2018 Rev : 3.2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address (Obsolete) 01/10/2014 QM 3.0 Updated Template(Obsolete) 03/30/2015 QM 3.1 Updated Address 06/21/2018 QM 3.2 Changed File Name and Split Files FCC/IC 7/16/2018 QM HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 1726 Ringwood Ave., San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 Date : April 03, 2023 FCC Modular Approval Attestation FCC ID: is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Product Information Product Description: RF Module FRN: 0023476120 Model Name(s): LCWB-002EA FCC Product ID: - FCC Module ID: BEJ-LCWB002EA Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement. The modular transmitter must have its own shielding. The modular transmitter must have buffered modulation/data inputs. The modular transmitter must have its own power supply regulation. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). The modular transmitter must tested in a stand-alone configuration. The modular transmitter must be labeled with its own FCC ID number. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: N ame / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States HACS-F007-1 FCC Modular Approval Declaration Letter Rev : 3.2

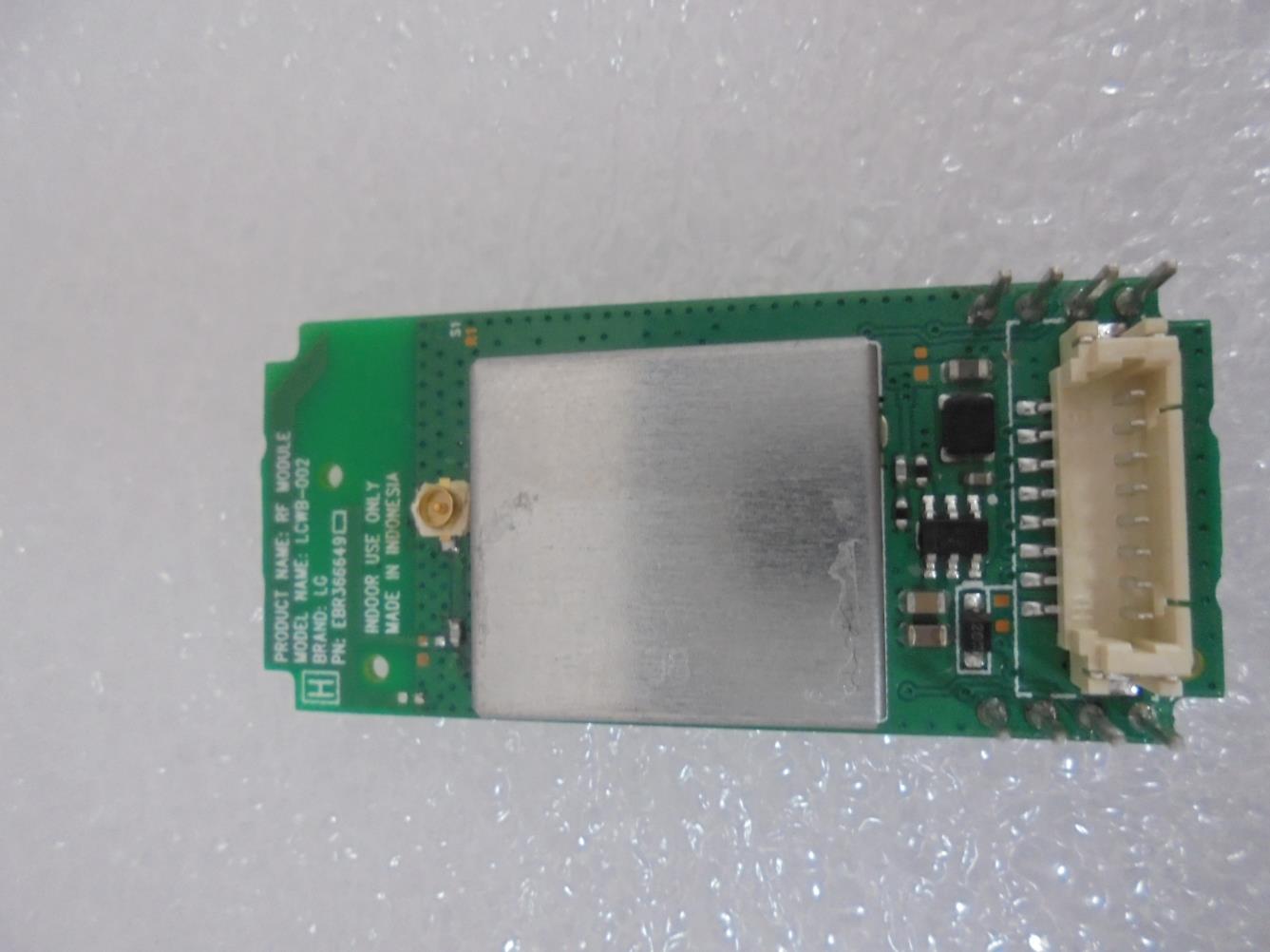

FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 5 EXTERNAL PHOTOGRAPHS FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 5 ■ EXTERNAL PHOTO Antenna FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 5 ■ EXTERNAL PHOTO FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 5 ■ EXTERNAL PHOTO FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 5 ■ EXTERNAL PHOTO

LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] LCWB-002EA PCB Silk Bottom silkTop silk

FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 2 INTERNAL PHOTOGRAPHS FCC ID, IC: BEJ-LCWB002EA, 2703N-LCWB002EA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 2 ■ INTERNAL PHOTO

TEST REPORT FCC MPE Test for LCWB-002EA Certification APPLICANT LG Electronics, Inc. REPORT NO. HCT-RF-2303-FI005 DATE OF ISSUE March 31, 2023 Tested by Chang Hee Hwang Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 6 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 6 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC MPE Test for LCWB-002EA REPORT NO. HCT-RF-2303-FI005 DATE OF ISSUE March 31, 2023 Additional Model - ApplicantLG Electronics Inc. 170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si Gyeongsangnam-do 51533 Republic of Korea Eut Type Model Name RF Module LCWB-002EA FCC IDBEJ-LCWB002EA Frequency range2 402 MHz ˊ 2 480 MHz (BT LE) 2 412 MHz ~ 2 462 MHz (WLAN) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2303-FI005 F-TP22-03 (Rev. 04) Page 3 of 6 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 31, 2023 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2303-FI005 F-TP22-03 (Rev. 04) Page 4 of 6 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.34 - 30 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 30 - 300 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 300 - 1500 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1500 - 100.000 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 614 824/f 27.5 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... 1.63 2.19/f 0.073 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance S=PG/4πR ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-2303-FI005 F-TP22-03 (Rev. 04) Page 5 of 6 3. RESULTS 3-1. BT LE Average output Power at antenna input terminal 7.500 dBm Average output Power at antenna input terminal 5.623 mW Prediction distance 20.000 cm Prediction frequency 2 402 ~ 2 480 MHz Antenna Gain(typical) 4.200 dBi Antenna Gain(numeric) 2.630 - Power density at prediction frequency( S) 0.0029 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 11.70 (dBm) ERP 9.55 (dBm) ERP 0.009 (W) ERP Limit 3.00 (W) MARGIN 25.22 (dB) Report No. HCT-RF-2303-FI005 F-TP22-03 (Rev. 04) Page 6 of 6 3-2. WLAN DTS Band (802.11b,g,n) Average output Power at antenna input terminal 17.000 dBm Average output Power at antenna input terminal 50.119 mW Prediction distance 20.000 cm Prediction frequency 2 412 ~ 2 462 MHz Antenna Gain(typical) 4.200 dBi Antenna Gain(numeric) 2.630 - Power density at prediction frequency( S) 0.0262 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 2.1091 EIRP 21.20 (dBm) ERP 19.05 (dBm) ERP 0.080 (W) ERP Limit 3.00 (W) MARGIN 15.72 (dB)

TEST REPORT FCC/ISED BT LE Test for LCWB-002EA Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2303-FI004 DATE OF ISSUE March 31, 2023 Tested by Chang Hee Hwang Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 57 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 57 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC/ISED BT LE Test for LCWB-002EA REPORT NO. HCT-RF-2303-FI004 DATE OF ISSUE March 31, 2023 Additional Model - ApplicantLG Electronics Inc. 170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si Gyeongsangnam-do 51533 Republic of Korea Eut Type Model Name RF Module LCWB-002EA FCC ID IC BEJ-LCWB002EA 2703N-LCWB002EA Max. RF Output Power5.180 dBm (3.30 mW) Modulation typeGFSK FCC ClassificationDigital Transmission System(DTS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 2 (February 2021) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2303-FI004 F-TP22-03 (Rev. 04) Page 3 of 57 REVISION HISTORY The re vision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 31, 2023 Initial Release Engin eering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this re port is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2303-FI004 F-TP22-03 (Rev. 04) Page 4 of 57 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 EUT CONFIGURATION 6 EUT EXERCISE 6 GENERAL TEST PROCEDURES 6 DESCRIPTION OF TEST MODES 7 3. INSTRUMENT CALIBRATION 7 4. FACILITIES AND ACCREDITATIONS 7 FACILITIES 7 EQUIPMENT 7 5. ANTENNA REQUIREMENTS 8 6. MEASUREMENT UNCERTAINTY 9 7. DESCRIPTION OF TESTS 10 8. SUMMARY TEST OF RESULTS 28 9. TEST RESULT 30 9.1 DUTY CYCLE 30 9.2 6dB BANDWIDTH & 99 % BANDWIDTH 31 9.3 OUTPUT POWER 35 9.4 POWER SPECTRAL DENSITY 36 9.5 BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS 38 9.6 RADIATED SPURIOUS EMISSIONS 46 9.7 RADIATED RESTRICTED BAND EDGES 50 9.8 RECEIVER SPURIOUS EMISSIONS 52 9.9 POWERLINE CONDUCTED EMISSIONS 53 10. LIST OF TEST EQUIPMENT 55 11. ANNEX A_ TEST SETUP PHOTO 57 Report No. HCT-RF-2303-FI004 F-TP22-03 (Rev. 04) Page 5 of 57 1. EUT DESCRIPTION Model LCWB-002EA Additional Model - EUT Type RF Module Power Supply DC 5.0 V / 12.0V Frequency Range 2 402 MHz ˊ 2 480 MHz Max. RF Output Power Peak 1M Bit/s : 5.180 dBm (3.30 mW) Average 1M Bit/s : 4.97 dBm (3.14 mW) Modulation Type GFSK Bluetooth Version 5.0 Number of Channels 40 Channels Antenna Specification Antenna type: PCB Antenna Peak Gain : 4.2 dBi Date(s) of Tests February 22, 2023 ~ March 30, 2023 EUT serial numbers Conduction : LCWB-002EA-001 Radiation : LCWB-002EA-002 PMN (Product Marketing Number) RF Module HVIN (Hardware Version Identification Number) LCWB-002EA FVIN (Firmware Version Identification Number) V1.0 HMN (Host Marketin g Name) N/A Report No. HCT-RF-2303-FI004 F-TP22-03 (Rev. 04) Page 6 of 57 2. TEST METHODOLOGY FCC KDB 558074 D01 15.247 Meas Guidance v05r02 dated April 02, 2019 entitled ˑguidance for compliance measurements on digital transmission system, frequency hopping spread spectrum system, and hybrid system devices and the measurement procedure described in ANSI C63.10(Version : 2013) ˎthe American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devicesˏ. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. / RSS-Gen issue 5, RSS-247 issue 2. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane below 1 GHz. Above 1 GHz with 1.5 m using absorbers between the EUT and receive antenna. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3 m away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max. emission, the relative positions of this hand-held transmitter (EUT) was rotated through th…

Text truncated - open the document above for the full version.

TEST REPORT FCC/ISED DTS Test for LCWB-002EA Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2303-FI003 DATE OF ISSUE March 31, 2023 Tested by Chang Hee Hwang Technical Manager…

Text truncated - open the document above for the full version.
