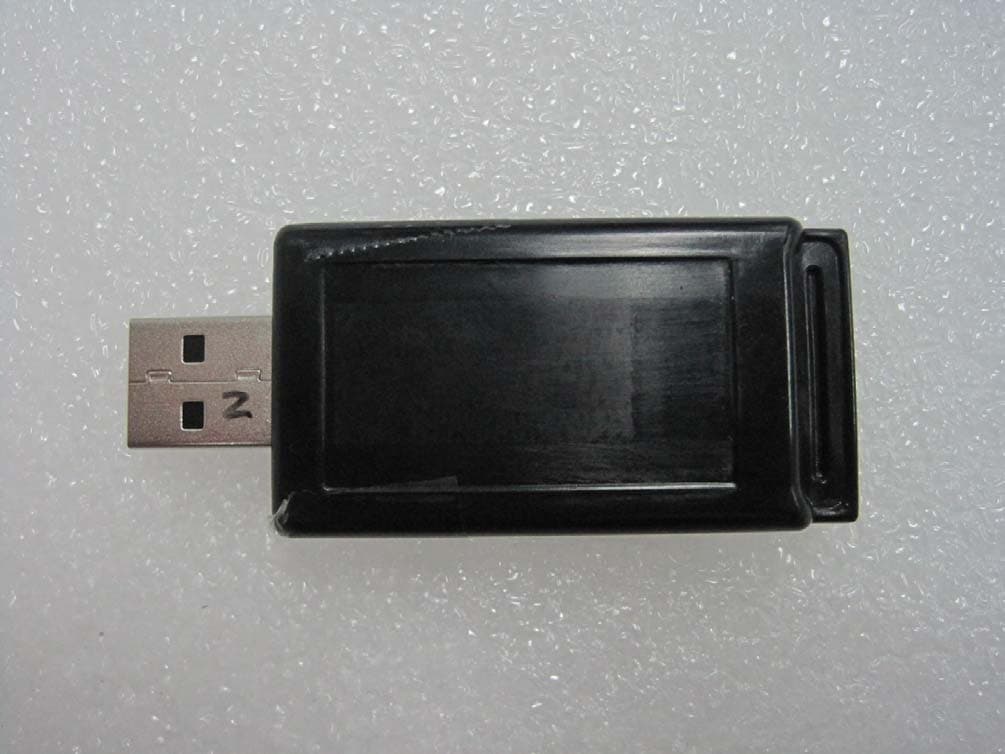

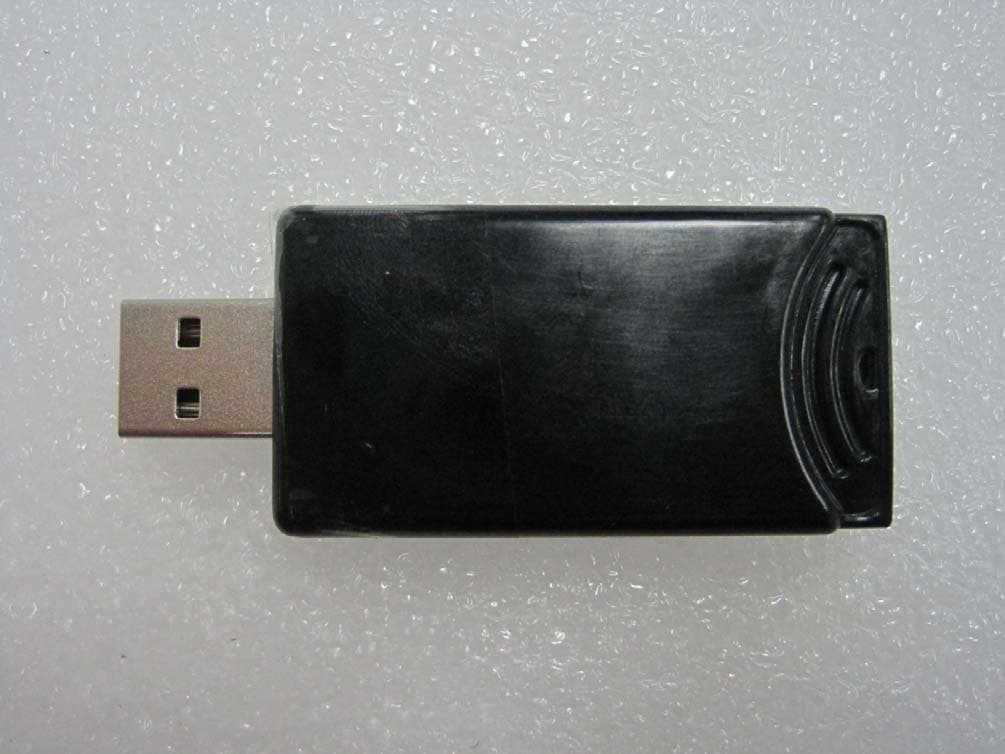

BEJ-LGHA-ZNA1105Zigbee Dongle

LGE Internal Use Only Smart Appliance Accessory manual Thank You for purchasing this Smart Appliance Accessory!!! This Accessory is used exclusively for LG Electronics Smart Appliances. This instruction manual will guide you through the setup of the communication modems. Please refer to the product owner’s manual for a description of each product functions. LGE Internal Use Only 1. Contents Accessory Manual USB Memory stick Wireless Modem Zigbee Modem Smart Appliance Accessory manual Manual that includes all three features listed above • The memory stick is for updating the software when there is a Wireless Network failure. To download new software, access the LG Smart Appliance homepage (http://us.smartthinq.com ), download necessary SW onto the USB, and update the software by plugging it into the wireless modem port. • The wireless modem enables Wireless Network connection and Remote control, monitoring and SW download possible. It only works if there is wireless AP(Access Point) nearby and allows remote control/monitoring and SW Update. • The Zigbee modem enables the product to receive information from utility company or hub and enables the product to operate under delay mode or energy saving mode. It is designed to operate according to SEP 1.0 standards (’11 standard). LGE Internal Use Only Accessory Manual 2. Installation (Washer) 1) Check the “Smart Connect” cover. 2) Open “Smart Connect” cover to determine the location of the modem. If you’re in front of the panel, plug the Zigbee modem in the left side and plug the Wi-Fi modem in the right side. The Zigbee modem and Wireless modem back be used separately. Zigbee Modem Wi-Fi Modem or USB Memory stick LGE Internal Use Only Accessory Manual Zigbee Modem Wi-Fi Modem (or USB Memory stick) 3) The picture below shows both modems plugged in. 4) After plugging in the modem, close the cover. 2. Installation (Washer) LGE Internal Use Only Accessory Manual Cotton / Normal Perm. Press Casual Bulky / Bedding > Heavy Duty Setting s Guide Recent Cycle THINQ < BRIGHT WHITES TM Default Cycle Sanitary Child Lock Back  Signal Low Brightness 70% Language English Display Option Default Cycle Wi-Fi > < Product Registration Settings 5) How to check settings on the wireless modem a) Press the Settings button on the front page of the LCD Screen. b) Press the Wi-Fi button in the Setting menu. c) If the wireless modem is properly plugged in, it will search for the surrounding Access Points and list them 2. Installation (Washer) LGE Internal Use Only Accessory Manual Cotton / Normal Perm. Press Casual Bulky / Bedding > Heavy Duty Setting s Guide Recent Cycle THINQ < BRIGHT WHITES TM Default Cycle Sanitary Child Lock 6) How to verify the Zigbee modem Once the Zigbee Modem is plugged in and connected to a smart meter or hub, the Zigbee icon will be displayed in the upper-right corner within 30 seconds 2. Installation (Washer) LGE Internal Use Only Accessory Manual 1) Open the knob shutter on the holder cover located at the upper area behind right refrigerator door. 2) Plug the Zigbee Modem into the holder cover properly as shown in the picture below. 3) After plugging in the Zigbee Modem, close the knob shutter. * The wireless modem is already plugged in. There is no need for additional installation. 3. Installation (Refrigerator) LGE Internal Use Only Accessory Manual 3. Installation (Refrigerator) 4) How to check settings for the wireless modem a) Press the Settings button on the LCD homescreen b) Press Wireless Network. c) If the wireless modem is properly plugged in, it will search for the surrounding Access Points and list them LGE Internal Use Only Accessory Manual 3. Installation (Refrigerator) 5) How to verify the Zigbee modem Once the Zigbee Modem is plugged in and connected to a smart meter or hub, the Zigbee icon will be displayed in the upper-left corner within 30 seconds LGE Internal Use Only Accessory Manual 4. Notes - Contents from the Accessory Manual (hardware, software, product content, and etc.) cannot be revised without the individual users’ consent due to performance improvement and other reasons - Due to individual users’ internet service contract, regulation, and environment, there may be restrictions/limitations on basic performance or features. - LG is not responsible for any wireless network problems during usage of the product - Use the product under caution for any wireless communication issue due to product’s mal-functioning or failure. - These products are only applicable to some of LG Electronics Smart Appliances. *Online customer support http://us.smartthinq.com *Certification details *Certification details Notice This Product( ZigBee Dongle) is unfit for use in computer. A PC network connection to the ZigBee Dongle could not be established. LGE Internal Use Only This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. Caution: Any cha…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 LG Electronics Inc. June 10,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LG Electronics USA. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Zigbee Dongle, LGHA-ZNA1105 We affirm that between SIEMIC and LG Electronics USA., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-LGHA-ZNA1105

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 LG Electronics USA. June 10,2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:BEJ-LGHA-ZNA1105 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-LGHA-ZNA1105

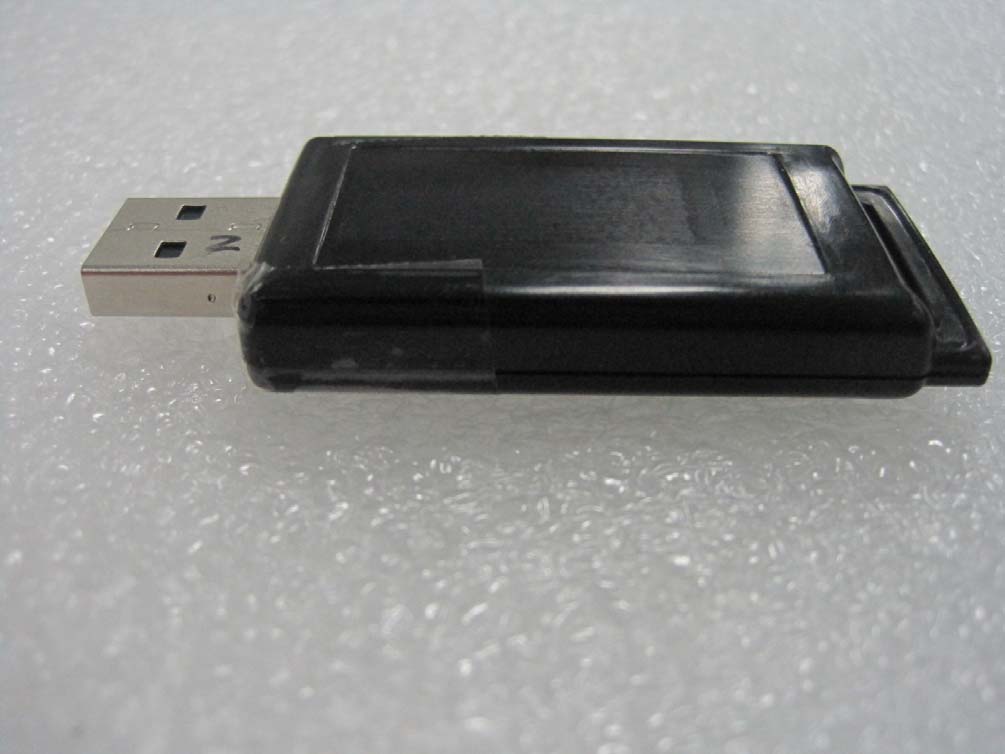

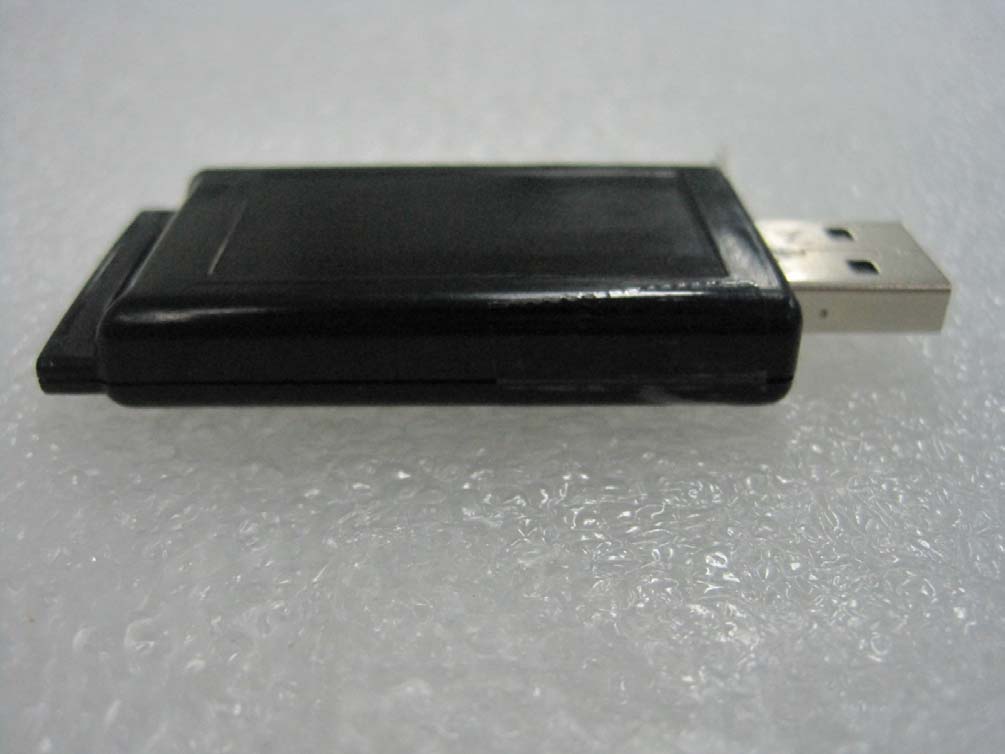

FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 6 FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 6 FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 6 FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 6 FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 6 FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 6

FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model Name IC Model Name FCC ID IC EUT Type Serial No : LGHA-ZNA1105 : LGHA-ZNA1105 : BEJ-LGHA-ZNA1105 : 2703N-LGHAZNA1105 : ZigBee Dongle : LG Electronics Inc. 391-2, Gaeumjeong-dong, Changwon City, Gyeongnam, 641-711, Korea MADE IN KOREA FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: BEJ-LGHA-ZNA1105/ IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 4 FCC ID: BEJ-LGHA-ZNA1105/ IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 4 FCC ID: BEJ-LGHA-ZNA1105/ IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 4 FCC ID: BEJ-LGHA-ZNA1105/ IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 4

FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr 1 of 2 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJ-LGHA-ZNA1105 / IC:2703N-LGHAZNA1105 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 2 2-1. Max Peak output Power at antenna input terminal (dBm) 18.91 Max Peak output Power at antenna input terminal (mW) 77.80366 Prediction distance (cm) 20.00 Prediction frequency (MHz) 2405.00 Antenna Gain(typical) (dBi) 4.000 Antenna Gain(numeric) 2.51189 Power density at prediction frequency (mW/cm²) 0.03888 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3. RESULTS The power density level at 20 cm is 0.03888 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 2405 MHz .

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC Certification Applicant Name: LG Electronics Inc. Address: 391-2, Gaeumjeong-dong, Changwon City, Gyeongnam, 641-711, Korea Date of Issue: June 10, 2011 Test Site/Location: HCT CO., L TD., 105-1, Jang am-ri, Majang-Myeon, Icheon- si, Kyunggi-Do, Korea Report No.: HCTR1106FR18 HCT FRN: 0005866421 IC Recognition No.: 5944A-3 FCC ID: IC: APPLICANT: BEJ-LGHA-ZNA1105 2703N-LGHAZNA1105 LG Electronics Inc. FCC Model(s): LGHA-ZNA1105 IC Model(s): LGHA-ZNA1105 EUT Type: Zigbee Dongle Max. RF Output Power: 18.91 dBm Frequency Range: 2405 MHz -2475 MHz Modulation type DSSS FCC Classification: Digital Transmission System(DTS) FCC Rule Part(s): Part 15.247 Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assu me full responsibility for the acc uracy a nd comp leteness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report prepared by : Jong Seok Lee Test Engineer of RF Team Approved by : Sang Jun Lee Manager of RF Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Test Report No. HCTR1106FR18 Date of Issue: June 10,2011 EUT Type: Zigbee Dongle FCC ID: BEJ-LGHA-ZNA1105 IC: 2703N-LGHAZNA1105 Page １ of 42 FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR18 Date of Issue: June 10,2011 EUT Type: Zigbee Dongle FCC ID: BEJ-LGHA-ZNA1105 IC: 2703N-LGHAZNA1105 Page ２ of 42 Version TEST REPORT NO. DATE DESCRIPTION HCTR1106FR18 June 10, 2011 - First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR18 Date of Issue: June 10,2011 EUT Type: Zigbee Dongle FCC ID: BEJ-LGHA-ZNA1105 IC: 2703N-LGHAZNA1105 Page ３ of 42 Table of Contents 1. GENERAL INFORMATION..........................................................................................................................４ 2. EUT DESCRIPTION.....................................................................................................................................４ 3. TEST METHODOLOGY...............................................................................................................................５ 3.1 EUT CONFIGURATION......................................................................................................................５ 3.2 EUT EXERCISE..................................................................................................................................５ 3.3 GENERAL TEST PROCEDURES......................................................................................................５ 3.4 DESCRIPTION OF TEST MODES.....................................................................................................５ 4. INSTRUMENT CALIBRATION.....................................................................................................................６ 5. FACILITIES AND ACCREDITATIONS.........................................................................................................６ 5.1 FACILITIES.........................................................................................................................................６ 5.2 EQUIPMENT.......................................................................................................................................６ 6. ANTENNA REQUIREMENTS......................................................................................................................７ 7.SUMMARY OF TEST RESULTS..................................................................................................................８ 8. TEST RESULT.............................................................................................................................................９ 8.1 6dB BANDWIDTH MEASUREMENT.................................................................................................９ 8.2 OUTPUT POWER MEASUREMENT..............................................................................................１２ 8.3 POWER SPECTRAL DENSITY......................................................................................................１８ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTE D SPURIOUS EMISSIONS...２１ 8.5 RADIATED MEASUREMENT.........................................................................................................２７ 8.5.1 RADIATED SPURIOUS EMISSIONS...................................................................................２７ 8.5.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS.............................................３５ 8.5.3 RECEIVER SPURIOUS EMISSIONS...................................................................................３６ 8.6 POWERLINE CONDUCTED EMISSIONS.....................................................................................３７ 9. LIST OF TEST EQUIPMENT...................................................................................................................４２ FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR18 Date of Issue: June 10,2011 EUT Type: Zigbee Dongle FCC ID: BEJ-LGHA-ZNA1105 IC: 2703N-LGHAZNA1105 Page ４ of 42 1. GENERAL INFORMATION Applicant: LG Electronics Inc. Address: 391-2, Gaeumjeong-dong, Changwon City, Gyeongnam, 641-711, Korea FCC ID: IC: BEJ-LGHA-ZNA1105 2703N-LGHAZNA1105 EUT Type: Zigbee Dongle Model Name: LGHA-ZNA1105 Date of Test: May 23, 2011 ~ June 09, 2011 Contact person: Name: Chang Han An Phone #: +82-10-4178-4525 Place of Tests: HCT Co., Ltd.…

Text truncated - open the document above for the full version.

FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 1 of 6 FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 2 of 6 FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 3 of 6 FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 4 of 6 FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 5 of 6 FCC ID: BEJ-LGHA-ZNA1105 / IC: 2703N-LGHAZNA1105 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 6 of 6
