BEJ-LGHAWWW1301WLAN module

Order Number : GETEC-C1-13-029 CANADA IC Test Report Number : GETEC-E4-13-019 Page 1 / 1 EUT Type: WLAN module IC: 2703N-LGHAWWW1301 APPENDIX G : USER’S MANUAL LGHA-WWW1301 WLAN Dongle User Manual HB-RND-xxA 2 페이지 2013-03-13 - 2 -박병만 2 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 2/13 Pages 1 Information 1.1 Feature LGHA-WWW1301 is WLAN Dongle support USB2.0 A type Interface. Because It support USB2.0 interface, Therefore you can connect to the host system it easily LGHA-WWW1301 use MURATA MODUEL(PARTNAME:LBWA17XQXZ-450) MURATA MODULE use BCM4319(BroadCom) LGHA-WWW1301 support IEEE802.11b/g/n and data rate 65Mbps 1.2 Module Summary ᆞ 2.4GHz IEEE 802.11b/g/n Radio Technology ᆞ On-board Antenna ᆞ Transmit power : +18dBm @ 11b/11Mbps ᆞ Max Receive Sensitivity : -92dBm ᆞ MURATA Module applied ( RF CHIPSET : BCM4319 ) ᆞ USB2.0 A Type Interface ᆞ Operating Temperature Range : -20°C to 70°C ᆞ ROHS compliant 1.3 Block Diagram Fig.1 System Block Diagram HB-RND-xxA 3 페이지 2013-03-13 - 3 -박병만 3 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 3/13 Pages 2 Module Outline 2.1 Module Dimension Fig. 2 LGHA-WWW1301 Dimension (Unit : mm) 2.2 Component Placement Fig.3 LGHA-WWW1301 Component Placement ANCG12G44SAA145RD1 LBWA17XQXZ-450 HB-RND-xxA 4 페이지 2013-03-13 - 4 -박병만 4 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 4/13 Pages 3 MURATA LBWA17XQXZ-450 MURATA's WLAN Module LBWA17XQXZ-450 WLAN chipset, RF Switch, Filter, etc. are included. Broadcom's WLAN chipset bcm4319 was used. SDIO Interface and USB Interface is supported 30MHz external clock operation. Fig.4 LBWA17XQXZ-450 Block Diagram 4 RF Specifications 4.1 RF Specifications Summary Items Contents Support IEEE802.11b/g/n, WLAN compliant Frequency Range 2400 ~ 2483.5 MHz Modulation DSSS, CCK, OFDM Channel 1~11ch (2412 ~ 2462 MHz) Data Rate 802.11b = 1, 2, 5.5, 11 Mbps 802.11g = 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n = 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps Target Max Output Power (Peak) 802.11b = 18 dBm 802.11g = 19 dBm 802.11n = 17 dBm Antenna On Board SMD Antenna, 50 ohm Table.1 LGHA-WWW1301 RF Specification Summary HB-RND-xxA 5 페이지 2013-03-13 - 5 -박병만 5 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 5/13 Pages 4.2 IEEE 802.11b Mode Items Contents Specification IEEE802.11b Mode DSSS / CCK Frequency 2400 – 2483.5 MHz Data rate 1, 2, 5.5, 11 Mbps Target Max Output Power 18dBm DC Characteristics Min. Typ. Max. unit 1. DC current 1) Tx mode (1024byte, 20usec interval) 300 mA 2) Rx mode 77 mA Tx Characteristics Min. Typ. Max. unit 2. Power Levels 16 18 20 dBm 3. Spectrum Mask 1) Fc ± 11MHz -40 -30 dBr 2) Fc ± 20MHz -54 -50 dBr 4. RF Carrier Suppression -15 dB 5. Modulation Accuracy(EVM) 17 35 % 6. OBW(Occupied Bandwidth) 20 MHz 7. Outband Spurious Emissions 1) 30Mhz to 1 Ghz(BW=100kHz) tbd dBm 2) 1Ghz to 12.75 Ghz(BW=100kHz) tbd dBm 3) 1.8Ghz to 1.9 Ghz(BW=100kHz) tbd dBm 4) 5.5Ghz to 5.3 Ghz(BW=100kHz) tbd dBm Rx Characteristics Min. Typ. Max. unit 8. Minimum input Level Sensitivity 1) 1Mbps (FER ≤ 8%) -92 -80 dBm 2) 11Mbps (FER ≤ 8%) -85 -76 dBm 9. Maximum Input Level (FER ≤ 8%) -10 dBm 10. Adjacent Channel Rejection (FER ≤ 8%) tbd dB Table.2 IEEE 802.11b Mode Specification HB-RND-xxA 6 페이지 2013-03-13 - 6 -박병만 6 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 6/13 Pages 4.3 IEEE 802.11g Mode Items Contents Specification IEEE802.11g Mode OFDM Frequency 2400 – 2483.5 MHz Data rate 6, 9, 12, 18, 24, 36, 48, 54 Mbps Target Max Output Power 19dBm DC Characteristics Min. Typ. Max. unit 1. DC current 1) Tx mode (1024byte, 20usec interval) 237 mA 2) Rx mode 77 mA Tx Characteristics Min. Typ. Max. unit 2. Power Levels 17 19 21 dBm 3. Spectrum Mask 1) Fc ± 11MHz -34 -20 dBr 2) Fc ± 20MHz -50 -28 dBr 3) Fc ± 30MHz -58 -40 dBr 4. Constellation Error (EVM) 1) 6 Mbps -30 -5 dB 2) 24 Mbps -30 -16 dB 3) 54 Mbps -30 -25 dB 5. Modulation Accuracy(EVM) 17 35 % 6. OBW(Occupied Bandwidth) 20 MHz 7. Outband Spurious Emissions 1) 30Mhz to 1 Ghz(BW=100kHz) tbd dBm 2) 1Ghz to 12.75 Ghz(BW=100kHz) tbd dBm 3) 1.8Ghz to 1.9 Ghz(BW=100kHz) tbd dBm 4) 5.5Ghz to 5.3 Ghz(BW=100kHz) tbd dBm Rx Characteristics Min. Typ. Max. unit 8. Minimum input Level Sensitivity 1) 6Mbps (FER ≤ 10%) -85 -82 dBm 2) 24Mbps (FER ≤ 10%) -82 -74 dBm 3) 54Mbps (FER ≤ 10%) -72 -65 9. Maximum Input Level (FER ≤ 10%) -10 dBm 10. Adjacent Channel Rejection (FER ≤8%) dB Table.3 IEEE 802.11g Mode Specification HB-RND-xxA 7 페이지 2013-03-13 - 7 -박병만 7 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 7/13 Pages 4.4 IEEE 802.11n Mode Items Contents Specification IEEE802.11n Mode OFDM Frequency 2400 – 2483.5 MHz Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps Target Max Output Power 17dBm DC Characteristics Min. Typ. Max. unit 1. DC current 1) Tx mode (1024byte, 20usec interval) 227 mA 2) Rx mode 80 mA Tx Characteristics Min. Typ. Max. unit 2. Power Levels 15 17 19 dBm 3. Spectrum Mask 1) Fc ± 11MHz -34 -20 dBr 2) Fc ± 20MHz -50 -28 dBr 3) Fc ± 30MHz -58 -45 dBr 4. Constellation Error (EVM) 1) MCS0 (6.5Mbps) -29 -5 dB 2) MCS4 (39Mbps) -31 -19 dB 3) MCS7 (65Mbps) -31 -28 dB 5. OBW(Occupied Bandwidth) 20 MHz 6. Center Frequency Tolerance -25 -4.5 25 ppm 7. Symbol clk freq Tolerance -25 -4.7 25 ppm 8. Outband Spurious Emissions 1) 30Mhz to 1 Ghz(BW=100kHz) tbd dBm 2) 1Ghz to 12.75 Ghz(BW=100kHz) tbd dBm 3) 1.8Ghz to 1.9 Ghz(BW=100kHz) tbd dBm 4) 5.5Ghz to 5.3 Ghz(BW=100kHz) tbd dBm Rx Characteristics Min. Typ. Max. unit 9. Minimum input Level Sensitivity 1) 6.5Mbps (FER ≤ 10%) -87 -82 dBm 2) 39Mbps (FER ≤ 10%) -79 -70 dBm 3) 62Mbps (FER ≤ 10%) -70 -64 10. Maximum Input Level (FER ≤ 10%) -20 dBm 11. Adjacent Channel Rejection (FER ≤ 8%) tbd dB Table.4 IEEE 802.11n Mode Specification HB-RND-xxA 8 페이지 2013-03-13 - 8 -박병만 8 페이지 2013-03-13HB-개발-xxA A4(297mmX210mm) LG ELECTRONICS 8/13 Pages 5 Antenna LGHA-WWW1301 with omni directional characteristics in the 2.4GHz band, MURATA SMD's dielectric Antenna ANCG12G44SAA145 is applied. Fig.5 ANCG12G44SAA145 Radiation Pattern 6 Ele…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 March 8, 2013 To: SIEMIC, INC. 775 Montague Expressway Milpitas , 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LG Electronics Inc., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: WLAN Module FCC ID: BEJ-LGHAWWW1301 We affirm that between SIEMIC and LG Electronics Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Jacob Cho, Director LG Electronics USA, Inc. LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Federal Communications Commission Authorization and Evaluation Division March 8, 2013 Confidentiality Request regarding application for certification of FCC ID: BEJ-LGHAWWW1301 We hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name BLOCK DIAGRAM LGHAWWW1301_BlkDia.pdf SCHEMETIC DIAGRAM LGHAWWW1301_SchDia.pdf OPERATIONAL DESCRIPTION LGHAWWW1301_OpeDes.pdf PART LIST LGHAWWW1301_PrtLst.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In addition to above mentioned documents, pursuant to Public DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR 2.803 and the importation rules in 47 CFR 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following for 180 days. Exhibit Type File Name TEST SET UP PHOTOGRAPHS LGHAWWW1301 _Tsup.pdf EUT PHOTOGRAPHS LGHAWWW1301 _ExtPho.pdf USER’S MANUAL LGHAWWW1301 _UseMan.pdf The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jacob Cho, Director LG Electronics USA, Inc. LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 1 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX L : MODULAR APPROVAL LETTER Federal Communications Commission Authorization and Evaluation Division February 26, 2013 Modular Approval for FCC ID: BEJ-LGHAWWW1301 Applicant/Grantee LG Electronics Inc FCC ID: BEJ-LGHAWWW1301 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Shield is over the radio circuit module. Refer to the external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Refer to the schematics. Y 3 The modular transmitter must have its own power supply regulation. Refer to the schematics Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. PCB Chip Antenna. Refer to the internal photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). The Module was tested in stand-alone configuration via a USB extension cable. Refer to the test setup photos. Y LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Refer to the user manual Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Refer to the RF exposure statement for more details. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained …

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 1 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX A : ATTESTATION STATEMENT  Authorization  DoC for computer peripheral portion August 22, 2012 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Kwang-Mu Son, Chief Research Engineer LG Electronics Inc Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 1435 Oakland Mills Road Columbia, MD 21046 U.S.A February 26, 2013 Subject: FCC Application for BEJ-LGHAWWW1301 We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, Jacob Cho, Director LG Electronics USA, Inc. LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA

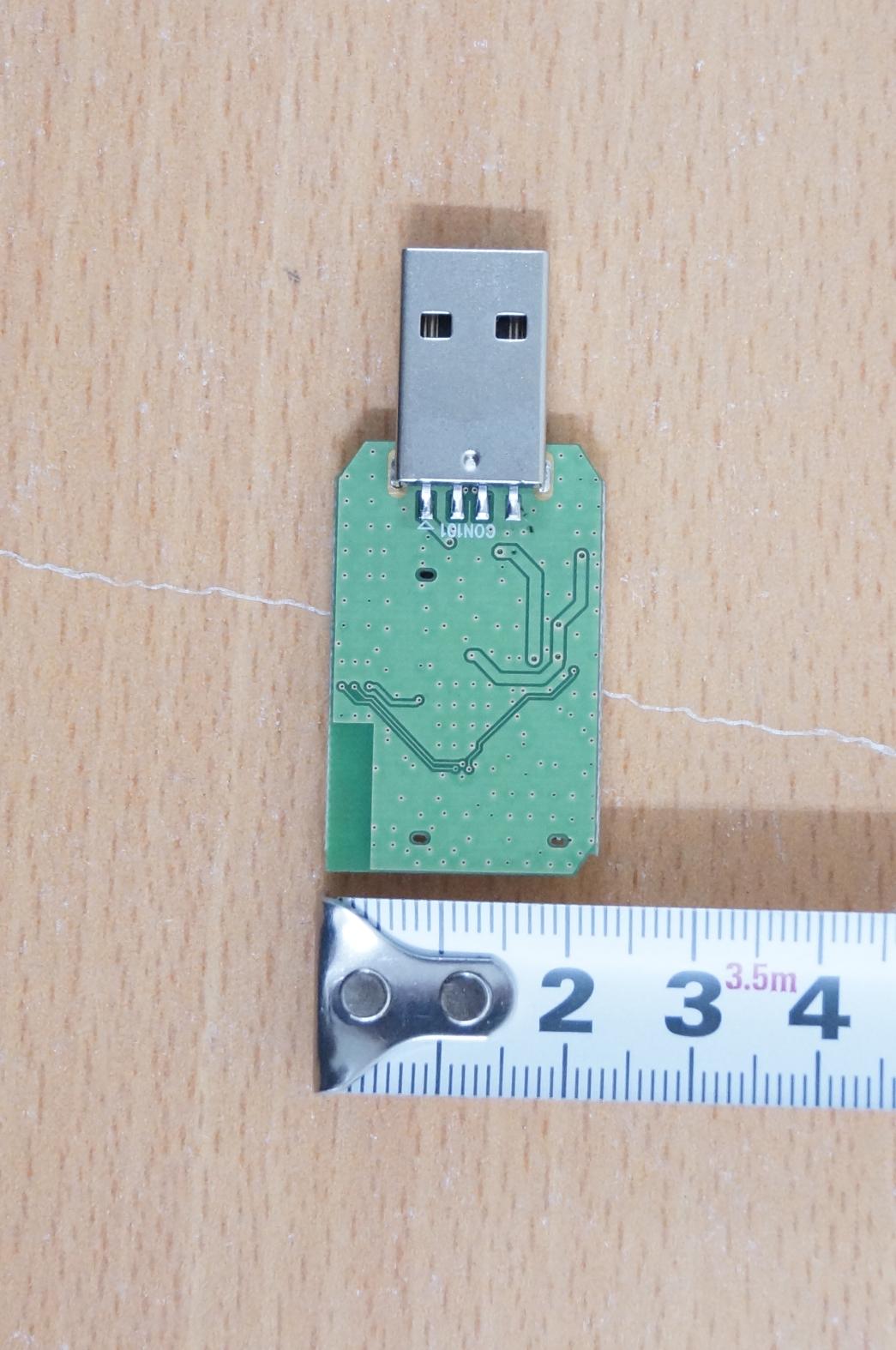

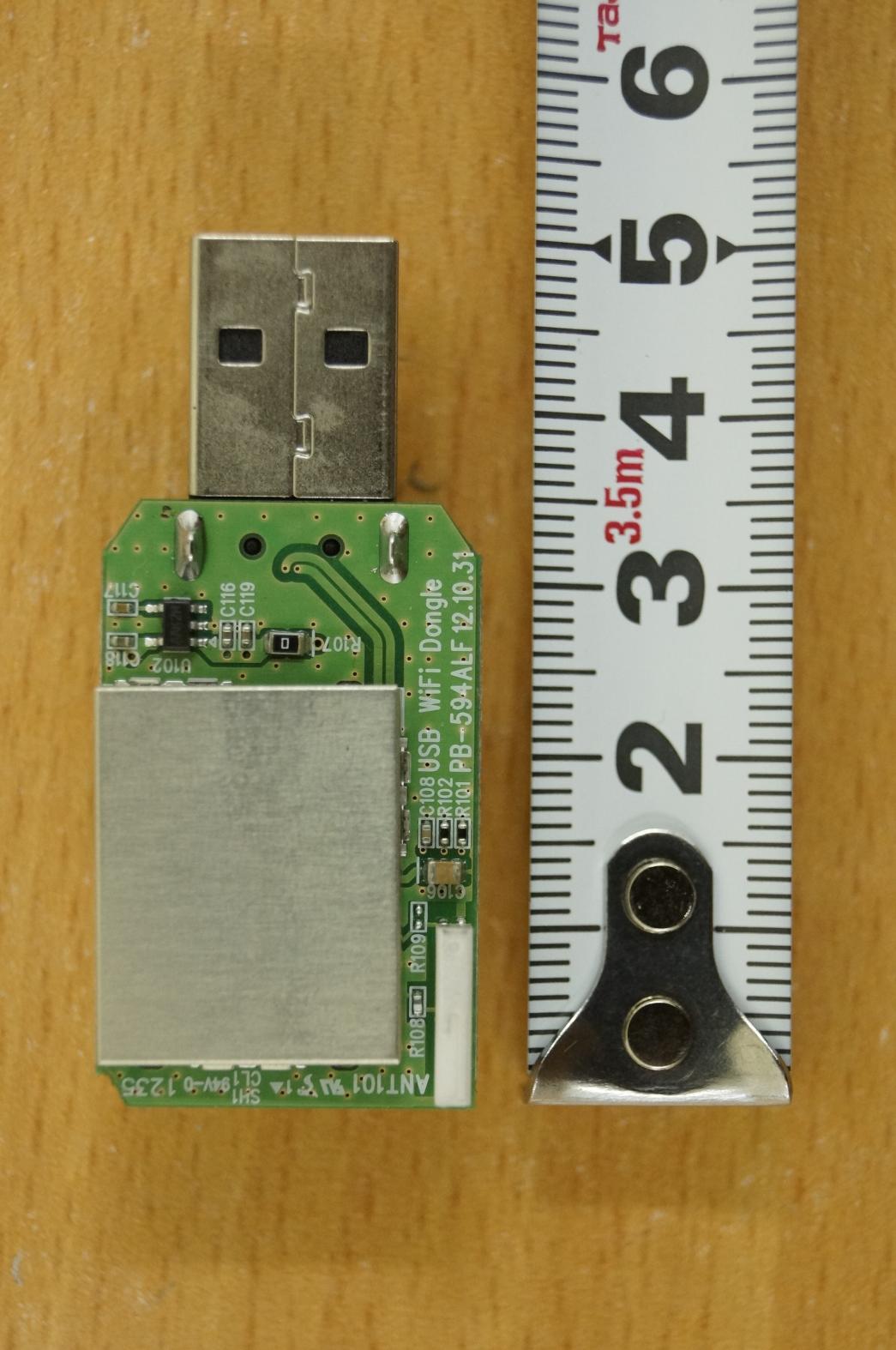

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX F : EUT PHOTOGRAPHS Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 2 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Front > Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 3 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Rear > Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 4 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Inside > RF antenna

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 2 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX B : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 2 / 2 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX F : EUT PHOTOGRAPHS Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 2 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Front > Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 3 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Rear > Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 4 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 < Inside > RF antenna

Order Number : GETEC-C1-13-029 FCC Certification Test Report Number : GETEC-E3-13-009 Page 1 / 3 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX L : MAXIMUM PERMISSIBLE EXPOSURE Order Number : GETEC-C1-13-029 FCC Certification Test Report Number : GETEC-E3-13-009 Page 2 / 3 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device (A) Limits for Occupational / Controlled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 3.0 614 1.63 (100)* 6 3.0~30 1842/f 4.89/f (900/f)* 6 30~300 61.4 0.163 1.0 6 300 ~ 1,500 f/300 6 1,500 ~ 100,000 5.0 6 (B) Limits for General Population / Uncontrolled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 1.34 614 1.63 (100)* 30 1.34 ~ 30 824/f 2.19/f (180/f)* 30 30~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f/1500 30 1,500 ~ 100,000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 1.2 MPE Calculation Method d GP mVE   30 )/( Power Density: 377 )/( 2 2 E mWPd E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to 2 377 30 d GP Pd    From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Order Number : GETEC-C1-13-029 FCC Certification Test Report Number : GETEC-E3-13-009 Page 3 / 3 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 1.3 Calculated Result and Limit Antenna type: chip antenna Antenna gain (dBi) Antenna gain (numeric) Peak output power (dBm) Peak output power (mW) Power Density (s) (mW/cm 2 ) Limit of Power density (S) (mW/cm 2 ) 1.10 1.29 21.00 125.90 0.032 1

nn￡kFL￥gR앓GE Pagc 1 of41 FCCE’VALUATION REPORT FOR CERTIFICATION Manufacturer: LG Electronics Inc. 391-2 , Gaeumjeong-dong, Changwon City, Gyeongnam 641-711, Korea Attn: Mr. Kwang-Mu Son I Chief Research Engineer Date of Issue: February 19,2013 Order Number: GETEC-CI-13-029 Test Report Number: GETEC-E3-13-009 Test Site: GUMI COLLEGE EMC CENTER FCC Registration Number: (100749,443957) FCC ID. BEJ-LGHAWWW1301 Applicant : Rule Part(s) Test Method Equipment Class EUT Type Type of Authority Model Name Trade Name LG Electronics Inc. : FCC Part 15 Subpart C-Intentional Radiator ~ 15.247 : ANSI C63.10 (2009) : Digital Transmission System(DTS) : WLAN module : Certification : LGHA-WWW t301 :LG This equipment bas been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 (2009) 1 attest to the accuracy of data. AIl measurements reported herein were performed by me or were madc under my supervision and are correct to the vest of my knowledge and belief. 1 assume full responsibility for the completeness of these measurements and vouch for thc qualifications of all persons taking them. Tested by, Seun량ChuI Lee, Associate Engineer GU’11 COLLEGE EMC CENTER GETEC- QP-28-üü7 (Rev.ül) Reviewed by, Jae-Hoon ‘Jeong, Tecl}'hical Manager GUI\’ICOLLEGE κ1CCENTER EMC CENTER This tcst rcport only contains the result of a specific samplc supplied for thc examÎnation It is not allowed to copy this report even partly without the approval of EMC centcr Order Number : GETEC-C1-13-029 FCC Part 15 Subpart C Test Report Number : GETEC-E3-13-009 Page 2 / 41 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 G E T E C CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................................ 5 3. PRODUCT INFORMATION ...................................................................................................................................... 6 3.1 DESCRIPTION OF EUT .............................................................................................................................................. 6 3.2 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 6 3.3 MODIFICATION ITEM(S) ........................................................................................................................................... 6 4. DESCRIPTION OF TESTS ......................................................................................................................................... 7 4.1 TEST CONDITION ...................................................................................................................................................... 7 5. ANTENNA REQUIREMENT - §15.203 ..................................................................................................................... 7 5.1 DESCRIPTION OF ANTENNA ...................................................................................................................................... 7 5.2 CONDUCTED EMISSION ............................................................................................................................................ 8 5.3 RADIATED EMISSION ................................................................................................................................................ 9 6. CONDUCTED EMISSION ........................................................................................................................................ 10 6.1 OPERATING ENVIRONMENT ................................................................................................................................... 10 6.2 TEST SET-UP ........................................................................................................................................................... 10 6.3 MEASUREMENT UNCERTAINTY.............................................................................................................................. 10 6.4 LIMIT ...................................................................................................................................................................... 11 6.5 TEST EQUIPMENT USED .......................................................................................................................................... 11 6.6 TEST DATA FOR CONDUCTED EMISSION ................................................................................................................ 11 7. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................................................................. 13 7.1 OPERATING ENVIRONMENT.................................................................................................................................... 13 7.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 13 7.3 LIMIT ...................................................................................................................................................................... 13 7.4 TEST EQUIPMENT USED .......................................................................................................................................... 13 7.5 TEST RESULT .......................................................................................................................................................... 13 8. POWER SPECTRAL DENSITY MEASUREMENT .............................................................................................. 15 8.1 OPERATING …

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 1 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301 APPENDIX E : TEST SET UP PHOTOGRAPHS Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 2 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301  Conducted Test Picture (Front)  Conducted Test Picture (Rear) Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 3 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301  Radiated Test Picture (Front): Below 30 MHz  Radiated Test Picture (Front): Below 1 GHz Order Number : GETEC-C1-13-029 FCC Part 15 subpart C Test Report Number : GETEC-E3-13-009 Page 4 / 4 EUT Type: WLAN module FCC ID.: BEJ-LGHAWWW1301  Radiated Test Picture (Rear): Above 1 GHz
