BEJ-MIB3OI01Car Navigation

Owner's manual Golf Edition 07.2019 Golf Owner's manual Owner's manual Golf Print status: 20.03.2019 English: 2019.07 Vehicle data sticker Fig. 1 1: Vehicle identification number; 2: Vehicle type, engine power, gearbox type; 3: Engine code, gearbox code, paint number, interior equipment; 4: Optional extras, PR numbers Pre-delivery inspection carried out on: Date of delivery to customer/initial registration: a) Volkswagen dealership stampVolkswagen dealership stamp a) Whichever comes first. Volkswagen works continuously to develop and fur- ther improve all models. Please understand that we must therefore reserve the right to alter any part of the vehicle and its equipment or technical specifica- tions at any time. The information provided con- cerning scope of delivery, appearance, performance, dimensions, weights, fuel consumption, standards and vehicle functions is all correct at the time of go- ing to print. Some of the equipment and functions described might not yet be available in a particular vehicle (information can be provided by your local Volkswagen dealership), or may be available only in certain countries. The vehicle illustrated on the cov- er may have certain items of optional equipment which are only available at extra cost, or which are only available in certain markets. Your Volkswagen dealership will be able to inform you about varia- tions in different countries. Subject to alteration and amendment. No legal commitment may be inferred from the information, illustrations or descriptions in this manual. No part of this manual may be reprinted, reproduced or translated without the written permission of Volkswagen AG. All rights under the laws of copyright are expressly reserved by Volkswagen AG. Subject to alteration and amendment. Printed in Germany. © 2019 Volkswagen AG This paper was bleached without the use of chlorine. Thank you for choosing Volkswagen By purchasing this Volkswagen, you have become the owner of a vehicle fitted with the most up-to-date technology and a multitude of convenience functions for your use and enjoyment. Before using your vehicle for the first time, please read and observe the information in this owner's manual. It will quickly help you to become familiar with your vehicle and all of its functions as well as making you aware of dangers to yourself and others and of how these dangers can be avoided. If you have any further questions about your vehicle, or if you think that the vehicle wallet has not covered everything, please get in touch with your Volkswagen dealership. They will always be happy to deal with your questions, suggestions or problems. We hope you enjoy driving your new vehicle. Happy motoring. Volkswagen AG Infotainment Getting started Introduction to the topic The function and settings of the Infotainment sys- tem depend on the country and vehicle equipment. Before using for the first time Before using the device for the first time, please ob- serve the following points so you can make full use of the available functions and settings: — Observe the basic safety instructions → page 190. — Reset the Infotainment system to factory set- tings. — Find your favourite radio stations and store them to station buttons for quick access → page 202. — Use only suitable audio sources and data media → page 205. — Pair a mobile device to make calls using the tele- phone interface → page 212. — Use current map data for the navigation → page 207. — Register with Volkswagen We Connect to use the corresponding services → page 177. Other applicable documents In addition to this manual, please observe the fol- lowing documents when using this Infotainment system and its components: — Supplements to the vehicle wallet of your vehicle. — The operating instructions for the mobile device or audio sources. — The operating instructions for external data media and playback devices. — Instructions for any Infotainment accessories sub- sequently installed or additionally used. — Service description when using Volkswagen We Connect services. — Digital operating instructions in the Infotainment system (where available) Safety notes Please refer to and on page 190. — Some functions may contain links to websites that are operated by third parties. Volkswagen AG does not assume ownership of the third-party websites that are reached via links and is not re- sponsible for their content. — Some functions may contain external information supplied by third parties. Volkswagen AG is not responsible for external information being cor- rect, up-to-date and complete, or for any in- fringement of third-party rights. — The radio stations or owners of the data storage media and audio sources are responsible for the content provided. — Multi-storey car parks, tunnels, high buildings, mountains, and other electrical devices, e.g. bat- tery chargers, can also impair radio reception. — Films or metal-coated stickers on the aerial and on the windows can interfere with radio recep- tion. WARNING The central computer of the Infotainment system is networked with the control units installed in the vehicle. Incorrect repair or incorrect removal and installation of the central computer therefore lead to an increase risk of accident and injury. · Never replace the central computer with a used central computer from end-of-life vehicles or from recycling. · Have the central computer removed and instal- led or repaired only by a qualified workshop. Volkswagen recommends using a Volkswagen dealership for this purpose. WARNING The factory-installed radio with integrated hard- ware is networked with the control units installed in the vehicle. Incorrect repair or incorrect removal and installation of the radio therefore lead to an increase risk of accident and injury. · Never replace the radio with a used radio from end-of-life vehicles or from recycling. · Have the radio removed and installed or re- paired only by a qualified workshop. Volkswa- gen recommends using a Volkswagen dealer- ship…

Text truncated - open the document above for the full version.

Letter of Authorization Company : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, 07632, United States Product Name : Car Navigation Model Number : MIB3 OI FCC Identifier : BEJ-MIB3OI01 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Sung Soo Kim Date: November 22, 2022 Title: Director, Regulatory and Environmental Affairs Signature of applicant:

LG Electronics USA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 22, 2022 Subject; Request for Confidentiality FCC ID: BEJ-MIB3OI01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Configuration Control Declaration Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sung Soo Kim Title: Director, Regulatory and Environmental Affairs

Page 1 of 1 IDENTIFICATION LABEL: PROPOSED LABEL The shall be permanently affixed in the rear side of the equipment

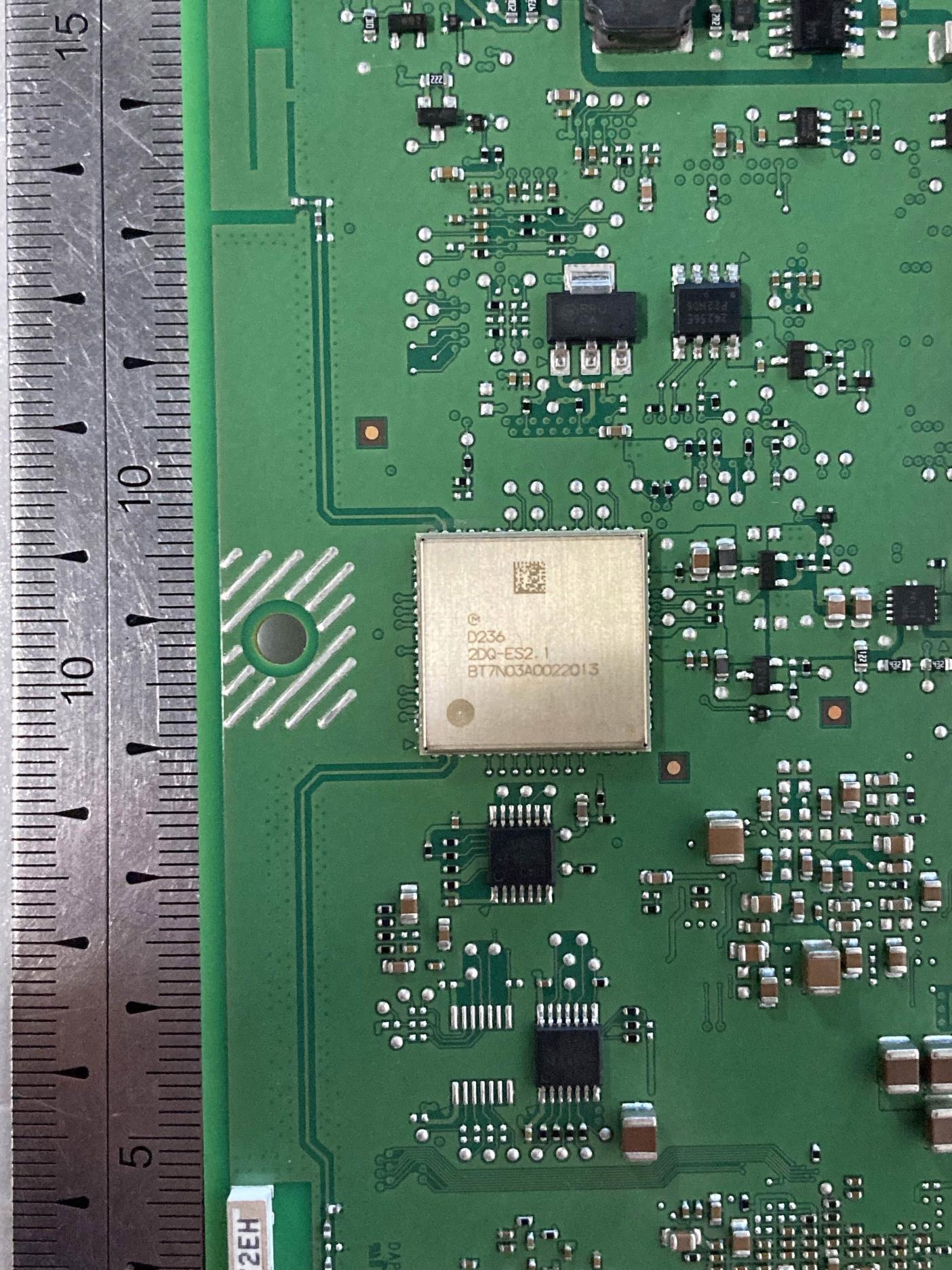

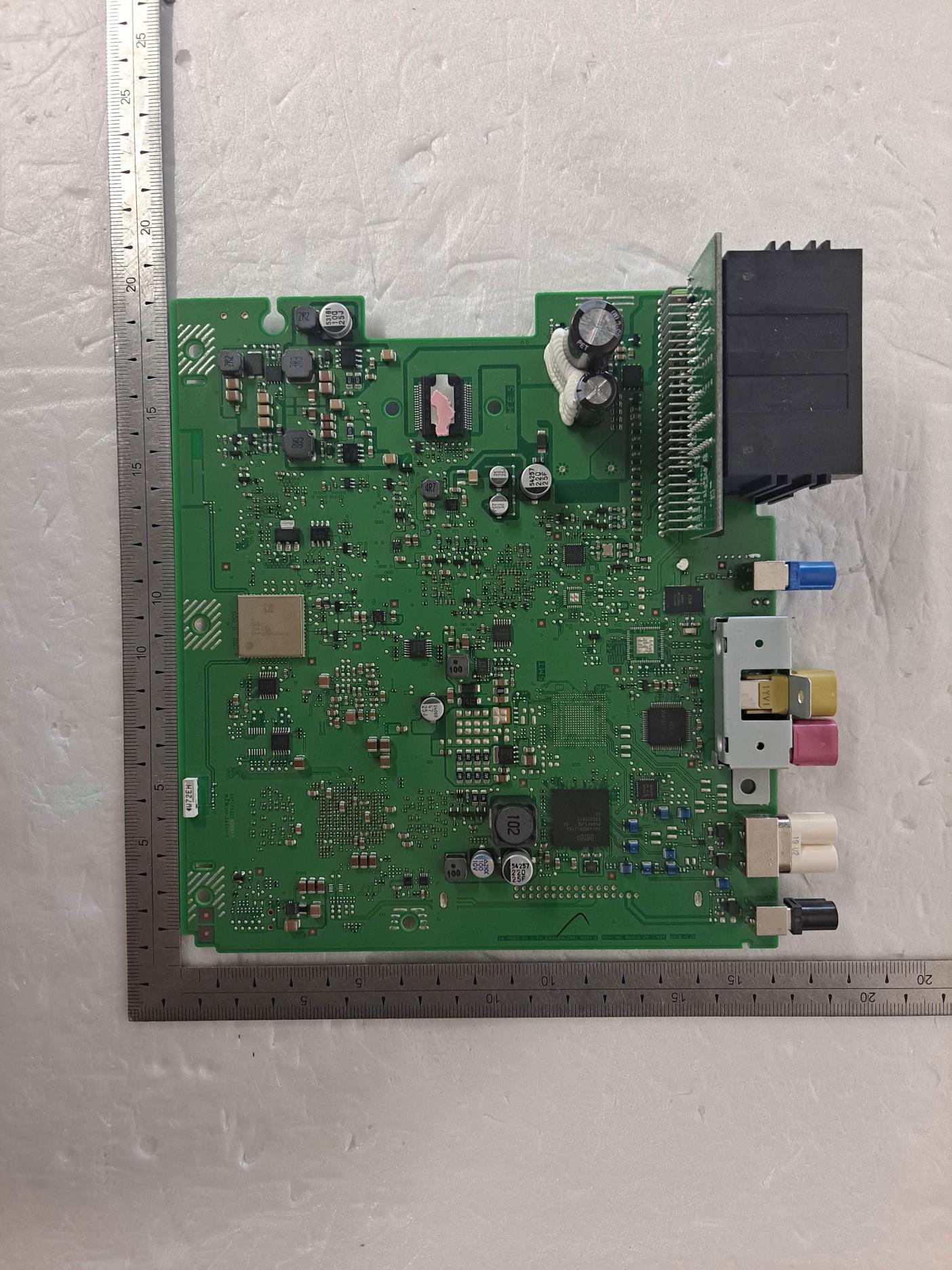

Page 1 of 7 Page 2 of 7 Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 PCB Antenna - Bluetooth - WLAN 5 GHz Antenna 1 Page 7 of 7 Chip Antenna - WLAN 2.4 -GHz - WLAN 5 GHz Antenna 0

Page 1 of 13 Report No.: OT-22N-RWD-058 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMF TEST REPORT Test Report No. : OT-22N-RWD-058 Reception No. : 2209002852 Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, 07632, United States Manufacturer : LG Electronics Inc. Address : 222 LG-ro, Jinwi-Myeon, Pyeongtaek -Si, Gyeonggi-Do, 451-713, Korea Type of Equipment : Car Navigation FCC ID. : BEJ-MIB3OI01 Model Name : MIB3 OI Multiple Model Name : N/A Serial number : N/A Total page of Report : 13 pages (including this page) Date of Incoming : October 13, 2022 Date of issue : November 21, 2022 SUMMARY The equipment complies with the regulation; FCC CFR 47 PART 1.1310 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. This report is not correlated with the "KS Q ISO/IEC 17025 and KOLAS accreditation" of Korean Laboratory Accreditation Scheme. Tested by Ju-Yun, Park / Manager ONETECH Corp. Reviewed by Tae-Ho, Kim / General Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 13 Report No.: OT-22N-RWD-058 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS Page 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2. GENERAL INFORMATION ............................................................................................................................................ 5 2.1 Product Description ...................................................................................................................................................... 5 2.2 Alternative type(s)/model(s); also covered by this test report. .................................................................................. 7 3. EUT MODIFICATIONS .................................................................................................................................................... 7 4. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................................................................... 8 4.1 RF Exposure Calculation ............................................................................................................................................. 8 4.2 EUT Description ........................................................................................................................................................... 8 4.3 Calculated MPE Safe Distance for WLAN ................................................................................................................. 9 4.3.1 DATA for Antenna 0 ............................................................................................................................................... 9 4.3.2 DATA for Antenna 1 ............................................................................................................................................. 10 4.3.3 DATA for Multiple Transmit ................................................................................................................................ 11 4.4 Calculated MPE Safe Distance for Bluetooth .......................................................................................................... 12 4.5 DATA for Intermodulation Transmit ....................................................................................................................... 13 Page 3 of 13 Report No.: OT-22N-RWD-058 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Revision History Rev. No. Issue Report No. Issued Date Revisions Section Affected 0 OT-22N-RWD-058 November 21, 2022 Initial Release All Page 4 of 13 Report No.: OT-22N-RWD-058 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 1. VERIFICATION OF COMPLIANCE Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, 07632, United States Contact Person : Sung Soo, Kim / Director, Regulatory and Environmental Affairs Telephone No. : +201-266-2215 FCC ID : BEJ-MIB3OI01 Model Name : MIB3 OI Brand Name : Volkswagen, Seat Serial Number : N/A Date : November 21, 2022 EQUIPMENT CLASS DSS – PART 15 SPREAD SPECTRUM TRANSMITTER DTS – DIGITAL TRNSMISSION SYSTEM Unlicensed National Information infrastructure(UNII) E.U.T. DESCRIPTION Car Navigation THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2013 TYPE OF EQUIPMENT TESTED Pre-Production KIND OF EQUIPMENT AUTHORIZATION REQUESTED Certification EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15 SUBPART C Section 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 FCC PART 15 SUBPART E Section 15.407 789033 D02 General UNII Test Procedures New Rules v02r01 Modifications on the Equipment to Achieve Compliance None Final Test was Conducted On 3 m, Semi Anechoic Chamber -. The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum …

Text truncated - open the document above for the full version.

Appendix Data 1.MINIMUM 6 DB BANDWIDTH ............................................................................................................. 2 2.MAXIMUM CONDUCTED(AVERAGE) OUTPUT POWER ............................................................. 9 3.100 KHZ BANDWIDTH OUTSIDE THE FREQUENCY BAND ...................................................... 16 4.PEAK POWER SPECTRAL DENSITY ............................................................................................... 32 5.99% OCCUPIED BANDWIDTH .......................................................................................................... 39 6.DUTY CYCLE ......................................................................................................................................... 46 1 / 58 Test ItemNo.ModeChannelBandwitdhRU ToneRB indexVerdict 1802.11 b241220 MHz--Pass 2802.11 b243720 MHz--Pass 3802.11 b246220 MHz--Pass 4802.11 g241220 MHz--Pass 5802.11 g243720 MHz--Pass 6802.11 g246220 MHz--Pass 7802.11 n20241220 MHz--Pass 8802.11 n20243720 MHz--Pass 9802.11 n20246220 MHz--Pass 6dB Bandwidth Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 2 / 58 1 2 6dB Bandwidth 6dB Bandwidth 3 / 58 3 6dB Bandwidth 4 / 58 4 5 6dB Bandwidth 6dB Bandwidth 5 / 58 6 6dB Bandwidth 6 / 58 7 8 6dB Bandwidth 6dB Bandwidth 7 / 58 9 6dB Bandwidth 8 / 58 Test ItemNo.ModeChannelBandwitdhRU ToneRB indexVerdict 1802.11 b241220 MHz--Pass 2802.11 b243720 MHz--Pass 3802.11 b246220 MHz--Pass 4802.11 g241220 MHz--Pass 5802.11 g243720 MHz--Pass 6802.11 g246220 MHz--Pass 7802.11 n20241220 MHz--Pass 8802.11 n20243720 MHz--Pass 9802.11 n20246220 MHz--Pass Output Power Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 9 / 58 1 2 Output Power Output Power 10 / 58 3 Output Power 11 / 58 4 5 Output Power Output Power 12 / 58 6 Output Power 13 / 58 7 8 Output Power Output Power 14 / 58 9 Output Power 15 / 58 Test ItemNo.ModeChannelBandwitdhRU ToneRB indexVerdict 1802.11 b241220 MHz--Pass 2802.11 b243720 MHz--Pass 3802.11 b246220 MHz--Pass 4802.11 g241220 MHz--Pass 5802.11 g243720 MHz--Pass 6802.11 g246220 MHz--Pass 7802.11 n20241220 MHz--Pass 8802.11 n20243720 MHz--Pass 9802.11 n20246220 MHz--Pass 100 kHz Bandwidth Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 16 / 58 1 1.1 100 kHz Bandwidth 100 kHz Bandwidth 17 / 58 1.2 2 100 kHz Bandwidth 100 kHz Bandwidth 18 / 58 2.1 2.2 100 kHz Bandwidth 100 kHz Bandwidth 19 / 58 3 3.1 100 kHz Bandwidth 100 kHz Bandwidth 20 / 58 3.2 100 kHz Bandwidth 21 / 58 4 4.1 100 kHz Bandwidth 100 kHz Bandwidth 22 / 58 4.2 5 100 kHz Bandwidth 100 kHz Bandwidth 23 / 58 5.1 5.2 100 kHz Bandwidth 100 kHz Bandwidth 24 / 58 6 6.1 100 kHz Bandwidth 100 kHz Bandwidth 25 / 58 6.2 100 kHz Bandwidth 26 / 58 7 7.1 100 kHz Bandwidth 100 kHz Bandwidth 27 / 58 7.2 8 100 kHz Bandwidth 100 kHz Bandwidth 28 / 58 8.1 8.2 100 kHz Bandwidth 100 kHz Bandwidth 29 / 58 9 9.1 100 kHz Bandwidth 100 kHz Bandwidth 30 / 58 9.2 100 kHz Bandwidth 31 / 58

Test ItemNo.ModeChannelBandwitdhRU ToneRB indexVerdict 1802.11 b241220 MHz--Pass 2802.11 b243720 MHz--Pass 3802.11 b246220 MHz--Pass 4802.11 g241220 MHz--Pass 5802.11 g243720 MHz--Pass 6802.11 g246220 MHz--Pass 7802.11 n20241220 MHz--Pass 8802.11 n20243720 MHz--Pass 9802.11 n20246220 MHz--Pass Power Spectrul Density Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 32 / 58 1 2 Power Spectrul Density Power Spectrul Density 33 / 58 3 Power Spectrul Density 34 / 58 4 5 Power Spectrul Density Power Spectrul Density 35 / 58 6 Power Spectrul Density 36 / 58 7 8 Power Spectrul Density Power Spectrul Density 37 / 58 9 Power Spectrul Density 38 / 58 Test ItemNo.ModeChannelBandwitdhRU ToneRB indexVerdict 1802.11 b241220 MHz--Pass 2802.11 b243720 MHz--Pass 3802.11 b246220 MHz--Pass 4802.11 g241220 MHz--Pass 5802.11 g243720 MHz--Pass 6802.11 g246220 MHz--Pass 7802.11 n20241220 MHz--Pass 8802.11 n20243720 MHz--Pass 9802.11 n20246220 MHz--Pass 99% Occupied Bandwidth Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 39 / 58 1 2 99% Occupied Bandwidth 99% Occupied Bandwidth 40 / 58 3 99% Occupied Bandwidth 41 / 58 4 5 99% Occupied Bandwidth 99% Occupied Bandwidth 42 / 58 6 99% Occupied Bandwidth 43 / 58 7 8 99% Occupied Bandwidth 99% Occupied Bandwidth 44 / 58 9 99% Occupied Bandwidth 45 / 58 Test ItemNo.ModeRateBandwitdhRU ToneRB indexVerdict 1802.11 b120 MHz--Pass 2802.11 b220 MHz--Pass 3802.11 b5.520 MHz--Pass 4802.11 b1120 MHz--Pass Duty Cycle Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 46 / 58 1 2 Duty Cycle Duty Cycle 47 / 58 3 4 Duty Cycle Duty Cycle 48 / 58 Test ItemNo.ModeRateBandwitdhRU ToneRB indexVerdict 1802.11 g620 MHz--Pass 2802.11 g920 MHz--Pass 3802.11 g1220 MHz--Pass 4802.11 g1820 MHz--Pass 5802.11 g2420 MHz--Pass 6802.11 g3620 MHz--Pass 7802.11 g4820 MHz--Pass 8802.11 g5420 MHz--Pass Duty Cycle Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 49 / 58 1 2 Duty Cycle Duty Cycle 50 / 58 3 4 Duty Cycle Duty Cycle 51 / 58 5 6 Duty Cycle Duty Cycle 52 / 58 7 8 Duty Cycle Duty Cycle 53 / 58 Test ItemNo.ModeRateBandwitdhRU ToneRB indexVerdict 1802.11 n20MCS020 MHz--Pass 2802.11 n20MCS120 MHz--Pass 3802.11 n20MCS220 MHz--Pass 4802.11 n20MCS320 MHz--Pass 5802.11 n20MCS420 MHz--Pass 6802.11 n20MCS520 MHz--Pass 7802.11 n20MCS620 MHz--Pass 8802.11 n20MCS720 MHz--Pass Duty Cycle Test BandWLAN_2.4GHz AntennaAnt 0 Test Parameters for Channel Bandwidths 54 / 58 1 2 Duty Cycle Duty Cycle 55 / 58 3 4 Duty Cycle Duty Cycle 56 / 58 5 6 Duty Cycle Duty Cycle 57 / 58 7 8 Duty Cycle Duty Cycle 58 / 58

Type Chip Antenna Application 2.4GHz / 5GHz Part No. AMAN1003030LG02 Revision 1.0 MIB3 OI Chip Antenna Application Wi-Fi (802.11 b/g/n/ac) Features Revision History Revision Data Description Author 1.0 2022.10.13 First release of document for datasheet Sangkyoo. Song Table of Contents 1. Operation performance 2. Measurement results 2.1 S-parameter 2.2 Gain, Efficiency 2.3 Radiation pattern 1. Operation performance No Item Performance 1 Impedance 50 Ω 2 VSWR @ Operating frequency (2400~2483.5MHz) (5150~5850MHz) Max. 1.79:1 Max. 2.47:1 3 Average Gain [dBi] 2450 MHz -0.86 5500 MHz -2.98 4 Efficiency Average [%] 2450 MHz 82.08 5500 MHz 50.36 5 Peak Gain [dBi] 2400 MHz 4.26 2450 MHz 4.64 2485 MHz 4.14 5150 MHz 3.19 5500 MHz 6.08 5850 MHz 2.29 6 Radiation pattern Omni-directional 2. Measurement results 2.1 S-parameter 2.2 Gain Efficiency Freq.[MHz] Eff.[%] Avg.[dBi] Peak[dBi] 2400 75.29 -1.23 4.26 2450 82.08 -0.86 4.64 2485 73.77 -1.32 4.14 5150 36.93 -4.33 3.19 5500 50.36 -2.98 6.08 5850 25.28 -5.97 2.29 2.3 Radiation pattern

Type Pattern Antenna Application 2.4GHz / 5GHz Part No. - Revision 4.0 MIB3 OI Pattern Antenna Application Bluetooth (4.2) / Wi-Fi (802.11 a/n/ac) Features Planar Inverted-F Antenna Size: 19 x 6.3 [mm] Inscription on PCB Revision History Revision Data Description Author 1.0 2017.09.12 First release of document for datasheet Hyoseo.park 2.0 2018.06.07 Updated Max VSWR Hyoseo.park 3.0 2019.01.07 Updated Max Peak Gain Hyoseo.park 4.0 2022.10.13 Updated VSWR & Gain Sangkyoo. Song Table of Contents 1. Operation performance 2. Measurement results 2.1 S-parameter 2.2 Gain, Efficiency 2.3 Radiation pattern 1. Operation performance No Item Performance 1 Impedance 50 Ω 2 VSWR @ Operating frequency (2400~2483.5MHz) (5150~5850MHz) Max. 2.79:1 Max. 2.28:1 3 Average Gain [dBi] 2450 MHz -4.21 5500 MHz -0.93 4 Efficiency Average [%] 2450 MHz 37.97 5500 MHz 80.78 5 Peak Gain [dBi] 2400 MHz -0.18 2450 MHz 1.39 2485 MHz 0.3 5150 MHz 4.62 5500 MHz 7.11 5850 MHz 7.3 6 Radiation pattern Omni-directional 2. Measurement results 2.1 S-parameter 2.2 Gain Efficiency Freq.[MHz] Eff.[%] Avg.[dBi] Peak[dBi] 2400 24.52 -6.10 -0.18 2450 37.97 -4.21 1.39 2485 30.73 -5.13 0.3 5150 46.71 -3.31 4.62 5500 80.78 -0.93 7.11 5850 83.76 -0.77 7.3 2.3 Radiation pattern

Page 1 of 31 Report No.: OT-22N-RWD-056 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) RADIO PERFORMANCE TEST REPORT Test Report No. : OT-22N-RWD-056 Reception No. : 2209002852 Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, 07632, United States Manufacturer : LG Electronics Inc. Address : 222 LG-ro, Jinwi-Myeon, Pyeongtaek -Si, Gyeonggi-Do, 451-713, Korea Type of Equipment : Car Navigation FCC ID. : BEJ-MIB3OI01 Model Name : MIB3 OI Multiple Model Name : N/A Serial number : N/A Total page of Report : 31 pages (including this page) Date of Incoming : October 13, 2022 Date of issue : November 21, 2022 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. This report is not correlated with the "KS Q ISO/IEC 17025 and KOLAS accreditation" of Korean Laboratory Accreditation Scheme. Tested by Ju-Yun, Park / Manager ONETECH Corp. Reviewed by Tae-Ho, Kim / General Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 31 Report No.: OT-22N-RWD-056 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 5 2. TEST SUMMARY .............................................................................................................................................................. 6 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 6 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 6 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 6 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 6 2.5 TEST METHODOLOGY .................................................................................................................................................... 6 2.6 TEST FACILITY ............................................................................................................................................................... 6 3. GENERAL INFORMATION ............................................................................................................................................ 7 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 7 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 9 4. EUT MODIFICATIONS .................................................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 10 5.1 JUSTIFICATION ............................................................................................................................................................. 10 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................ 10 5.3 MODE OF OPERATION DURING THE TEST .................................................................................................................... 10 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 12 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 12 6. PRELIMINARY TEST .................................................................................................................................................... 12 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 12 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 12 7. MIMIMUM 6 DB BANDWIDTH ................................................................................................................................... 13 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 13 7.2 TEST SET-UP ................................................................................................................................................................. 13 7.3 TEST DATE ................................................................................................................................................................... 13 7.4 TEST DATA FOR 802.11B WLAN MODE ..............................................................................…

Text truncated - open the document above for the full version.

Page 1 of 4 RADIATED EMISSION TEST -. Bluetooth Page 2 of 4 -. WLAN Page 3 of 4 -. Bluetooth Page 4 of 4 -. WLAN
