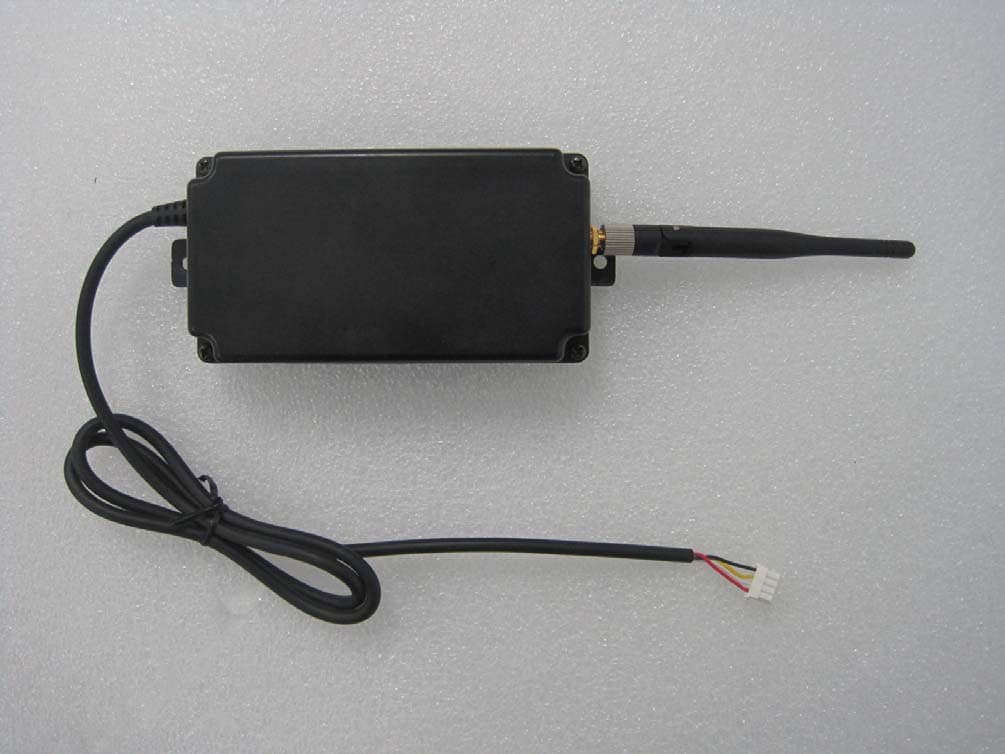

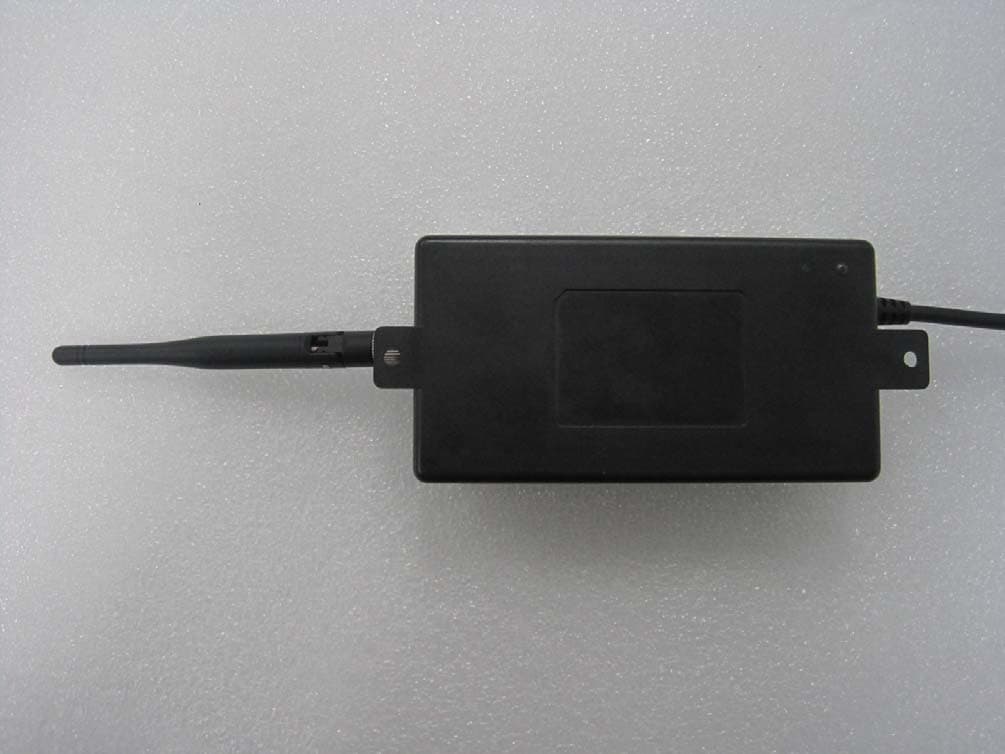

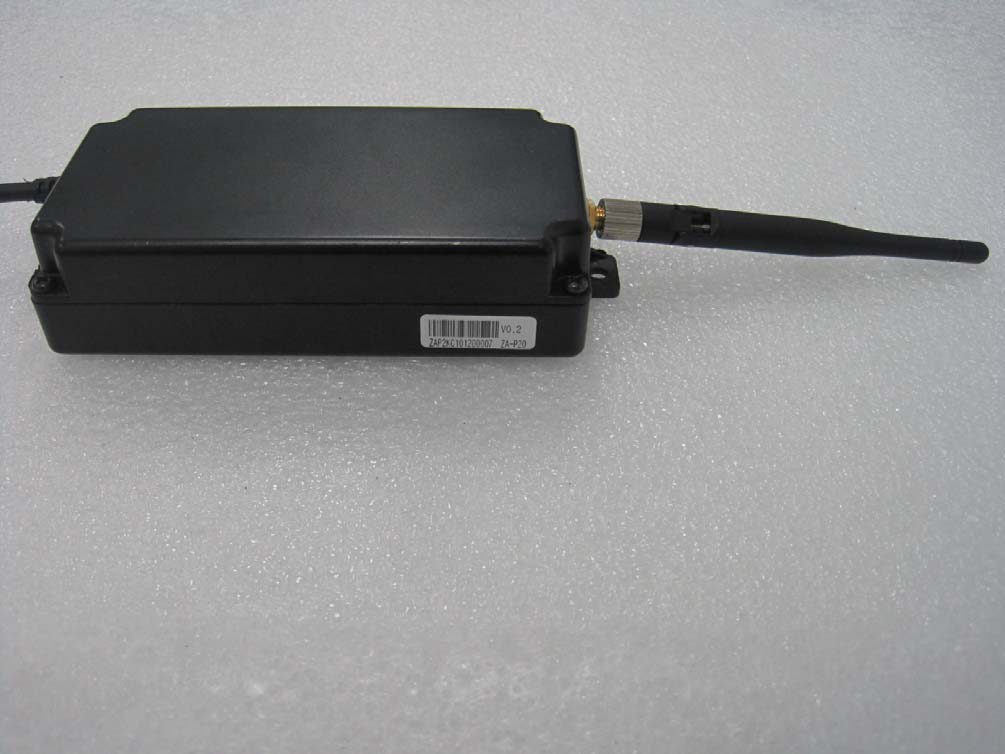

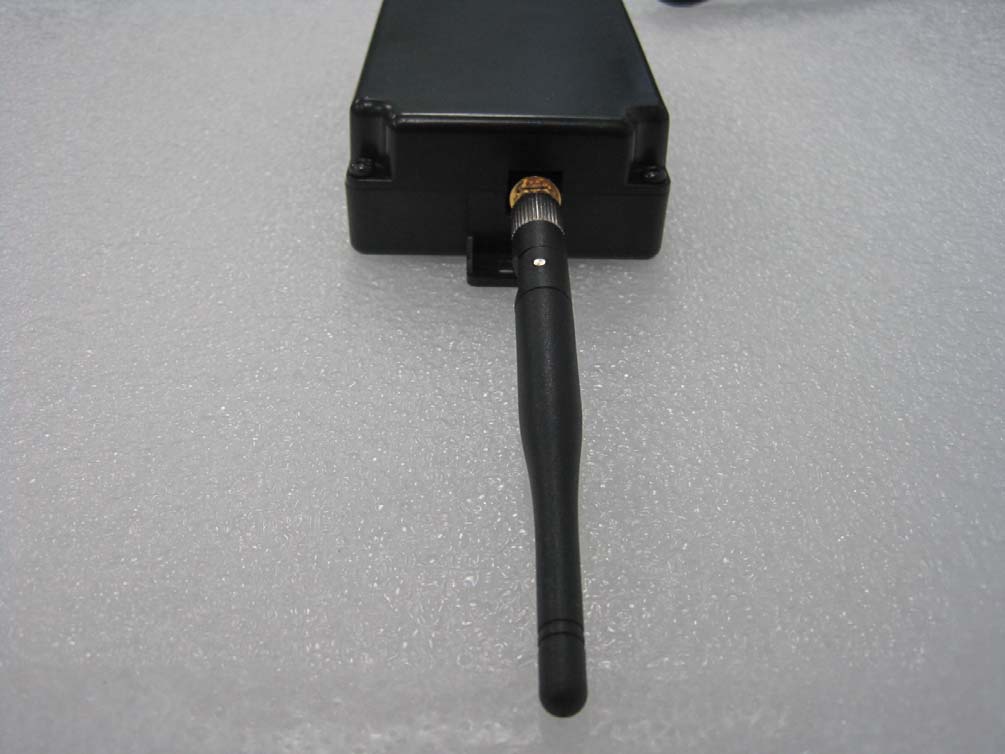

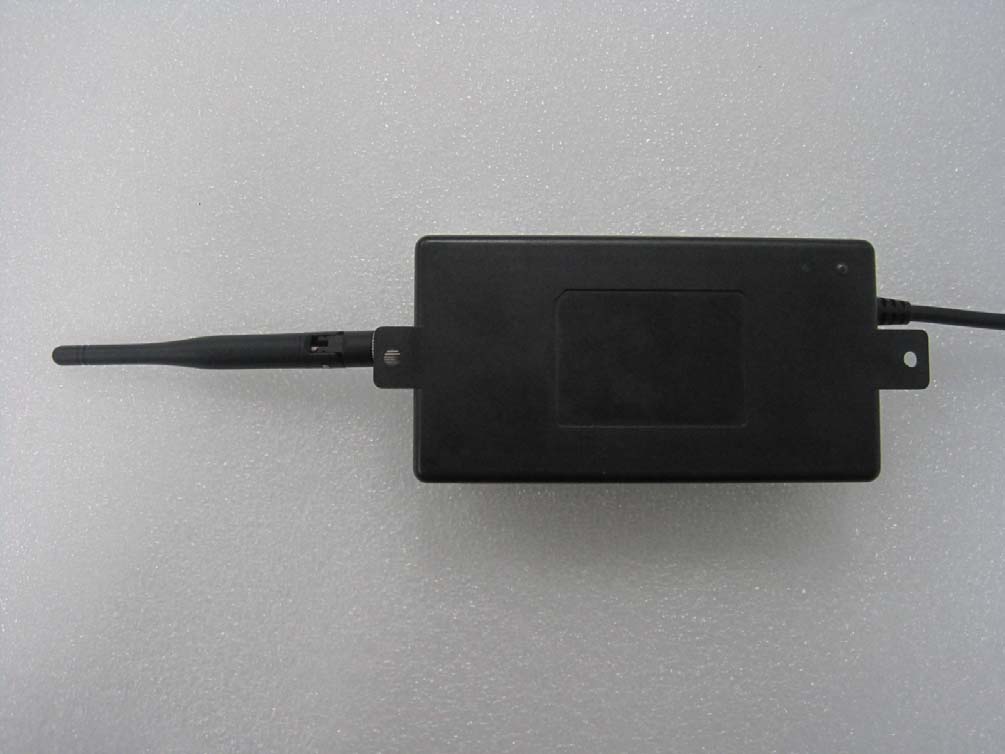

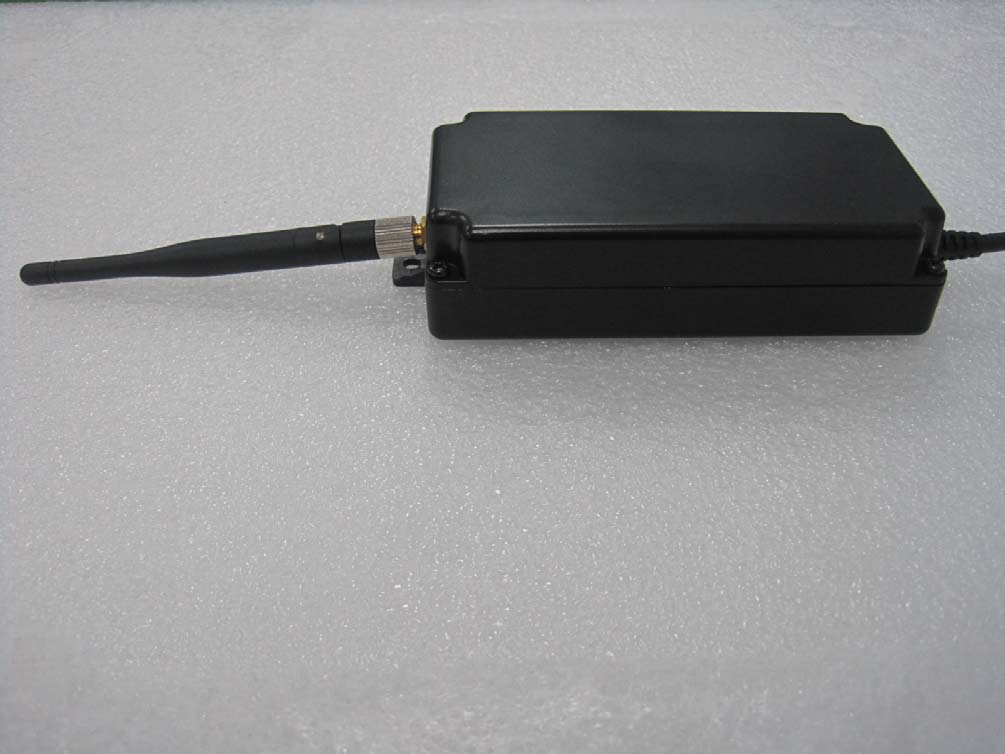

BEJ-ZA-P20ZigBee Adapter

Written Date 2011-03-24 Doc No Version 1.0 Writer Do Geun Chang Examination Approval Bang Jun Wan Doc Manager Subject ZA-P20 RF TEST MANUAL Doc Class Test Manual KQF-0705-1(0) LG Electronics Inc. A4(210X297) ZigBee Adaptor(ZA-P20) Subject: Test Manual 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) . 1 Operation Method 1. Connect DUT and Power Supply, and Turn on PC. 1) Connect Sample’ s RS232C Port and PC’ s RS232C Port with RS232 serial Cable. 2) DUT’ s Power and GND Line at Power Supply(+12V), and Turn on Switch. 2. DUT and PC serial communication setting 2.1 Hyper Terminal setting BIT/Sec(B) : 115200 DATA BIT(D) : 8 PARITY(P) : NONE STOP BIT(S) : 1 FLOW CONTROL : NONE Primary Value Change Value 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 3. TEST C OMMAND 3.1 settxpowmode l p – POWER Mode Setting Command 1) Operation Method > Command Setting Mode 2) Setting Mode I p 0 0: Normal-mode, PA-internal 0 1: Normal-mode, PA-External 1 0: Boost-mode, PA-internal 1 1: Boost-mode, PA-External 3) Execution Scene 3.2 settxpower p – Output Power Setting Command 1) Operation Method > Command Setting Mode 2) Power Range : +8 ~ -32 3) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 3.3 setchannel c – Channel setting Command 1) Operation Method > Command Setting Mode (Range: 0x0B ~ 0x1A ) > Channel 0x0B -> Change the 0x0B channel, Channel value must be hexadecimal. 2) Channel Table Channel 0x0B 2405 MHz Channel 0x0C 2410 MHz Channel 0x0D 2415 MHz Channel 0x0E 2420 MHz Channel 0x0F 2425 MHz Channel 0x10 2430 MHz Channel 0x11 2435 MHz Channel 0x12 2440 MHz Channel 0x13 2445 MHz Channel 0x14 2450 MHz Channel 0x15 2455 MHz Channel 0x16 2460 MHz Channel 0x17 2465 MHz Channel 0x18 2470 MHz Channel 0x19 2475 MHz Channel 0x1A 2480 MHz 3) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 3.3 txtone – U n-modulated Singnal Command 1) Operation Method > Command Setting Mode > txtone Transmitting Carrier frequency. Press 'e'xit to stop 2) txtone (Unmodulated Singnal) TEST A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. txtone Command Execution 3) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 3.4 txstre am – Modulated signal’ s Maximum rate transmission mode 1) Operation Method > Command Setting Mode > txstream 'e'nd... 2) txstream(Modulated Signal) TEST A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. txstream Command Execution 3) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 3.5 rx – rx mode 1) Operation Method > Command Setting Mode > rx Entering RX mode, press c to reset, press e to exit 2) rx TEST A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. rx Command Execution 3) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 4. RF TEST Method 4.1 un-modulated CW Signal Test 1) Command input for un-modulated signal test(txtone) A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. txtone Command Execution 2) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 4.2 Modu lated Signal Test 1) Command input for TEST (txstream) A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. txstream Command Execution 2) Execution Scene 2011-03-24 RF Test Manual Ver 1.0 KQF-0705-1(0) LG Electronics Inc. A4(210X297) 4.3 rx Mode Setting 1) Command input for receive TEST A. settxpowmode 0 1 B. settxpower 0 C. setchannel 0x0B (see the Channel Table) D. rx Command execution 2) Execution Scene This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum 20 cmbetween the radiator and your body.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 LG Electronics Inc. June 22, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LG Electronics USA.. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): ZigBee Adaptor, ZA-P20 We affirm that between SIEMIC and LG Electronics USA. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-ZA-P20

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 LG Electronics USA. June 22,2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: BEJ-ZA-P20 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-ZA-P20

FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 7 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 7 / 7

FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model FCC ID EUT Type Serial No : ZA-P20 : BEJ-ZA-P20 : ZigBee Adaptor : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. KOREA INFOCOM CO.,LTD 5F WinTek B/D 511 Poil-dong, Uiwang-City, Kyunggi-Do, Korea 437-830 MADE IN KOREA FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 3 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 3 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 3

FCC ID: BEJ-ZA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr 1 of 2 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJ-ZA-P20 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 2 2-1. Max Peak output Power at antenna input terminal (dBm) 18.50 Max Peak output Power at antenna input terminal (mW) 70.79458 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 2470 Antenna Gain(typical) (dBi) 1.3400 Antenna Gain(numeric) 1.36144 Power density at prediction frequency (mW/cm²) 0.01917 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3. RESULTS The power density level at 20 cm is 0.01917 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 2470 MHz .

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC Certification Applicant Name: LG Electronics Inc. Address: 60-39, Gasan-dong, Gumchon-gu, Seoul 153-023, Korea Date of Issue: June 22, 2011 Test Site/Location: HCT CO., LTD., 105-1, Jangam-ri, Majang-Myeon, Icheon- si, Kyunggi-Do, Korea Report No.: HCTR1106FR31 HCT FRN: 0005866421 IC Recognition No.: 5944A-3 FCC ID: APPLICANT: BEJ-ZA-P20 LG Electronics Inc. FCC Model(s): ZA-P20 EUT Type: ZigBee Adaptor Max. RF Output Power: 18.50 dBm Frequency Range: 2405 MHz -2470 MHz Modulation type DSSS FCC Classification: Digital Transmission System(DTS) FCC Rule Part(s): Part 15.247 Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report prepared by : Jong Seok Lee Test engineer of RF Team Approved by : Sang Jun Lee Manager of RF Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Test Report No. HCTR1106FR31 Date of Issue: June 22, 2011 EUT Type: ZigBee Adaptor FCC ID: BEJ-ZA-P20 Page １ of 33 FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR31 Date of Issue: June 22, 2011 EUT Type: ZigBee Adaptor FCC ID: BEJ-ZA-P20 Page ２ of 33 Version TEST REPORT NO. DATE DESCRIPTION HCTR1106FR31 June 22, 2011 - First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR31 Date of Issue: June 22, 2011 EUT Type: ZigBee Adaptor FCC ID: BEJ-ZA-P20 Page ３ of 33 Table of Contents 1. GENERAL INFORMATION..........................................................................................................................４ 2. EUT DESCRIPTION.....................................................................................................................................４ 3. TEST METHODOLOGY...............................................................................................................................５ 3.1 EUT CONFIGURATION......................................................................................................................５ 3.2 EUT EXERCISE..................................................................................................................................５ 3.3 GENERAL TEST PROCEDURES......................................................................................................５ 3.4 DESCRIPTION OF TEST MODES.....................................................................................................５ 4. INSTRUMENT CALIBRATION.....................................................................................................................６ 5. FACILITIES AND ACCREDITATIONS.........................................................................................................６ 5.1 FACILITIES.........................................................................................................................................６ 5.2 EQUIPMENT.......................................................................................................................................６ 6. ANTENNA REQUIREMENTS......................................................................................................................７ 7. TEST RESULT.............................................................................................................................................８ 7.1 6dB BANDWIDTH MEASUREMENT.................................................................................................８ 7.2 OUTPUT POWER MEASUREMENT..............................................................................................１１ 7.3 POWER SPECTRAL DENSITY......................................................................................................１４ 7.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTE D SPURIOUS EMISSIONS...１７ 7.5 RADIATED MEASUREMENT.........................................................................................................２３ 7.5.1 RADIATED SPURIOUS EMISSIONS...................................................................................２３ 7.5.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS.............................................３１ 7.6 POWERLINE CONDUCTED EMISSIONS.....................................................................................３２ 8. LIST OF TEST EQUIPMENT...................................................................................................................３３ FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR31 Date of Issue: June 22, 2011 EUT Type: ZigBee Adaptor FCC ID: BEJ-ZA-P20 Page ４ of 33 1. GENERAL INFORMATION Applicant: LG Electronics Inc. Address: 60-39, Gasan-dong, Gumchon-gu, Seoul 153-023, Korea FCC ID: BEJ-ZA-P20 EUT Type: ZigBee Adaptor Model Name: ZA-P20 Date of Test: May 23, 2011 ~ June 10, 2011 Contact person: Name: Geun Chang Do Phone #: +82-31-301-5879 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type ZigBee Adaptor Model Name ZA-P20 Power Supply DC 12.0 V Frequency Range TX: 2405 MHz ~ 2470 MHz RX: 2405 MHz ~ 2470 MHz Max. RF Output Power: 18.50 dBm Modulation Type DSSS Antenna Specification Manufacturer: Chinwoo Tech Antenna Type : Reverse Rod Antenna Peak G ain : 1.34 dBi FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report …

Text truncated - open the document above for the full version.

FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 1 of 5 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 2 of 5 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 3 of 5 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 4 of 5 FCC ID: BEJ-JA-P20 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Page 5 of 5
