BEJ-ZB110Zigbee coordinator of home network Appliances

LG Electronics, Inc. LG Electronics, Inc. 1. Introduction LG-ZB110 is USB connected type ZigBee Adaptor manufactured by LG Electronics Inc. for Smart Grid test bed. It is compatible with ZigBee Alliance Smart Energy Profile 1.1 or under. LG-ZB110 is ZigBee coordinator in home area network. LG-ZB110 is driven by LG NAS(Network Attached Storage) and LG Home Energy Management System software. It is also inter-operated with LG home appliances and Smart TV. You can monitor and control home appliances’ electricity usage by Smart TV application. 2. Specification (1) RF Specification Characteristics Specifications Note Frequency Range 2400~2483.5MHz 0 ~ 15 CH Frequency Tolerance ±50ppm Output power Max +20dBm @EM357_Pout- setting=0dBm Occupied bandwidth Max 5.0MHz Out of band LOW Max -60dBm Emission HI Max -60dBm Spurious Full Bandwidth Max -60dBm 30MHz ~ 12.75GHz Emission harmonic 2 nd Max -60dBm RBW,VBW : 100KHz 3 rd Max -60dBm RBW,VBW : 100KHz Adjacent channel +5MHz 36dBc Compared to CW output (RBW: 100KHz rejection -5MHz 36dBc LG Electronics, Inc. +10MHz 48dBc -10MHz 48dBc Leakage Power Max -60dBm @Rx Mode Rx sensitivity Min -90dBm PER Test Device Type FFD Full Function Device (2) Software Specification i. ZigBee Smart Energy Profile v1.1 ii.Ember ZigBeePro Stack 3. Operation The wireless ZigBee adapter (compatible with ZigBee Alliance SEP1.1 standards) can be directly connected to the USB port on the side of your LG NAS(Network Attached Storage) and will allow the NAS to communicate with LG smart home appliances(Figure 1). Figure 1. System connection LG-ZB110 with LG NAS Once the adapter has been connected to the NAS , you can monitor and control smart home appliances through ZigBee. LG Electronics, Inc. If you want to monitor and control LG’s smart home appliances in home, you should buy LG NAS that is shipped with LG Home Energy Management System software. Once you connect ZB110 to the LG NAS, the NAS will start LG Home Energy Management System. LG Home Energy Management System provides easy user interface with users graphically. LG Home Energy Management System has web- based user interface. So You need an additional display device like TV. LG Smart TV is the most suitable display device. The LG Smart TV supports convenient application market including LG Home Energy Management System application. LG Home Energy Management System has multi-functional ho me network protocol middleware. You can manage your home electricity energy usage by demand response technology. You can also save your energy cost. Demand response signal can be generated by LG Home Energy Management itself, or received from electricity utility company by using Advanced Metering Infrastructure(AMI) system. AMI is a central device in the field of Smart Grid. If you buy additional LG ZigBee adaptor(LG- ZB110R), you can receive utility company’s demand response information. You can also use smart plug(compatible with ZigBee Alliance SEP1.x standards) for control and monitor home’s electricity usage(Figure 2). Figure 2. LG Home Energy Management System can control smart plug using by ZigBee protocol Smart Plug can be registered by easy User Interface of LG Home Energy Management System(Figure 3). You can input your plug’s installation code into the registration form easily and turn on or off your electricity device like light, hair dryer by TV’s remote controller. LG Electronics, Inc. Figure 3. Smart Plug registration screen in LG Home Energy Management System NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. caution t he u ser that c hanges o r m odifications n ot e xpressly a pproved by t he pa rty responsible for compliance could void the user’s authority to operate the equipment. LG Electronics, Inc. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 20 cmbetween the radiator and your body. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 LG Electronics Inc. March 8, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, LG Electronics USA. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Zigbee coordinator of home network appliances. We affirm that between SIEMIC and LG Electronics USA., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-ZB110

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 LG Electronics USA. March 08,2012 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:BEJ-ZB110 We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description CONFIDENTIAL 4 Part List/ Tune-up 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Christopher Johnson Sr.Manager, Standards & Compliance LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs New Jersey United States FCC ID : BEJ-ZB110

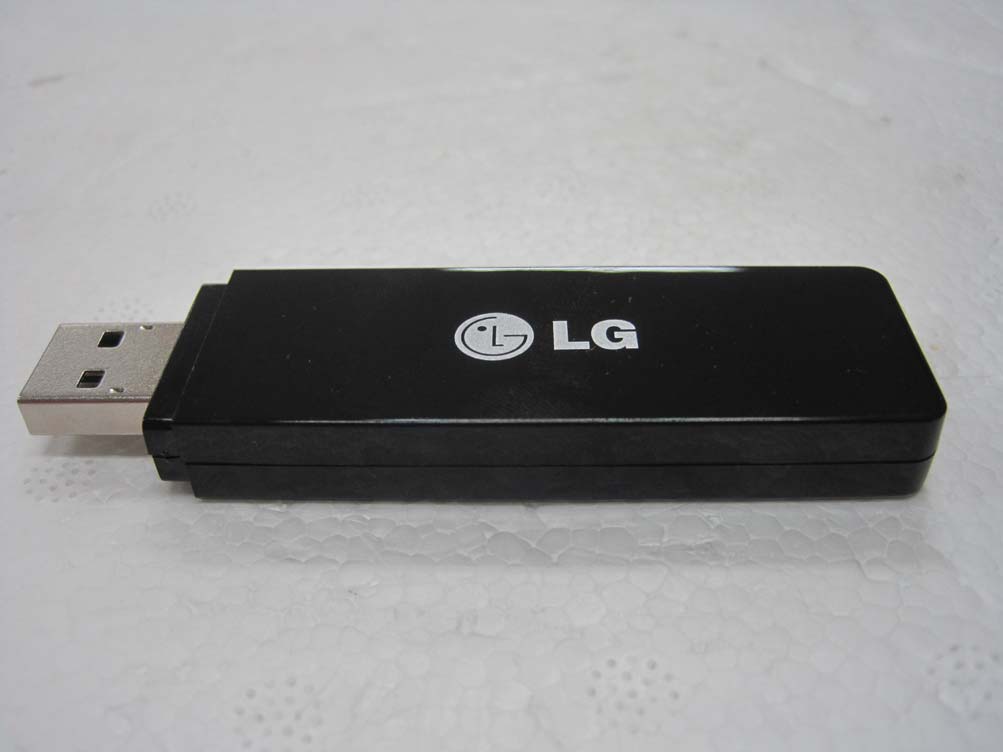

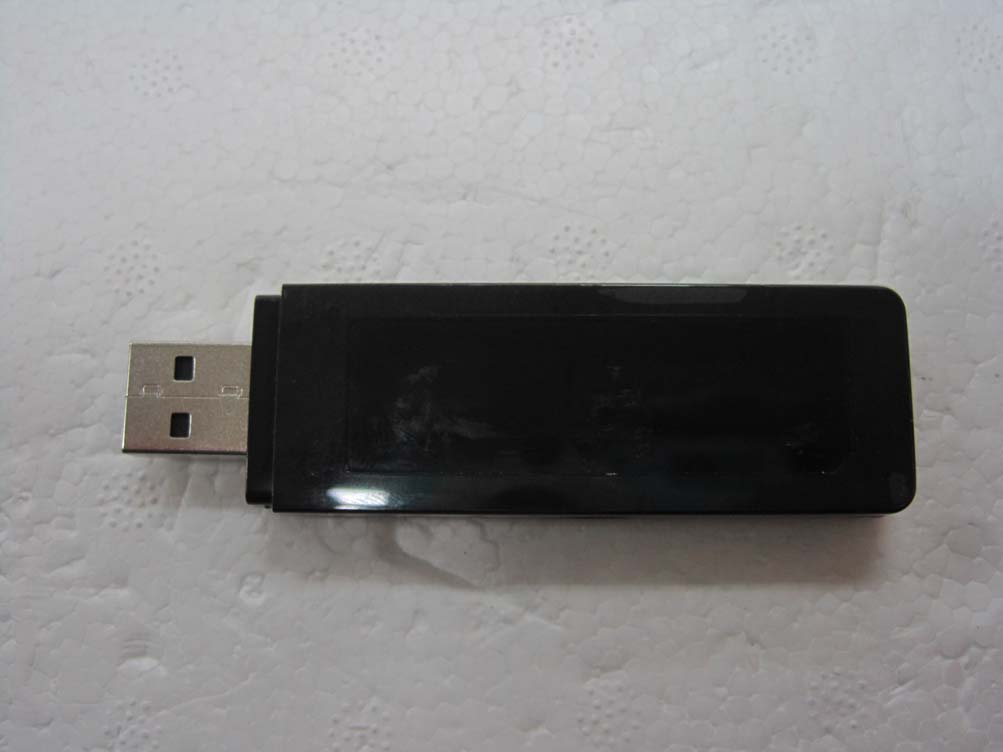

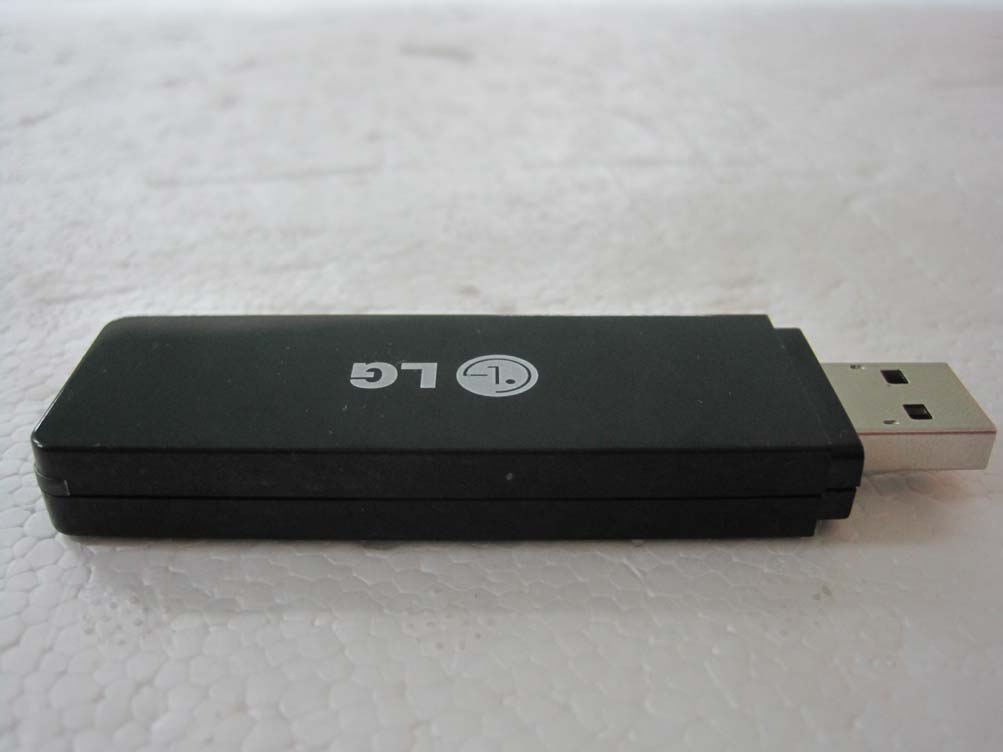

FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 6 FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 6 FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 6 FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 6 FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 6 FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 6

FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model : LG-ZB110 FCC ID: BEJ-ZB110 S/N : 000000000001 50mm 15mm FCC ID: BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID:BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 4 FCC ID:BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 4 FCC ID:BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 4 FCC ID:BEJ-ZB110 HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 4

MPE CALCULATION For LG Electronics Inc. – ; Model: LG-ZB110 FCC ID: BEJ-ZB110 RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2415 MHz): Power =21.80 d Bm, Antenna Gain = 1.8 dBi, Prediction distance 20cm S = 0.045575 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Jong Suk LEE Date : March 08,2012

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1203FR11 Date of Issue: March 08, 2012 EUT Type: Zigbee coordinator of home network Appliances FCC ID: BEJ-ZB110 Page ２ of 42 Version TEST REPORT NO. DATE DESCRIPTION HCTR1203FR11 March 08, 2012 - First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1203FR11 Date of Issue: March 08, 2012 EUT Type: Zigbee coordinator of home network Appliances FCC ID: BEJ-ZB110 Page ３ of 42 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 3. TEST METHODOLOGY ............................................................................................................................... ５ 3.1 EUT CONFIGURATION ...................................................................................................................... ５ 3.2 EUT EXERCISE .................................................................................................................................. ５ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ５ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ５ 4. INSTRUMENT CALIBRATION..................................................................................................................... ６ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ６ 5.1 FACILITIES ......................................................................................................................................... ６ 5.2 EQUIPMENT ....................................................................................................................................... ６ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ７ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ８ 8. TEST RESULT ............................................................................................................................................. ９ 8.1 6dB BANDWIDTH MEASUREMENT ................................................................................................. ９ 8.2 OUTPUT POWER MEASUREMENT .............................................................................................. １２ 8.3 POWER SPECTRAL DENSITY ...................................................................................................... １８ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ２２ 8.5 RADIATED MEASUREMENT. ........................................................................................................ ２８ 8.5.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. ２８ 8.5.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ............................................. ３６ 8.6 POWERLINE CONDUCTED EMISSIONS ..................................................................................... ３７ 9. LIST OF TEST EQUIPMENT ................................................................................................................... ４２ FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1203FR11 Date of Issue: March 08, 2012 EUT Type: Zigbee coordinator of home network Appliances FCC ID: BEJ-ZB110 Page ４ of 42 1. GENERAL INFORMATION Applicant: LG Electronics Inc. Address: 221, Yangjae-Dong Seocho-Gu, Seoul, Korea 137-130 Manufacture: Korea Infocom FCC ID: BEJ-ZB110 EUT Type: Zigbee coordinator of home network Appliances Model name(s): LG-ZB110 Date(s) of Tests: February 17, 2012 ~ March 07, 2012 Contact Person: Name: Jae Hong Kim Phone #: +82-31-421-7711 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type Zigbee coordinator of home network Appliances FCC Model Name LG-ZB110 Power Supply DC 5.0 V Frequency Range TX: 2415 MHz -2460 MHz RX: 2415 MHz -2460 MHz Max. RF Output Power: 21.80 dBm Modulation Type DSSS Antenna Specification Manufacturer: Antenova Antenna type: SMD Antenna Peak Gain : 1.8 dBi FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1203FR11 Date of Issue: March 08, 2012 EUT Type: Zigbee coordinator of home network Appliances FCC ID: BEJ-ZB110 Page ５ of 42 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.10-2009). 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2009) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is…

Text truncated - open the document above for the full version.

FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 11 TEST SETUP PHOTOGRAPHS FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 11 ■ Conducted Zigbee Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 11 ■ Test Setup Photo FCC ID: BEJ-ZB110 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １１ of 11 ■ Conducted Emission Setup Photo
