1 WirelessLCD TV User’s Guide (15LW1R/15LW1T) Please read the “Safety Precautions” section carefully to use this product properly 2 Major Functions of Wireless LCD TV Wireless TV Function * Wireless transmission unit enables you to watch TV in a place where the antenna is not connected such as in a kitchen, lounge or bedroom. Media Player Function * When connected to your PC, you can play back pictures, music files or video. Thank you purchasing LG product. Please check whether the following accessories are included in the wireless TV package. * Actual wireless TV and its accessories may look differently. * The maximum usage distance is 35m if no obstacle or network interference exists. * A mosaic screen may appear if network connection is poor, since broadcasting is converted to the MPEG format before transmitted wirelessly. * This product can be affected by an electrical microwave, wireless LAN card or radio wave generator. * The broadcasting screen appears 1.5 second behind the general TV due to the characteristics of wireless transmission. P O W E R P O W E R Wireless TV Max. 35m PC Wireless transmission unit Wireless transmission unit Wireless TV Max. 35m PC Wireless TV Accessories Remote control/Battery (AAA x 2) User’s Guide/Cards Software CD Power cord 2 eaRCA cableS-video cableAntenna cable 2 ea DistributorDC adaptor 2 ea Battery pack 1 ea Mounting type stand (only for 15LW1R model) Wireless transmission unit 3 / Contents04 22 28 Before you Use Warning SAR(Specific Absorption Rates) Safety instructions Name and Functions of Wireless TV Parts Front/Upper view of the wireless TV:Screen adjust- ment button Rear view of the wireless TV/ wireless transmission unit Watching the wireless TV using the mounting type stand Installing a battery Name and Functions of Remote Control Connection and Usage Connecting the Wireless TV Connecting the Antenna Watching more than 2 TV Sets Watching Video/DVD Watching Cable TV Using the External Devices like a Camcorder Adjustment when Using the Wireless TV Watching the Wireless TV Setting the Channel Memorizing all broadcasting channels Memorizing or clearing the specific channel Watching the selected channel only. Adfusting the Picture Adjusting the picture automatically Adjusting contrast Adjusting brightness Adjusting depth of color Adjusting sharpness Adjusting tint 04 05 06 16 16 17 18 19 20 22 23 24 25 26 27 28 29 29 29 30 31 31 31 32 32 33 33 42 61 Adfusting Sound Adjusting best sound automatically Using the SAP (Secondary Audio Program) function Adjusting the volume automatically Adjusting sound balance Setting the Special Selecting the Input Signal Watching the Program with Caption Text Settings the Captions Closed Captions Setting the Sleep Timer Setting the key lock Setting the Lock Setting the lock function Changing the password setting Lock Options Using Media Browser Using Media Browser Setting the wireless network (Setting method 1) Setting the wireless network in the Computer Installing the “Media Library” Server in you computer Setting Wireless Network (Setting method 2) Using Media Library Manager Viewing the Picture Playing Music Watching the movie Changing the settings Note Check before reporting malfunction Product Specification 34 34 34 35 35 36 36 36 37 38 39 39 40 40 40 41 42 42 44 46 49 52 53 55 58 60 61 65 Contents 4 Before you Use Warning NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. REGULATORY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. U.S.A. only ------------------------------------------------ COMPLIANCE: The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-201-816-2000 http://www.lgusa.com ----------------------------------------------------------------- 5 Safety Information SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS POTENTIALLY EXPLOSIVE ATMOSPHERES Turn your TV OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. INTERFERENCE TO MEDICAL DIVICES Certain electronic equipment may be shielded against RF signal from you wireless TV. (Pacemakers, Hearing Aids, and so on) Turn your TV OFF in health care fa…

Text truncated - open the document above for the full version.

42 Using Media Browser Using Media Browser Setting the wireless network You should configure your computer network and install the Media Library program first to view or play back the picture, music or the movie in your computer using the Media Browser function of the wireless TV. If your computer is not installed with the wireless LAN card, it is possible to purchase this product. You should purchase the wireless LAN card (or Access Point(AP)) separately 802.11gadaptor (or 802.11g Access Point(AP)) that complies with Wi-Fi. You cannot use the 802.11awireless LAN card (or, 802.11a Access Point(AP)) for this wireless TV. We recommend that you use the USB type adaptor that is easy to configure, or the wireless LAN card that runs in 802.11g only. Setting method 1 1 Connect the power to the wireless TV. Wireless TV DC power adaptor 2 Turn on the wireless TV. Switch to the ‘Media Browser’ by pressing TV/MEDIAbutton. 'SEARCH FINDING'or 'SEARCH FAILURE'window will appear on the TV screen as shown in the figure. Do not click the [OK]on the screen but take the follow- ing steps. Upper side of the wireless TVRemote controlRemote control or or Power cord If you use the wireless LAN card for the first time, take the steps described in the ‘Setting method 2’. Setting method 1 Setting method 1 There are two methodsfor setting the wireless network. If you’re familiar with wireless LAN card setting, take the steps described in the ‘Setting method 2’. 43 Using Media Browser If the computer to install the Media Library is not equipped with the wireless LAN card (or, Access Point(AP)), install it first. * Ensure to read the User’s Manual provided by the vendor of the wireless LAN card(or, Access Point(AP))to learn about how to install the wireless LAN card. * For the wireless LAN card(or, Access Point(AP))that supports both802.11band802.11g, set the adaptor to run in 802.11gonly. <See the User’s Manual of the wireless LAN card (or, Access Point(AP))> If you mix 11gand 11bwhen using the adaptor, link speed will drop. 3 When using the wireless LAN card Wireless LAN card- Not included Computer •Install the wireless LAN card driver files after installing it. Once the driver is successfully installed, go to step ‘Setting the wireless network in the computer’ . Computer Access Point(AP) When using the Network cable DC adaptor Computer •Install the Access Point(AP) driver files after installing it. Once the driver is successfully installed, go to step ‘Setting the wireless network in the computer’ . Computer Access Point(AP) - Not included 4. 4. Power cord 44 Using Media Browser Using Media Browser * Set the computer SSID (Network name), WEP key, and connection mode as follows by referring to the User’s Manual for the wireless LAN card (or, Access Point(AP)) that you purchased. 4 When using the wireless LAN card When setting is complete, do not turn off the wireless TV but install the Media Library as described in step 5. SSID (network name) * Set to “LGMB”(Case-sensitive) Set WEP keyas ‘Not in Use’. Set the Connection Modeas ‘Networking between computers (Ad-hoc or peer-to-peer)’ Setting Internet protocol TCP/IP Choose one of the following two setting methods. u‘Obtain an IP address automatically’ Performance can drop when connecting the computer to the wireless TV through wireless connection – up to 2 minutes delay. u‘Use the following IP address (manual)’(recommended) IP address: 169.254.XXX.XXX (Input any number between 1 and 254 for XXX.) e.g., 169.254.45.200 Subnet mask: 255.255.0.0 Gateway: Do not input any IP. 1 2 3 4 When using the Access Point(AP) 1) Setting the Access Point(AP) SSID (Network name) • Use the existing SSID(network name) without change, or input new SSID(nerwork name) (case-sensitive) to use. e.g., LGMEDIA Set WEP keyas ‘Not in Use’. Setting Internet protocol TCP/IP • Set the Access Point(AP) IP address as 192.168.0.1 and subnet mask as 255.255.255.0. • If Access Point(AP) provides the DHCP Server function, activate it. (recommended) • Connect the Access Point(AP) to the computer using the Ethernet cable. Setting Internet protocol TCP/IP Choose one of the following two setting methods. • ‘Obtain an IP address automatically’ If you have activated the DHCP Server function when setting the Access Point(AP), select the “Obtain an IP address automatically” option. • ‘Use the following IP address (manual)’(recommended) Set as follows if you have not activated the DHCP Server function when setting the Access Point(AP) or the Access Point(AP) does not provide it. IP address: 192.168.XXX.XXX (Input any number between 2 and 254 for XXX.) e.g., 192.168.0.200 Subnet mask: 255.255.255.0 Gateway: 192.168.0.1. To be continued on the next page. 1 2 3 1 *Make sure to read the User’s Manual of the Access Point(AP) provided by the vendor before setting the Access Point(AP). 2) Setting the computer Setting the wireless network in the computer 45 Using Media Browser Set only when you use the Access Point (AP). Take the following setting steps when Access Point(AP) setting is complete. or The setting screen will appear. * Your wireless TV IP Address may be different from the one described in this manual. Press the [OK]in the'SEARCH FINDING' or'SEARCH FAILURE'window on the TV screen, using the remote control button. Move to ‘Select Network’field using the and button on the remote control. Find the SSID(network name)you have set in the computer using the and button on the remote control, and press the button. e.g., LGMEDIA uIf you select the ‘Obtain an IP address automatically’option, select‘Automatic’. If you select automatic network setting, the IP Address, Subnet mask and Gateway will not appear in the wireless TV. (No setting is required.) uIf you select the ‘Use the following IP address’option, select ‘Manual’and set the fourth column of the IP Address different from the Access Point (AP)and the computer. If you set the same address, it will not run. e.g., Wireless TV: 192.198.0.110, Access Point: 192.168.0…

Text truncated - open the document above for the full version.

LG Electronics Inc. 642, Jinpyeong-dong, Gumi-city,01, Gyeongsangbuk-do, 730-727, Korea Date: December 15, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: BEJ15LW1T LG Electronics Inc. Part 15 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2006. Sincerely Yours, ---------------------------------------------- Y. Hur / EMC Manager Product Engineering Department Safety and EMC Team e-mail : [email protected] LG Electronics Inc. 642, Jinpyeong-dong, Gumi-city,01, Gyeongsangbuk-do, 730-727, Korea Date: December 15, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality LG Electronics Inc. FCC ID: BEJ15LW1T Part 15 Certification Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, ---------------------------------------------- Y. Hur / EMC Manager Product Engineering Department Safety and EMC Team e-mail : [email protected] LG Electronics Inc. 642, Jinpyeong-dong, Gumi-city,01, Gyeongsangbuk-do, 730-727, Korea Date: December 15, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement LG Electronics Inc. FCC ID: BEJ15LW1T Part 15 Certification Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ---------------------------------------------- Y. Hur / EMC Manager Product Engineering Department Safety and EMC Team e-mail : [email protected]

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA SUBJECT: LG Electronics Inc. FCC ID: BEJ15LW1T MODEL: 15LW1T Part 15 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc. is an application for Part 15Certification of the following Wireless Transmit Unit compatible with 802.11b/g Model name: 15LW1T EUT Type: Wireless Transmit Unit compatible with 802.11b/g Tx Frequency: 2412 ~ 2462MHz(802.11b) 2412 ~ 2462MHz(802.11g) Rx Frequency: 2412 ~ 2462MHz(802.11b) 2412 ~ 2462MHz(802.11g) Max. RF Output Power: 56.6mW EIRP 802.11b (17.53dBm) 14.6mW EIRP 802.11g (11.64dBm) Maximum SAR: 0.094 W/kg Body SAR(802.11b) 0.013 W/Kg Body SAR(802.11g) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Y. Hur / EMC Manager LG Electronics Inc. December 15, 2004 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

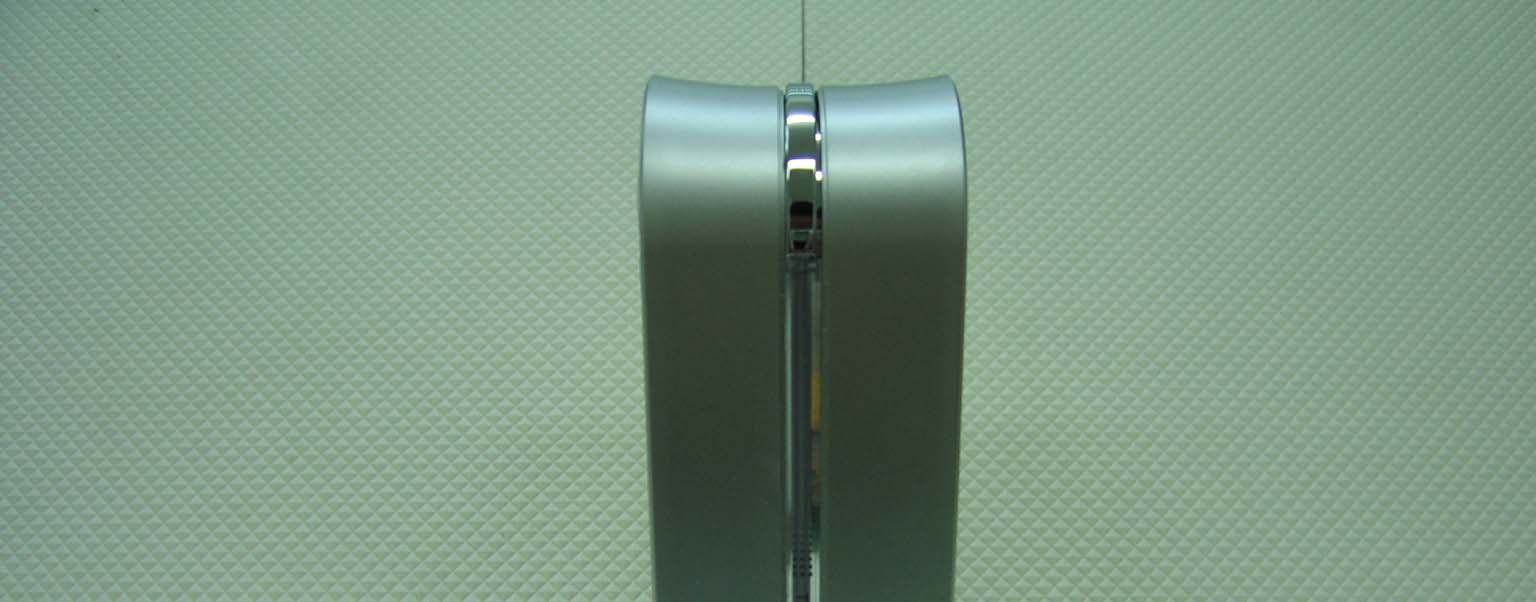

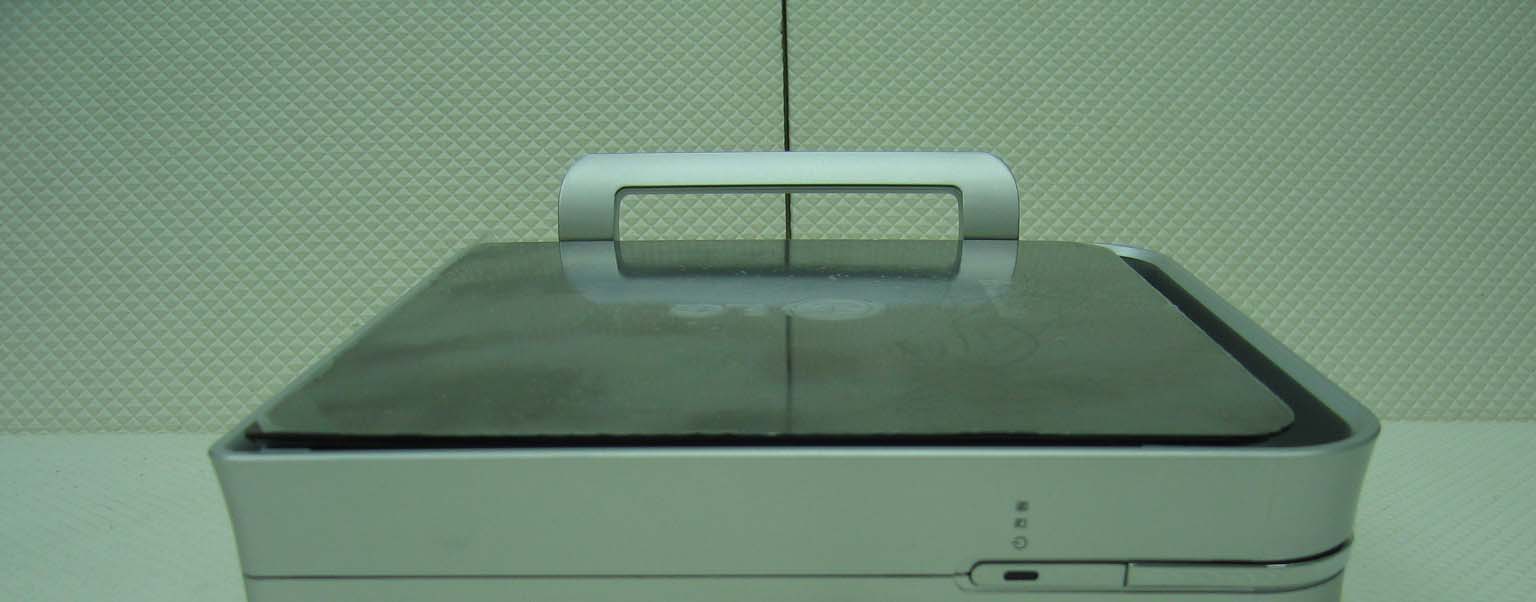

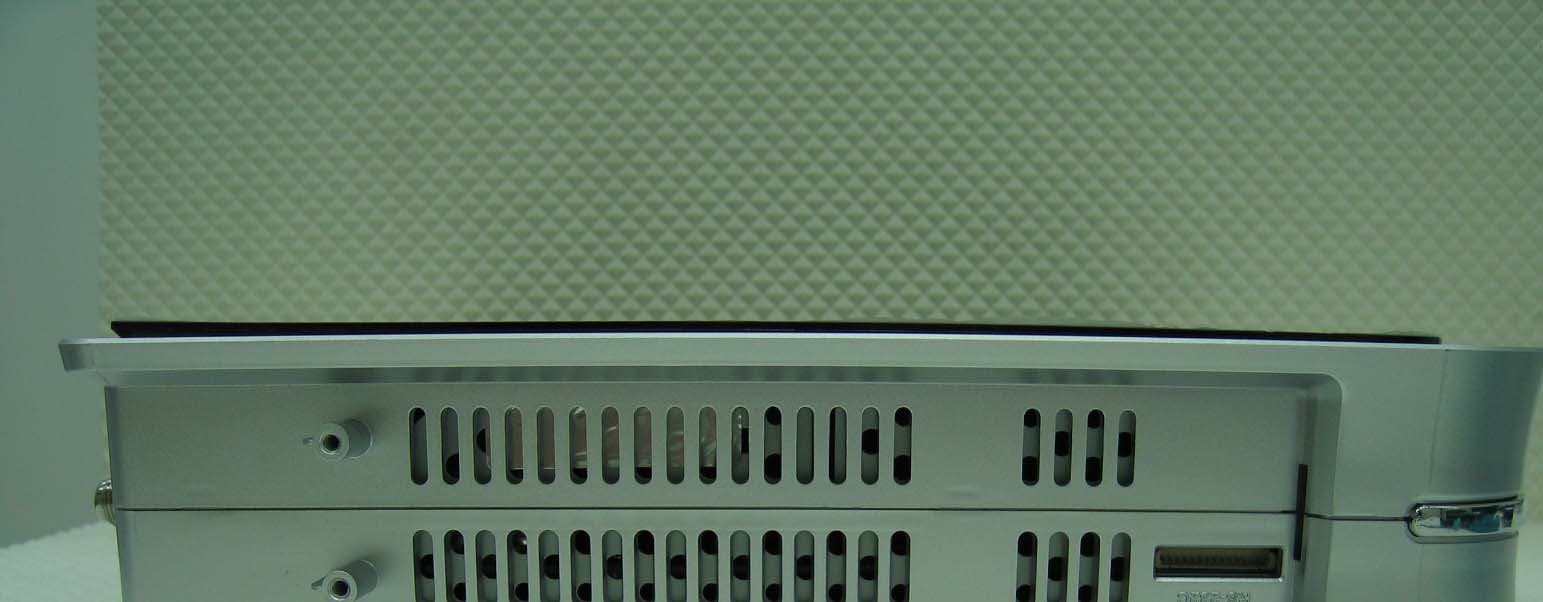

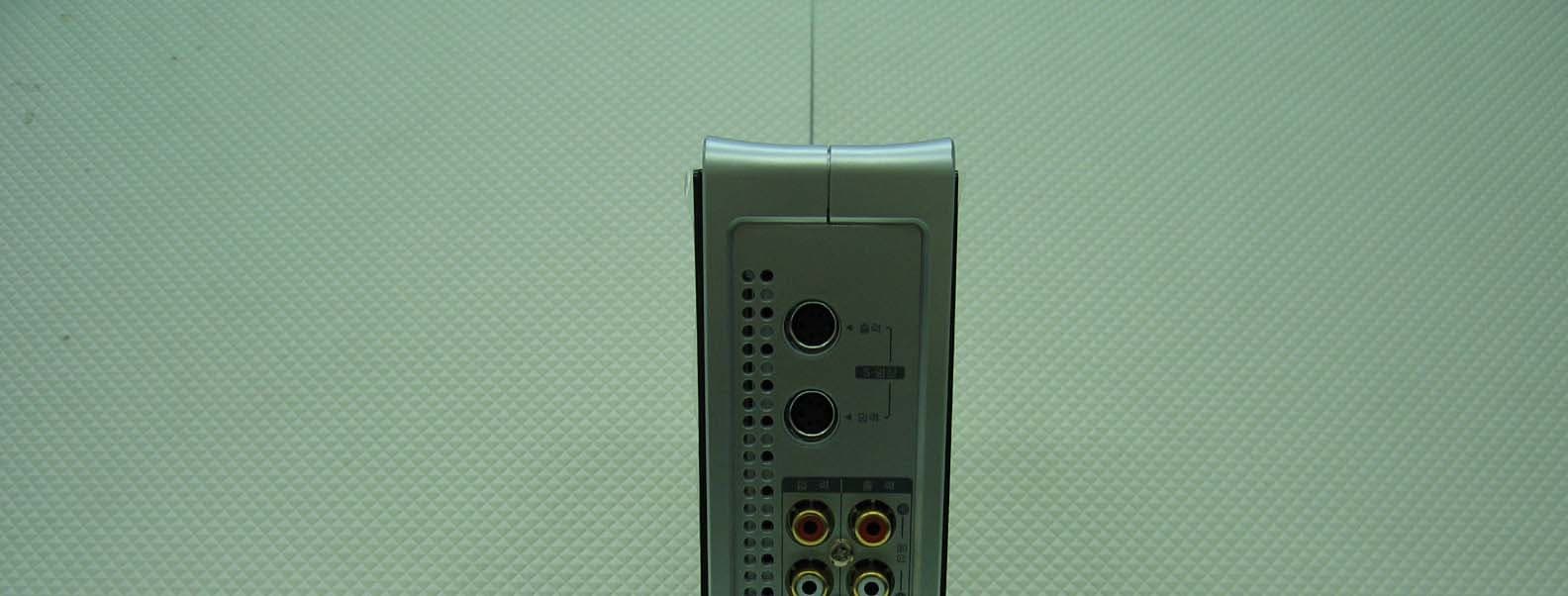

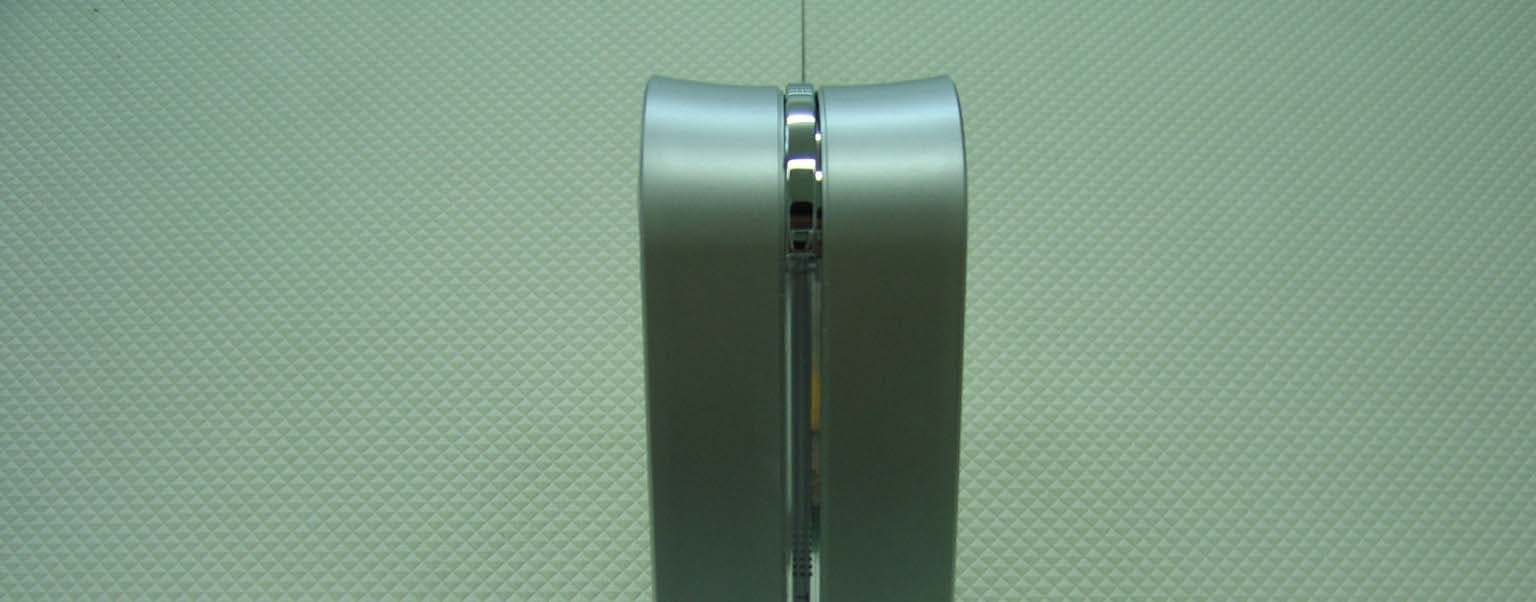

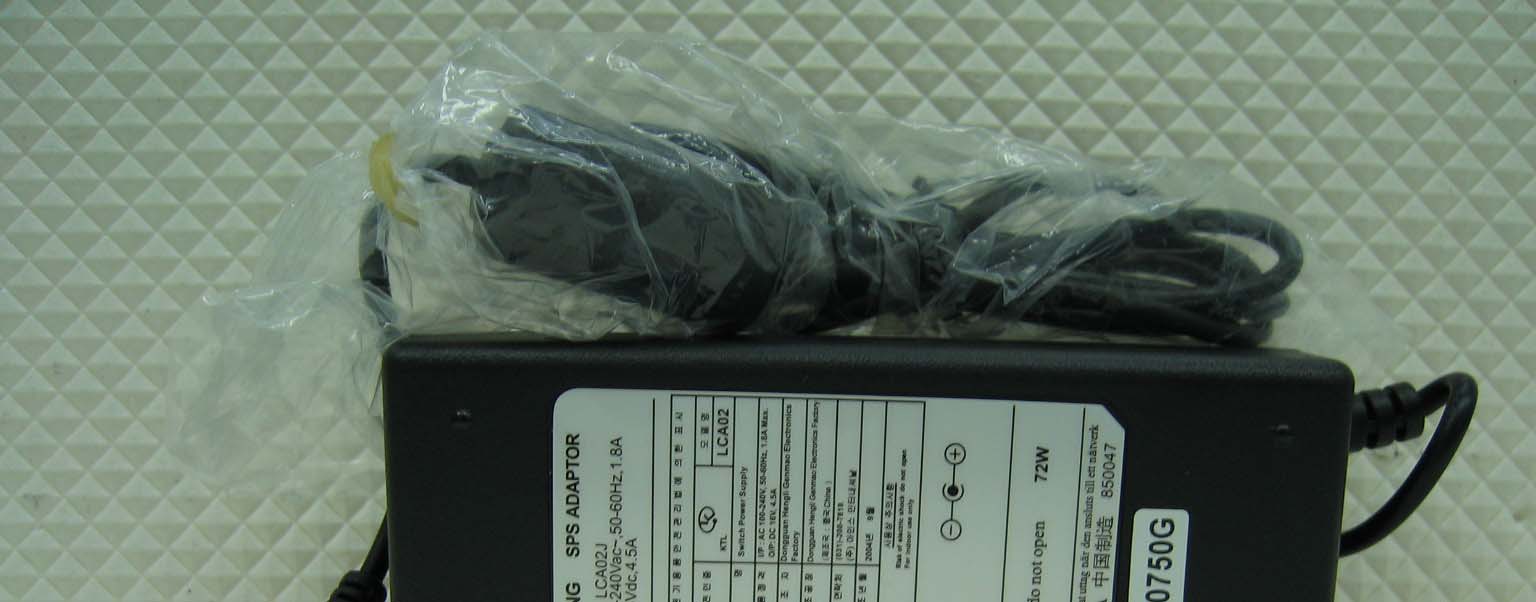

Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-RF04-1201 FCC ID: BEJ15LW1T DATE: December 15, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

Report File No. : STROS-04-007 Date of Issue : December 20, 2004 Page : 1of 16 TEST REPORT Equipment Under Test : Wireless Transmit Unit compatible with 802.11b/g Model No. : 15LW1T FCC ID : BEJ15LW1T Applicant : LG Electronics Inc. Address of Applicant : 642, Jinpyeong-dong, Gumi-city, Gyeongsangbuk-do, 730- 727, Korea Date of Receipt : December 8, 2004 Date of Test(s) : December 9, 2004 Date of Issue : December 20, 2004 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Tested by : Elvin Lee December 9, 2004 Approved by : Albert Lim December 20, 2004 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. Report File No. : STROS-04-007 Date of Issue : December 20, 2004 Page : 2of 16 Contents 1. General Information 1.1 Testing Laboratory..............................................................................................................4 1.2 Details of Applicant ........................... ... ............................................................................4 1.3 Description of EUT(s).........................................................................................................4 1.4 Test Environment...............................................................................................................5 1.5 Operation description..........................................................................................................5 1.6 Evaluation procedures.........................................................................................................6 1.7 The SAR Measurement System..............................................................................................7 1.8 System Components............................................................................................................9 1.9 SAR System Verification....................................................................................................11 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz....................................................... 12 1.11 Test Standards and Limits..................................................................................................12 2. Instruments List.......................................................................................... 14 3. Summary of Results.......................................................................................15 APPENDIX 1. DASY4 SAR Report 2. Uncertainty Analysis 3. Photographs of EUT & EUT’s Test Setup 4. Calibration certificate Report File No. : STROS-04-007 Date of Issue : December 20, 2004 Page : 3of 16 1. General Information 1.1 Testing Laboratory SGS Testing Korea Co., Ltd. Radio Div. 2FL, 18-34, Sanbon-dong, Gunpo-Si, Gyeonggi-do Korea 435-040 Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.sgstesting.co.kr 1.2 Details of Applicant Name : LG Electronics Inc. Address : 642, Jinpyeong-dong, Gumi-city, Gyeongsangbuk-do, 730-727, Korea 1.3 Description of EUT(s) Equipment Type Wireless Transmit Unit compatible with 802.11b/g Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID BEJ15LW1T Model No. 15LW1T Number Of Channel 11 Modulation DSSS / OFDM 802.11b 11Mbps Transfer Rate 802.11g 54 Mbps 802.11b 0.094 W/kg (1g) Max.SAR Measured 802.11g 0.013 W/kg (1g) Antenna Gain (2437MHz) -0.52 dBi Antenna Type PIFA I/O Port Mini PCI Power Supply 16Vdc from AC adapter Report File No. : STROS-04-007 Date of Issue : December 20, 2004 Page : 4of 16 NOTE: 1. The mini PCI card, which brand is Intel and the model name is WM3B2200BG, is specified to this EUT. 2. The EUT is powered by following adapter: Brand LIEN CHANG Model LCA02J Input AC 100~240V, 50/60Hz Output DC16V, 1.8A max 3. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 1.4 Test Environment Ambient temperature : 22.7 ° C Tissue Simulating Liquid : 22.2 ° C Relative Humidity : 55 % 1.5 Operation Configuration 802.11b 802.11g 2412 MHz 14.15 2412 MHz 12.10 2437 MHz 14.10 2437 MHz 12.15 Channel Frequency Under Test And Its Conducted Output Power 2462 MHz 14.05 2462 MHz 12.15 Antenna Configuration Internal Antenna Antenna Position The Antennas are located top and front sides in the transmitter. The following test configurations have been applied in this test report: Report File No. : STROS-04-007 Date of Issue : December 20, 2004 Page : 5of 16 Configuration to phantom Configuration 1: The front side of EUT contact to the flat phantom. The transmitted antenna of the EUT located under the reference point of the flat phantom.(Fig.2) Configuration 2: The ports side of EUT contact to the flat phantom. The transmitted antenna of the EUT located under the reference point of the flat phantom. (Fig.3) Configuration 3: The left of the EUT contact to the flat phantom. The transmitted antenna of the EUT located under the reference point of the flat phantom. (Fig.4). Configuration 4: The right of the EUT contact to the flat phantom. The transmitted antenna of the EUT located under the reference point of the flat phantom. (Fig.5). Configuration 5: The top side of the EUT contact to the flat phantom. Th…

Text truncated - open the document above for the full version.

APPENDIX Appendix C Validation Test Fig 1 Validation Test APPENDIX EUT & Setup Photographs Fig. 2 Front Side Test Setup APPENDIX Fig. 3 Ports Side Test Setup APPENDIX Fig. 4 Left side Test Setup APPENDIX Fig. 5 Right side Test Setup APPENDIX Fig. 6 Top Side Test Setup APPENDIX Fig. 7 Bottom Side Test Setup APPENDIX Appendix D Calibration Certificate

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE FCC Part 15C Certification EUT Type: Wireless Transmit Unit compatible with 802.11b/g Tx…
