BEJ23LRB23" LCD TV Monitor

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX H : USER’S MANUAL LCD TV Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. P/NO : 38289U0024A (0603-REV00) Printed in Korea OWNER’S MANUAL MODELS: 23LC1R * Internet Home Page : http://www.lge.com http://www.lg.ca ENERGYSATR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA). As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENER- GY STAR guidelines for energy efficiency. 2 Warning WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in par- ticular, specifies that the cable ground shall be connected to the grounding system of the build- ing, as close to the point of the cable entry as practical. REGULATORY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. U.S.A. only ----------------------------------------------- COMPLIANCE: The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-201-816-2000 http://us.lge.com --------------------------------------------------------------- CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN W W arning arning Safety Instructions Safety Instructions 3 Safety Instructions WARNING : To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation open- ings. Install in accordance with the manu- facturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that pro- duce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polar- ized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, conve- nience receptacles, and the point where they exit from the apparatus. 11. Only use the attachments / accessories specified by the manufacturer. O w ne r's M a n ual 4 Safety Instructions Safety Instructions continued Safety Instructions continued 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service per- sonnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is dam- aged, liquid has been spilled or objects have fallen into the apparatus, the appara- tus has been exposed to rain or moisture, does not operate normally, or has been dropped. On Disposal a. The fluorescent lamp used in this product contains a small amount of mercury. b. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the reg…

Text truncated - open the document above for the full version.

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM Blockdiagram Tuner TU1000 Tuner TU1000 Gm2221 IC300 Gm2221 IC300 VCT I IC1 VCT I IC1 BA7657 F IC200 BA7657 F IC200 AUDIO AMP AUDIO AMP DDC DDC FET FET SCA R T SCA R T S-VIDEO S-VIDEO D- SUB D- SUB SAW SAW ROM ROM 656 FORMATEClock : 40 Mhz LV DS OUT Clock: 70 M hz 15V 5V 33V Y PB PR R G B R G B IF Y PB PR AC I N AC I N P O W E R P O W E R SI DE B OARD LR Crystal14.31818Mh z Crystal20.25Mhz BL OC K DI AGRAM DESCRI P TI ON 1 . V id eo C o n t r o lle r U nit & D i sp la y D a ta C o n versio n U n it The vid e o controll er unit receive s the v ideo signal s inputt e d t hrough the tuner, AV port (Video, S-Vide o, component), and converts them into an digital s i gnal(656fo r omat ) through the microcomputer (VCTI) combined with the vide o decode r that integrate s various function s in one c hip . Ei ther t he component YPbPr or P C RGB signal i s s e lect ed by the s wi tching IC and inputted to a scal er ( G M22 21), which is s ent to the LCD module aft er bei ng mod ified to an LVDS si g nal t h rough the integrated LVDS IC. Or, it i s sent to the LC D module as a TTL output. VCTi is the main microprocessor th at handles vi d e o si g nal proces sing and sound signal processing. It al so manage s the RF si g nals r eceived from the tuner. The scal er can control timing to fit into t he LCD panel, and can al s o co ntrol the si ze and po s iti o n of the input signal. 2. Po w er Suppl y Uni t The power supply unit provides 33V ,1 5 V and 5V DC pow er to the m a inboard. 3 3 V only used for t he tuner.1 5V power i s di rectly used by the so und amplifier IC and is al s o used to ge nerate 5V power through the regulat o r. 12V po w e r i s u s e d for the LCD panel powe r, an d 5V powe r i s converted to 3. 3 V and 1.8V power through the regulat o r, which in turn supplie s electrical powe r for ICs su c h as VCTI and scale r .

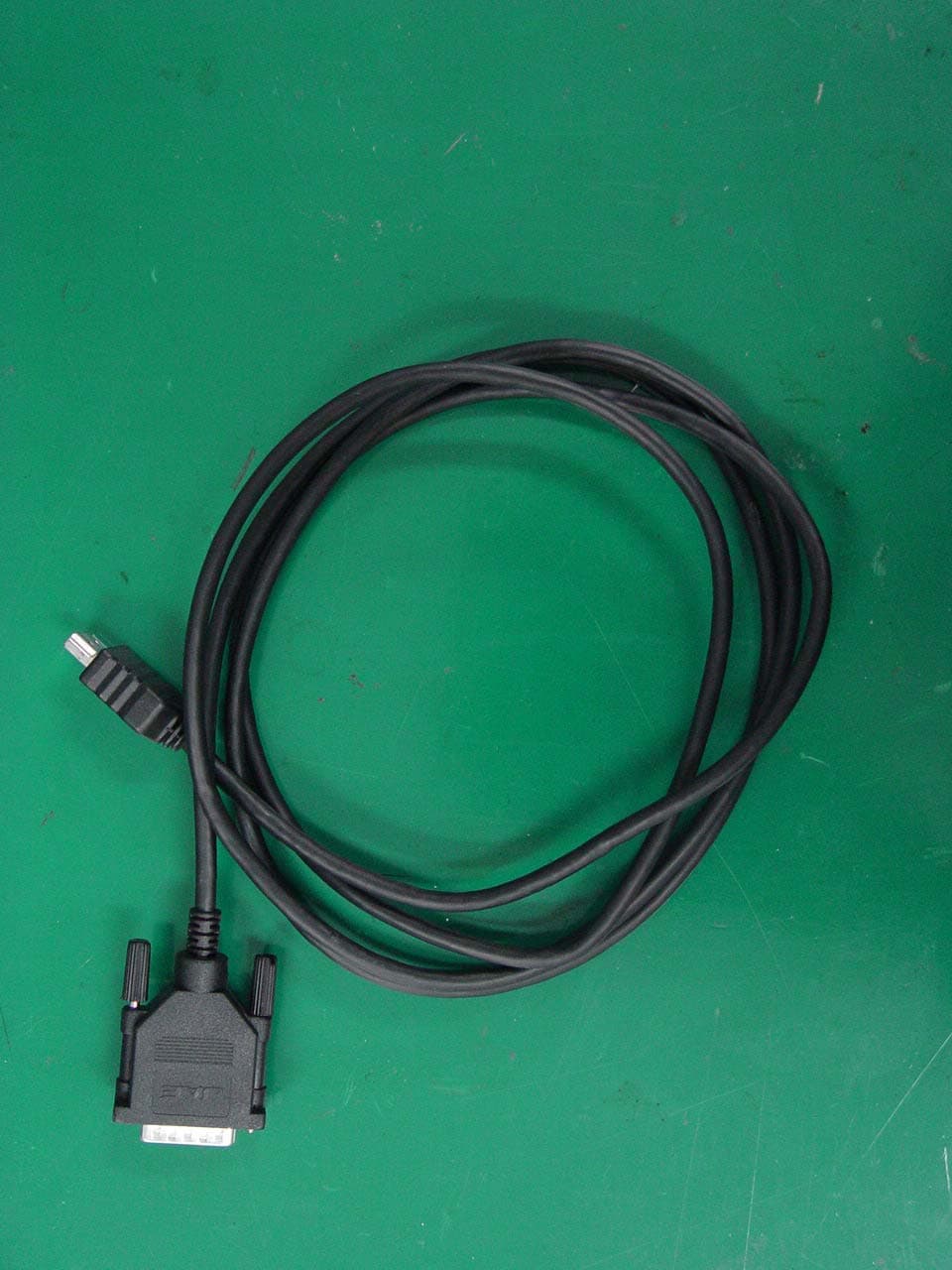

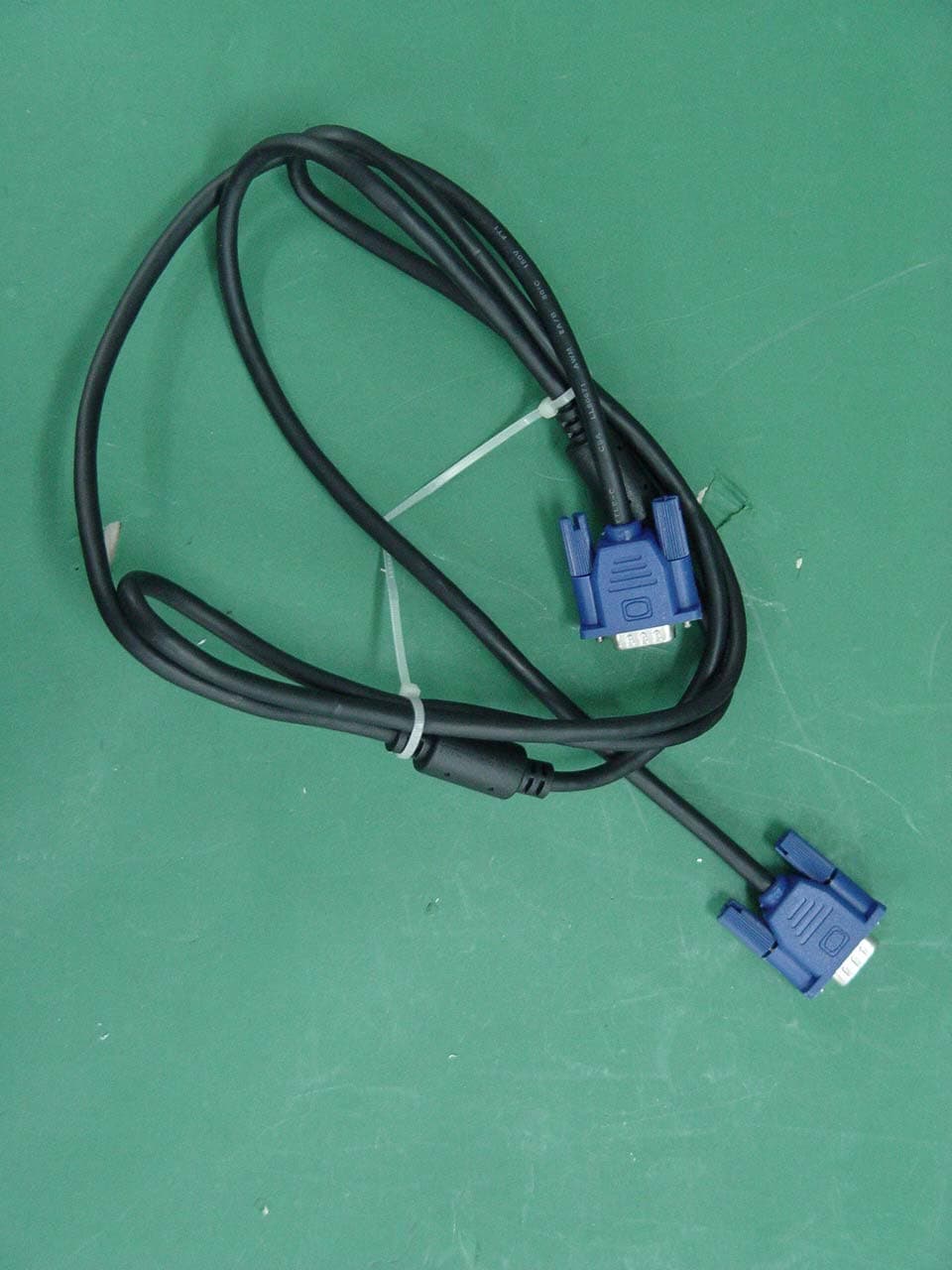

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification „ Test Mode: 1360*768 / 60Hz(Analog) < Hot line > < Neutral line > EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification „ Test Mode:1024 *768 /60Hz (Analog) < Hot line > < Neutral line > EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification „ Test Mode: 640*480 / 75Hz (Analog) < Hot line > < Neutral line >

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Page 2 of 17 Test Report No.: GETEC-E3-06-025 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................13 6.1 OPERATING ENVIRONMENT...................................................................................................................................13 6.2 TEST SET-UP............................................................................................................................................................13 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................13 6.4 LIMIT......................................................................................................................................................................14 6.5 TEST EQUIPMENT USED..........................................................................................................................................14 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................15 7. SAMPLE CALCULATIONS.....................................................................................................................................16 7.1 EXAMPLE 1 : ...........................................................................................................................................................16 7.2 EXAMPLE 2 : ...........................................................................................................................................................16 8. RECOMMENDATION & CONCLUSION..............................................................................................................17 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Page 3 of 17 Test Report No.: GETEC-E3-06-025 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID BEJ23LRB z EUT Type 23” LCD TV/Monitor z Model No. 23LC1R-MB z Tra de Na me LG z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test March 27, 2006 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-06-025 Responsible Party: LG Electronics Inc. Contact Person: Mr. Woo-Hyun Oh, Chief research engineer Manufacturer: 642, Jinpyung-dong, Gumi-si, Gyeongsangbuk-do, Korea Tel No.: +82-54-470-5640 EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Page 4 of 17 Test Report No.: GETEC-E3-06-025 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 2003) was used in determining radiated and conducted emissions emanating from LG Electronics Inc. 23” LCD TV/Monitor(Model No.: 23LC1R-MB) These me…

Text truncated - open the document above for the full version.

EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 23” LCD TV/Monitor FCC ID: BEJ23LRB Test Report No.: GETEC-E3-06-025 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
