BEJ26LD352CUALCD TV / MONITOR (Model:26LD352C-UA)

31 PREPARATION CABLE HOLDER CABLE HOLDER 2 After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables. 1 Secure the power cord with the CABLE HOLDER on the TV back cover. It will help prevent the power cable from being removed by accident. 32/37/42/47/55LE5300, 42/47/55LE530C 42/47/55LE7300 19/22/26LE5300, 22/26LE5500  After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables. 1 Install the CABLE MANAGEMENT CLIP as shown. 2 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. 1 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. Install CABLE HOLDER as shown and bundle the cables. CABLE HOLDER FOR DESK-TYPE STAND FOR WALL MOUNT CABLE MANAGEMENT CLIP CABLE HOLDER PREPARATION PREPARATION 32 DESKTOP PEDESTAL INSTALLATION SWIVEL STAND (Except 19/22LE5300, 22LE5500) After installing the TV, you can adjust the TV set manually to the left or right direction by 20 º to suit your viewing position. ᯫ Image shown may differ from your TV. For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall. 10.1 cm (4 inch) 10.1 cm (4 inch) 10.1 cm (4 inch) 10.1 cm (4 inch) CAUTION Ź Ensure adequate ventilation by following the clearance recommendations. Ź Do not mount near or above any type of heat source. KENSINGTON SECURITY SYSTEM ᯫ This feature is not available for all models. - The TV is equipped with a Kensington Security System con- nector on the back panel. Connect the Kensington Security System cable as shown below. - For the detailed installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors. NOTE: The Kensington Security System is an optional accessory. 33 PREPARATION ATTACHING THE TV TO A DESK (For 32/42LD420, 32/37/42LD450, 37/42LD450C, 32/42LD520, 42LD630, 32LE5300, 42LD451C, 32/37/42LD452C, 32/42LD452B, 26LD352C) The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, poten- tially causing injury or damaging the product. ᯫ Image shown may differ from your TV. 1-Screw ( provided as parts of the product) Desk Stand WARNING Ź To prevent TV from falling over, the TV should be securely attached to the floor/wall per installa- tion instructions. Tipping, shaking, or rocking the machine may cause injury. 4-Screws (not provided as parts of the product) Desk Stand For 37/42/47LD450C, 32/37/42/47LD452C, 32/42/47LD452B, 26LD352C Ź Recommended screw size: M5 x L (*L: Table depth + 8~10 mm) ex) Table depth: 15mm, Screw: M5 x 25 For 55LD520C 4-Screws (not provided as parts of the product) PREPARATION PREPARATION 34 SECURING THE TV TO THE WALL TO PREVENT FALLING WHEN THE TV IS USED ON A STAND We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards. Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product. Caution: Please make sure that children don’t climb on or hang from the TV. ᯫ Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture. * If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts. * Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes. Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that is mounted on the wall to the holes in the product. Ensure the eye-bolts or brackets are tightened securely. ᯫ Use a sturdy rope (sold separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product. ᯫ You should purchase necessary components to prevent the TV from tipping over (when not using a wall mount). ᯫ Image shown may differ from your TV. ! NOTE Ź Use a platform or cabinet strong enough and large enough to support the size and weight of the TV. Ź To use the TV safely make sure that the height of the bracket on the wall and the one on the TV are the same. 35 PREPARATION ANTENNA OR CABLE CONNECTION ᯫ To prevent damage do not connect to the power outlet until all connections are made between the devices. ᯫ Image shown may differ from your TV. 1. Antenna (Analog or Digital) Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections. For optimum picture quality, adjust antenna direction if needed. 2. Cable Wall Antenna Socket Outdoor Antenna (VHF, UHF) Cable TV Wall Jack Multi-family Dwellings/Apartments (Connect to wall antenna socket) RF Coaxial Wire (75 Ω) RF Coaxial Wire (75 Ω) Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna) Be careful not to bend the copper wire when connecting the antenna. Copper Wire ᯫ If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter. ᯫ For much more information about antennas visit our Knowledgebase at http://lgknowledgebase. com. Search for antenna. ANTENNA/ CABLE IN ANTENNA/ CABLE IN EXTERNAL EQUIPMENT SETUP EXTERNAL EQUIPMENT SETUP 36 HD RECEIVER SETUP ᯫ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. ᯫ IThis part of EXTERNAL EQUIPMENT SETUP mainly use picture of for 26LE5300/26LE5500. Y, C B/PB, CR/PR 1. How to connect 1 Connect the video outputs ( Y, PB, PR ) of the digital set-top box to the COMPONENT IN VIDEO or 1/2* jacks on the TV. Match the jack colors (Y = green, P B = blue, and PR = red). 2 Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO or 1/2* jacks on the TV. 2. How to use ᯫ Turn on the digital…

Text truncated - open the document above for the full version.

PICTURE CONTROL 111 PICTURE RESET Settings of the selected picture modes return to the default factory settings. 1 MENU Select PICTURE. 2 ENTER Select Picture Reset. 3 ENTER Select Ye s. 4 ENTER Initialize the adjusted value. EXIT Return to TV viewing. 3,&785( ᯒ0RYHᯙ(QWHU ᯐ ᯙ  ؒ6KDUSQHVV   ؒ&RORU  ؒ7LQW  ؒ&RORU7HPS   ؒ$GYDQFHG&RQWURO  ؒ3LFWXUH5HVHW ؒ7UX0RWLRQ/RZ ؒ6FUHHQ 5*%3& 5* :& 3,&785( ᯒ0RYHᯙ(QWHU 5* :& 1R <HV $OOSLFWXUHVHWWLQJVZLOOEHUHVHW &RQWLQXH" "  ؒ6KDUSQHVV   ؒ&RORU  ؒ7LQW  ؒ&RORU7HPS   ؒ$GYDQFHG&RQWURO  ؒ3LFWXUH5HVHW ؒ7UX0RWLRQ/RZ ؒ6FUHHQ 5*%3& 5HVHWWLQJYLGHRFRQILJXUDWLRQ L POWER INDICATOR Adjust the power/standby indicator light on the front of the TV. ᯫ Standby Light: Determines whether to set the indicator light on the front of the TV to On or Off in standby mode. ᯫ Power Light: Determines whether to set the indicator light on the front of the TV to On or Off when the power turns on. 237,21 ᯒ0RYHᯙ(QWHU 237,21 ᯒ0RYHᯙ(QWHU ؒ/DQJXDJH ؒ&DSWLRQ2II ؒ3RZHU,QGLFDWRU ؒ,QLWLDO6HWWLQJ ؒ6HW,' ؒ0RGH6HWWLQJ +RPH8VH ᯐ ᯙ ؒ/DQJXDJH ؒ&DSWLRQ2II ؒ3RZHU,QGLFDWRU ؒ,QLWLDO6HWWLQJ ؒ6HW,' ؒ0RGH6HWWLQJ +RPH8VH 6WDQGE\/LJKW܁2Q۽ 3RZHU/LJKW2Q &ORVH 1 MENU Select OPTION. 2 ENTER Select Power Indicator. 3 ENTER Select Standby Light or Power Light. 4 Select your desired options. 5 RETURN orReturn to the previous menu. EXIT Return to TV viewing. BACK PICTURE CONTROL PICTURE CONTROL 112 TRUMOTION - For 32/37/42/47/55LE5300, 42/47/55LE7300, 32/42/47/55LD520, 55LD520C, 42/47/55LD630, 42/47/55LE530C Advance video technology that provides clearer, smoother images, even during fast action scenes cre- ating a more stable structure for a crisper picture. 3,&785( ᯒ0RYHᯙ(QWHU ᯐ ᯙ  ؒ6KDUSQHVV   ؒ&RORU  ؒ7LQW  ؒ&RORU7HPS   ؒ$GYDQFHG&RQWURO  ؒ3LFWXUH5HVHW ؒ7UX0RWLRQ/RZ ؒ6FUHHQ 5*%3& 5* :& 7UX0RWLRQ܁/RZ۽ ؒ-XGGHU ؒ%OXU ᯙ(QWHU ᯫ Off: Turn off TruMotion operation. ᯫ Low: Provides smooth picture move- ment. Use this setting for standard use. ᯫ High: Provides smoother picture movement. ᯫ Judder: Adjusts noise of the screen. ᯫ Blur: Adjusts after-image of the screen. ᯫ TruMotion works with all inputs except PC mode. ᯫ If you enable "TruMotion", noise may appear on the screen. If this occurs, set "TruMotion" to "Off". ᯫ If you select "Picture Mode-Game" set "TruMotion" to "Off". 1 MENU Select PICTURE. 2 ENTER Select TruMotion. 3 ENTER Select Low, High, User, or Off. 4 ENTER Select Judder or Blur. 5 Make appropriate adjustments. Adjustment for TruMotion (Judder and Blur) with selecting User 6 RETURN orReturn to the previous menu. EXIT Return to TV viewing. BACK SOUND & LANGUAGE CONTROL 113 SOUND & LANGUAGE CONTROL AUTO VOLUME Auto Volume makes sure that the volume level remains consistent whether you are watching a com- mercial or a regular TV program. Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each program. 1 MENU Select AUDIO. 2 ENTER Select Auto Volume. 3 ENTER Select On or Off. $8',2 ᯒ0RYHᯙ(QWHU $8',2 ᯒ0RYHᯙ(QWHU ؒ$XWR9ROXPH 2Q ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFH ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW /5 /5 ᯱ ᯙ ؒ$XWR9ROXPH 2II ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFH ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW ۳2II ᯡ2Q ᯙ ᯰ 4 RETURN orReturn to the previous menu. EXIT Return to TV viewing. BACK SOUND & LANGUAGE CONTROL SOUND & LANGUAGE CONTROL 114 CLEAR VOICE II By differentiating the human sound range from others, it improves the sound quality of voices. 1 MENU Select AUDIO. 2 ENTER Select Clear Voice II. 3 ENTER Select On or Off. 4 Select Level. 5 Make appropriate adjustments. Adjustment for Clear Voice Level with selecting On $8',2 ᯒ0RYHᯙ(QWHU $8',2 ᯒ0RYHᯙ(QWHU ؒ$XWR9ROXPH 2II ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFH ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW /5/5 ؒ&OHDU9RLFH,,܁2II۽ ؒ/HYHOᰕ &ORVH  ᯐ ᯙ ؒ$XWR9ROXPH 2II ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFH ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW 6 RETURN orReturn to the previous menu. EXIT Return to TV viewing. BACK SOUND & LANGUAGE CONTROL 115 BALANCE Adjust the left/right sound of speaker to suit your taste and room situations. 1 MENU Select AUDIO. 2 ENTER Select Balance. 3 ENTER Make appropriate adjustments. $8',2 ᯒ0RYHᯙ(QWHU $8',2 ᯒ0RYHᯙ(QWHU ؒ$XWR9ROXPH 2II ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFHᯙ ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW /5 ؒ%DODQFH &ORVH / 5 ۽܁ ᯐ ᯙ /5 ؒ$XWR9ROXPH 2II ؒ&OHDU9RLFH,, 2IIᰕ ؒ%DODQFH ؒ6RXQG0RGH 6WDQGDUG  ؒ,QILQLWH6RXQG2II  ؒ7UHEOH  ؒ%DVV  ؒ5HVHW 4 RETURN orReturn to the previous menu. EXIT Return to TV viewing. BACK SOUND & LANGUAGE CONTROL SOUND & LANGUAGE CONTROL 116 PRESET SOUND SETTINGS (SOUND MODE) Sound Mode lets you enjoy the best sound without any special adjustment using factory presets. 1 MENU Select AUDIO. 2 ENTER Select Sound Mode. 3 ENTER Select Standard, Music, Cinema, Sport, or Game. ᯫ Standard, Music, Cinema, Sport, and Game are preset for optimum sound quality at the factory. ᯫ You can also adjust Sound Mode in the Q.MENU. ᯫ Standard: Offers standard-quality sound. ᯫ Music: Optimizes sound for listening to music. ᯫ Cinema: Optimizes sound for watch- ing movies. ᯫ Sport: Optimizes sound for watching sports events. ᯫ Game: Optimizes sound for playing games. $8',2 ᯒ0RYHᯙ(QWHU $8',2 ᯒ0RYHᯙ(QWHU ؒ$XWR…

Text truncated - open the document above for the full version.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: April 04, 2011 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Harvey Sung of Digital EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same effect as acts of our own. In authorizing Digital EMC Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon Lee General Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: April 04, 2011 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJ26LD352CUA To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram 26LD352C-UA_Block Diagram.pdf 2 External Photos 26LD352C-UA _Ext Photo.pdf 3 Internal Photos 26LD352C-UA _Int Photo.pdf 4 Test-Setup Photos 26LD352C-UA _Test Photo.pdf SHORT-TERM 5 Users Manual 26LD352C-UA _User Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jae Cheon Lee General Manager

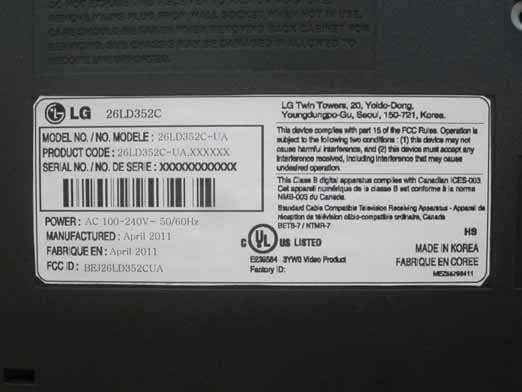

FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 1 FRONT REAR Label Location FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 2 LABEL REAR PORT FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 3 SIDE PORT

FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 1 REAR LABEL Label Location

FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 1 < Inside EUT > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 2 < LCD Front > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 3 < LCD Rear > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 4 < LCD Label > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 5 < IR Front > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 6 < IR Rear > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 7 < Switch Board Front > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 8 < Switch Board Rear > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 9 < Main Board Front > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 10 < Main Board Rear > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 11 < Power Board Front > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. View 12 < Power Board Rear >

FCC ID: BEJ26LD352CUA DEMC#DREFCC1104-0471(1104-00435) TRF-EM-003(00)081218 Copyright c 2011, DIGITAL EMC CO., LTD. Page 2 of 59 CONTENTS 1. General Remarks........................................................................................................................ 3 2. Test Laboratory........................................................................................................................... 3 3. General Information of EUT....................................................................................................... 4 3.1 Product Information............................................................................................................... 4 4. Test Summary............................................................................................................................. 5 4.1 Summary of tests .................................................................................................................. 5 5. Test Set-up and operation mode............................................................................................... 6 5.1 Principle of Configuration Selection ...................................................................................... 6 5.2 Test Operation Mode ............................................................................................................. 6 5.3 Support Equipment Used ......................................................................................................7 6. Test Results : Emission.............................................................................................................. 8 6.1 Conducted Emission ............................................................................................................. 8 6.2 Radiated Emission .............................................................................................................. 18 FCC ID: BEJ26LD352CUA DEMC#DREFCC1104-0471(1104-00435) TRF-EM-003(00)081218 Copyright c 2011, DIGITAL EMC CO., LTD. Page 3 of 59 1. General Remarks This Report describes the emission characteristics of the tested product. If the product will be used with additional equipment other than those mentioned in this report or if the tested product will be used against the manufacture's specifications, the compliance with the relevant standards for the system has to be ensured. 2. Test Laboratory Digital EMC Co., Ltd. has been accredited / filed / authorized by the agencies listed in the following table; Certificate Nation Agency Code Mark Accreditation Korea KOLAS 393 ISO/IEC 17025 USA FCC 101842 Test Facility list & NSA Data Site Filing Japan VCCI C-1427 R-1364, R-3385 T-1442 Test Facility list & NSA Data Korea KCC KR0034 Test Facility list & NSA Data Certification Germany TUV ROK1028C ISO/IEC 17025 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. DIGITAL EMC CO., LTD. Address: 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com Tel: +82-31-321-2664 Fax: +82-31-321-1664 FCC ID: BEJ26LD352CUA DEMC#DREFCC1104-0471(1104-00435) TRF-EM-003(00)081218 Copyright c 2011, DIGITAL EMC CO., LTD. Page 4 of 59 3. General Information of EUT 3.1 Product Information Equipment under Test LCD TV Model No. 26LD352C-UA Serial No NONE Type of Sample Tested Pre-Production Rating Power Supply AC110V High Frequency 667MHz Supplied Power for Test AC120V, 60Hz Applicant LG Electronics Inc. 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, Korea Manufacturer LG Electronics Inc. 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, Korea Factory LG Electronics Reynosa, Inc. LG Electronics USA, Inc_Reynosa 9801 South Cage Blvd. Suite 3F Pharr, TX. 78577 Date of Receipt of Sample 2011-04-05 < Product Specifications > FCC ID: BEJ26LD352CUA DEMC#DREFCC1104-0471(1104-00435) TRF-EM-003(00)081218 Copyright c 2011, DIGITAL EMC CO., LTD. Page 5 of 59 4. Test Summary 4.1 Summary of tests The applied standards to evaluate the compliance of requirements is 47CFR Part 15, Subpart B and the measurement procedures specified in ANSI C63.4 are performed. Test Items Applied Standards Status Emission Conducted Emission FCC Part 15 Subpart B C Radiated Emission FCC Part 15 Subpart B C Note 1: C=Conform NC=Not Conform NT=Not Tested NA=Not Applicable FCC ID: BEJ26LD352CUA DEMC#DREFCC1104-0471(1104-00435) TRF-EM-003(00)081218 Copyright c 2011, DIGITAL EMC CO., LTD. Page 6 of 59 5. Test Set-up and operation mode 5.1 Principle of Configuration Selection Emission : The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. 5.2 Test Operation Mode - DSUB mode : Resolution 1360*768 MAX, “H” character scroll - DVI to HDMI mode : Resolution 1360*768 MAX, “H” character scroll - USB mode : USB file play - SIDE HDMI mode : Colorbar mode EUT is the following operational conditions apply: a) Set the contrast control to maximum. b) Set the brightness control to maximum or at raster extinction if raster extinction occurs at less thanmaximum brightness. c) For color monitors, use white letters on a black background to represent all colors. d) Select the worse case of positive or negative video if both alternatives are available. e) Set character size and number of characters per line so that the typical maximum number of charac-ters per screen is displayed. f) For a monitor that has no graphics capabilities, regardless of the video card used, a pattern consistingof random text shall be displayed. For a monitor with graphics capability, even though another videocard may be needed to accomplish a graphic display, a screen pattern consisting of lines of scrollingH’s should be displayed. For a monitor that has no text capabilities, use a typical display. That pat-tern should be used for the remainder of…

Text truncated - open the document above for the full version.

FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Conducted Emission < DSUB + DVI TO HDMI MODE > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Conducted Emission < SIDE HDMI MODE > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Conducted Emission < USB MODE > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < DSUB + DVI TO HDMI MODE_30MHz-1GHz > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < DSUB + DVI TO HDMI MODE_1GHz-6GHz > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < SIDE HDMI MODE_30MHz-1GHz > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < SIDE HDMI MODE_1GHz-6GHz > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < USB MODE_30MHz-1GHz > FCC ID: BEJ26LD352CUA Copyright © 2011, DIGITAL EMC Co., Ltd. Radiated Emission < USB MODE_1GHz-6GHz >
