www.lg.com OWNER’S MANUAL PLASMA TV Please read this manual carefully before operating your set and retain it for future reference. P/NO : MFL67468601 (1111-REV00) 42PM4700 50PM4700 50PM6900 60PM6900 50PM9700 60PM9700 50PM6700 60PM6700 2 ENG ENGLISH IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING/CAUTION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. y Do not use this apparatus near water. y Clean only with a dry cloth. y Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. y Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. y Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country). 3 ENG ENGLISH IMPORTANT SAFETY INSTRUCTIONS y Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. y Only use attachments/accessories specified by the manufacturer. y Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. y Unplug this apparatus during lightning storms or when unused for long periods of time. y Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. y Never touch this apparatus or antenna during a thunder or lightning storm. y When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV. y Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen. y CAUTION concerning the Power Cord (Can differ by country): It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV. y Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. 4 ENG ENGLISH IMPORTANT SAFETY INSTRUCTIONS y Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit). y Grounding Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. Short-circuit Breaker Power Supply y DISCONNECTING DEVICE FROM THE MAIN POWER The power outlet must remain readily accessed in the event the device needs to be unplugged. y As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off. y Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product. y ANTENNAS Outdoor antenna grounding (Can differ by country):…

Text truncated - open the document above for the full version.

LG Electronics U.S.A., Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 LG Electronics USA Date : Dec 6, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Jin-Mo Yang,Engineering Manager of ESTECH Co., Ltd. and hereafter referred to as ESTECH, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Jin-Mo Yang,Engineering Manager of ESTECH Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ESTECH as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; LG Electronics U.S.A., Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Mr. Christopher Johnson , Sr. Manager, Standards & Compliance LG Electronics USA. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

LG Electronics USA Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BEJ50PM9700UA To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (please enter the product announcement date here): 45days Internal Photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Mr. Christopher Johnson , Sr. Manager, Standards & Compliance LG Electronics USA. 2011-12-06

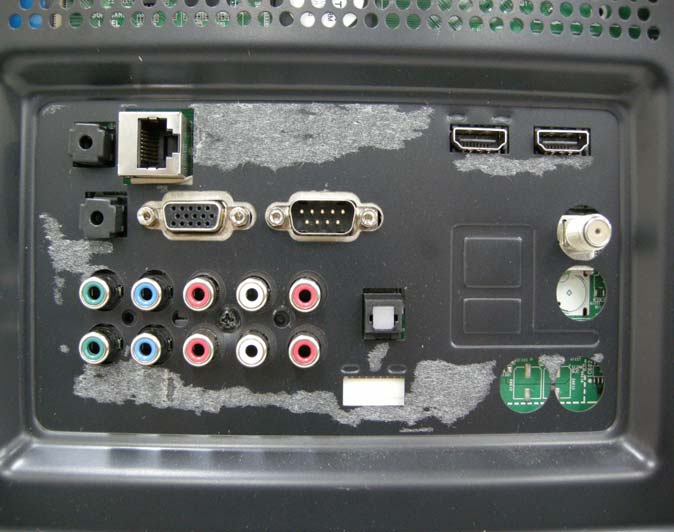

1. FRONT 2. REAR 3. Port 1 3. Port 2

INTERNAL PHOTO 1. CTRL Board 1.1 Front 1.2 Rear 2. MAIN Board 2.1 Front 2.2 Rear 3. LCD 3.1 Front 3.2 Rear 4. POWER Board 4.1 Front 4.2 Rear 5. RF Module(Bluetooth) 5.1 Front 5.2 Rear 5.3 Inside 6. RF Module(WLAN) 6.1 Front 6.2 Rear 6.3 Inside 7. SWITCH BOARD 7.1 Front 7.2 Rear 8. Tuner board 8.1 Front 8.2 Rear 9. XRCBT BOARD 9.1 Front 9.2 Rear 10. XRLBT BOARD 10.1 Front 10.2 Rear 11. XRRBT BOARD 11.1 Front 11.2 Rear 12. YDRVBT BOARD 12.1 Front 12.2 Rear 13. YDRVTP BOARD 13.1 Front 13.2 Rear 14. YSUS BOARD 14.1 Front 14.2 Rear 15. ZSUS BOARD 15.1 Front 15.2 Rear 16. ZSUS SUB BOARD 16.1 Front 16.2 Rear

Test Report for FCC FCC ID : BEJ50PM9700UA Company name Address Telephone Product name Model No. Serial No. Test date Testing location Date of issue ESTECH Co., Ltd. 58-1 OSan-Ri Kanam-M yon, Yeoju-Gun, KyungKi-Do, Korea 29-Nov-116-Dec-11 Report NumberESTF151112-003 Manufacturer Country of origin Applicant Product LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 NONE LG Electronics USA KOREA PLASMA TV/MONITOR 50PM9700-UA 847-941-8373 EST-QP-20-01(1)-(F15) location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note 58 1 OSan Ri Kanam Myon, Yeoju Gun, KyungKi Do, Korea Measurement facility registration number 64696 Test item ■ Radiated Emission FCC PART 15 (2010) & ICES-003 , ANSI C 63.4 2003 ■ Conducted Emission Report Number : ESTF151112-003 , Web : www. estech. co. kr Page 1 of 14 OK, Pass = Complied, Fail = Failed, N/A = not applicable Engineer D.H.Jung Engineering Manager J.M.Yang (Signature) (Signature) - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned EST-QP-20-01(1)-(F15) 3 4 5 6 8 8 8 9 10 10 6. Measurement of conducted emission ............................................................... ... 6.1 Measurement equipment .............................................................................. 5. Measurement of radiated emission ..................................................................... 5.1 Measurement equipment .............................................................................. Contents 1. Laboratory Information .................................................................................... 2. Descri ption of EUT .......................................................................................... 3. Test Standards ................................................................................................ 4. Measurement condition .................................................................................... 5.2 Environmental conditions .............................................................................. 5.3 Test data ................................................................................................... EST-QP-20-01(1)-(F15) 10 11 12 14 Appendix 1. Special diagram 7. Photogra phs of test setup ................................................................................. 8. Photographs of EUT .......................................................................................... 6.2 Environmental conditions .............................................................................. 6.3 Test data ................................................................................................... Report Number : ESTF151112-003 , Web : www. estech. co. kr Page 2 of 14 EST-QP-20-01(1)-(F15) 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co., Ltd. Head Office : Rm 1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 OSan-Ri Kanam-Myon Yeoju-Gun KyungKi-Do Korea This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report.ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. EST-QP-20-01(1)-(F15) EMC Test Lab : 58 1 OSan Ri Kanam Myon, Yeoju Gun, KyungKi Do, Korea 1.3 Official Qualification(s) KCC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE Report Number : ESTF151112-003 , Web : www. estech. co. kr Page 3 of 14 EST-QP-20-01(1)-(F15) 2. Description of EUT 2.1 Summary of Equipment Under Test Product : Model Number: 50PM9700-UA Serial Number: Manufacturer: Country of origin: Rating : Receipt Date: X-tal list(s) or Frequencies generated : 2.2 General descriptions of EUT AC (100 - 240) V , (50 - 60) Hz 29-Nov-11 20 MHz x 3ea, 27 MHz, 49.152 MHz, 74 MHz, 800 MHz(Max), 32.768 kHz PLASMA TV/MONITOR NONE LG Electronics USA KOREA EST-QP-20-01(1)-(F15) Report Number : ESTF151112-003 , Web : www. estech. co. kr Page 4 of 14 EST-QP-20-01(1)-(F15) 3. Test Standards Test Standard : FCC PART 15 (2010) & ICES-003 Test Method : ANSI C 63.4 (2003) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. EST-QP-20-01(1)-(F15) medical (ISM) equipment These meth…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1.1 Front 1.2 Rear 2. Radiated Emission setup photo 30 MHz ~ 1 000 MHz 2.1 Front 2.2 Rear 3. Radiated Emission setup photo Above 1 GHz 3.1 Front 3.2. Rear
