Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. LCDTV PLASMA TV OWNER’S MANUAL LCD TV MODELS 37LB5D 42LB5D 47LB5D 52LB5D 47LC7DF PLASMA TV MODELS 50PY3D 60PY3D www.lgusa.com / www.lg.ca As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA). is a trademark of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. LG TV with this logo displays Full HD (high-definition) 1080p native resolution by receiving and processing a Full HD 1080p signal. LG TV with this logo can play MP3 music from a MP3 player, such as iPOD, and JPEG images from a digital camera through the USB device. With HDMI CEC support of LG’s audio/video device connected to the HDMI (high-definition multimedia interface), LG TV with this logo works easily with one remote control. It has three HDMI ports that connect audio and video devices with one cable and produces the highest quality digital images and sound. Manufactured under license from Dolby Laboratories. “Dolby“and the double-D symbol are trademarks of Dolby Laboratories. High-definition television. High-resolution digital tele- vision broadcast and playback system composed of roughly a million or more pixels, 16:9 aspect-ratio screens, and AC3 digital audio. A subset of digital television, HDTV formats include 1080i and 720p res- olutions. LG's own special digital image generator, consisting of a full digital image processor, six different main picture quality factors. 1 WARNING / CAUTION WARNING / CAUTION To prevent fire or shock hazards, do not expose this product to rain or moisture. FCC NOTICE Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the litera- ture accompanying the appliance. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. WARNING/CAUTION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. NOTE TO CABLE/TV INSTALLER This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. 2 IMPORTANT SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two b…

Text truncated - open the document above for the full version.

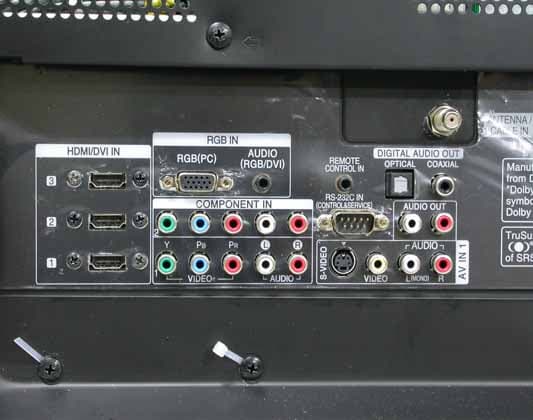

EXTERNAL EQUIPMENT SETUP 33 AUDIO OUT SETUP Send the TV’s audio to external audio equipment via the Digital Audio Output ( Optical ) port. GG When connecting with external audio equipments, such as ampli- fiers or speakers, please turn the TV speakers off. ( GG pp..6699 ) NOTE ! GG Do not look into the optical output port. Looking at the laser beam may damage your vision. GG Block the SPDIF out(optical/coaxial) about the contents with ACP(Audio Copy Protection) function. CAUTION Connect one end of the optical or coaxial cable to the TV’s OOPPTTIICCAALL or CCOOAAXXIIAALL port of DDIIGGIITTAALL AAUUDDIIOO OOUUTT . Connect the other end of the optical or coaxial cable to the digital audio input on the audio equipment. Set the “TV Speaker option - Off” in the AUDIO menu. ( GG pp..6699 ). See the external audio equipment instruction manual for operation. 1. How to connect 2 3 1 Connect audio outputs to the TV’s AAUUDDIIOO OOUUTT jacks. Set the “TV Speaker option - Off” in the AUDIO menu. ( GG pp..6699 ). See the external audio equipment instruction manual for operation. 1. How to connect 2 1 Analog Digital AV IN 1 REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) OPTICAL COAXIAL VIDEO MONO ( ) AUDIO S-VIDEO AUDIO OUT ( ) DIGITAL AUDIO OUT LR AUDIO 1 ( ) IN AV IN 1 DIO DVI) REMOTE CONTROL IN ANTENNA/ CABLE IN RS-232C IN (CONTROL & SERVICE) AUDIO AUDIO OUT VIDEO MONO ( ) AUDIO S-VIDEO DIGITAL AUDIO OUT OPTICAL COAXIAL 1 2 WATCHING TV / CHANNEL CONTROL 34 REMOTE CONTROL FUNCTIONS WATCHING TV / CHANNEL CONTROL When using the remote control, aim it at the remote control sensor on the TV. APM CC AUTO DEMO M/C EJECT TV INPUTTV INPUT STBSTB MENU BRI G HT + B RIGHT - TIMER RATIO SIMPLINK BACKBACK TV INPUT STB BACK TV INPUT STB BACK PICTURE SOUND SAP CC MARK USB EJECT MEDIA HOSTM E D I A H O S T M E D I A H O S T M E D I A H O S T MODE MENU BRIGHT +/- THUMBSTICK (Up/Down/Left Right/ENTER) EXIT TIMER RATIO SIMPLINK VOLUME UP /DOWN MUTE FAV CHANNEL UP/DOWN — (DASH) BACK Select the remote operating mode: TV, DVD, VCR, AUDIO, CABLE or STB. If the mode of another product is selected, a button on the remote control which is not used for the selected product can control the TV. Enter to the mode. Controls the mode. Control video cassette recorders or DVD players. Displays the main menu. Adjust brightness on screen. It turns to the default settings brightness by changing mode source. Navigate the on-screen menus and adjust the system set- tings to your preference. Clear all on-screen displays and return to TV viewing from any menu. Select the amount of time before your TV turns off auto- matically. GG pp..8800 Change the aspect ratio. GG pp..5533 See a list of AV devices connected to TV. When you toggle this button, the SimpLink menu appears at the screen. GG pp..4422 Increase/decrease the sound level. Switch the sound on or off. GG pp..3366 Scroll through the programmed Favorite channels. GG pp..4400 Select available channels. Used to enter a program number for multiple program channels such as 2-1, 2-2, etc. Tune to the last channel viewed. MEDIAMEDIA HOST HOST MEDIAMEDIA HOST HOST MEDIAMEDIA HOST HOST MEDIAMEDIA HOST HOST , VCR/DVD buttons MEDIAMEDIAMEDIA HOST HOST HOST MEDIA HOST NUMBER button MEDIAMEDIAMEDIA HOST HOST HOST MEDIA HOST WATCHING TV / CHANNEL CONTROL 35 TV INPUT STB BACK TV INPUT STB BACK TV INPUT STB BACKBACK PICTUREPICTURE SOUNDSOUND SAPSAP CCCC MARKMARK USB EJECTUSB EJECT M E D I A H O S T M E D I A H O S T M E D I A H O S T Inside the Sliding Cover PICTURE SOUND SAP CC MARK USB EJECT Adjust the factory preset picture depend on the viewing environment. GG pp..5544 Select the appropriate type of sound for type of program. GG pp..6666 Analog mode: Selects MTS sound (Mono, Stereo, or a SAP) GG pp..7700 DTV mode: Changes the audio language. Select the Caption On/Off. GG pp..7733 Enter the selected functions. GG pp..4488 Remove the USB device. GG pp..3322 Installing Batteries  Open the battery compartment cover on the back side and install the batteries matching correct polarity ( + with +, - with - ) .  Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.  Close cover. MODE D A Y - D A Y + LIVE TV INPUT MODE D A Y - D A Y + LIVE TV INPUT  Use a remote control up to 7 meters distance and 30 degree (left/right) within the receiving unit scope.  Dispose of used batteries in a recycle bin to pre- serve environment. Remote control effective range POWER TV INPUT INPUT Turns your TV or any other programmed equipment on or off, depending on the mode. In AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2 and HDMI3 input sources, screen returns to the last TV channel. External input modes rotate in regular sequence: Antenna, Cable, AV1-2, Component 1-2, RGB- PC, HDMI1, HDMI2, HDMI3 (Antenna, Cable, AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2, HDMI3 input sources are linked automatically, only if these are connected ). WATCHING TV / CHANNEL CONTROL 36 TURNING ON TV WATCHING TV / CHANNEL CONTROL NOTE ! GG If you intend to be away on vacation, disconnect the power plug from the wall power outlet. First, connect power cord correctly. At this moment, the TV switches to standby mode.  In standby mode to turn TV on, press the , IINNPPUUTT , CCHH (( DD or EE )) button on the TV or press the PPOOWWEERR , IINNPPUUTT , TTVV IINNPPUUTT , CCHH(( DD or EE )) , NNuummbbeerr ((00 ~ 99)) button on the remote control. Select the viewing source by using the TTVV IINNPPUUTT , IINNPPUUTT button on the remote control.  This TV is programmed to remember which power state it was last set to, even if the power cord is out. When finished using the TV, press the PPOOWWEERR button on the remote control. The TV reverts to standby mode. TV INPUTTV INPUT STB PICTURE SOUND SAP CC MARK USB EJECT INPUT BACK M E D I A H O S T TV INPUT STB PICTUREPICTUREPICTURE SOUNDSOUND SAPSAP CCCC MARKMARK USB EJECTUSB EJECT BACKBACK M E D I A H O S T 1 2 3 TV INPUT STB T I M E R RAT I O SIMPLINK PICTURE SOUND …

Text truncated - open the document above for the full version.

LG Electronics Inc. Date: Sep 07, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize <ESTECH CO.,Ltd.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by <ESTECH CO., Ltd.> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing <ESTECH CO.,Ltd.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang-Wook Lee/Manager Engineer Tel:82-54-470-4532 REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

642 Jinpyoung-dong, Kumi-city, Kyoungsangbuk-do, 730-727,Korea TEL : +82-54-470-5639 FAX : 82-54-470-4534 Federal Communications Commission Authorization and Evaluation Division FCC ID : BEJ50PY3DFUJ Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Curcuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Sang-Wook Lee/ Manager Engineer LG Electronics Inc. TEL : +82-54-470-5639 FAX : 82-54-470-4534

BEJ50PY3DFUJ A plasma display panel is the latest display technology. It is currently the best way to achieve flat panel displays with excellent image quality and large screen sizes, that are easily viewable. The PDP can be thought of as a descendant of the neon lamp an dit can be also be viewed as a series of fluorescent lamps. PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors. You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5inches thick.

6.3 Test data Test Date : Lisn (dB) Cable (dB) Limit (dB㎶) Reading (dB㎶) Result (dB㎶) Limit (dB㎶) Reading (dB㎶) Result (dB) 0.180.160.0 H 64.53 42.41 42.61 54.53 40.60 40.80 0.210.150.0 H 63.41 44.44 44.64 53.41 40.18 40.38 0.240.140.0 H 62.24 36.59 36.78 52.24 33.18 33.37 0.300.120.0 H 60.27 41.80 41.97 50.27 36.56 36.73 0.360.130.1 H 58.71 37.94 38.13 48.71 33.20 33.39 0.400.130.1N 57.92 32.31 32.51 47.92 29.60 29.80 0.520.150.1 H 56.00 34.90 35.14 46.00 25.57 25.81 0.930.220.1 H 56.00 40.11 40.48 46.00 33.43 33.80 1.180.260.2 H 56.00 44.49 44.92 46.00 37.50 37.93 1.290.260.2 H 56.00 42.72 43.17 46.00 35.98 36.43 1.460.270.2N 56.00 36.13 36.60 46.00 24.53 25.00 1.480.270.2 H 56.00 39.64 40.11 46.00 30.01 30.48 8.560.560.7 H 60.00 27.96 29.18 50.00 20.29 21.51 11.560.710.8 H 60.00 36.58 38.10 50.00 21.36 22.88 11.640.710.8N 60.00 35.41 36.94 50.00 29.25 30.78 12.890.750.9 H 60.00 35.77 37.40 50.00 30.02 31.65 18.590.901.1N 60.00 32.35 34.36 50.00 15.35 17.36 23.830.931.3 H 60.00 36.23 38.43 50.00 34.75 36.95 Remark 6-Sep-07 Frequency (MHz) Correction Factor Line (H/N) Quasi-peak Value H : Hot Line, N : Neutral Line *After connect with ferrite cores to RGB cable,tested conducted emission. Report Number : ESTF150709-004 , Web : www. estech. co. kr Page 12 of 15 Average Value 7. Photographs of test setup 7.1 Setup for Radiated Test : 30 ~ 1000 MHz [ Front ] [ Rear ] Report Number : ESTF150709-004 , Web : www. estech. co. kr Page 13 of 15 7.2 Setup for Conducted Test : 0.15 ~ 30 MHz [ Front ] [ Rear ] Report Number : ESTF150709-004 , Web : www. estech. co. kr Page 14 of 15 8. Photographs of EUT [ Front ] [ Rear ] Report Number : ESTF150709-004 , Web : www. estech. co. kr Page 15 of 15
