BEJ52LG50UALCD TV MONITOR

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX H : USER’S MANUAL Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. LCD TV PLASMA TV OWNER’S MANUAL LCD TV MODEL 26LG3037LG50 32LG3042LG50 37LG3047LG50 42LG3052LG50 32LG6032LG70 37LG6042LG70 42LG6047LG70 47LG6052LG70 52LG60 PLASMA TV MODELS 42PG1050PG60F 50PG1060PG60F 42PG2042PG20C 50PG2050PG20C P/NO : SAC30708020 (0711-REV00) www.lgusa.com / www.lg.ca / www.lgcommercial.com As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA). 1 WARNING / CAUTION WARNING / CAUTION To prevent fire or shock hazards, do not expose this product to rain or moisture. FCC NOTICE Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the litera- ture accompanying the appliance. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. WARNING/CAUTION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. NOTE TO CABLE/TV INSTALLER This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. 2 IMPORTANT SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)that produce heat. When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Unplug this apparatus when unused for long periods of time. 1 2 3 4 5 6 7 8 9 3 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Never touch this apparatus or antenna during a thu…

Text truncated - open the document above for the full version.

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT September 4, 2007 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Sang-Wook Lee, Chief research engineer LG Electronics Inc.

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM Great Company Great People LG30/50 LCD(USA) Block diagram - Overview Audio L/R Flash (16MB) DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) 74LVC14APW TEA6420D (Audio SW) MC33078 (AMP) CS5340 (A/D) MTV416 (Micom) NTP3000(D-AMP) X200 X-tal(54 ㎒ ) PI3HDMI341ATR (3x1,S/W) EEPROM AT/NT Tuner 64Bit I/F Reset CVBS CVBS/Y/C Y/Cb/Cr R/G/B H/V Sync Audio L/R I2S MNT out (L/R) SPDIF OUT I2S Dual LVDSConnector (FHD) Full HD(1080P) RS-232C Dead IC when Standby Alive IC when Standby Video Front End DualHDMI Rx HD/SDVideo Encoder Audio DSP BCM3552(HD)BCM3553(FHD) MCLK MCLK HDMI CEC HDMI CEC(To Micom) To Micom SDA SCL SIF IF(AT) Buffer Digital out Single LVDSConnector(HD) Digital out WXGA(768P) IR & Local KEY Buffer Buffer 24C16 AGC CTL (From BCM) USB2.0 I2S Audio Input VSB/QAM/NTSC/SIF AV1AV2 COMP1COMP2 CVBS DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) DDR(32MB) (4x16x4) DDR (128MB) RGB Y/Cb/Cr HDMI1HDMI2HDMI3 AV1AV2 COMP1COMP2 RGB CoaxialOUT (LG50) USB LG30: HDLG50: FHD X400 X-tal(24 ㎒ ) NVRAM 24C512 EEPROM EEPROM EEPROM

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification „ Test Mode: 1920* 1080/ 60Hz(Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification „ Test Mode: 1920* 1080/ 60Hz (HDMI) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification „ Test Mode: 1024* 768/ 60Hz(Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line > EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification „ Test Mode: 800* 600/ 60Hz(Analog) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Hot line > 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 150k 300 400 500 800 1M2M3M4M 5M 6 8 10M20M30M Level in dB 킮 Frequency in Hz EN 55022_class B_QP EN 55022_class B_AV < Neutral line >

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Page 2 of 23 Test Report No.: GETEC-E3-07-090 FCC Class B Certification CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. PRODUCT INFORMATION ......................................................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT / CABLES USED.....................................................................................................................6 3.3 MODIFICATION ITEM(S) ...........................................................................................................................................7 4. DESCRIPTION OF TESTS.........................................................................................................................................8 4.1 TEST CONDITION......................................................................................................................................................8 4.2 CONDUCTED EMISSION............................................................................................................................................9 4.3 RADIATED EMISSION..............................................................................................................................................10 5. CONDUCTED EMISSION........................................................................................................................................ 11 5.1 OPERATING ENVIRONMENT................................................................................................................................... 11 5.2 TEST SET-UP............................................................................................................................................................ 11 5.3 MEASUREMENT UNCERTAINTY.............................................................................................................................. 11 5.4 LIMIT......................................................................................................................................................................12 5.5 TEST EQUIPMENT USED..........................................................................................................................................12 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................13 6. RADIATED EMISSION ............................................................................................................................................17 6.1 OPERATING ENVIRONMENT...................................................................................................................................17 6.2 TEST SET-UP............................................................................................................................................................17 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................17 6.4 LIMIT......................................................................................................................................................................18 6.5 TEST EQUIPMENT USED..........................................................................................................................................18 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................19 7. SAMPLE CALCULATIONS.....................................................................................................................................22 7.1 EXAMPLE 1 : ...........................................................................................................................................................22 7.2 EXAMPLE 2 : ...........................................................................................................................................................22 8. RECOMMENDATION & CONCLUSION..............................................................................................................23 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Page 3 of 23 Test Report No.: GETEC-E3-07-090 FCC Class B Certification Scope: Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission. 1. General Information z FCC ID BEJ52LG50UA z EUT Type LCD TV/Monitor z Model No. 52LG50-UA z Tra de Na me LG z Serial No. Proto type z Rule Part(s) FCC Part 15 Subpart B z Type of Authority Certification z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test December 12 ~ 13, 2007 z Place of Test Gumi College EMC Center ( FCC Registration No.: 100749) 407, Bugok-Dong, Gumi-si, Gyeongsangbuk-Do, Korea z Test Report No. GETEC-E3-07-090 z Dates of Issue December 17, 2007 Applicant: LG Electronics Inc. Applicant Address: 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-do, Korea Manufacturer: LG Electronics Inc. Manufacturer Address: 6…

Text truncated - open the document above for the full version.

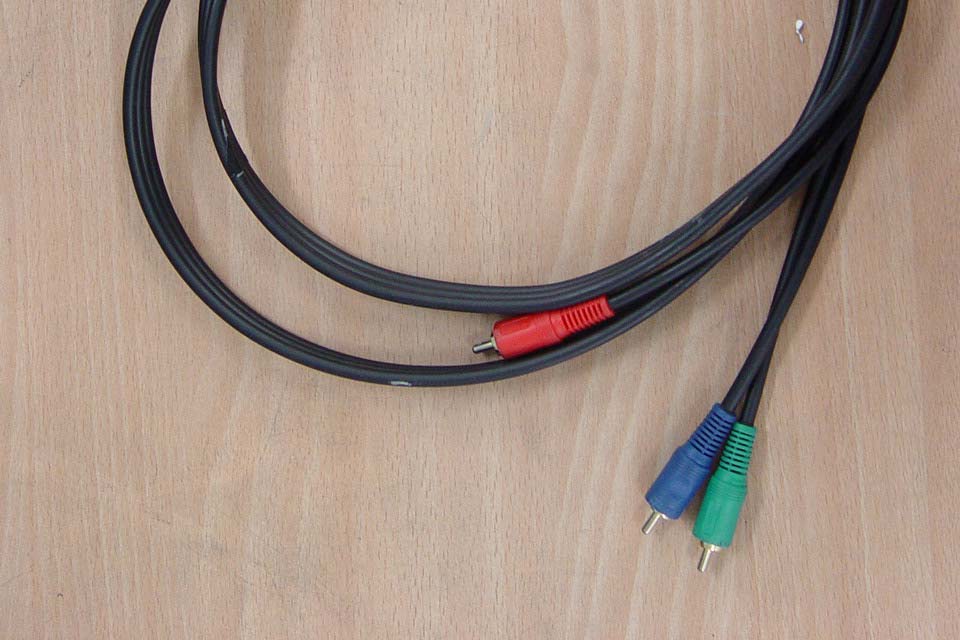

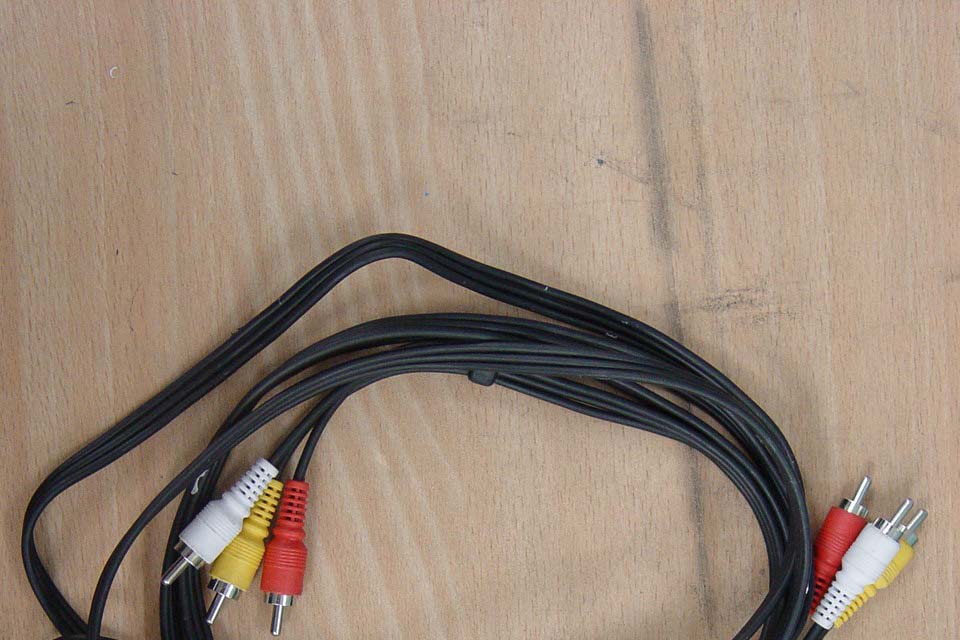

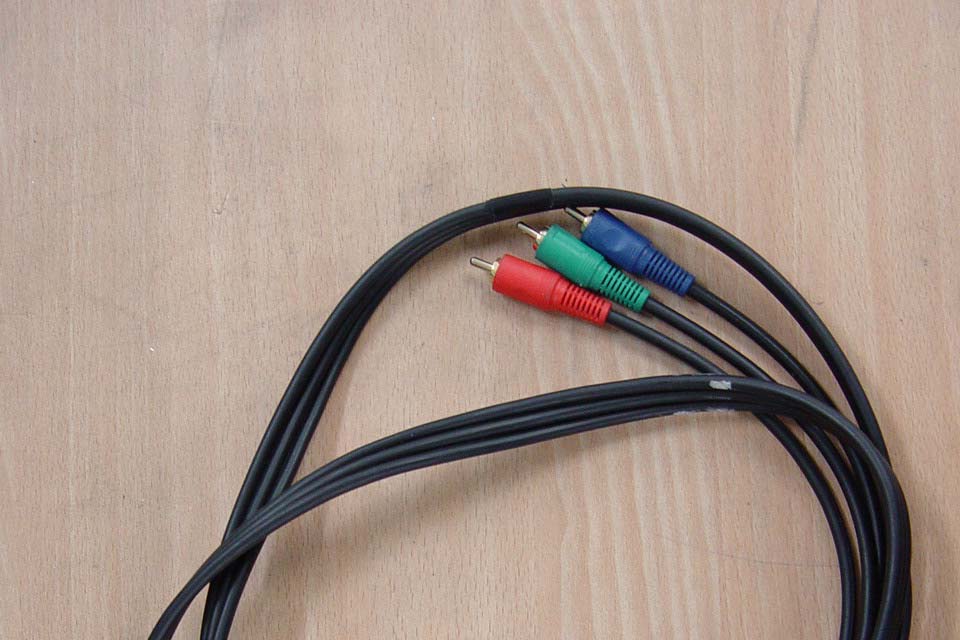

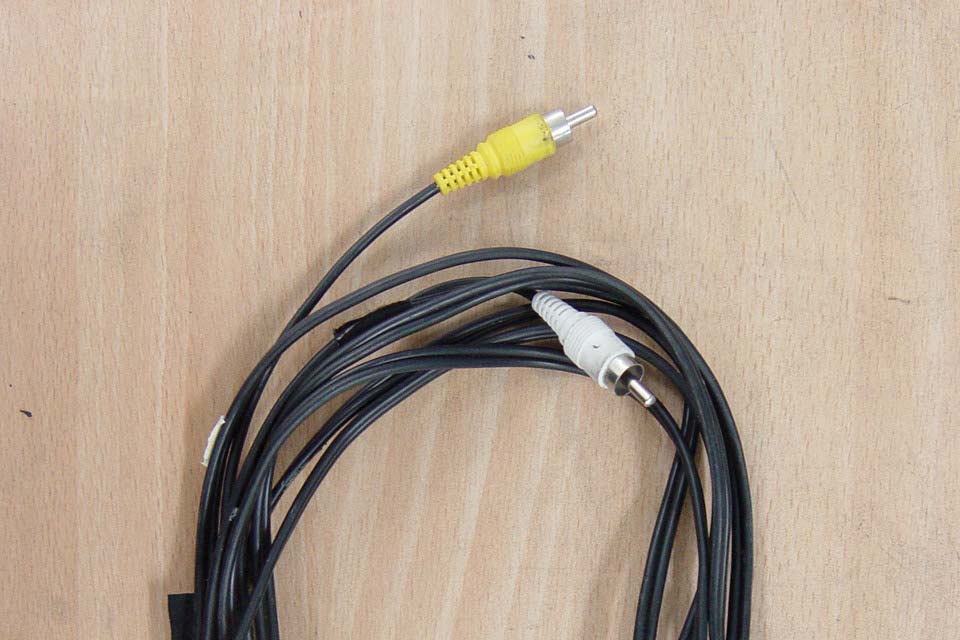

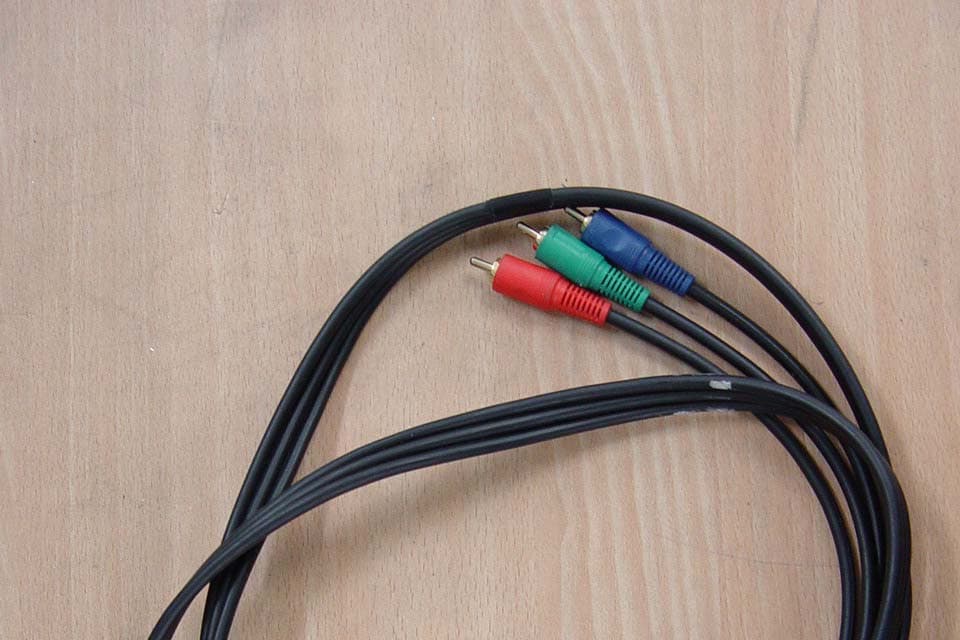

EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: LCD TV/Monitor FCC ID: BEJ52LG50UA Test Report No.: GETEC-E3-07-090 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
