BEJ60PC1DUEPlasma Display Panel

Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service. ENERGYSTAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA). As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENER- GY STAR guidelines for energy efficiency. P/NO : 38289U0527F Printed in Korea OWNER’S MANUAL LCD TV MODELS: 26LC2D PLASMA TV MODELS: 50PC3D 60PC1D Internet Home Page : http://www.lge.com http://www.lg.ca 2 Warning WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac- tical. REGULATORY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this device compliance is: Zenith Electronics Corporation 1-201-816-2000 Marked and Distributed in the United States by LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 http://www.zenith.com CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN W W arning arning 3 Safety Instructions WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the apparatus. 11. Only use the attachments / accessories specified by the manufacturer. Safety Instructions Safety Instructions Owner's Manual 4 Safety Instructions 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appa- ratus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normal- ly, or has been dropped. 15. DISCONNECTING DEVICE FROM MAINS Main plug is the disconnecting device.The plug must remain redily operable. On Disposal a. The fluorescent lamp used in this product contains a small amount of mercury. b. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. Note - If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on.…

Text truncated - open the document above for the full version.

21 Installation - This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below. HDSTB Setup When connecting with a HDMI cable 1 2 3 Connect the HDMI output of the digital set-top box to the HDMI/DVI INjack on the set. Select HDMI/DVIinput source with using the INPUTbutton on the remote control. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) Digital Set-top Box •TV can receive the video and audio signal simultaneously using a HDMI cable. •If the digital set-top box supports Auto HDMI function, output resolution of the digital set-top box will be automatically set to 1280x720p. •If the digital set-top box does not support Auto HDMI, you need to set the output resolution appro- priately. To get the best picture quality, adjust the output resolution of the digital set-top box to 1280x720p. RGB IN REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) HDMI-DTV OUTPUT REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) REMOTEREMOTE CONTROL INCONTROL IN RS-232C INRS-232C IN (CONTROL(CONTROL & SER & SERVICE)VICE) RGB INRGB IN (PC)(PC) AUDIO INAUDIO IN (RGB/DVI)(RGB/DVI) VIDEO AUDIO VIDEOAUDIO ( ) S-VIDEO AV IN 1 AV OUT COMPONENT IN DIGITAL AUDIO OUT OPTICAL SERVICE SERVICESERVICE HDMI IN HDMI IN 1(DVI) 2 HDMI IN 1(DVI) 2 1 When connecting with a Component cable 1 2 3 4 Connect the video outputs (Y, PB, PR) of the digi- tal set-top box to the COMPONENT IN VIDEO jacks on the set. Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the set. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) Select Component 1input source with using the INPUTbutton on the remote control. - If connected to COMPONENT 2, select Component 2 input source. B R (R) AUDIO (L) RGB IN REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) HDMI / DVI IN REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) HDMI / DVI IN REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) VIDEOVIDEO AUDIOAUDIO VIDEOVIDEOAUDIOAUDIO MONO ( ) S-VIDEOS-VIDEO A V IN 1V IN 1 A V OUTV OUT COMPONENTCOMPONENT IN DIGITDIGITALAL AUDIO AUDIO OUTOUT OPTICALPTICAL SERVICE SERVICE Signal 480i 480p/720p/1080i Component1/2 Ye s Ye s HDMI/DVI No Ye s 2 1 Digital Set-top Box 22 Installation When connecting with a HDMI to DVI cable 1 2 3 4 Connect the DVI output of the digital set-top box to the HDMI/DVI IN jack on the set. Connect the audio outputs of the set-top box to the AUDIO (RGB/DVI) jack on the set. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.) Select HDMI/DVI input source with using the INPUTbutton on the remote control. RGB IN (R) AUDIO (L) DVI-DTV OUTPUT REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) REMOTEREMOTE CONTROL INCONTROL IN RS-232C INRS-232C IN (CONTROL(CONTROL & SER & SERVICE)VICE) RGB INRGB IN (PC)(PC) AUDIO INAUDIO IN (RGB/DVI)(RGB/DVI) REMOTE CONTROL IN RS-232C IN (CONTROL & SERVICE) RGB IN (PC) AUDIO IN (RGB/DVI) VIDEO AUDIO VIDEOAUDIO ( ) S-VIDEO AV IN 1 AV OUT COMPONENT IN DIGITAL AUDIO OUT OPTICAL SERVICESERVICE SERVICE HDMI IN 1(DVI) 2 HDMI IN HDMI IN 1(DVI)1(DVI) 2 Digital Set-top Box 1 2 • If the digital set-top box has a DVI output and no HDMI output, a separated audio connection is nec- essary. •If the digital set-top box supports Auto DVI function, the output resolution of the digital set-top box will be automatically set to 1280x720p. •If the digital set-top box does not support Auto DVI, you need to set the output resolution appropri- ately. To get the best picture quality, adjust the output resolution of the digital set-top box to 1280x720p. 23 Installation Digital Audio Output 1 2 3 Connect one end of an optical cable to the TV Digital Audio Optical Output port. Connect the other end of the optical cable to the digital audio optical input on the audio equipment. See the external audio equipment instruction manual for operation. When connecting with external audio equip- ments, such as amplifiers or speakers, please turn the TV speakers off. (Refer to p.41) VIDEOVIDEO AUDIOAUDIO VIDEOVIDEOAUDIOAUDIO MONO ( ) S-VIDEOS-VIDEO A V IN 1V IN 1 A V OUTV OUT COMPONENT IN DIGITDIGITALAL AUDIO AUDIO OUTOUT OPTICALPTICAL - Send the TV’s audio to external audio equipment (stereo system) via the Digital Audio Output Optical port. CAUTION Do not look into the optical output port. Looking at the laser beam may damage your vision. 1/2 AV Out Setup 1 2 Connect the second TV or monitor to the TV’s AV OUTPUT jacks. See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings. S-VIDEO IN (R) AUDIO (L) VIDEO VIDEOVIDEO AUDIOAUDIO VIDEOVIDEOAUDIOAUDIO MONO ( ) S-VIDEOS-VIDEO A V IN 1V IN 1 A V OUTV OUT COMPONENTCOMPONENT IN DIGITDIGITALAL AUDIO AUDIO OUTOUT OPTICALPTICAL - The TV has a special signal output capability which allows you to hook up a second TV or monitor. 1/2 •Component 1-2, RGB-PC, HDMI/DVI, DTV input sources cannot be used for Monitor out. • We recommend to use the video and audio output jacks for VCR recording. 24 Installation - This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. PC Setup When connecting with a D-sub 15 pin cable 1 2 3 4 Connect the RGB output of the PC to the RGB (PC) jack on the set. Connect the PC audio outputs to the AUDIO (RGB/DVI) jack on the set. Turn on the PC and the set. Select RGB-PC input source with using the INPUTbutton on the remote control. (R) AUDIO (L) RGB-PC OUTPUT REMOTE CONTROL INCONTROL IN RS-232C INRS-232C IN (CONTROL(CONTROL & SER & SERVICE)VICE) RGB IN (PC) AUDIO INAUDIO IN (RGB/DVI)(RGB/DV…

Text truncated - open the document above for the full version.

37 Operation - Use to quickly reset all the Video menu options to their original fac- tory preset values. Press the MENUbutton and then use DD / EE button to select the VIDEOmenu. Press the GGbutton and then use DD / EE button to select Video Reset. Press the GGbutton to reset the Video menu options to original values. 1 2 3 Video Reset EZ Picture Color Temperature XD Advanced Video Reset EZ Picture Color Temperature XD Advanced Video Reset G Selection ( G or ) resets to the factory settings (default). 38 Operation Audio Menu Options Audio Menu Options - Other languages may be available if a digital signal is provided by the broadcasting station. - Scans for changes in sound level during commercials, then adjusts the sound to match the specified audio level. EZ SoundRite makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program. Audio Language Auto V Auto V olume Leveler ( olume Leveler (EZ SoundRite) Press the MENUbutton and then use DD / EE button to select the AUDIOmenu. Press the GGbutton and then use DD / EE button to select Audio Language. Press the GGbutton and then use DD / EE button to select: English, Spanish, or French. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. 1 2 3 4 Press the MENUbutton and then use DD / EE button to select the AUDIOmenu. Press the GG button and then use DD / EE button to select EZ SoundRite. Press the GGbutton and then use DD / EE button to select OfforOn. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. 1 2 3 4 Audio Language G EZ SoundRite EZ Sound Balance TV Speaker English Spanish French Audio Language EZ SoundRite EZ Sound Balance TV Speaker Audio Language EZ SoundRite EZ Sound Balance TV Speaker Audio Language EZ SoundRite G EZ Sound Balance TV Speaker Off On 39 Operation Auto Sound Control ( Auto Sound Control (EZ Sound) Manual Sound Control (EZ Sound-Useroption) -EZ Sound lets you enjoy the best sound without any special adjust- ment because the TV sets the appropriate sound options based on the program content. -Normal,Stadium,News,Music and Theater are preset for good sound quality at the factory and are not adjustable. - Adjust the sound in your prefer- ence and surrounded environ- ment. Press the EZ Sound button repeatedly to select the appropriate sound setup as shown below : Normal, Stadium, News, Music, Theater and User (your own settings) . • You can also adjust EZ Soundin the AUDIOmenu. Press EXIT button to save and return to TV viewing. 1 2 Press the MENUbutton and then use DD / EE button to select the AUDIOmenu. Press the GGbutton and then use DD / EE button to select EZ Sound. Press the GG button and then use DD / EE button to select User. Press the GG button and then use DD / EE button to select the desired sound option ( Treble,Bass orFront Surround). Press the GGbutton and then use FF / GGbutton to make appropriate adjustments . 1 2 3 4 5 User Treble 50 G Bass 50 Front Surround Off Press to confirm. MENU Audio Language EZ SoundRite EZ Sound Balance TV Speaker BBE Selection ( G or ) leads you to the detailed setting screen. Normal Stadium News Music Theater User G 40 Operation front Surround SRS TruSurround XT * Selecting the Front Surround Press the GGbutton and then use FF / GGbutton to select Off or SRS ( Sound Retrieval System) TruSurround XT. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. 6 SRS TruSurround XT Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity, bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo material. Note:When SRS ( Sound Retrieval System) TruSurround XT is selected, Audio Balance function is disable and set to 0 . When Off is selected, Audio Balance function is enable and reset the bal- ance as previous. 41 Operation -Adjust the sound in your preference and surrounded environment. Audio Language EZ SoundRite EZ Sound Balance TV Speaker LR Balance0 Audio Language EZ SoundRite EZ Sound Balance0 TV Speaker LR Press the MENUbutton and then use DD / EE button to select the AUDIOmenu. Press the GGbutton and then use DD / EE button to select Balance. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. Balance Balance 1 2 3 4 TV Speakers On/Off Setup - Turn TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off. Press the MENUbutton and then use DD / EE button to select the AUDIOmenu. Press the GGbutton and then use DD / EE button to select TV Speaker. Press the GGbutton and then use DD / EE button to select OfforOn. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. 1 2 3 4 Audio Language EZ SoundRite EZ Sound Balance TV Speaker Audio Language EZ SoundRite EZ Sound Balance TV Speaker G Off On 42 Operation T T ime Menu Options ime Menu Options - If current time setting is wrong, reset the clock manually. Auto Clock Setup Manual Clock Setup Press the MENUbutton and then use DD / EE button to select the TIMEmenu. Press the GGbutton and then use DD / EE button to select Auto Clock. Press the GGbutton and then use DD / EE button to select On. Press the GGbutton and then use DD / EE button to select your viewing area time zone. • U.S.A: Eastern, Central, Mountain, Pacific, Alaska, or Hawaii. • Canada: Eastern, Central, Mountain, Pacific, New F.land, or Atlantic. Press the GGbutton and then use DD / EE button to select Auto, Off, On, depending on whether or not your viewing area observes Daylight Saving time. Press EXIT button to return to TV viewing or press MENUbutton to return to the previous menu. 1 2 3 4 5 6 Press the MENUbutton and then use DD / EE button to select the TIMEmenu. Press the …

Text truncated - open the document above for the full version.

LG Electronics Inc. 642 Jinpyoung-dong, Kumi-city, Kyoungsangbuk-do, 730-360,Korea TEL : +82-54-470-5639 FAX : 82-54-470-4534 Federal Communications Commission Authorization and Evaluation Division FCC ID : BEJ60PC1DUE Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Sang-Wook Lee/ Manager Engineer LG Electronics Inc. TEL : +82-54-470-5639 FAX : 82-54-470-4534

FCC ID : BEJ60PC1DUE POWER OF ATTORNEY To whom it may concern: We the undersigned LG Electronics Inc. hereby authorize ESTECH Co., Ltd.(EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Sign: Sang-Wook Lee/Manager Engineer Tel:82-54-470-5639

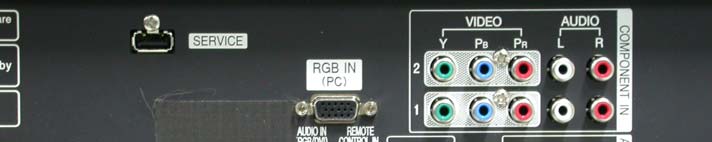

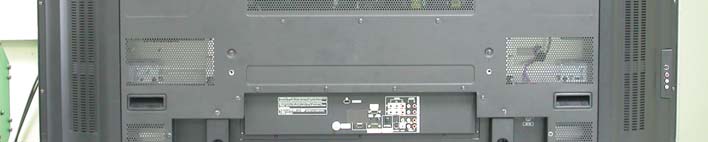

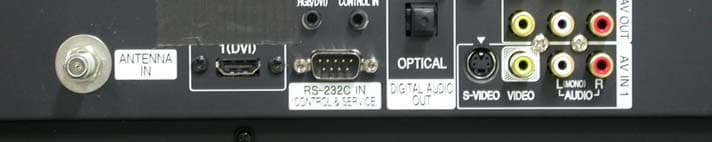

1. FRONT 2. REAR 3. PORT

INTERNAL PHOTO 1. MAIN 1.1 Front 1.2 Rear 2. POWER 2.1 Front 2.2 Rear 3. Y_SUS 3.1 Front 3.2 Rear 4.Z_SUS 4.1 Front 4.2 Rear 5.CTRL_LVDS 5.1 Front 5.2 Rear 6. PDP 6.1 Front 6.2 Rear 7. INNER

LG Electronics Inc. FCC ID BEJ60PC1DUE -Operational description- A plasma display panel is the latest display technology. It is currently the best way to achieve flat panel displays with excellent image quality and large screen sizes, that are easily viewable. The PDP can be thought of as a descendant of the neon lamp an dit can be also be viewed as a series of fluorescent lamps. PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors. You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5inches thick.

Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Testing location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned Report Number : ESTF150607-007 , Web : www. estech. co. kr Page 1 of 15 Report NumberESTF150607-007 Manufacturer Country of origin Applicant Product 19-Jul-06 PLASMA MONITOR 60PC1D-UE NONE LG Electronics Inc. KOREA Date of issue ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2006 , ANSI C 63.4 2003 , ICES-003 2006-07-18~ 2006-07-19 OK, Pass = Passed, Fail = Failed, N/A = not applicable LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 847-941-8373 Measurement facility registration number Engineer J.H.Kim Manager Engineer J.M.Yang 94696 (Signature) (Signature) 3 4 5 6 8 8 8 9 10 11 11 11 12 13 15 Appendix 1. Spectral diagram 5.3 Test data ................................................................................................ ... 7. Photographs of test setup ................................................................................. 8. Photographs of EUT .......................................................................................... 6. Measurement of conducted emission .................................................................. 6.1 Measurement equipment .............................................................................. 6.2 Environmental conditions .............................................................................. 6.3 Test data ................................................................................................... Report Number : ESTF150607-007 , Web : www. estech. co. kr Page 2 of 15 5. Measurement of radiated emission ..................................................................... 5.1 Measurement equipment .............................................................................. Contents 1. Laboratory Information .................................................................................... 2. Descri ption of EUT .......................................................................................... 3. Test Standards ................................................................................................ 4. Measurement condition .................................................................................... 5.2 Environmental conditions .............................................................................. 5.4 Test data ................................................................................................... 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : Rm 1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report.ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150607-007 , Web : www. estech. co. kr Page 3 of 15 2. Description of EUT 2.1 Summary of Equipment Under Test NONE: Model Number : 60PC1D-UE Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 2.2 General descriptions of EUT Using Freq. : 24MHz, 14.3MHz, 54MHz.4MHz,100MHz Report Number : ESTF150607-007 , Web : www. estech. co. kr Page 4 of 15 PLASMA MONITOR NONE LG Electronics Inc. KOREA INPUT:AC120V / 60Hz 2006-07-12 3. Test Standards Test Standard : FCC PART 15 (2006) & ICES-003 Test Method : ANSI C 63.4 (2003) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. Report Number : ESTF150607-007 , Web : www. estech. co. kr Page 5 of 15 4. Measurement Condition 4.1 EUT Operation. 4.2 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of t…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1.1. Front 1.2. Rear 2. Radiated Emission setup photo 2.1 Front 2.2. Rear
