BEJ62DC1DUC62" DLP PROJECTION TV

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX H : USER’S MANUAL © Copyright 2005, LG Electronics USA, Inc. Installation and Operating Guide |Warranty Model Numbers|Z56DC1D/Z62DC1D|DLP PROJECTION 2 DLP Projection TV WARNING/CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance. WARNING/CAUTION: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. POWER CORD POLARIZATION: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. REGULATORY INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod- ification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this product’s compliance is: Zenith Electronics Corporation 1-201-816-2000 Marked and Distributed in the United States by LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 http://www.zenith.com WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN /CAUTION W W arning/Caution arning/Caution Warning/Caution Owner’s Manual 3 Safety Instructions IMPORTANT SAFETY INSTRUCTIONS Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara- tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be includ- ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illus- trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction : 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli- fiers)that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Safety Instructions Safety Instructions PORTABLE CART WARNING 4 DLP Projection TV Safety Instructions 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged…

Text truncated - open the document above for the full version.

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT August 22, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Woo-Hyun Oh, Group Leader LG Electronics Inc. TV Plant

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM Great Company Great People 1 CPL D I2 C HUB EEP R O M [ 24C 512 W ] SDR A M H Y 5 7 V6 41 62 0 [ 8 M B y t e *2] FLAS H S 29J L0 32 H 7 0 T [ 4 M B y t e *2] BUS BUS I2 C _ HUB 0 /1 I2 C _ HUB EN1 / 2 / 3 / 4 II C CH1CH2CH3CH4CH1 K I A 7 029 74HC 14D RESET AR M AR M 10 MHz Tx _f rom _ C P U Rx_ t o _ C P U AV S w i t c h [ A N 1 5 865 A ] IN1 I N2 IN3IN4OUT1 OUT2OUT3OUT5 RF SW AT/N T/ ( O O B ) t uner N T S C tune r [TAF M- H20 3 P] MAIN_ T U_ V SUB _ T U _ V HD_ C VB S_ O U T AV 1(AV 1 ) IN6 s i d e _AV(AV 3 ) IN7IN8 Com p onent 2 Com p onent 1 IN9 RG B _ PC MNT _ O U T Ma in V i d e o De c o der [ u P D 6 4015 A ] H Y 5 7 V1 61 61 0 Su b Vi de o De c o der [ V P X 3 226 F ] HD MI&AD C [ M S T 3361 ] EE P R OM (H D C P) HDMI2 (o ptio n) HDMI1 EEP R O M (DD C ) EEP R O M (DD C ) LPF FMS 64 07 LPF FMS 64 00 VS B/QAM Dem o dul a t o r [ L G D T 3303 ] MSP44 50K NS P2 100 A TAS51 2 2 MI CO M ( M TV41 6) MAIN_ S I F SUB _ SI F IN5 A V 2( A V 2) AV 1 _ L / R AV 3 _ L / R Com p onent 1 _ L / R Com p onent 2 _ L / R RG B _ PC _ L /R MNT _ O U T _ L / R AN AL O G _ L /R I 2 S_SCK I2 S _ LR CK AN _ L IN E_ L R C H I2 S _ OUT I2 S _ IN I2 S _ MCLK M C 3 3078 C S 5 331 A HD2.4 HD2.4 YC bCr RG B OR1 HVHV OR2 FIDFID OR3 EX T _ CL K EX T _ CL K DVI_DE OR1OR2OR3 H D 2_D AC _SCLK H D 2_D AC _LRCH H D 2_D AC _LRCLK IIS_ I N IIS_ O UT MSPM_ I N_ S C L K MSPM_ I N_ L R CL K M S P M _I N_D A T A _H M S P M _DAC _M CLK IIS_ I N C S 8 415 A Rx_HDMI_SPDI F H D 2_D AC _SCLK H D 2_D AC _LRCLK IIS_ O UT H D 2_ICE 95 8 _ I N HD2 _ SP DI F_ CLK CPL D H D 2_ICE 95 8 _ OU T Rx_HDMI_SPDI F SPDI F _ O U T EX T TP D1 OR4 H D 2_D 1 _ C L K D1 CLK CH A C LK HD2 _ T P HD2 _ T P _ C LK 2 ND _IF ± I F _A GC / RF _ A GC MAIN_ C VB S / Y MAIN_ C S U B_ C V BS/ Y SUB _ C YP bP rH V T M D S 0_ 0/ 1/ 2/ C ± T M D S 1_ 0/ 1/ 2/ C ± DDC 0 DDC 1 LV D S Tran sm i t ter [ T HC 63 LV D 1 03 ] C Y 23 05 27 MHz MAIN_ P WM LGDT19 01B SY S C L K NT2 C LK VDP C L K VCXO_ 27M H z CPL D RG B H/ V/ FI D/DE CLK TXC 0 ± TXC 1 ± TXC 2 ± TXC C ± SW_ P WG DDP_R DY LA M P _ L ITZ Tx _f rom _ DRV Rx_ t o _ DR V SDR A M H Y 5 7 V6 41 62 0E TP [ 8 M B y t e *4] BU S CH3 CH2CH2CH2 CH2 CH4 CH2 CH4 CH1 CH1 CH3 CH4 CH4 MAIN_ S I F SUB _ SI F 20 30 30 30 8 8 8 SPEAKER OUT TEXT De c o der ( S D A 6 001 ) COF D M D E M+ D V B T une r (TDF B- Z20 5 P ) OR4 HD2 _ T P HD2 _ T P _ C LK ◈ FBD 전개 –B l o c k D i a g r a m IEP3 (O P T IO N ) 24 MHz 18 .432 MHz 24 .576 MHz 25 MHz 14 .31 M Hz

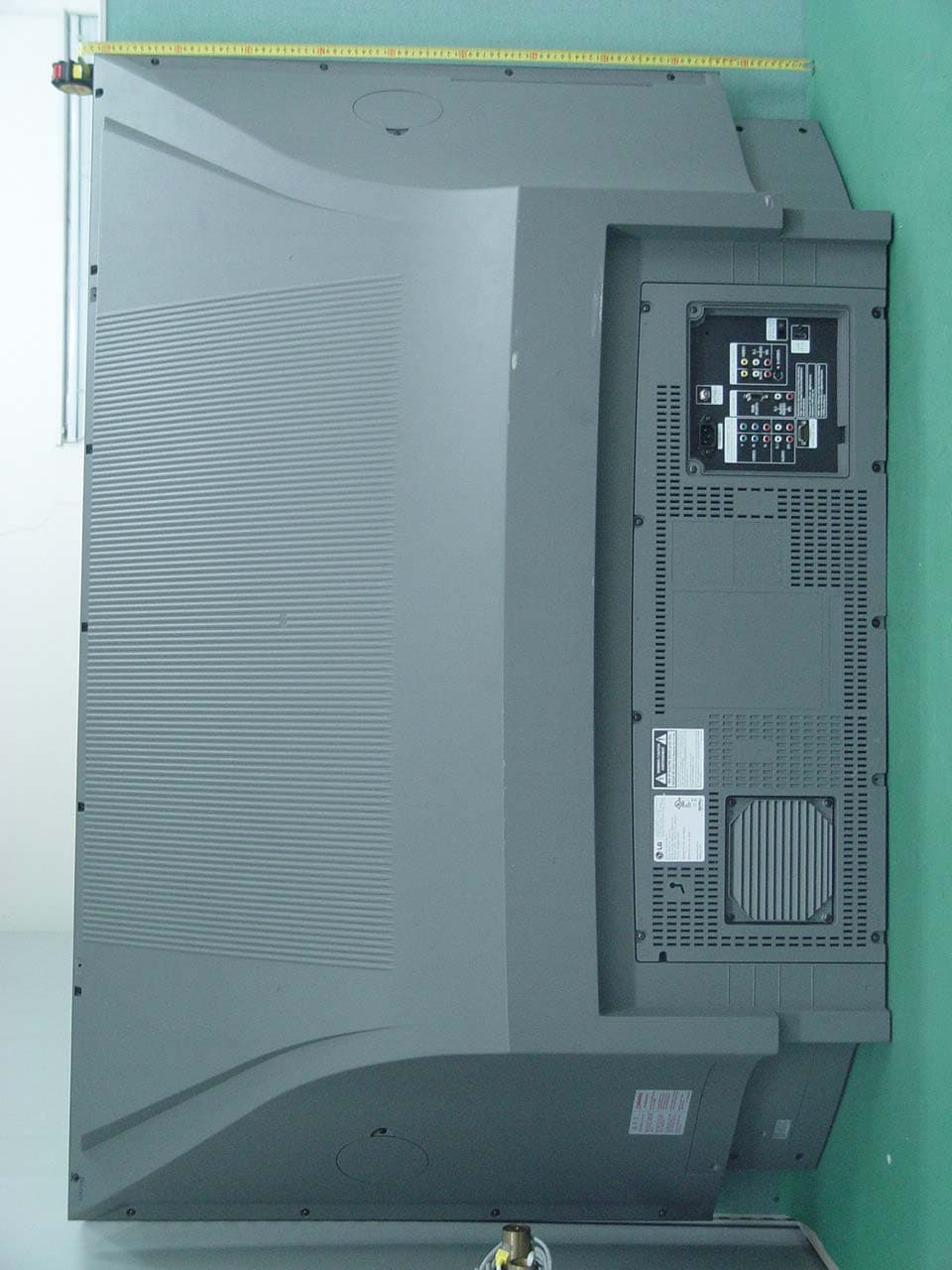

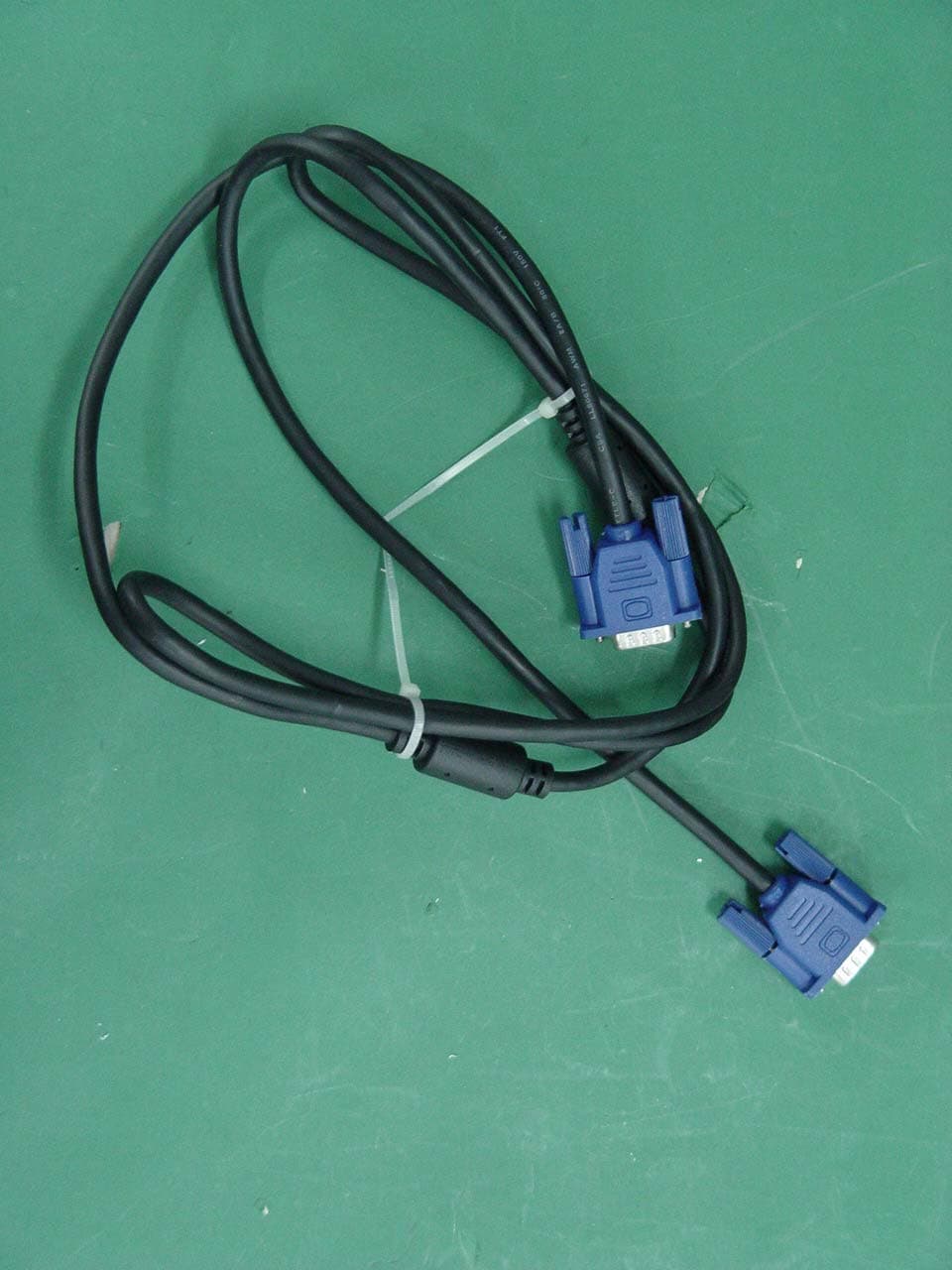

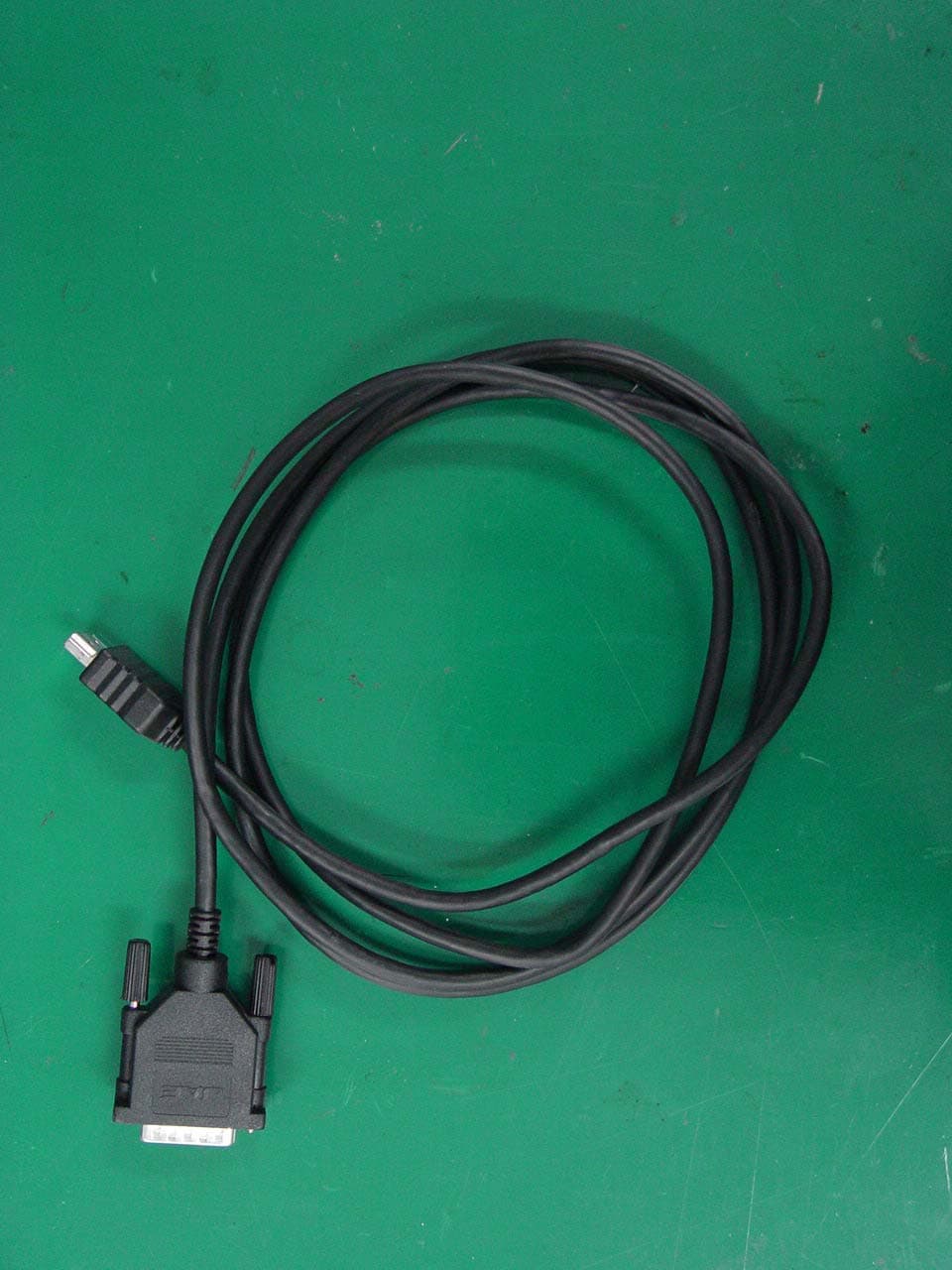

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification „ Test Mode: 1024*768 / 75Hz(Analog) < Hot line > < Neutral line > EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification „ Test Mode: 1024*768 / 75Hz(Digital) < Hot line > < Neutral line > EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification „ Test Mode: 800 *600 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification „ Test Mode: 640*480 / 60Hz (Analog) < Hot line > < Neutral line >

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Page 2 of 19 Test Report No.: GETEC-E3-06-005 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................14 6.1 OPERATING ENVIRONMENT...................................................................................................................................14 6.2 TEST SET-UP............................................................................................................................................................14 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................14 6.4 LIMIT......................................................................................................................................................................15 6.5 TEST EQUIPMENT USED..........................................................................................................................................15 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................16 7. SAMPLE CALCULATIONS.....................................................................................................................................18 7.1 EXAMPLE 1 : ...........................................................................................................................................................18 7.2 EXAMPLE 2 : ...........................................................................................................................................................18 8. RECOMMENDATION & CONCLUSION..............................................................................................................19 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Page 3 of 19 Test Report No.: GETEC-E3-06-005 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID BEJ62DC1DUC z EUT Type 62” DLP projection TV/Monitor z Model No. 62DC1D-UC, Z62DC1D, 62DC1D z Tra de Na me LG, ZENITH z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test January 31 ~ February 1, 2006 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-06-005 Responsible Party: LG Electronics Inc. Contact Person: Mr. Woo-Hyun Oh, Chief research engineer Manufacturer: 642, Jinpyung-dong, Gumi-city, Gyeongsangbuk-do, Korea Tel No.: +82-54-470-5640 EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Page 4 of 19 Test Report No.: GETEC-E3-06-005 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 2003) was used in determining radiated and conduc…

Text truncated - open the document above for the full version.

EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 62” DLP projection TV/Monitor FCC ID: BEJ62DC1DUC Test Report No.: GETEC-E3-06-005 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
