BEJ9CM2315VD1Zigbee Lignting Module

User Manual 9CM2315VD1 1. Installation to Product 1.1 Lighting product ①Prepare the LED Lighting Product and Module. 1page This device is for LG Electronics lighting products only. FCC ID : BEJ9CM2315VD1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not co-located or operated in conjunction with any other antenna or transmitter. FCC Statement “Equipment used at position in which the spaces between human body and antenna exceeded 20cm” ②Insert the modue to LED Lighting Product to be right direction for the LG Logo. ③Check if the indicator LED is on or off when power is on. User Manual 9CM2315VD1 1page Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States November 30, 2013 Attestation Letter for FCCID: BEJ9CM2315VD1 To whom it may concern : This Wireless Module(9CM2315VD1) uses the ISM band(2400~2483.5MHz) According to IEEE 802.15.4 standard, channel for ISM band consist of 11 ~ 26ch. Wireless Module(9CM2315VD1) is not include 26ch(2480MHz) by software. Therefore Wireless Module(9CM2315VD1) use 11~25ch(2405 ~ 2475MHz) Channel frequency 2405 ~ 2475MHz has a 5MHz channel spacing. Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: December 12, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJ9CM2315VD1 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: December 12, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: December 12, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJ9CM2315VD1 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Part Lists SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jacob Cho Director, Standards & Compliance

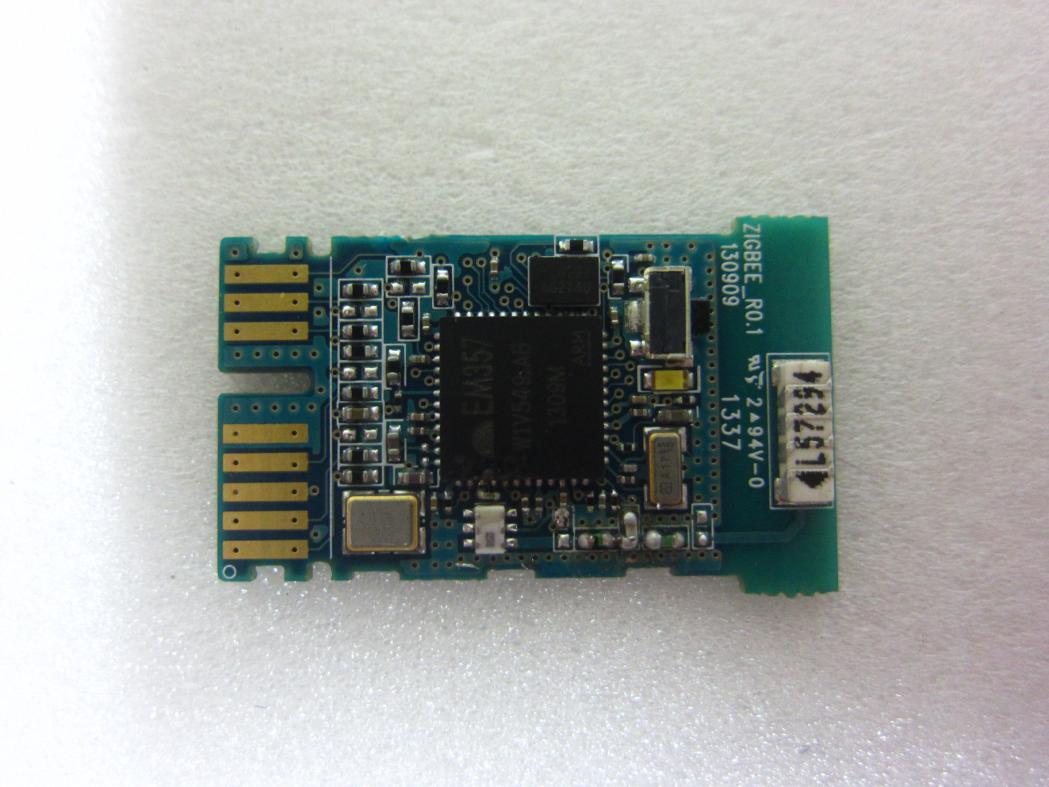

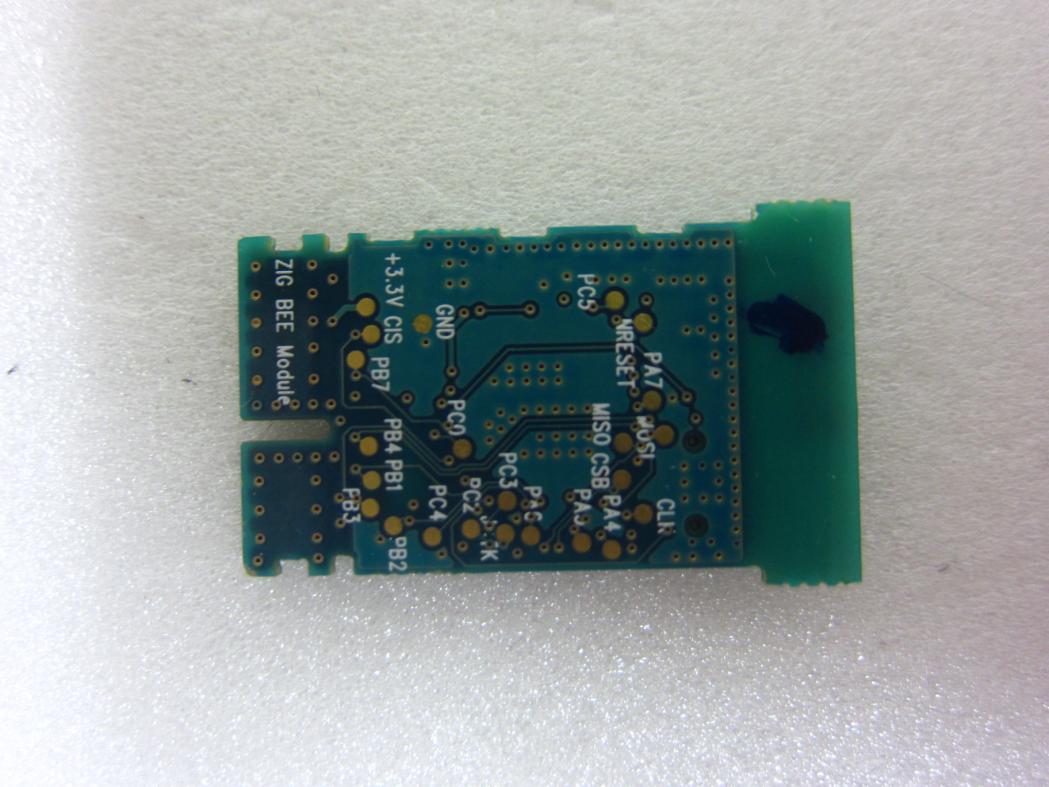

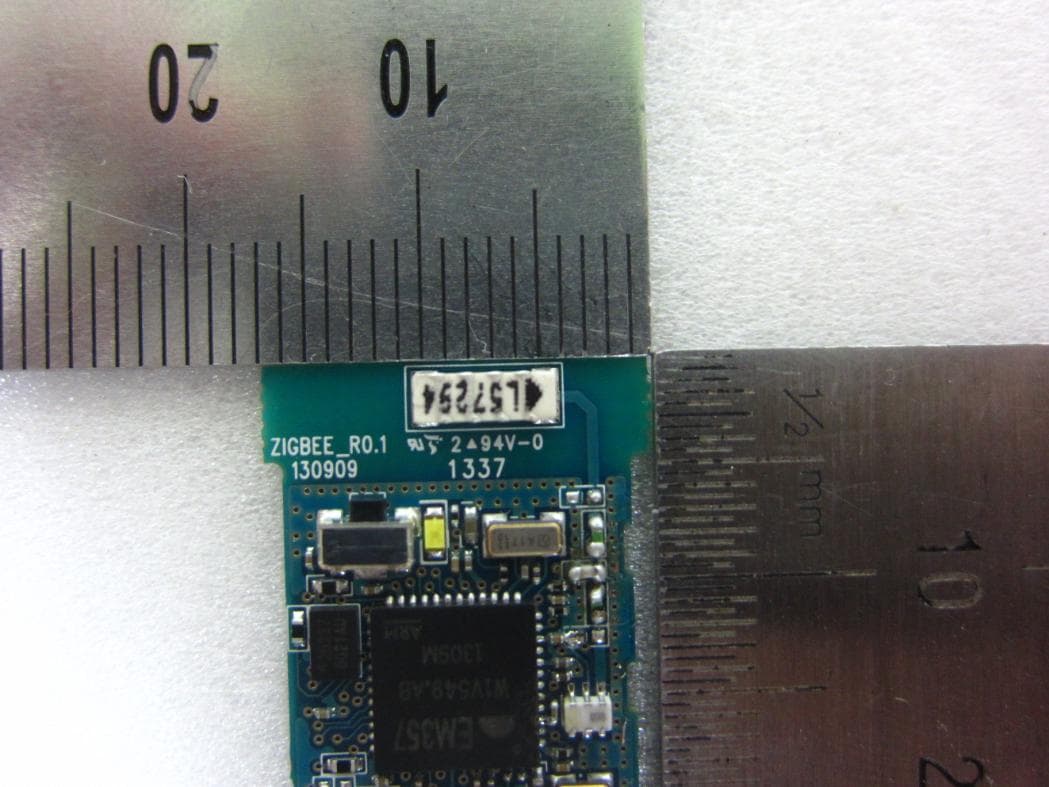

FCCID: BEJ9CM2315VD1 Copyright Ⓒ 2013, DIGITAL EMC Co., Ltd. View 1 FCCID: BEJ9CM2315VD1 Copyright Ⓒ 2013, DIGITAL EMC Co., Ltd. View 2 FCCID: BEJ9CM2315VD1 Copyright Ⓒ 2013, DIGITAL EMC Co., Ltd. View 3

FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 1 FCCID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 2

-~ - - The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: ▪=+- =+ = - ▪S=- =X = The power desity at 20cm does not exceed the 1.0mW/cm 2 . G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 2.00 0.977 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) 0.00039 mW/cm 2 P = Power input to the antenna(mW) P = Power input to the antenna(dBm) 2.90dBmG = Power gain of the antenna(dBi) Power density at the specific separation P G / ( 4 R 2 π ) Note The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 3.00dBm-0.10dBi Maximum RF output power :3dBm Maximum antenna peak gain :-0.10dBi - FCCID: BEJ9CM2315VD1 MPE Calculations Frequency range :2405MHz2475MHz TRF-RF-206(00)100216

FCCID: BEJ9CM2315VD1 DEMC1311-03350 Report No.: DRTFCC1312-1180 TRF-RF-219(00)130701 Page2 / 31 Copyright ○ C 2013, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1312-1180 Dec. 13, 2013 Initial issue FCCID: BEJ9CM2315VD1 DEMC1311-03350 Report No.: DRTFCC1312-1180 TRF-RF-219(00)130701 Page3 / 31 Copyright ○ C 2013, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ......................................................... 4 2. EUT DESCRIPTION .................................................................... 4 3. SUMMARY OF TESTS ................................................................ 5 4. TEST METHODOLOGY .............................................................. 6 4.1 EUT CONFIGURATION ....................................................................................... 6 4.2 EUT EXERCISE ................................................................................................... 6 4.3 GENERAL TEST PROCEDURES ....................................................................... 6 4.4 DESCRIPTION OF TEST MODES ...................................................................... 6 5. INSTRUMENT CALIBRATION .................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES .......................................................................................................... 7 6.2 EQUIPMENT ........................................................................................................ 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ............................................................................ 8 8.1 6dB Bandwidth Measurement ........................................................................... 8 8.2 Maximum Peak Conducted Output Power ..................................................... 11 8.3 Maximum Power Spectral Density. ................................................................. 14 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions .......... 17 8.5 Radiated Measurement. ................................................................................... 23 8.5.1 Radiated Spurious Emissions. ................................................................... 23 8.6 POWERLINE CONDUCTED EMISSIONS ......................................................... 26 8.7 Occupied Bandwidth ........................................................................................ 29 9. LIST OF TEST EQUIPMENT ..................................................... 30 APPENDIX I................................................................................... 31 APPENDIX II.................................................................................. 31 Duty Cycle Plot & Calculation ..................................................... 31 FCCID: BEJ9CM2315VD1 DEMC1311-03350 Report No.: DRTFCC1312-1180 TRF-RF-219(00)130701 Page4 / 31 Copyright ○ C 2013, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : LG Electronics USA. Address : 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States FCC ID : BEJ9CM2315VD1 EUT : Zigbee Lignting Module Model : 9CM2315VD1 Additional Model(s) : N/A Data of Test : 2013-11-18 ~ 2013-12-04 Contact person : Jacob Cho 2. EUT DESCRIPTION Product Zigbee Lignting Module Model Name 9CM2315VD1 Power Supply DC 3.3 V Frequency Range 2405 ~ 2475 MHz (15 channels) Max. RF Output Power 2.72 dBm Modulation Type DSSS Antenna Specification Antenna Type: Internal Antenna Gain: - 0.10 dBi(PK) FCCID: BEJ9CM2315VD1 DEMC1311-03350 Report No.: DRTFCC1312-1180 TRF-RF-219(00)130701 Page5 / 31 Copyright ○ C 2013, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [4.6.1] Occupied Bandwidth (99%) RSS-Gen(4.6.1) NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. FCCID: BEJ9CM2315VD1 DEMC1311-03350 Report No.: DRTFCC1312-1180 TRF-RF-219(00)130701 Page6 / 31 Copyright ○ C 2013, Digital EMC Co., Ltd. 4. TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices (ANSI C63.10-2009) and KDB558074 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet theCommissions requirement and operating in a manner that intends to maximize its emissioncharacteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose ofthe measurements. According to its specifications, the EUT must comply with the requirements ofthe Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions According to therequirements in Section 6.2 of ANSI C63.10, the EUT is placed on the turntable, which is 0.8 m above ground plane and the conducted emissions from theEUT are measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peakand Average detector. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate360 degrees to determine the position of maximum emission …

Text truncated - open the document above for the full version.

FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup photographs (DTS) EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID: BEJ9CM2315VD1 Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup photographs of Conducted Emissions
