LG Lifeband Touch OWNER’S MANUAL To understand information offered by LG Heart Rate Earphones correctly, read the owner’s manual carefully. Model : FB84-BM / FB84-BL / FB84-BX / FB84-SM / FB84-SL / FB84-SX / FB84-RM / FB84-RL / FB84-RX www.lg.com Before using 2 Before using 1 Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. Before using 3 Before using 1 This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. NOTICE: For safety making information including product identification and supply ratings, please refer to the main label on the rear of the apparatus. CAUTION when using this product in environments of low humidity  It may cause static electricity in environments of low humidity.  It is recommended to use this product after touching any metal object which conducts electricity. > Caution Before using 4 Before using 1 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or…

Text truncated - open the document above for the full version.

LG Electronics Inc. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: 2014-02-13 Manufacturer : LG Electronics Inc. Type of Product : LG LIFEBAND TOUCH Model Name : FB84-BM ADD Model Name : FB84-BX, FB84-BL, FB84-SX, FB84-SL, FB84-SM, FB84-RX, FB84-RL, FB84- RM, FB84-GX, FB84-GL, FB84-GM We hereby declare that the above models FB84-BM is identical to the bel ow models technically and mechanically Except fo r the below information. Model Name Color of Band Band Size FB84-BX Black XL FB84-BM M FB84-BL L FB84-SX Silver XL FB84-SM M FB84-SL L FB84-RX Red XL FB84-RM M FB84-RL L FB84-GX Gold XL FB84-GM M FB84-GL L Sincerely Yours, Jacob Cho Director, Standards & Compliance

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: February 14, 2014 Letter of Authorization We, the undersigned, hereby authorize Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: BEJ9QK-DMFB84-BM including signing of all documents relating to these matters. Any and all acts carried out by Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: February 14, 2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: February 14, 2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJ9QK-DMFB84-BM To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jacob Cho Director, Standards & Compliance

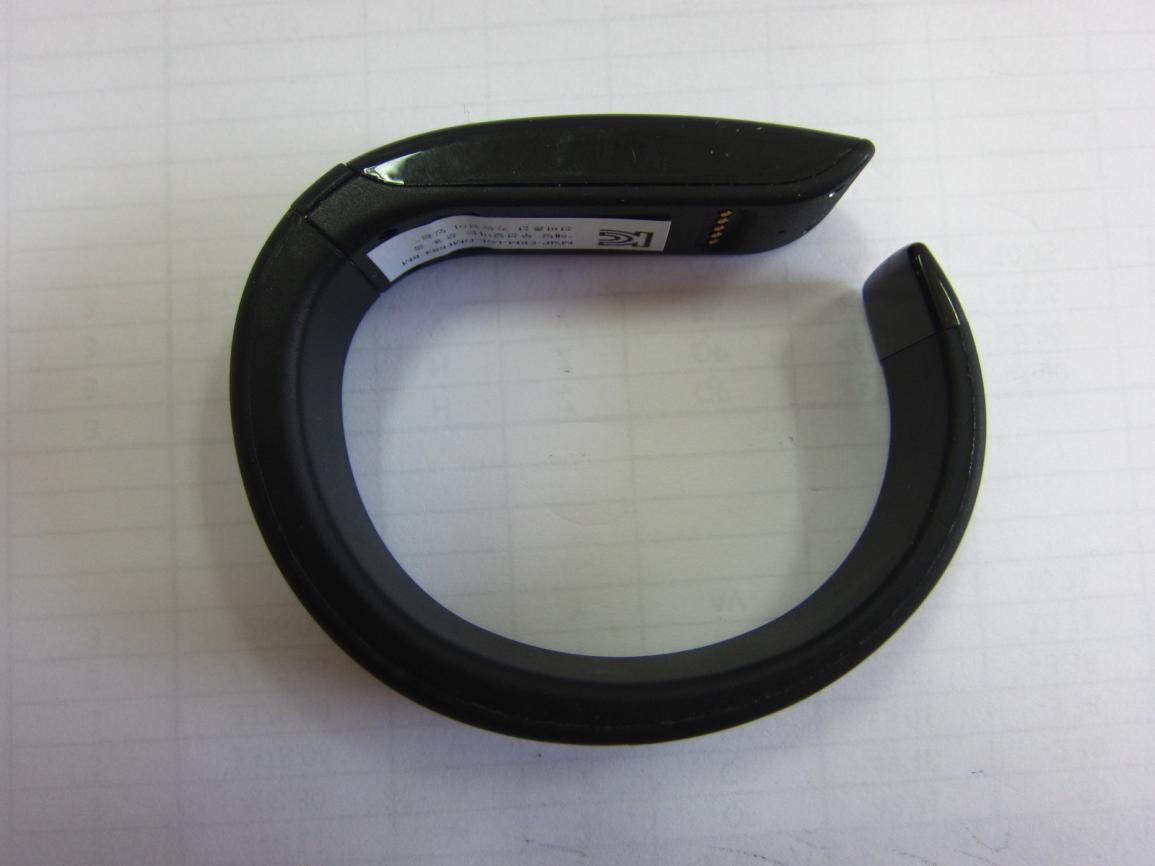

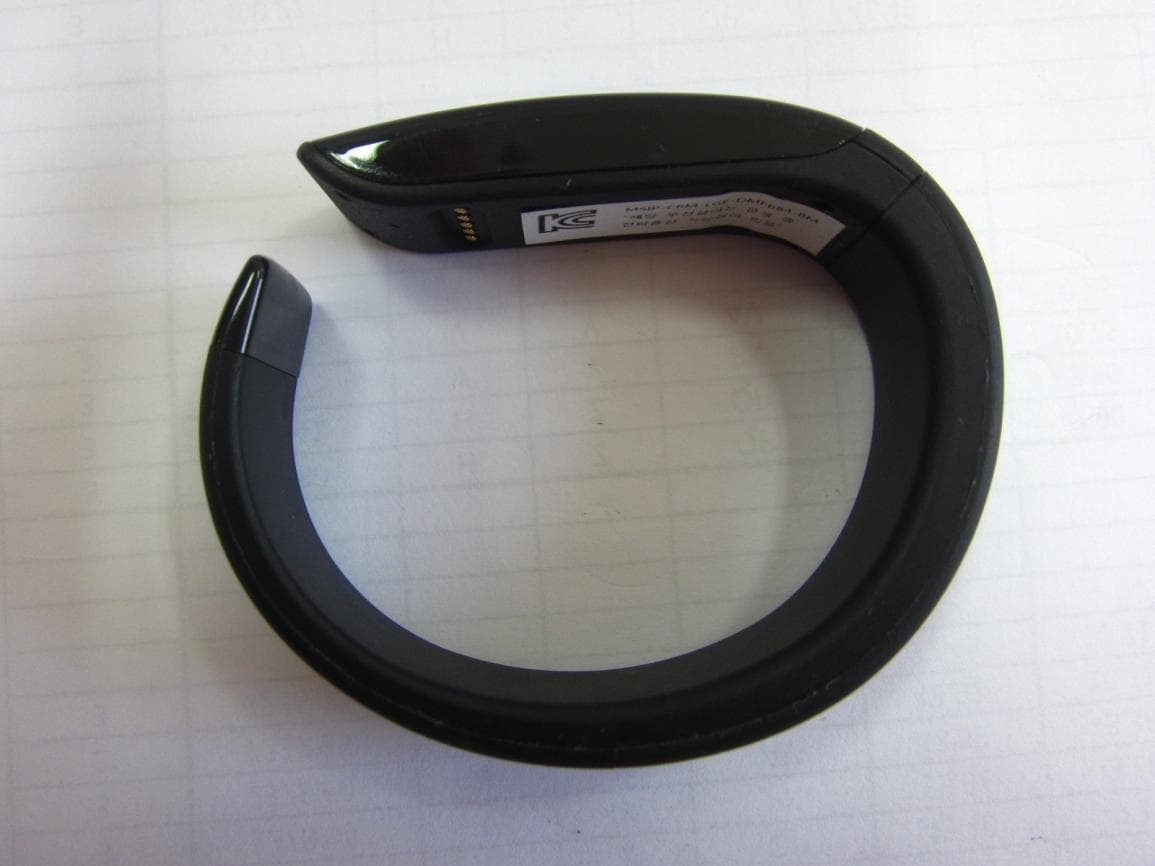

FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 1 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 2 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 3

FCC ID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 7 View 1 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 7 View 2 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 3 / 7 View 3 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 4 / 7 View 4 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 5 / 7 View 5 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 6 / 7 View 6 FCCID: BEJ9QK-DMFB84-BM Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 7 / 7 View 7

MHzmm = 2480 - Min. test separation distance = mW 7.43 10.00 dBm - Transmitting frequency = 10.00 dBmdBm Measured Power: Max Target Power : BEJ9Q-DMFB84-BM 5 - Max. power with turn-up tolerance = 10 Used Step 1) SAR test exclusion thresholds for 100MHz to 6GHz at te st separationn distances ≤ 50 mm = [( max. p ower of channel , includin g tune-u p tolerance , mW )/( min. test se p aration distance , mm )] · [ √f ( GHz )] FCC ID : Standalone SAR test exclusion considerations February 18, 2014 =[ / ]*[√ ] = Thus SAR for this device is not required. [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW 5 Step 2-1) SAR test exclusion thresholds for 100MHz to 1500MHz at test separationn distances > 50 mm = N/A 3.15 ≤ 7.5, for 10g extrmity SAR Step 2-2) SAR test exclusion thresholds for 1500MHz to 6GHz at test separationn distances > 50 mm = N/A 10.00 2.48 [( p , g p , )/( p , )] [ ( )] Copyright Ⓒ 2014, Digital EMC Co., Ltd.

DEMC1312-03732, DEMC1312-03733 FCC ID: BEJ9QK-DMFB84-BM Report No.: DRTFCC1402-0210 IC: 2703H-DMFB84BM TRF-RF-219(00)130701 Page2 / 33 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1402-0210 Feb. 14, 2014 Initial issue DEMC1312-03732, DEMC1312-03733 FCC ID: BEJ9QK-DMFB84-BM Report No.: DRTFCC1402-0210 IC: 2703H-DMFB84BM TRF-RF-219(00)130701 Page3 / 33 Copyright ○ C 2014, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ......................................................... 4 2. EUT DESCRIPTION .................................................................... 4 3. SUMMARY OF TESTS ................................................................ 5 4. TEST METHODOLOGY .............................................................. 6 4.1 EUT CONFIGURATION ....................................................................................... 6 4.2 EUT EXERCISE ................................................................................................... 6 4.3 GENERAL TEST PROCEDURES ....................................................................... 6 4.4 DESCRIPTION OF TEST MODES ...................................................................... 6 5. INSTRUMENT CALIBRATION .................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES .......................................................................................................... 7 6.2 EQUIPMENT ........................................................................................................ 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ............................................................................ 8 8.1 6dB Bandwidth Measurement ........................................................................... 8 8.2 Maximum Peak Conducted Output Power ..................................................... 11 8.3 Maximum Power Spectral Density. ................................................................. 14 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions17 8.5 Radiated Measurement. ................................................................................... 23 8.5.1 Radiated Spurious Emissions. ................................................................... 23 8.6 POWERLINE CONDUCTED EMISSIONS ......................................................... 26 8.7 Occupied Bandwidth ........................................................................................ 29 9. LIST OF TEST EQUIPMENT ..................................................... 32 APPENDIX I................................................................................... 33 APPENDIX II.................................................................................. 33 DEMC1312-03732, DEMC1312-03733 FCC ID: BEJ9QK-DMFB84-BM Report No.: DRTFCC1402-0210 IC: 2703H-DMFB84BM TRF-RF-219(00)130701 Page4 / 33 Copyright ○ C 2014, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : LG Electronics USA Address : 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID IC : BEJ9QK-DMFB84-BM 2703H-DMFB84BM EUT : LG LIFEBAND TOUCH Model : FB84-BM Additional Model(s) : FB84-BX, FB84-BL, FB84-SX, FB84-SL, FB84-SM, FB84-RX, FB84-RL, FB84-RM, FB84-GX, FB84-GL, FB84-GM Data of Test : 2013-12-12 ~ 2013-12-23 Contact person : Jacob Cho 2. EUT DESCRIPTION Product LG LIFEBAND TOUCH Model Name FB84-BM, FB84-BX, FB84-BL, FB84-SX, FB84-SL, FB84-SM, FB84-RX, FB84-RL, FB84-RM, FB84-GX, FB84-GL, FB84-GM ※ 12 models are same mechanical, electrical and functional. Power Supply DC 3.7 V Battery type Standard Battery: Lithium Ion Battery Frequency Range 2402 ~ 2480 MHz(40 channels) Max. RF Output Power 7.43 dBm Modulation Type GFSK(Bluetooth LE) Antenna Specification Antenna Type: Internal Antenna Gain: -4.50 dBi (PK) DEMC1312-03732, DEMC1312-03733 FCC ID: BEJ9QK-DMFB84-BM Report No.: DRTFCC1402-0210 IC: 2703H-DMFB84BM TRF-RF-219(00)130701 Page5 / 33 Copyright ○ C 2014, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [4.6.1] Occupied Bandwidth (99%) RSS-Gen(4.6.1) C 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. DEMC1312-03732, DEMC1312-03733 FCC ID: BEJ9QK-DMFB84-BM Report No.: DRTFCC1402-0210 IC: 2703H-DMFB84BM TRF-RF-219(00)130701 Page6 / 33 Copyright ○ C 2014, Digital EMC Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r1. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENE…
