BEJ9QK-DMRS3Wireless Adpter Card

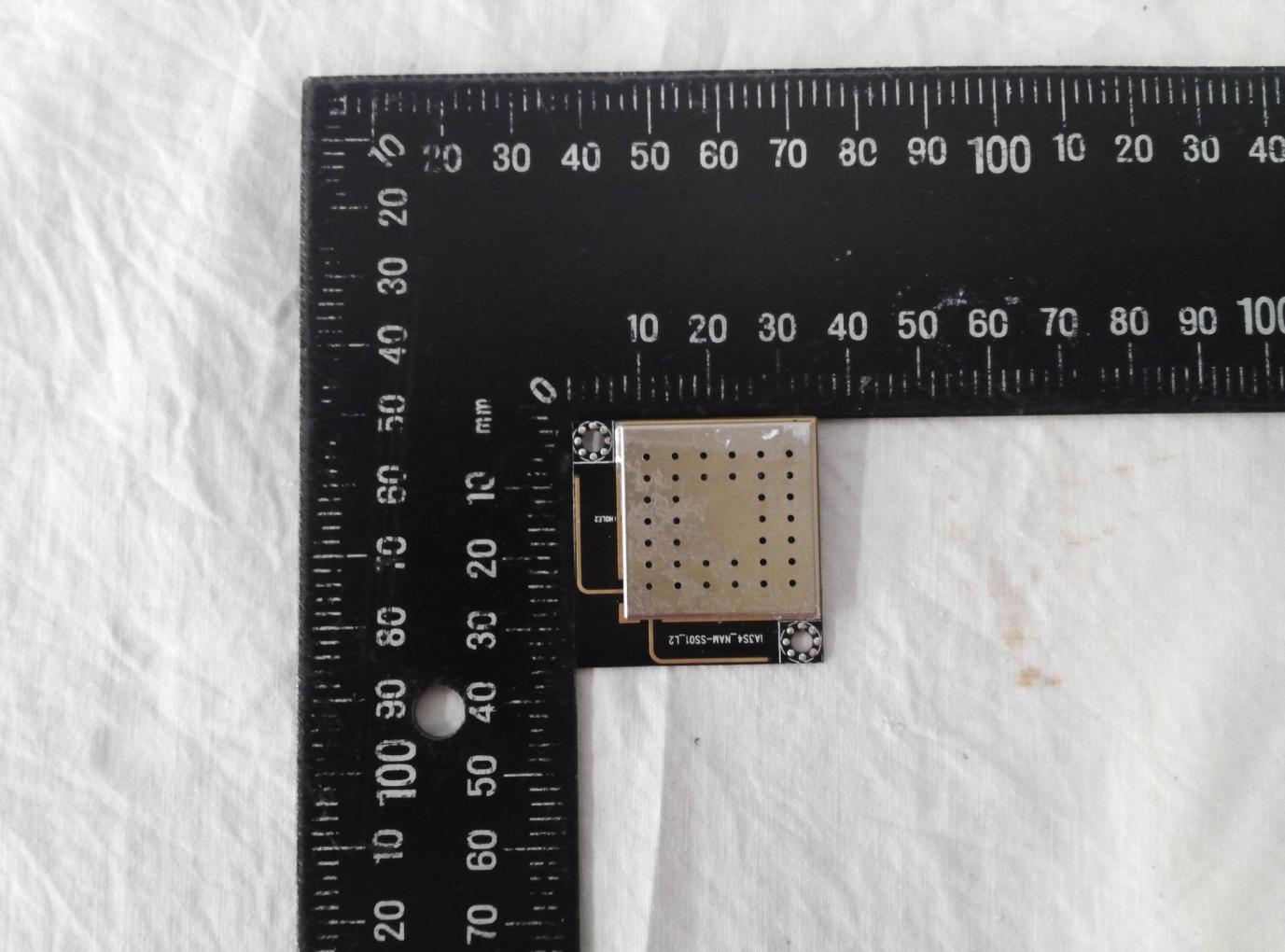

Model Name : RS3_2.4GHz_NAM-SS01 module Product Description. The Module is an OEM module (35x35mm) based on the IA3S4. It is a compressed wireless digital audio transceiver operating in the 2.4GHz bands. The wireless audio link supports 1 stereo audio stream and comes together with additional features such as: pairing functionality, seamless and bi- direction transmission of high quality audio, I2S sampling frequency detection, support Sleep mode, Programmable end-to-end audio latency, Control Channel ability, support no audio detection, Robust packet error correction.  SYNIC IA3S4 Integrated Wireless Audio Processor  GFSK digital modulation.  Audio format 16bit, 32/44.1/48KHz sampling rate  Digital audio interfaces (I 2 S and/or S/PDIF)  I 2 C, SPI control interface  26 pins interface connector (FFC).  Support no audio detection function.  Robust packet error correction.  Low power consumption.  Low audio delay time < 20ms RF Frequency Bandwidth. 2.4GHz: 2400 – 2485MHz RF Performance. For 2.4GHz application (VCC=3.3V, 25°C) Parameter Min Typ. Max Units RF Frequency Range 2400 2485 MHz Available channel 39 Transmission Power 5 7 9 dBm RF Bandwidth 1 MHz Rx Sensitivity -80 dBm Antena Diversity ON Audio Performance. Item Min Typ Max Unit Note SNR @ 1Khz -88 dBr THD+N @ 1KHz -70 dB Dynamic Range @ 1KHz -85 dBr Crosstalk @ 1KHz -100 dB Frequency Response @ 20Hz to 20KHz -3 0 +3 dB POWER - Supply Voltage : 3.1V(Min), 3.3V(Typ), 3.5V(Max) - Peak to Peak Ripple: 100mV(Max) - Operating Current: 50mA(Typ) - Operating Temperature : 0°C (Min) , 25°C (Typ) , 55°C (Max) 26Pin Interface No. Pin Name I/O Descriptions 1 VCCIO PWR VCC supply 2 GND GND Ground 3 I2S_MCLK I/O System clock pin of I2S signal 4 BLUE_LED I/O GPIO 5 RED_LED I/O GPIO 6 NC I/O Not connected 7 NC I/O Not connected 8 I2S_DATA I/O Data pin of I2S signal 9 NC I/O Not connected 10 I2C_CLK I/O Clock pin of I2C control signal 11 I2C_DATA I/O Data pin of I2C control signal 12 SPI_DI I/O Data input pin of SPI interface 13 SPI_DO I/O Data out pin of SPI interface 14 SPI_CLK I/O Clock pin of SPI interface 15 SPI_CS I/O Chip select pin of SPI interface 16 SPI_WP I/O Write protect pin of SPI interface, low active 17 RESET I Reset pin of IA3, low active 18 P_SENSE I/O GPIO 19 P_CTL I/O GPIO 20 PWM_RST I/O GPIO 21 AMP_PDN I/O GPIO 22 AMP_SD I/O GPIO 23 Wireless_Ready I/O GPIO 24 I2S_BCK I/O BCK pin of I2S signal 25 GND GND Ground 26 I2S_LRCK I/O LRCK pin of I2S FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.1. Reorient or relocate the receiving antenna. 1.2. Increase the separation between the equipment and receiver. 1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealer or experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. “CAUTION : Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632, United States TEL: 201-266-2534 FAX: 201-816-2003 Date: July 03, 2013 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention : Application Examiner / Reviewing Engineer Subject : Attestation for used operating frequency band Applicant : LG Electronics USA FCC ID : BEJ9QK-DMRS3 To whom it may concern, We, LG Electronics USA are guarantee for used frequency band as bellows, This model, RS3 will be used only following frequencies. * Used frequency band 2403 MHz , 2443 MHz , 2478 MHz If you have questions or need further information, please contact the undersigned. Sincerely Yours, __________________________ Jacob Cho / Director LG Electronics USA [email protected]

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632, United States TEL: 201-266-2534 FAX: 201-816-2003 EMCCert DR. RAŠEK GmbH Date: July 03, 2013 Stoernhofer Berg 15 91364 Unterleinleiter GERMANY This authorization is valid until further written notice from the applicant. Sincerely Yours, ________________________ Jacob Cho/Director LG Electronics USA [email protected]

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632, United States TEL: 201-266-2534 FAX: 201-816-2003 EMCCert DR. RAŠEK GmbH Date: July 03, 2013 Stoernhofer Berg 15 91364 Unterleinleiter GERMANY Attention : Application Examiner / Reviewing Engineer Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant : LG Electronics USA. FCC ID : BEJ9QK-DMRS3 To whom it may concern, Request is hereby submitted, LG Electronics USA. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Block Diagram / Part List / Schematic / Chip spec / Antenna spec Rationale for request for confidentiality: LG Electronics USA. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely Yours, ____________________________ Jacob Cho/Director LG Electronics USA [email protected]

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632, United States TEL: 201-266-2534 FAX: 201-816-2003 Date: July 03, 2013 Attn: Director of Certification Request for Single Modular Approval for FCC ID: BEJ9QK-DMRS3 Please accept our request for Limited Single Modular Approval in accordance with the requirements of 15.212 as described below. 15.212(a)(1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) This module does have its own shielding (ii) This module has buffered modulation/data inputs. (iii) This module has integrated with Power Supply regulator. (iv) This module complied with the antenna requirement of section 15.203, because the antenna is PCB pattern antenna. (v) This module was tested in a standalone-configuration for radiated emissions (vi) The Module will be labeled with its own FCC ID Number. (vii) This module complies with the requirements of part 15.207 for AC power line conducted emissions and part 15.247 for operation in 2 402 – 2480 MHz frequency band and must only be used with the antenna that were tested in this filing. (Viii) This module complied with any applicable RF exposure requirement. Sincerely Yours, ____________________________ Jacob Cho/Director LG Electronics USA [email protected]

FCC ID. : BEJ9QK-DMRS3 Page 1 of 2 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : BEJ9QK-DMRS3 Page 2 of 2 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

Page 1 of 1 Report No.: E137R-002 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Dept : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the back side of the equipment FCC ID AREA FCC ID : BEJ9QK-DMRS3

FCC ID. : BEJ9QK-DMRS3 Page 1 of 2 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : BEJ9QK-DMRS3 Page 2 of 2 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

Page 1 of 54 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E137R-002 AGR No. : A136A-028 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs, NJ 07632, United States Manufacturer : LG Electronics Inc. Address : 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea. Type of Equipment : Wireless Adapter Card FCC ID. : BEJ9QK-DMRS3 Model Name : RS3 Serial number : N/A Total page of Report : 54 pages (including this page) Date of Incoming : June 10, 2013 Date of issue : July 01, 2013 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Ki-Hong, Nam / Senior Engineer Y. K. Kwon / Managing Director EMC/RF Center EMC/RF Center ONETECH Corp. ONETECH Corp. Page 2 of 54 Report No. : E137R-002 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 2.1 TEST ITEMS AND RESULTS........................................................................................................................................ 7 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ....................................................................................... 7 2.3 RELATED SUBMITTAL(S) / GRANT(S) ....................................................................................................................... 7 2.4 PURPOSE OF THE TEST ............................................................................................................................................. 7 2.5 TEST METHODOLOGY ............................................................................................................................................. 7 2.6 TEST FACILITY ........................................................................................................................................................ 7 3. GENERAL INFORMATION ..................................................................................................................................... 8 3.1 PRODUCT DESCRIPTION .......................................................................................................................................... 8 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. .............................................................. 8 4. EUT MODIFICATIONS............................................................................................................................................. 8 5. SYSTEM TEST CONFIGURATION ......................................................................................................................... 9 5.1 JUSTIFICATION ........................................................................................................................................................ 9 5.2 PERIPHERAL EQUIPMENT ........................................................................................................................................ 9 5.3 MODE OF OPERATION DURING THE TEST ................................................................................................................. 9 5.4 CONFIGURATION OF TEST SYSTEM ........................................................................................................................ 10 5.5 ANTENNA REQUIREMENT ...................................................................................................................................... 10 6. PRELIMINARY TEST ............................................................................................................................................. 11 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS .................................................................................................. 11 6.2 GENERAL RADIATED EMISSIONS TESTS................................................................................................................. 11 7. MIMIMUM 6 DB BANDWIDTH ............................................................................................................................ 12 7.1 OPERATING ENVIRONMENT ................................................................................................................................... 12 7.2 TEST SET-UP .......................................................................................................................................................... 12 7.3 TEST EQUIPMENT USED.......................................................................................................................................... 12 7.4 TEST DATA FOR ANTENNA 1 ..........................................................................................................................…
