BEJ9QK-DMWL1NB6Wireless Adapter Card

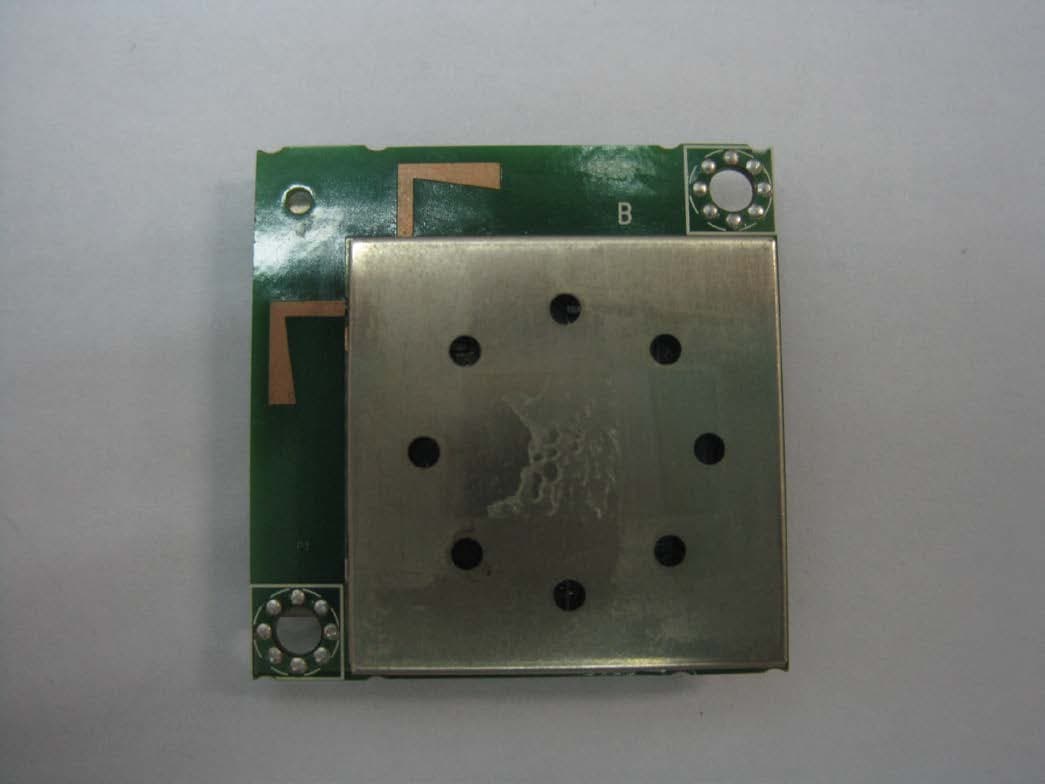

User Manual PRODUCT NAME : Wireless Adapter Card MODEL NAME : WL1NB6(TWBI-H002D) (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 1 / 8 Table of Contents No. Description Page 1 Features 2 2 Module Photo 2 3 Block Diagram 3 4 Storage Conditions 4 5 Operating Conditions 4 6 Interface Specification 5 7 Pin Description 6 8 Outline Drawing 7 9 Packing Information 8 User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 2 / 8 2. Module Photo 1. Features TWBI-H002D is the small size and low power module for Wireless Audio. TWBI-H002D is based on Syncomm IA9Q. 5.2/5.8GHz GFSK Modulation Size : 35mm x 35mm x 5.03 mm Internal PCB Printed Antenna I2S digital audio interface I2C control with external device Low audio delay time < 20ms Application : Wireless Speaker, Woofer, TV Theater User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 3 / 8 3. Block Diagram Main Clock(16MHz) ANT_1(RX) Power Management IA9Q Connector I2C I2S SPI GPIO 3.3V MAC MCU 5.2/5.8G Transceiver ANT_0(TX) LNA PA User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 4 / 8 4. Storage Conditions 5. Operating Conditions Parameter Min Max Unit Storage Temperature -10 +80 °C Storage Humidity (@ 40°C) - 90 % Caution : The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. • Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°C and 20 to 60%. Parameter Min Typ Max Unit Ambient Temperature 0 - +60 °C Operating Humidity (40°C) - - 85 % Supply Voltage 3.15 3.3 3.45 Vdc User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 5 / 8 6. Interface Specification 1) I2S Timing User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 6 / 8 7. Pin Description Note. 1) Recommend a Module install sequence for prevent operation failure - Supply 3.3V power 2) Connector: 26Pin SMD Connector A < TOP View > < Bottom View > User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 7 / 8 8. Outline Drawing User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 8 / 8 9. Packing Information User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 3 / 8 FCC Part 15.19 Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.105 statement (Class A or Class B 중 선택) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.21 statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure Statement The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. This device must not be co-located or operating in conjunction with any other antenna or transmitter. End Product Labeling The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC Certification Number are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the following: “Contains FCC ID: BEJ9QK-DMWL1NB6 “Contains IC: 2703H-DMWL1NB6 User Manual PAGE : REG. DATE : 2015.06.08 MODEL: WL1NB6(TWBI-H002D) REV. DATE : 2015.06.08 REV.NO : 1.0 © 2015 LGIT. All rights reserved. 3 / 8 RSS-GEN, Sec. 7.1.2 – (transmitters) …

Text truncated - open the document above for the full version.

LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 2.0 DATE : June 25, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : BEJ9QK-DMWL1NB6 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Part list SHORT-TERM CONFIDENTIAL ( 180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Company Name : LG Electronics USA. Company Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States Contact Person Name/Title (in print) : Jongchul LEE / Director, Standards & Compliance

Date : Jan. 10, 2014 Rev : 2.1 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC Modular Approval Declaration Letter HACS-F007 Modular Approval Declaration Letter Rev : 2.1 Date : June 25, 2015 Subject : IC Modular Approval Declaration Letter IC ID : 2703H-DMWL1NB6 seeking IC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Equipment Under Te sting (‘EUT’) satisfy the requirement for Single Modular Approval Single Limited Modular Approval as detailed in RSS GEN. I C Requirement of Modular Approval 1. The radio elements shall have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. YES NO 2. The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. YES NO 3. The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module YES NO 4. The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. YES NO 5. The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing YES NO 6.The module shall comply with the Category I equipment labeling requirements. YES NO 7. The module shall comply with applicable RSS-102 exposure requirements, which are based on the intended use/configurations. YES NO 8.Is the modular device for an Industry Canada licensed exempt service? YES NO Note : Limited modular approval may be granted If EUT does not meet all of the requirement shown above Limited modular approval may be granted in case that the applicant can demonstrate to retain control over the final installation of the device such that compliance of the end product is assured. In that case, an operating condition on the limited modular approval for the module shall state that the module is only designated for the end product manufactured by a specific manufacturer When limited modular approval is sought, the application for equipment certification shall state how control of the end product into which the module will be installed and maintained such that full compliance of the end product is always ensured. Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. (Example) A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standar ds. HACS-F007 Modular Approval Declaration Letter Rev : 2.1 _________________________ Daewoong, Kim / Chief Research Engineer LG Electronics 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, South Korea

FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 2 EXTERNAL PHOTOGRAPHS FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 2 ■ EXTERNAL PHOTO

1. PCB Silk Print - FCC ID : BEJ9QK-DMWL1NB6 - IC : 2703H-DMWL1NB6 - KC : MSIP-CRM-LGE-DMWL1NB6 2.Label Marking 3. PCB Silk Information and Label location

FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 5 INTERNAL PHOTOGRAPHS FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 5 ■ INTERNAL PHOTO FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 5 ■ INTERNAL PHOTO FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 5 ■ INTERNAL PHOTO FCC ID: BEJ9QK-DMWL1NB6/ IC: 2703H-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 5 ■ INTERNAL PHOTO

FCC ID: BEJ9QK-DMWL1NB6 HCT CO., LTD 1 of 2 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f² ) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJ9QK-DMWL1NB6 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 2 3. RESULTS 3- 1. UNII 1 BAND Max Average output Power at antenna input terminal (dBm) 3.7300 Max Average output Power at antenna input terminal (mW) 2.360 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 5156.000 Antenna Gain(Peak) ( dBi) 0.55000 Antenna Gain(numeric) 1.13501 Power density at prediction frequency (mW/cm²) 0.000533 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3- 2. UNII 3 BAND Max Average output Power at antenna input terminal (dBm) -2.0140 Max Average output Power at antenna input terminal (mW) 0.629 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 5730.000 Antenna Gain(Peak) ( dBi) 1.3000 Antenna Gain(numeric) 1.34896 Power density at prediction frequency (mW/cm²) 0.000169 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000

Report No.: HCT-R-1506-F074 Model: WL1NB6 Page ２ of 45 F-01P-02-014 (Rev.00) FCC ID: BEJ9QK-DMWL1NB6 HCT Co.,Ltd. Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1506-F074 June 30, 2015 - First Approval Report Report No.: HCT-R-1506-F074 Model: WL1NB6 Page ３ of 45 F-01P-02-014 (Rev.00) FCC ID: BEJ9QK-DMWL1NB6 HCT Co.,Ltd. Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 3. TEST METHODOLOGY ............................................................................................................................... ５ 3.1 EUT CONFIGURATION ...................................................................................................................... ５ 3.2 EUT EXERCISE .................................................................................................................................. ５ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ５ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ５ 4. INSTRUMENT CALIBRATION ..................................................................................................................... ６ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ６ 5.1 FACILITIES ......................................................................................................................................... ６ 5.2 EQUIPMENT ....................................................................................................................................... ６ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ７ 7. SUMMARY OF TEST RESULTS ................................................................................................................. ８ 8. TEST RESULT ............................................................................................................................................. ９ 8.1 DUTY CYCLE ...................................................................................................................................... ９ 8.2 EMISSION BANDWIDTH AND MINIMUM EMISSION BANDWIDTH MEASUREMENT .............. １０ 8.3 OUTPUT POWER MEASUREMENT .............................................................................................. １７ 8.4 POWER SPECTRAL DENSITY ...................................................................................................... １９ 8.5 FREQUENCY STABILITY. ............................................................................................................. ２３ 8.6 RADIATED MEASUREMENT ......................................................................................................... ２５ 8.6.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. ２５ 8.6.2 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ............................................. ３７ 8.7 POWERLINE CONDUCTED EMISSIONS ..................................................................................... ３９ 9. LIST OF TEST EQUIPMENT ................................................................................................................... ４４ 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................ ４４ 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................ ４５ Report No.: HCT-R-1506-F074 Model: WL1NB6 Page ４ of 45 F-01P-02-014 (Rev.00) FCC ID: BEJ9QK-DMWL1NB6 HCT Co.,Ltd. 1. GENERAL INFORMATION Applicant: LG Electronics Address: 222, LG-ro Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 457-713 Korea FCC ID: BEJ9QK-DMWL1NB6 EUT Type: Wireless Adapter Card FCC/IC Model name(s): WL1NB6 Date(s) of Tests: June 08, 2015 ~ June 25, 2015 Place of Tests: HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION FCC Model Name WL1NB6 EUT Type Wireless Adapter Card Power Supply DC 3.3 V Frequency Range UNII 1 5 156 MHz ~ 5 200MHz UNII 3 5 730 MHz ~ 5 821MHz Modulation Type GFSK Antenna Specification Manufacturer: LG Innotek Co., Ltd. Antenna type:PCB Antenna Peak Gain : 0.55 dBi (5156~5200 MHz UNII1 BAND) / 1.30 dBi (5730~5821 MHz UNII3 BAND) Report No.: HCT-R-1506-F074 Model: WL1NB6 Page ５ of 45 F-01P-02-014 (Rev.00) FCC ID: BEJ9QK-DMWL1NB6 HCT Co.,Ltd. 3. TEST METHODOLOGY The measurement procedure described in FCC KDB 789033 D02 General UNII Test Procedures New Rules v01 dated June 06, 2014 entitled “ Guidelines for Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices Part15, Subpart E” and the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.407 under the FCC Rules Part 15 Subpart E. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4. (Versio…
