BEJ9QK-DWAM82DBWireless Adapter Card

LG_DWAM82-D module FCC Test manual.doc Page 1 of 12 © 2010 WSS CONFIDENTIAL LG DWAM82-DB Module for Hx995 FCC Test S/W manual Module: DWAM82-DB Date: Jun 03, 2010 Any STS Information is provided “as is” without any express or implied warranty of any kind, including warranties of merchantability, non-infringement of intellectual property, or fitness for any particular purpose. In no event shall Wireless Sound Solutions and/or its affiliate companies, or its suppliers liable for any damages whatsoever arising out of the use of or inability to use the information or the materials. Wireless Sound Solutions, its affiliate companies, and its suppliers further do not warrant the accuracy or completeness of information, text, graphics, or other items contained within materials. Wireless Sound Solutions, Inc. may make changes to materials, or the products described within, at any time, without notice. ©2009 Wireless Sound Solutions. All ri ghts reserved. Wireless Sound Solutions, STS and STS-wireless are trademarks of Wireless Sound Solutions. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 2 of 12 © 2010 WSS CONFIDENTIAL Hardware used: 4CH EVK. DWAM82-DB module Test software used: • For EvK : 20100603_FCC_DWAM82-D_12288MHz_ForEVK.hex • For DWM82-DB module : 20100603_FCC_DWAM82-D_12288MHz_ForEVK.hex Objective Showing how to change each mode needed for FCC Test. Date Revision Location Change Author Jun 03, 2010 0.1 SG First Draft Won CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 3 of 12 © 2010 WSS CONFIDENTIAL Classification by index number. < 2400MHz ~ 2483.5MHz> RF Band Mod/UnMod Tx/Rx Ant A/B Index Remarks 2.4G Modulated Continuous Tx Ant A 0x01 Ch 1, Freq : 2412MHz 0x02 Ch 2, Freq : 2438MHz 0x03 Ch 3, Freq : 2464MHz Ant B 0x04 Ch 1, Freq : 2412MHz 0x05 Ch 2, Freq : 2438MHz 0x06 Ch 3, Freq : 2464MHz Continuous Rx Ant A 0x07 Ch 1, Freq : 2412MHz 0x08 Ch 2, Freq : 2438MHz 0x09 Ch 3, Freq : 2464MHz Ant B 0x0a Ch 1, Freq : 2412MHz 0x0b Ch 2, Freq : 2438MHz 0x0c Ch 3, Freq : 2464MHz Unmodulated Continuous Tx Ant A 0x0d Ch 1, Freq : 2412MHz 0x0e Ch 2, Freq : 2438MHz 0x0f Ch 3, Freq : 2464MHz Ant B 0x10 Ch 1, Freq : 2412MHz 0x11 Ch 2, Freq : 2438MHz 0x12 Ch 3, Freq : 2464MHz Continuous Rx Ant A 0x13 Ch 1, Freq : 2412MHz 0x14 Ch 2, Freq : 2438MHz 0x15 Ch 3, Freq : 2464MHz Ant B 0x16 Ch 1, Freq : 2412MHz 0x17 Ch 2, Freq : 2438MHz 0x18 Ch 3, Freq : 2464MHz • The index number can be changed by pressing “Spare 3” button on the EVK. • For more detailed, you can find at the page 9. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 4 of 12 © 2010 WSS CONFIDENTIAL < 5725MHz ~ 5825MHz> RF Band Mod/UnMod Tx/Rx Ant A/B Index Remarks 5.8G Modulated Continuous Tx Ant A 0x21 Ch 1, Freq : 5736MHz 0x22 Ch 2, Freq : 5762MHz 0x23 Ch 3, Freq : 5814MHz Ant B 0x24 Ch 1, Freq : 5736MHz 0x25 Ch 2, Freq : 5762MHz 0x26 Ch 3, Freq : 5814MHz Continuous Rx Ant A 0x27 Ch 1, Freq : 5736MHz 0x28 Ch 2, Freq : 5762MHz 0x29 Ch 3, Freq : 5814MHz Ant B 0x2a Ch 1, Freq : 5736MHz 0x2b Ch 2, Freq : 5762MHz 0x2c Ch 3, Freq : 5814MHz Unmodulated Continuous Tx Ant A 0x2d Ch 1, Freq : 5736MHz 0x2e Ch 2, Freq : 5762MHz 0x2f Ch 3, Freq : 5814MHz Ant B 0x30 Ch 1, Freq : 5736MHz 0x31 Ch 2, Freq : 5762MHz 0x32 Ch 3, Freq : 5814MHz Continuous Rx Ant A 0x33 Ch 1, Freq : 5736MHz 0x34 Ch 2, Freq : 5762MHz 0x35 Ch 3, Freq : 5814MHz Ant B 0x36 Ch 1, Freq : 5736MHz 0x37 Ch 2, Freq : 5762MHz 0x38 Ch 3, Freq : 5814MHz • The index number can be changed by pressing “Spare 3” button on the EVK. • For more detailed, you can find at the page 9. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 5 of 12 © 2010 WSS CONFIDENTIAL Button descriptions on EVK. • Reset : To reset the whole system and start newly. • SPARE_1 : To switch RF band between 2.4G and 5.8G. There is more detailed information at the page 10. • SPARE_3 : To select a index number which has own functionality as written above. There is more detailed information at the page 9. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 6 of 12 © 2010 WSS CONFIDENTIAL GUI tool descriptions. - How to update Serial-Com SW for ATMEL MCU. • Double click the GUI tools named “DARR82_GUI_demo_5Ghz_2_6_1. exe” • Once the photos as shown left appear, please click “I Agree” button. • Go to “USB Port Settings” box at the bottom of GUI tool • Select the triangle button. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 7 of 12 © 2010 WSS CONFIDENTIAL • At this time, select “USB1(A3SEB7YE) and press the “Apply” button to confirm the settings. • Do not pay any attention to USB serial number. It may different from each computer. • You could see that the port of USB1 Is open. • Go to Tools on the top of GUI • Select “EVK Upgrade” under Tools’s submenu. • Please press the button as shown left . CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 8 of 12 © 2010 WSS CONFIDENTIAL • As shown left, if the button of “Change Loadfile” is activated, please select the serial_com_V_CU_005_5_8G_FCC. hex located at “\SW\For_EVK\” • And then press the “Start Loading” button to update the EVK. • Once this update process is successfully done, success message of “Check CRC16” will be shown up and disappear a moment later. • Go to Tools menu on the top of GUI and select it. • Among a few submenus under Tools please select “RS232 Info”. CONFIDENTIAL FOR LG & Namuga ONLY LG_DWAM82-D module FCC Test manual.doc Page 9 of 12 © 2010 WSS CONFIDENTIAL < Index switching at either 2.4GHz or 5.8G> • The pop up window will come out after you select “RS232 Info”. • If you look into the red circle, you can see the current index number. Index 0 means the idle status. • At this time, please press “Spare 3” button to change current index. • Every time you press “Spare 3 button, the Current Index number will change. • The detailed information about Index number is at t…

Text truncated - open the document above for the full version.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Attestation letter Applicant Name : LG Electronics USA. Applicant Address : 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States FCC ID : BEJ9QK-DWAM82DB Equipment Class : Digital Transmission System (DTS) Certified Model Name : DWAM82-DB Certified Product Name : Wireless Adapter Card We hereby declare that the operating band of DWAM82-DB module is restricted to 5.8GHz band using Software by manufacture. The available frequency is 5.8GHz band only Sincerely, Best Regards Jae Cheon Lee General Manager

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: December 06, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJ9QK-DWAM82DB including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA. Sincerely, Jae Cheon Lee General Manager

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: December 06, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJ9QK-DWAM82DB To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_BEJ9QK-DWAM82DB.pdf 2 Schematics Schematic_BEJ9QK-DWAM82DB.pdf 3 Part Lists Part List_BEJ9QK-DWAM82DB.pdf 4 Operational Description Operational Description_BEJ9QK-DWAM82DB.pdf SHORT-TERM 5 External Photos Ext Photo_BEJ9QK-DWAM82DB.pdf 6 Internal Photos Int Photo_BEJ9QK-DWAM82DB.pdf 7 Test-Setup Photos Test Photo_BEJ9QK-DWAM82DB.pdf 8 Users Manual User Manual_BEJ9QK-DWAM82DB.pdf Note: The pictures on the label location do not require any long term or short term confidentiality. The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jae Cheon Lee General Manager

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA December 06, 2010 Modular Approval Attestation for Wireless Adapter Card. Applicant: LG Electronics USA. FCC ID: BEJ9QK-DWAM82DB No. FCC requirements 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 This module uses PCB pattern antenna. This module meets the antenna requirements of section 15.203 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT (module) was tested a stand alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: BEJ9QK-DWAM82DB” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operation under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) This device will be OEM controlled installed in mobile RF exposure conditions with a minimum 20cm separation. Sincerely, Jae Cheon Lee General Manager

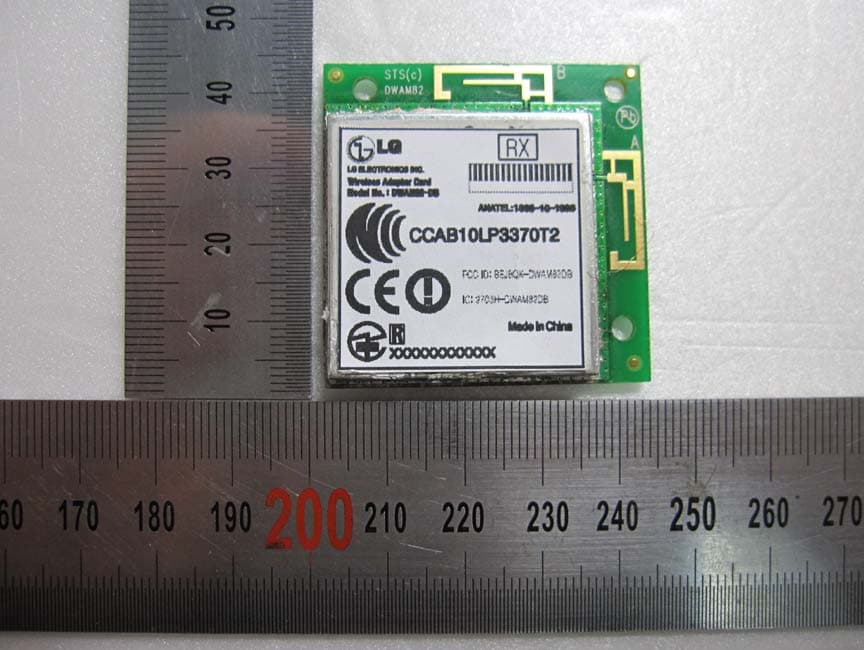

FCCID: BEJ9QK-DWAM82DB Copyright Ⓒ 2010, Digital EMC Co., Ltd. View 1

FCC ID: BEJ9QK-DWAM82DB Copyright Ⓒ 2010, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

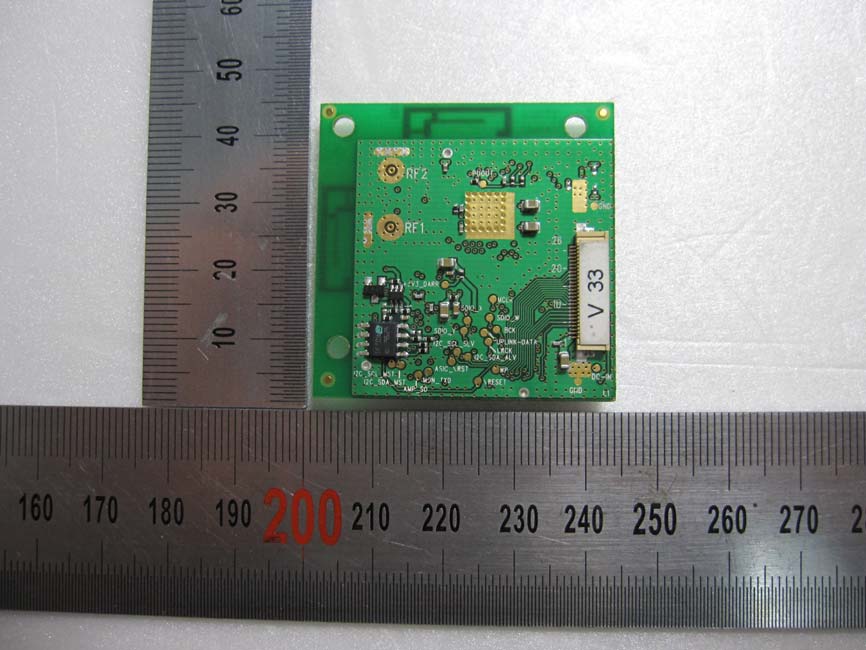

FCCID: BEJ9QK-DWAM82DB Copyright Ⓒ 2010, Digital EMC Co., Ltd. View 1 FCCID: BEJ9QK-DWAM82DB Copyright Ⓒ 2010, Digital EMC Co., Ltd. View 2 FCCID: BEJ9QK-DWAM82DB Copyright Ⓒ 2010, Digital EMC Co., Ltd. View 3

MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 RESULTS (MPE distance equals 20 cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModeBandMPEOutputAntennaFCC Power DistancePowerGainDensity (cm)(dBm)(dBi)(mW/cm^2) WLAN5 GHz20.08.843.000.003

1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 2 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. CONTENTS 1. Equipment information .............................................................. 3 1.1 Equipment description ............................................................. 3 1.2 Ancillary equipment ................................................................. 3 2. Information about test items ..................................................... 4 2.1 Test mode ................................................................................ 4 2.2 Auxiliary equipment ................................................................. 4 2.3 Tested frequency ..................................................................... 4 2.4 Tested environment ................................................................. 4 2.5 EMI Suppression Device(s)/Modifications ............................... 4 3. Test Report ................................................................................. 5 3.1 Summary of tests .................................................................... 5 3.2 Transmitter requirements ........................................................ 6 3.2.1 6 dB Bandwidth ................................................................... 6 3.2.2 Peak Output Power ........................................................... 11 3.2.3 Out of Band Emissions / Band Edge ................................. 12 3.2.4 Out of band Emission – Radiated ..................................... 31 3.2.5 Transmitter Power Spectral Density .................................. 36 3.2.6 AC Conducted Emissions .................................................. 41 3.2.7 Antenna Requirements ..................................................... 46 APPENDIX..................................................................................... 47 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 3 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 1. Equipment information 1.1 Equipment description FCC Equipment Class Digital Transmission System (DTS) Equipment type Wireless Adapter Card Equipment model name DWAM82-DB Equipment add model name N/A Equipment serial no. Identical prototype Frequency band 5736 ~ 5814 MHz Note Modulation type QPSK Antenna type Internal Type: PCB Antenna (Max. peak gain: 3 dBi) Power Supply DC 5 V AC-DC Adapter: AC 120V 60Hz Note : This device supports this band only. This device does not support 2.4 GHz band. 1.2 Ancillary equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 4 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 2. Information about test items 2.1 Test mode This device was tested in continuous transmitting mode at maximum power. Test Case 1 EUT Test Case 2 - 2.2 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note Notebook HP520 CND73824M9 HP - Jig Board N/A N/A LG - - - - - - 2.3 Tested frequency TX Frequency (MHz) RX Frequency (MHz) Lowest Channel 5736 5736 Middle Channel 5762 5762 Highest Channel 5814 5814 2.4 Tested environment Temperature : 20 ~ 22 o C Relative humidity content : 38 ~ 55 % R.H. Details of power supply : DC 5 V AC-DC Adapter: AC 120V 60Hz 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 5 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit (Using in 5725 ~ 5850 MHz) Test Condition Status Note 1 I. Test Items 15.247(a) 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) Transmitter Power Spectral Density < 8dBm / 3kHz C 15.205 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 Limits Radiated C Note.2 15.207 AC Conducted Emissions <FCC 15.207 Limits AC Line Conducted C 15.203 Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis. and the worst case data were reported. The sample was tested according to the following specification: ANSI C-63.4-2003 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 6 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 3.2 Transmitter requirements 3.2.1 6 dB Bandwidth - Procedure: The bandwidth at 6 dB below the highest inband spectral density was measured with a spectrum analyzer connected to the antenna terminal at the highest, middle and the lowest available channels. After the trace being stable, Use the marker-to-peak function to set the marker to the peak of the emission. Use the marker-delta function to measure 6dB down one side of the emission. Reset the marker-delta function, and move the marker to the other side of the emission, until it is (as close as possible to) even with the reference marker level. The marker-delta reading at this point is the 6 dB bandwidth of the emission. The spectrum analyzer is set to: Center frequency = the highest, middle and the lowest Frequencies Span = 50 MHz (Greater than EBW) RBW = 100 kHz Sweep = auto VBW = ≥ RBW Detector function = peak Trace = max hold - Measurement Data: Comply Test Mode Frequency Test Results (MHz) Antenna A Lowest 9.455 Middle 9.856 Highest 9.776 Antenna B Lowest 9.535 Middle 9.375 Highest 9.455 Note 1: See next pages for actual measured spectrum plots. - Minimum Standard: The minimum 6 dB bandwidth shall be at least 500 kHz 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 7 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 6 dB Bandwidth Test Mode: Antenna A & Lowest Frequency 6 dB Bandwidth Test Mode: Antenna A & Middle Frequency 1011-01170 DRTFCC1012-0338 TRF-RF-201(02)100714 Page 8 / 49 Copyright ○ C 2010, Digital EMC Co., Ltd. 6 dB Bandwidth Test Mode: Antenna A & Highest Frequency 1011-01170 DRTFCC101…
