BEJ9QK-TWFMB008DWLAN Module

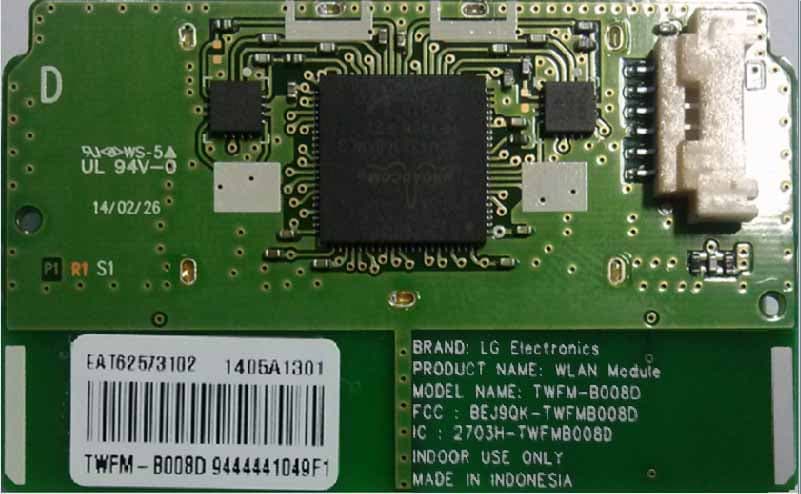

Users manual PRODUCT NAME : WLAN Module MODEL NAME : TWFM-B008D The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. (00)-0073 User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 1 / 9 Index No DescriptionPage 1F21Features2 2 Product photo2 3 Installation 3 4 Block Diagram4 5 Storage Conditions4 6 Operating Conditions5 7 Test Conditions5 8 Pin Description6 9 Outline Drawing7 10 Packing Information8 Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 2 / 9 1. Features TWFM-B008D is the small size and low power module for IEEE 802.11a/b/g/n wireless LAN. TWFM-B006D is based on Broadcom BCM43236B solution.. ƒIEEE 802.11 a/b/g/n Dual Band WLAN infrastructure ƒSize : 48.0mm x 30.0mm x 6.7mm ƒ2.4GHz and 5GHz Internal PA ƒTwo stream spatial multiplexing up to 300Mbps(802.11n) ƒUse on-chi p OTP (One-Time Programmable)pg ƒUSB 2.0 ƒSupports drivers for Linux, Windows ƒSecurity : WPA,WPA2,AES(TKIP), IEEE 802.1X • Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB 2. Module Photo Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 3 / 9 3. Installation This Wi-Fi module will be installed inside TV. TV RPlTV Rear Panel installed position Cable Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 4 / 9 4. Block Diagram BCM43236B ANT1 USB Connector RF Switch+ Diplexer ANT2 802.11n MAC 2.4GHz 5GHz PA 2 x 2 Radio 802.11n PHY Security OTP (2K bits) Internal Bus GPIO USB 2.0 5. Storage Conditions Main Clock(20MHz) 1.2V DC-DC (1.5MHz) 3.5V ParameterMinMaxUnit Caution : The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. ParameterMinMaxUnit Storage Temperature-10+80 °C Storage Humidity (@ 40°C) -90% • Other conditions 1) Do not use or store modules in the corrosive atmosphere especially where chloride1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Copyrightⓒ. 2013. All Rights Reserved. Check the soldering ability in case of 6 months over. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 5 / 9 6. Operating Conditions ParameterMinTypMaxUnit Operating Temperature0-+60 °C Operating Humidity (40°C) --85 % Supply Voltage3.3253.53.675Vdc 7. Test conditions 7-1. Macro-environment Temperature 25 ±5°C Humidity 65 ±5% Input voltageVoltage range 7-2. Voltage conditions pggg VDD_3.3V +3.5V ±0.175V Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 6 / 9 8. Pin Description Pin No.Pin NameI/OPin Description 1VCCIVDD 3.5V 2D-I/OUSB Communication signal USB_DN 3D+I/OUSB Communication signal USB_DP 4GND-GND 5WOWIWake On WLAN 6NCINC < TOP View > A Note. 1) Recommend a Module install sequence for prevent USB device failure - Supply 3.5V power Cttdtil(USBDPUSBDN)-Connect to data signal (USB_DP, USB_DN) 2) If remove the module, proceed in reveres sequence 3) Connector : (CONN 12507WR-06L, YEONHO ELECTRONICS CO., LTD.) A Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 7 / 9 9. Outline Drawing Copyrightⓒ. 2013. All Rights Reserved. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 8 / 9 10. Packing Information • 1 Tray Package Q’ty : 120EA • Tray Material : Antistatic PET or Antistatic PS • 1 Tray Weight : 0.2kg (1 Module Weight : 6.4 ±0.5g) Tray • Total Packing Q’ty : 1,440EA • Total Packing Weight : 12.6±0.8kg • Tray Stacking Q’ty :6 Stack(Zigzag stack) Corrugated Fibreboard PP Band • 1 Box Package Q’ty : 720EA • Box Size : A x B x C (512 x 377 x 121.5) • Box Material : Corrugated Fibreboards • 1 Box Packing Weight : 6.3 ±0.4kg Barcode LabelRoHS Marking Inner Box Barcode LabelRoHS Marking • RoHS Marking : Label, Stamp, Printing • Marking Color : GRdf StLbl Copyrightⓒ. 2013. All Rights Reserved. Gray or Red for Stamp, Label, Printing on the board and etc. Black only for Printing on Label. User Manual PAGE : REG. DATE : 2014.05.30 REV. DATE : 2014.05.30 REV.NO : 1.0 MODEL NAME : TWFM-B008D 9 / 9 10. Packing Information Copyrightⓒ. 2013. All Rights Reserved. FCC (Regulatory information/warning) §15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. §15.105 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, t…

Text truncated - open the document above for the full version.

Date : Jan. 10, 2014 Rev : 2.1 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC Modular Approval Declaration Letter Date : Jan. 10, 2014 Rev : 2.1 HACS-F007 Modular Approval Declaration Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated Template(Obsolete) 10/01/2012 QM 2.1 Updated address 01/10/2014 QM HACS-F007 Modular Approval Declaration Letter Rev : 2.1 Date : July 2, 2014 Subject : Modular Approval Declaration Letter FCC ID : BEJ9QK-TWFMB008D is seeking FCC equipment authorization as Single Modular Transmitter Single Limited Modular Transmitter Equipment Under Testing (‘EUT’) satisfy the requirement for Single Modular Approval Single Limited Modular Approval as detailed in FCC Public Notice DA00-1407. FCC Requirement of Modular Approval 1. The modular transmitter must have its own RF shielding. YES NO 2. The modular transmitter must have buffered modulation/data inputs. YES NO 3. The modular transmitter must have its own power supply regulation. YES NO 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). YES NO 5. The modular transmitter must be tested in a stand-alone configuration. YES NO 6. The modular transmitter must be labeled with its own FCC ID number. YES NO 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements. YES NO 8. The modular transmitter must comply with any applicable RF exposure requirements. YES NO Note :  Limited modular approval may be granted If EUT does not meet all of the requirement shown above  Limited modular approval may be granted in case that the applicant can demonstrate to retain control over the final installation of the device such that compliance of the end product is assured. In that case, an operating condition on the limited modular approval for the module shall state that the module is only designated for the end product manufactured by a specific manufacturer  When limited modular approval is sought, the application for equipment certification shall state how control of the end product into which the module will be installed and maintained such that full compliance of the end product is always ensured.  It shall be provided that clear and specific instructions describing the conditions limitations and procedures for third-parties to use and/or integrate the module into a host device  For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, it shall be provided that the technical description of how such control is implemented to ensure to prevent the third party from modifying (see KDB 594280).  Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Jacob Cho / Director, Standards & Compliance Company Name : LG Electronics USA. Company Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States

Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44946 Osgood Rd, Fremont, CA 94539, USA TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44946 Osgood Rd, Fremont, CA 94539, USA TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 03/14/2012 QM 2.0 Updated template 10/01/2012 QM LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 2.0 DATE : July 2, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : BEJ9QK-TWFMB008D We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description SHORT-TERM CONFIDENTIAL (180 DAYS) 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Company Name : LG Electronics USA. Company Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States Contact Person Name/Title (in print) : Jacob Cho / Director, Standards & Compliance

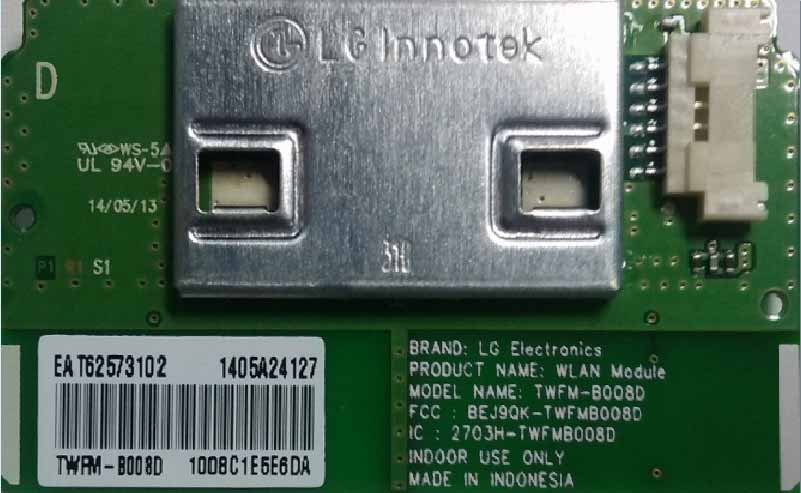

TOP - with Shieldcan Copyrightⓒ. 2013. All Rights Reserved. 1 / 3

FCC ID: BEJ9QK-TWFMB008D / IC:2703H-TWFMB008D 1 / 3 FCC ID: BEJ9QK-TWFMB008D / IC:2703H-TWFMB008D 2 / 3 FCC ID: BEJ9QK-TWFMB008D / IC:2703H-TWFMB008D 3 / 3

HCT CO., LTD 1 of 5 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a giv en distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power densit y P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJ9QK-TWFMB008D / IC:2703H-TWFMB008D FCC ID: BEJ9QK-T WFMB008D / IC:2703H-TWFMB008D HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 5 3. RESULTS (DTS BAND) 3-1. 2.4 GHz BAND Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 3-2. 5.8 GHz BAND Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJ9QK-T WFMB008D / IC:2703H-TWFMB008D HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 3 of 5 4.RESULTS (UNII 1 BAND) 4-1. 802.11a(5180 ~ 5240) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 4-2.802.11n 20MHz BW(5180~5240) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJ9QK-T WFMB008D / IC:2703H-TWFMB008D HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 4 of 5 4-3 802.11n_40MHz BW (5190 ~5230) Max Peak output Power at antenna input terminal (dBm) Max Peak output Power at antenna input terminal (mW) Prediction distance (cm) Prediction frequency (MHz) Antenna Gain(typical) (dBi) Antenna Gain(numeric) Power density at prediction frequency (mW/cm²) MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) FCC ID: BEJ9QK-TWFMB008D / IC:2703H-TWFMB008D HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 5 of 5 5. RESULTS DTS BAND 1. The power density level at 20 cm is 0.3679mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 2.4GHz BAND 2. The power density level at 20 cm is 0.2721 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 5.8GHz BAND ->Simultaneous MPE 20cm is (0.3679/1.0) + (0.2721/1.0) < 1 UNII BAND 1. The power density level at 20 cm is 0.0177 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 802.11a(5180~5240) BAND 2. The power density level at 20 cm is 0.0198 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 802.11n_20MHz BW(5180~5240) BAND 3. The power density level at 20 cm is 0.0355 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at at 802.11n_40MHz BW(5190~5230) BAND

HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC Certification Applicant Name: LG Electronics Inc. Address: 222 LG-ro Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 451-713, Korea Date of Issue: July 11, 2014 Test Site/Location: HCT CO., LTD., 74,Seoicheon-ro 578beon-gil,Majang- myeo,Icheon-si, Gyeonggi-do, Korea Report No.: HCT-R-1407-F011-1 HCT FRN: 0005866421 IC Recognition No.: 5944A-3 FCC ID IC APPLICANT : BEJ9QK-TWFMB008D : 2703H-TWFMB008D : LG Electronics Inc. FCC/ IC Model(s): TWFM-B008D EUT Type: WLAN Module Max. RF Output Power: Ant.0: Wi-Fi 802.11b(22.26 dBm) / Wi-Fi 802.11g (23.11 dBm) / Wi-Fi 802.11n_20 MHz (23.53 dBm) / Wi-Fi 802.11n_40 MHz (24.78 dBm) / Wi-Fi 802.11a (5745~5825) (20.06 dBm) / Wi-Fi 802.11n_20 MHz (5745~5825) (20.54 dBm) / Wi-Fi 802.11n_40 MHz (5755~5795) (21.02 dBm) Ant.1: Wi-Fi 802.11b(21.11 dBm) / Wi-Fi 802.11g (22.26 dBm) / Wi-Fi 802.11n_20 MHz (22.64 dBm) / Wi-Fi 802.11n_40 MHz (23.55 dBm) / Wi-Fi 802.11a (5745~5825) (20.45 dBm) / Wi-Fi 802.11n_20 MHz (5745~5825) (20.80 dBm) / Wi-Fi 802.11n_40 MHz (5755~5795) (21.05 dBm) Sum data of Ant.0 & 1 Wi-Fi 802.11g (25.72 dBm) / Wi-Fi 802.11n_20 MHz (26.09 dBm) / Wi-Fi 802.11n_40 MHz (27.14 dBm) / Wi-Fi 802.11a (5745~5825) (23.26 dBm) / Wi-Fi 802.11n_20 MHz (5745~5825) (23.68 dBm) / Wi-Fi 802.11n_40 MHz (5755~5795) (23.91 dBm) Frequency Range: 2412 MHz - 2462 MHz (2.4 GHz Band) _20 MHz BW 2422 MHz - 2452 MHz (2.4 GHz Band)_40 MHz BW 5745 MHz - 5825 MHz (5.8 GHz Band)_20 MHz BW, 5755 MHz - 5795 MHz (5.8 GHz Band)_40 MHz BW Modulation type: CCK/DSSS/OFDM FCC Classification: Digital Transmission System(DTS) FCC Rule Part(s): Part 15.247 IC Rule : RSS-GEN Issue 3(December 2010), RSS-210 Issue 8(December 2010) Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report prepared by : Kyung Soo Kang Test engineer of RF Team Approved by : Chang Seok Choi Manager of RF Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. F-01P-02-014 (Rev.00) (주)에이치시티 Page １ of 178 FCC ID: BEJ9QK-TWFMB008D IC:2703H-TWFMB008D Page: ２ of 178 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1407-F011 July 03, 2014 - First Approval Report HCT-R-1407-F011-1 July 11, 2014 -Add the Port0 & 1 Sum Max. RF Output Power on page 1 -Revised the Antenna gain Section 6 F-01P-02-014 (Rev.00) Test Report No. HCT-R-1407-F011-1 (주)에이치시티 Page ２ of 178 FCC ID: BEJ9QK-TWFMB008D IC:2703H-TWFMB008D Page: ３ of 178 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 2.1 EUT OPERATING MODE ................................................................................................................... ５ 3. TEST METHODOLOGY ............................................................................................................................... ６ 3.1 EUT CONFIGURATION ...................................................................................................................... ６ 3.2 EUT EXERCISE .................................................................................................................................. ６ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ６ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ６ 4. INSTRUMENT CALIBRATION ..................................................................................................................... ７ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ７ 5.1 FACILITIES ......................................................................................................................................... ７ 5.2 EQUIPMENT ....................................................................................................................................... ７ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ８ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ９ 7.1 FCC Part ............................................................................................................................................. ９ 7.2 IC Part ............................................................................................................................................. １０ 8. TEST RESULT ......................................................................................................................................... １１ 8.1 DUTY CYCLE (802.11a/b/g/n) ....................................................................................................... １１ 8.2 6dB BANDWIDTH (802.11a/b/g/n) ................................................................................................ １３ 8.3 99% BANDWIDTH (802.11a/b/g/n) ................................................................................................ ２６ 8.4 OUTPUT POWER (802.11a/b/g/n) .....................................................................................…
