BEJ9QK-TWFMK304DWLAN Module

User Manual PRODUCT NAME : 1T2R Wi-Fi Module MODEL NAME : TWFM-K304D (00) -0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 1 / 13 Table of Contents No. DescriptionPage 1 Features2 2 Module Photo2 3 Block Diagram3 4 Storage Conditions4 5 Operating Conditions4 6 Software Programming5 7 Pin Description7 8 Wi -Fi Certification Status8 9 Outline Drawing10 10 Packing Information11 User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 2 / 13 2. Module Photo 1. Features TWFM-K304D is the module for IEEE 802.11b/g/n wireless LAN. TWFM-K304D is based on MTK MT7601U solution. IEEE 802.11 b/g/n singleband WLAN infrastructure Size : 45mm x 20mm x 8.2 mm Auto -calibration 1T2R mode with 150Mbps PHY rate USB 2.0interface Supports drivers for Windows 7, Vi s ta, XP, 2000 and Linux Security: WFA, WPA, WPA2,WPS2.0, WAPI Application: DTV, DVR, HD DVD Player, Blue -ray Disk Player, STB Confidential User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 3 / 13 3. Block Diagram Confidential User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 4 / 13 4. Storage Conditions 5. Operating Conditions ParameterMinMaxUnit Storage Temperature-20+80°C Storage Humidity (@ 40°C)-90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long -term reliability of the device. • Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. ParameterMinTypMaxUnit Operating Temperature0-+55°C Operating Humidity (40°C)--85% Supply Voltage4.755.05.25Vdc User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 5 / 13 6. Software Programming 1) Windows OS (1) Install a normal driver for winXP or win7. [Device Management] –[Network Adapter] – “802.11 USB Wireless..” The device description maybe is different by version. You can check whether it is proper or not by VID/PID. VID_148F&PID_7601 <Fig.A.1> (2) RUN WZC (Wireless Zero Configuration) [Computer Management] – [Service and Application] – [Service] The WZC service should be enabled <Fig.A.2> < Fig. A.1 Device Information > < Fig. A.2 WZC > User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 6 / 13 (3) Run “Local Connection” 1) If WZC is enabled, you can scan available AP list as <Fig.A.3> Please select AP by double-click. 2) You can check the connection status by property box. < Fig. A.3 AP list > < Fig. A.4 Connection Status > 2) Linux Device Driver Before compiling the driver, you should change make file or makefile.inc to meet your target platform. * Please refer to the release note in detail. User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 7 / 13 7. Pin Description < TOP View > < Bottom View > Pin No.Pin NameI/OPin Description 1VDDIVDD 5.0V 2USB_DNI/OUSB Communication signal USB_DN 3USB_DPI/OUSB Communication signal USB_DP 4GND-GND 5N/C-- Note. 1) Recommend a Module install sequence for prevent USB device failure - Supply 5.0V power - Connect to data signal (USB_DP, USB_DN) 2) Connector: 5Pin SMD Connector A 1 5 User Manual PAGE : REG. DATE : 2014.03.31 MODEL NAME :TWFM-K304D REV. DATE : 2014.03.31 REV.NO : 1.0 ©2014 LGIT. All rights reserved. 8 / 13 8. Certification Status 1) FCC approval The satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter module FCC ID: BEJ9QK-TWFMK304D This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiating element of this device and the user. This device must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators and following statements shall be included to host user manual: 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) This module may not be co-located with any other transmitters or antennas. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this module installed. In the event that these conditions cannot be met, then the FCC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product including this module and obtaining separate FCC authorizations. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generat…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: April 15, 2014 Letter of Authorization We, the undersigned, hereby authorize Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: BEJ9QK-TWFMK304D including signing of all documents relating to these matters. Any and all acts carried out by Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jacob Cho Director, Standards & Compliance

Digital EMC Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: April 1 5, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: April 15, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJ9QK-TWFMK304D To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA April 15, 2014 Modular Approval Attestation for WLAN Module Applicant: LG Electronics USA. FCC ID: BEJ9QK-TWFMK304D No. FCC requirements 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 This module uses Internal PIFA antenna(1TX 2RX) Tin plate antenna(TX/RX), Printed antenna(RX only) This module meets the antenna requirements of section 15.203 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT (module) was tested a standalone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: BEJ9QK-TWFMK304D ” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operation under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) The exposure condition of this module is compliant with the requirements. Please refer to MPE calculation. Sincerely, Jacob Cho Director, Standards & Compliance

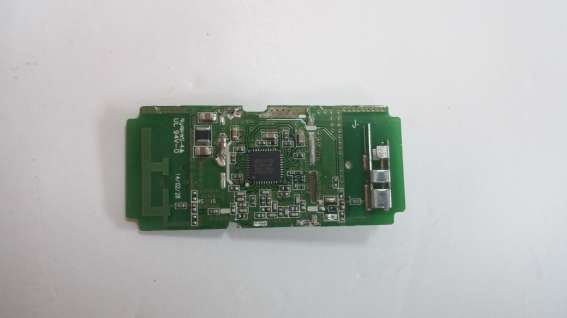

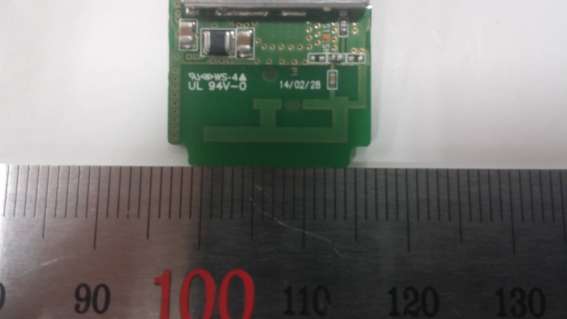

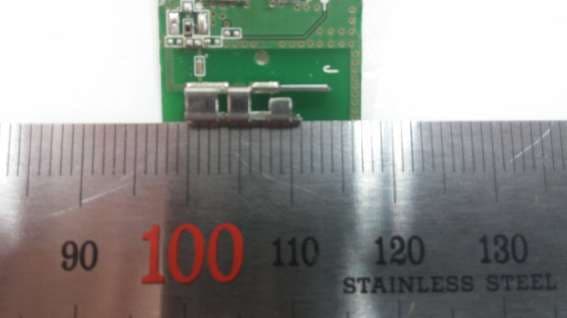

FCCID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 1 FCCID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 2 FCCID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 3

FCC ID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 2 View 1 FCCID: BEJ9QK-TWFMK304D Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 2 View 2 <TX /RX antenna> <RX antenna>

The MPE calculation for this exposure is shown below. - ++++ R = Distance to the center of the radiation of the antenna(20cm) P G / ( 4 R 2 π ) =S Note S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(mW) Copyright ⓒ 2014, Digital EMC Co., Ltd. FCC ID: RF Exposure Calculation The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Power density at the specific separation The power desity at 20cm does not exceed the 1.0mW/cm 2 . Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 G = Numeric power gain of the antenna Target power (P) Mode802.11b802.11g802.11n(HT20)802.11n(HT40) 9.50 dBm8.00 dBm10.50 dBm15.00 dBm dB 12.00 dBm Antenna gain (G) Calculated Power density (S) 1.50 BEJ9QK-TWFMK304D Max TolerancedB Max Target power (P) 16.50 dBm 44.669 1.973 numeric 0.018 mW/cm 2 1.501.50 mW 2.95 dBi2.952.95 dBi 1.50 1.973 numeric 0.007 mW/cm 2 15.849 mW dB 11.00 dBm 12.590 1.973 numeric dBi mW dB 9.50 dBm 8.913 mW dBi2.95 1.973 numeric 0.004 mW/cm 2 0.005 mW/cm 2

DEMC1403-00857, DEMC1403-00856 FCCID: BEJ9QK-TWFMK304D Report No.:DRTFCC1404-0520 IC: 2703H-TWFMK304D TRF-RF-213(04)140314 Page2 / 88 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1404-0520 Apr. 23, 2014 Initial issue DEMC1403-00857, DEMC1403-00856 FCCID: BEJ9QK-TWFMK304D Report No.:DRTFCC1404-0520 IC: 2703H-TWFMK304D TRF-RF-213(04)140314 Page3 / 88 Copyright ○ C 2014, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6dB Bandwidth ................................................................................................................. 8 8.2 Maximum Peak Conducted Output Power ................................................................... 17 8.3 Maximum Power Spectral Density ................................................................................ 20 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions ........... 29 8.5 Radiated Spurious Emissions ....................................................................................... 66 8.6 Power-line Conducted Emissions ................................................................................ 72 8.7 Occupied Bandwidth ...................................................................................................... 75 9. LIST OF TEST EQUIPMENT .................................................... 84 APPENDIX I ................................................................................. 85 APPENDIX II ................................................................................ 86 DEMC1403-00857, DEMC1403-00856 FCCID: BEJ9QK-TWFMK304D Report No.:DRTFCC1404-0520 IC: 2703H-TWFMK304D TRF-RF-213(04)140314 Page4 / 88 Copyright ○ C 2014, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : LG Electronics USA Address : 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 FCC ID IC : : BEJ9QK-TWFMK304D 2703H-TWFMK304D EUT : WLAN Module Model : TWFM-K304D Additional Model(s) : N/A Data ofTest : 2014-03-17 ~ 2014-03-27 Contact person : Jacob Cho 2. EUT DESCRIPTION Product WLAN Module Model Name TWFM-K304D Power Supply DC 5V Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20MHz): 2412 ~ 2462 MHz ▪ 802.11n(40MHz): 2422~2452 MHz Max. RF Output Power 2.4GHz Band ▪802.11b: 19.58dBm ▪802.11g: 19.84dBm ▪ 802.11n (HT20): 18.77dBm ▪ 802.11n (HT40): 17.25dBm Modulation Type 802.11b: DSSS/CCK 802.11g/n(HT20/HT40): OFDM Antenna Specification PIFA Antenna (1TX / 2RX) Tin plate Antenna Max peak gain : 2.95 dBi (TX/RX) Printed Antenna (Rx only) DEMC1403-00857, DEMC1403-00856 FCCID: BEJ9QK-TWFMK304D Report No.:DRTFCC1404-0520 IC: 2703H-TWFMK304D TRF-RF-213(04)140314 Page5 / 88 Copyright ○ C 2014, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [4.6.1] Occupied Bandwidth (99%) RSS-Gen(4.6.1) C 15.205 15.209 RSS-Gen [7.2.2] [7.2.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 limits Radiated C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. DEMC1403-00857, DEMC1403-00856 FCCID: BEJ9QK-TWFMK304D Report No.:DRTFCC1404-0520 IC: 2703H-TWFMK304D TRF-RF-213(04)140314 Page6 / 88 Copyright ○ C 2014, Digital EMC Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r1. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet theCommissions requirement and operating in a manner that intends to maximize its emissioncharacteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose ofthe measurements. According to its specifications, the EUT must comply with the requirements ofthe Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL …
